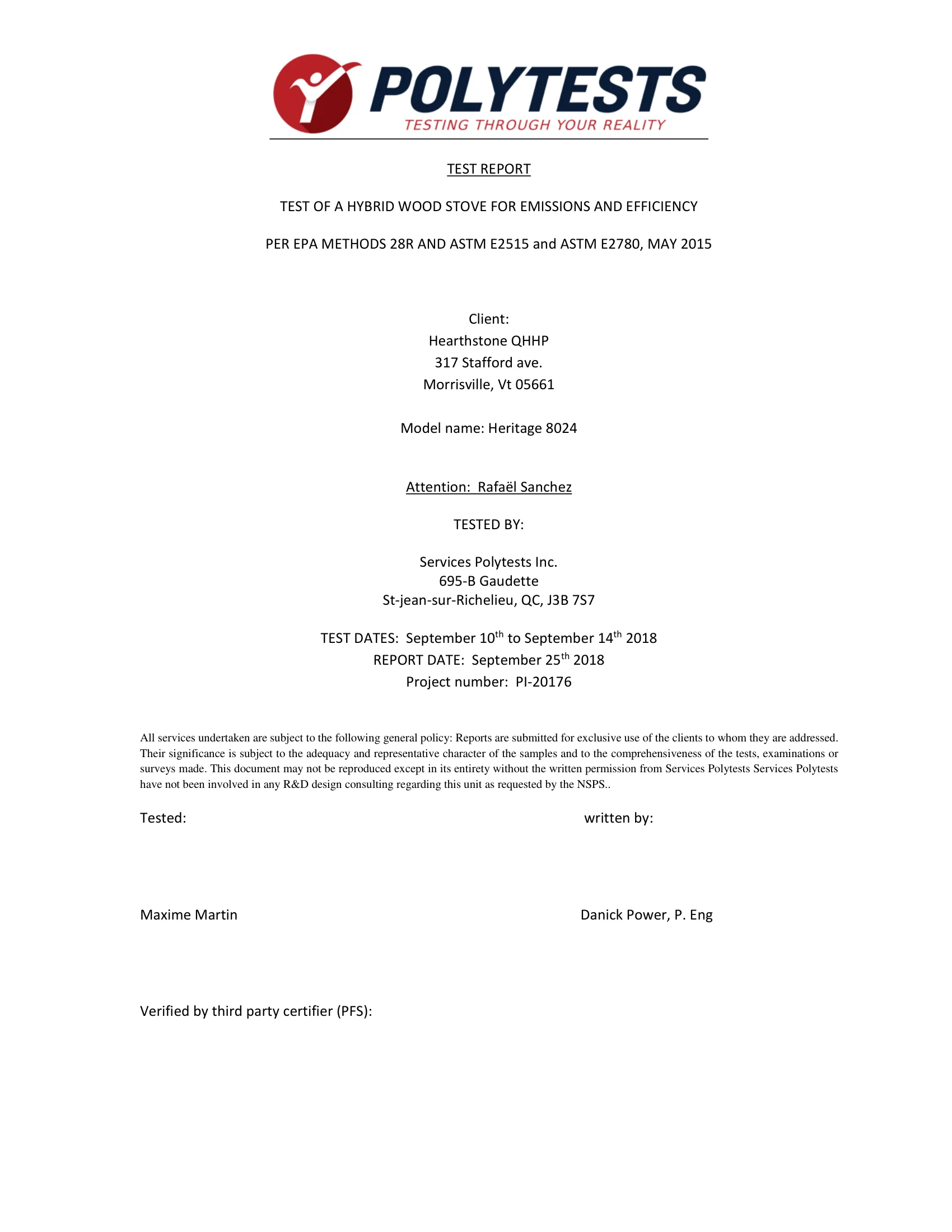

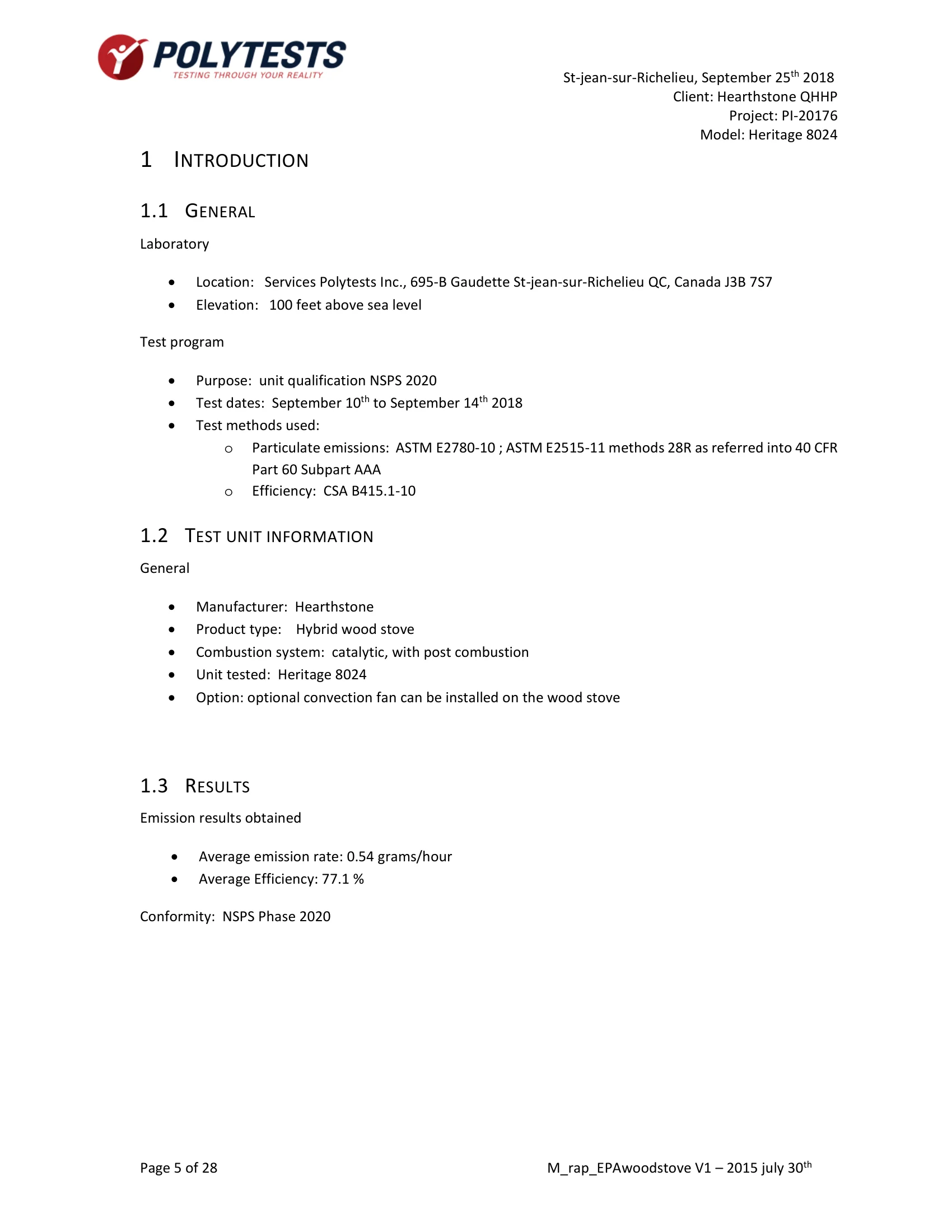

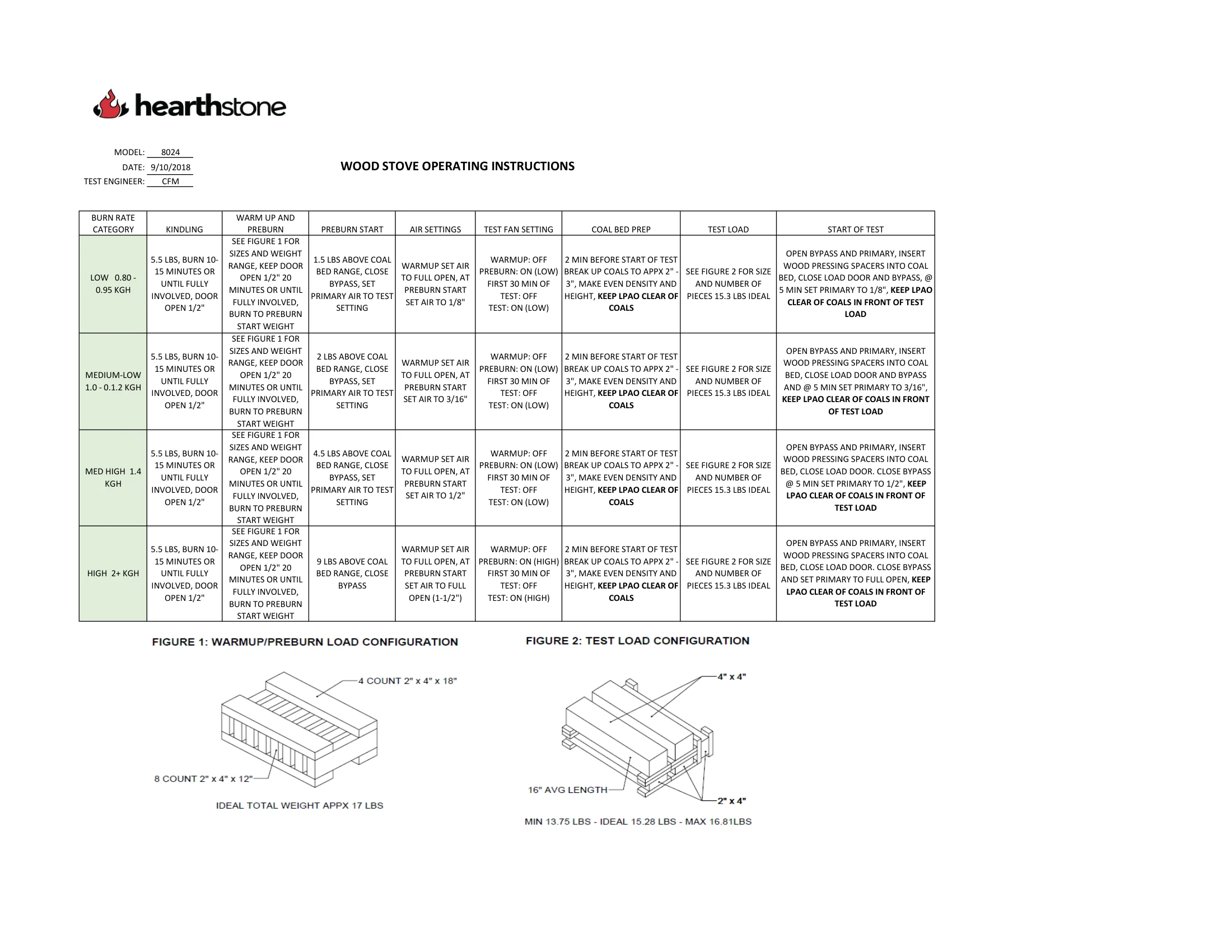

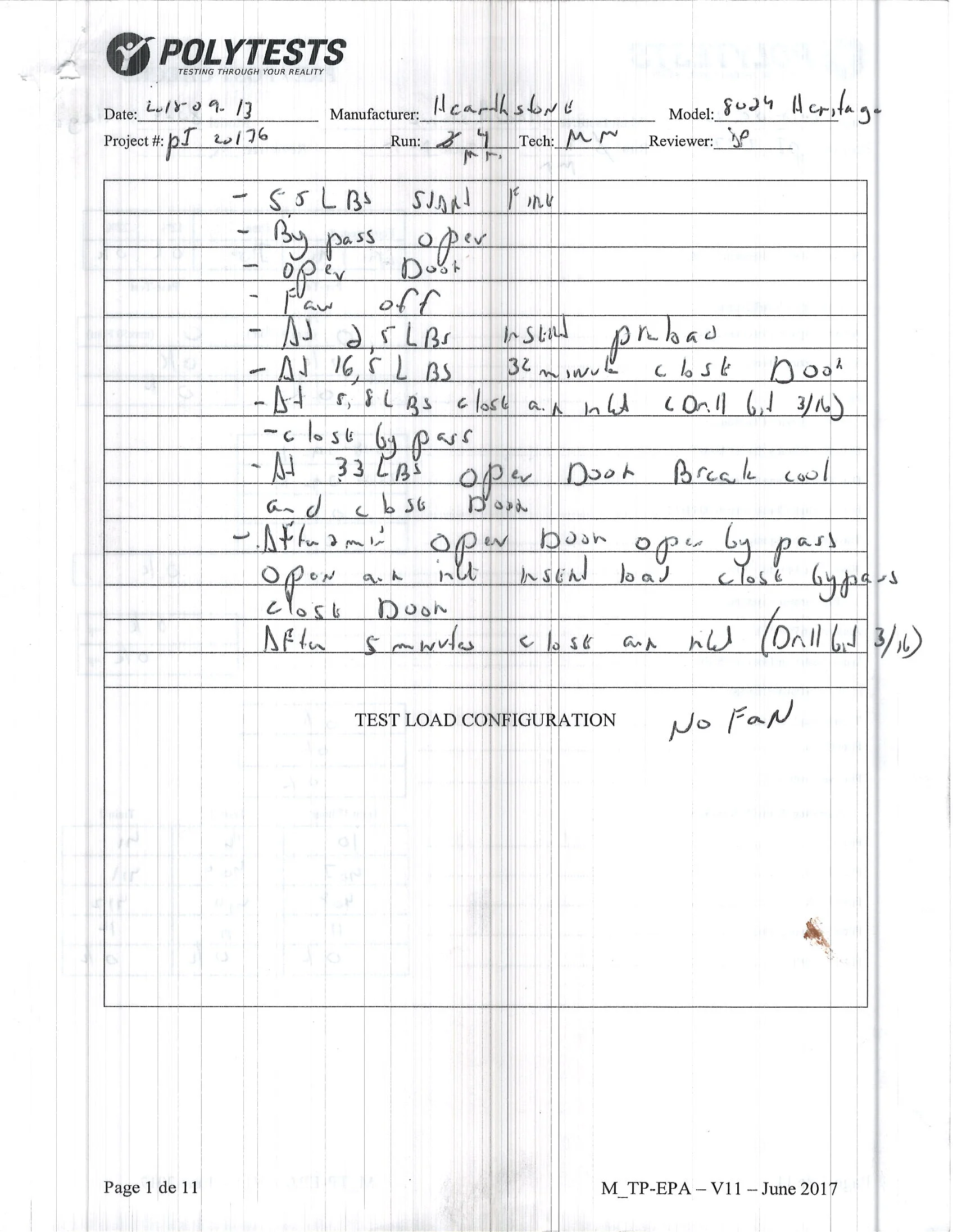

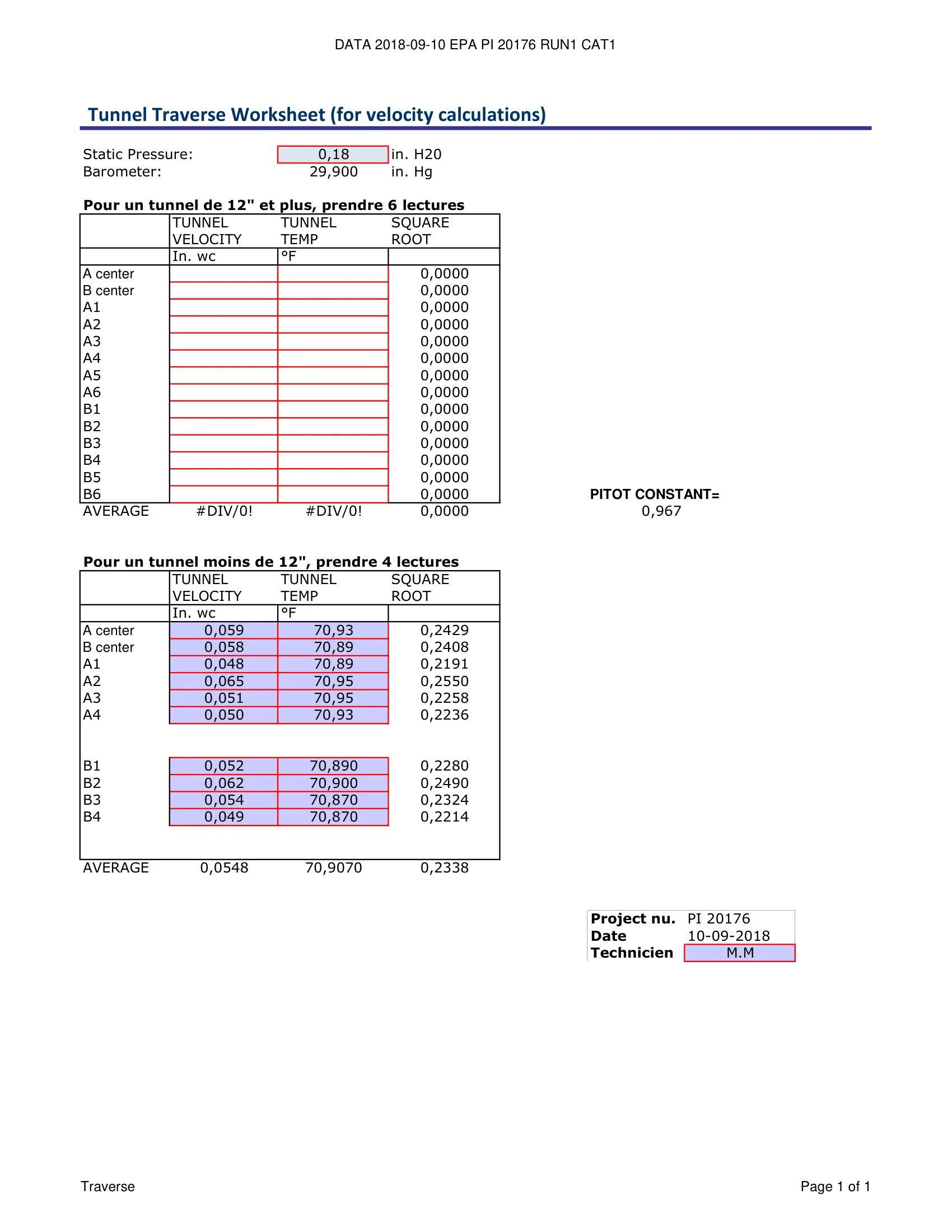

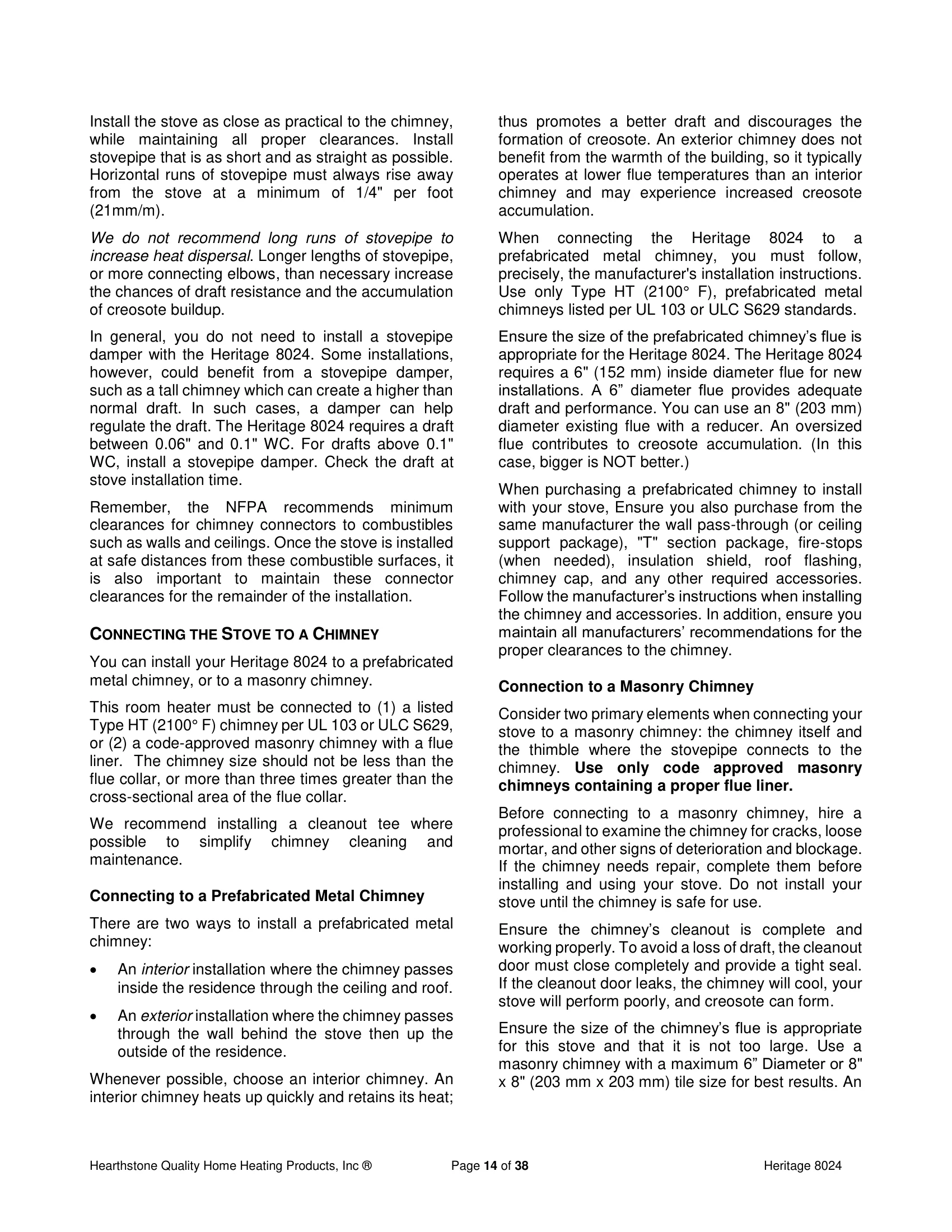

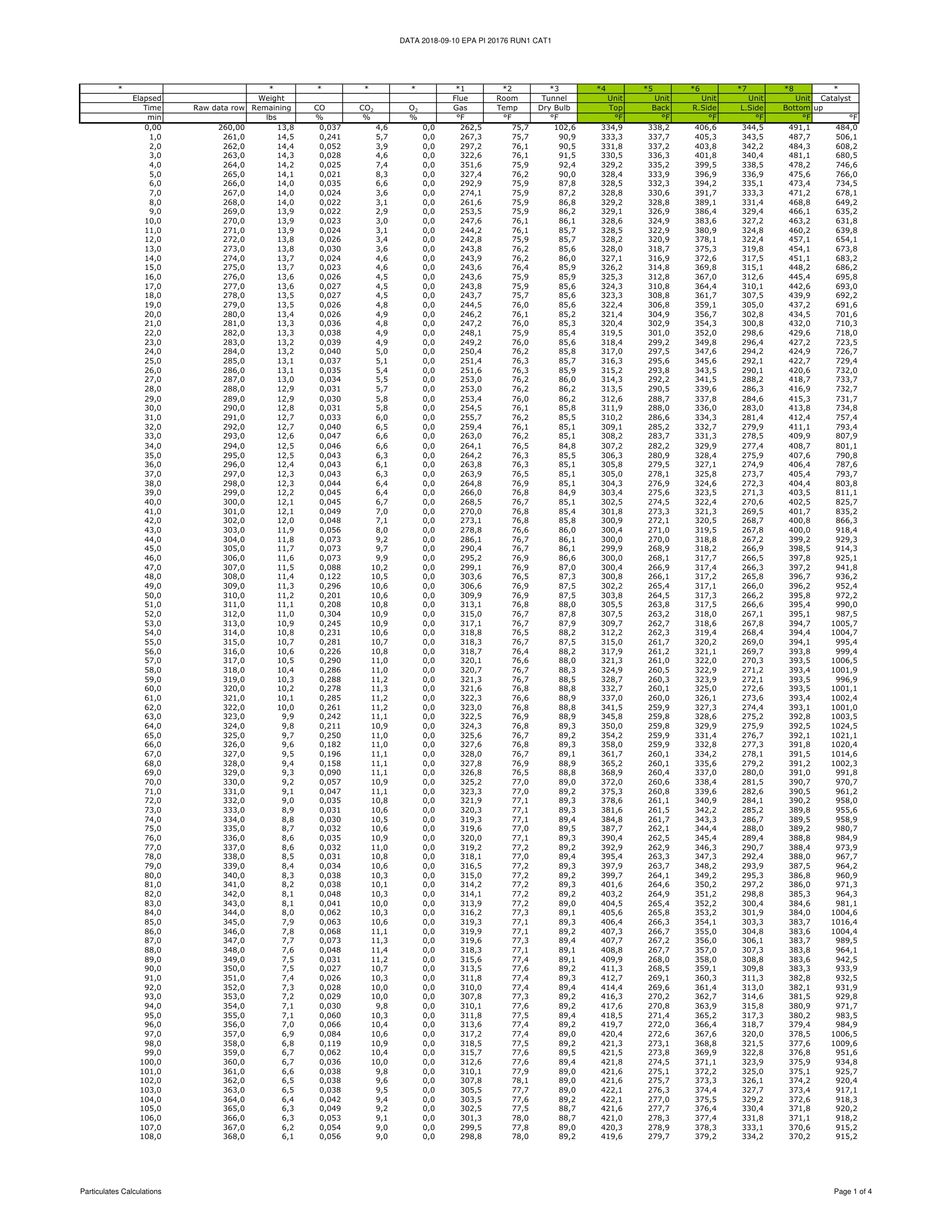

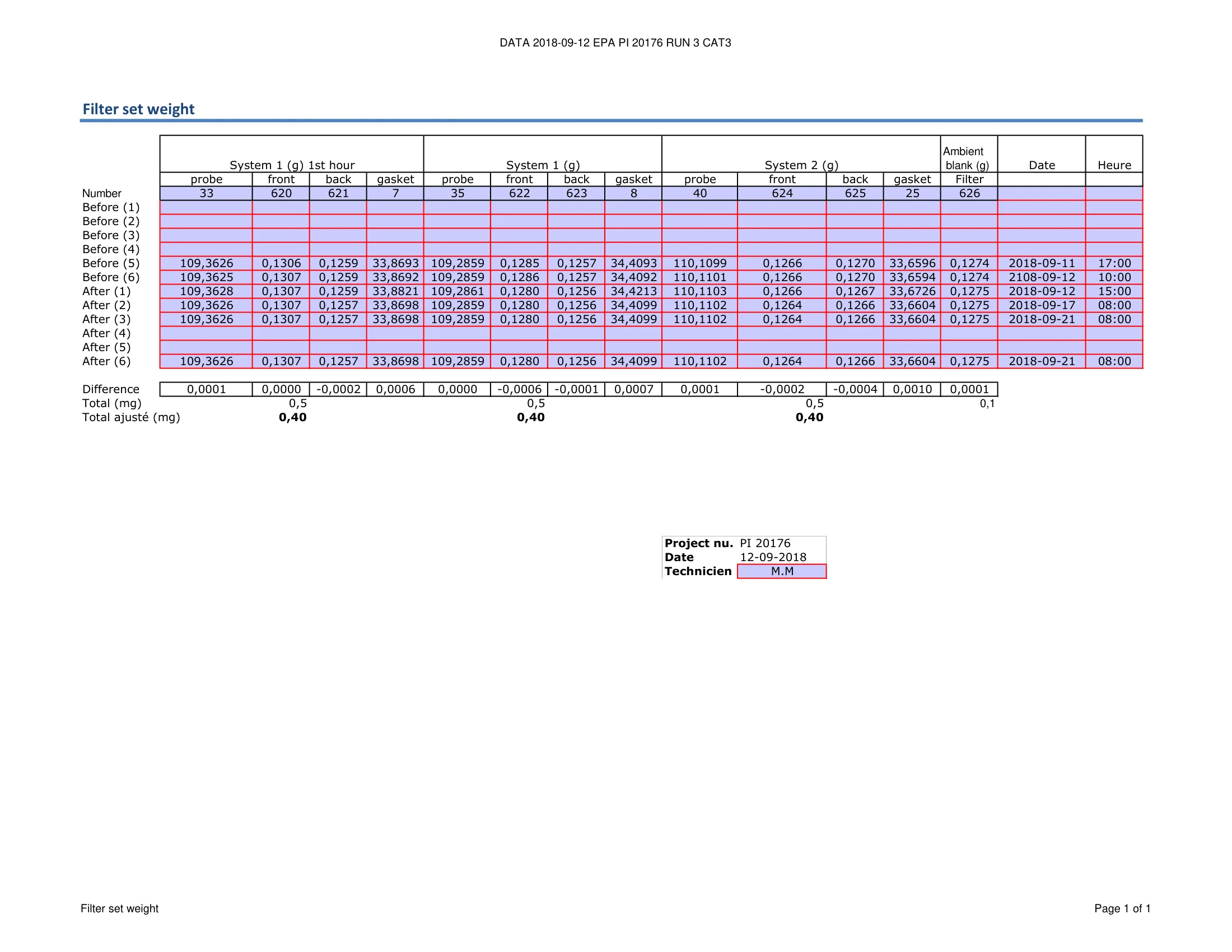

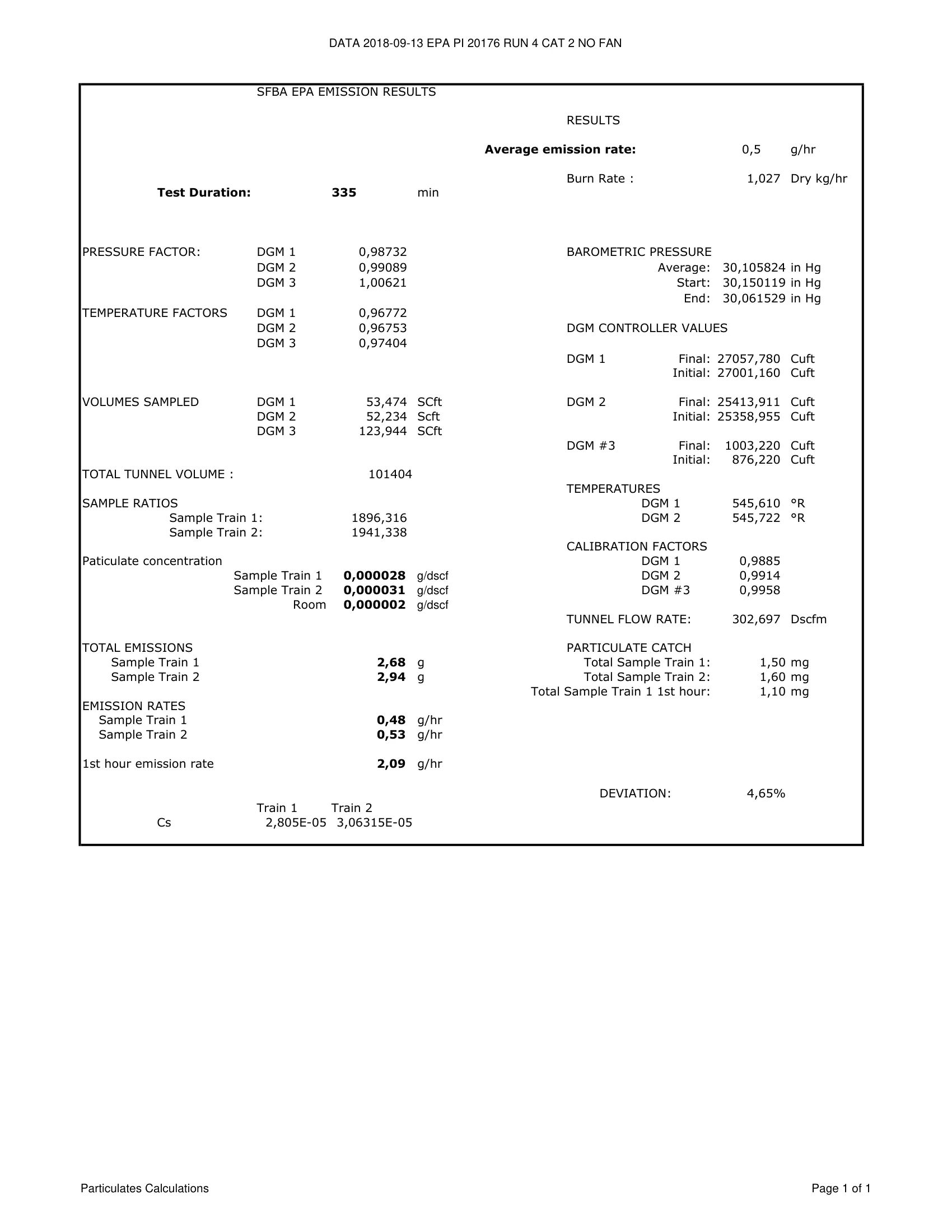

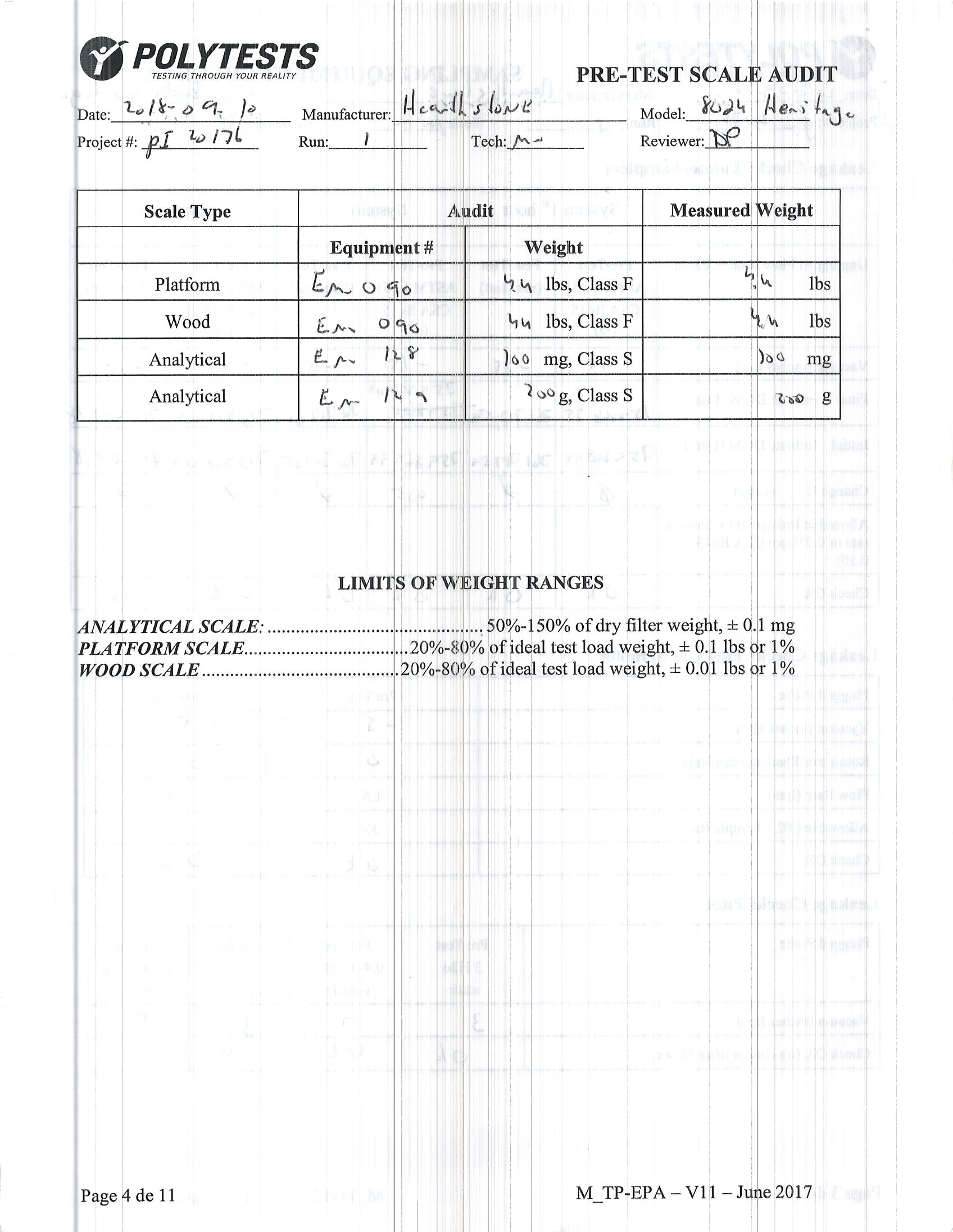

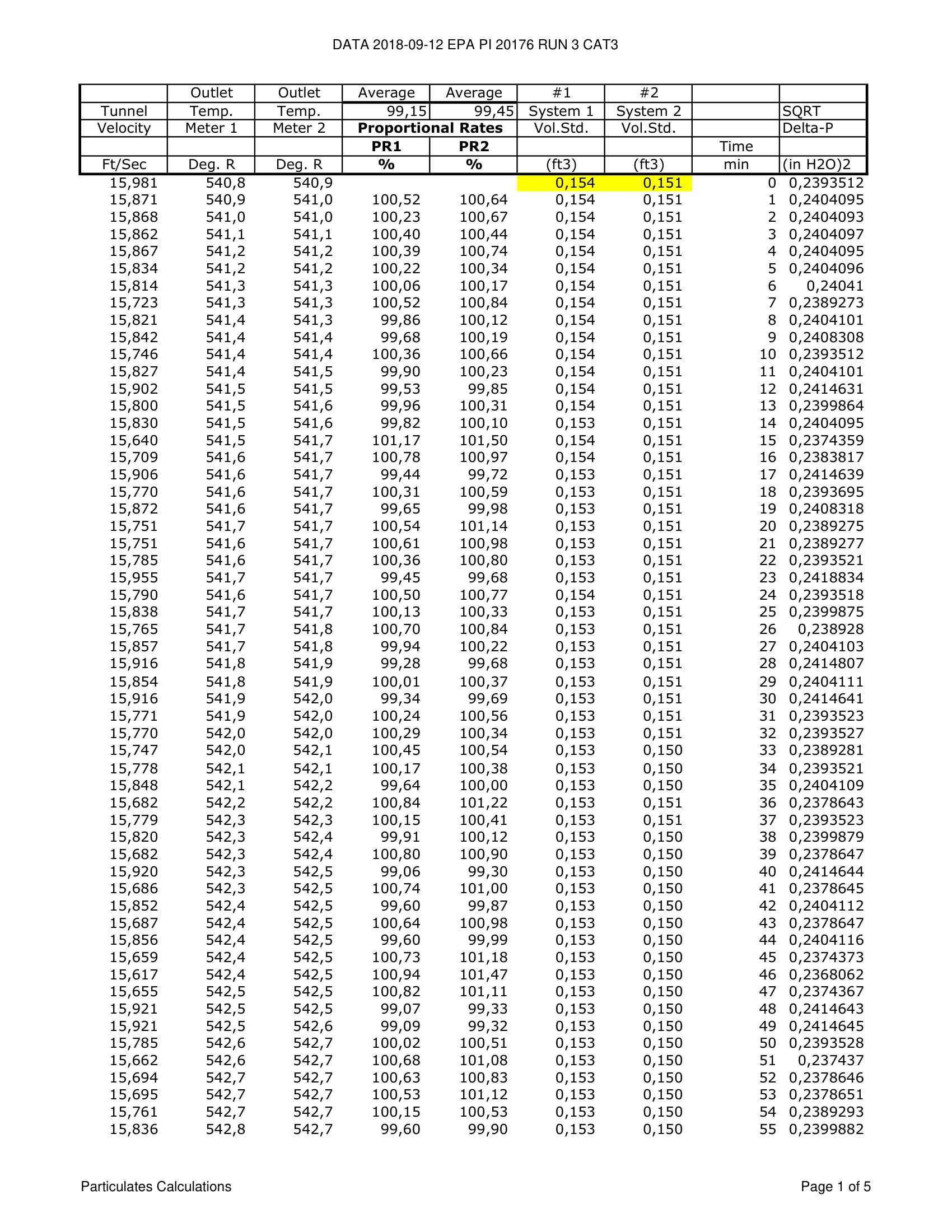

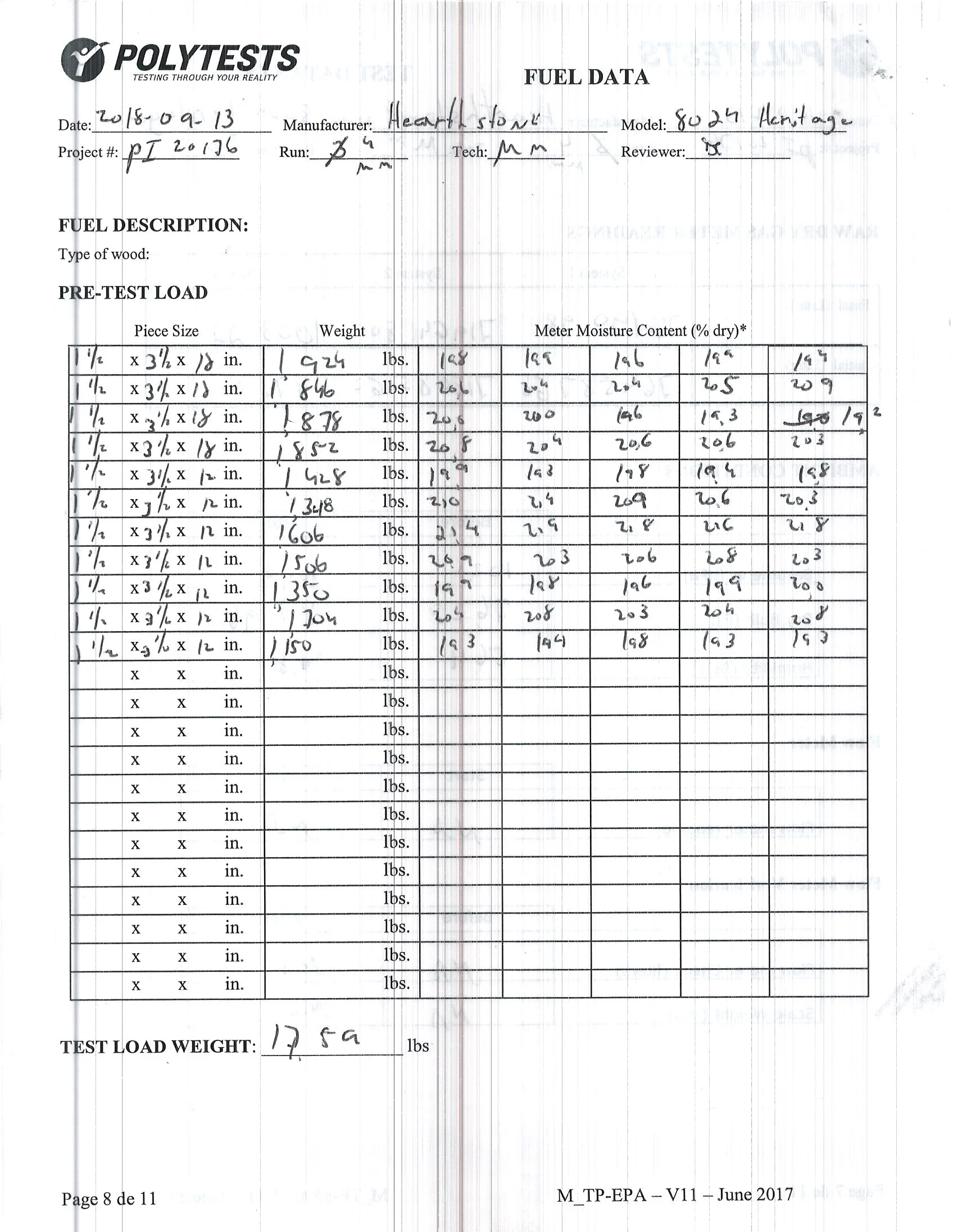

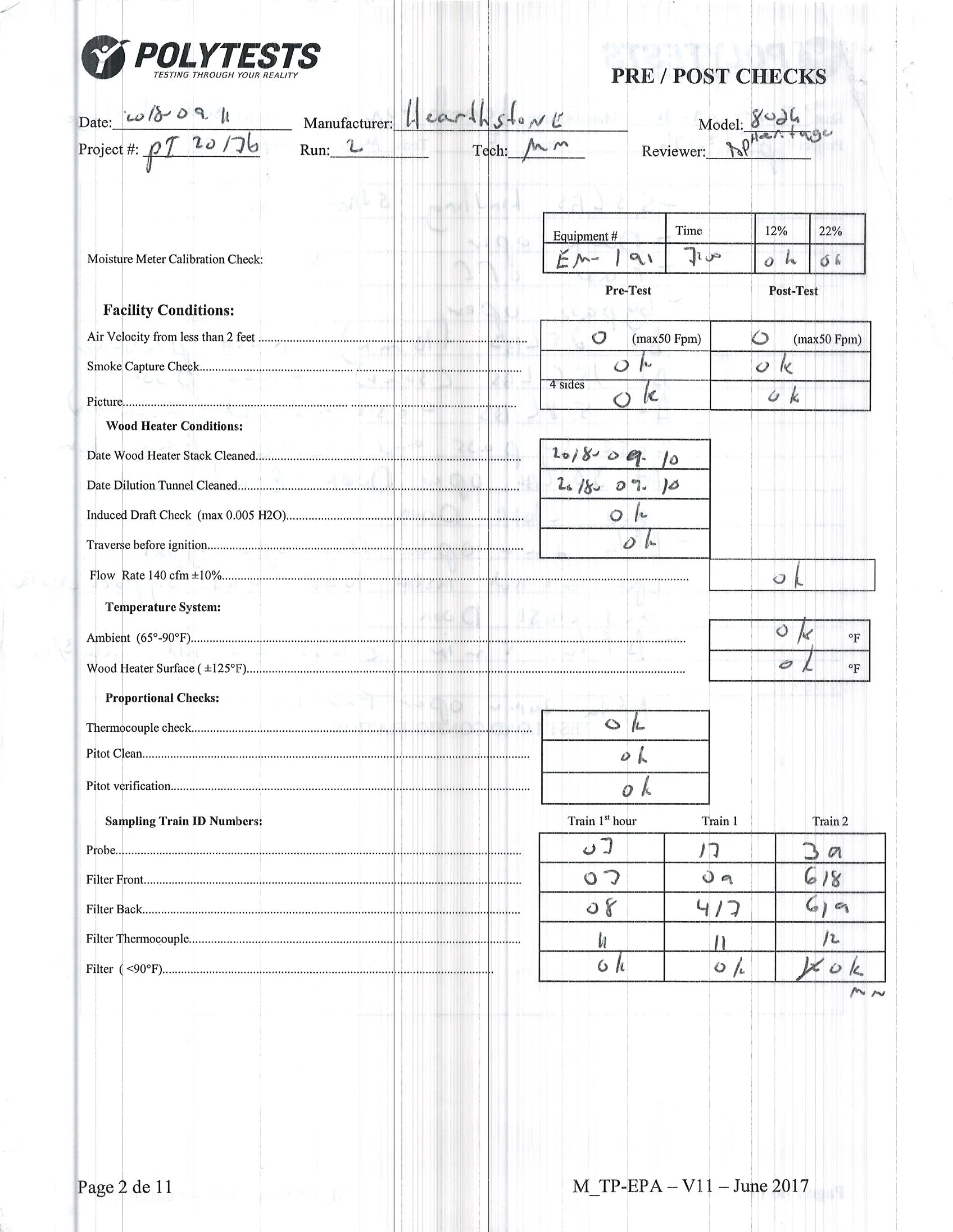

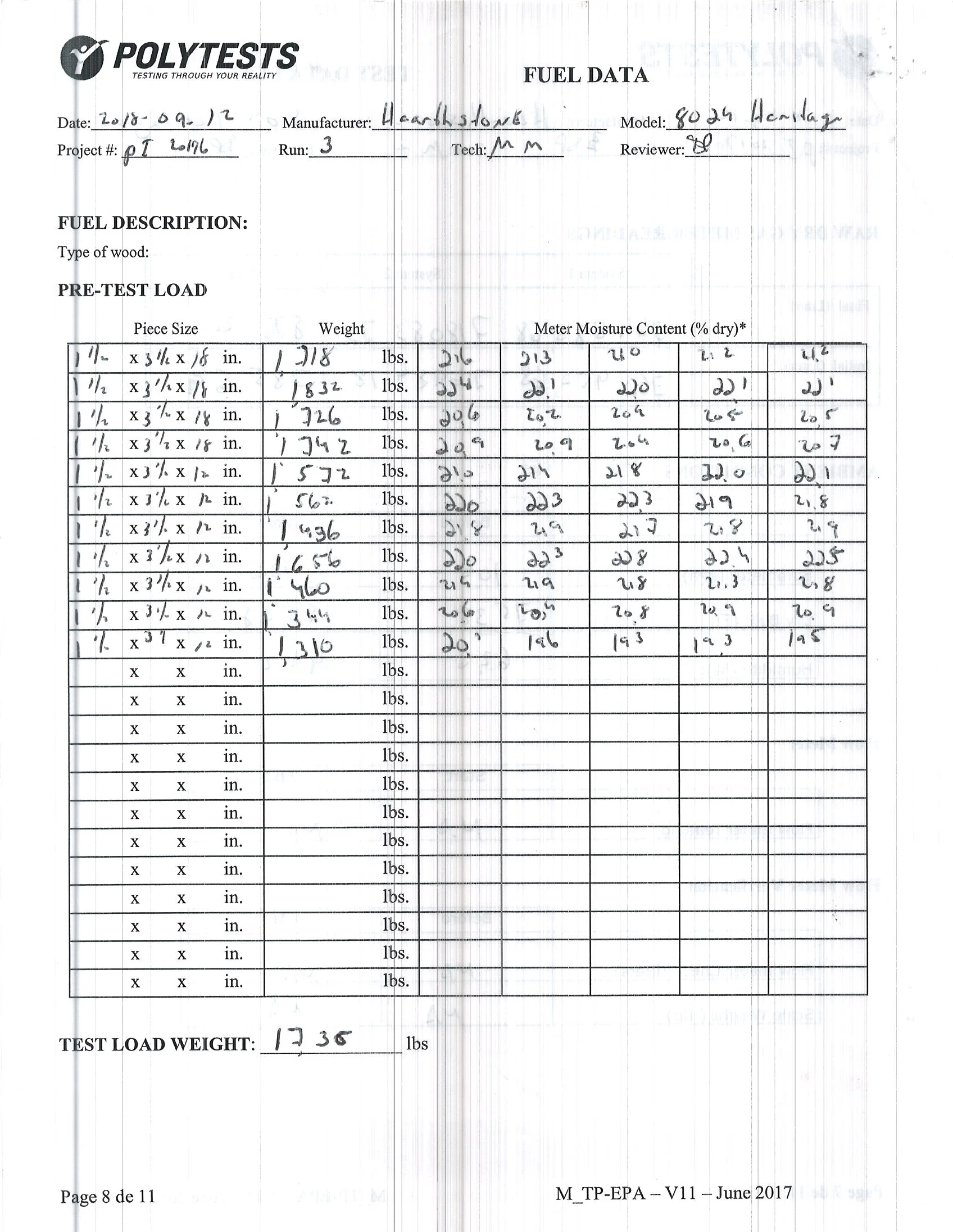

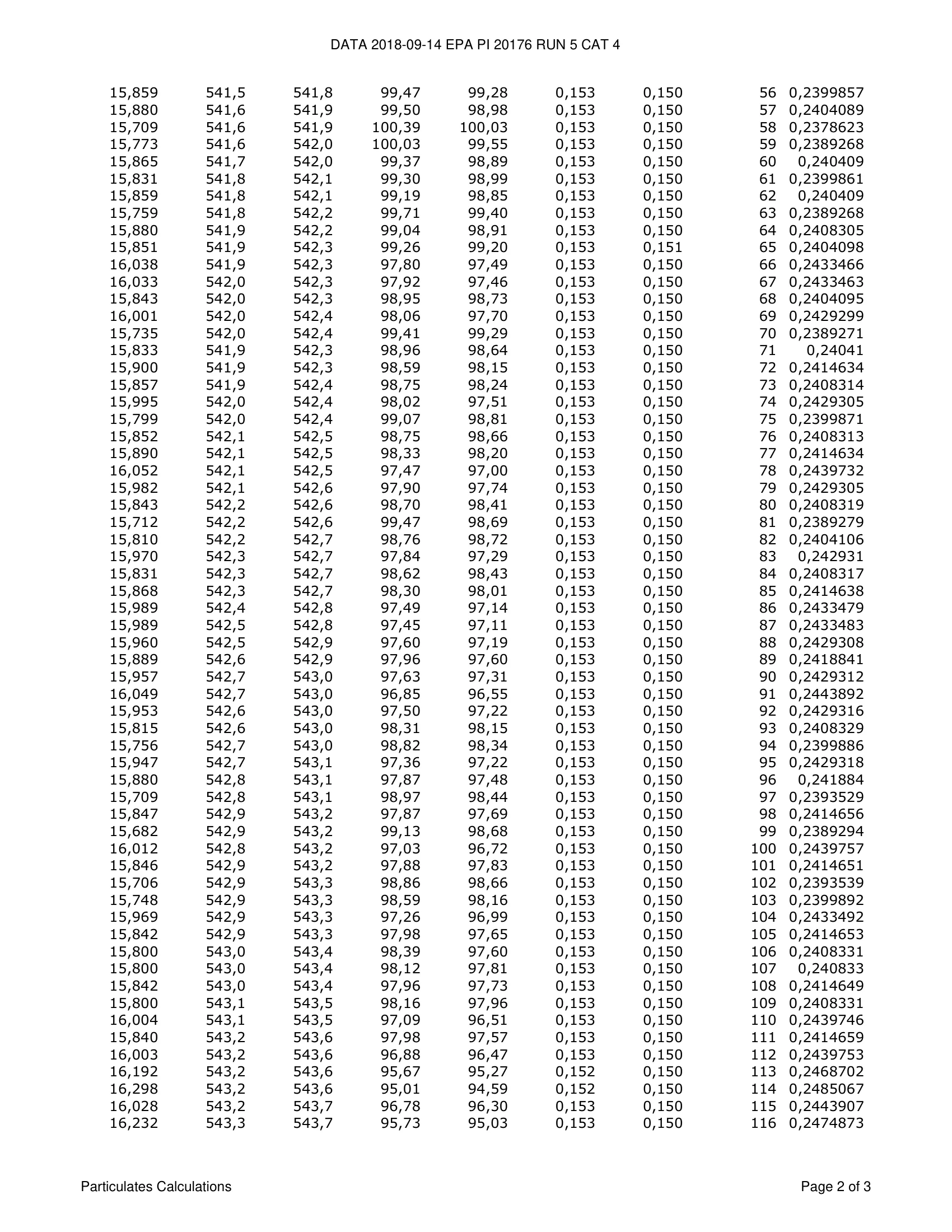

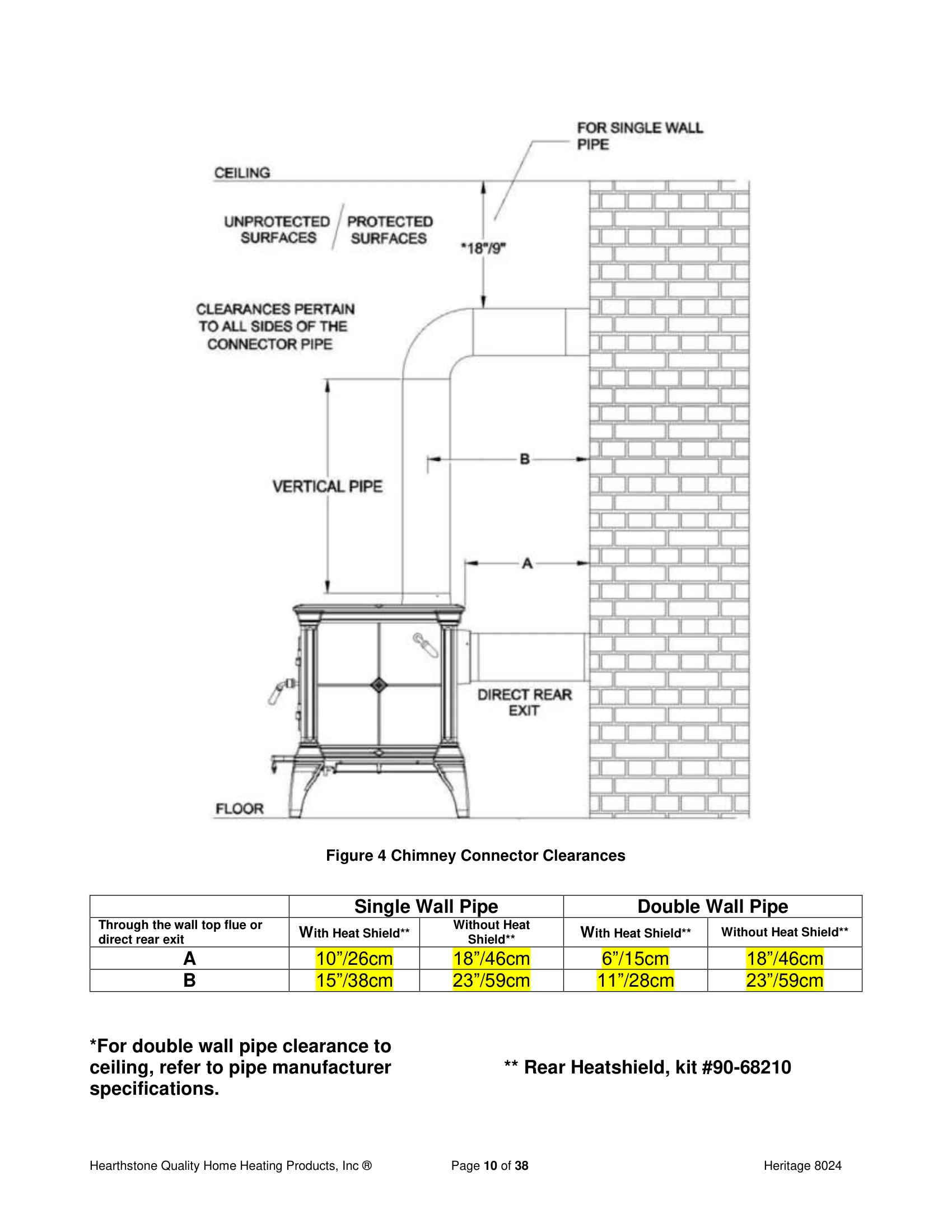

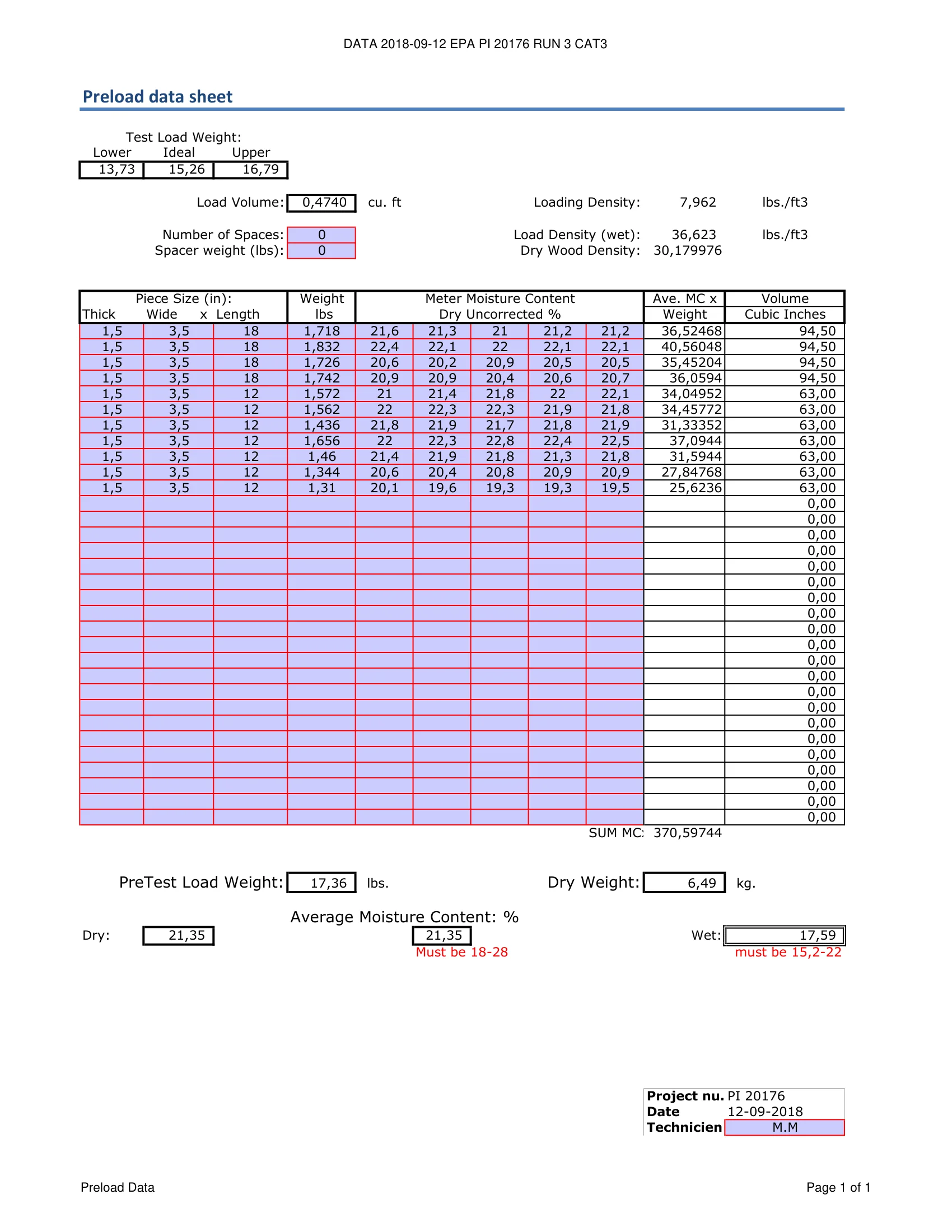

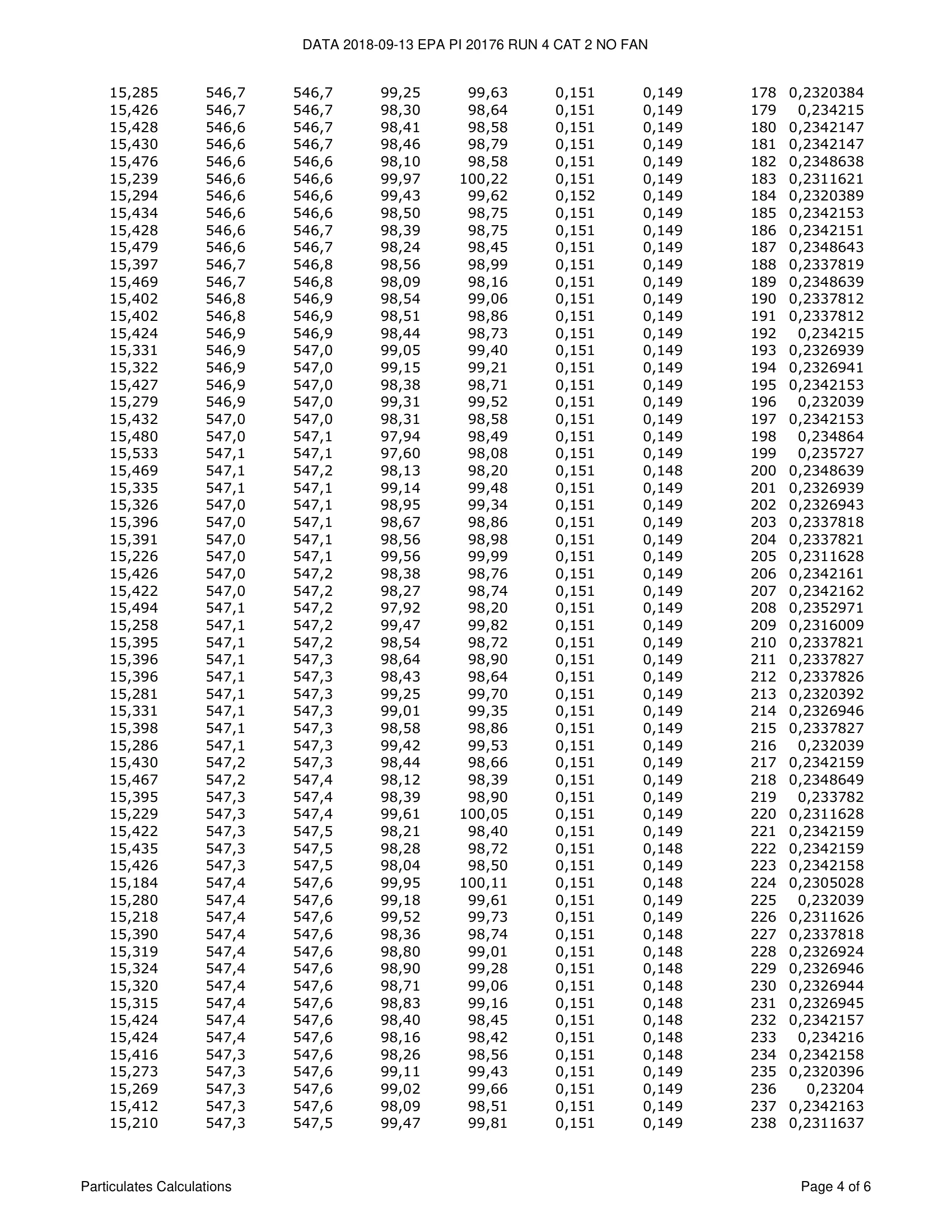

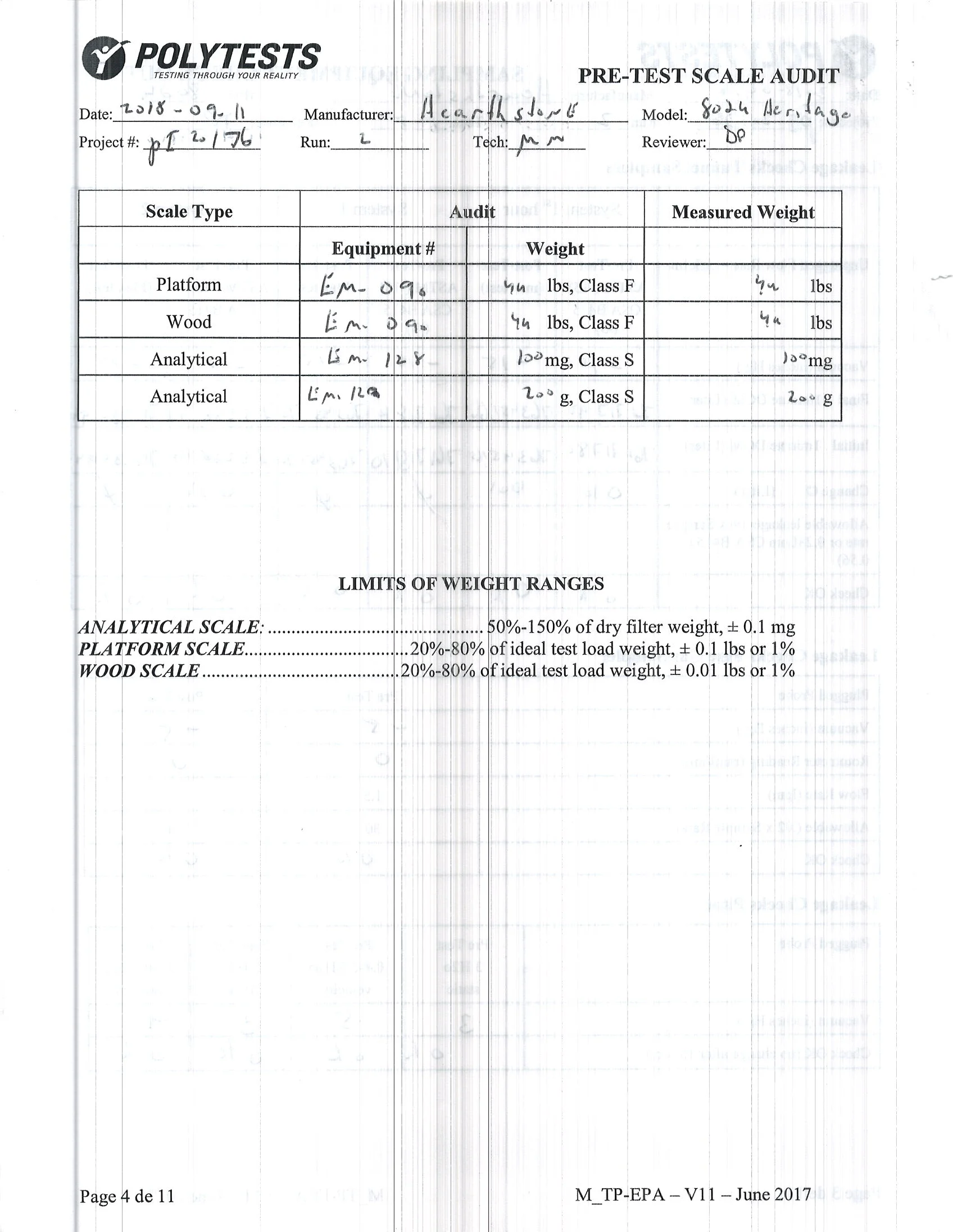

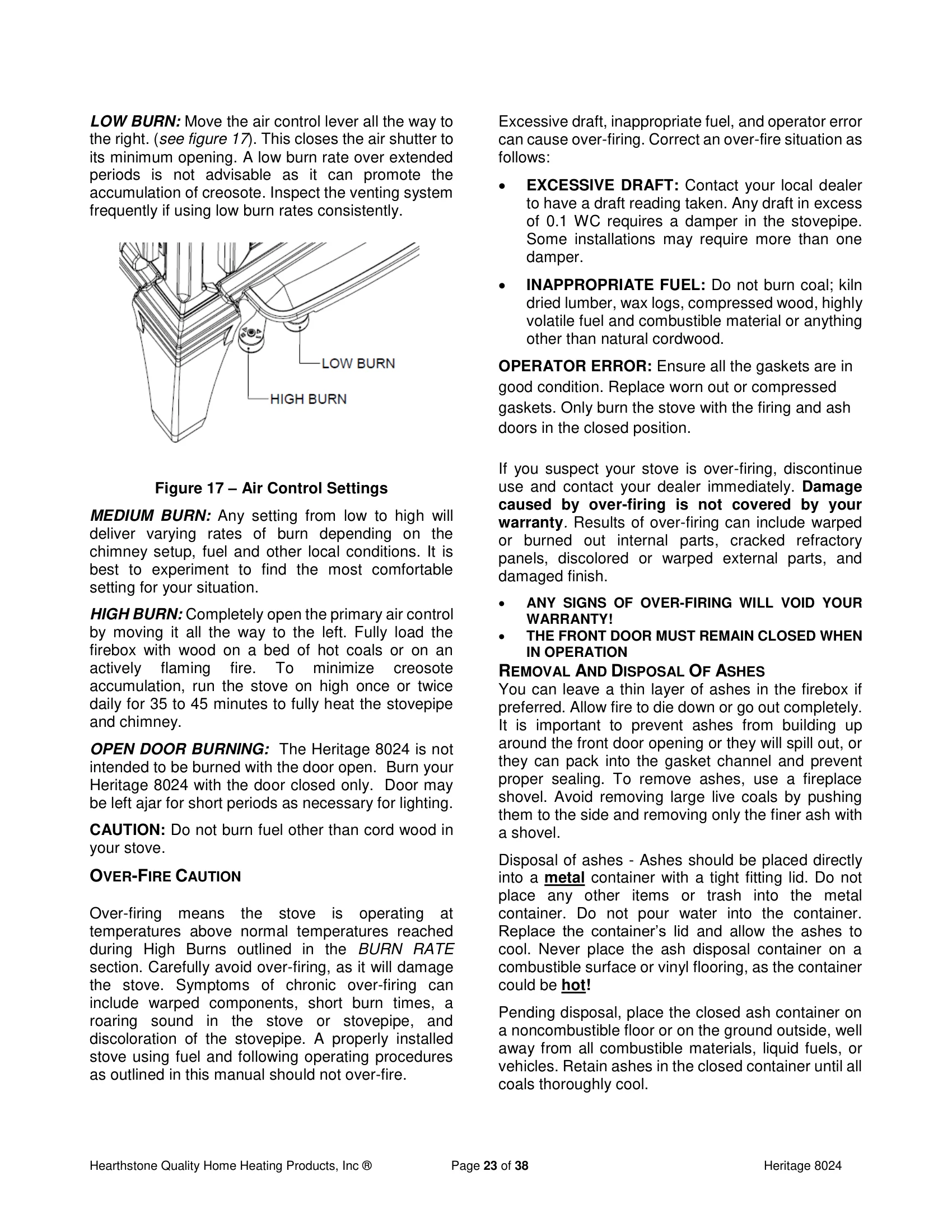

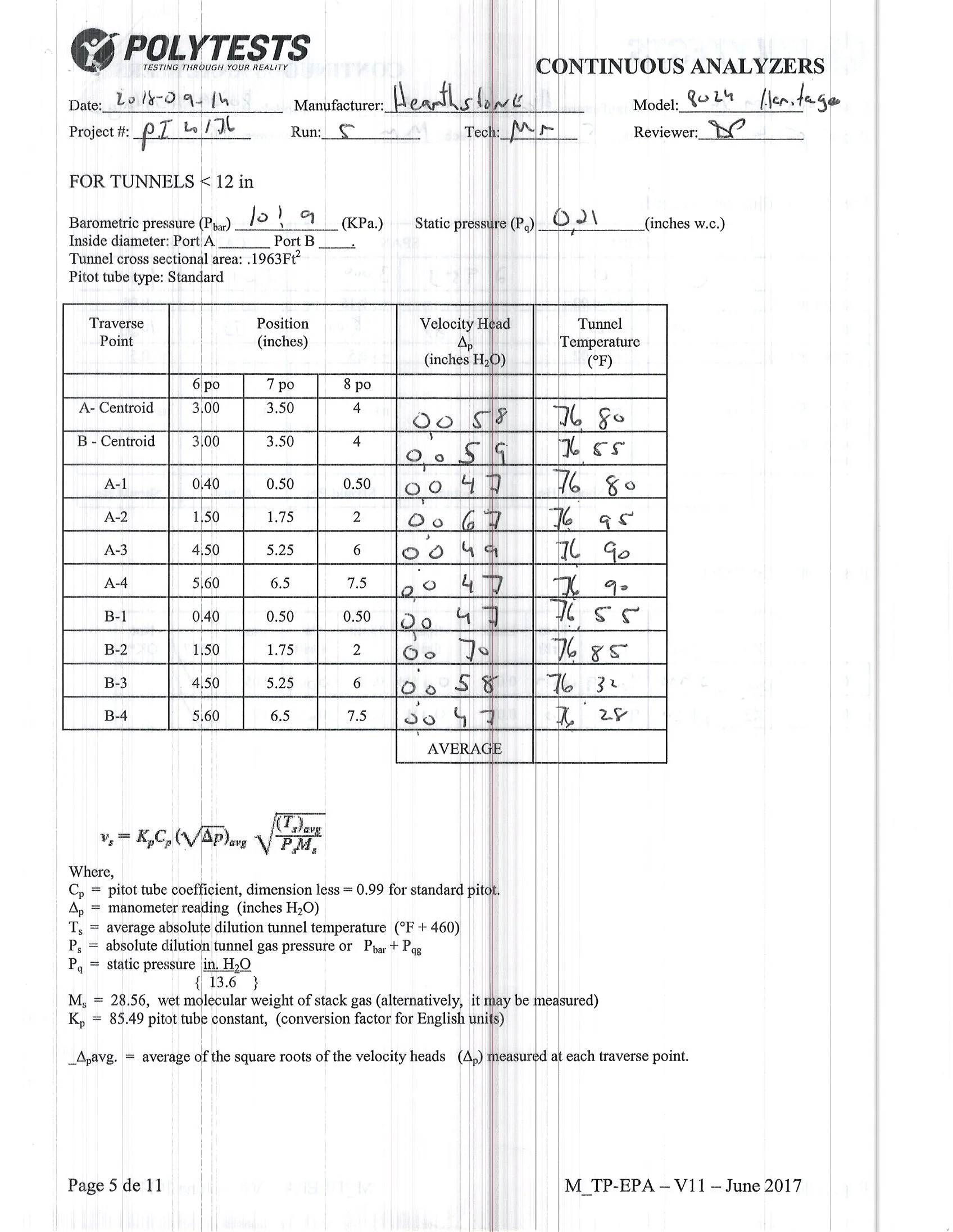

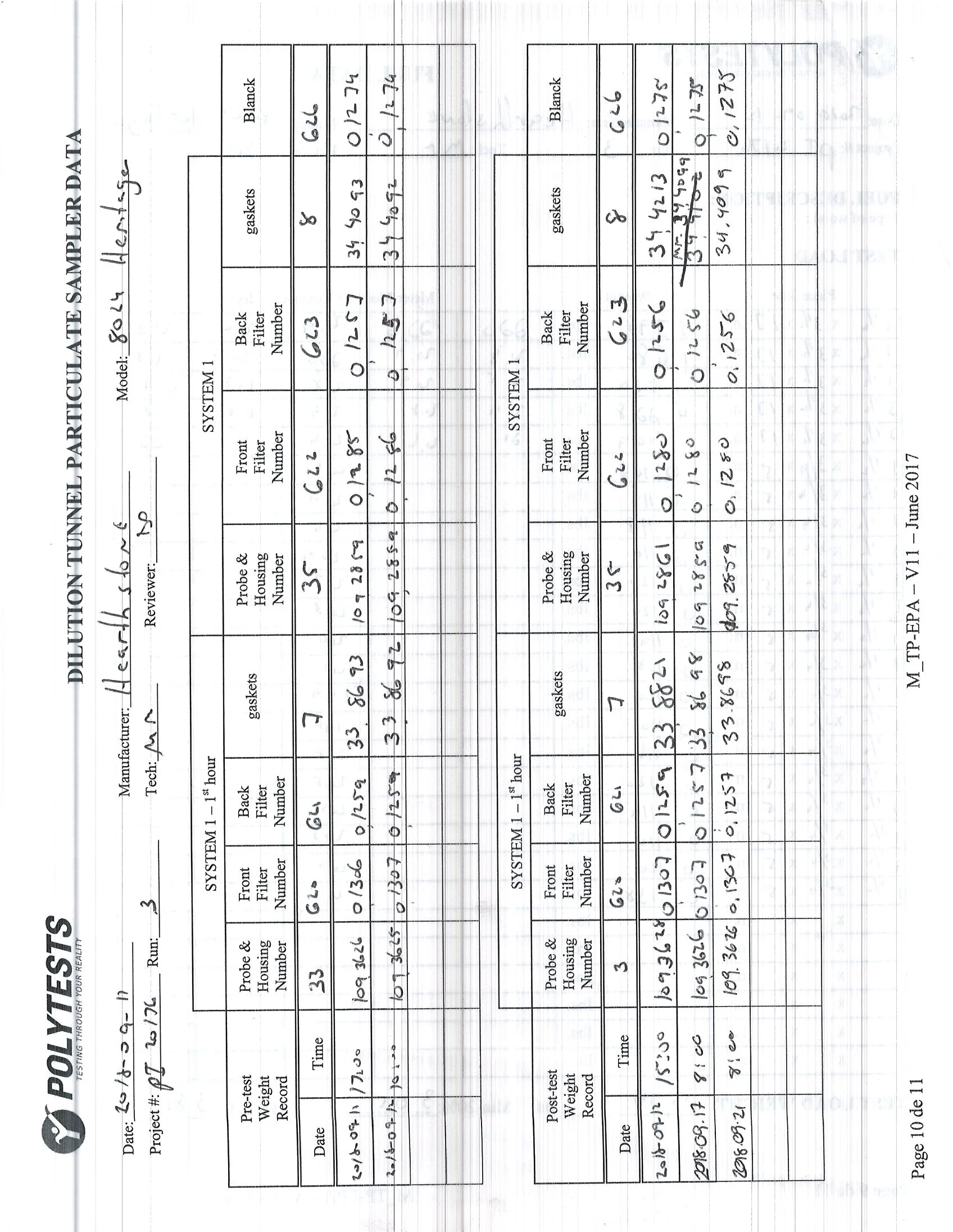

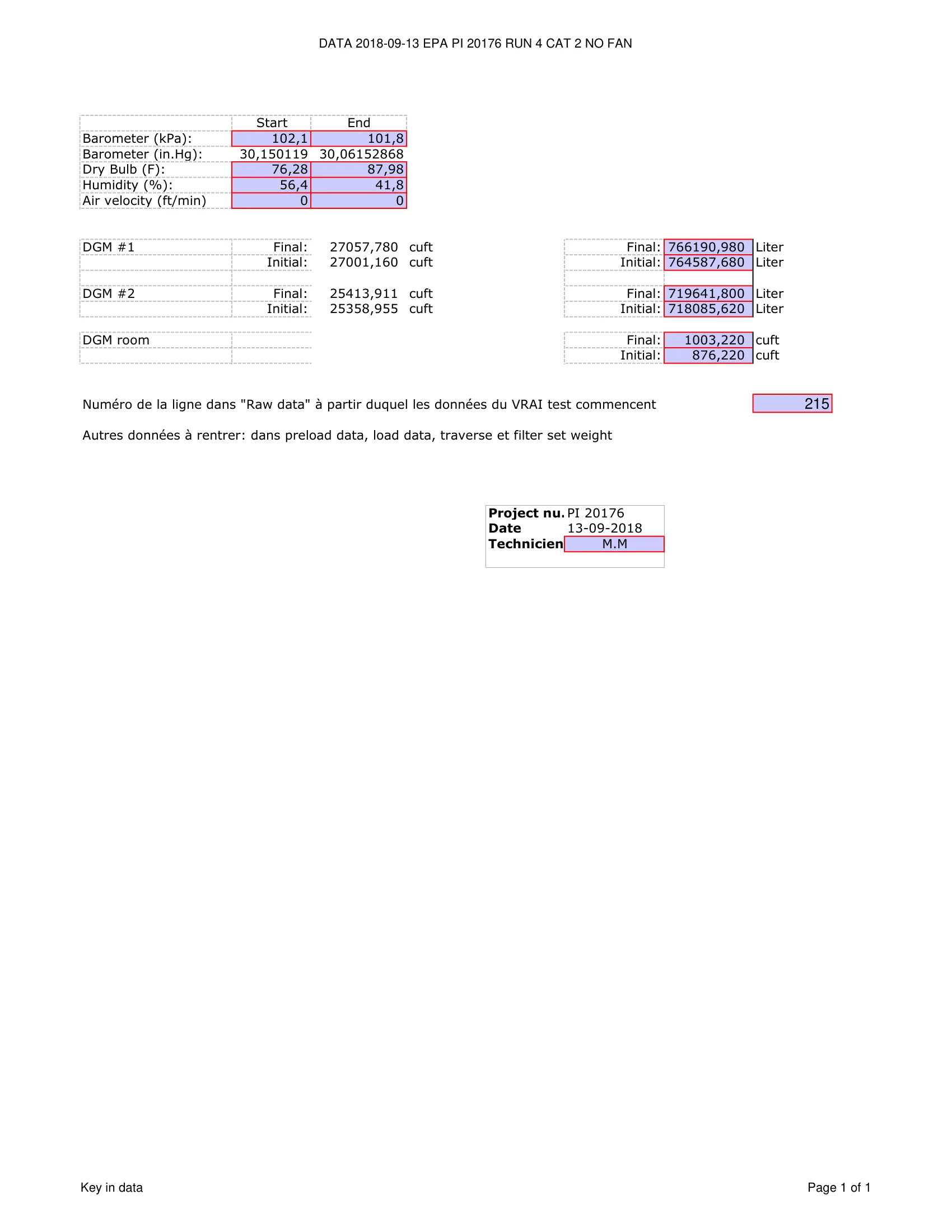

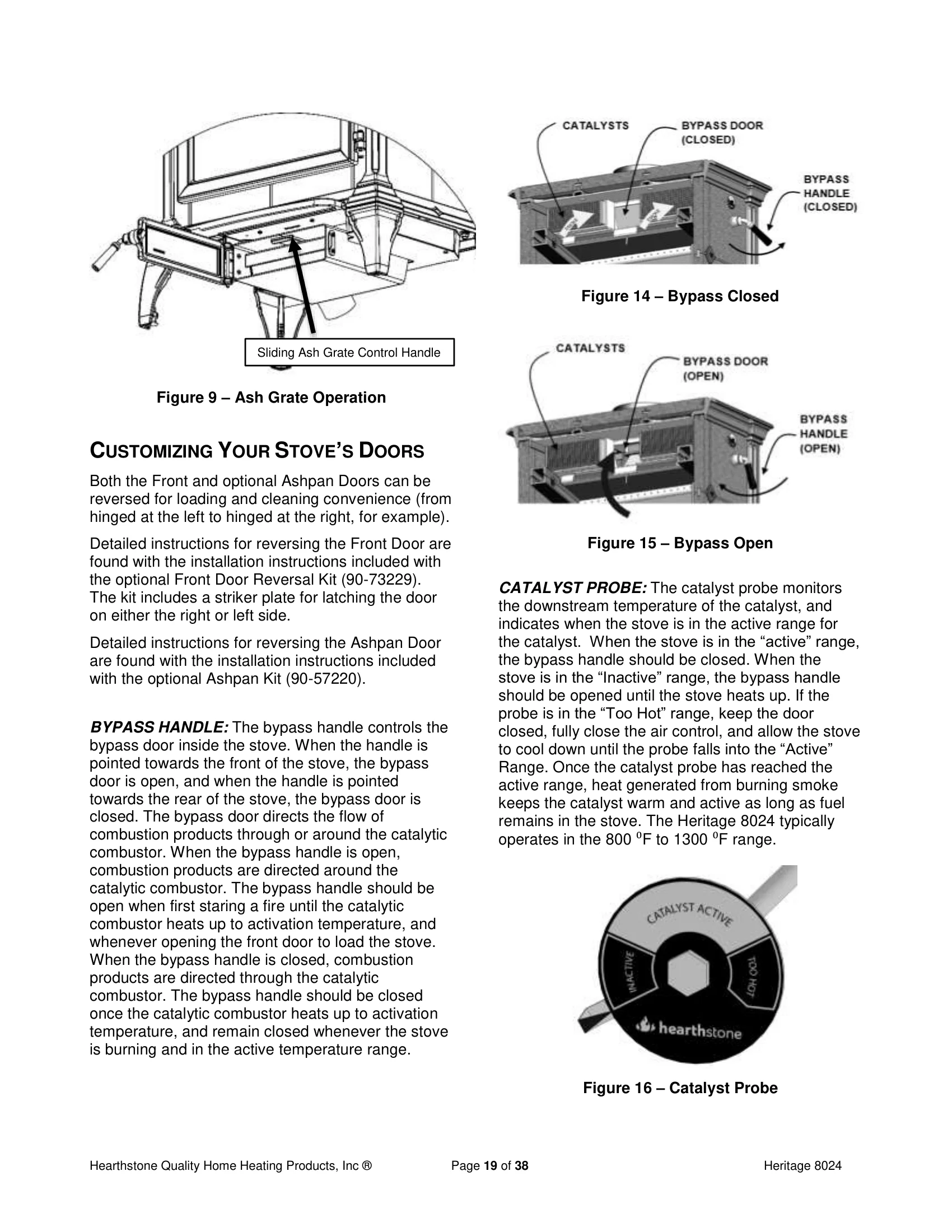

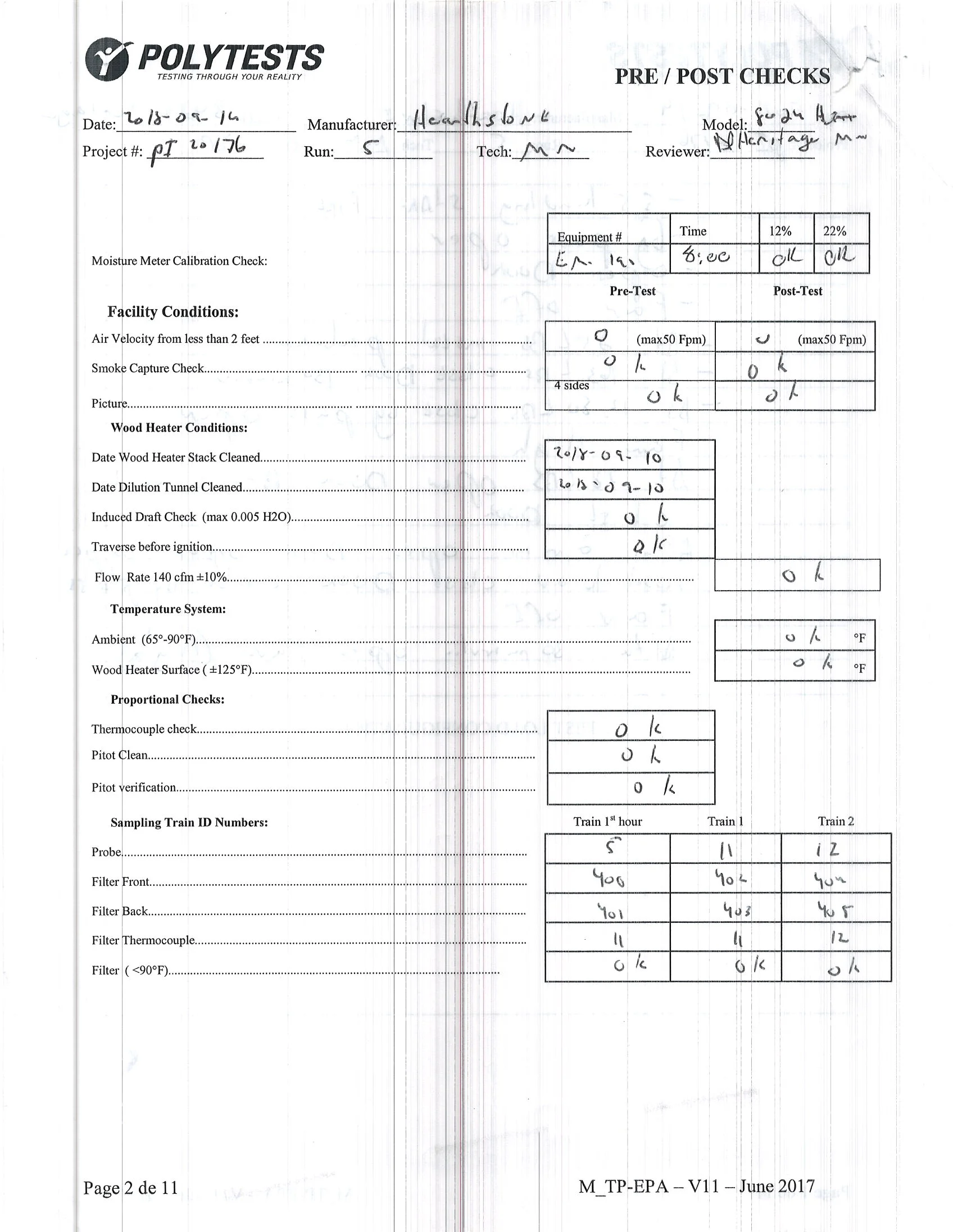

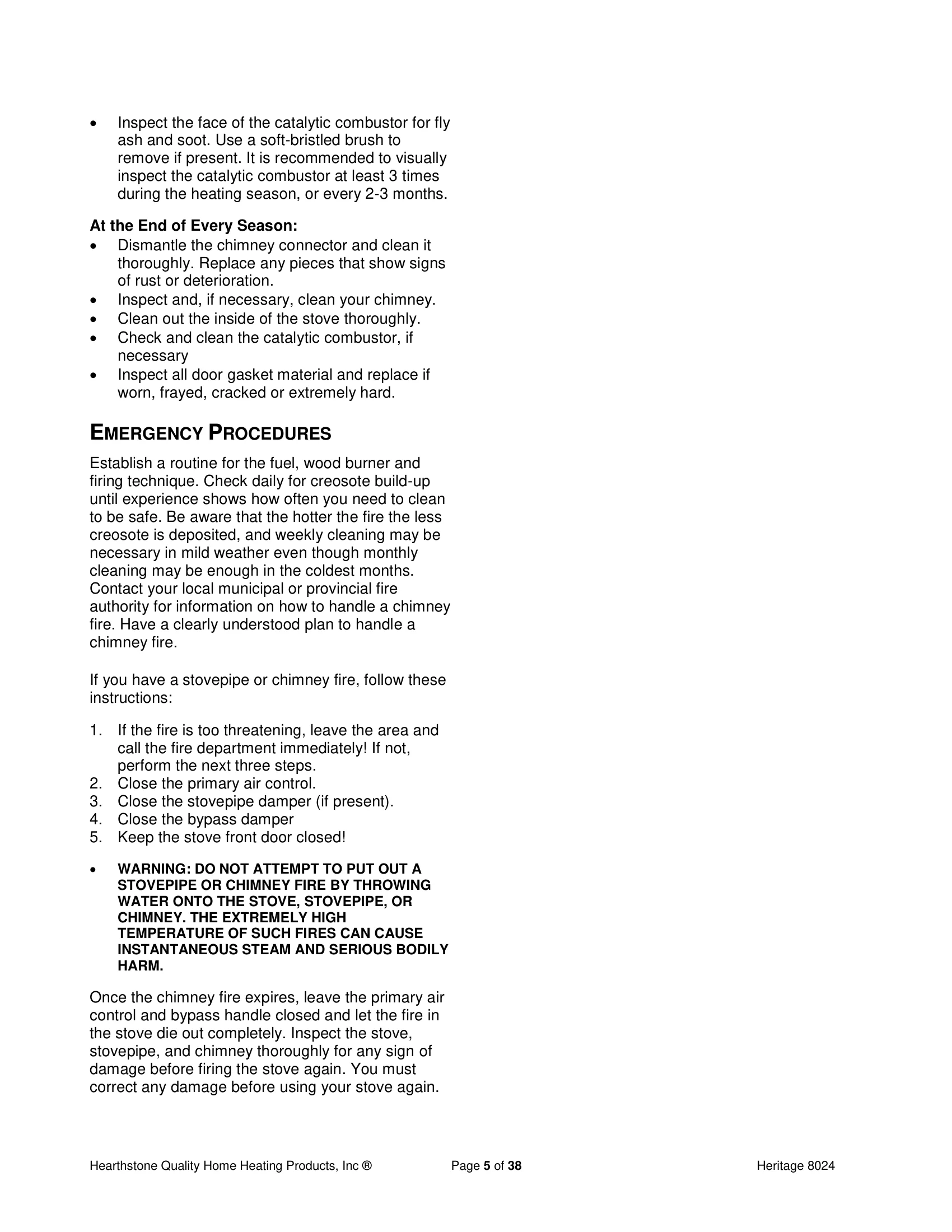

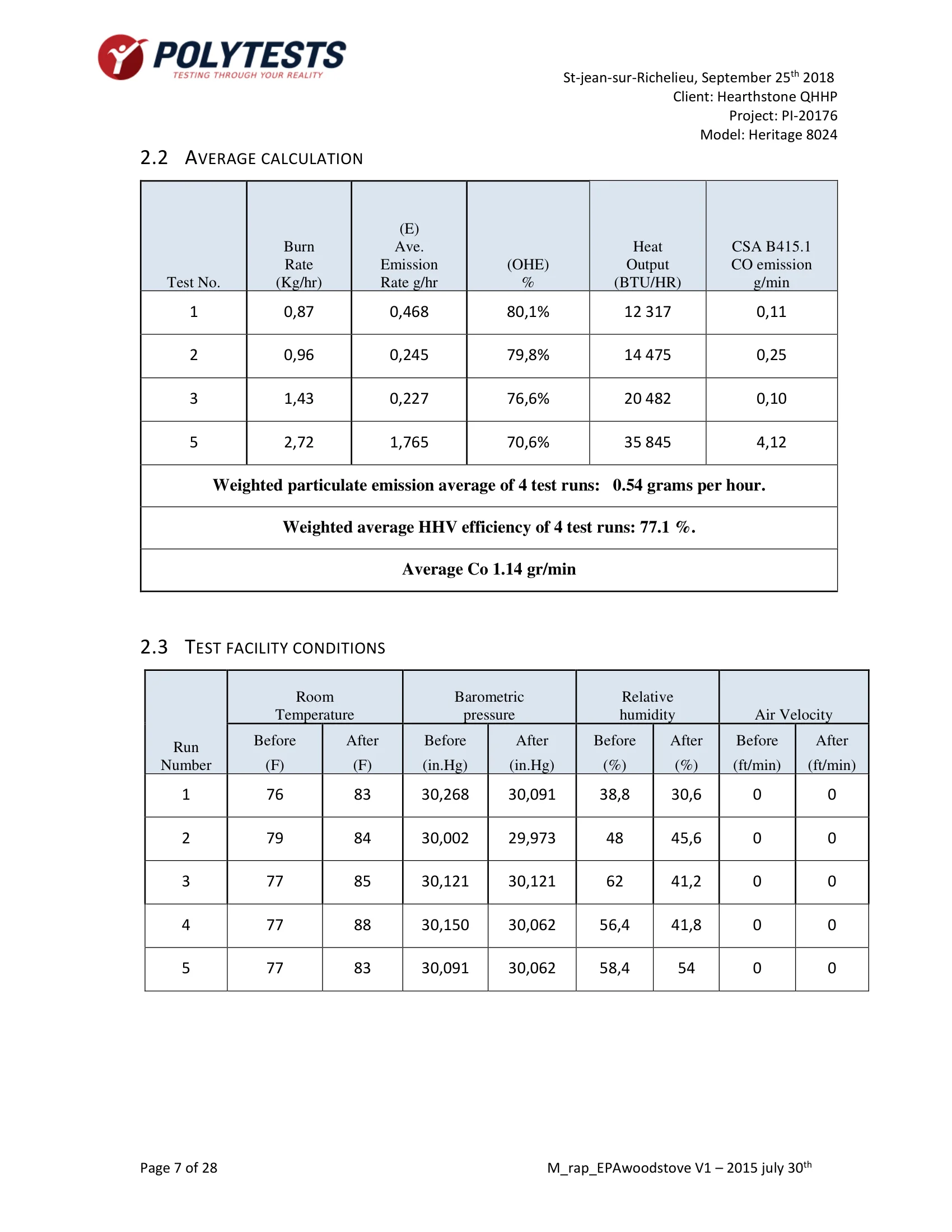

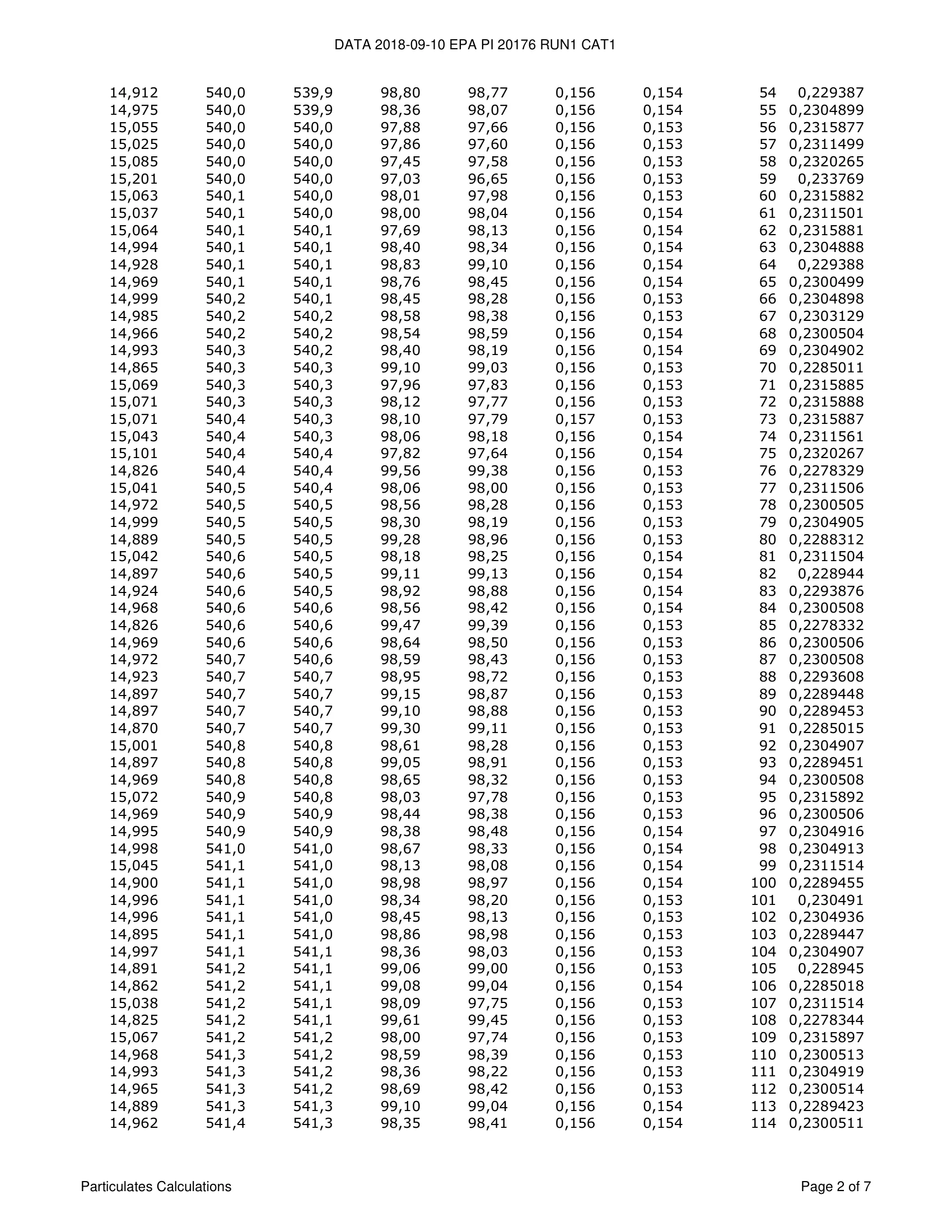

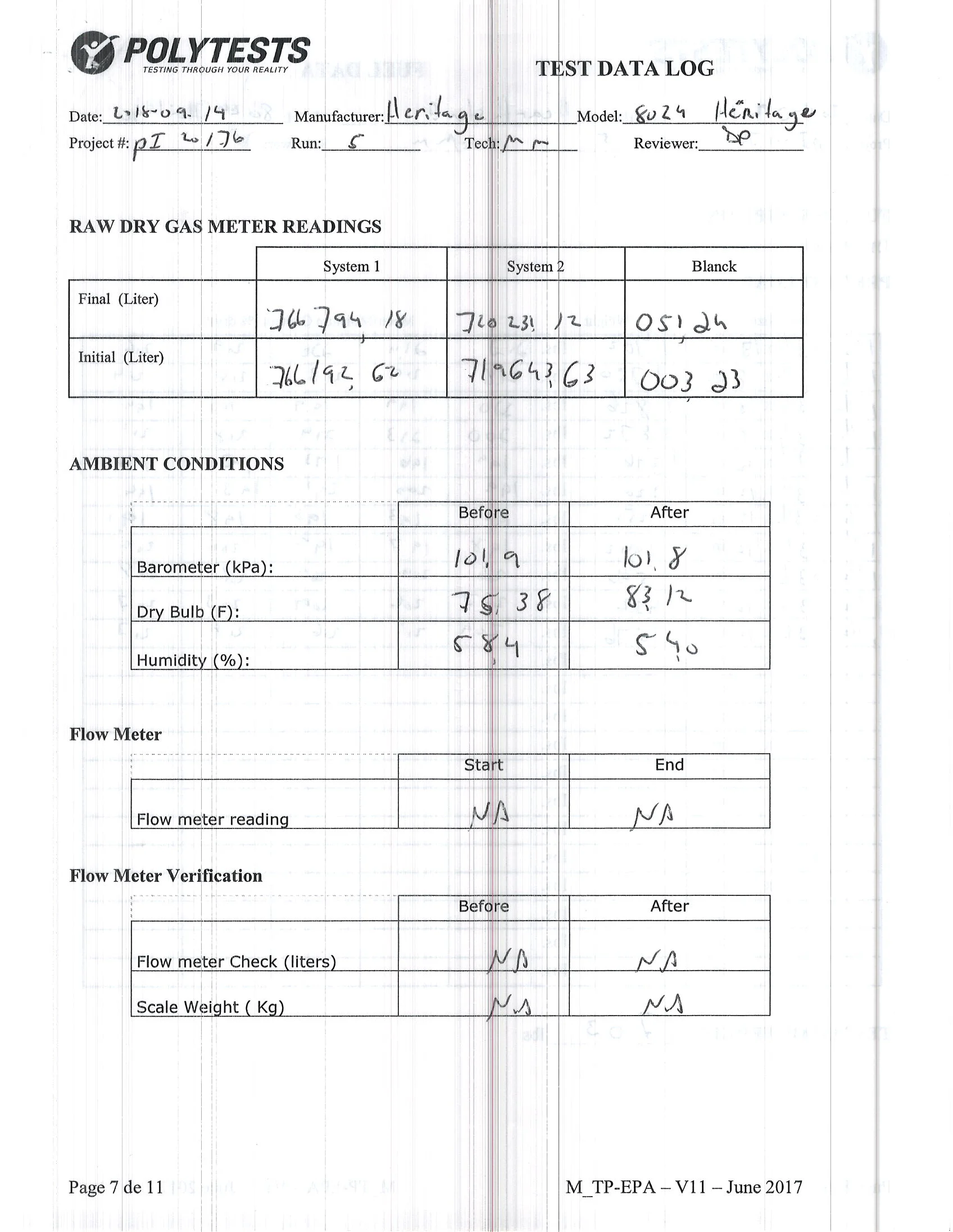

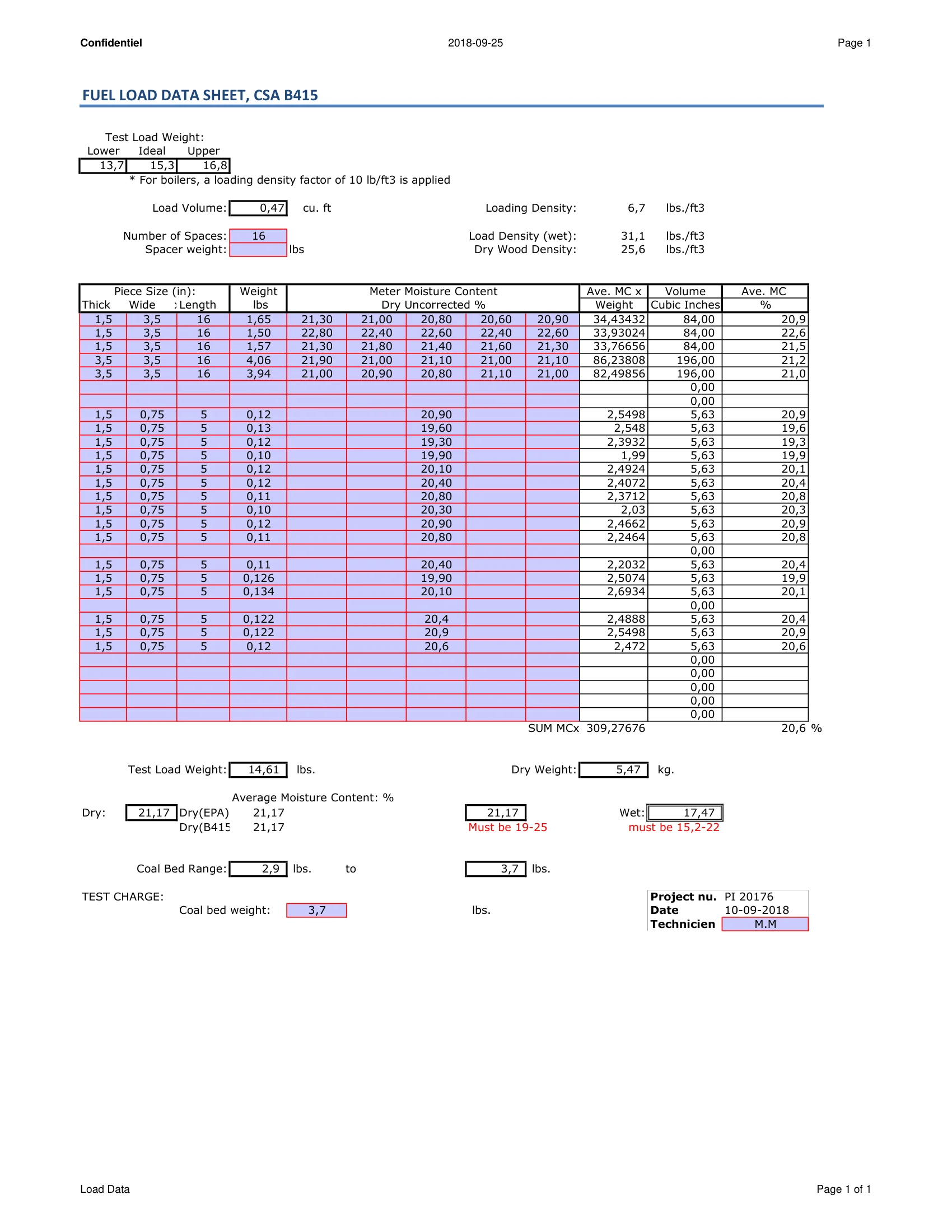

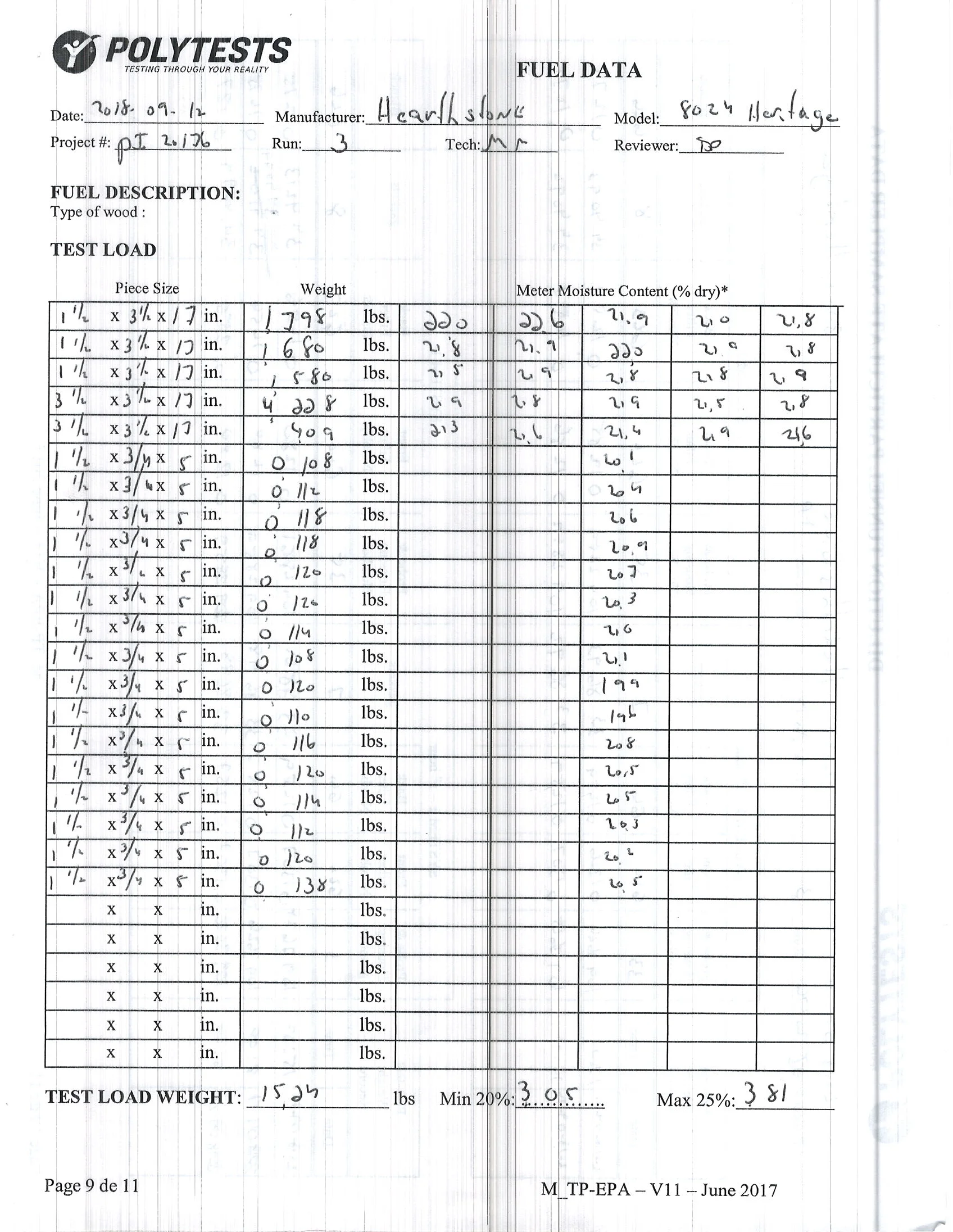

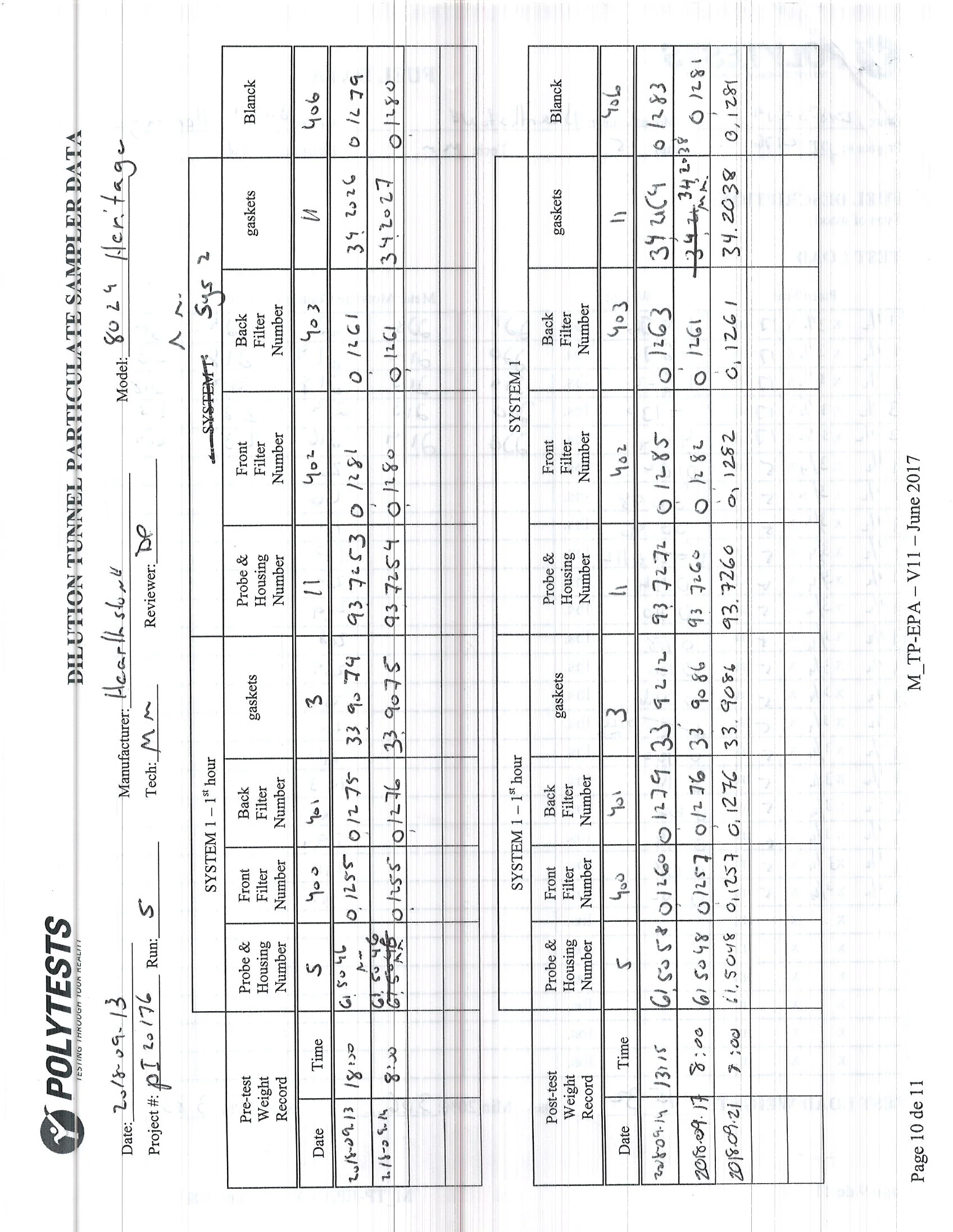

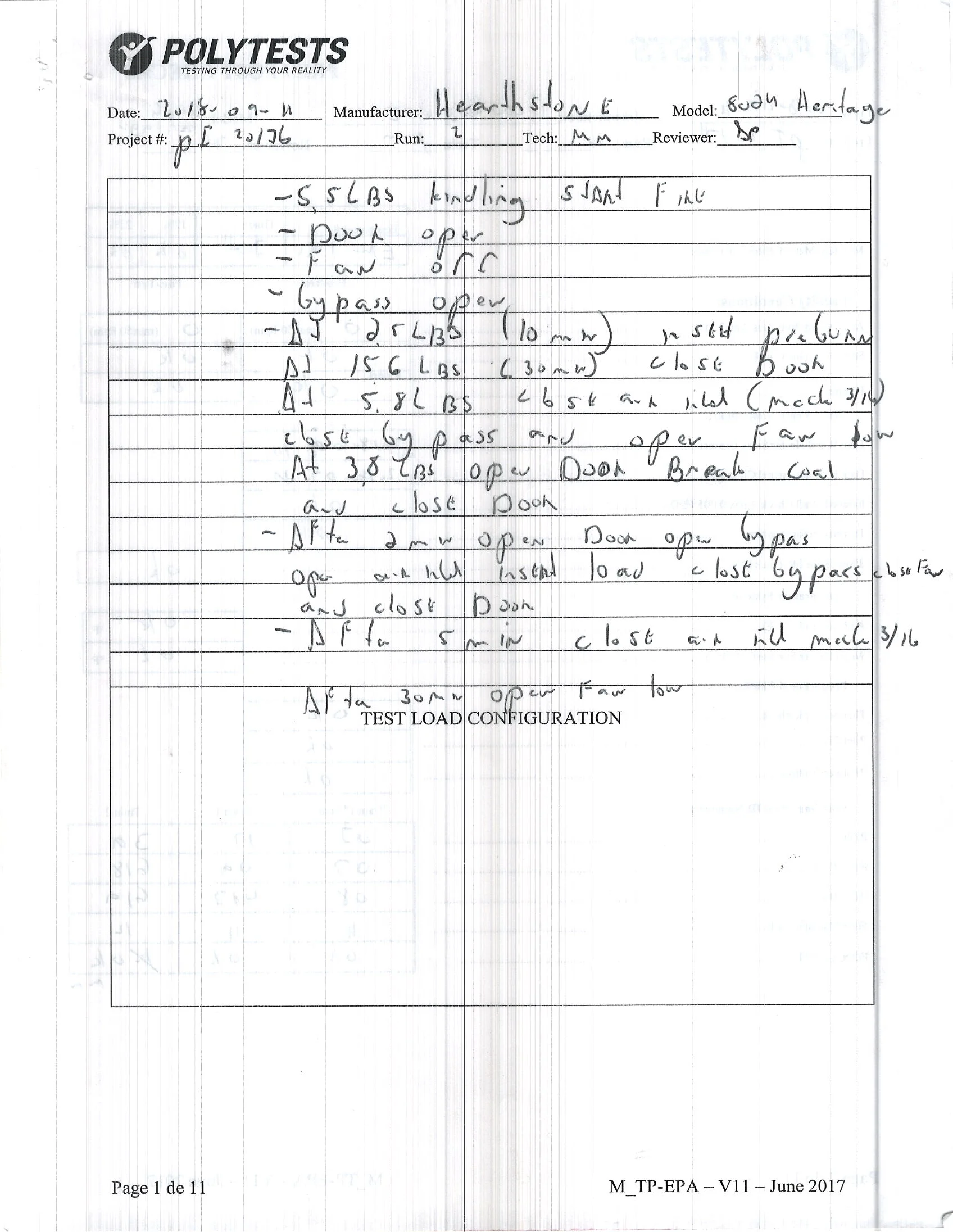

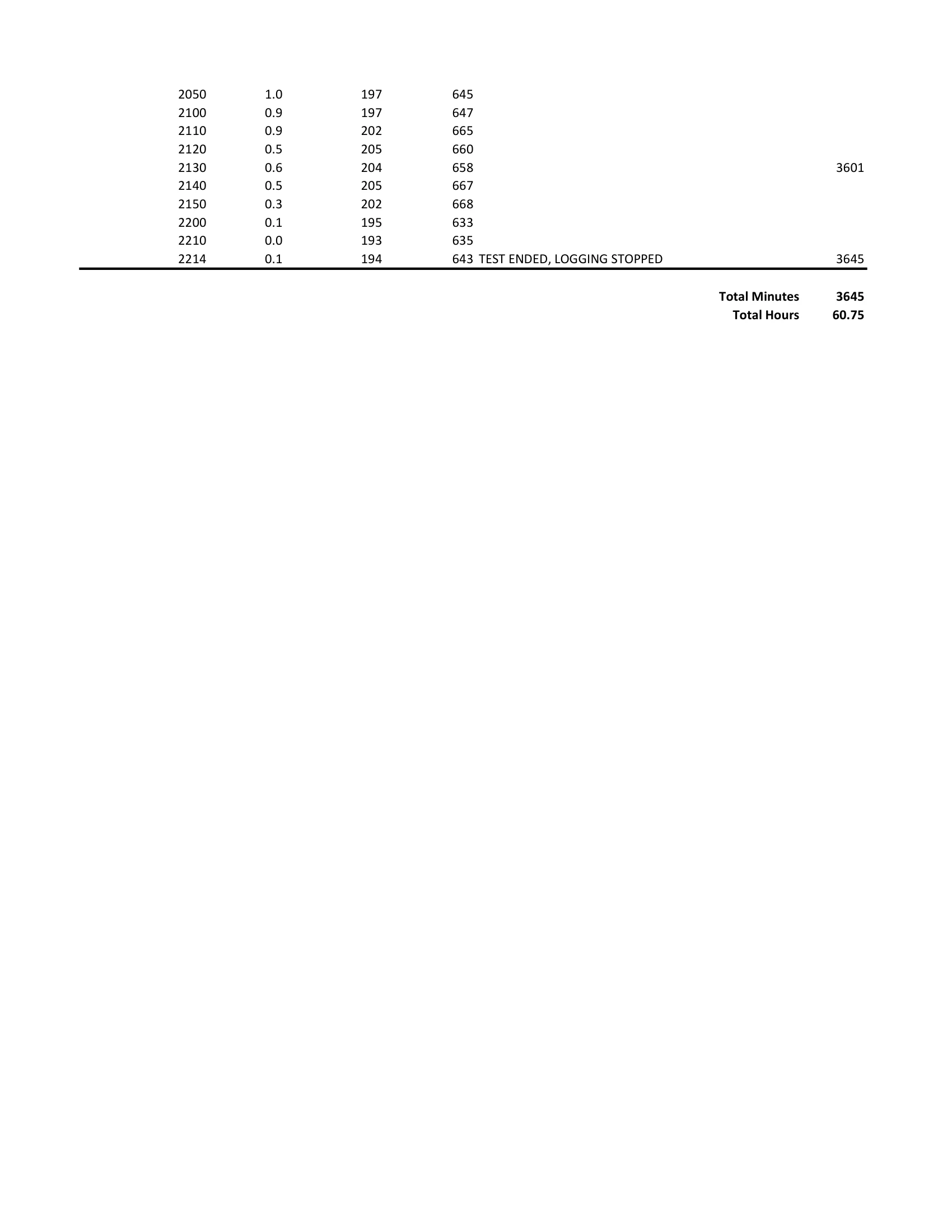

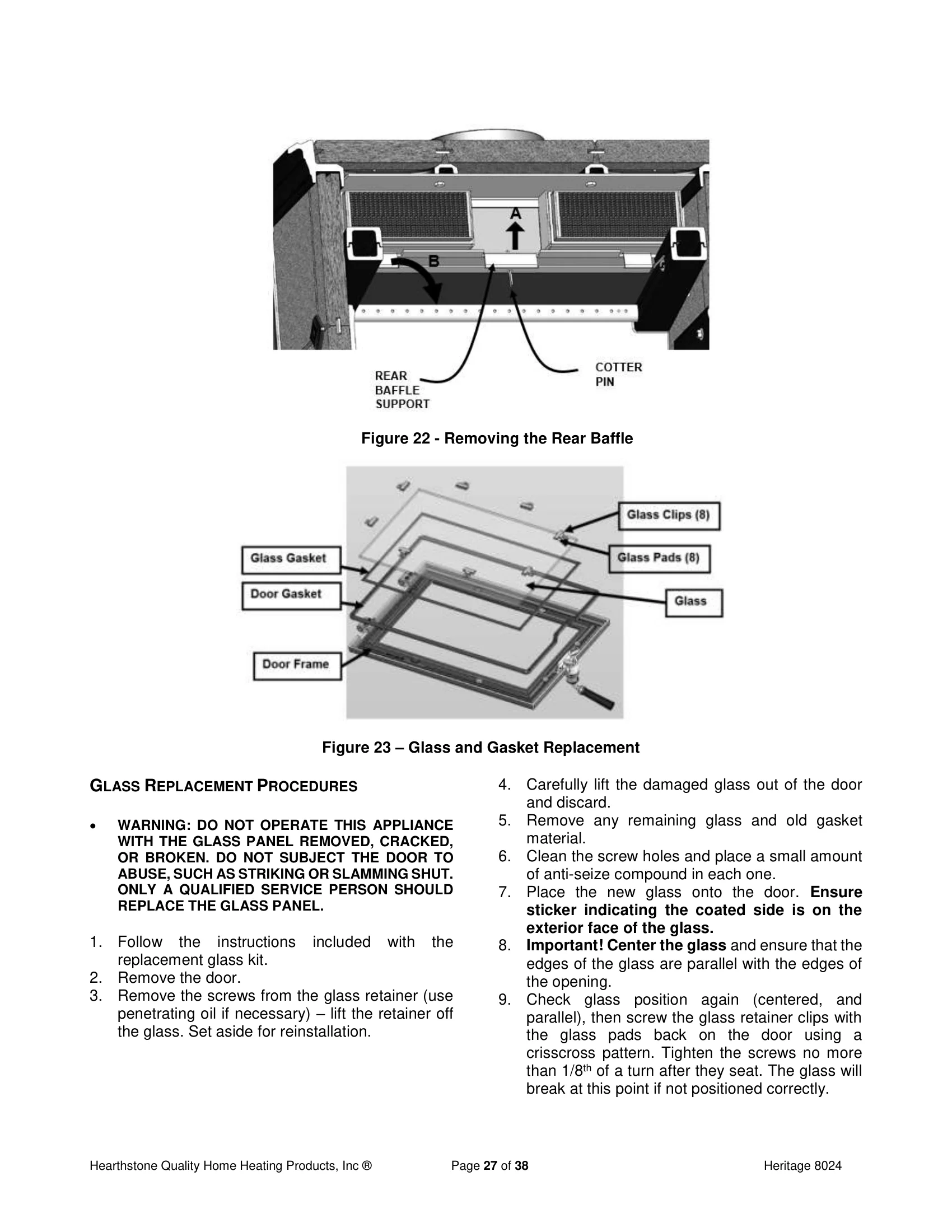

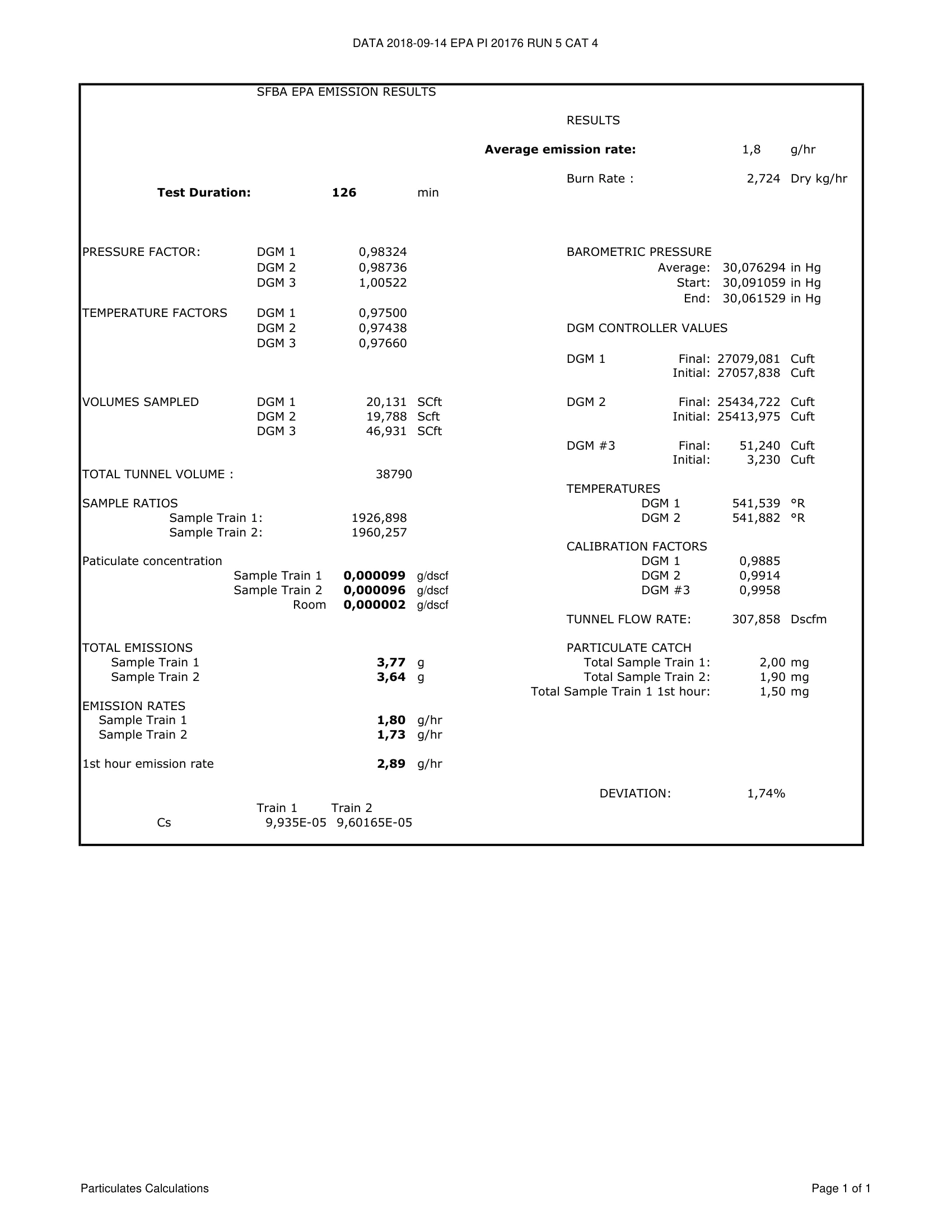

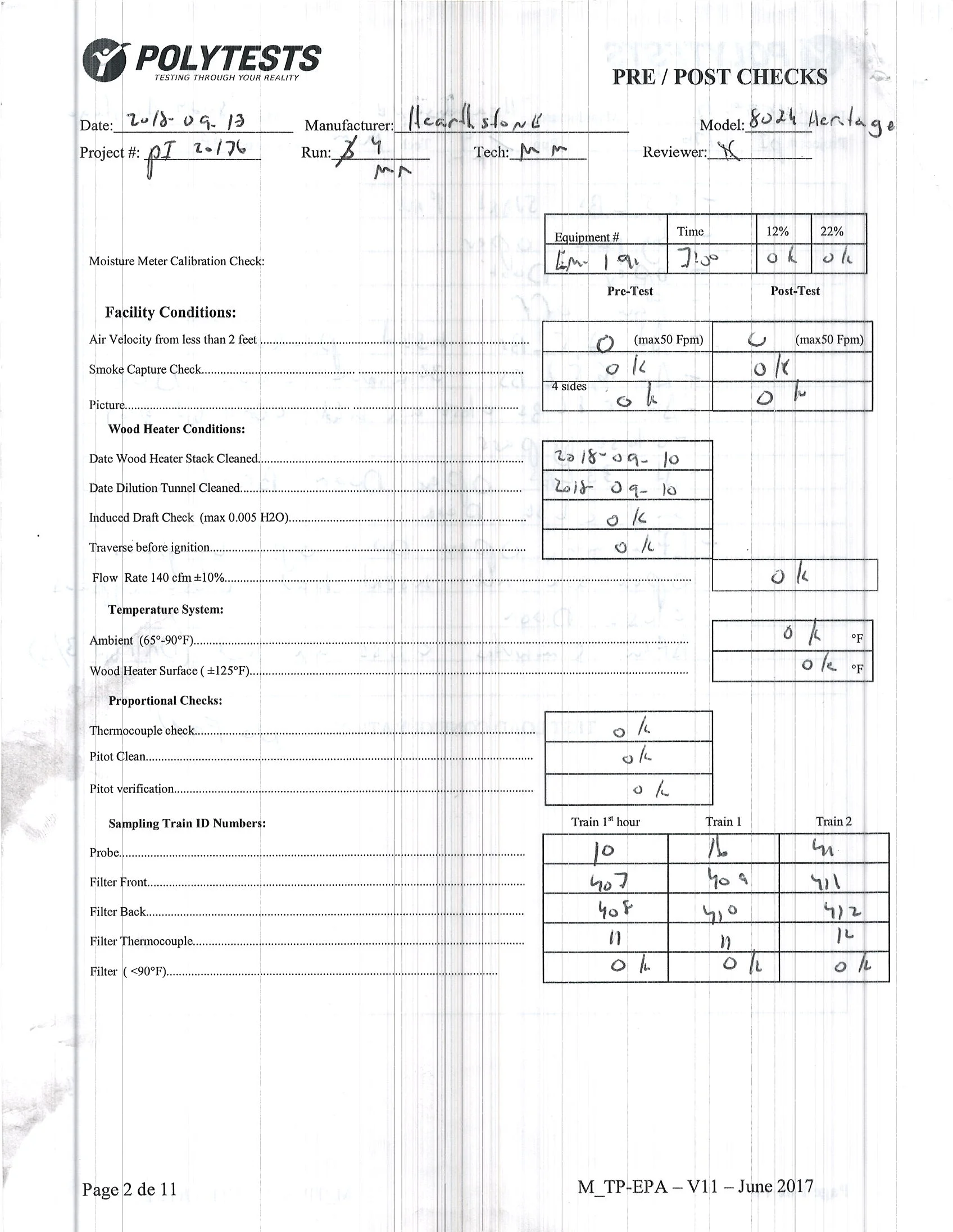

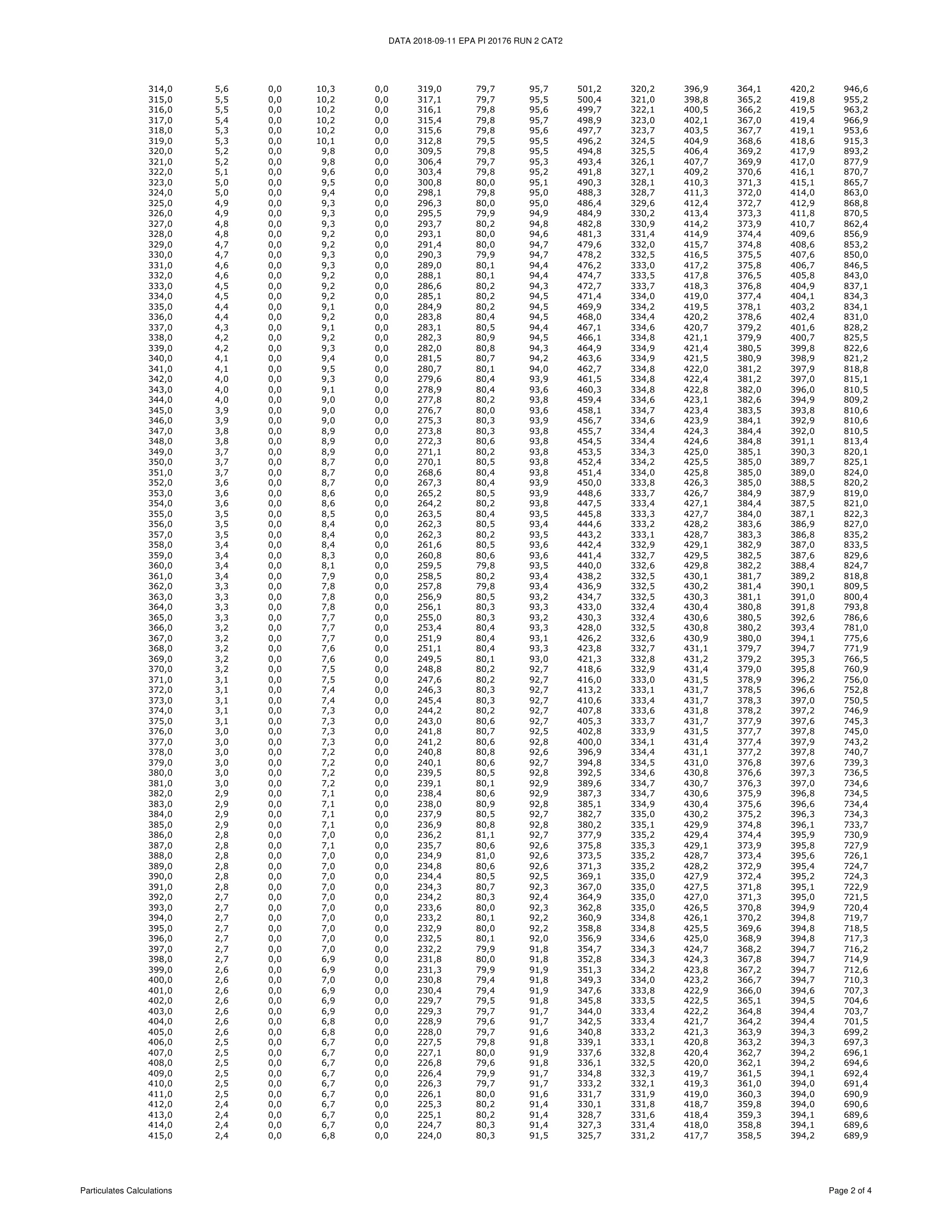

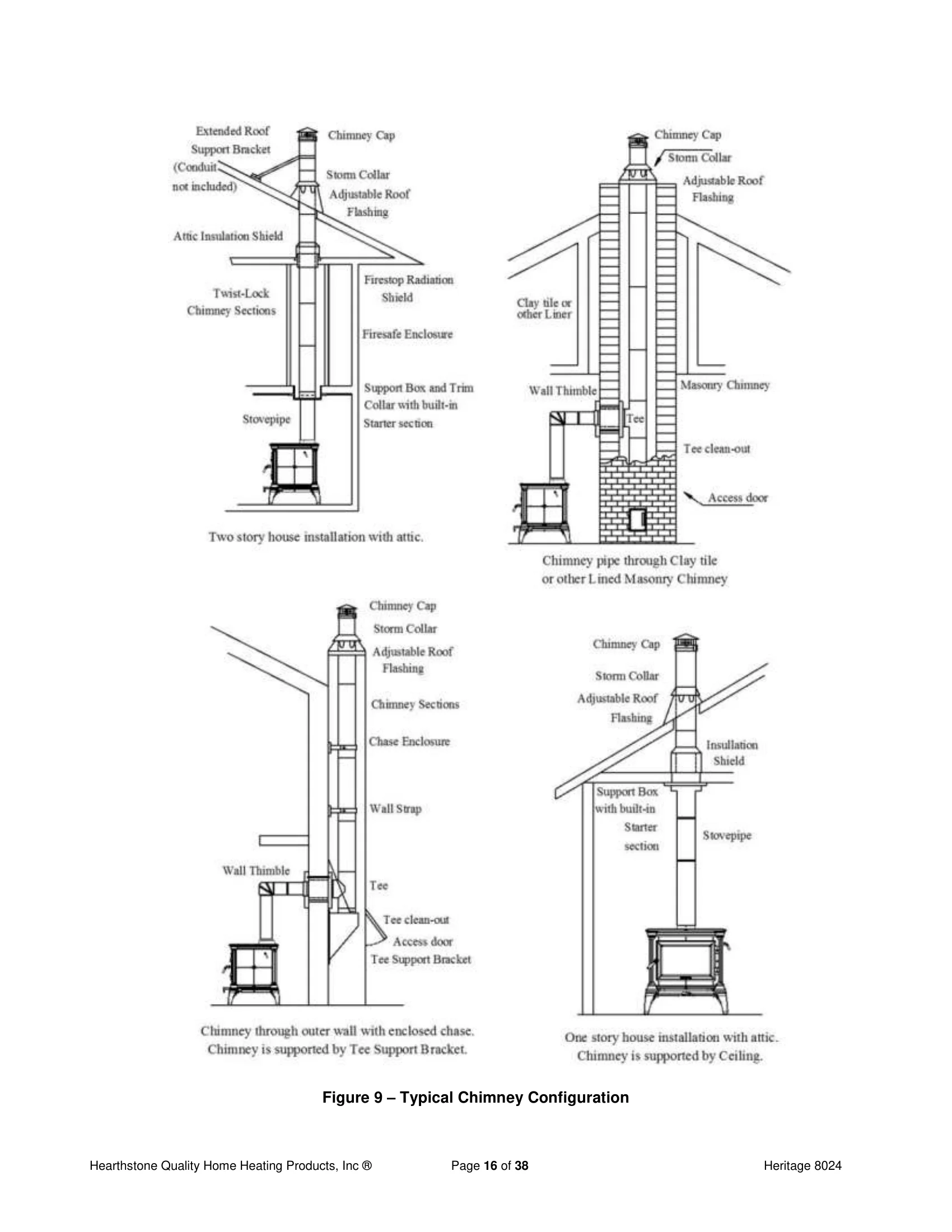

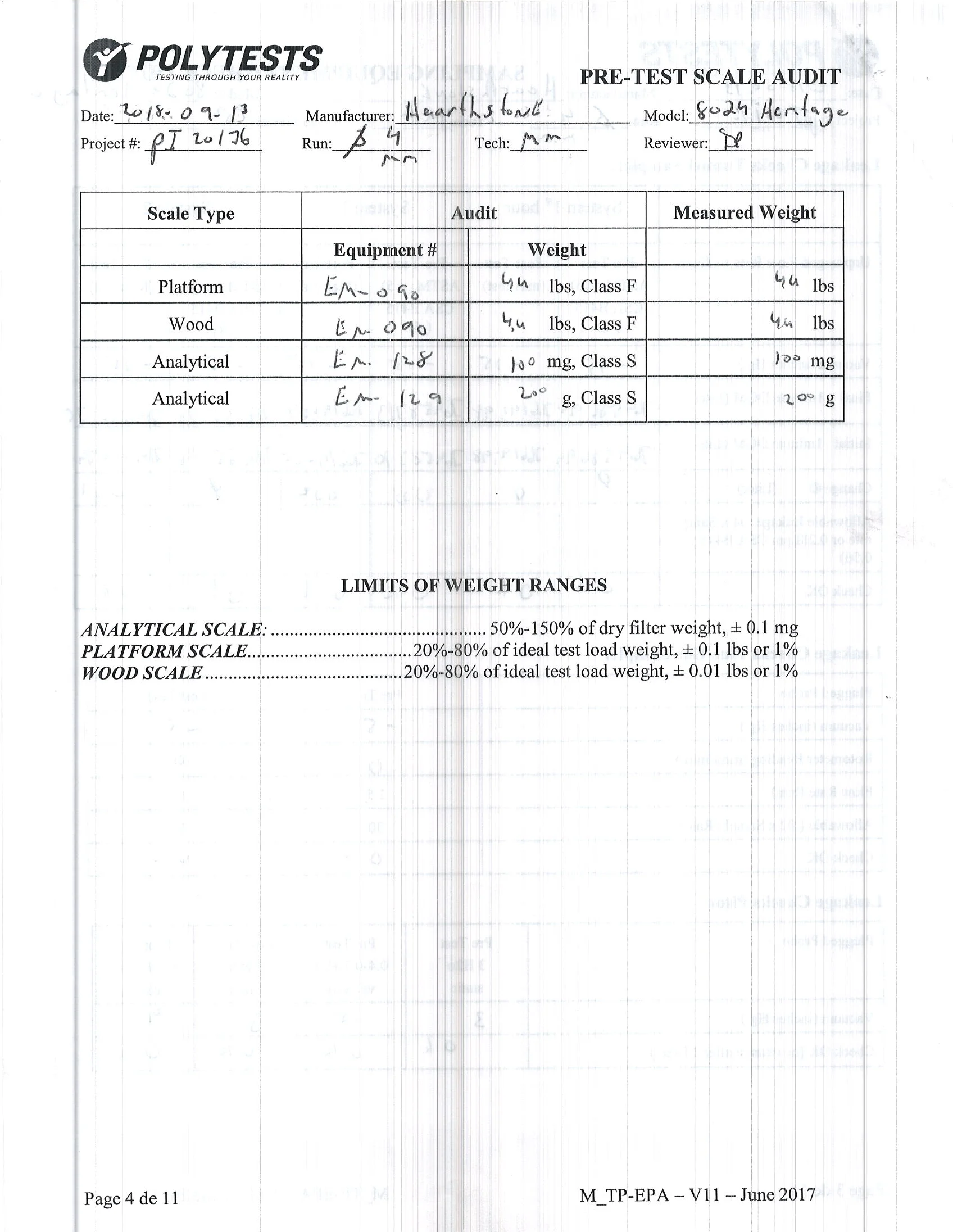

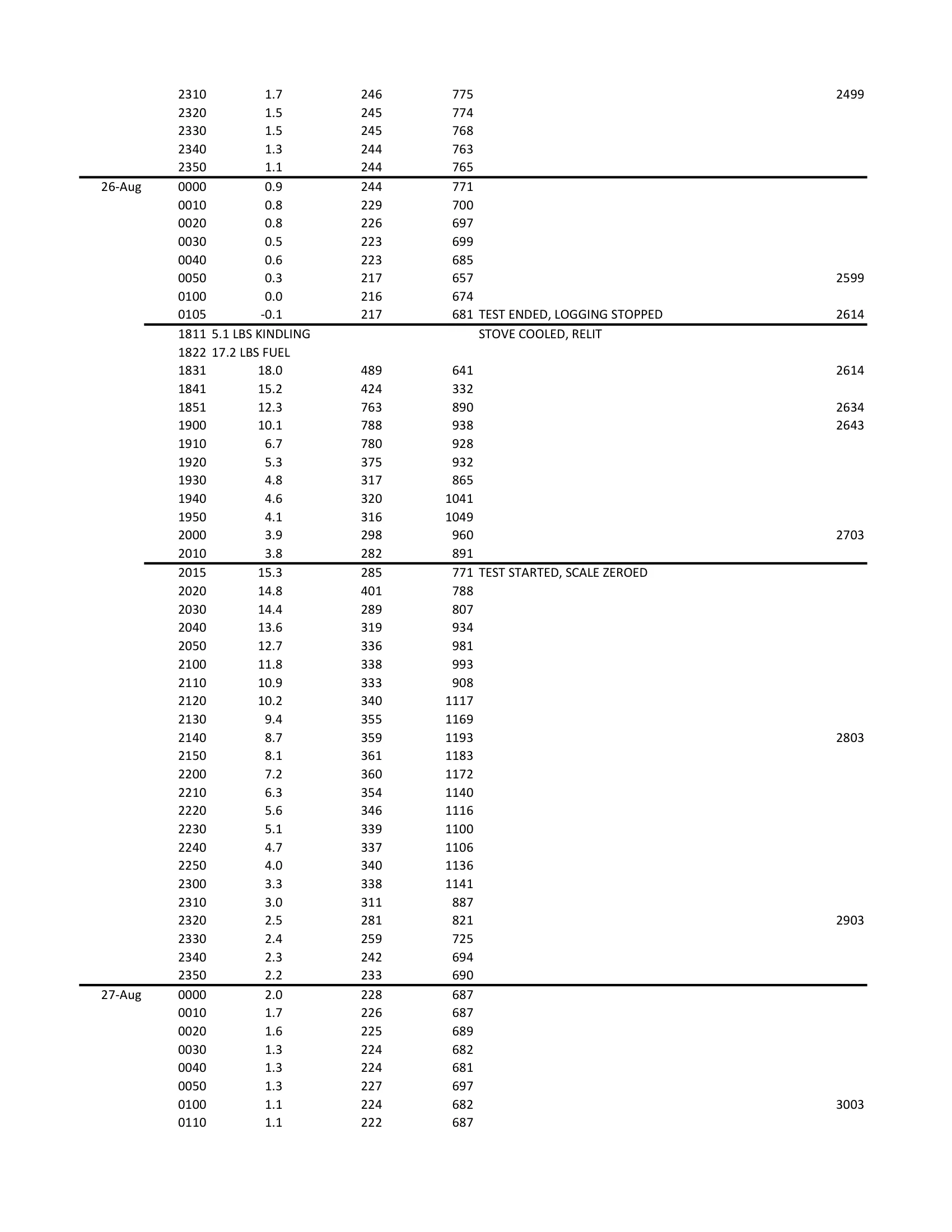

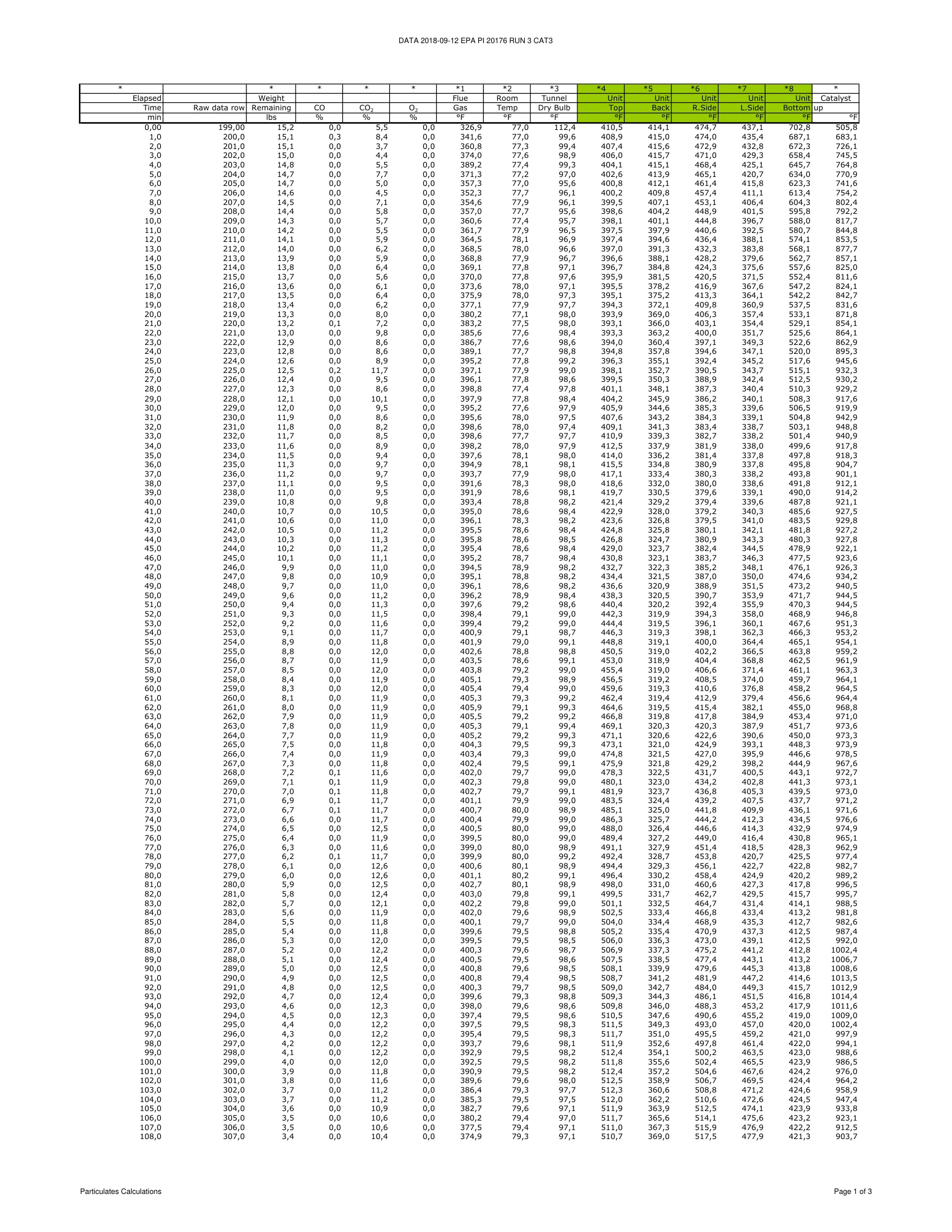

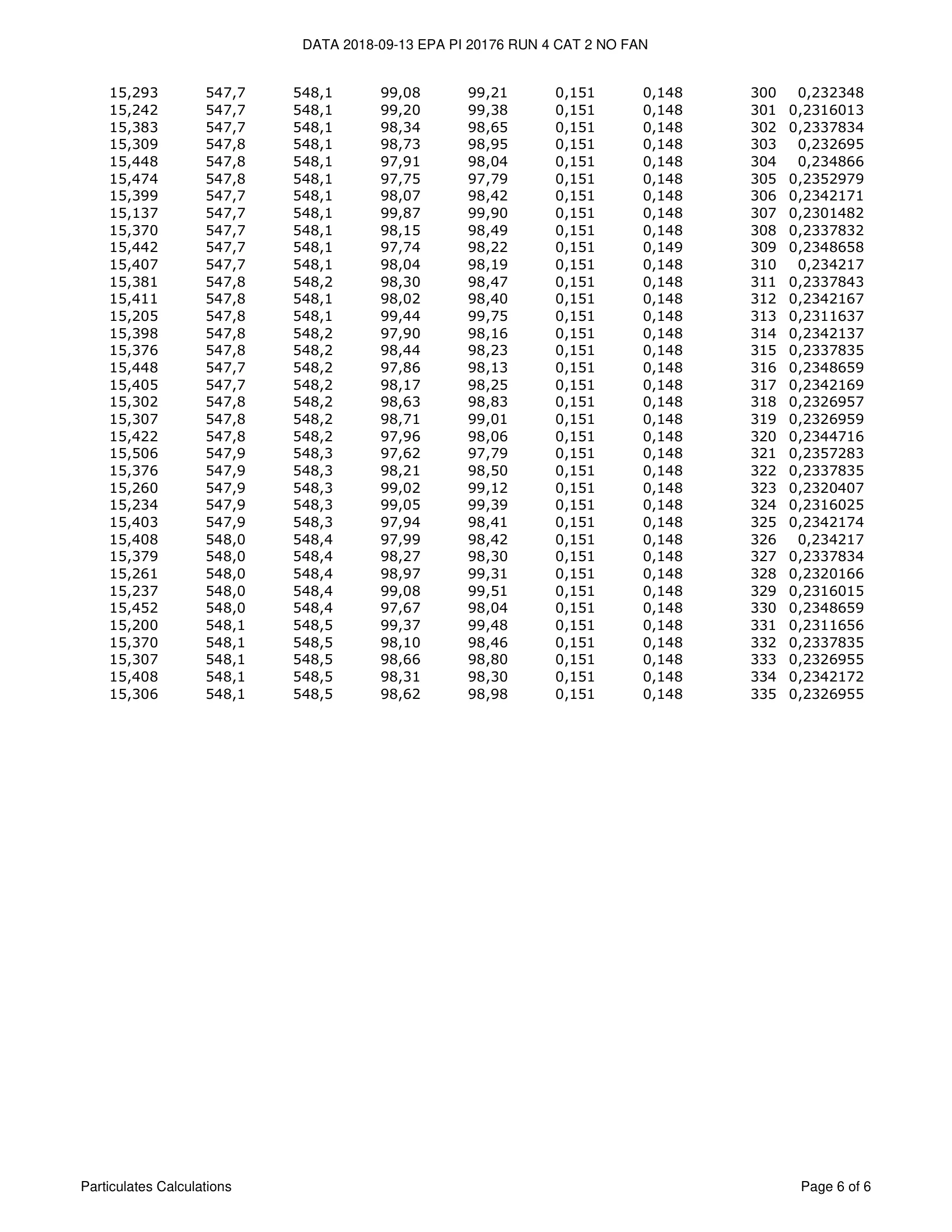

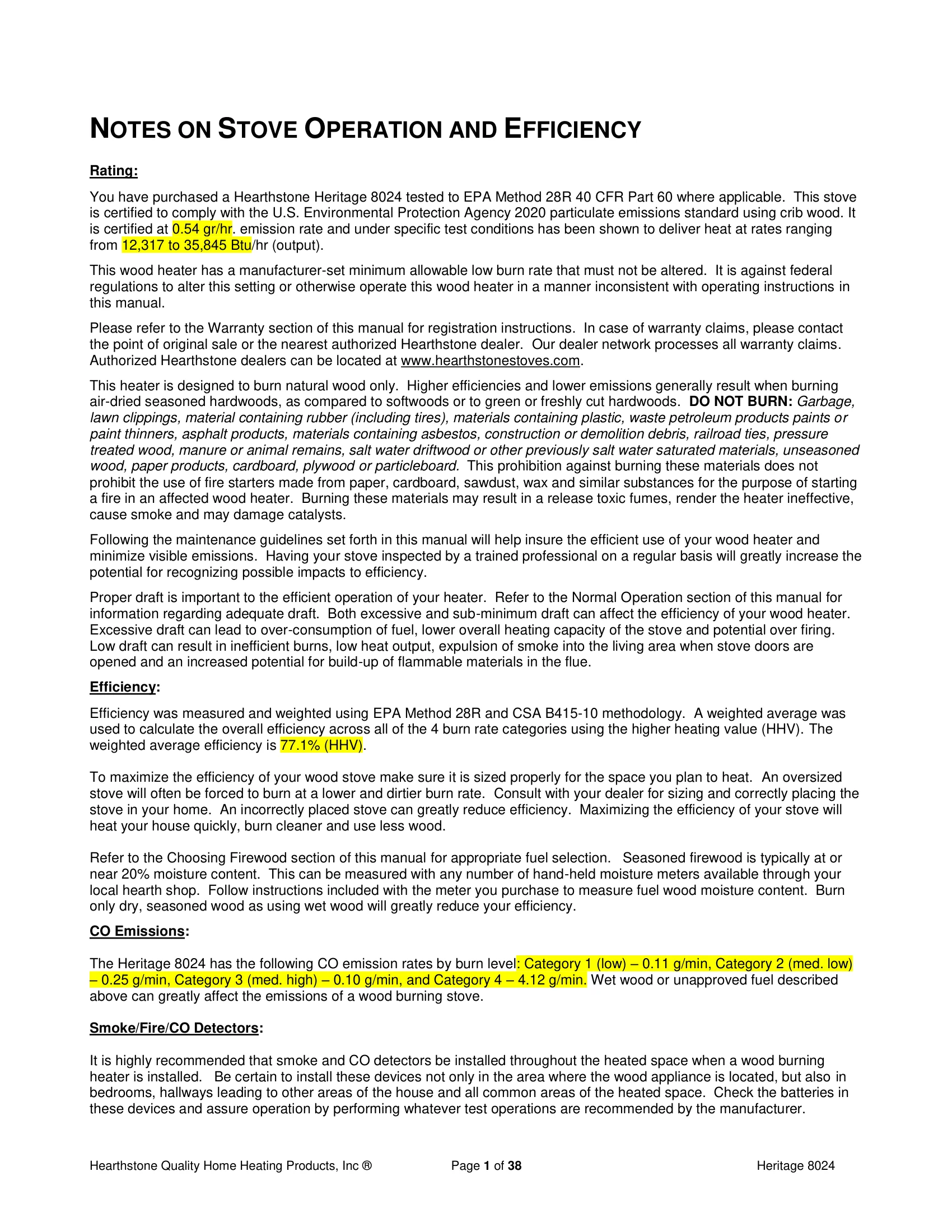

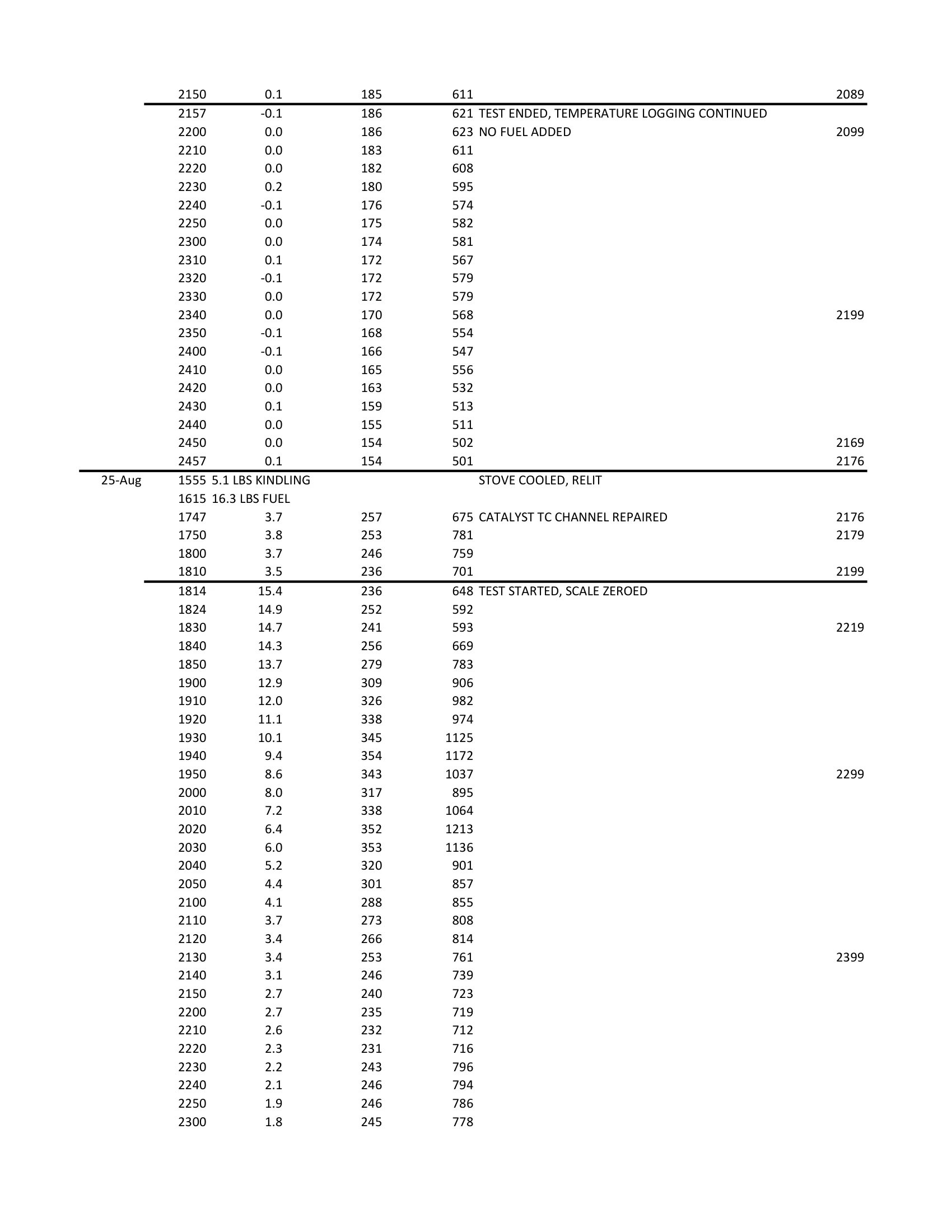

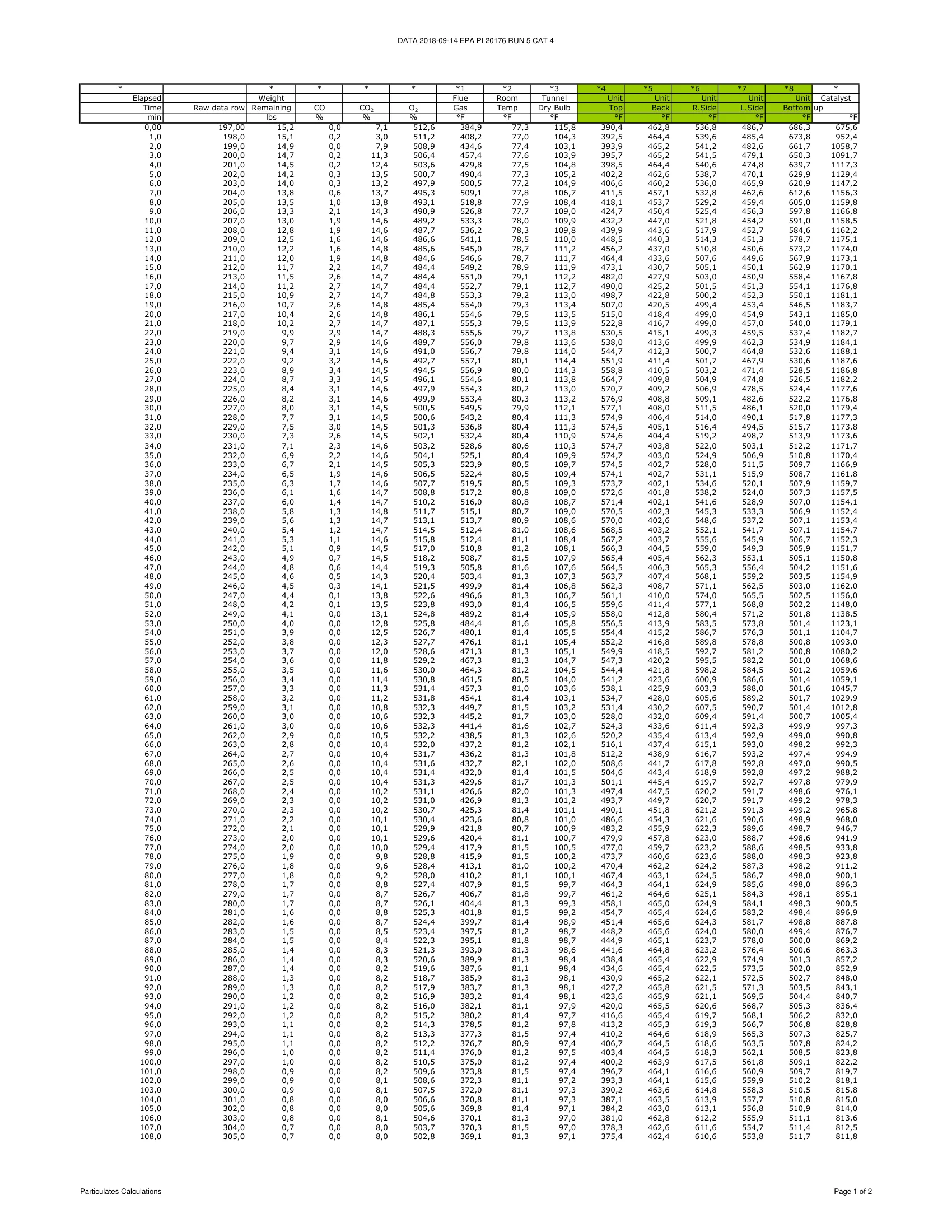

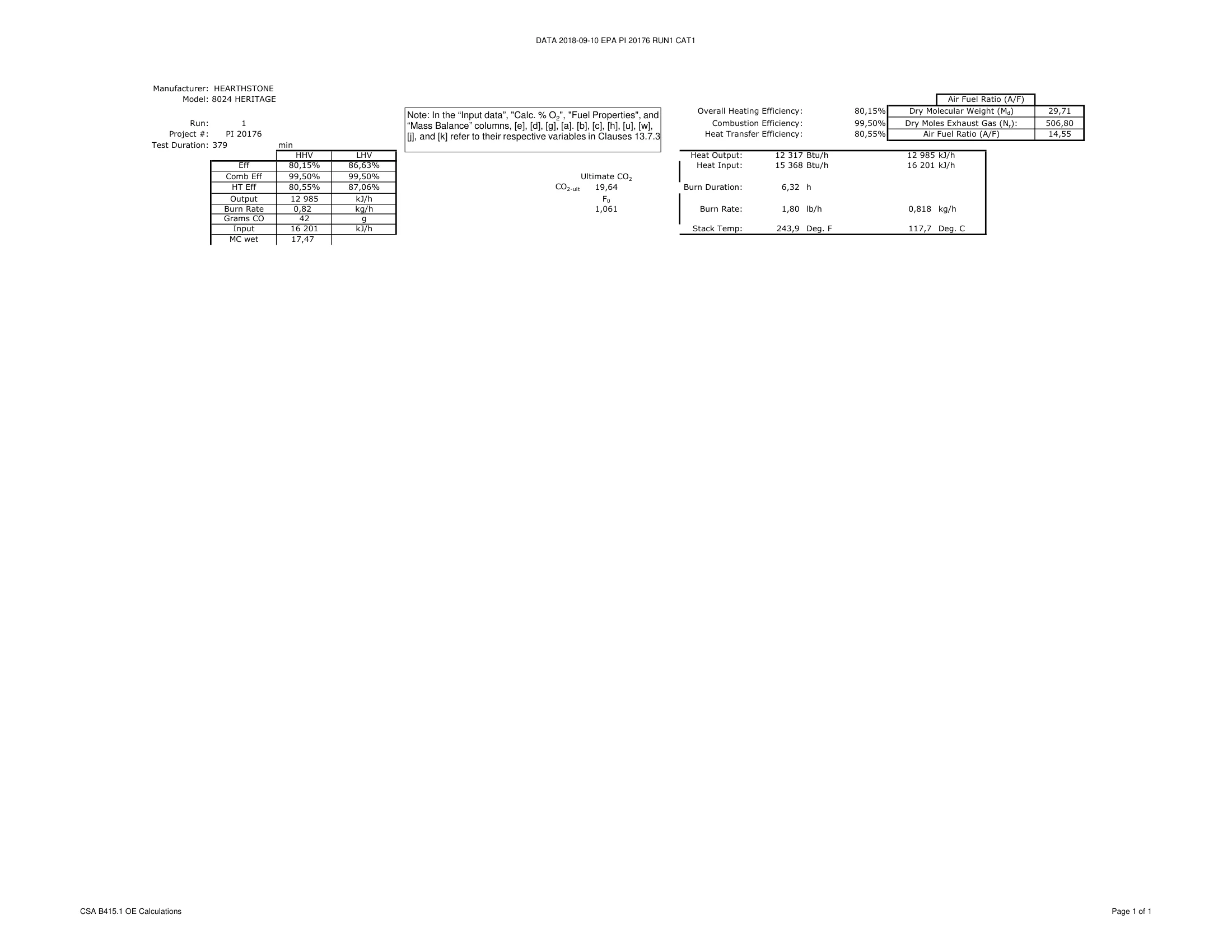

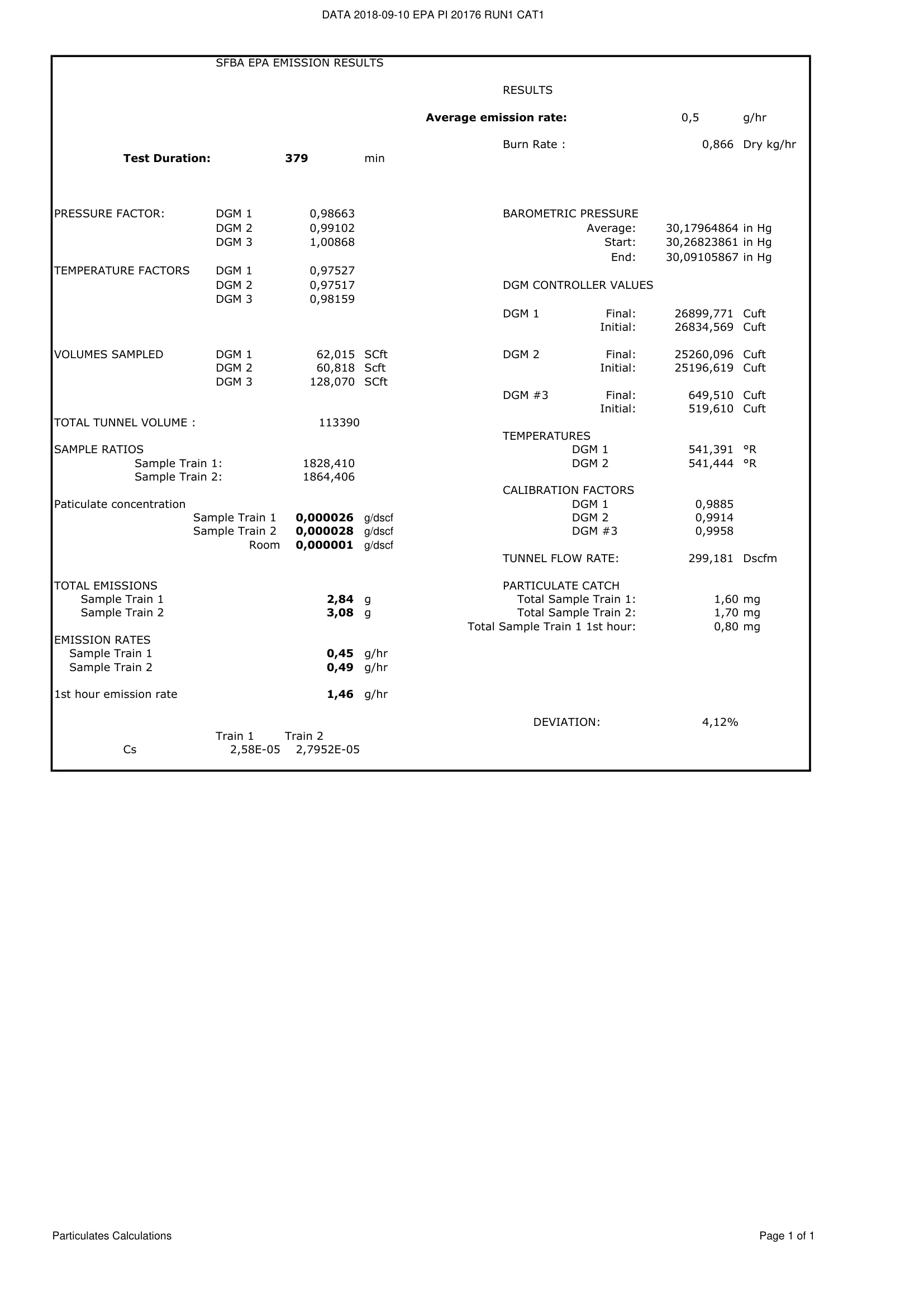

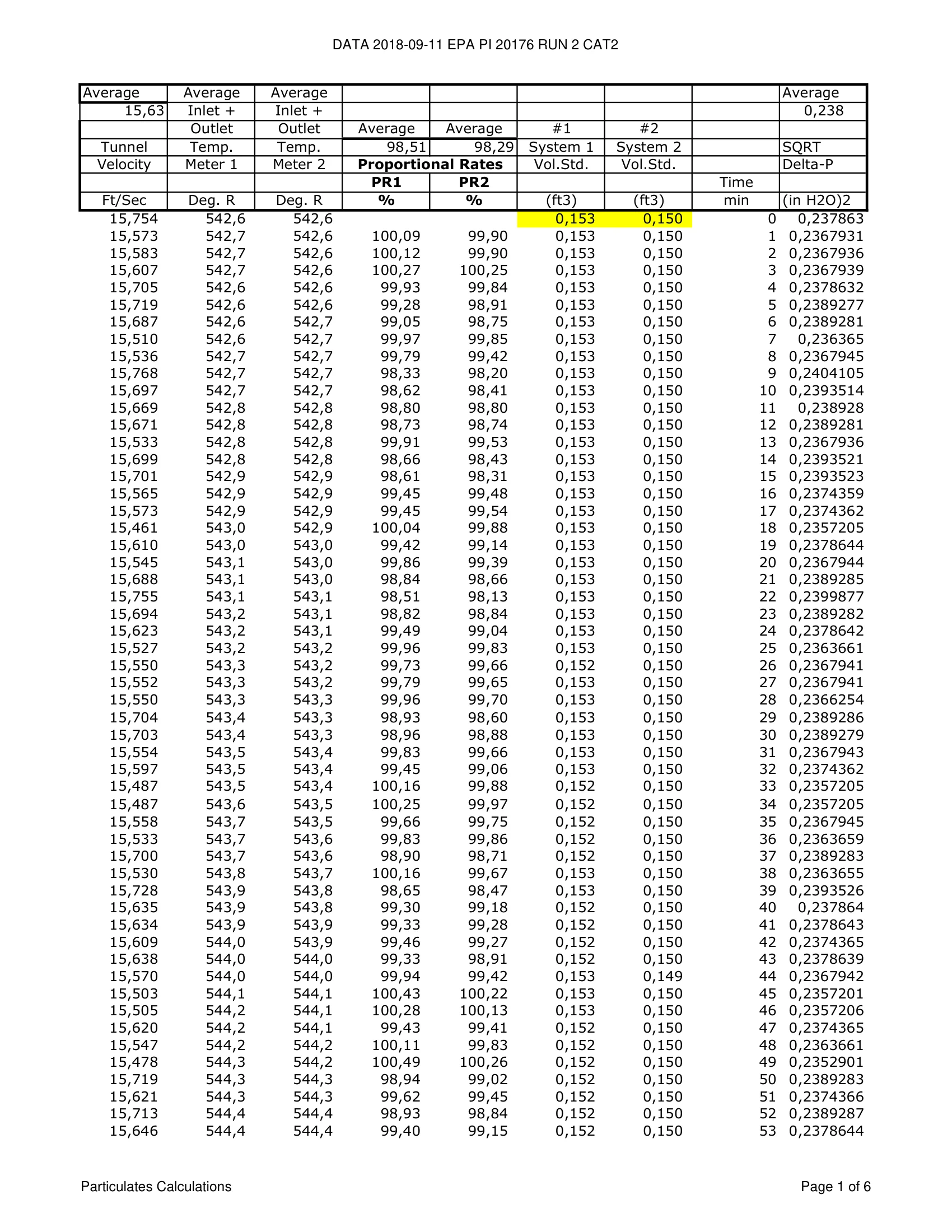

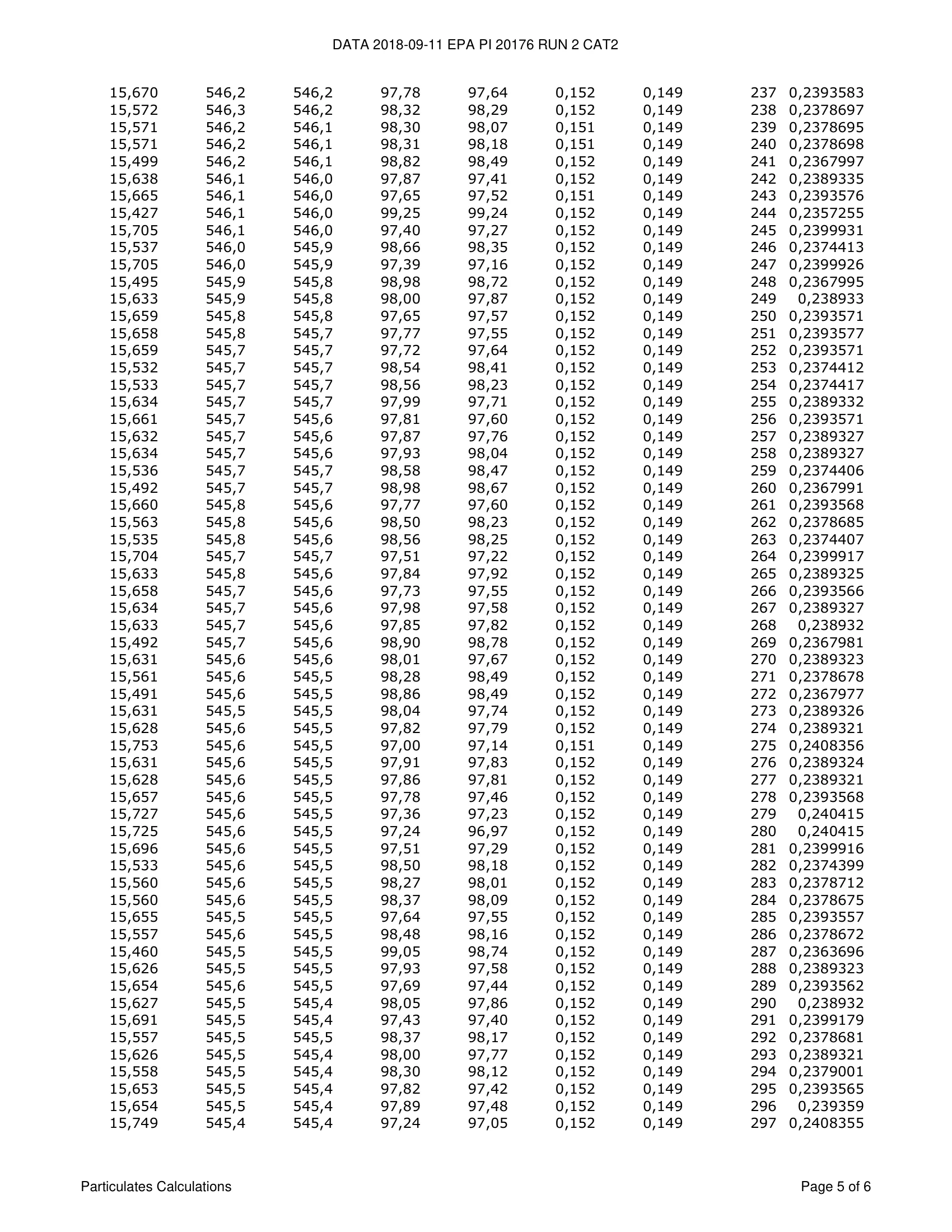

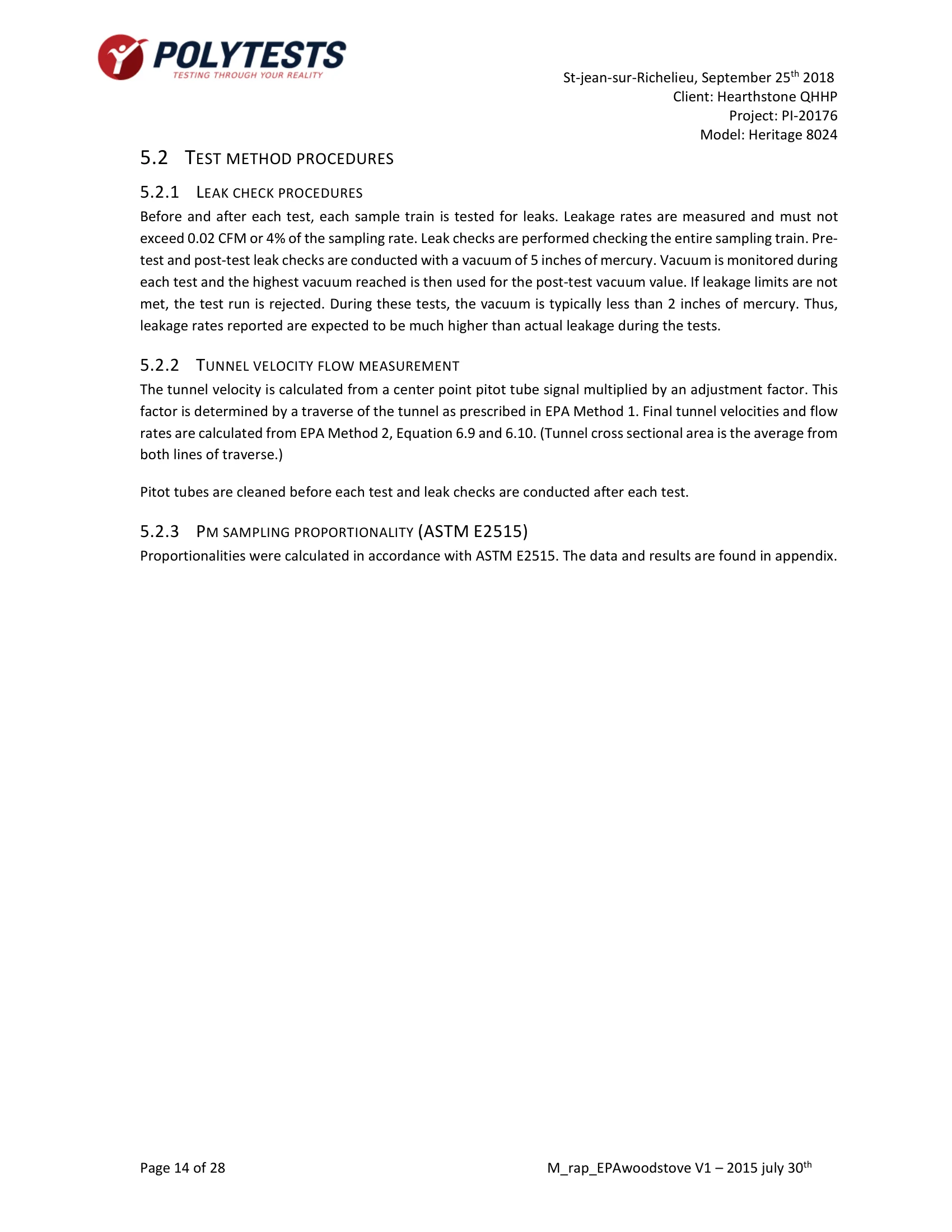

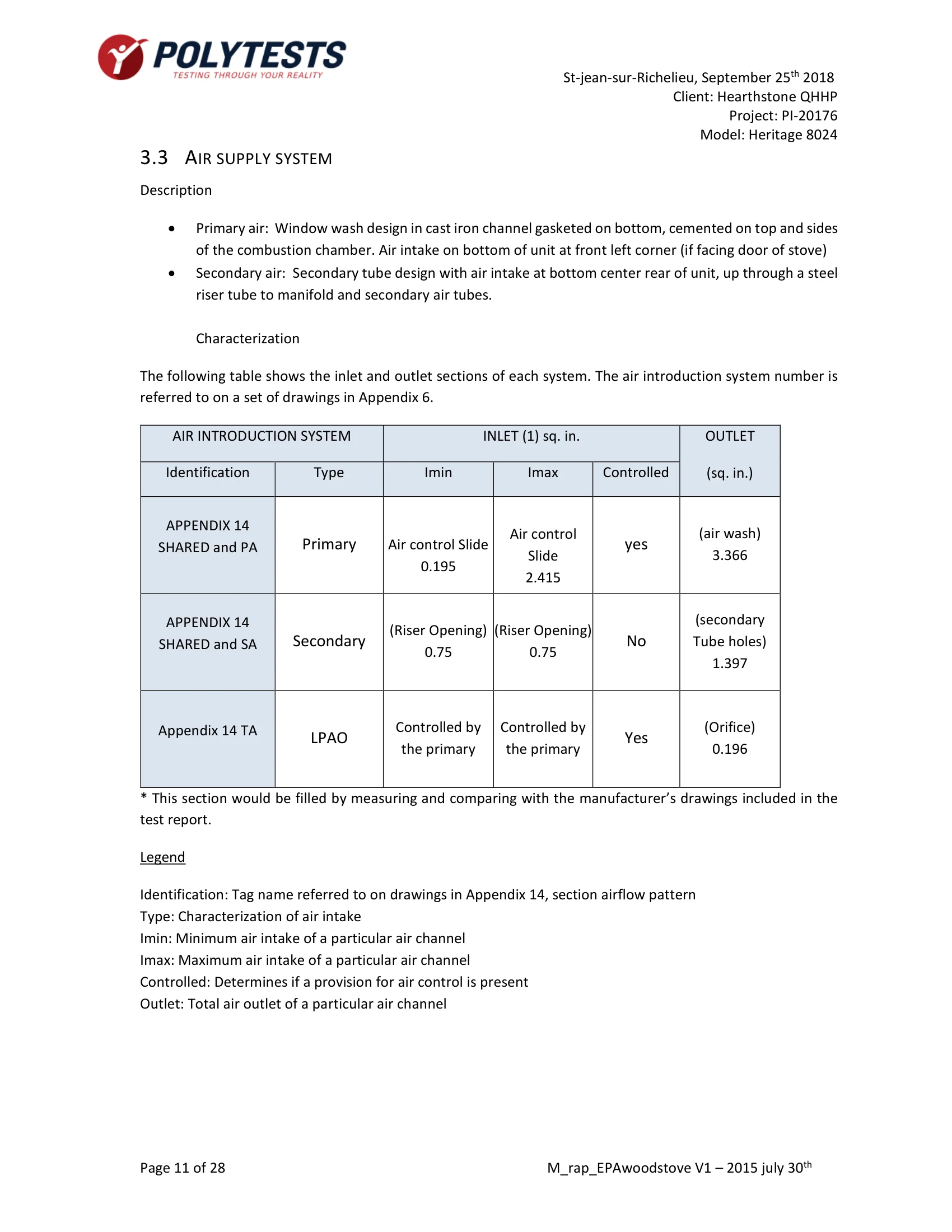

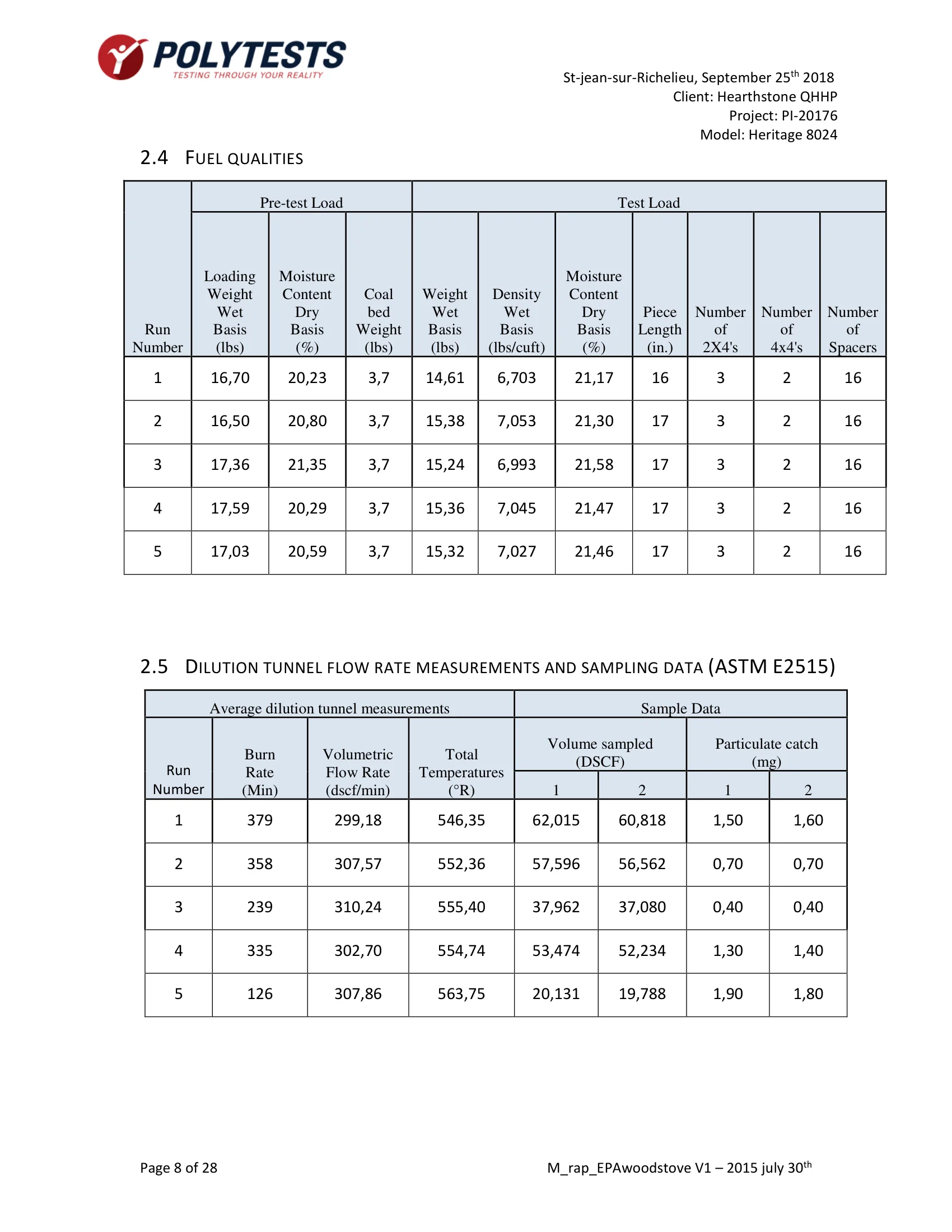

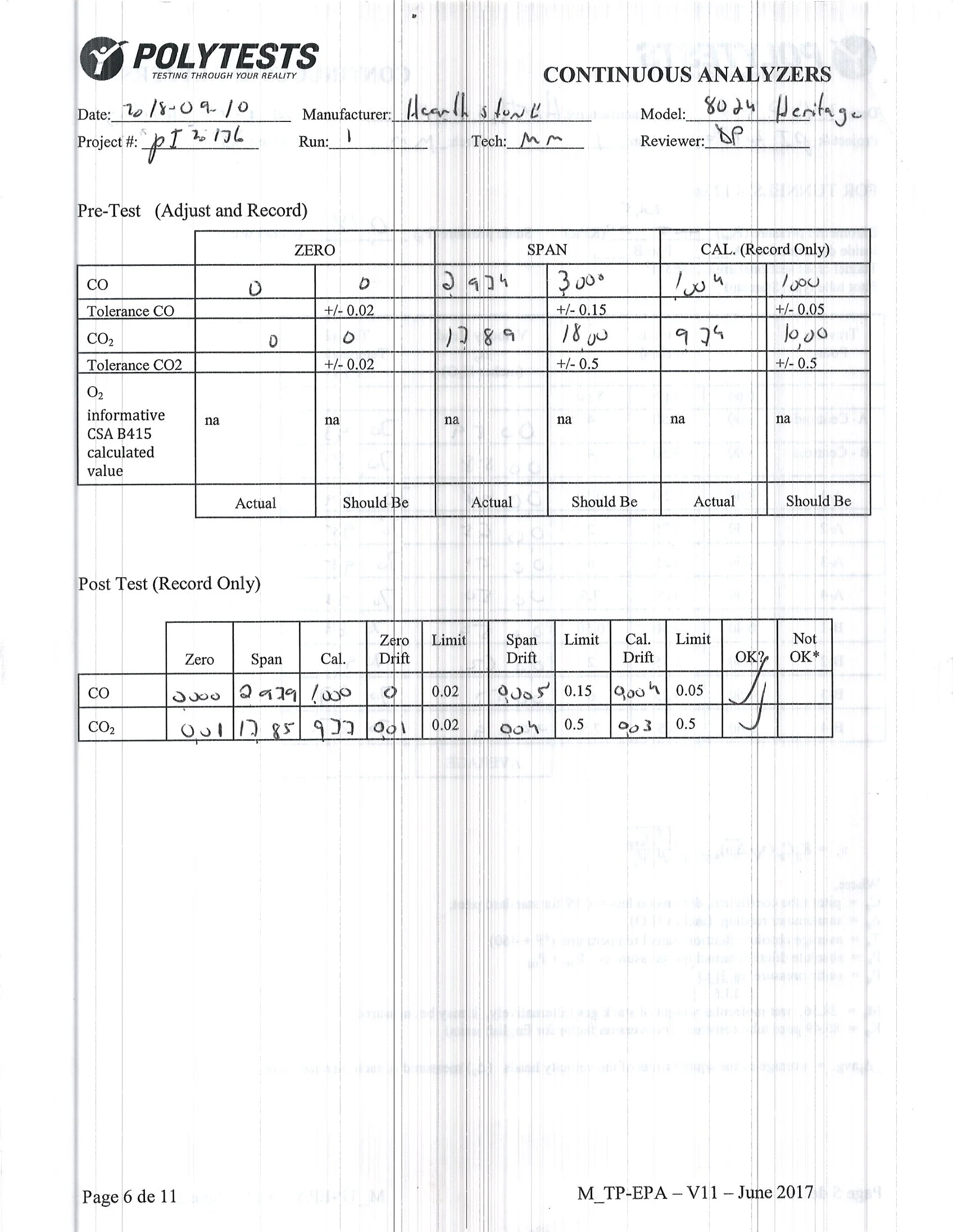

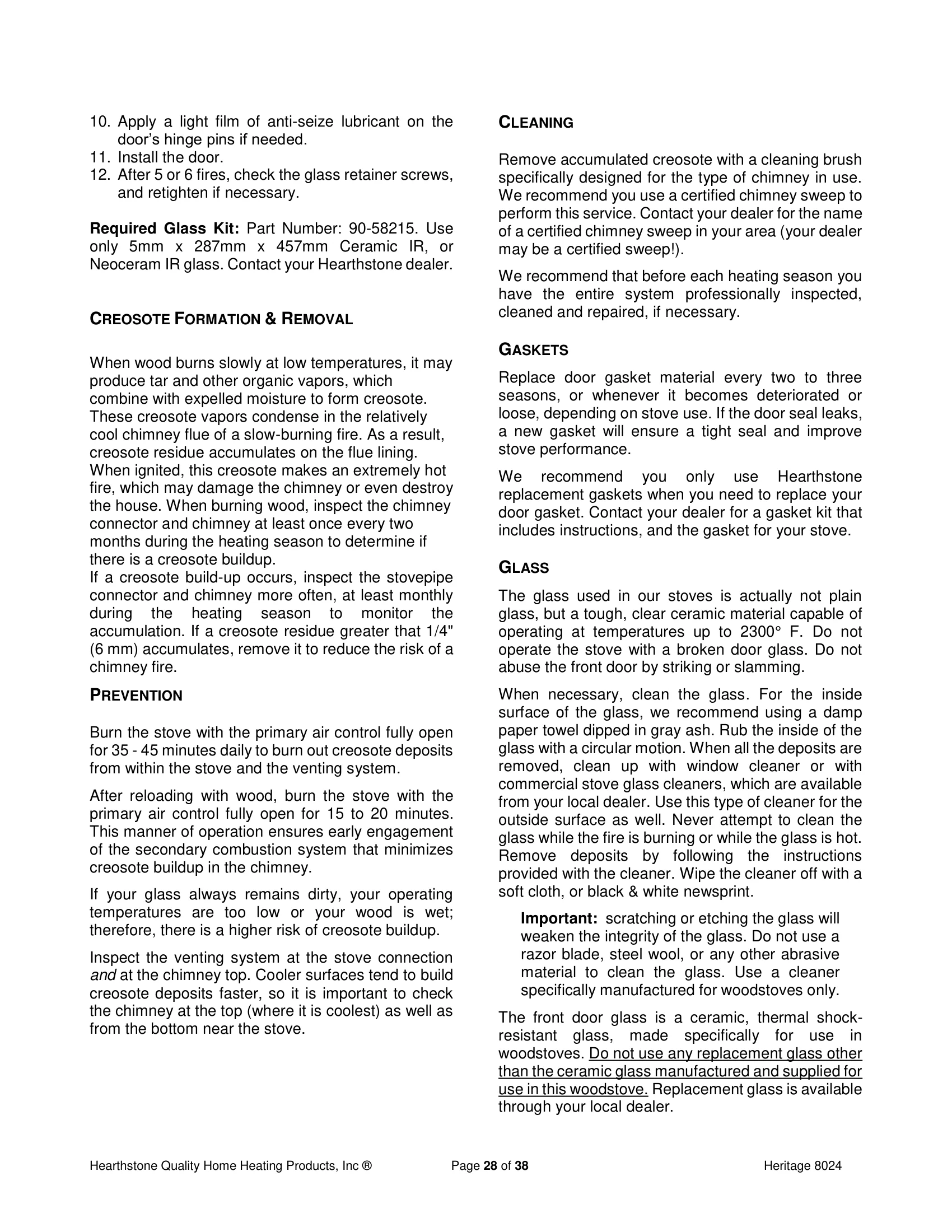

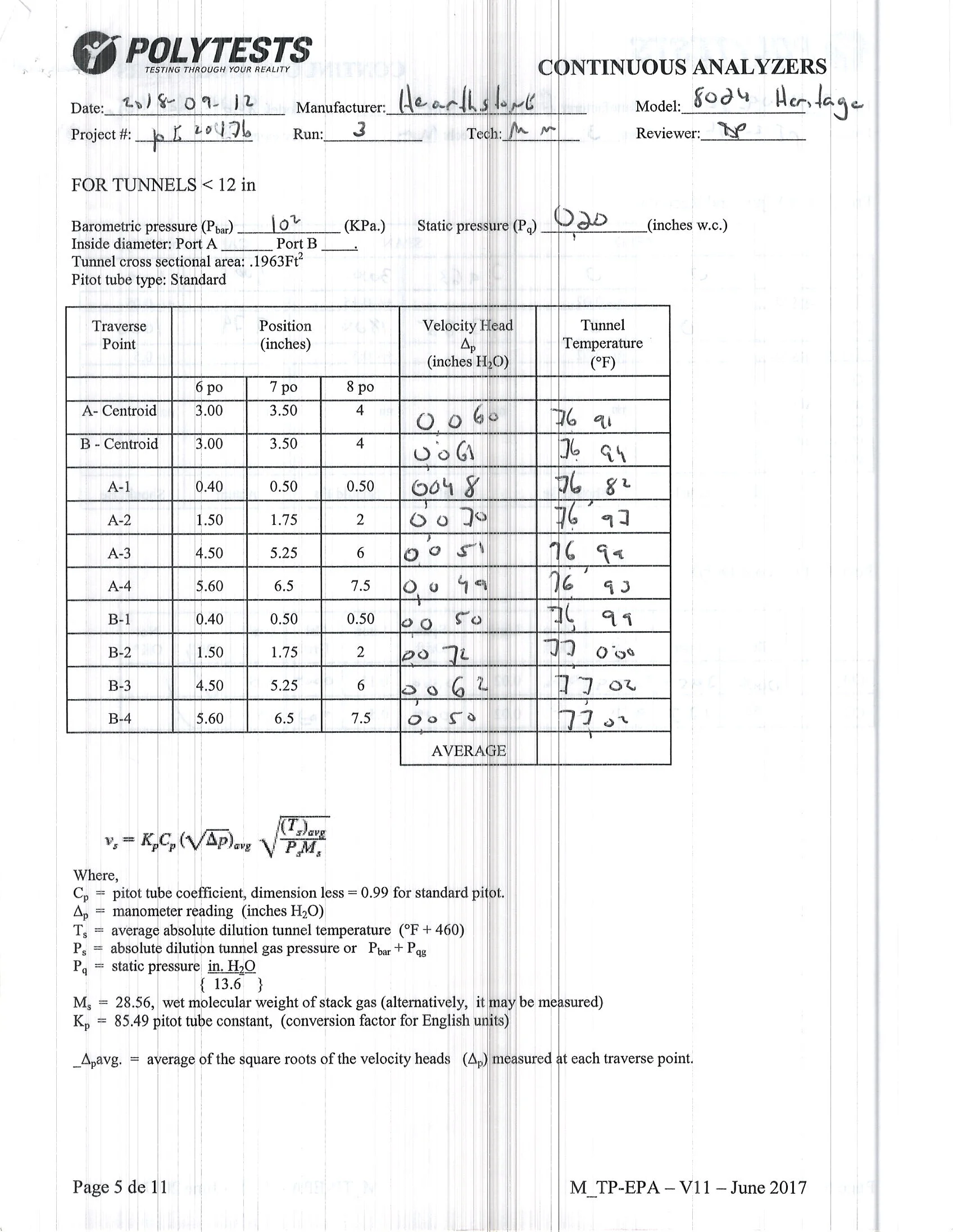

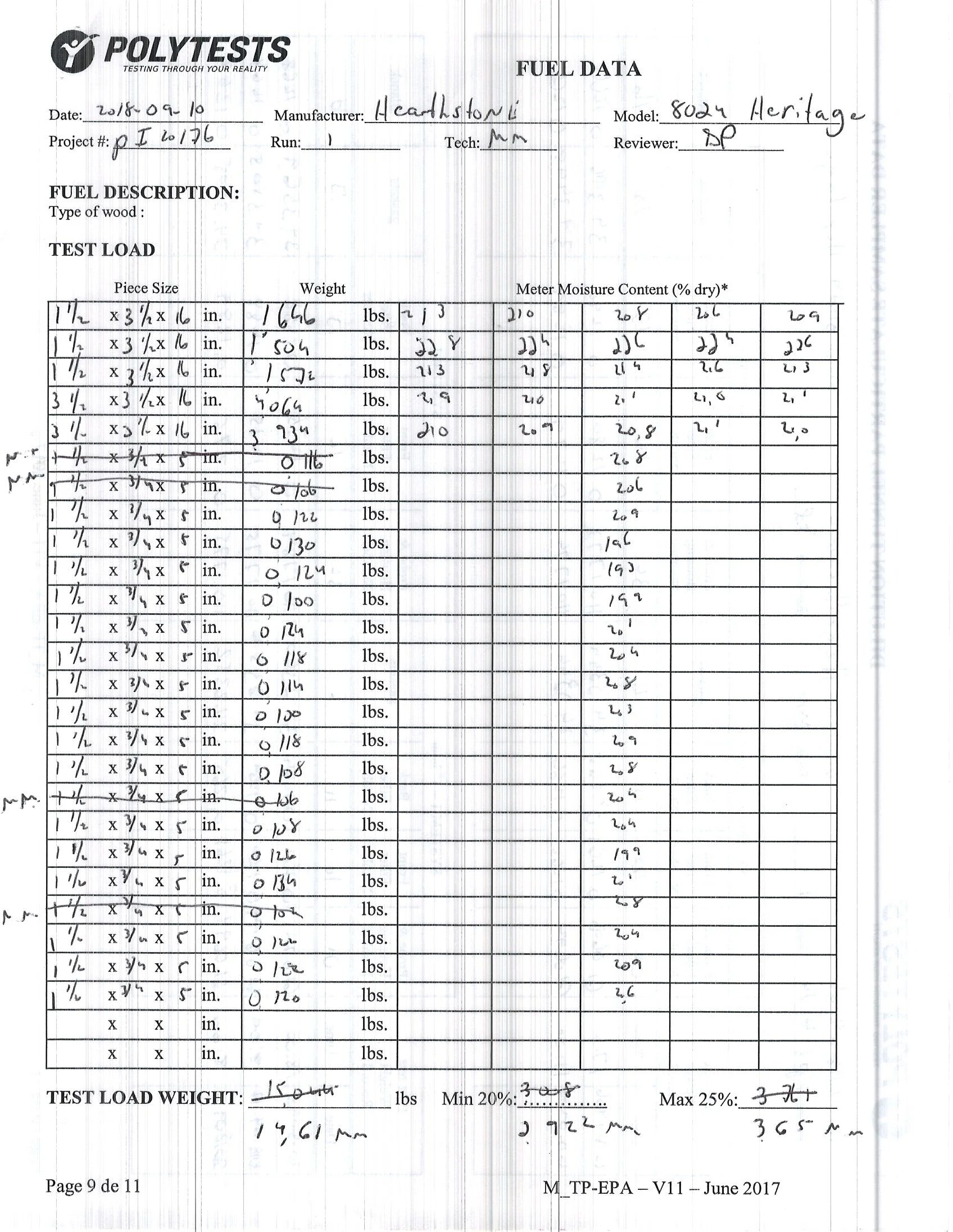

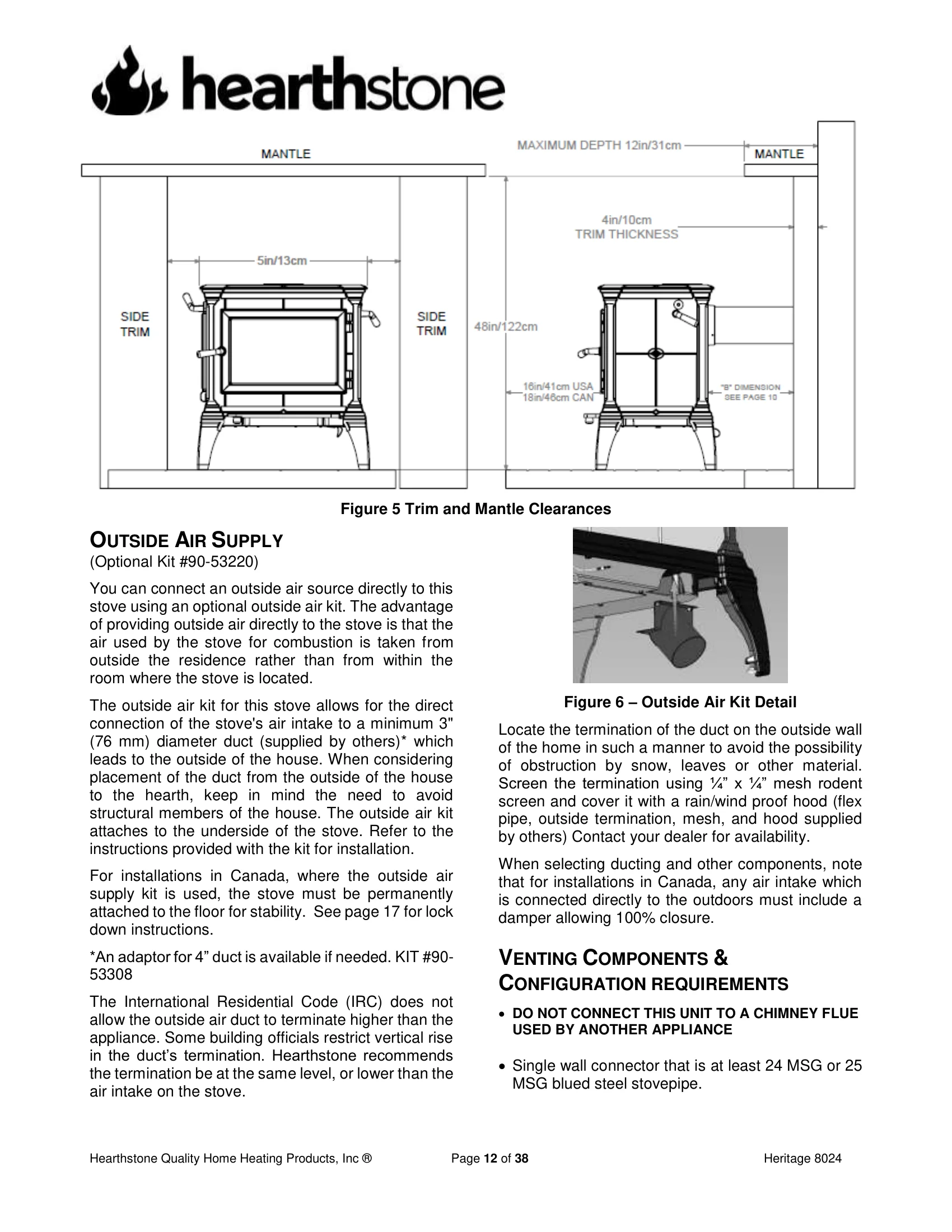

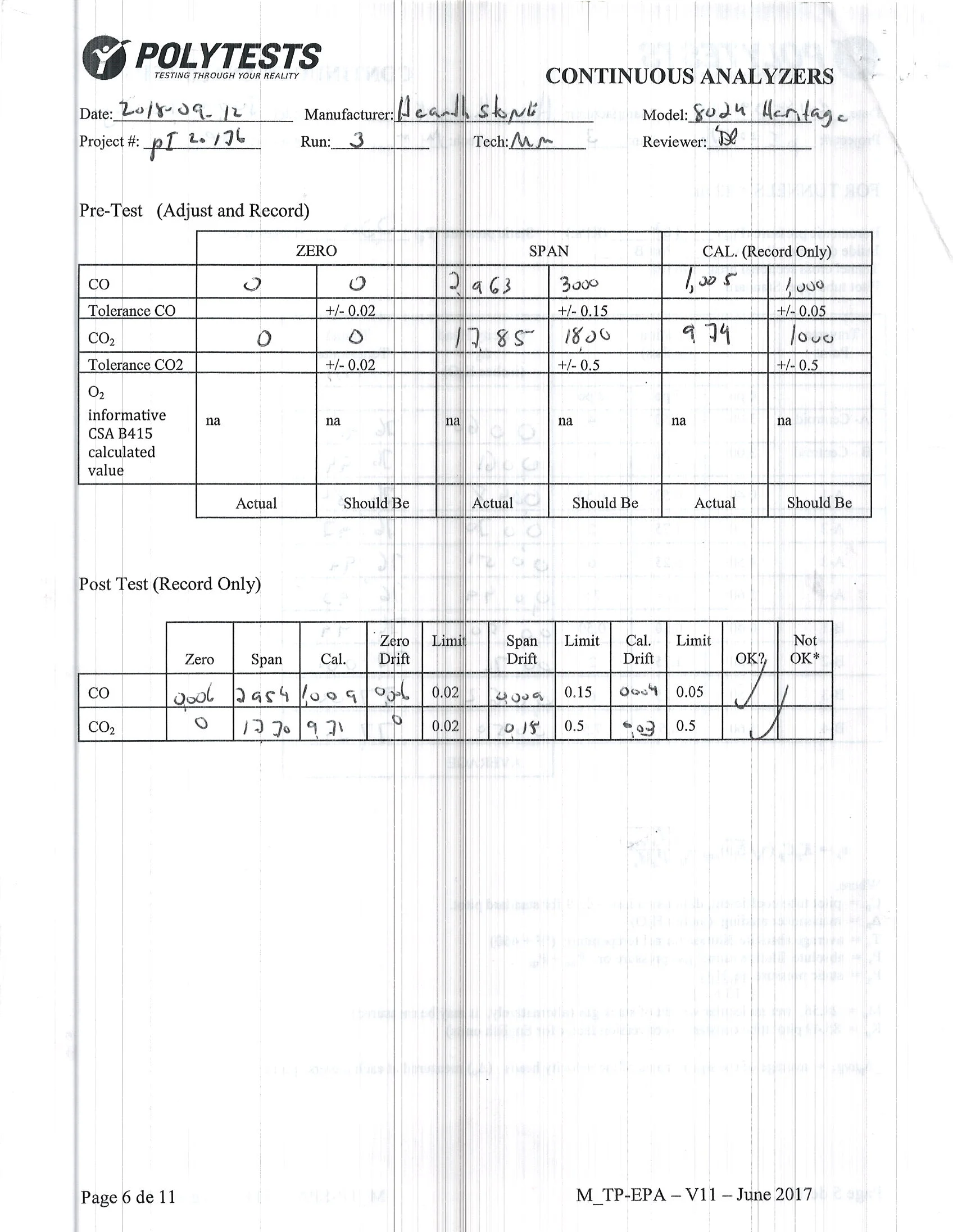

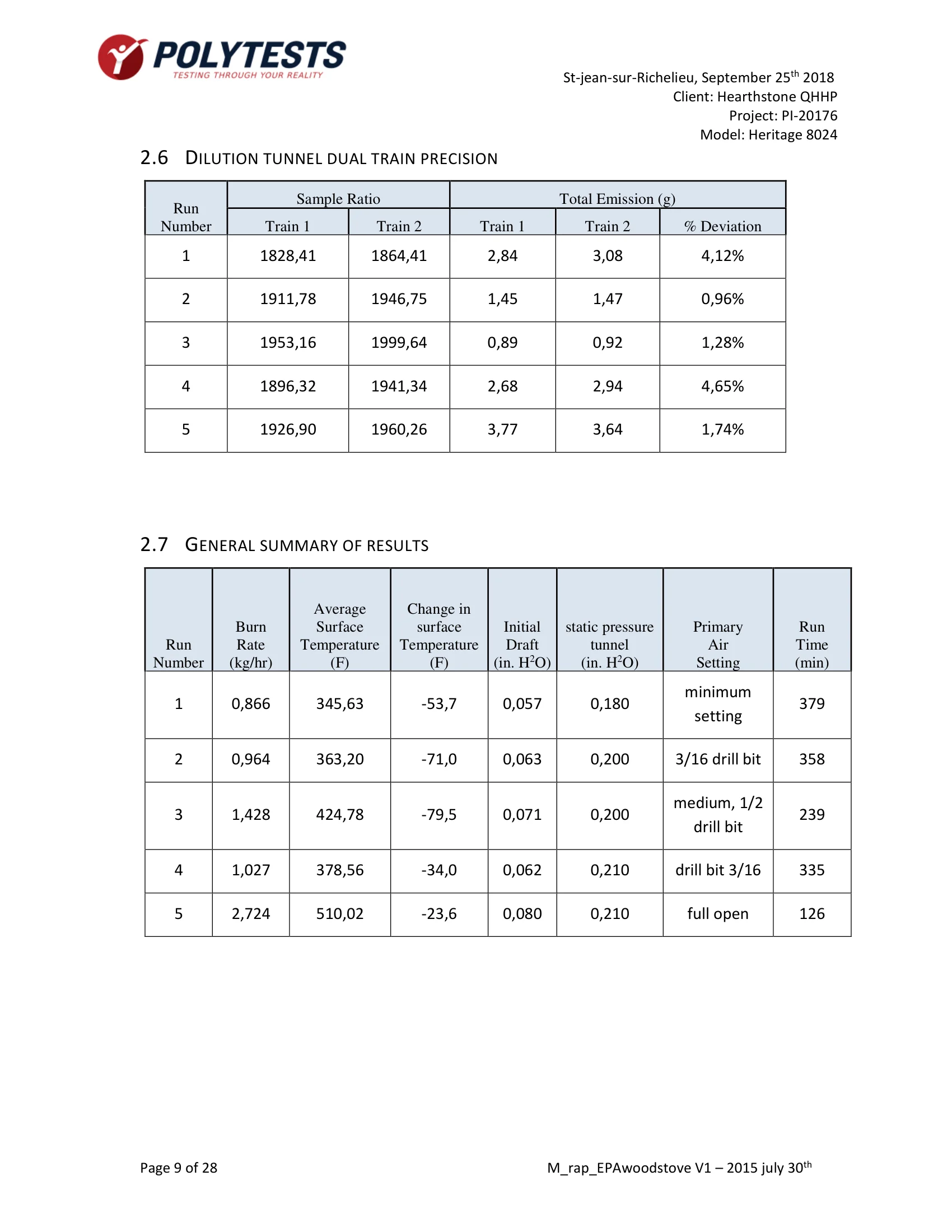

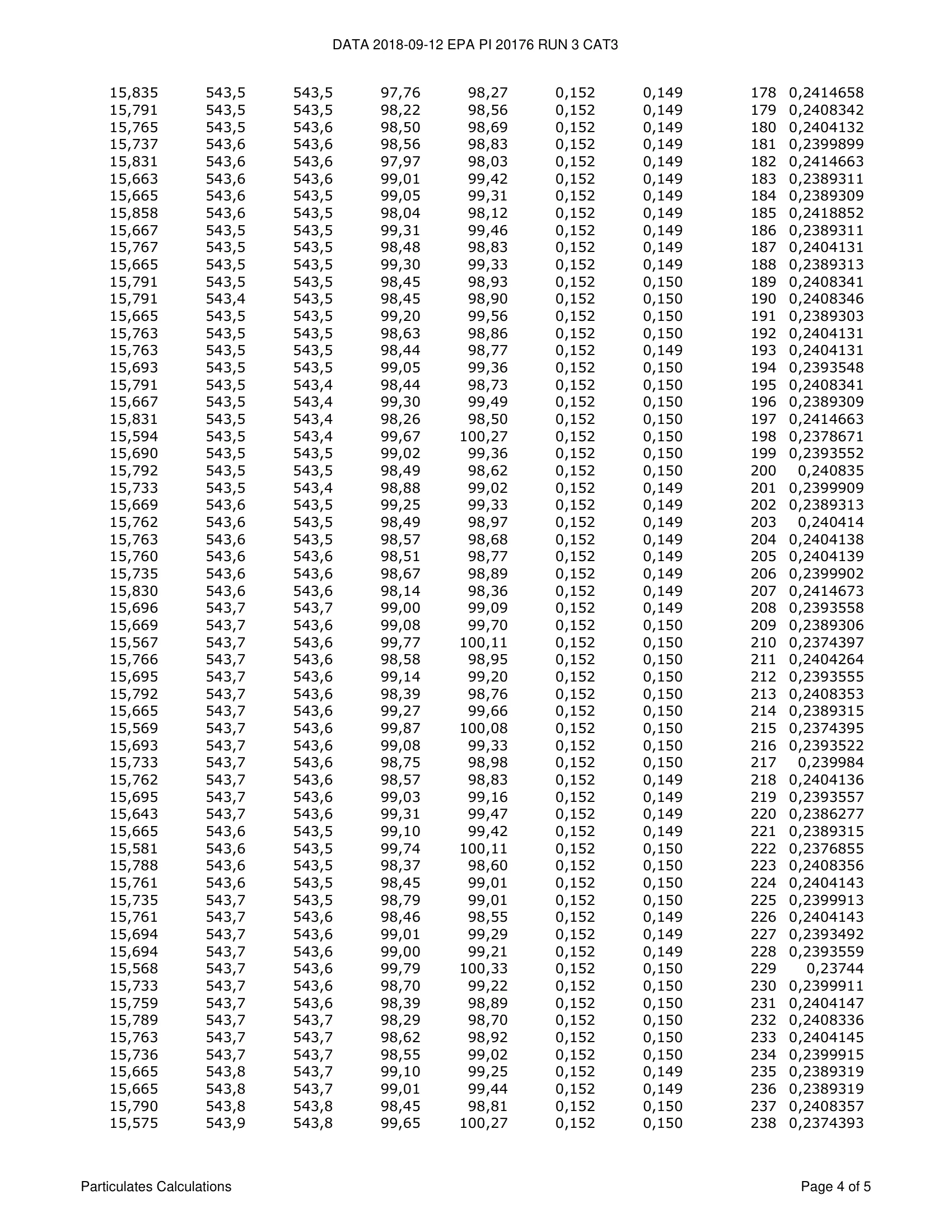

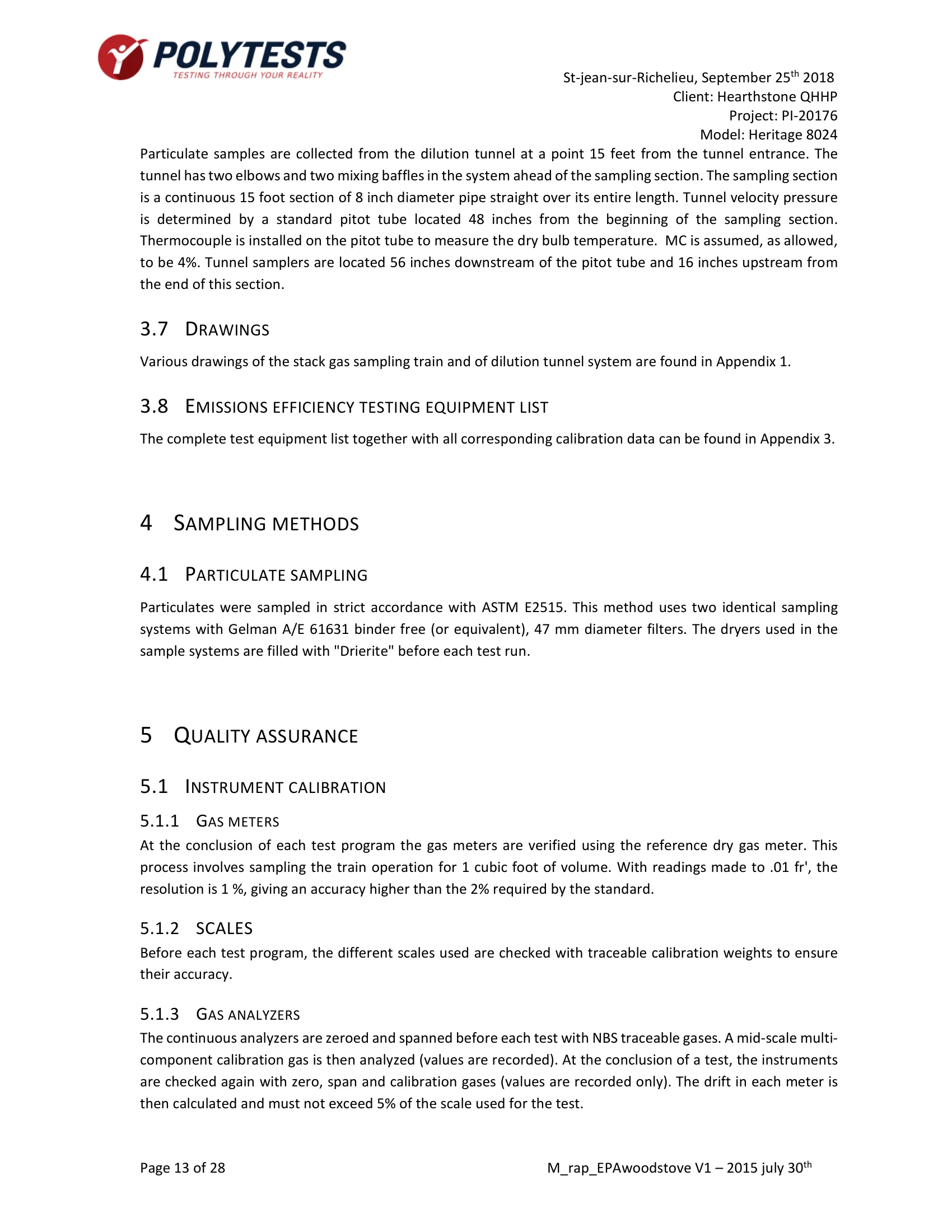

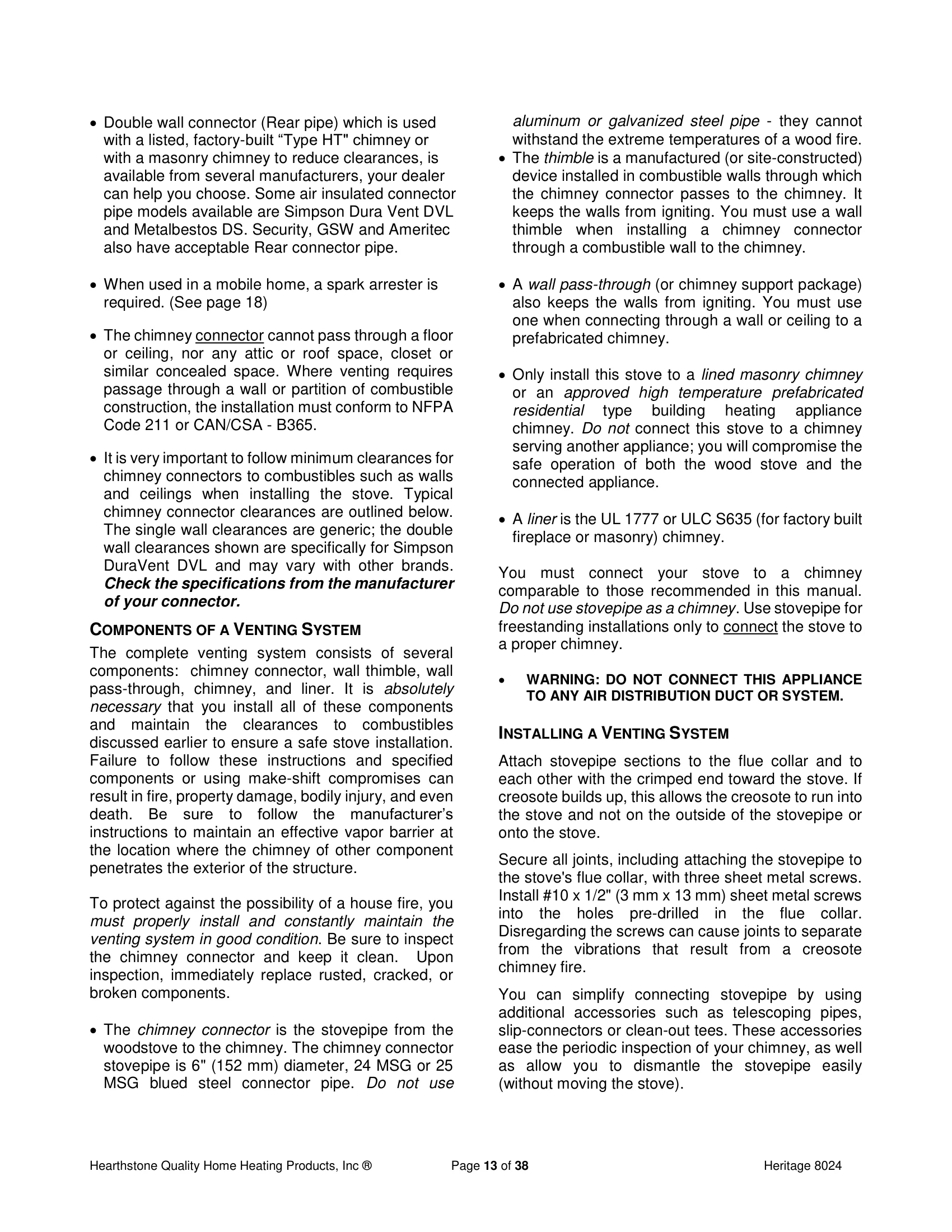

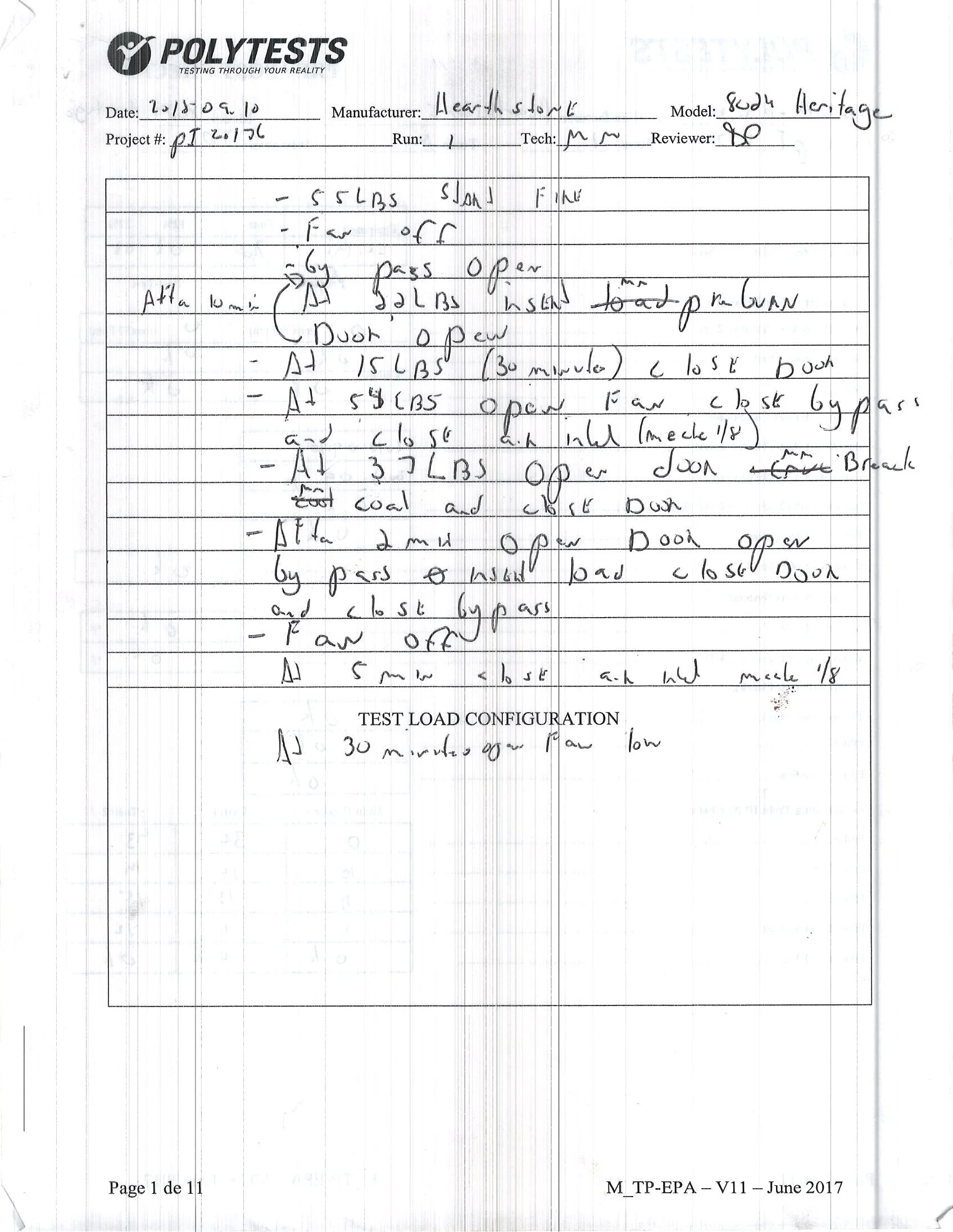

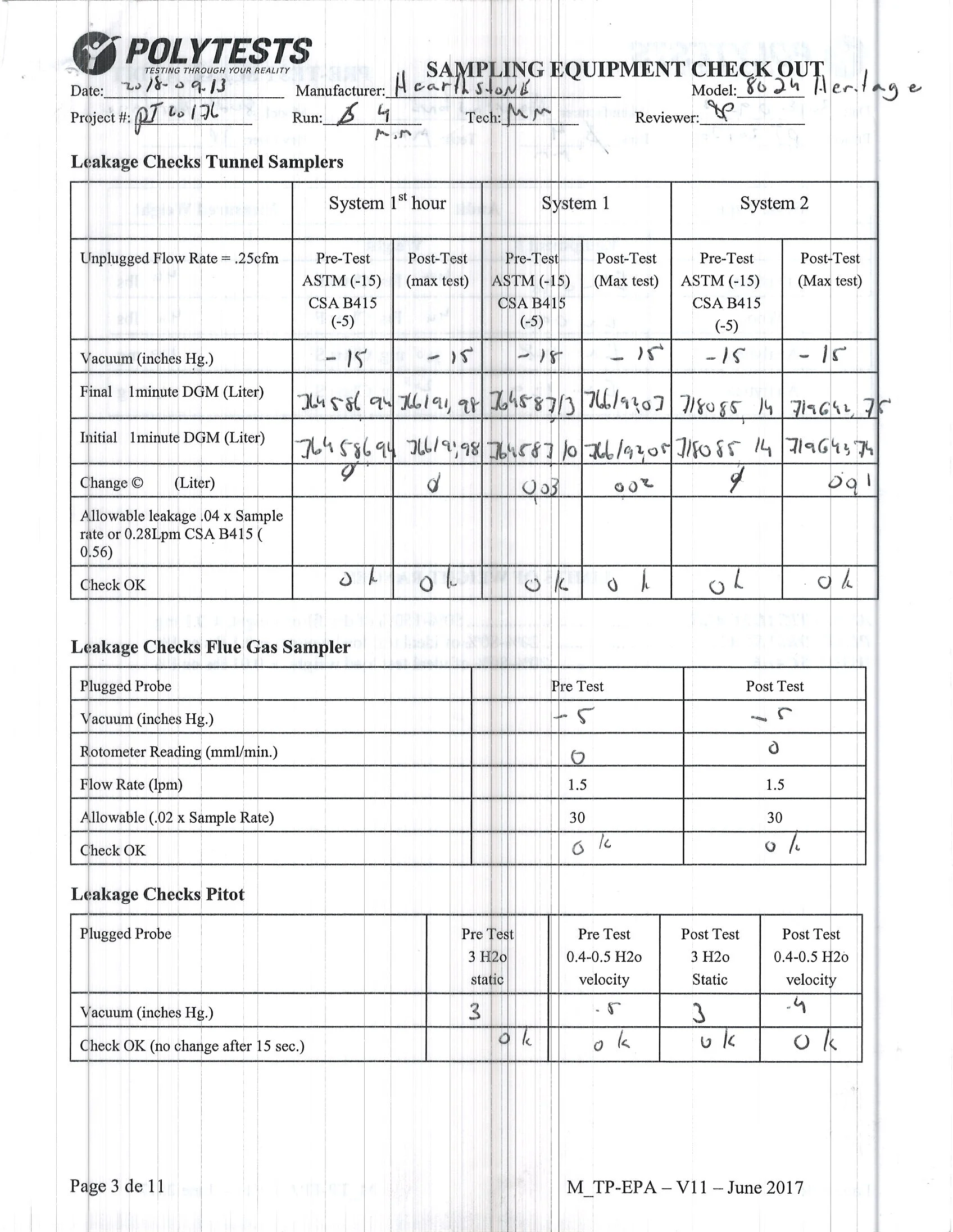

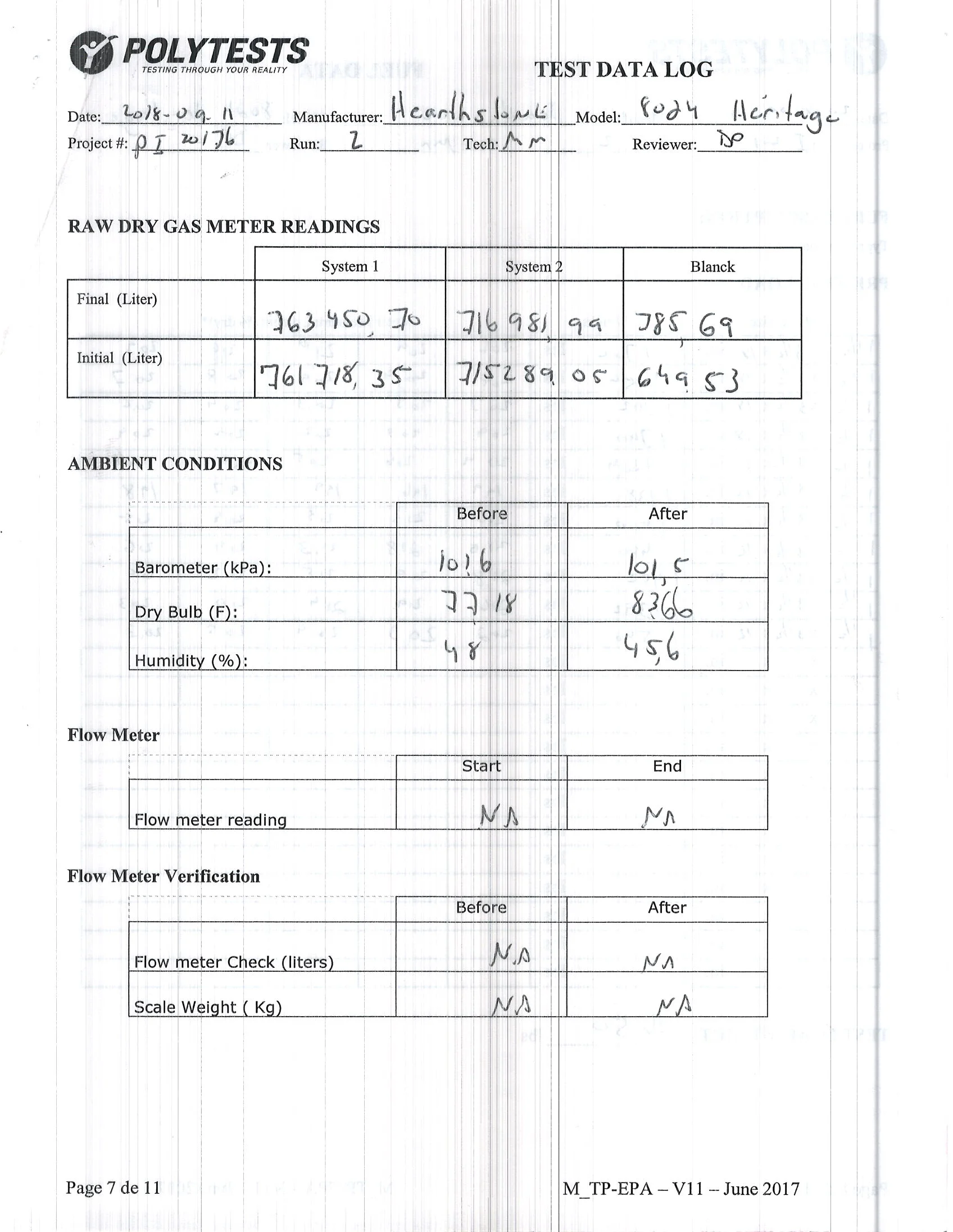

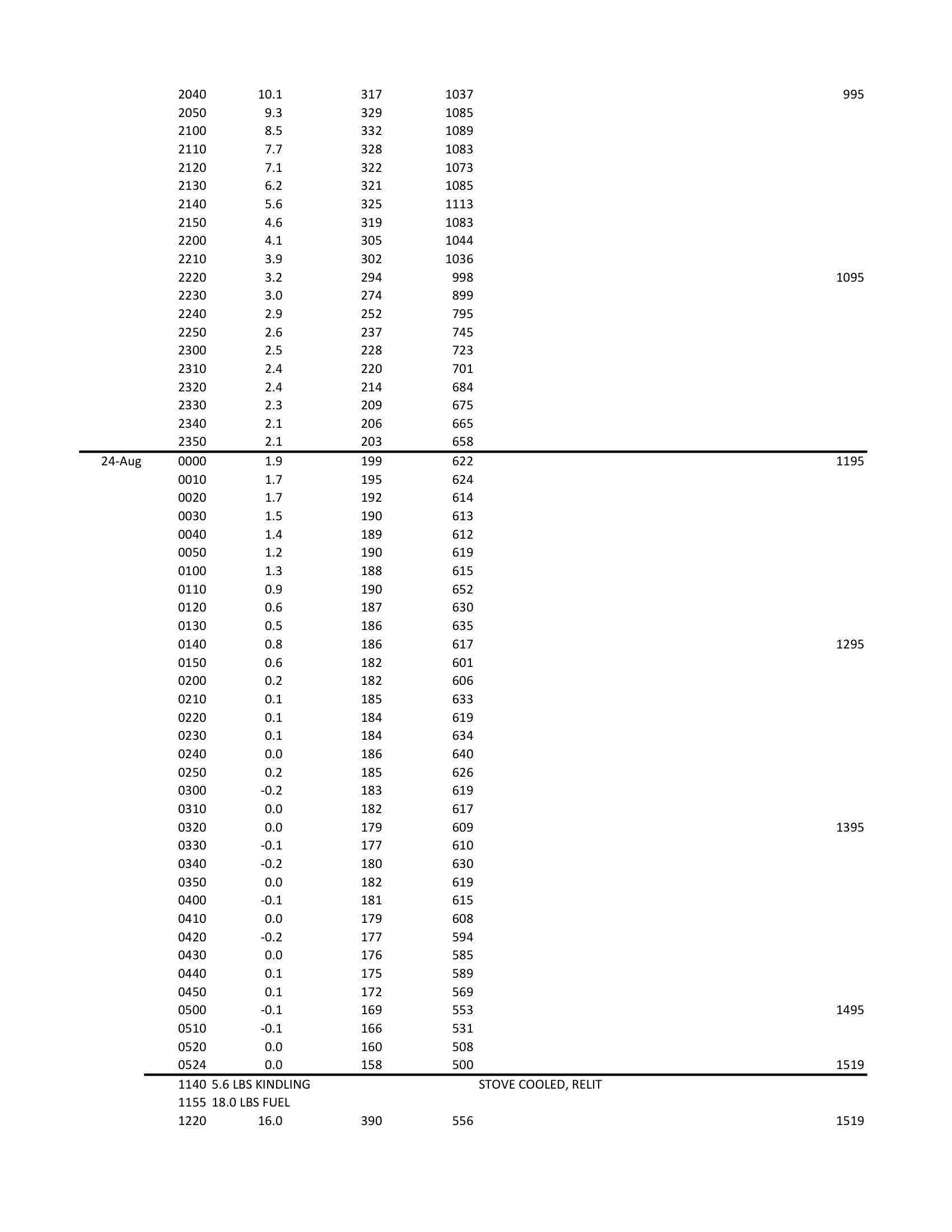

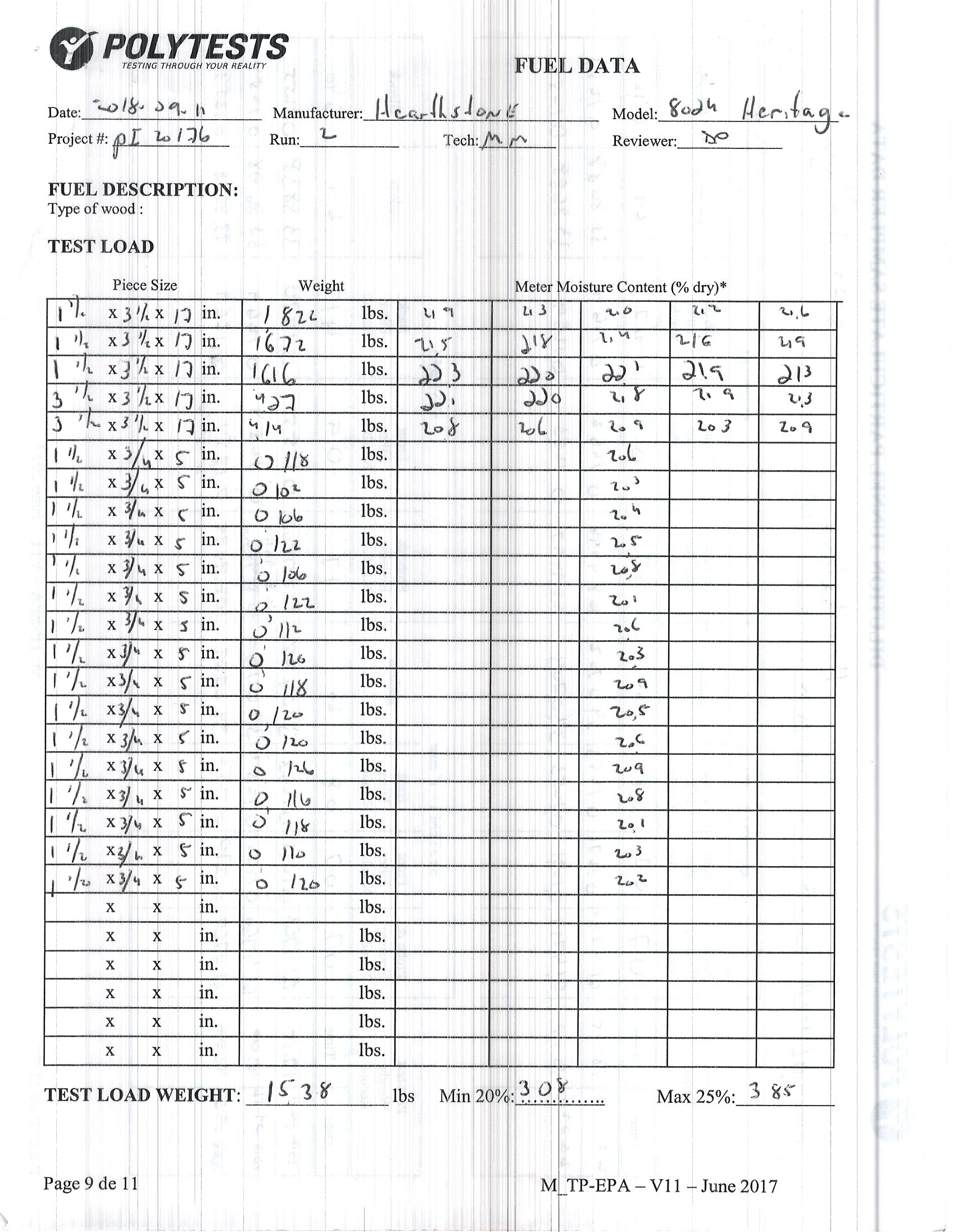

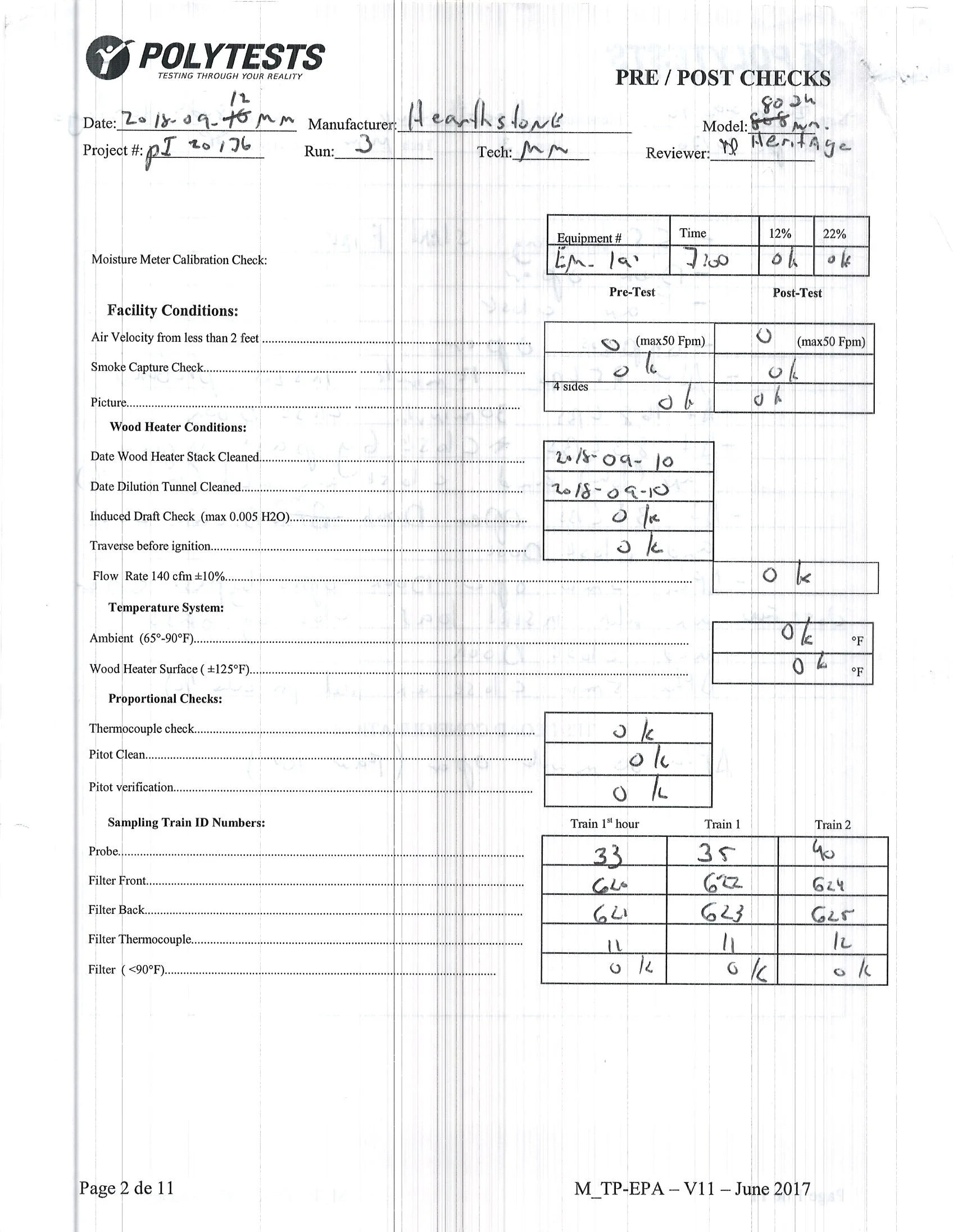

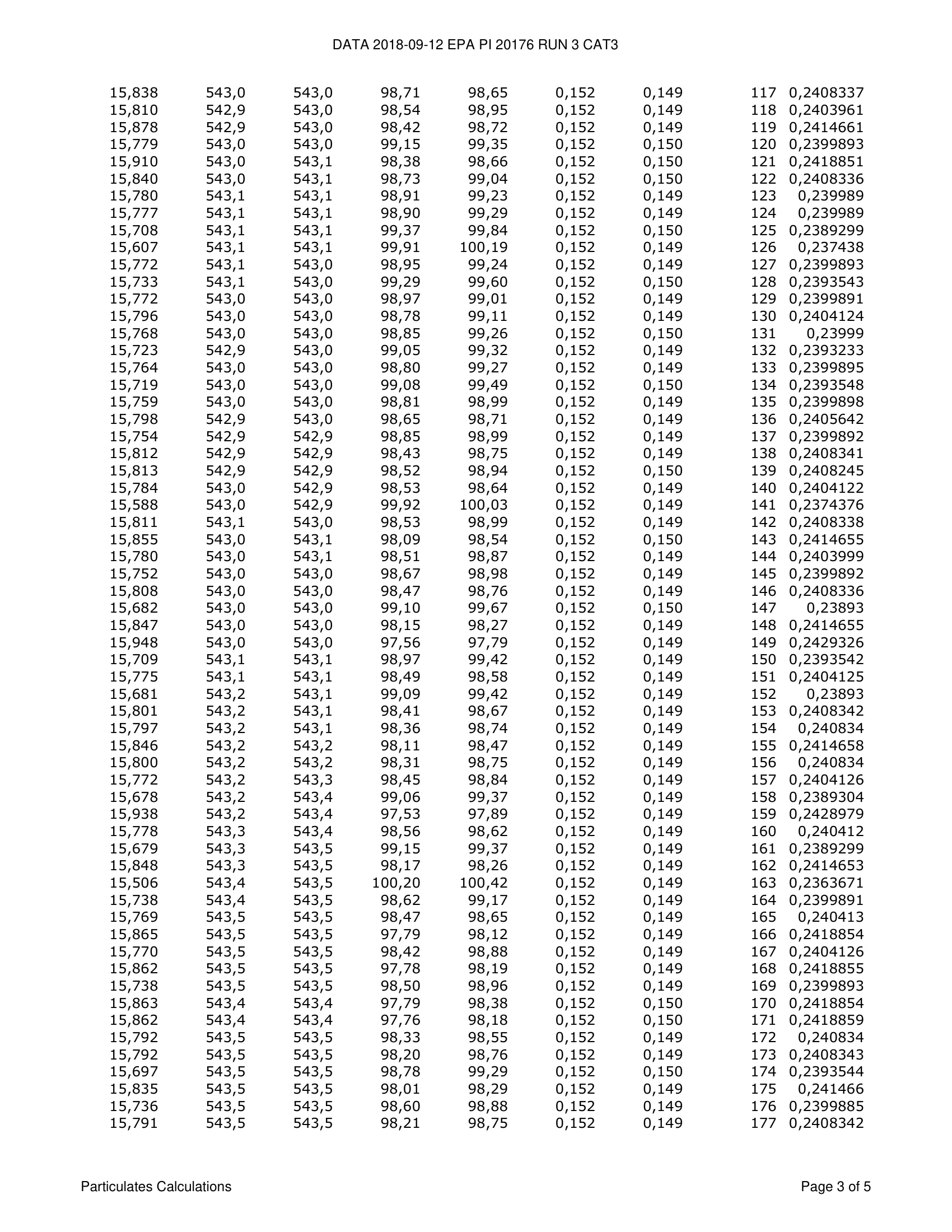

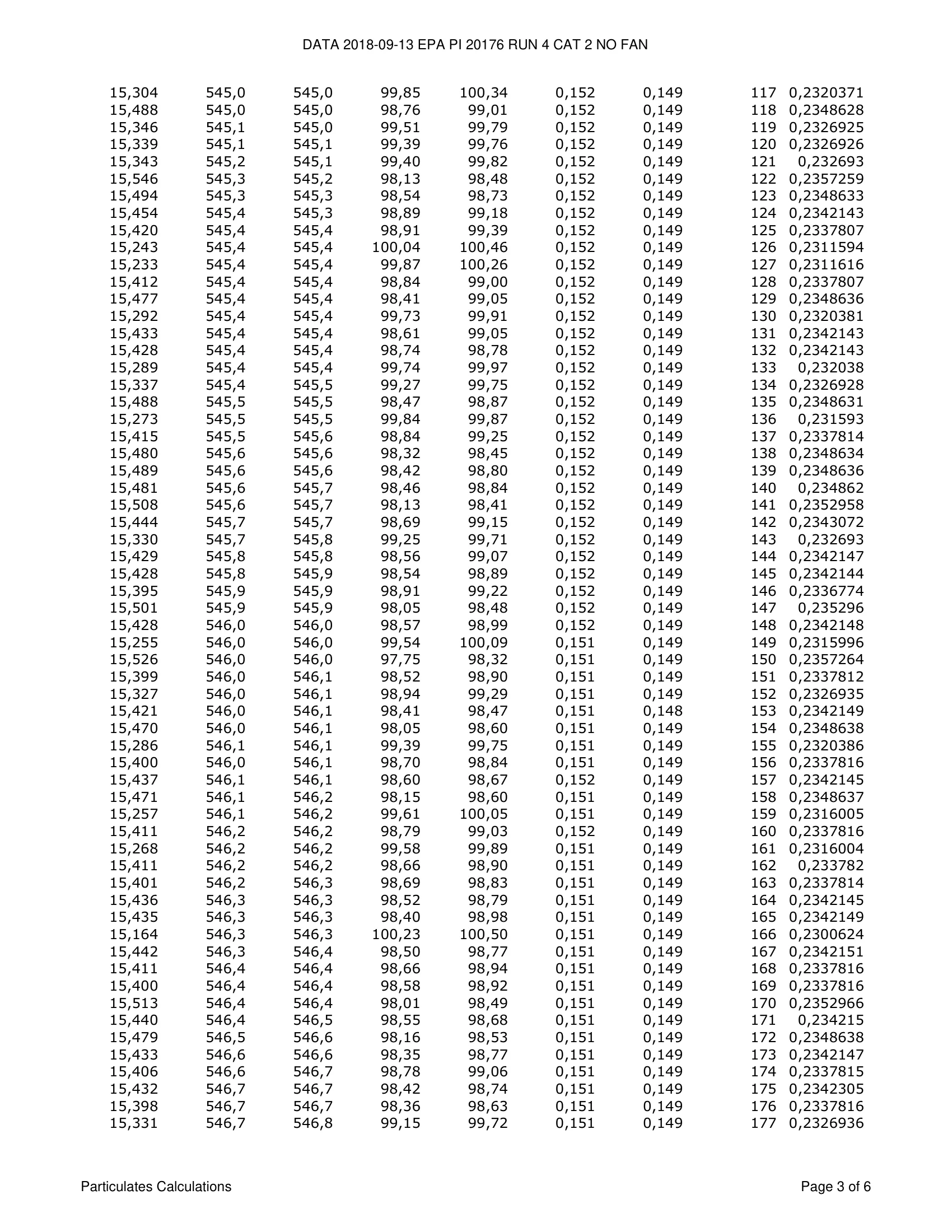

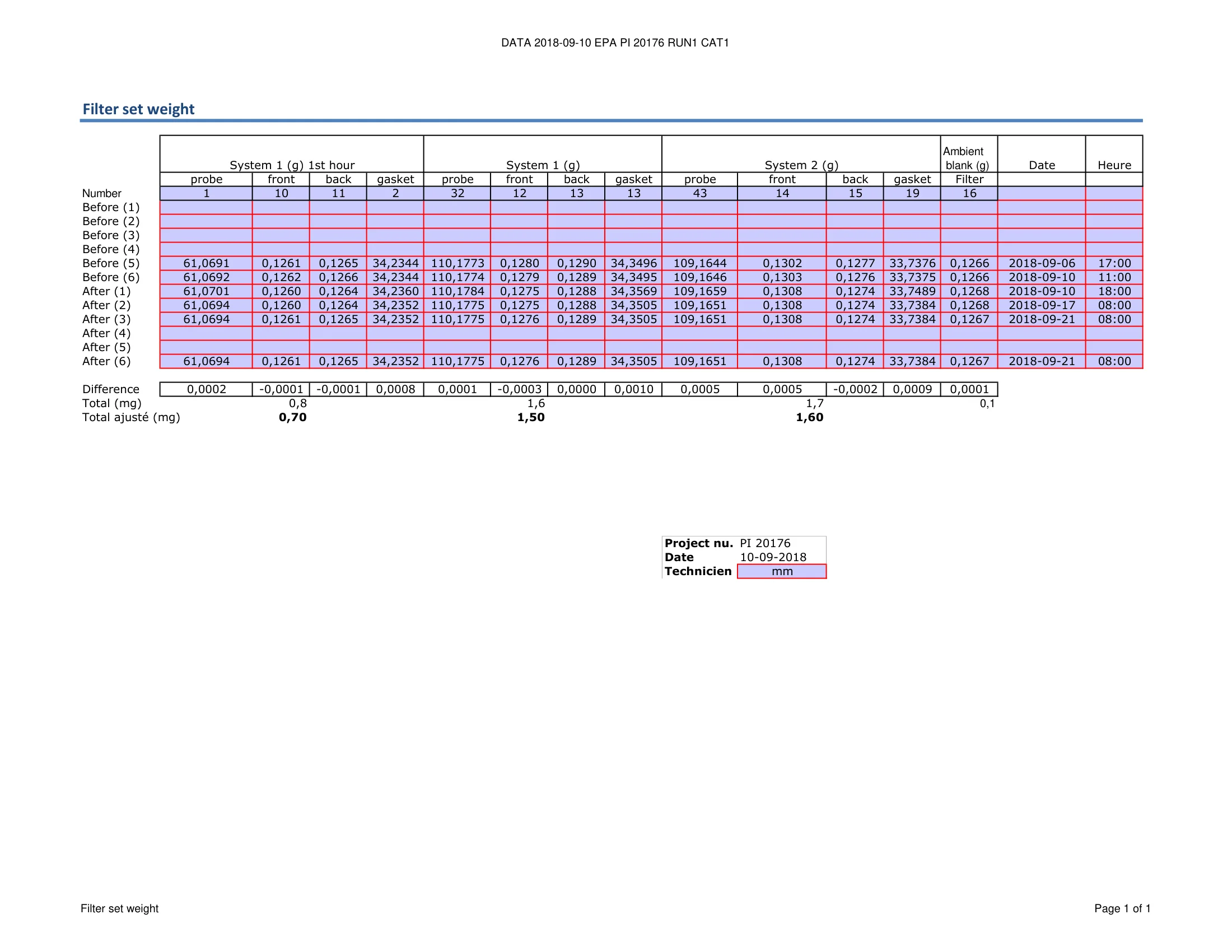

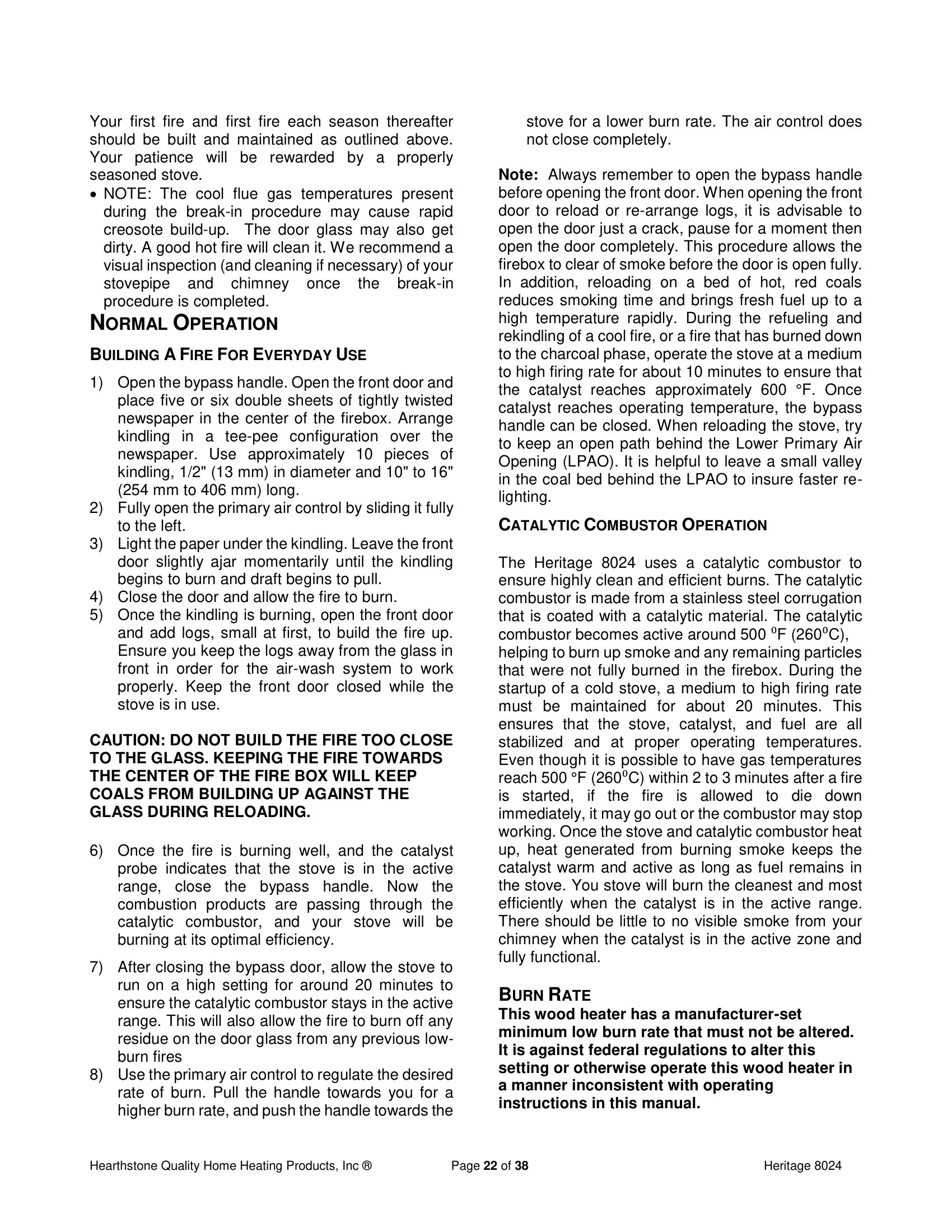

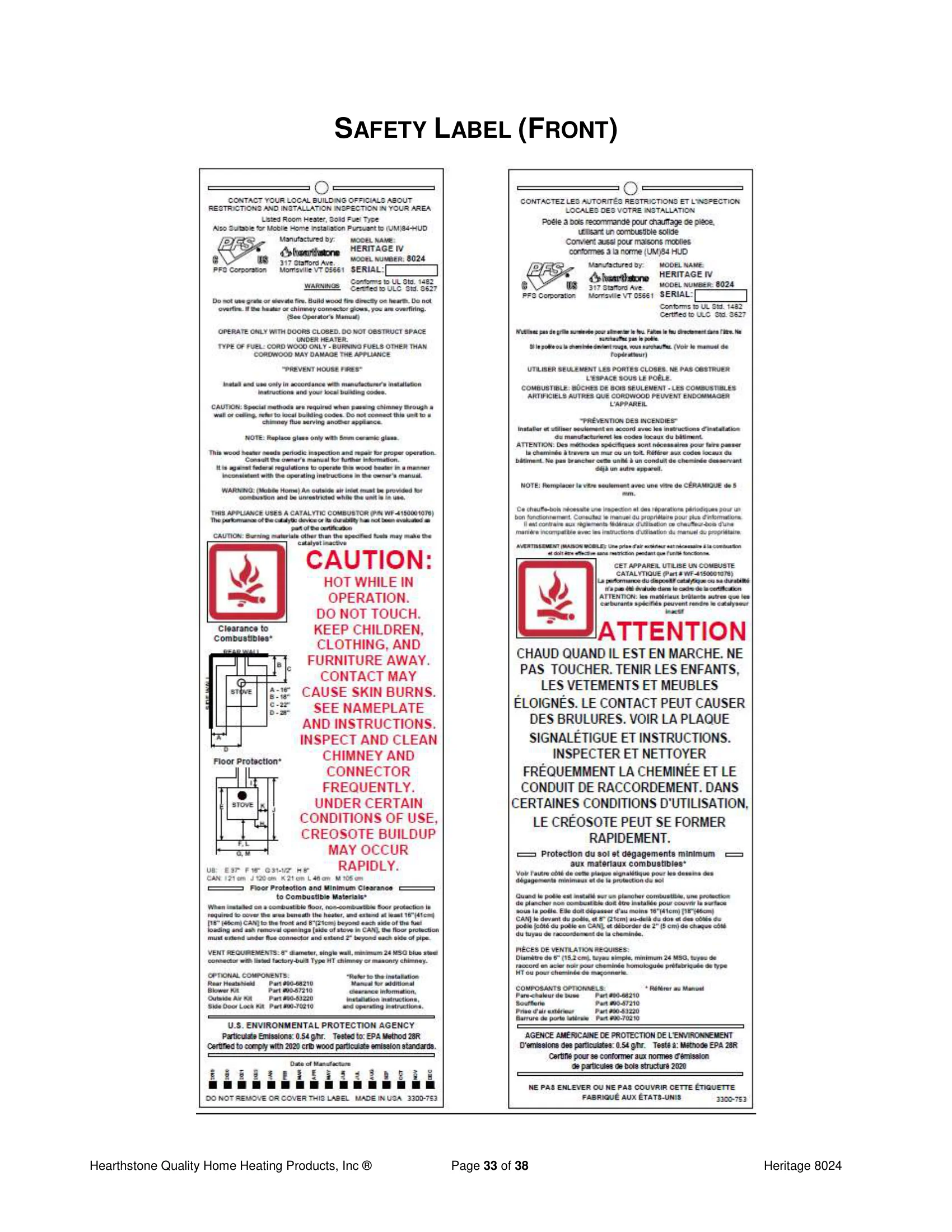

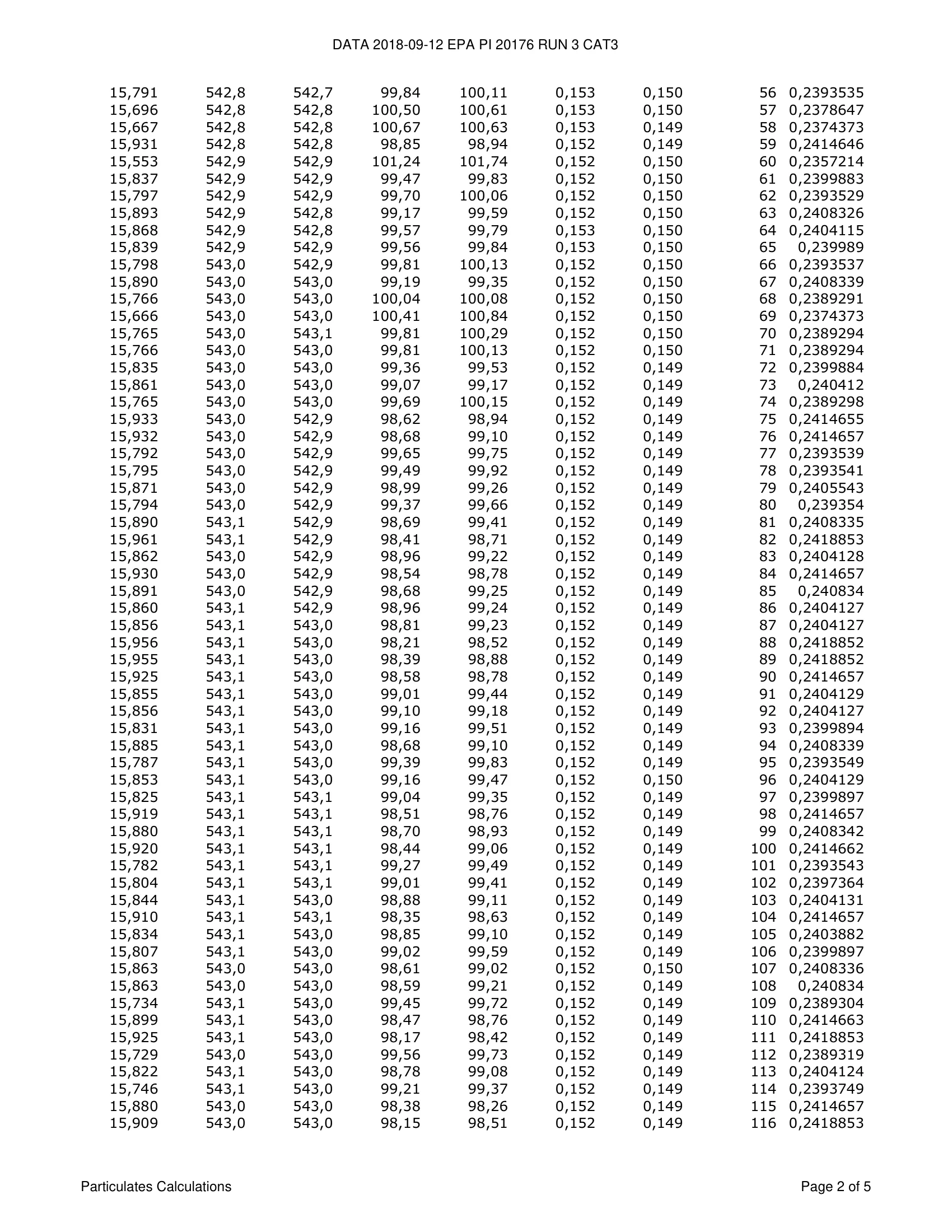

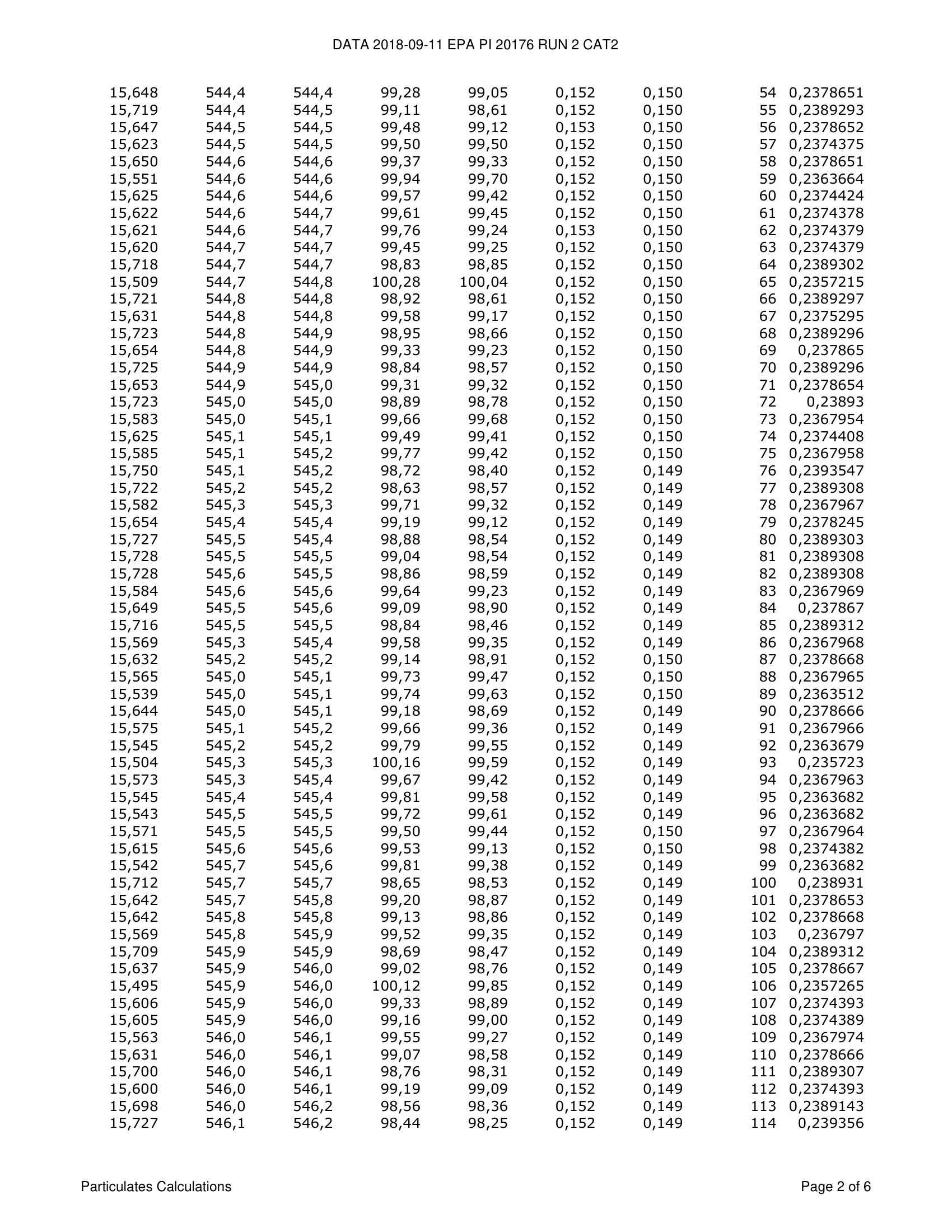

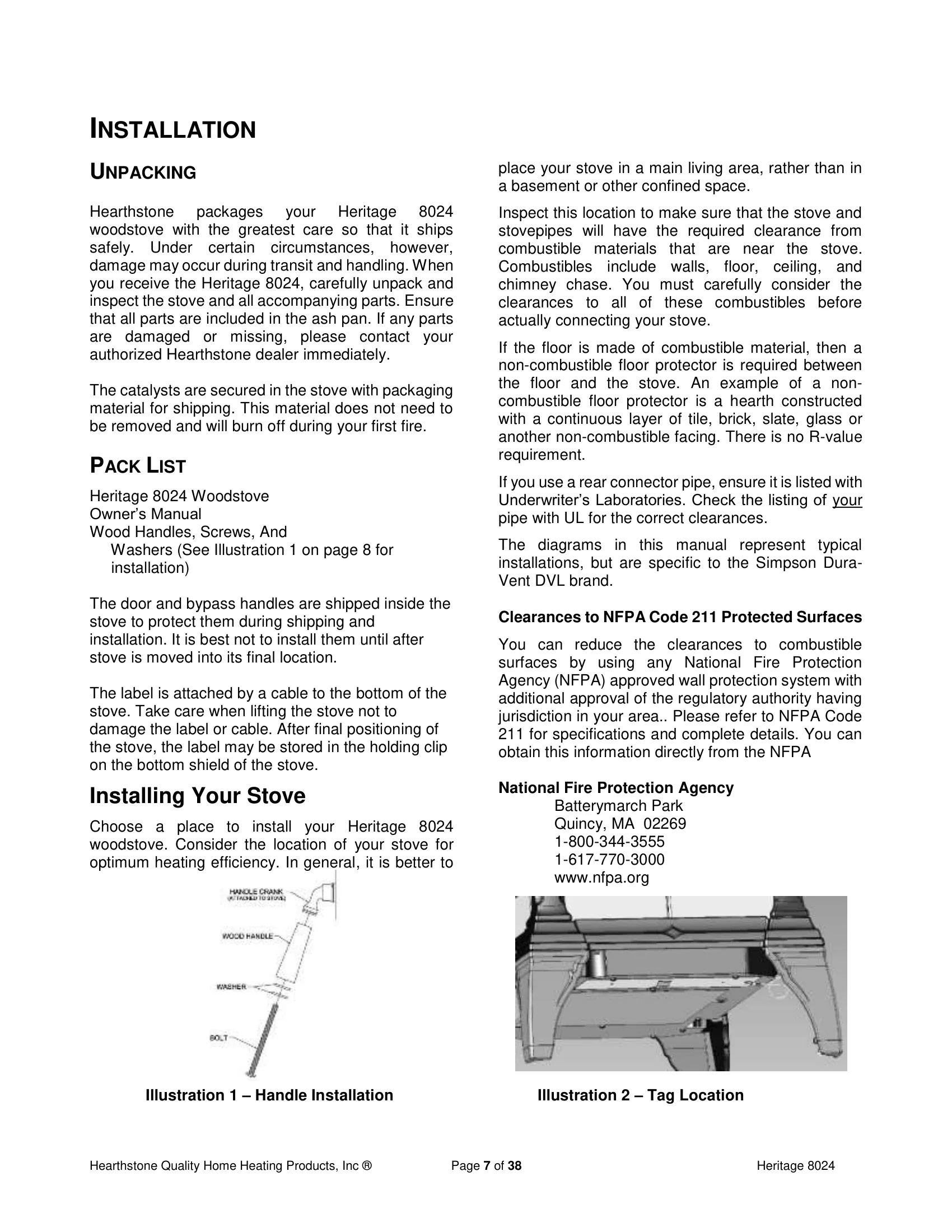

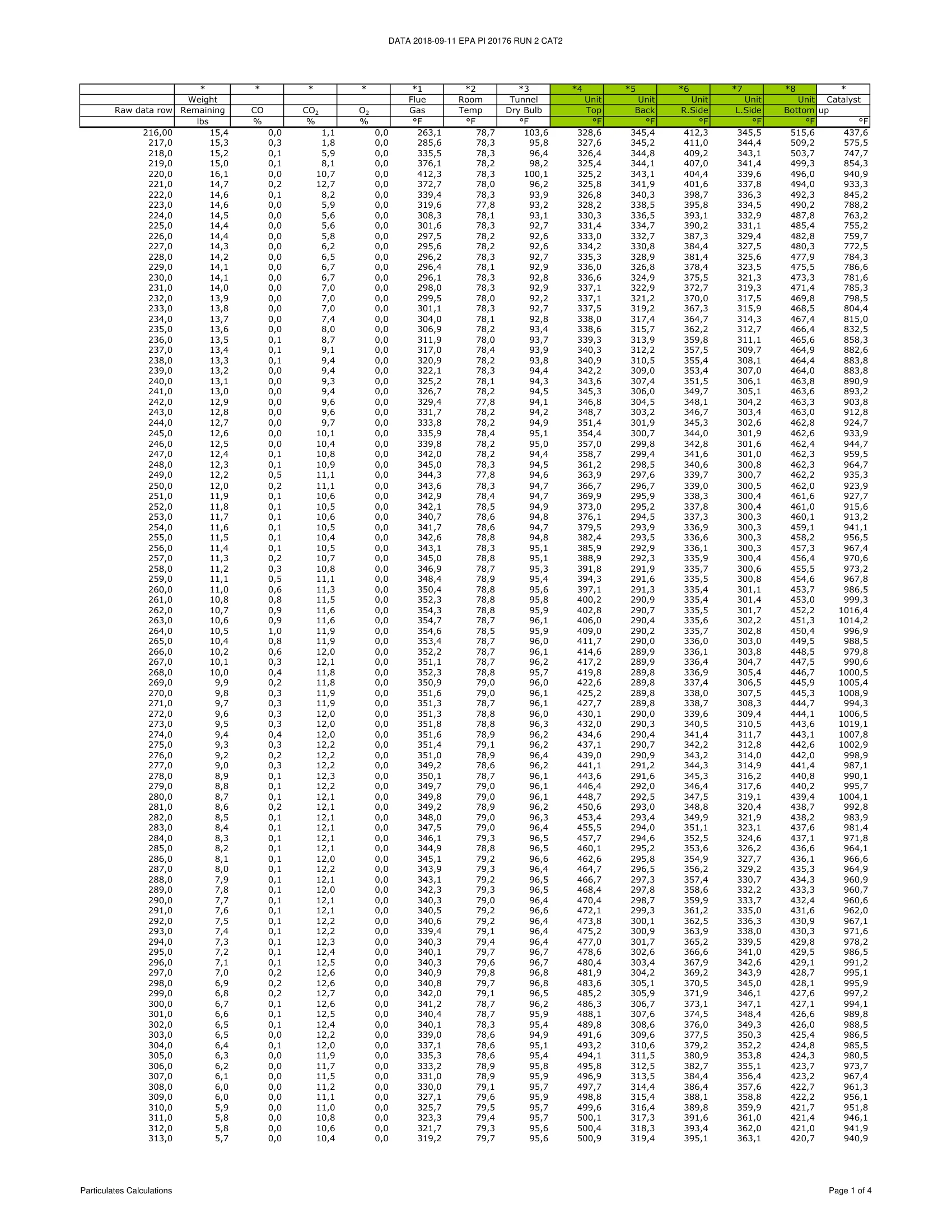

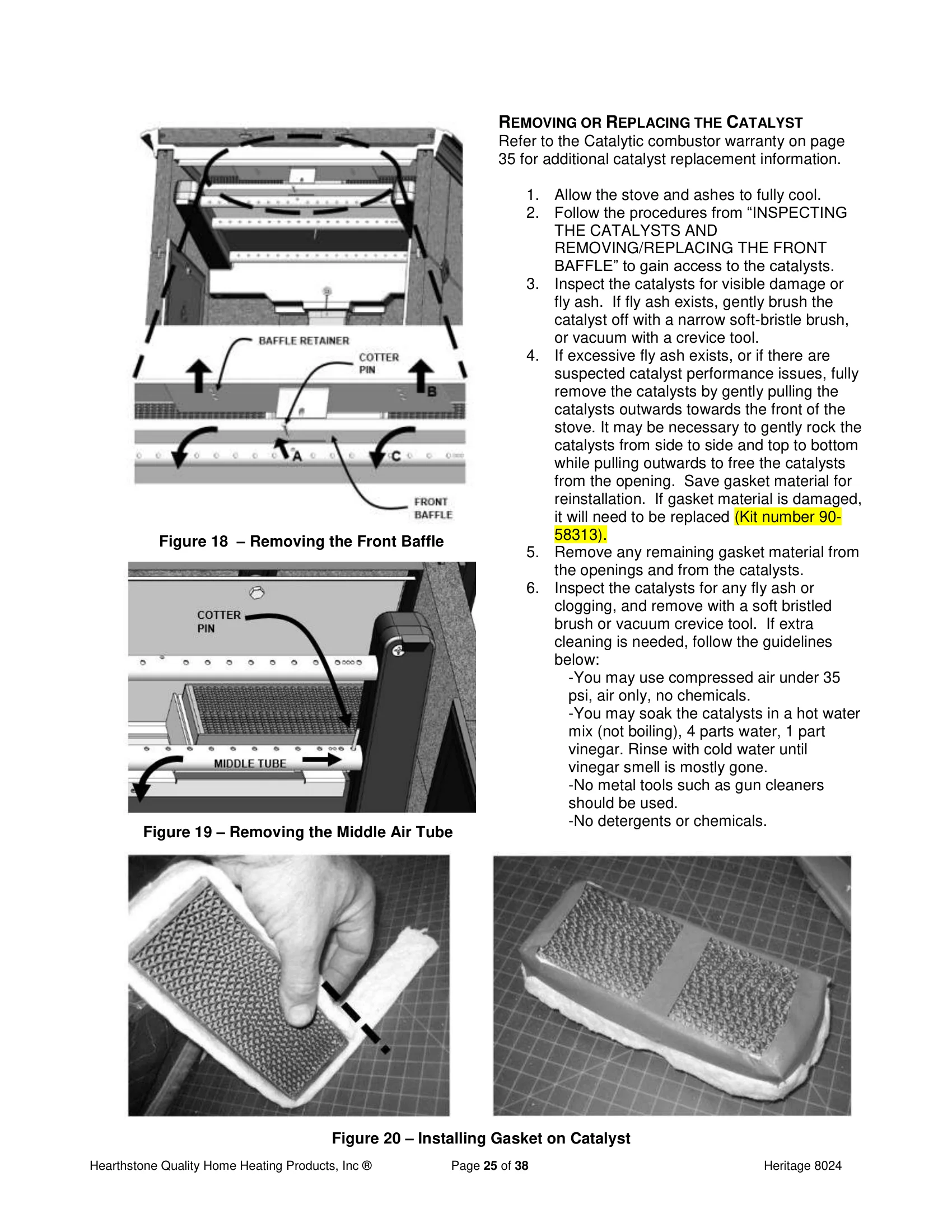

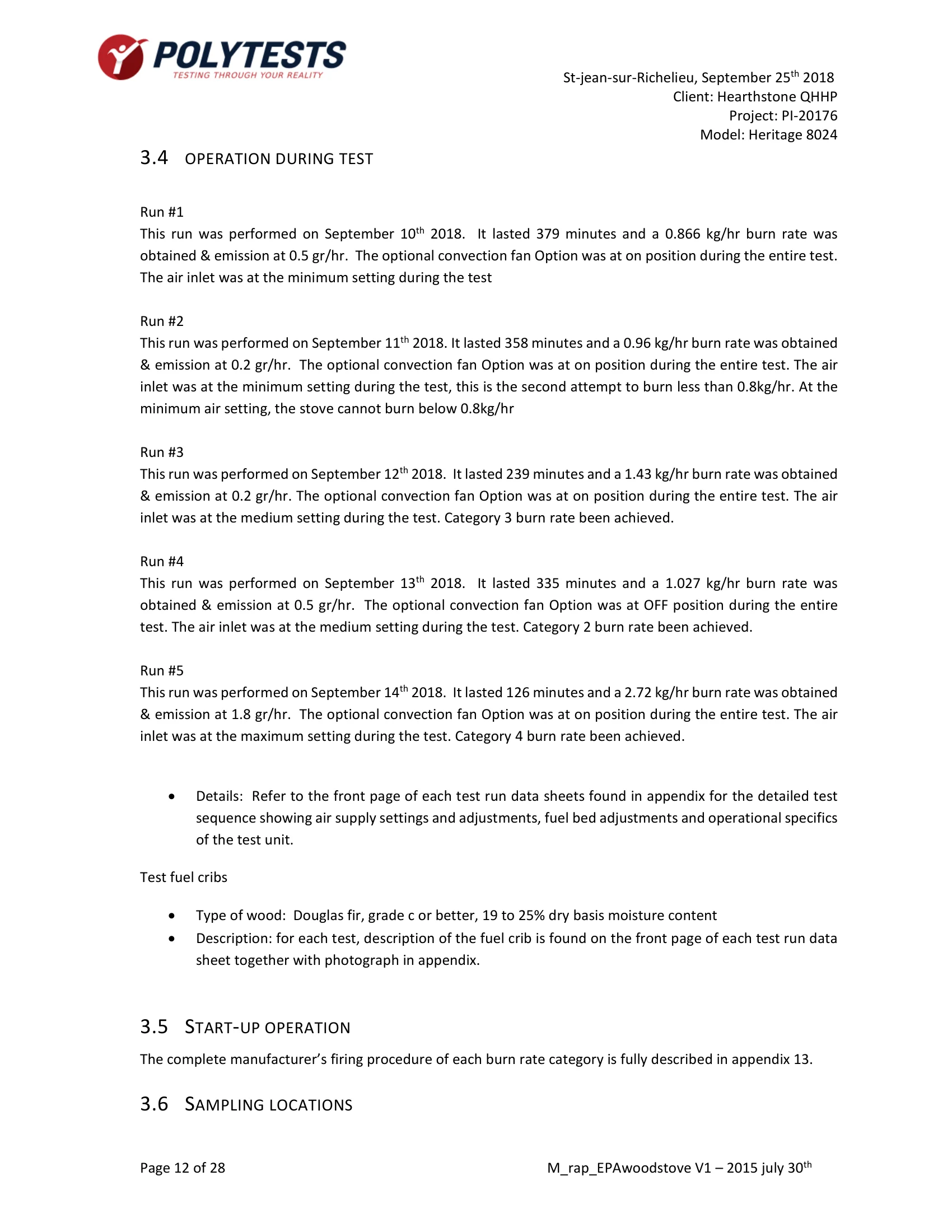

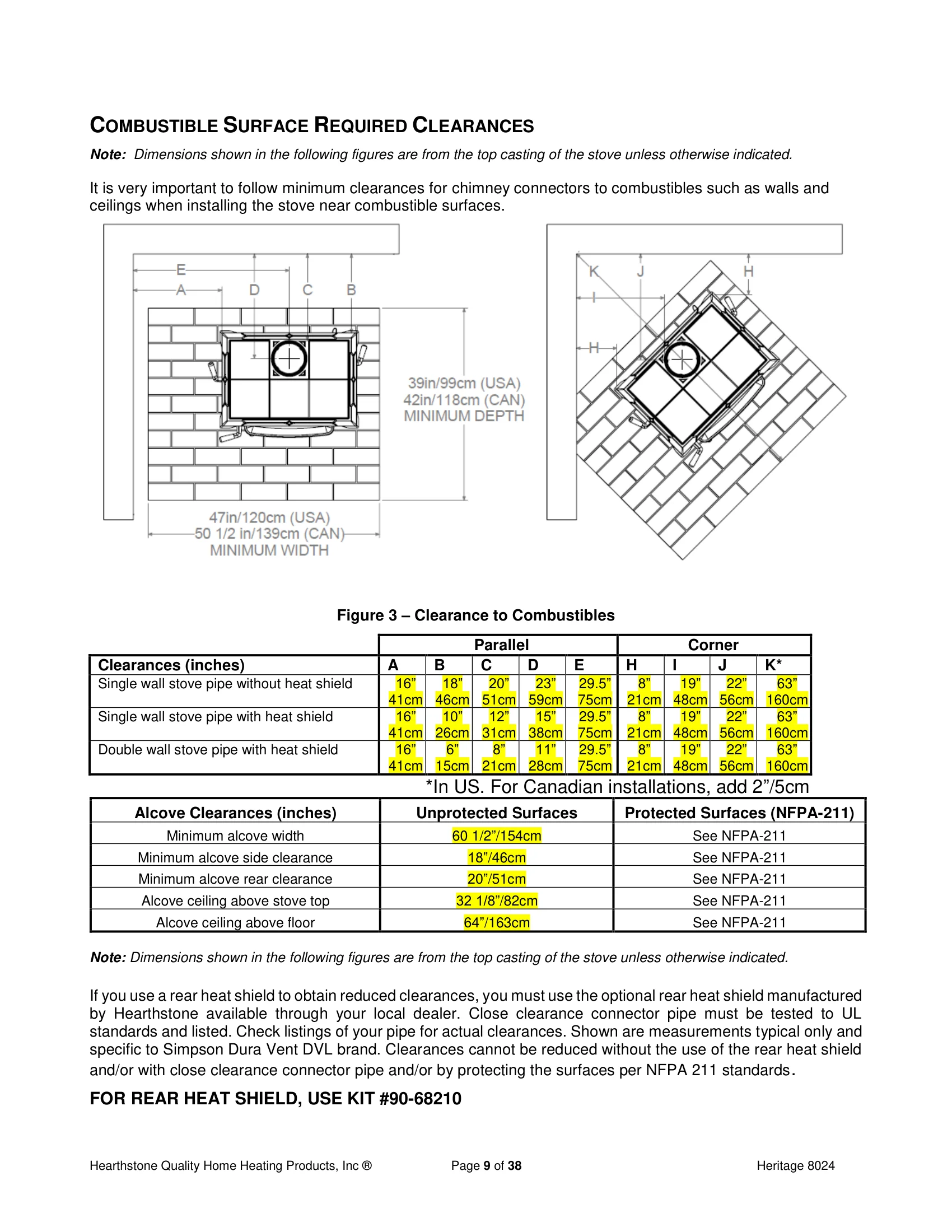

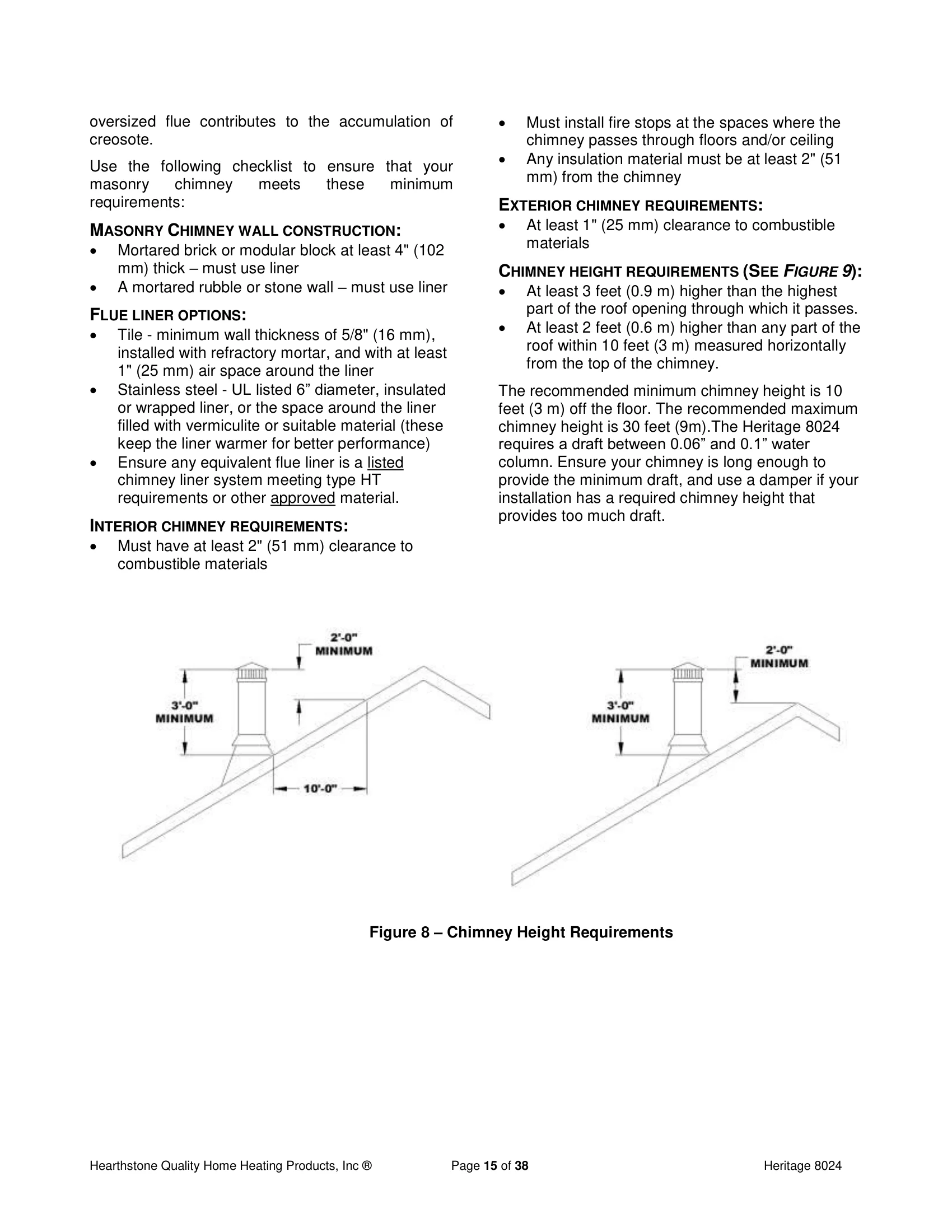

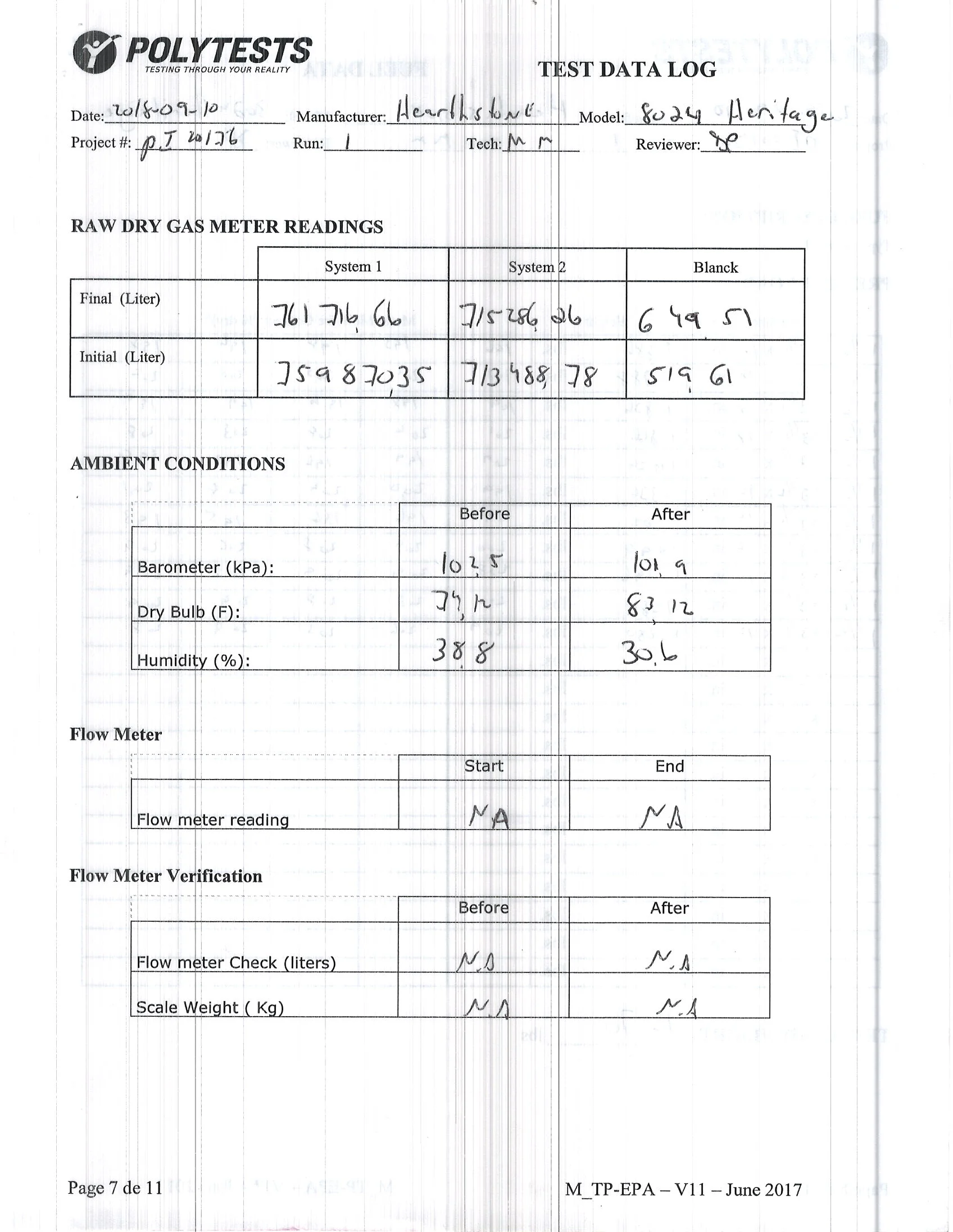

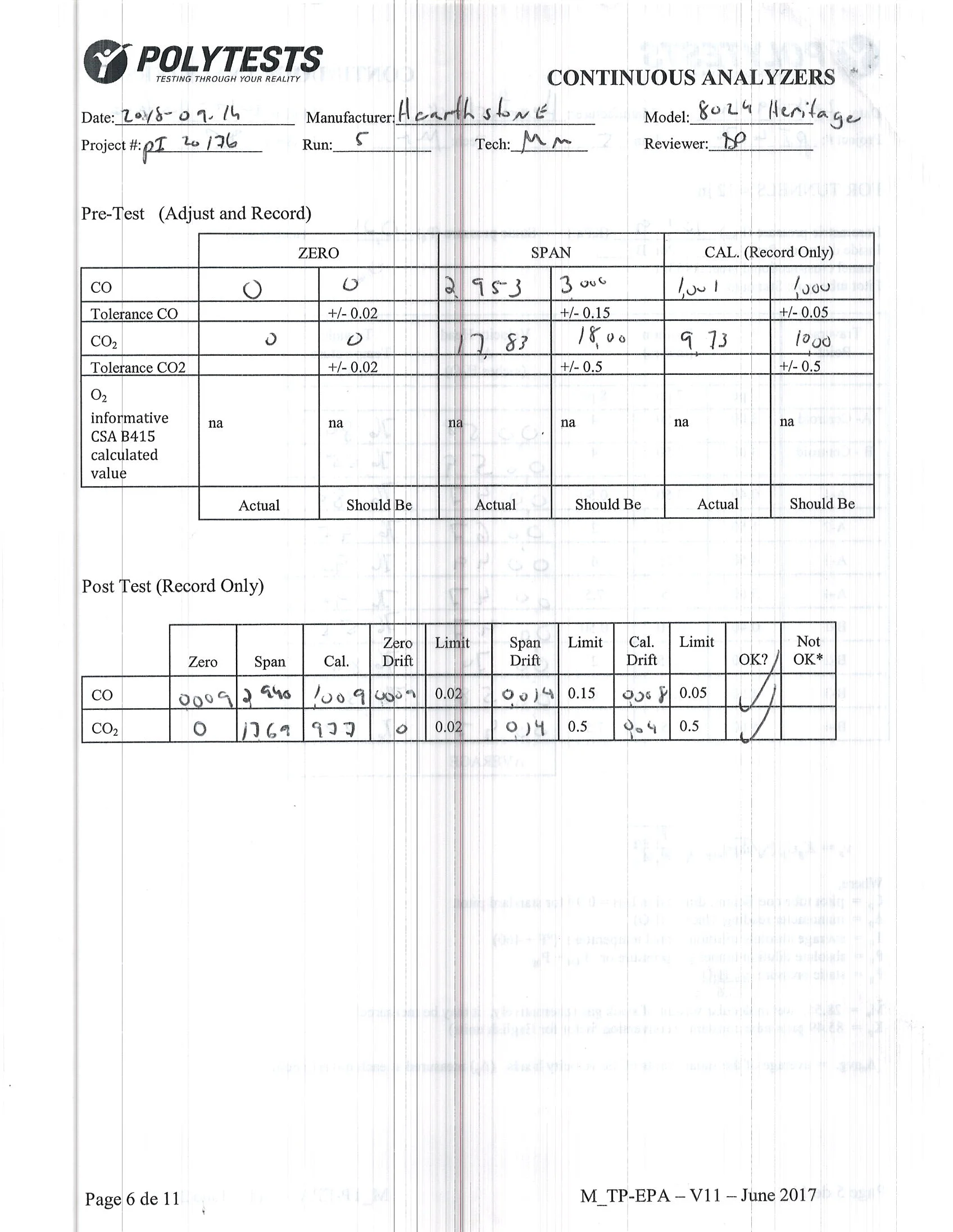

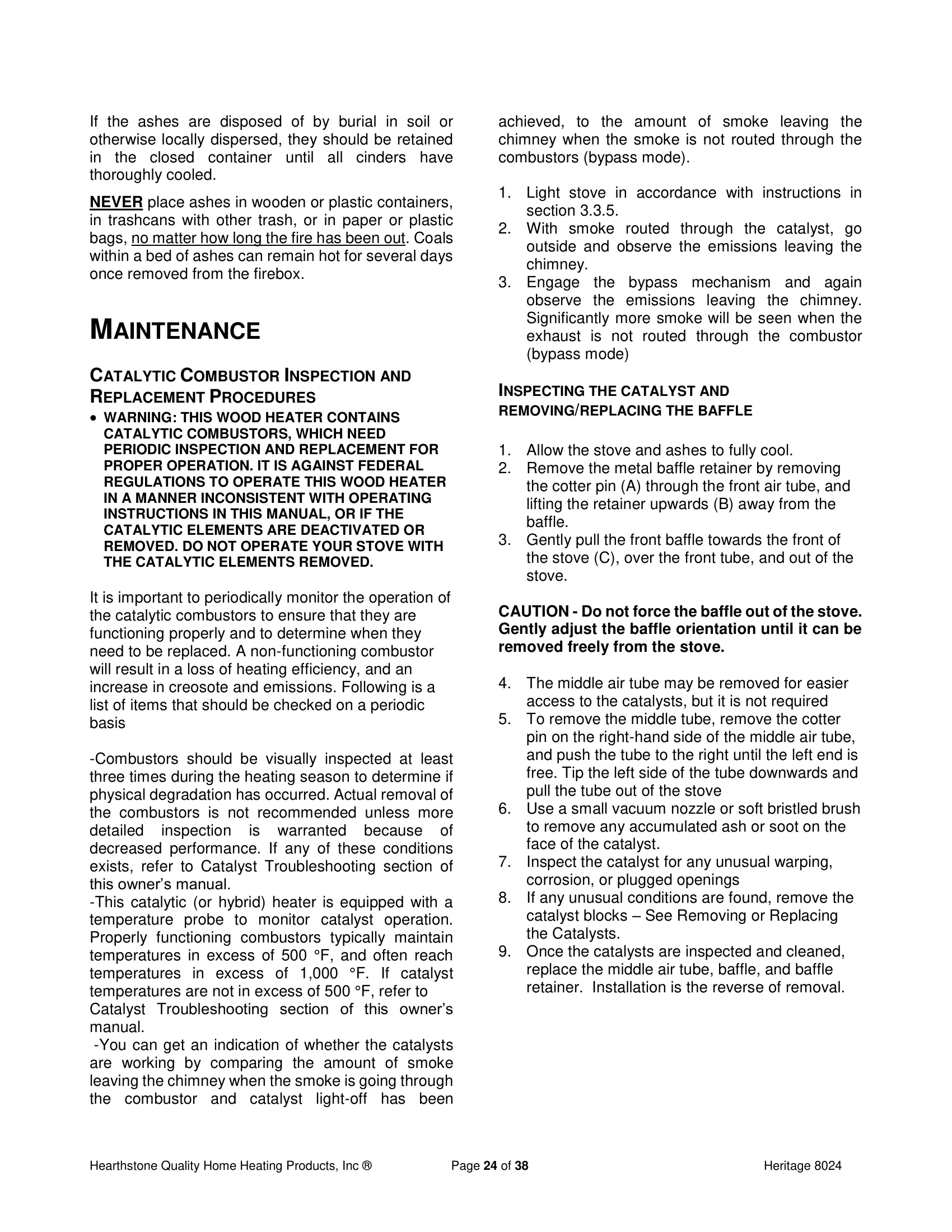

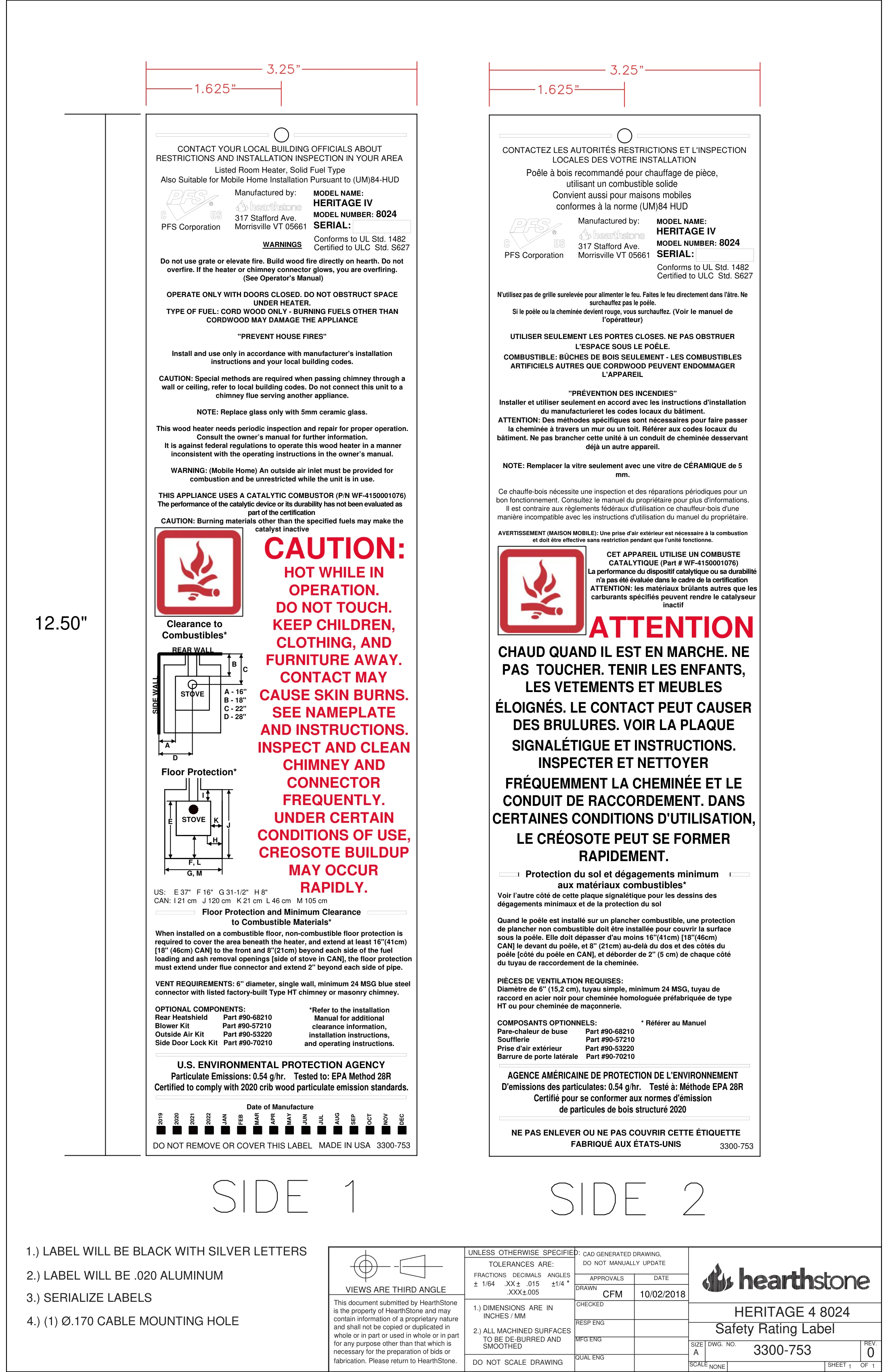

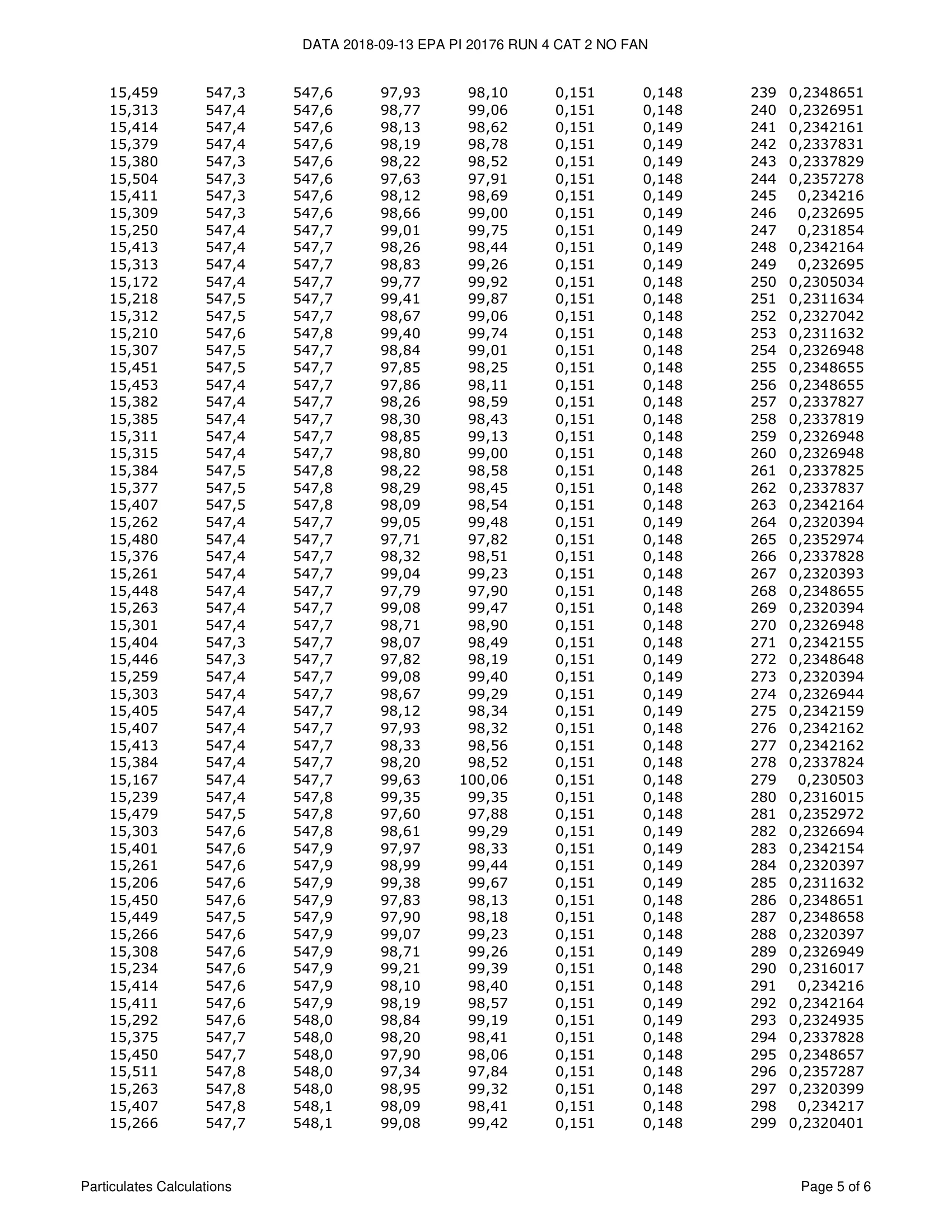

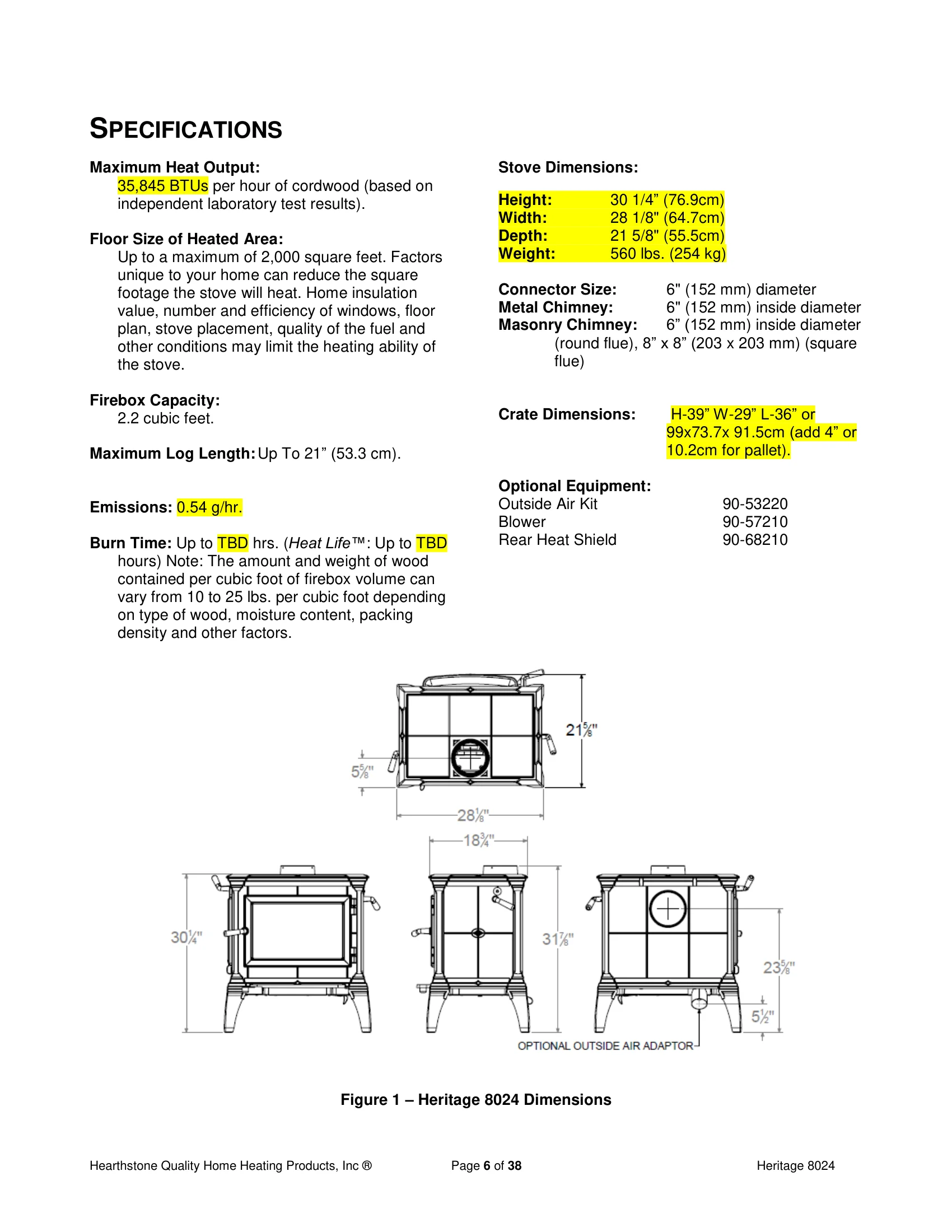

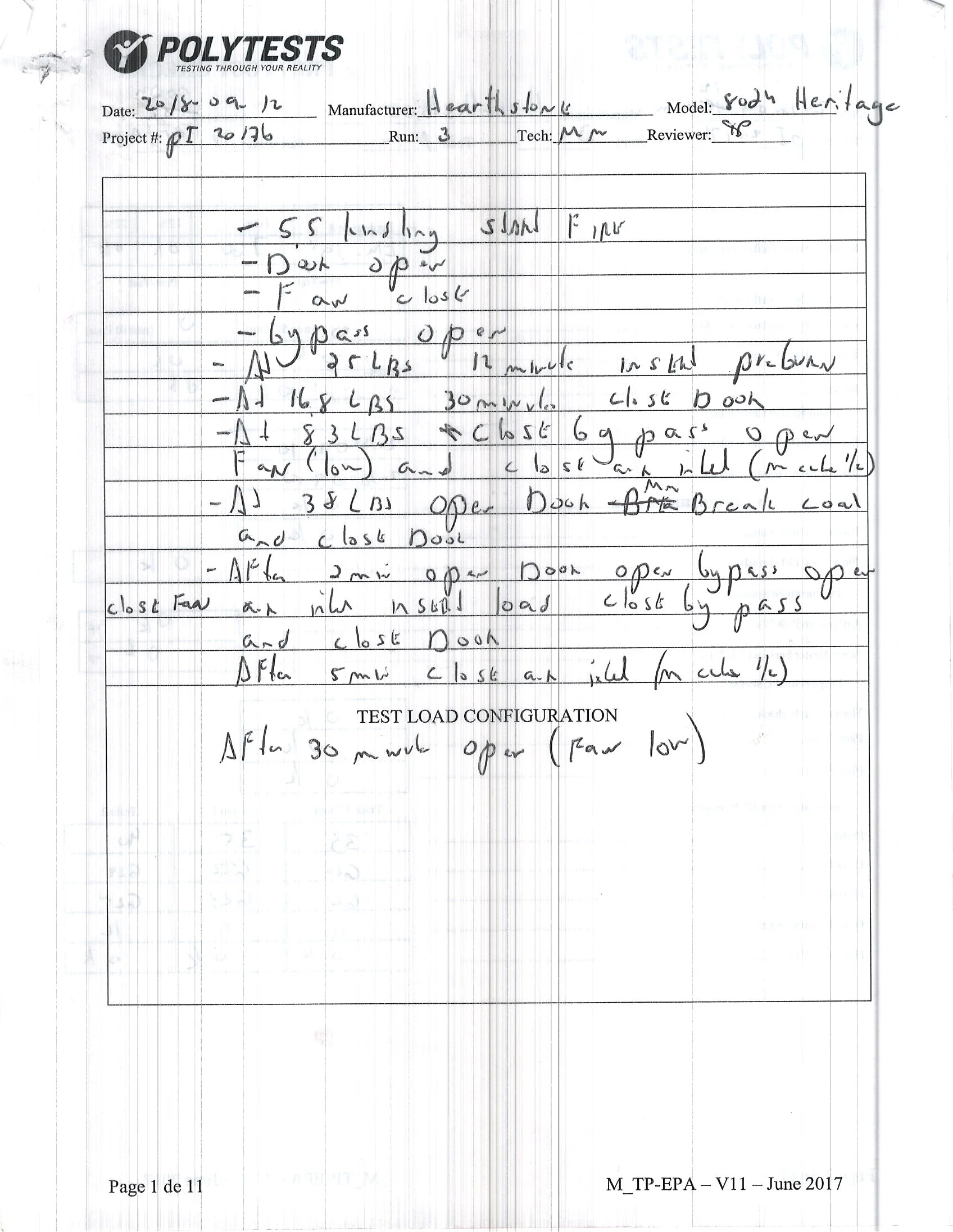

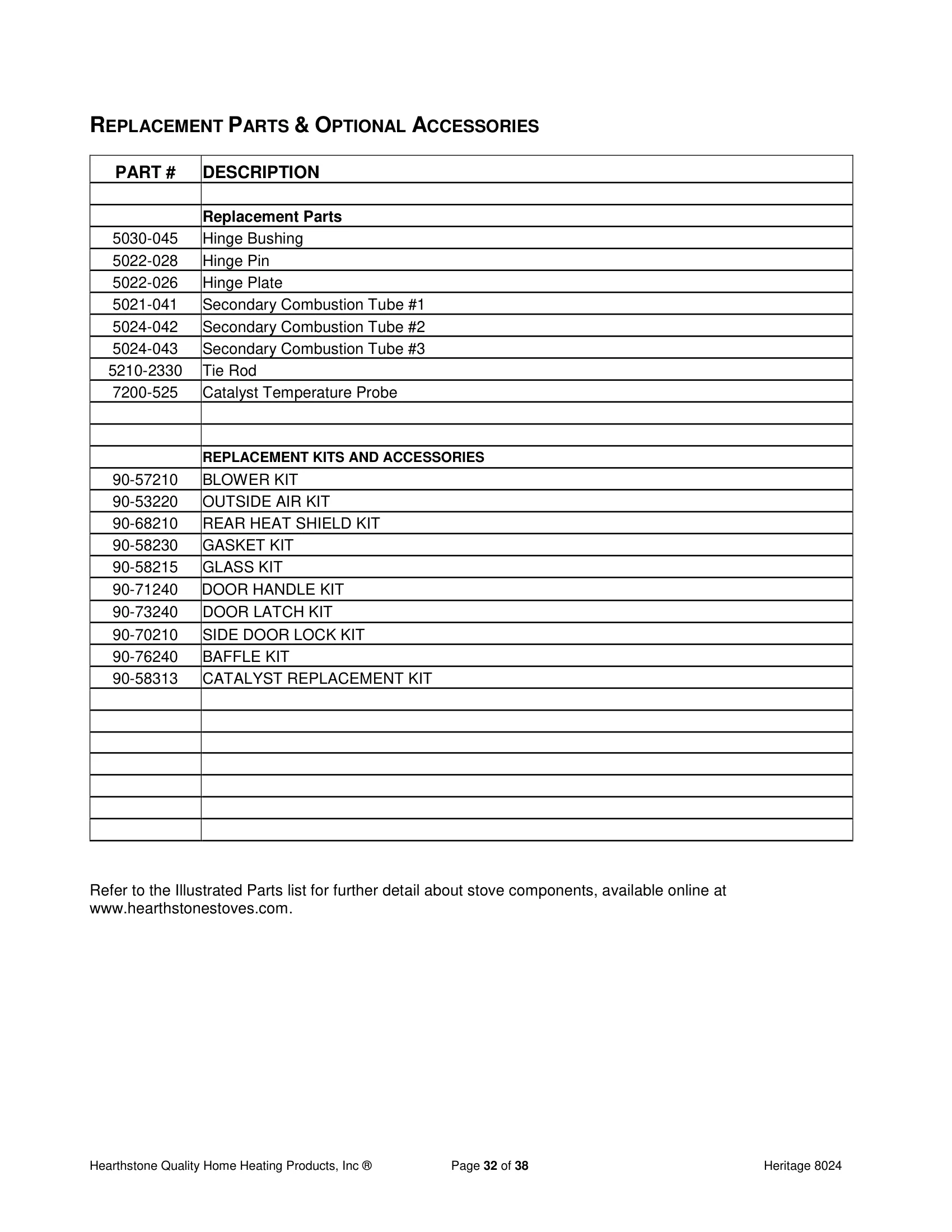

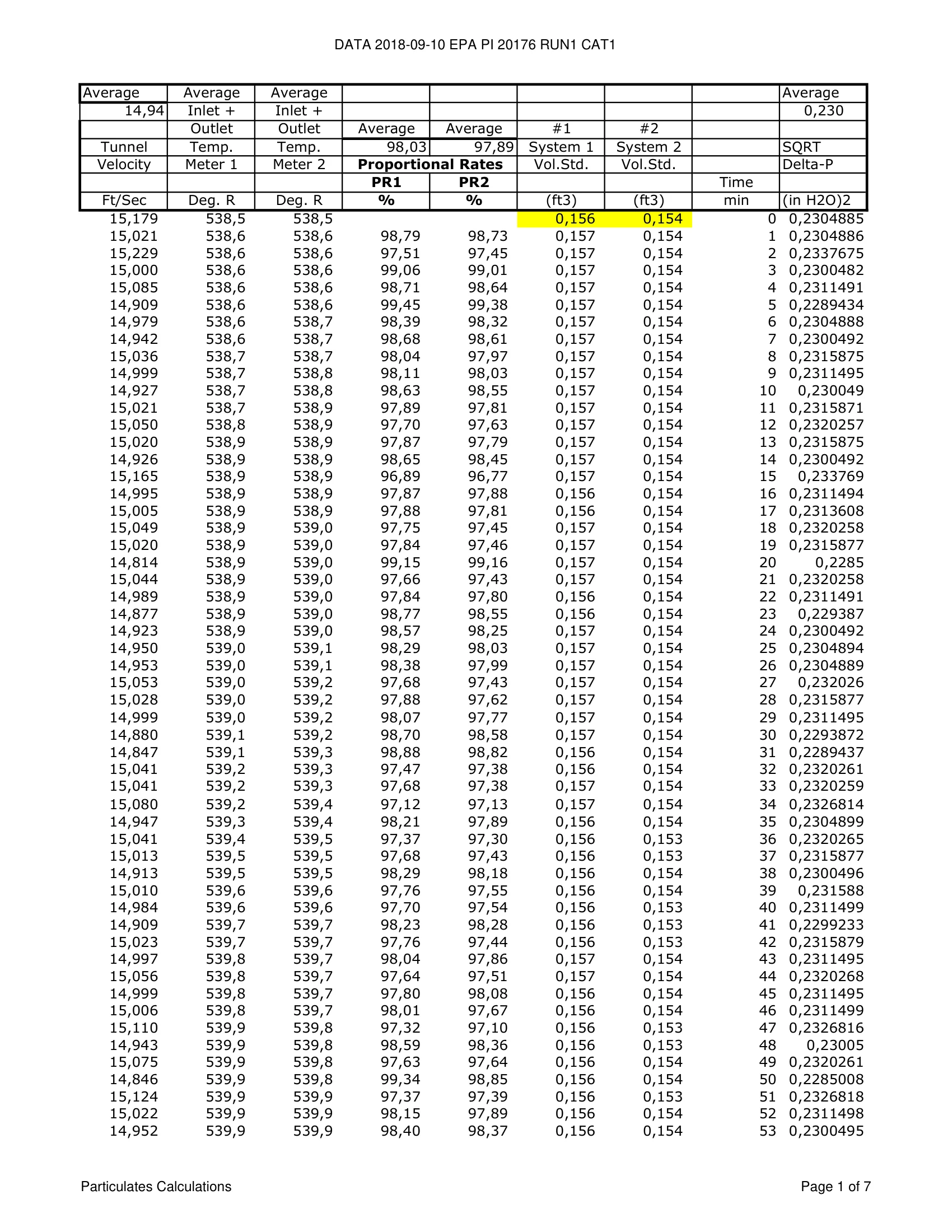

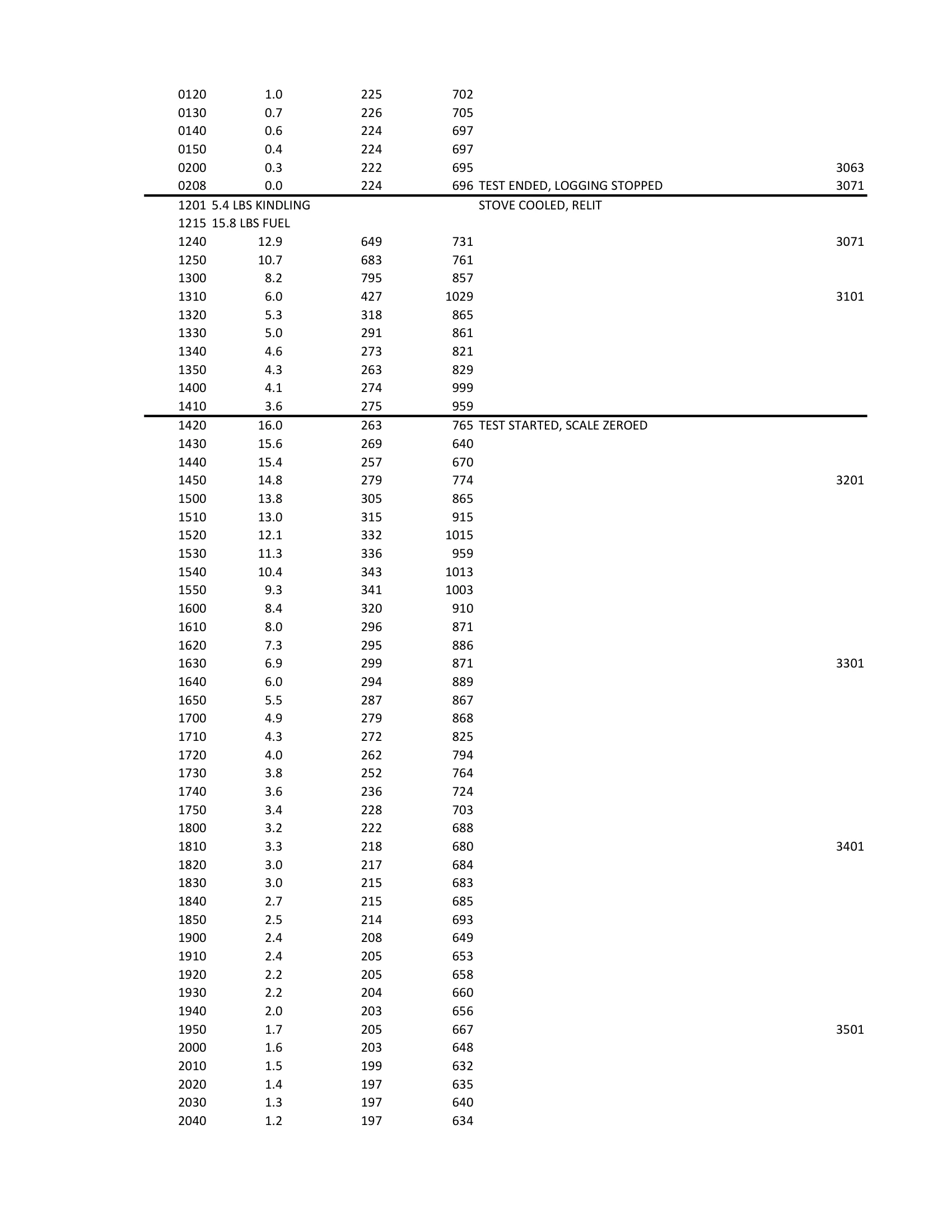

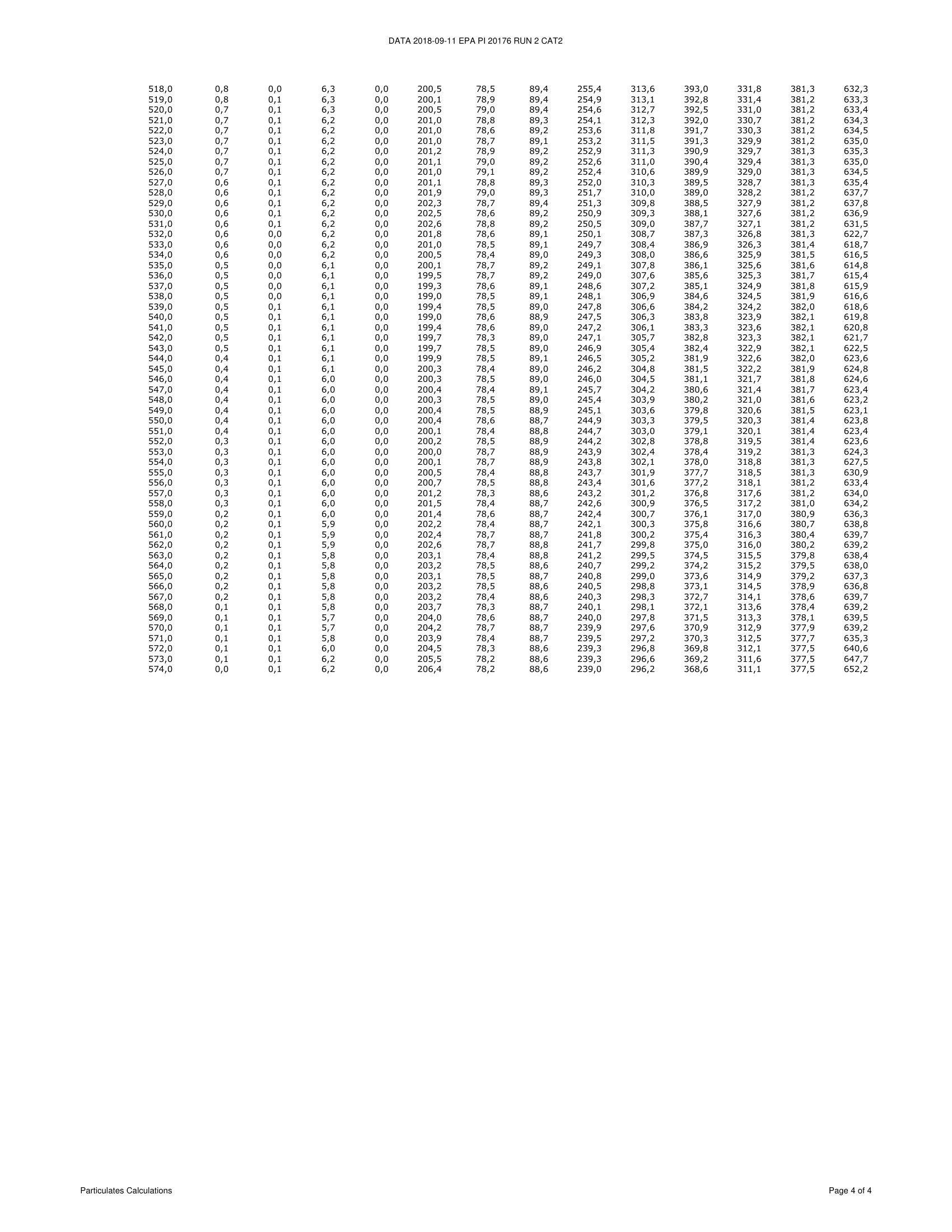

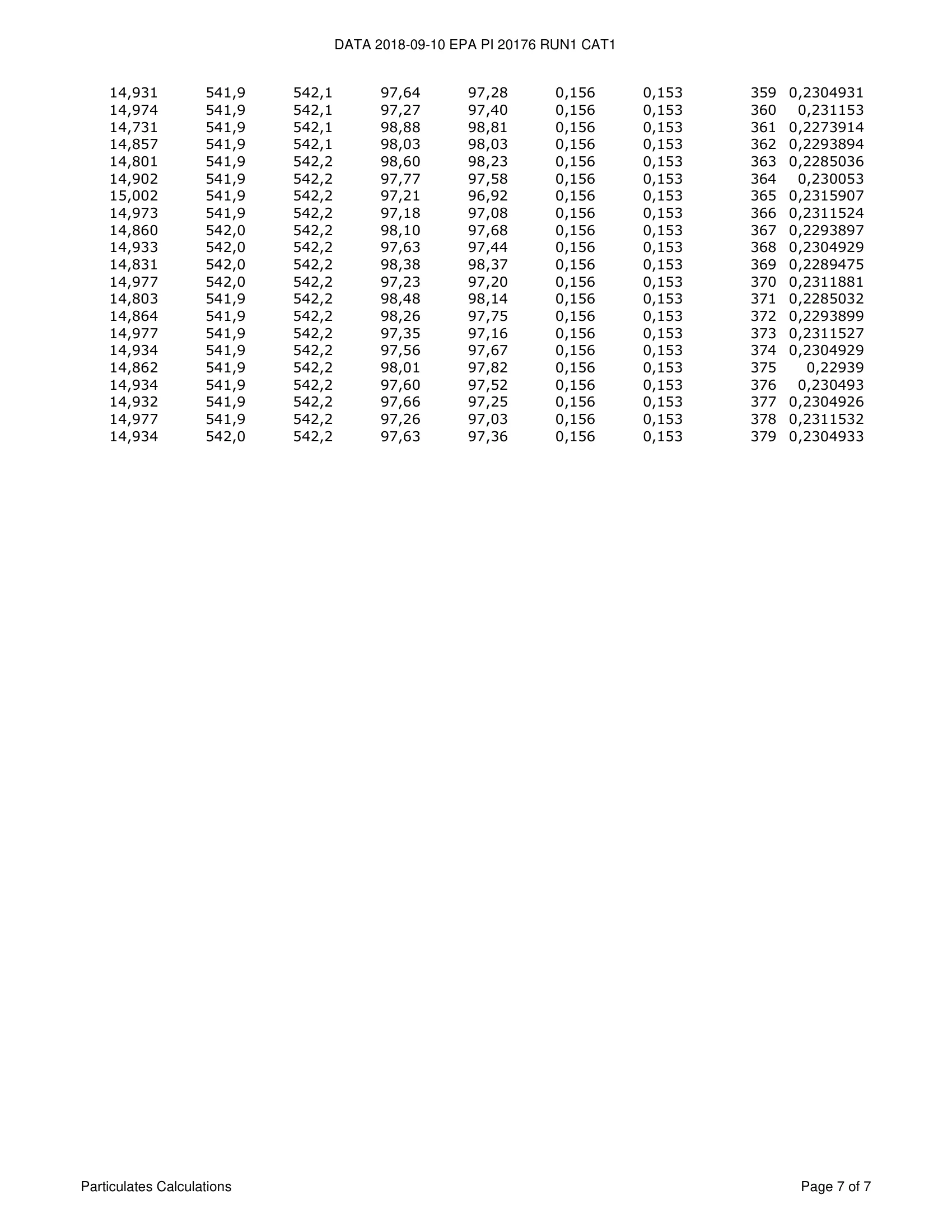

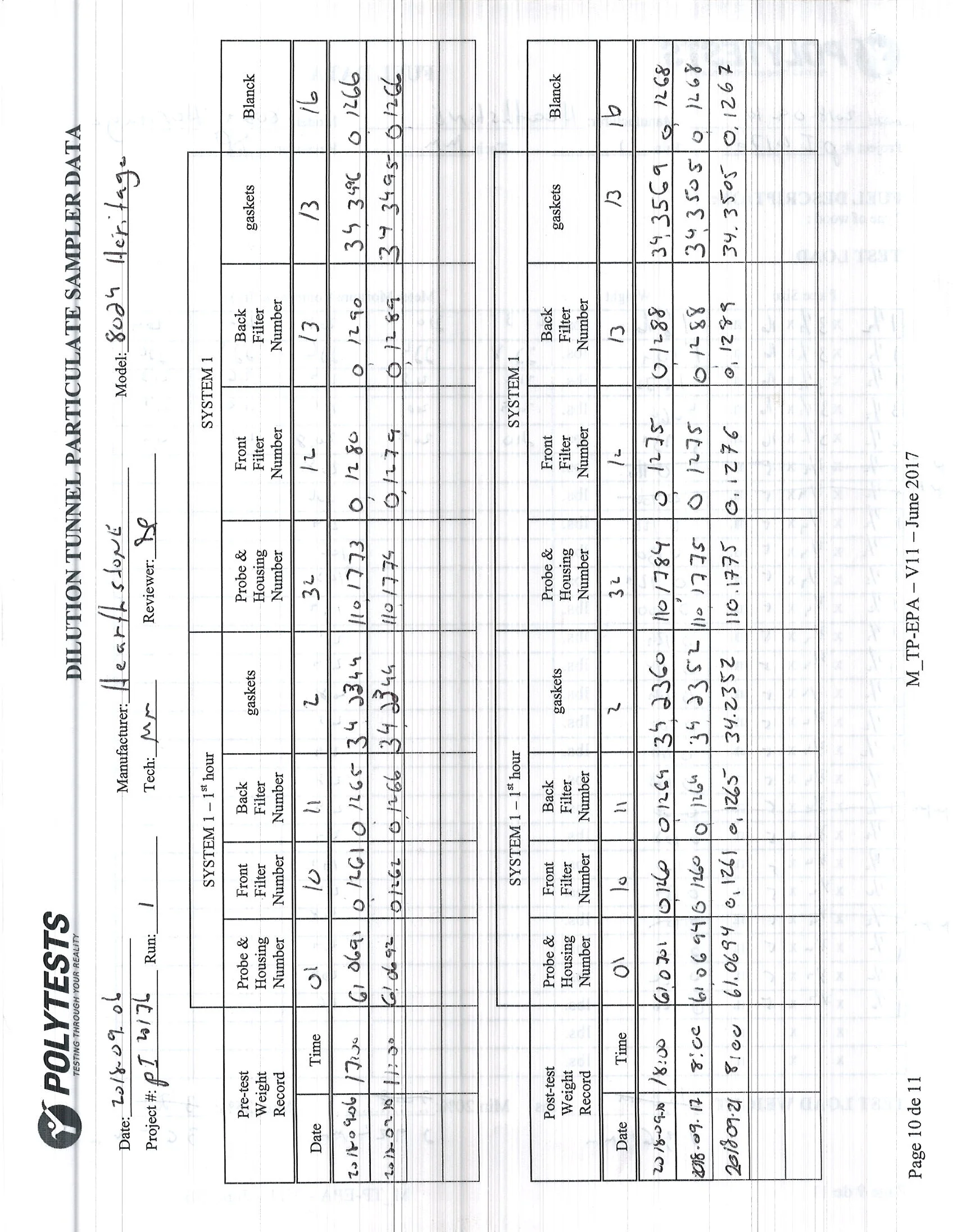

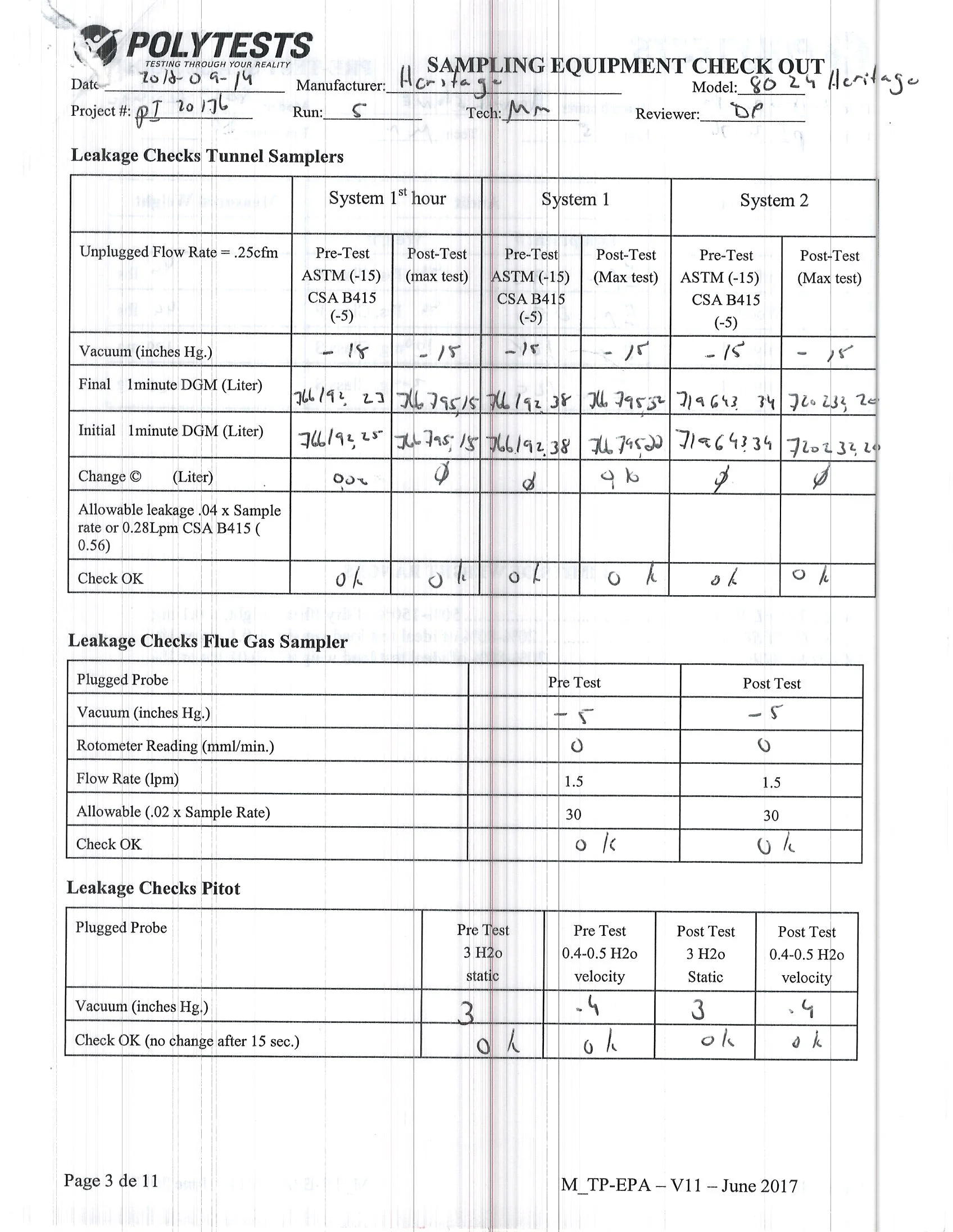

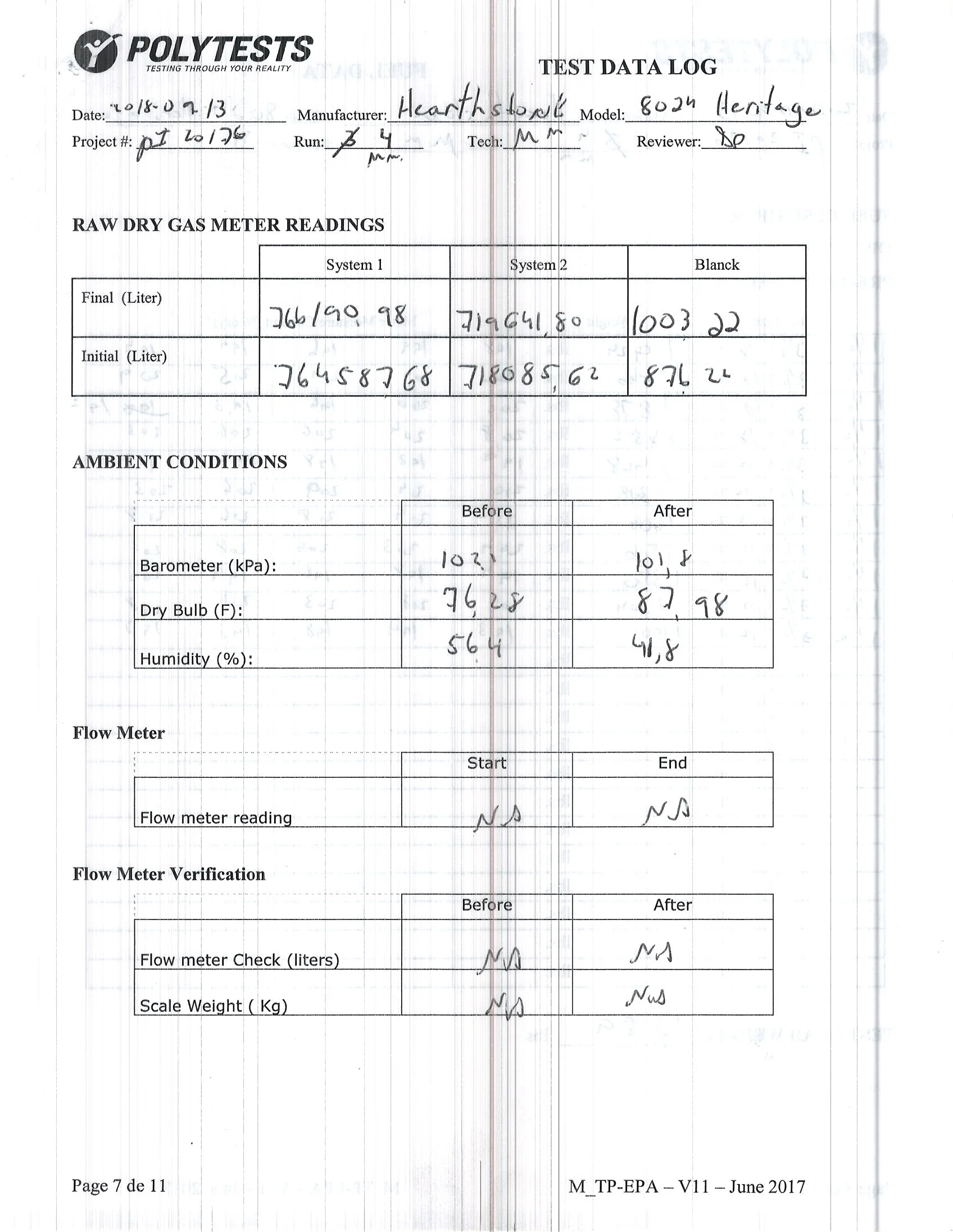

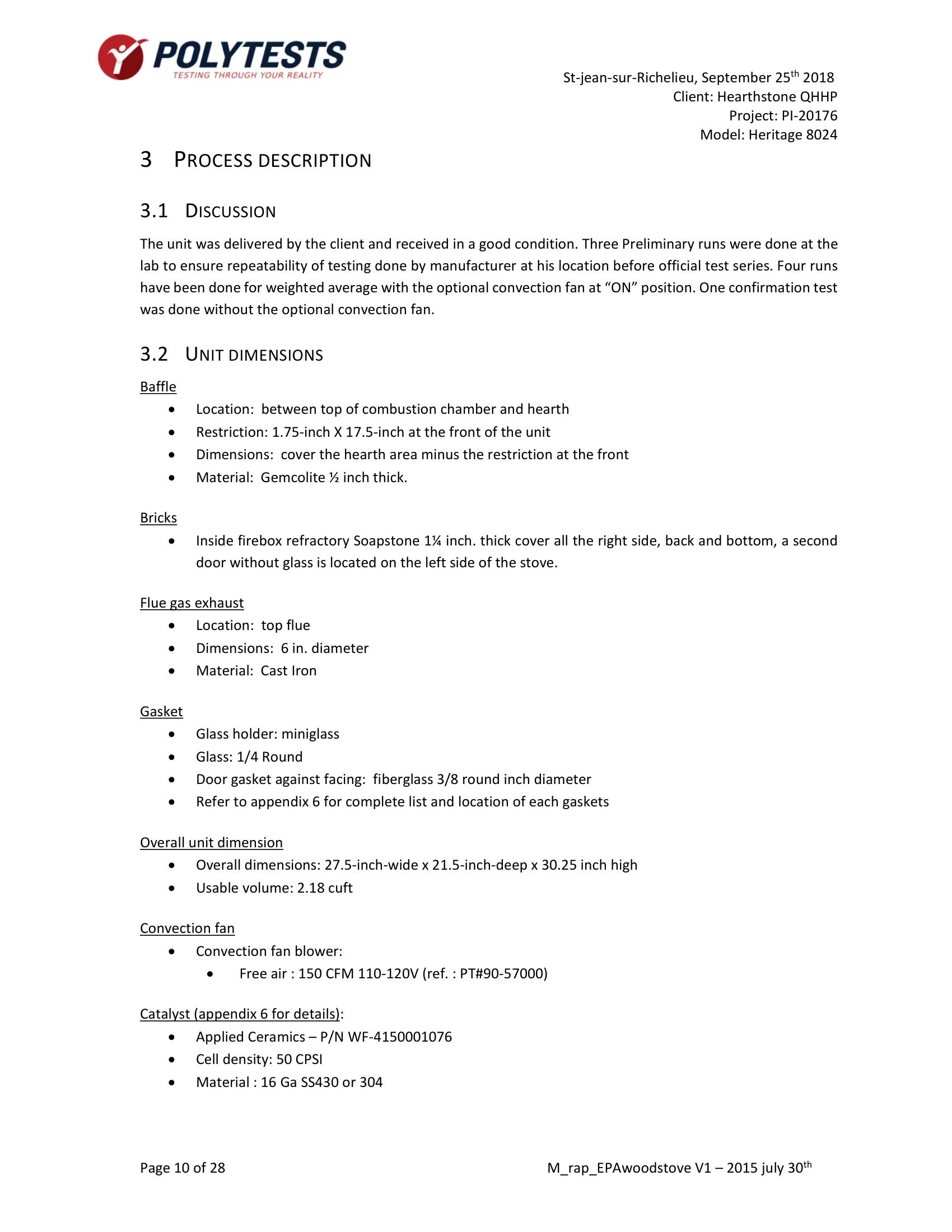

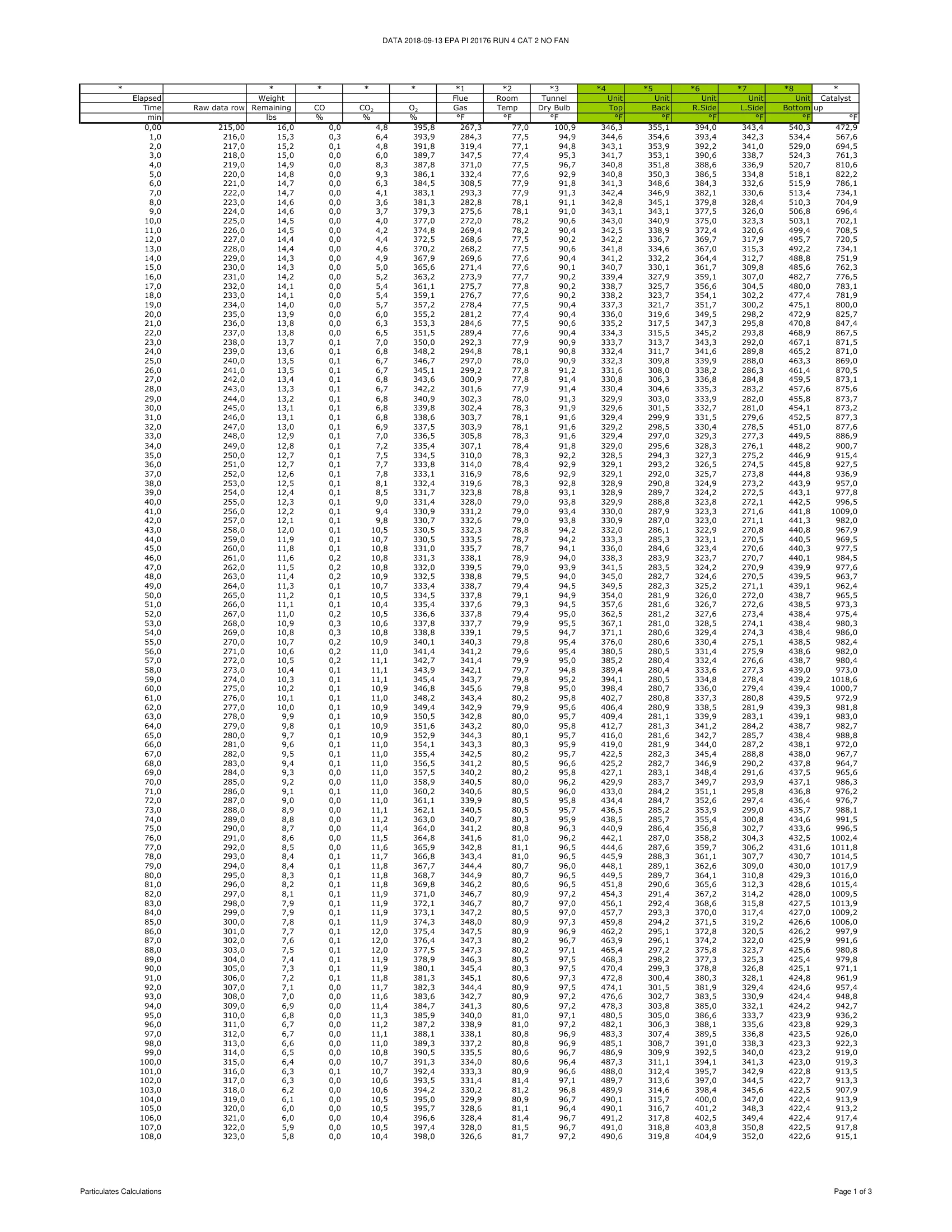

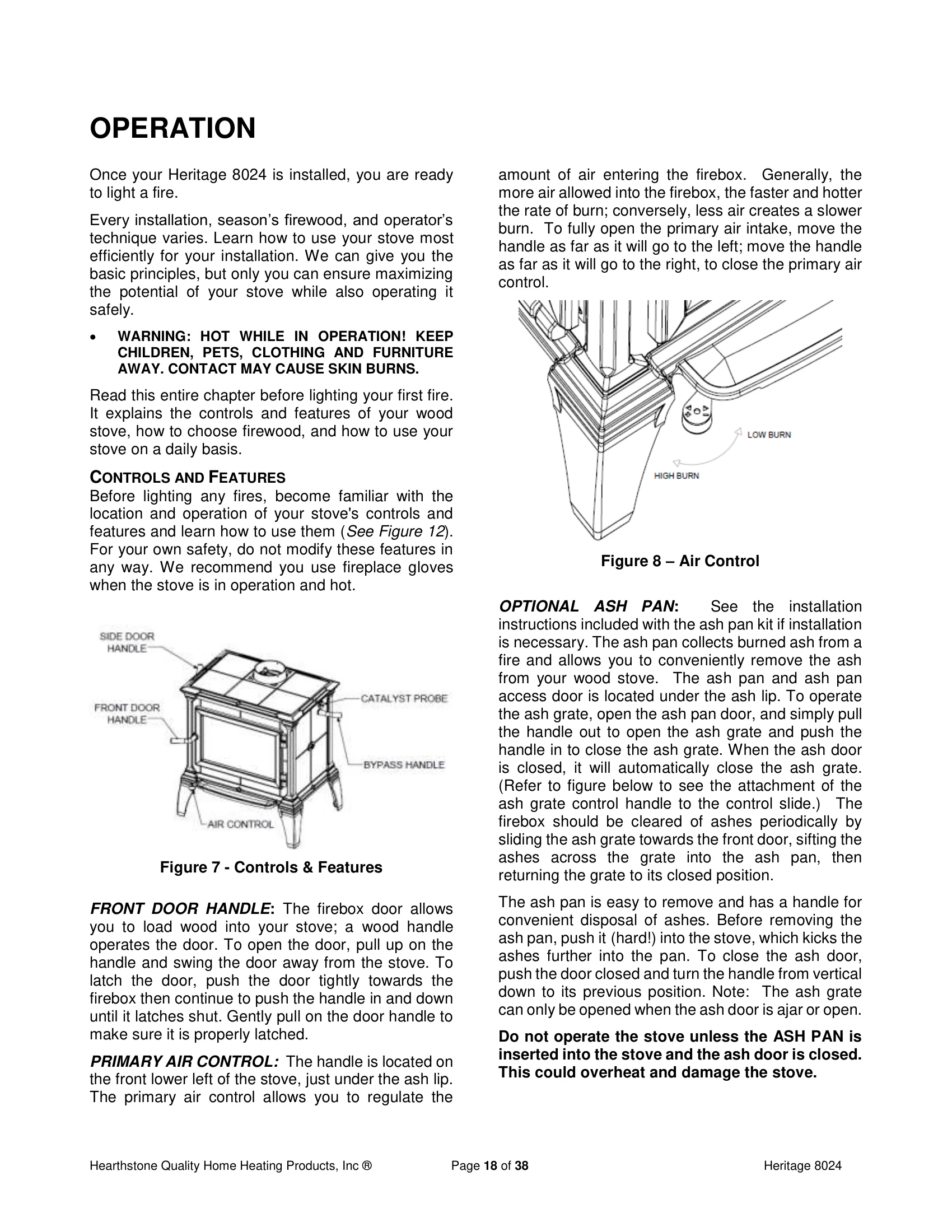

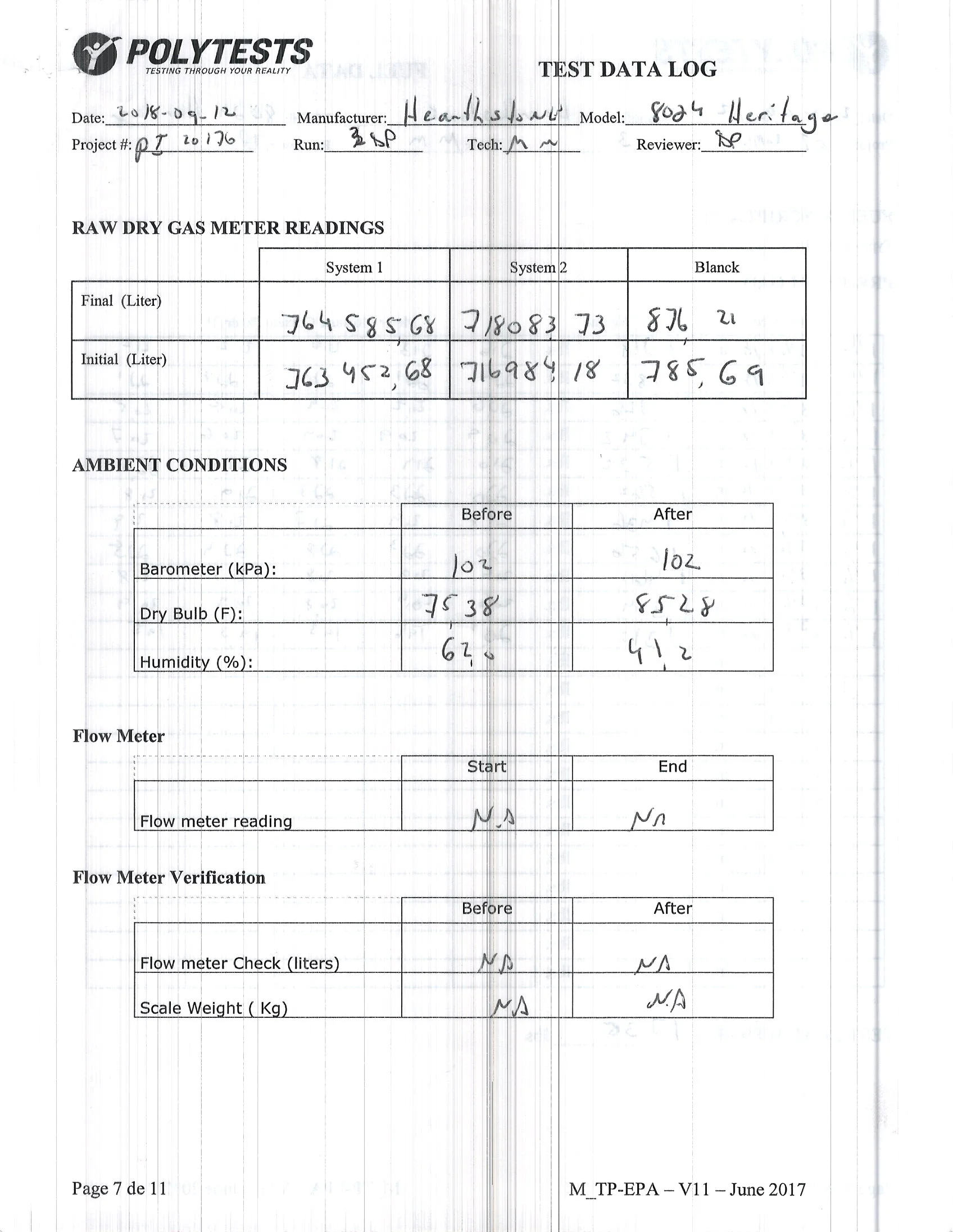

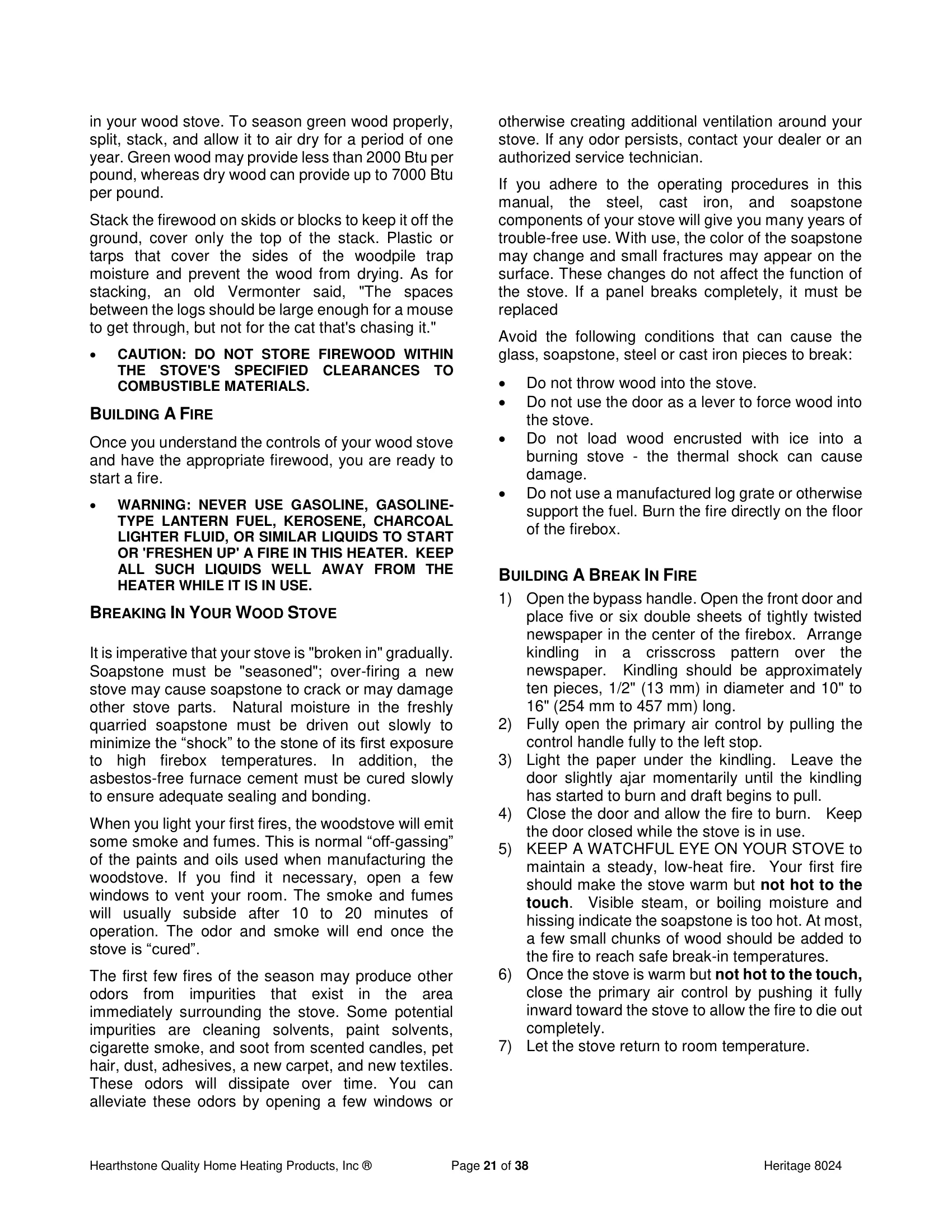

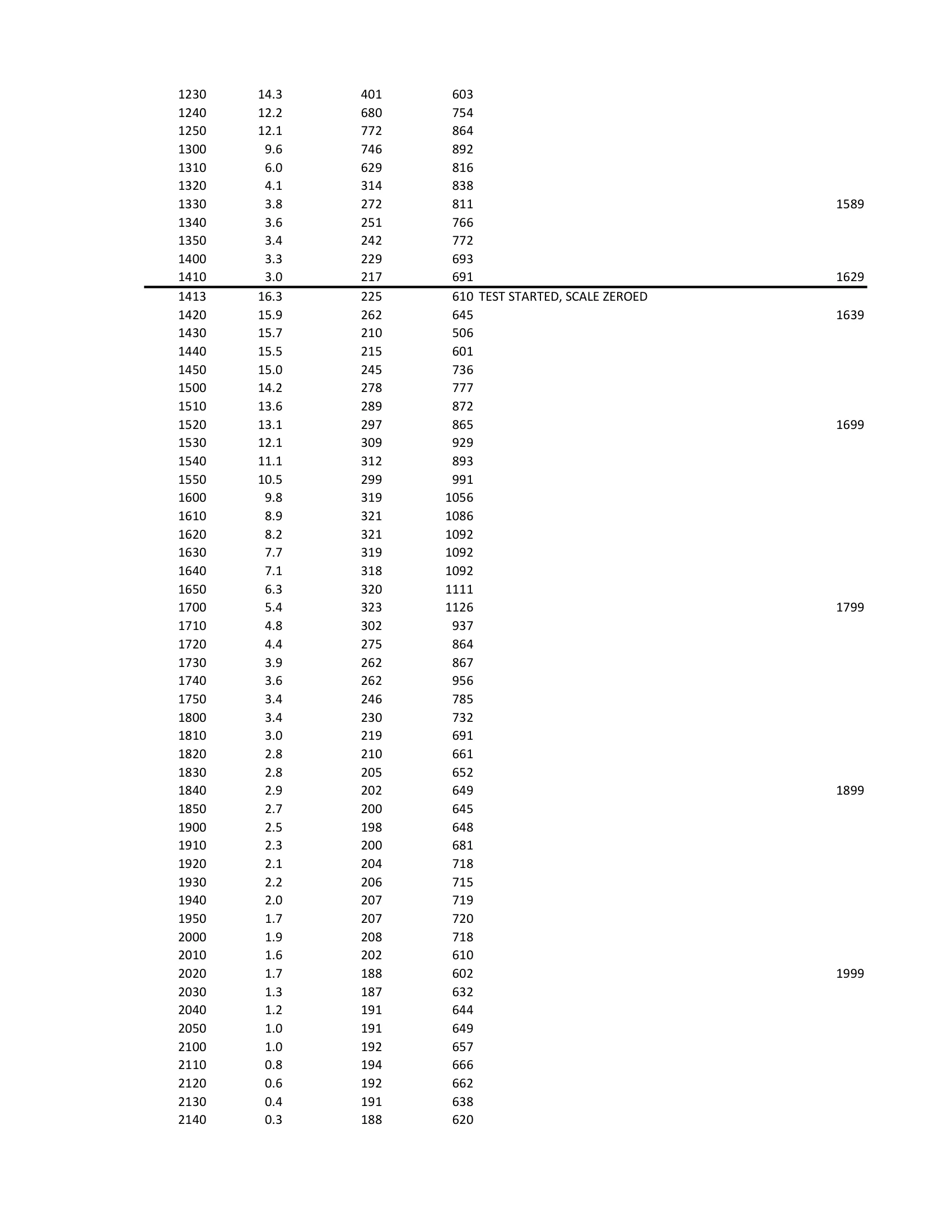

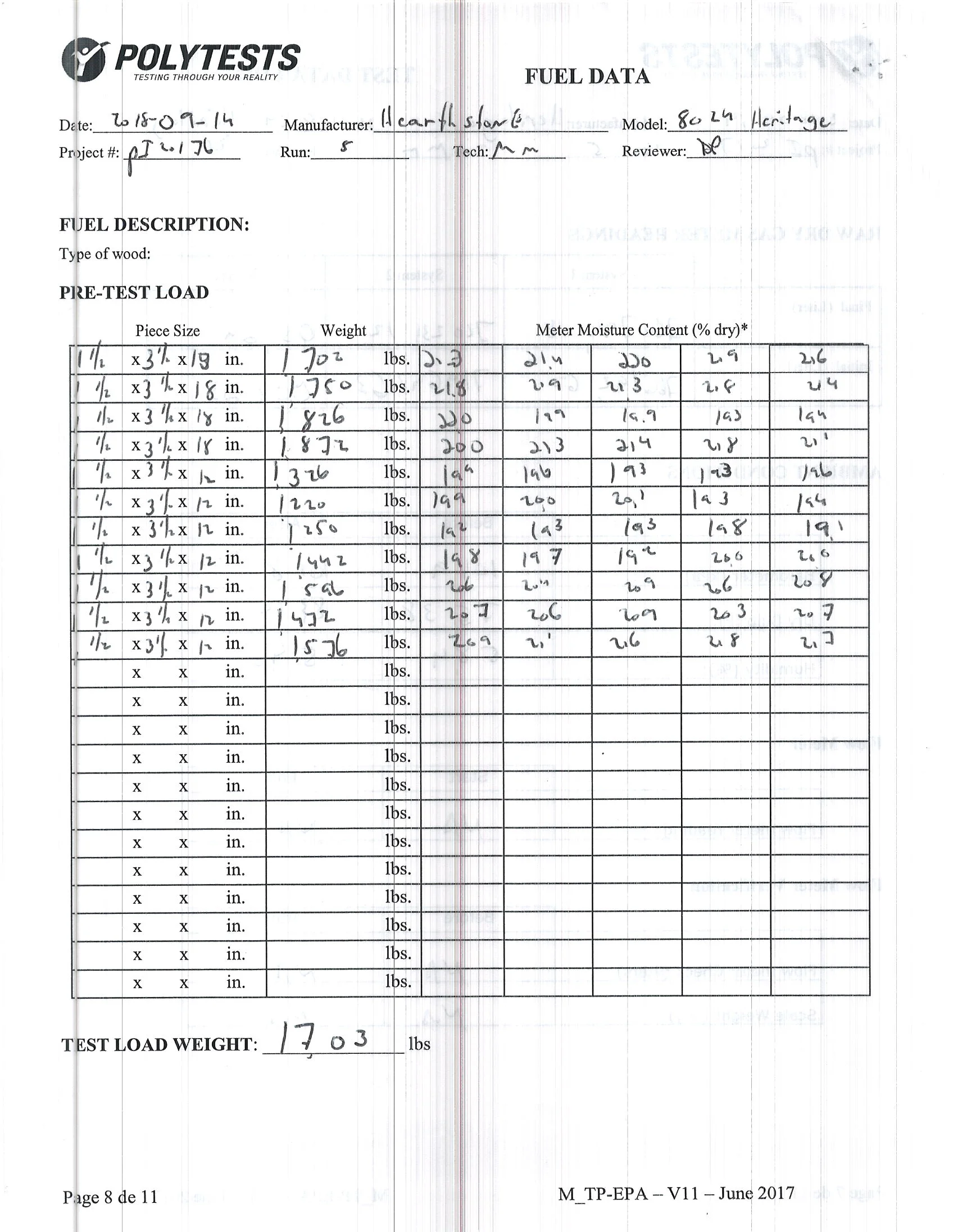

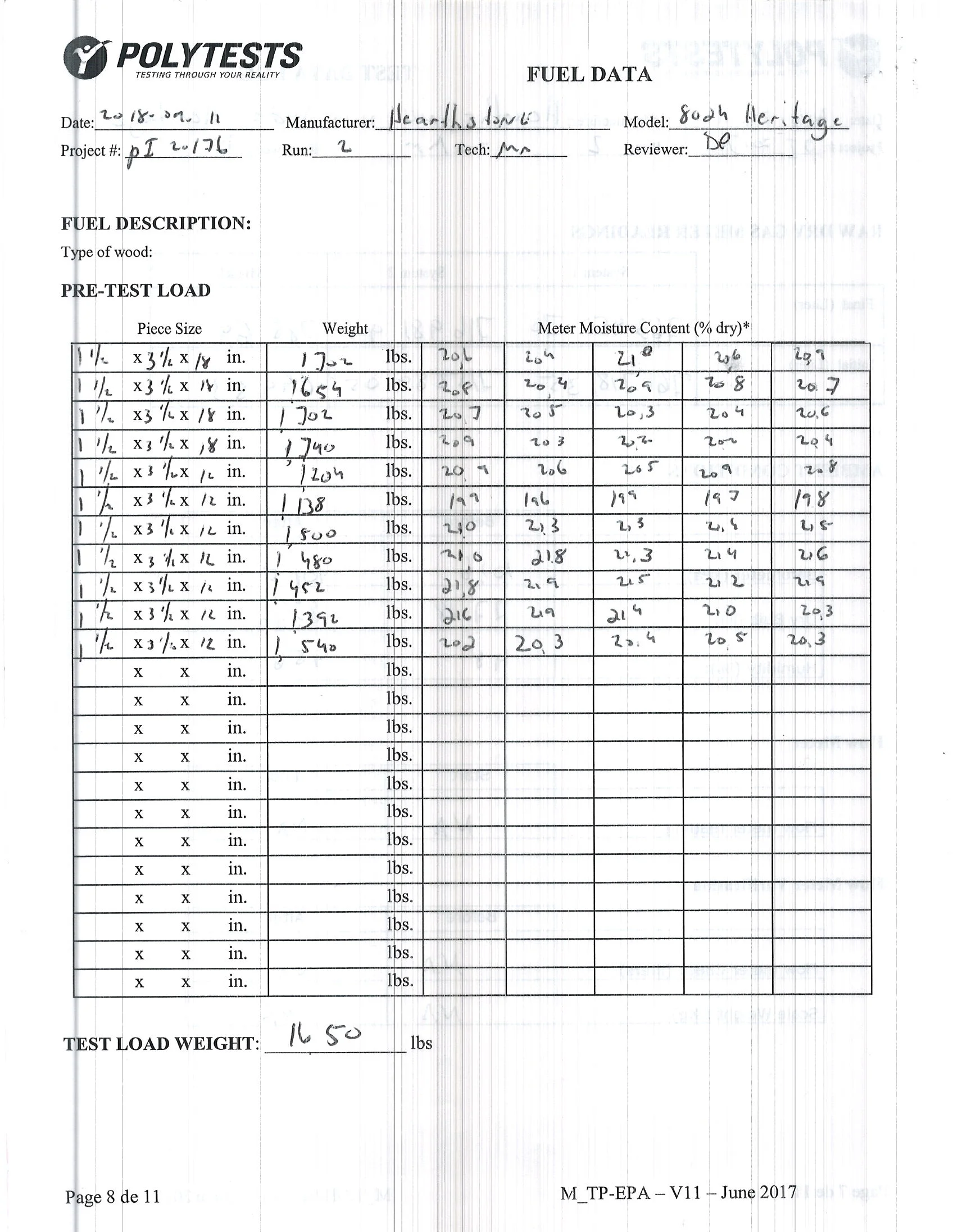

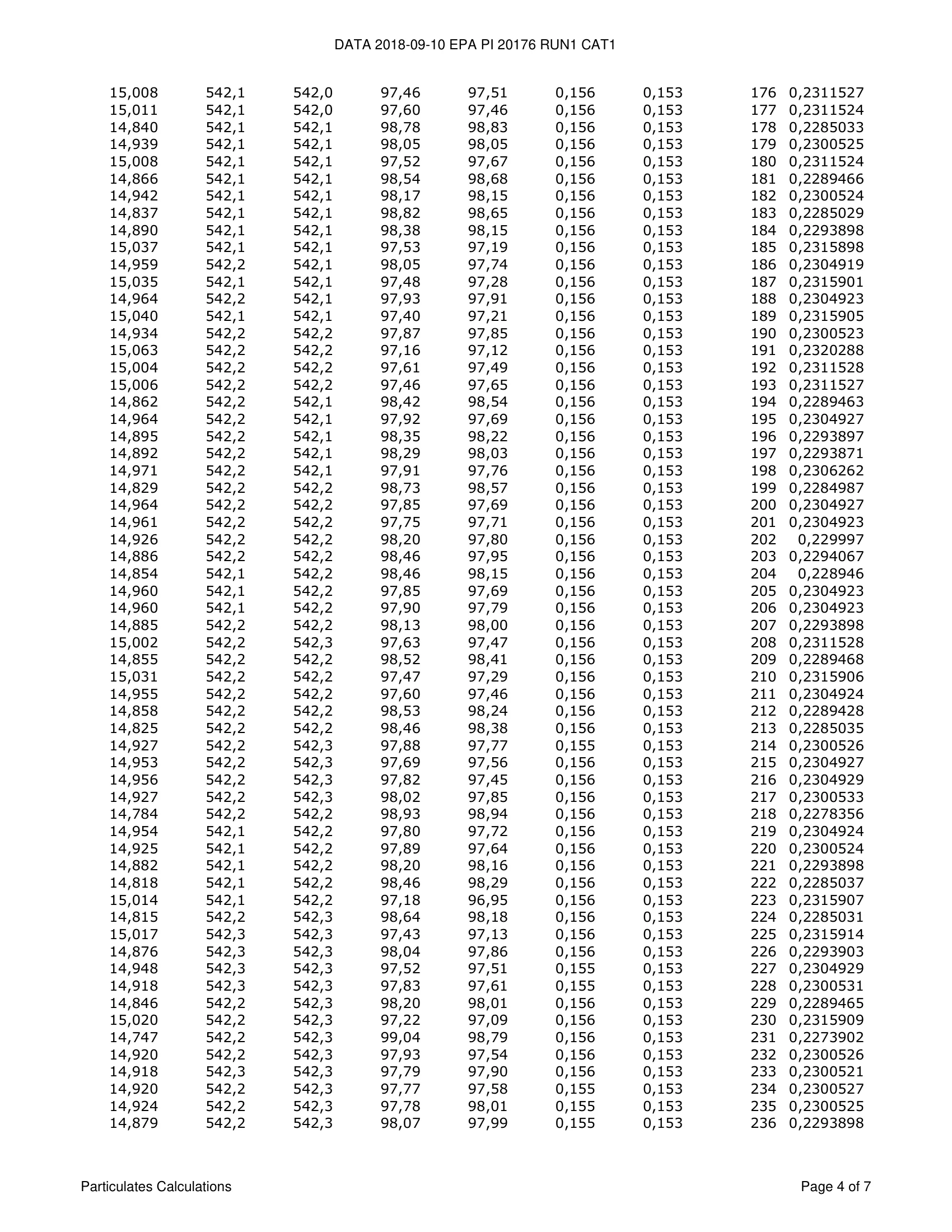

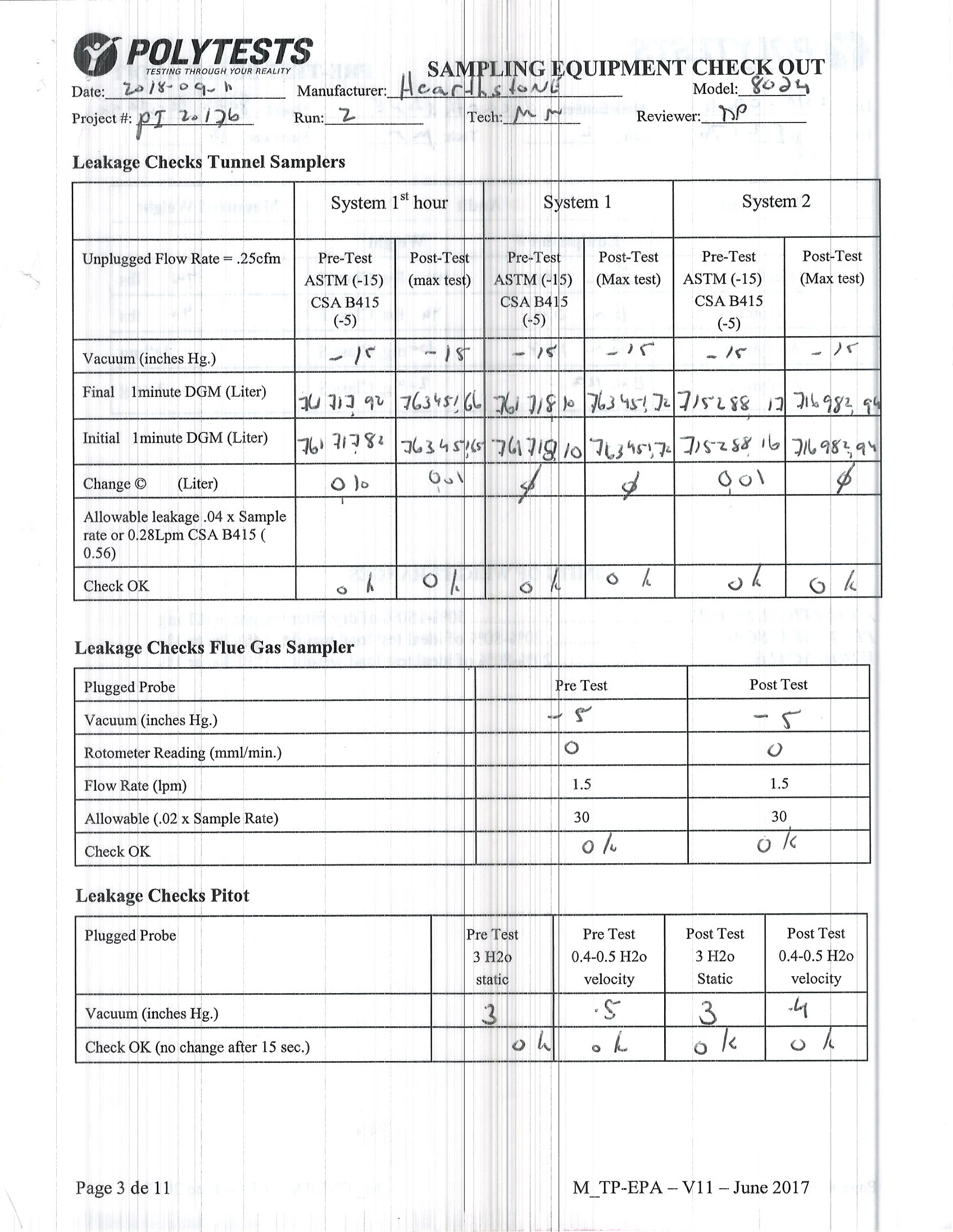

TEST REPORT TEST OF A HYBRID WOOD STOVE FOR EMISSIONS AND EFFICIENCY PER EPA METHODS 28R AND ASTM E2515 and ASTM E2780, MAY 2015 Client: Hearthstone QHHP 317 Stafford ave. Morrisville, Vt 05661 Model name: Heritage 8024 Attention: Rafaël Sanchez TESTED BY: Services Polytests Inc. 695-B Gaudette St-jean-sur-Richelieu, QC, J3B 7S7 TEST DATES: September 10th to September 14th 2018 REPORT DATE: September 25th 2018 Project number: PI-20176 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the clients to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This document may not be reproduced except in its entirety without the written permission from Services Polytests Services Polytests have not been involved in any R&D design consulting regarding this unit as requested by the NSPS.. Tested: written by: Maxime Martin Danick Power, P. Eng Verified by third party certifier (PFS): St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 2 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th SUMMARY 1 Introduction .................................................................................................................................................. 5 1.1 General ................................................................................................................................................. 5 1.2 Test unit information ........................................................................................................................... 5 1.3 Results .................................................................................................................................................. 5 1.4 Pretest information .............................................................................................................................. 6 2 Summary of test results ................................................................................................................................ 6 2.1 Emissions .............................................................................................................................................. 6 2.2 Average calculation .............................................................................................................................. 7 2.3 Test facility conditions ......................................................................................................................... 7 2.4 Fuel qualities ........................................................................................................................................ 8 2.5 Dilution tunnel flow rate measurements and sampling data (ASTM E2515) ....................................... 8 2.6 Dilution tunnel dual train precision ..................................................................................................... 9 2.7 General summary of results ................................................................................................................. 9 3 Process description ..................................................................................................................................... 10 3.1 Discussion .......................................................................................................................................... 10 3.2 Unit dimensions ................................................................................................................................. 10 3.3 Air supply system ............................................................................................................................... 11 3.4 operation during test ......................................................................................................................... 12 3.5 Start-up operation ............................................................................................................................. 12 3.6 Sampling locations ............................................................................................................................. 12 3.7 Drawings ............................................................................................................................................ 13 3.8 Emissions efficiency testing equipment list ....................................................................................... 13 4 Sampling methods ...................................................................................................................................... 13 4.1 Particulate sampling .......................................................................................................................... 13 5 Quality assurance ....................................................................................................................................... 13 5.1 Instrument calibration ....................................................................................................................... 13 5.1.1 Gas meters ..................................................................................................................................... 13 5.1.2 SCALES ........................................................................................................................................... 13 5.1.3 Gas analyzers ................................................................................................................................. 13 5.2 Test method procedures .................................................................................................................... 14 5.2.1 Leak check procedures .................................................................................................................. 14 5.2.2 Tunnel velocity flow measurement ............................................................................................... 14 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 3 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 5.2.3 Pm sampling proportionality (ASTM E2515) ................................................................................. 14 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 4 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th List of appendix APPENDIX 1: Raw data, forms and results APPENDIX 2: Proportionality results APPENDIX 3: Calibration data APPENDIX 4: Unit pre burn APPENDIX 5: Participants APPENDIX 6: Drawings and specifications APPENDIX 7: Operator’s manual APPENDIX 8: Photographs of test set up APPENDIX 9: Test load photographs APPENDIX 10: Laboratory Operating Procedures APPENDIX 11: Sample calculations APPENDIX 12: Volume calculations APPENDIX 13: Operating instruction APPENDIX 14: Drawing Air flow pattern St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 5 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 1 INTRODUCTION 1.1 GENERAL Laboratory  Location: Services Polytests Inc., 695-B Gaudette St-jean-sur-Richelieu QC, Canada J3B 7S7  Elevation: 100 feet above sea level Test program  Purpose: unit qualification NSPS 2020  Test dates: September 10th to September 14th 2018  Test methods used: o Particulate emissions: ASTM E2780-10 ; ASTM E2515-11 methods 28R as referred into 40 CFR Part 60 Subpart AAA o Efficiency: CSA B415.1-10 1.2 TEST UNIT INFORMATION General  Manufacturer: Hearthstone  Product type: Hybrid wood stove  Combustion system: catalytic, with post combustion  Unit tested: Heritage 8024  Option: optional convection fan can be installed on the wood stove 1.3 RESULTS Emission results obtained  Average emission rate: 0.54 grams/hour  Average Efficiency: 77.1 % Conformity: NSPS Phase 2020 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 6 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 1.4 PRETEST INFORMATION Unit condition: The unit was received by carrier first week of September 2018. The 50hrs of aging was done by the manufacturer (all data in Appendix 4). Set up  Venting system type: 6 inch diameter insulated chimney  System height from floor: 15 feet  Particularities: The unit was tested with the convection Fan ON for average numbers (Test #1,2,3 and 5), and one confirmation test is done without any convection fan (test #4). Break in period  Duration: the unit was pre burned by the manufacturer and run for at least 50 hours, adequate documentation of fuel additions, flue and unit temperatures recorded.  Fuel: BC FIR between 19% and 25% 2 SUMMARY OF TEST RESULTS 2.1 EMISSIONS Run Number Test Date (Y-MM-DD) Emission Rate (g/hr) Burn Rate (kg/hr) 1st hour Emission Rate (g/hr) CSA B415.1 CO emission Gr/hr CSA B415.1 CO emission Gr/Kg dry 1 2018-09-10 0,47 0,866 1,463 6,624 8,100 2 2018-09-11 0,24 0,964 0,956 14,906 15,445 3 2018-09-12 0,23 1,428 0,977 5,867 4,121 4 2018-09-13 0,50 1,027 2,086 11,378 10,613 5 2018-09-14 1,76 2,724 2,890 247,195 91,457 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 7 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 2.2 AVERAGE CALCULATION Test No. Burn Rate (Kg/hr) (E) Ave. Emission Rate g/hr (OHE) % Heat Output (BTU/HR) CSA B415.1 CO emission g/min 1 0,87 0,468 80,1% 12 317 0,11 2 0,96 0,245 79,8% 14 475 0,25 3 1,43 0,227 76,6% 20 482 0,10 5 2,72 1,765 70,6% 35 845 4,12 Weighted particulate emission average of 4 test runs: 0.54 grams per hour. Weighted average HHV efficiency of 4 test runs: 77.1 %. Average Co 1.14 gr/min 2.3 TEST FACILITY CONDITIONS Run Number Room Temperature Barometric pressure Relative humidity Air Velocity Before After Before After Before After Before After (F) (F) (in.Hg) (in.Hg) (%) (%) (ft/min) (ft/min) 1 76 83 30,268 30,091 38,8 30,6 0 0 2 79 84 30,002 29,973 48 45,6 0 0 3 77 85 30,121 30,121 62 41,2 0 0 4 77 88 30,150 30,062 56,4 41,8 0 0 5 77 83 30,091 30,062 58,4 54 0 0 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 8 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 2.4 FUEL QUALITIES Run Number Pre-test Load Test Load Loading Weight Wet Basis (lbs) Moisture Content Dry Basis (%) Coal bed Weight (lbs) Weight Wet Basis (lbs) Density Wet Basis (lbs/cuft) Moisture Content Dry Basis (%) Piece Length (in.) Number of 2X4's Number of 4x4's Number of Spacers 1 16,70 20,23 3,7 14,61 6,703 21,17 16 3 2 16 2 16,50 20,80 3,7 15,38 7,053 21,30 17 3 2 16 3 17,36 21,35 3,7 15,24 6,993 21,58 17 3 2 16 4 17,59 20,29 3,7 15,36 7,045 21,47 17 3 2 16 5 17,03 20,59 3,7 15,32 7,027 21,46 17 3 2 16 2.5 DILUTION TUNNEL FLOW RATE MEASUREMENTS AND SAMPLING DATA (ASTM E2515) Average dilution tunnel measurements Sample Data Run Number Burn Rate (Min) Volumetric Flow Rate (dscf/min) Total Temperatures (°R) Volume sampled (DSCF) Particulate catch (mg) 1 2 1 2 1 379 299,18 546,35 62,015 60,818 1,50 1,60 2 358 307,57 552,36 57,596 56,562 0,70 0,70 3 239 310,24 555,40 37,962 37,080 0,40 0,40 4 335 302,70 554,74 53,474 52,234 1,30 1,40 5 126 307,86 563,75 20,131 19,788 1,90 1,80 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 9 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 2.6 DILUTION TUNNEL DUAL TRAIN PRECISION Run Number Sample Ratio Total Emission (g) Train 1 Train 2 Train 1 Train 2 % Deviation 1 1828,41 1864,41 2,84 3,08 4,12% 2 1911,78 1946,75 1,45 1,47 0,96% 3 1953,16 1999,64 0,89 0,92 1,28% 4 1896,32 1941,34 2,68 2,94 4,65% 5 1926,90 1960,26 3,77 3,64 1,74% 2.7 GENERAL SUMMARY OF RESULTS Run Number Burn Rate (kg/hr) Average Surface Temperature (F) Change in surface Temperature (F) Initial Draft (in. H2O) static pressure tunnel (in. H2O) Primary Air Setting Run Time (min) 1 0,866 345,63 -53,7 0,057 0,180 minimum setting 379 2 0,964 363,20 -71,0 0,063 0,200 3/16 drill bit 358 3 1,428 424,78 -79,5 0,071 0,200 medium, 1/2 drill bit 239 4 1,027 378,56 -34,0 0,062 0,210 drill bit 3/16 335 5 2,724 510,02 -23,6 0,080 0,210 full open 126 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 10 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 3 PROCESS DESCRIPTION 3.1 DISCUSSION The unit was delivered by the client and received in a good condition. Three Preliminary runs were done at the lab to ensure repeatability of testing done by manufacturer at his location before official test series. Four runs have been done for weighted average with the optional convection fan at “ON” position. One confirmation test was done without the optional convection fan. 3.2 UNIT DIMENSIONS Baffle  Location: between top of combustion chamber and hearth  Restriction: 1.75-inch X 17.5-inch at the front of the unit  Dimensions: cover the hearth area minus the restriction at the front  Material: Gemcolite ½ inch thick. Bricks  Inside firebox refractory Soapstone 1¼ inch. thick cover all the right side, back and bottom, a second door without glass is located on the left side of the stove. Flue gas exhaust  Location: top flue  Dimensions: 6 in. diameter  Material: Cast Iron Gasket  Glass holder: miniglass  Glass: 1/4 Round  Door gasket against facing: fiberglass 3/8 round inch diameter  Refer to appendix 6 for complete list and location of each gaskets Overall unit dimension  Overall dimensions: 27.5-inch-wide x 21.5-inch-deep x 30.25 inch high  Usable volume: 2.18 cuft Convection fan  Convection fan blower:  Free air : 150 CFM 110-120V (ref. : PT#90-57000) Catalyst (appendix 6 for details):  Applied Ceramics – P/N WF-4150001076  Cell density: 50 CPSI  Material : 16 Ga SS430 or 304 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 11 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 3.3 AIR SUPPLY SYSTEM Description  Primary air: Window wash design in cast iron channel gasketed on bottom, cemented on top and sides of the combustion chamber. Air intake on bottom of unit at front left corner (if facing door of stove)  Secondary air: Secondary tube design with air intake at bottom center rear of unit, up through a steel riser tube to manifold and secondary air tubes. Characterization The following table shows the inlet and outlet sections of each system. The air introduction system number is referred to on a set of drawings in Appendix 6. AIR INTRODUCTION SYSTEM INLET (1) sq. in. OUTLET (sq. in.) Identification Type Imin Imax Controlled APPENDIX 14 SHARED and PA Primary Air control Slide 0.195 Air control Slide 2.415 yes (air wash) 3.366 APPENDIX 14 SHARED and SA Secondary (Riser Opening) 0.75 (Riser Opening) 0.75 No (secondary Tube holes) 1.397 Appendix 14 TA LPAO Controlled by the primary Controlled by the primary Yes (Orifice) 0.196 * This section would be filled by measuring and comparing with the manufacturer’s drawings included in the test report. Legend Identification: Tag name referred to on drawings in Appendix 14, section airflow pattern Type: Characterization of air intake Imin: Minimum air intake of a particular air channel Imax: Maximum air intake of a particular air channel Controlled: Determines if a provision for air control is present Outlet: Total air outlet of a particular air channel St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 12 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 3.4 OPERATION DURING TEST Run #1 This run was performed on September 10th 2018. It lasted 379 minutes and a 0.866 kg/hr burn rate was obtained & emission at 0.5 gr/hr. The optional convection fan Option was at on position during the entire test. The air inlet was at the minimum setting during the test Run #2 This run was performed on September 11th 2018. It lasted 358 minutes and a 0.96 kg/hr burn rate was obtained & emission at 0.2 gr/hr. The optional convection fan Option was at on position during the entire test. The air inlet was at the minimum setting during the test, this is the second attempt to burn less than 0.8kg/hr. At the minimum air setting, the stove cannot burn below 0.8kg/hr Run #3 This run was performed on September 12th 2018. It lasted 239 minutes and a 1.43 kg/hr burn rate was obtained & emission at 0.2 gr/hr. The optional convection fan Option was at on position during the entire test. The air inlet was at the medium setting during the test. Category 3 burn rate been achieved. Run #4 This run was performed on September 13th 2018. It lasted 335 minutes and a 1.027 kg/hr burn rate was obtained & emission at 0.5 gr/hr. The optional convection fan Option was at OFF position during the entire test. The air inlet was at the medium setting during the test. Category 2 burn rate been achieved. Run #5 This run was performed on September 14th 2018. It lasted 126 minutes and a 2.72 kg/hr burn rate was obtained & emission at 1.8 gr/hr. The optional convection fan Option was at on position during the entire test. The air inlet was at the maximum setting during the test. Category 4 burn rate been achieved.  Details: Refer to the front page of each test run data sheets found in appendix for the detailed test sequence showing air supply settings and adjustments, fuel bed adjustments and operational specifics of the test unit. Test fuel cribs  Type of wood: Douglas fir, grade c or better, 19 to 25% dry basis moisture content  Description: for each test, description of the fuel crib is found on the front page of each test run data sheet together with photograph in appendix. 3.5 START-UP OPERATION The complete manufacturer’s firing procedure of each burn rate category is fully described in appendix 13. 3.6 SAMPLING LOCATIONS St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 13 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th Particulate samples are collected from the dilution tunnel at a point 15 feet from the tunnel entrance. The tunnel has two elbows and two mixing baffles in the system ahead of the sampling section. The sampling section is a continuous 15 foot section of 8 inch diameter pipe straight over its entire length. Tunnel velocity pressure is determined by a standard pitot tube located 48 inches from the beginning of the sampling section. Thermocouple is installed on the pitot tube to measure the dry bulb temperature. MC is assumed, as allowed, to be 4%. Tunnel samplers are located 56 inches downstream of the pitot tube and 16 inches upstream from the end of this section. 3.7 DRAWINGS Various drawings of the stack gas sampling train and of dilution tunnel system are found in Appendix 1. 3.8 EMISSIONS EFFICIENCY TESTING EQUIPMENT LIST The complete test equipment list together with all corresponding calibration data can be found in Appendix 3. 4 SAMPLING METHODS 4.1 PARTICULATE SAMPLING Particulates were sampled in strict accordance with ASTM E2515. This method uses two identical sampling systems with Gelman A/E 61631 binder free (or equivalent), 47 mm diameter filters. The dryers used in the sample systems are filled with "Drierite" before each test run. 5 QUALITY ASSURANCE 5.1 INSTRUMENT CALIBRATION 5.1.1 GAS METERS At the conclusion of each test program the gas meters are verified using the reference dry gas meter. This process involves sampling the train operation for 1 cubic foot of volume. With readings made to .01 fr', the resolution is 1 %, giving an accuracy higher than the 2% required by the standard. 5.1.2 SCALES Before each test program, the different scales used are checked with traceable calibration weights to ensure their accuracy. 5.1.3 GAS ANALYZERS The continuous analyzers are zeroed and spanned before each test with NBS traceable gases. A mid-scale multi- component calibration gas is then analyzed (values are recorded). At the conclusion of a test, the instruments are checked again with zero, span and calibration gases (values are recorded only). The drift in each meter is then calculated and must not exceed 5% of the scale used for the test. St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 14 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th 5.2 TEST METHOD PROCEDURES 5.2.1 LEAK CHECK PROCEDURES Before and after each test, each sample train is tested for leaks. Leakage rates are measured and must not exceed 0.02 CFM or 4% of the sampling rate. Leak checks are performed checking the entire sampling train. Pre- test and post-test leak checks are conducted with a vacuum of 5 inches of mercury. Vacuum is monitored during each test and the highest vacuum reached is then used for the post-test vacuum value. If leakage limits are not met, the test run is rejected. During these tests, the vacuum is typically less than 2 inches of mercury. Thus, leakage rates reported are expected to be much higher than actual leakage during the tests. 5.2.2 TUNNEL VELOCITY FLOW MEASUREMENT The tunnel velocity is calculated from a center point pitot tube signal multiplied by an adjustment factor. This factor is determined by a traverse of the tunnel as prescribed in EPA Method 1. Final tunnel velocities and flow rates are calculated from EPA Method 2, Equation 6.9 and 6.10. (Tunnel cross sectional area is the average from both lines of traverse.) Pitot tubes are cleaned before each test and leak checks are conducted after each test. 5.2.3 PM SAMPLING PROPORTIONALITY (ASTM E2515) Proportionalities were calculated in accordance with ASTM E2515. The data and results are found in appendix. St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 15 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 1: Raw data, forms and results DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Paramètres Tous les facteurs de corrections et autres paramètres qui peuvent être modifiés par l’utilisateur du fichier sont regroupés ici. Code verrouillage: HEA Description du test Test standard EPA Run # 1 Date 10-09-2018 Technicien M.M Project # PI 20176 Description de l'unité Manufacturier HEARTHSTONE Modèle 8024 HERITAGE Combustion system Cat Appliance type WOODSTOVE Firebox volume 2,18 cu ft. Appliance weight empty N.A lbs Appliance weight full N.A lbs Paramètres du test Logging time 1 min Manufacturer's rated heat output N.A BTU/h Donnée fournie par le manfacturier Targeted category 1 Targeted output N.A BTU/h Cp steel N.A BTU/lb-°F Échantillonnage Blank sampling rate 0,20 cuft/min Internal probe diameter 0,18 in. Calibration Factor (DGM #1): 0,988 Dimensionless Equipment number (DGM #1): EM 178 Calibration Factor (DGM #2): 0,991 Dimensionless Equipment number (DGM #2): EM 179 Calibration Factor (DGM #3): 0,996 Equipment number (DGM #3): EM 070 Dimensionless Tunnel Targeted tunnel flow rate 300 scfm Tunnel diameter 8 in. Molecular weight 28,78 May be assumed to be 28,78 (EPA) Si B-415 = 29 Pitot tube type Standard Pitot tube coefficient 0,99 Dimensionless Project nu. PI 20176 Date 10-09-2018 Technicien M.M Fuel data Fuel type Dimension Fuel specie D. Fir HHV 19810,0 kJ/kg D. Fir Oak/Maple %C 48,7 HHV 19 810 19 887 %H 6,9 %C 48,73 50 %O 43,9 %H 6,87 6,6 %Ash 0,5 %O 43,9 42,9 HHV 8519,2 Btu/lb %Ash 0,5 0,5 LHV 7451,0 Btu/lb HHV (Btu/lb) 8519 8552 LHV (Btu/lb) 7451 7480 Default Fuel Values Paramètres Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Start End Barometer (kPa): 102,5 101,9 Barometer (in.Hg): 30,268239 30,09105867 Dry Bulb (F): 74,12 83,12 Humidity (%): 38,8 30,6 Air velocity (ft/min) 0 0 DGM #1 Final: 26899,771 cuft Final: 761716,660 Liter Initial: 26834,569 cuft Initial: 759870,350 Liter DGM #2 Final: 25260,096 cuft Final: 715286,260 Liter Initial: 25196,619 cuft Initial: 713488,780 Liter DGM room Final: 649,510 cuft Initial: 519,610 cuft Numéro de la ligne dans "Raw data" à partir duquel les données du VRAI test commencent 260 Autres données à rentrer: dans preload data, load data, traverse et filter set weight Project nu.PI 20176 Date 10-09-2018 Technicien M.M Key in data Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Preload data sheet Lower Ideal Upper 13,73 15,26 16,79 Load Volume: 0,4740 cu. ft Loading Density: 7,660 lbs./ft3 Number of Spaces: 0 Load Density (wet): 35,231 lbs./ft3 Spacer weight (lbs): 0 Dry Wood Density: 29,302915 Weight Ave. MC x Volume Thick Wide x Length lbs Weight Cubic Inches 1,5 3,5 18 1,886 19,6 19,3 19,8 19,4 19,8 36,92788 94,50 1,5 3,5 18 1,788 19,8 20,1 20,3 20,3 20,2 36,01032 94,50 1,5 3,5 18 1,836 19,9 19,8 19,4 19,9 19,9 36,31608 94,50 1,5 3,5 18 1,866 20,1 20,4 20,8 20,3 20,8 38,21568 94,50 1,5 3,5 12 1,424 20,9 19,9 19,6 19,3 19,8 28,3376 63,00 1,5 3,5 12 1,334 19,9 20 20,4 20,8 20,1 27,00016 63,00 1,5 3,5 12 1,302 19,9 19,6 19,6 19,5 19,3 25,49316 63,00 1,5 3,5 12 1,498 20 20,4 20,8 20,6 20,9 30,76892 63,00 1,5 3,5 12 1,196 20,8 20,4 20,9 20,8 20,9 24,82896 63,00 1,5 3,5 12 1,288 21 21,3 21,8 21,4 20,9 27,40864 63,00 1,5 3,5 12 1,28 20,9 20,6 20,3 20,9 20,8 26,496 63,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 337,8034 PreTest Load Weight: 16,70 lbs. Dry Weight: 6,30 kg. Average Moisture Content: % Dry: 20,23 20,23 Wet: 16,83 Must be 18-28 must be 15,2-22 Project nu. PI 20176 Date 10-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Preload Data Page 1 of 1 Confidentiel 2018-09-25 Page 1 FUEL LOAD DATA SHEET, CSA B415 Lower Ideal Upper 13,7 15,3 16,8 * For boilers, a loading density factor of 10 lb/ft3 is applied Load Volume: 0,47 cu. ft Loading Density: 6,7 lbs./ft3 Number of Spaces: 16 Load Density (wet): 31,1 lbs./ft3 Spacer weight: lbs Dry Wood Density: 25,6 lbs./ft3 Weight Ave. MC x Volume Ave. MC Thick Wide xLength lbs Weight Cubic Inches % 1,5 3,5 16 1,65 21,30 21,00 20,80 20,60 20,90 34,43432 84,00 20,9 1,5 3,5 16 1,50 22,80 22,40 22,60 22,40 22,60 33,93024 84,00 22,6 1,5 3,5 16 1,57 21,30 21,80 21,40 21,60 21,30 33,76656 84,00 21,5 3,5 3,5 16 4,06 21,90 21,00 21,10 21,00 21,10 86,23808 196,00 21,2 3,5 3,5 16 3,94 21,00 20,90 20,80 21,10 21,00 82,49856 196,00 21,0 0,00 0,00 1,5 0,75 5 0,12 20,90 2,5498 5,63 20,9 1,5 0,75 5 0,13 19,60 2,548 5,63 19,6 1,5 0,75 5 0,12 19,30 2,3932 5,63 19,3 1,5 0,75 5 0,10 19,90 1,99 5,63 19,9 1,5 0,75 5 0,12 20,10 2,4924 5,63 20,1 1,5 0,75 5 0,12 20,40 2,4072 5,63 20,4 1,5 0,75 5 0,11 20,80 2,3712 5,63 20,8 1,5 0,75 5 0,10 20,30 2,03 5,63 20,3 1,5 0,75 5 0,12 20,90 2,4662 5,63 20,9 1,5 0,75 5 0,11 20,80 2,2464 5,63 20,8 0,00 1,5 0,75 5 0,11 20,40 2,2032 5,63 20,4 1,5 0,75 5 0,126 19,90 2,5074 5,63 19,9 1,5 0,75 5 0,134 20,10 2,6934 5,63 20,1 0,00 1,5 0,75 5 0,122 20,4 2,4888 5,63 20,4 1,5 0,75 5 0,122 20,9 2,5498 5,63 20,9 1,5 0,75 5 0,12 20,6 2,472 5,63 20,6 0,00 0,00 0,00 0,00 0,00 SUM MCx 309,27676 20,6 % Test Load Weight: 14,61 lbs. Dry Weight: 5,47 kg. Average Moisture Content: % Dry: 21,17 Dry(EPA) 21,17 21,17 Wet: 17,47 Dry(B415 21,17 Must be 19-25 must be 15,2-22 Coal Bed Range: 2,9 lbs. to 3,7 lbs. TEST CHARGE: Project nu. PI 20176 Coal bed weight: 3,7 lbs. Date 10-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Load Data Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Tunnel Traverse Worksheet (for velocity calculations) Static Pressure: 0,18 in. H20 Barometer: 29,900 in. Hg Pour un tunnel de 12" et plus, prendre 6 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,0000 B center 0,0000 A1 0,0000 A2 0,0000 A3 0,0000 A4 0,0000 A5 0,0000 A6 0,0000 B1 0,0000 B2 0,0000 B3 0,0000 B4 0,0000 B5 0,0000 B6 0,0000 PITOT CONSTANT= AVERAGE #DIV/0! #DIV/0! 0,0000 0,967 Pour un tunnel moins de 12", prendre 4 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,059 70,93 0,2429 B center 0,058 70,89 0,2408 A1 0,048 70,89 0,2191 A2 0,065 70,95 0,2550 A3 0,051 70,95 0,2258 A4 0,050 70,93 0,2236 B1 0,052 70,890 0,2280 B2 0,062 70,900 0,2490 B3 0,054 70,870 0,2324 B4 0,049 70,870 0,2214 AVERAGE 0,0548 70,9070 0,2338 Project nu. PI 20176 Date 10-09-2018 Technicien M.M Traverse Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Filter set weight Ambient blank (g) Date Heure probe front back gasket probe front back gasket probe front back gasket Filter Number 1 10 11 2 32 12 13 13 43 14 15 19 16 Before (1) Before (2) Before (3) Before (4) Before (5) 61,0691 0,1261 0,1265 34,2344 110,1773 0,1280 0,1290 34,3496 109,1644 0,1302 0,1277 33,7376 0,1266 2018-09-06 17:00 Before (6) 61,0692 0,1262 0,1266 34,2344 110,1774 0,1279 0,1289 34,3495 109,1646 0,1303 0,1276 33,7375 0,1266 2018-09-10 11:00 After (1) 61,0701 0,1260 0,1264 34,2360 110,1784 0,1275 0,1288 34,3569 109,1659 0,1308 0,1274 33,7489 0,1268 2018-09-10 18:00 After (2) 61,0694 0,1260 0,1264 34,2352 110,1775 0,1275 0,1288 34,3505 109,1651 0,1308 0,1274 33,7384 0,1268 2018-09-17 08:00 After (3) 61,0694 0,1261 0,1265 34,2352 110,1775 0,1276 0,1289 34,3505 109,1651 0,1308 0,1274 33,7384 0,1267 2018-09-21 08:00 After (4) After (5) After (6) 61,0694 0,1261 0,1265 34,2352 110,1775 0,1276 0,1289 34,3505 109,1651 0,1308 0,1274 33,7384 0,1267 2018-09-21 08:00 Difference 0,0002 -0,0001 -0,0001 0,0008 0,0001 -0,0003 0,0000 0,0010 0,0005 0,0005 -0,0002 0,0009 0,0001 Total (mg) 0,8 1,6 1,7 0,1 Total ajusté (mg) 0,70 1,50 1,60 Project nu. PI 20176 Date 10-09-2018 Technicien mm System 2 (g) System 1 (g) 1st hour System 1 (g) Filter set weight Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 SFBA EPA EMISSION RESULTS RESULTS Average emission rate: 0,5 g/hr Burn Rate : 0,866 Dry kg/hr Test Duration: 379 min PRESSURE FACTOR: DGM 1 0,98663 BAROMETRIC PRESSURE DGM 2 0,99102 Average: 30,17964864 in Hg DGM 3 1,00868 Start: 30,26823861 in Hg End: 30,09105867 in Hg TEMPERATURE FACTORS DGM 1 0,97527 DGM 2 0,97517 DGM CONTROLLER VALUES DGM 3 0,98159 DGM 1 Final: 26899,771 Cuft Initial: 26834,569 Cuft VOLUMES SAMPLED DGM 1 62,015 SCft DGM 2 Final: 25260,096 Cuft DGM 2 60,818 Scft Initial: 25196,619 Cuft DGM 3 128,070 SCft DGM #3 Final: 649,510 Cuft Initial: 519,610 Cuft TOTAL TUNNEL VOLUME : 113390 TEMPERATURES SAMPLE RATIOS DGM 1 541,391 °R Sample Train 1: 1828,410 DGM 2 541,444 °R Sample Train 2: 1864,406 CALIBRATION FACTORS Paticulate concentration DGM 1 0,9885 Sample Train 1 0,000026 g/dscf DGM 2 0,9914 Sample Train 2 0,000028 g/dscf DGM #3 0,9958 Room 0,000001 g/dscf TUNNEL FLOW RATE: 299,181 Dscfm TOTAL EMISSIONS PARTICULATE CATCH Sample Train 1 2,84 g Total Sample Train 1: 1,60 mg Sample Train 2 3,08 g Total Sample Train 2: 1,70 mg Total Sample Train 1 1st hour: 0,80 mg EMISSION RATES Sample Train 1 0,45 g/hr Sample Train 2 0,49 g/hr 1st hour emission rate 1,46 g/hr DEVIATION: 4,12% Train 1 Train 2 Cs 2,58E-05 2,7952E-05 Particulates Calculations Page 1 of 1 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 ***** *1 *2 *3 *4 *5 *6 *7 *8 * Elapsed Weight Flue Room Tunnel Unit Unit Unit Unit Unit Catalyst Time Raw data row Remaining CO CO2 O2 Gas Temp Dry Bulb Top Back R.Side L.Side Bottom up min lbs %%% °F °F °F °F °F °F °F °F °F 0,00 260,00 13,8 0,037 4,6 0,0 262,5 75,7 102,6 334,9 338,2 406,6 344,5 491,1 484,0 1,0 261,0 14,5 0,241 5,7 0,0 267,3 75,7 90,9 333,3 337,7 405,3 343,5 487,7 506,1 2,0 262,0 14,4 0,052 3,9 0,0 297,2 76,1 90,5 331,8 337,2 403,8 342,2 484,3 608,2 3,0 263,0 14,3 0,028 4,6 0,0 322,6 76,1 91,5 330,5 336,3 401,8 340,4 481,1 680,5 4,0 264,0 14,2 0,025 7,4 0,0 351,6 75,9 92,4 329,2 335,2 399,5 338,5 478,2 746,6 5,0 265,0 14,1 0,021 8,3 0,0 327,4 76,2 90,0 328,4 333,9 396,9 336,9 475,6 766,0 6,0 266,0 14,0 0,035 6,6 0,0 292,9 75,9 87,8 328,5 332,3 394,2 335,1 473,4 734,5 7,0 267,0 14,0 0,024 3,6 0,0 274,1 75,9 87,2 328,8 330,6 391,7 333,3 471,2 678,1 8,0 268,0 14,0 0,022 3,1 0,0 261,6 75,9 86,8 329,2 328,8 389,1 331,4 468,8 649,2 9,0 269,0 13,9 0,022 2,9 0,0 253,5 75,9 86,2 329,1 326,9 386,4 329,4 466,1 635,2 10,0 270,0 13,9 0,023 3,0 0,0 247,6 76,1 86,1 328,6 324,9 383,6 327,2 463,2 631,8 11,0 271,0 13,9 0,024 3,1 0,0 244,2 76,1 85,7 328,5 322,9 380,9 324,8 460,2 639,8 12,0 272,0 13,8 0,026 3,4 0,0 242,8 75,9 85,7 328,2 320,9 378,1 322,4 457,1 654,1 13,0 273,0 13,8 0,030 3,6 0,0 243,8 76,2 85,6 328,0 318,7 375,3 319,8 454,1 673,8 14,0 274,0 13,7 0,024 4,6 0,0 243,9 76,2 86,0 327,1 316,9 372,6 317,5 451,1 683,2 15,0 275,0 13,7 0,023 4,6 0,0 243,6 76,4 85,9 326,2 314,8 369,8 315,1 448,2 686,2 16,0 276,0 13,6 0,026 4,5 0,0 243,6 75,9 85,9 325,3 312,8 367,0 312,6 445,4 695,8 17,0 277,0 13,6 0,027 4,5 0,0 243,8 75,9 85,6 324,3 310,8 364,4 310,1 442,6 693,0 18,0 278,0 13,5 0,027 4,5 0,0 243,7 75,7 85,6 323,3 308,8 361,7 307,5 439,9 692,2 19,0 279,0 13,5 0,026 4,8 0,0 244,5 76,0 85,6 322,4 306,8 359,1 305,0 437,2 691,6 20,0 280,0 13,4 0,026 4,9 0,0 246,2 76,1 85,2 321,4 304,9 356,7 302,8 434,5 701,6 21,0 281,0 13,3 0,036 4,8 0,0 247,2 76,0 85,3 320,4 302,9 354,3 300,8 432,0 710,3 22,0 282,0 13,3 0,038 4,9 0,0 248,1 75,9 85,4 319,5 301,0 352,0 298,6 429,6 718,0 23,0 283,0 13,2 0,039 4,9 0,0 249,2 76,0 85,6 318,4 299,2 349,8 296,4 427,2 723,5 24,0 284,0 13,2 0,040 5,0 0,0 250,4 76,2 85,8 317,0 297,5 347,6 294,2 424,9 726,7 25,0 285,0 13,1 0,037 5,1 0,0 251,4 76,3 85,7 316,3 295,6 345,6 292,1 422,7 729,4 26,0 286,0 13,1 0,035 5,4 0,0 251,6 76,3 85,9 315,2 293,8 343,5 290,1 420,6 732,0 27,0 287,0 13,0 0,034 5,5 0,0 253,0 76,2 86,0 314,3 292,2 341,5 288,2 418,7 733,7 28,0 288,0 12,9 0,031 5,7 0,0 253,0 76,2 86,2 313,5 290,5 339,6 286,3 416,9 732,7 29,0 289,0 12,9 0,030 5,8 0,0 253,4 76,0 86,2 312,6 288,7 337,8 284,6 415,3 731,7 30,0 290,0 12,8 0,031 5,8 0,0 254,5 76,1 85,8 311,9 288,0 336,0 283,0 413,8 734,8 31,0 291,0 12,7 0,033 6,0 0,0 255,7 76,2 85,5 310,2 286,6 334,3 281,4 412,4 757,4 32,0 292,0 12,7 0,040 6,5 0,0 259,4 76,1 85,1 309,1 285,2 332,7 279,9 411,1 793,4 33,0 293,0 12,6 0,047 6,6 0,0 263,0 76,2 85,1 308,2 283,7 331,3 278,5 409,9 807,9 34,0 294,0 12,5 0,046 6,6 0,0 264,1 76,5 84,8 307,2 282,2 329,9 277,4 408,7 801,1 35,0 295,0 12,5 0,043 6,3 0,0 264,2 76,3 85,5 306,3 280,9 328,4 275,9 407,6 790,8 36,0 296,0 12,4 0,043 6,1 0,0 263,8 76,3 85,1 305,8 279,5 327,1 274,9 406,4 787,6 37,0 297,0 12,3 0,043 6,3 0,0 263,9 76,5 85,1 305,0 278,1 325,8 273,7 405,4 793,7 38,0 298,0 12,3 0,044 6,4 0,0 264,8 76,9 85,1 304,3 276,9 324,6 272,3 404,4 803,8 39,0 299,0 12,2 0,045 6,4 0,0 266,0 76,8 84,9 303,4 275,6 323,5 271,3 403,5 811,1 40,0 300,0 12,1 0,045 6,7 0,0 268,5 76,7 85,1 302,5 274,5 322,4 270,6 402,5 825,7 41,0 301,0 12,1 0,049 7,0 0,0 270,0 76,8 85,4 301,8 273,3 321,3 269,5 401,7 835,2 42,0 302,0 12,0 0,048 7,1 0,0 273,1 76,8 85,8 300,9 272,1 320,5 268,7 400,8 866,3 43,0 303,0 11,9 0,056 8,0 0,0 278,8 76,6 86,0 300,4 271,0 319,5 267,8 400,0 918,4 44,0 304,0 11,8 0,073 9,2 0,0 286,1 76,7 86,1 300,0 270,0 318,8 267,2 399,2 929,3 45,0 305,0 11,7 0,073 9,7 0,0 290,4 76,7 86,1 299,9 268,9 318,2 266,9 398,5 914,3 46,0 306,0 11,6 0,073 9,9 0,0 295,2 76,9 86,6 300,0 268,1 317,7 266,5 397,8 925,1 47,0 307,0 11,5 0,088 10,2 0,0 299,1 76,9 87,0 300,4 266,9 317,4 266,3 397,2 941,8 48,0 308,0 11,4 0,122 10,5 0,0 303,6 76,5 87,3 300,8 266,1 317,2 265,8 396,7 936,2 49,0 309,0 11,3 0,296 10,6 0,0 306,6 76,9 87,5 302,2 265,4 317,1 266,0 396,2 952,4 50,0 310,0 11,2 0,201 10,6 0,0 309,9 76,9 87,5 303,8 264,5 317,3 266,2 395,8 972,2 51,0 311,0 11,1 0,208 10,8 0,0 313,1 76,8 88,0 305,5 263,8 317,5 266,6 395,4 990,0 52,0 312,0 11,0 0,304 10,9 0,0 315,0 76,7 87,8 307,5 263,2 318,0 267,1 395,1 987,5 53,0 313,0 10,9 0,245 10,9 0,0 317,1 76,7 87,9 309,7 262,7 318,6 267,8 394,7 1005,7 54,0 314,0 10,8 0,231 10,6 0,0 318,8 76,5 88,2 312,2 262,3 319,4 268,4 394,4 1004,7 55,0 315,0 10,7 0,281 10,7 0,0 318,3 76,7 87,5 315,0 261,7 320,2 269,0 394,1 995,4 56,0 316,0 10,6 0,226 10,8 0,0 318,7 76,4 88,2 317,9 261,2 321,1 269,7 393,8 999,4 57,0 317,0 10,5 0,290 11,0 0,0 320,1 76,6 88,0 321,3 261,0 322,0 270,3 393,5 1006,5 58,0 318,0 10,4 0,286 11,0 0,0 320,7 76,7 88,3 324,9 260,5 322,9 271,2 393,4 1001,9 59,0 319,0 10,3 0,288 11,2 0,0 321,3 76,7 88,5 328,7 260,3 323,9 272,1 393,5 996,9 60,0 320,0 10,2 0,278 11,3 0,0 321,6 76,8 88,8 332,7 260,1 325,0 272,6 393,5 1001,1 61,0 321,0 10,1 0,285 11,2 0,0 322,3 76,6 88,9 337,0 260,0 326,1 273,6 393,4 1002,4 62,0 322,0 10,0 0,261 11,2 0,0 323,0 76,8 88,8 341,5 259,9 327,3 274,4 393,1 1001,0 63,0 323,0 9,9 0,242 11,1 0,0 322,5 76,9 88,9 345,8 259,8 328,6 275,2 392,8 1003,5 64,0 324,0 9,8 0,211 10,9 0,0 324,3 76,8 89,3 350,0 259,8 329,9 275,9 392,5 1024,5 65,0 325,0 9,7 0,250 11,0 0,0 325,6 76,7 89,2 354,2 259,9 331,4 276,7 392,1 1021,1 66,0 326,0 9,6 0,182 11,0 0,0 327,6 76,8 89,3 358,0 259,9 332,8 277,3 391,8 1020,4 67,0 327,0 9,5 0,196 11,1 0,0 328,0 76,7 89,1 361,7 260,1 334,2 278,1 391,5 1014,6 68,0 328,0 9,4 0,158 11,1 0,0 327,8 76,9 88,9 365,2 260,1 335,6 279,2 391,2 1002,3 69,0 329,0 9,3 0,090 11,1 0,0 326,8 76,5 88,8 368,9 260,4 337,0 280,0 391,0 991,8 70,0 330,0 9,2 0,057 10,9 0,0 325,2 77,0 89,0 372,0 260,6 338,4 281,5 390,7 970,7 71,0 331,0 9,1 0,047 11,1 0,0 323,3 77,0 89,2 375,3 260,8 339,6 282,6 390,5 961,2 72,0 332,0 9,0 0,035 10,8 0,0 321,9 77,1 89,3 378,6 261,1 340,9 284,1 390,2 958,0 73,0 333,0 8,9 0,031 10,6 0,0 320,3 77,1 89,3 381,6 261,5 342,2 285,2 389,8 955,6 74,0 334,0 8,8 0,030 10,5 0,0 319,3 77,1 89,4 384,8 261,7 343,3 286,7 389,5 958,9 75,0 335,0 8,7 0,032 10,6 0,0 319,6 77,0 89,5 387,7 262,1 344,4 288,0 389,2 980,7 76,0 336,0 8,6 0,035 10,9 0,0 320,0 77,1 89,3 390,4 262,5 345,4 289,4 388,8 984,9 77,0 337,0 8,6 0,032 11,0 0,0 319,2 77,2 89,2 392,9 262,9 346,3 290,7 388,4 973,9 78,0 338,0 8,5 0,031 10,8 0,0 318,1 77,0 89,4 395,4 263,3 347,3 292,4 388,0 967,7 79,0 339,0 8,4 0,034 10,6 0,0 316,5 77,2 89,3 397,9 263,7 348,2 293,9 387,5 964,2 80,0 340,0 8,3 0,038 10,3 0,0 315,0 77,2 89,2 399,7 264,1 349,2 295,3 386,8 960,9 81,0 341,0 8,2 0,038 10,1 0,0 314,2 77,2 89,3 401,6 264,6 350,2 297,2 386,0 971,3 82,0 342,0 8,1 0,048 10,3 0,0 314,1 77,2 89,2 403,2 264,9 351,2 298,8 385,3 964,3 83,0 343,0 8,1 0,041 10,0 0,0 313,9 77,2 89,0 404,5 265,4 352,2 300,4 384,6 981,1 84,0 344,0 8,0 0,062 10,3 0,0 316,2 77,3 89,1 405,6 265,8 353,2 301,9 384,0 1004,6 85,0 345,0 7,9 0,063 10,6 0,0 319,3 77,1 89,3 406,4 266,3 354,1 303,3 383,7 1016,4 86,0 346,0 7,8 0,068 11,1 0,0 319,9 77,1 89,2 407,3 266,7 355,0 304,8 383,6 1004,4 87,0 347,0 7,7 0,073 11,3 0,0 319,6 77,3 89,4 407,7 267,2 356,0 306,1 383,7 989,5 88,0 348,0 7,6 0,048 11,4 0,0 318,3 77,1 89,1 408,8 267,7 357,0 307,3 383,8 964,1 89,0 349,0 7,5 0,031 11,2 0,0 315,6 77,4 89,1 409,9 268,0 358,0 308,8 383,6 942,5 90,0 350,0 7,5 0,027 10,7 0,0 313,5 77,6 89,2 411,3 268,5 359,1 309,8 383,3 933,9 91,0 351,0 7,4 0,026 10,3 0,0 311,8 77,4 89,3 412,7 269,1 360,3 311,3 382,8 932,5 92,0 352,0 7,3 0,028 10,0 0,0 310,0 77,4 89,4 414,4 269,6 361,4 313,0 382,1 931,9 93,0 353,0 7,2 0,029 10,0 0,0 307,8 77,3 89,2 416,3 270,2 362,7 314,6 381,5 929,8 94,0 354,0 7,1 0,030 9,8 0,0 310,1 77,6 89,2 417,6 270,8 363,9 315,8 380,9 971,7 95,0 355,0 7,1 0,060 10,3 0,0 311,8 77,5 89,4 418,5 271,4 365,2 317,3 380,2 983,5 96,0 356,0 7,0 0,066 10,4 0,0 313,6 77,4 89,2 419,7 272,0 366,4 318,7 379,4 984,9 97,0 357,0 6,9 0,084 10,6 0,0 317,2 77,4 89,0 420,4 272,6 367,6 320,0 378,5 1006,5 98,0 358,0 6,8 0,119 10,9 0,0 318,5 77,5 89,2 421,3 273,1 368,8 321,5 377,6 1009,6 99,0 359,0 6,7 0,062 10,4 0,0 315,7 77,6 89,5 421,5 273,8 369,9 322,8 376,8 951,6 100,0 360,0 6,7 0,036 10,0 0,0 312,6 77,6 89,4 421,8 274,5 371,1 323,9 375,9 934,8 101,0 361,0 6,6 0,038 9,8 0,0 310,1 77,9 89,0 421,6 275,1 372,2 325,0 375,1 925,7 102,0 362,0 6,5 0,038 9,6 0,0 307,8 78,1 89,0 421,6 275,7 373,3 326,1 374,2 920,4 103,0 363,0 6,5 0,038 9,5 0,0 305,5 77,7 89,0 422,1 276,3 374,4 327,7 373,4 917,1 104,0 364,0 6,4 0,042 9,4 0,0 303,5 77,6 89,2 422,1 277,0 375,5 329,2 372,6 918,3 105,0 365,0 6,3 0,049 9,2 0,0 302,5 77,5 88,7 421,6 277,7 376,4 330,4 371,8 920,2 106,0 366,0 6,3 0,053 9,1 0,0 301,3 78,0 88,7 421,0 278,3 377,4 331,8 371,1 918,2 107,0 367,0 6,2 0,054 9,0 0,0 299,5 77,8 89,0 420,3 278,9 378,3 333,1 370,6 915,2 108,0 368,0 6,1 0,056 9,0 0,0 298,8 78,0 89,2 419,6 279,7 379,2 334,2 370,2 915,2 Particulates Calculations Page 1 of 4 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Manufacturer: HEARTHSTONE Model: 8024 HERITAGE Overall Heating Efficiency: 80,15% 29,71 Run: 1 Combustion Efficiency: 99,50% 506,80 Project #: PI 20176 Heat Transfer Efficiency: 80,55% 14,55 Test Duration: 379 min HHV LHV Heat Output: 12 317 Btu/h 12 985 kJ/h Eff 80,15% 86,63% Heat Input: 15 368 Btu/h 16 201 kJ/h Comb Eff 99,50% 99,50% Ultimate CO2 HT Eff 80,55% 87,06% CO2-ult 19,64 Burn Duration: 6,32 h Output 12 985 kJ/h F0 Burn Rate 0,82 kg/h 1,061 Burn Rate: 1,80 lb/h 0,818 kg/h Grams CO 42 g Input 16 201 kJ/h Stack Temp: 243,9 Deg. F 117,7 Deg. C MC wet 17,47 Air Fuel Ratio (A/F) Dry Molecular Weight (Md) Dry Moles Exhaust Gas (Nr): Air Fuel Ratio (A/F) Note: In the “Input data”, "Calc. % O2", "Fuel Properties", and “Mass Balance” columns, [e], [d], [g], [a]. [b], [c], [h], [u], [w], [j], and [k] refer to their respective variables in Clauses 13.7.3 CSA B415.1 OE Calculations Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Paramètres Tous les facteurs de corrections et autres paramètres qui peuvent être modifiés par l’utilisateur du fichier sont regroupés ici. Code verrouillage: HEA Description du test Test standard EPA Run # 2 Date 11-09-2018 Technicien M.M Project # PI 20176 Description de l'unité Manufacturier HEARTHSTONE Modèle 8024 HERITAGE Combustion system Cat Appliance type WOODSTOVE Firebox volume 2,18 cu ft. Appliance weight empty N.A lbs Appliance weight full N.A lbs Paramètres du test Logging time 1 min Manufacturer's rated heat output N.A BTU/h Donnée fournie par le manfacturier Targeted category 1 Targeted output N.A BTU/h Cp steel N.A BTU/lb-°F Échantillonnage Blank sampling rate 0,20 cuft/min Internal probe diameter 0,18 in. Calibration Factor (DGM #1): 0,988 Dimensionless Equipment number (DGM #1): EM 178 Calibration Factor (DGM #2): 0,991 Dimensionless Equipment number (DGM #2): EM 179 Calibration Factor (DGM #3): 0,996 Equipment number (DGM #3): EM 070 Dimensionless Tunnel Targeted tunnel flow rate 300 scfm Tunnel diameter 8 in. Molecular weight 28,78 May be assumed to be 28,78 (EPA) Si B-415 = 29 Pitot tube type Standard Pitot tube coefficient 0,99 Dimensionless Project nu. PI 20176 Date 11-09-2018 Technicien M.M Fuel data Fuel type Dimension Fuel specie D. Fir HHV 19810,0 kJ/kg D. Fir Oak/Maple %C 48,7 HHV 19 810 19 887 %H 6,9 %C 48,73 50 %O 43,9 %H 6,87 6,6 %Ash 0,5 %O 43,9 42,9 HHV 8519,2 Btu/lb %Ash 0,5 0,5 LHV 7451,0 Btu/lb HHV (Btu/lb) 8519 8552 LHV (Btu/lb) 7451 7480 Default Fuel Values Paramètres Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Start End Barometer (kPa): 101,6 101,5 Barometer (in.Hg): 30,002469 29,97293872 Dry Bulb (F): 77,18 83,66 Humidity (%): 48 45,6 Air velocity (ft/min) 0 0 DGM #1 Final: 26961,008 cuft Final: 763450,700 Liter Initial: 26899,830 cuft Initial: 761718,350 Liter DGM #2 Final: 25319,981 cuft Final: 716981,990 Liter Initial: 25260,195 cuft Initial: 715289,050 Liter DGM room Final: 785,690 cuft Initial: 649,530 cuft Numéro de la ligne dans "Raw data" à partir duquel les données du VRAI test commencent 216 Autres données à rentrer: dans preload data, load data, traverse et filter set weight Project nu.PI 20176 Date 11-09-2018 Technicien M.M Key in data Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Preload data sheet Lower Ideal Upper 13,73 15,26 16,79 Load Volume: 0,4740 cu. ft Loading Density: 7,571 lbs./ft3 Number of Spaces: 0 Load Density (wet): 34,822 lbs./ft3 Spacer weight (lbs): 0 Dry Wood Density: 28,824718 Weight Ave. MC x Volume Thick Wide x Length lbs Weight Cubic Inches 1,5 3,5 18 1,702 20,6 20,4 21 20,6 20,9 35,2314 94,50 1,5 3,5 18 1,654 20,8 20,4 20,9 20,8 20,7 34,27088 94,50 1,5 3,5 18 1,702 20,7 20,5 20,3 20,4 20,6 34,891 94,50 1,5 3,5 18 1,74 20,9 20,3 20,2 20,2 20,4 35,496 94,50 1,5 3,5 12 1,204 20,9 20,6 20,5 20,9 20,8 24,97096 63,00 1,5 3,5 12 1,138 19,9 19,6 19,9 19,7 19,8 22,50964 63,00 1,5 3,5 12 1,5 21 21,3 21,3 21,4 21,5 31,95 63,00 1,5 3,5 12 1,48 21 21,8 21,3 21,4 21,6 31,7016 63,00 1,5 3,5 12 1,452 21,8 21,9 21,5 21,2 21,9 31,45032 63,00 1,5 3,5 12 1,392 21,6 21,9 21,4 21 20,3 29,56608 63,00 1,5 3,5 12 1,54 20,2 20,3 20,4 20,5 20,3 31,3236 63,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 343,36148 PreTest Load Weight: 16,50 lbs. Dry Weight: 6,20 kg. Average Moisture Content: % Dry: 20,80 20,80 Wet: 17,22 Must be 18-28 must be 15,2-22 Project nu. PI 20176 Date 11-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Preload Data Page 1 of 1 Confidentiel 2018-09-25 Page 1 FUEL LOAD DATA SHEET, CSA B415 Lower Ideal Upper 13,7 15,3 16,8 * For boilers, a loading density factor of 10 lb/ft3 is applied Load Volume: 0,50 cu. ft Loading Density: 7,1 lbs./ft3 Number of Spaces: 16 Load Density (wet): 30,7 lbs./ft3 Spacer weight: lbs Dry Wood Density: 25,3 lbs./ft3 Weight Ave. MC x Volume Ave. MC Thick Wide xLength lbs Weight Cubic Inches % 1,5 3,5 17 1,82 21,90 21,30 21,00 21,20 21,60 38,9908 89,25 21,4 1,5 3,5 17 1,67 21,50 21,80 21,40 21,60 21,90 36,18208 89,25 21,6 1,5 3,5 17 1,62 22,30 22,00 22,10 21,90 21,30 35,42272 89,25 21,9 3,5 3,5 17 4,27 22,10 22,00 21,80 21,90 21,30 93,1714 208,25 21,8 3,5 3,5 17 4,14 20,80 20,60 20,90 20,30 20,90 85,698 208,25 20,7 1,5 0,75 5 0,12 20,60 2,4308 5,63 20,6 1,5 0,75 5 0,10 20,30 2,0706 5,63 20,3 1,5 0,75 5 0,11 20,40 2,1624 5,63 20,4 1,5 0,75 5 0,12 20,50 2,501 5,63 20,5 1,5 0,75 5 0,11 20,80 2,2048 5,63 20,8 1,5 0,75 5 0,12 20,10 2,4522 5,63 20,1 1,5 0,75 5 0,11 20,60 2,3072 5,63 20,6 1,5 0,75 5 0,12 20,30 2,436 5,63 20,3 1,5 0,75 5 0,12 20,90 2,4662 5,63 20,9 1,5 0,75 5 0,12 20,50 2,46 5,63 20,5 1,5 0,75 5 0,12 20,60 2,472 5,63 20,6 1,5 0,75 5 0,13 20,90 2,6334 5,63 20,9 1,5 0,75 5 0,12 20,80 2,4128 5,63 20,8 1,5 0,75 5 0,12 20,10 2,3718 5,63 20,1 1,5 0,75 5 0,11 20,30 2,233 5,63 20,3 1,5 0,75 5 0,12 20,20 2,424 5,63 20,2 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 327,5032 20,7 % Test Load Weight: 15,38 lbs. Dry Weight: 5,75 kg. Average Moisture Content: % Dry: 21,30 Dry(EPA) 21,30 21,30 Wet: 17,56 Dry(B415 21,30 Must be 19-25 must be 15,2-22 Coal Bed Range: 3,1 lbs. to 3,8 lbs. TEST CHARGE: Project nu. PI 20176 Coal bed weight: 3,7 lbs. Date 11-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Load Data Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Tunnel Traverse Worksheet (for velocity calculations) Static Pressure: 0,2 in. H20 Barometer: 29,900 in. Hg Pour un tunnel de 12" et plus, prendre 6 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,0000 B center 0,0000 A1 0,0000 A2 0,0000 A3 0,0000 A4 0,0000 A5 0,0000 A6 0,0000 B1 0,0000 B2 0,0000 B3 0,0000 B4 0,0000 B5 0,0000 B6 0,0000 PITOT CONSTANT= AVERAGE #DIV/0! #DIV/0! 0,0000 0,968 Pour un tunnel moins de 12", prendre 4 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,060 73,75 0,2449 B center 0,060 74,01 0,2449 A1 0,048 73,73 0,2191 A2 0,067 73,73 0,2588 A3 0,051 73,8 0,2258 A4 0,049 74,01 0,2214 B1 0,048 73,800 0,2191 B2 0,071 73,800 0,2665 B3 0,060 73,860 0,2449 B4 0,051 73,900 0,2258 AVERAGE 0,0565 73,8390 0,2371 Project nu. PI 20176 Date 11-09-2018 Technicien M.M Traverse Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Filter set weight Ambient blank (g) Date Heure probe front back gasket probe front back gasket probe front back gasket Filter Number 7 7 8 20 17 9 417 29 39 618 619 31 640 Before (1) Before (2) Before (3) Before (4) Before (5) 61,4759 0,1271 0,1253 34,0702 108,9496 0,1262 0,1269 33,8688 110,2775 0,1286 0,1266 33,4936 0,1251 2018-09-10 18:15 Before (6) 61,4758 0,1271 0,1253 34,0704 108,9497 0,1263 0,1269 33,8688 110,2775 0,1286 0,1266 33,4935 0,1252 2018-09-11 10:00 After (1) 61,4762 0,1271 0,1253 34,0848 108,9500 0,1255 0,1270 33,8838 110,2779 0,1285 0,1266 33,5085 0,1255 2018-09-11 17:15 After (2) 61,4760 0,1270 0,1252 34,0709 108,9499 0,1254 0,1269 33,8698 110,2776 0,1285 0,1265 33,4942 0,1254 2018-09-17 08:00 After (3) 61,4760 0,1270 0,1252 34,0709 108,9499 0,1254 0,1269 33,8698 110,2776 0,1286 0,1266 33,4942 0,1253 2018-09-21 08:00 After (4) After (5) After (6) 61,4760 0,1270 0,1252 34,0709 108,9499 0,1254 0,1269 33,8698 110,2776 0,1286 0,1266 33,4942 0,1253 2018-09-21 08:00 Difference 0,0002 -0,0001 -0,0001 0,0005 0,0002 -0,0009 0,0000 0,0010 0,0001 0,0000 0,0000 0,0007 0,0001 Total (mg) 0,5 0,8 0,8 0,1 Total ajusté (mg) 0,40 0,70 0,70 Project nu. PI 20176 Date 11-09-2018 Technicien mm System 2 (g) System 1 (g) 1st hour System 1 (g) Filter set weight Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 SFBA EPA EMISSION RESULTS RESULTS Average emission rate: 0,2 g/hr Burn Rate : 0,964 Dry kg/hr Test Duration: 358 min PRESSURE FACTOR: DGM 1 0,98408 BAROMETRIC PRESSURE DGM 2 0,98601 Average: 29,987704 in Hg DGM 3 1,00226 Start: 30,002469 in Hg End: 29,972939 in Hg TEMPERATURE FACTORS DGM 1 0,96785 DGM 2 0,96781 DGM CONTROLLER VALUES DGM 3 0,97908 DGM 1 Final: 26961,008 Cuft Initial: 26899,830 Cuft VOLUMES SAMPLED DGM 1 57,596 SCft DGM 2 Final: 25319,981 Cuft DGM 2 56,562 Scft Initial: 25260,195 Cuft DGM 3 133,047 SCft DGM #3 Final: 785,690 Cuft Initial: 649,530 Cuft TOTAL TUNNEL VOLUME : 110111 TEMPERATURES SAMPLE RATIOS DGM 1 545,539 °R Sample Train 1: 1911,779 DGM 2 545,559 °R Sample Train 2: 1946,752 CALIBRATION FACTORS Paticulate concentration DGM 1 0,9885 Sample Train 1 0,000014 g/dscf DGM 2 0,9914 Sample Train 2 0,000014 g/dscf DGM #3 0,9958 Room 0,000001 g/dscf TUNNEL FLOW RATE: 307,573 Dscfm TOTAL EMISSIONS PARTICULATE CATCH Sample Train 1 1,45 g Total Sample Train 1: 0,80 mg Sample Train 2 1,47 g Total Sample Train 2: 0,80 mg Total Sample Train 1 1st hour: 0,50 mg EMISSION RATES Sample Train 1 0,24 g/hr Sample Train 2 0,25 g/hr 1st hour emission rate 0,96 g/hr DEVIATION: 0,96% Train 1 Train 2 Cs 1,389E-05 1,41439E-05 Particulates Calculations Page 1 of 1 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 **** *1 *2 *3 *4 *5 *6 *7 *8 * Weight Flue Room Tunnel Unit Unit Unit Unit Unit Catalyst Raw data row Remaining CO CO2 O2 Gas Temp Dry Bulb Top Back R.Side L.Side Bottom up lbs %%% °F °F °F °F °F °F °F °F °F 216,00 15,4 0,0 1,1 0,0 263,1 78,7 103,6 328,6 345,4 412,3 345,5 515,6 437,6 217,0 15,3 0,3 1,8 0,0 285,6 78,3 95,8 327,6 345,2 411,0 344,4 509,2 575,5 218,0 15,2 0,1 5,9 0,0 335,5 78,3 96,4 326,4 344,8 409,2 343,1 503,7 747,7 219,0 15,0 0,1 8,1 0,0 376,1 78,2 98,2 325,4 344,1 407,0 341,4 499,3 854,3 220,0 16,1 0,0 10,7 0,0 412,3 78,3 100,1 325,2 343,1 404,4 339,6 496,0 940,9 221,0 14,7 0,2 12,7 0,0 372,7 78,0 96,2 325,8 341,9 401,6 337,8 494,0 933,3 222,0 14,6 0,1 8,2 0,0 339,4 78,3 93,9 326,8 340,3 398,7 336,3 492,3 845,2 223,0 14,6 0,0 5,9 0,0 319,6 77,8 93,2 328,2 338,5 395,8 334,5 490,2 788,2 224,0 14,5 0,0 5,6 0,0 308,3 78,1 93,1 330,3 336,5 393,1 332,9 487,8 763,2 225,0 14,4 0,0 5,6 0,0 301,6 78,3 92,7 331,4 334,7 390,2 331,1 485,4 755,2 226,0 14,4 0,0 5,8 0,0 297,5 78,2 92,6 333,0 332,7 387,3 329,4 482,8 759,7 227,0 14,3 0,0 6,2 0,0 295,6 78,2 92,6 334,2 330,8 384,4 327,5 480,3 772,5 228,0 14,2 0,0 6,5 0,0 296,2 78,3 92,7 335,3 328,9 381,4 325,6 477,9 784,3 229,0 14,1 0,0 6,7 0,0 296,4 78,1 92,9 336,0 326,8 378,4 323,5 475,5 786,6 230,0 14,1 0,0 6,7 0,0 296,1 78,3 92,8 336,6 324,9 375,5 321,3 473,3 781,6 231,0 14,0 0,0 7,0 0,0 298,0 78,3 92,9 337,1 322,9 372,7 319,3 471,4 785,3 232,0 13,9 0,0 7,0 0,0 299,5 78,0 92,2 337,1 321,2 370,0 317,5 469,8 798,5 233,0 13,8 0,0 7,0 0,0 301,1 78,3 92,7 337,5 319,2 367,3 315,9 468,5 804,4 234,0 13,7 0,0 7,4 0,0 304,0 78,1 92,8 338,0 317,4 364,7 314,3 467,4 815,0 235,0 13,6 0,0 8,0 0,0 306,9 78,2 93,4 338,6 315,7 362,2 312,7 466,4 832,5 236,0 13,5 0,1 8,7 0,0 311,9 78,0 93,7 339,3 313,9 359,8 311,1 465,6 858,3 237,0 13,4 0,1 9,1 0,0 317,0 78,4 93,9 340,3 312,2 357,5 309,7 464,9 882,6 238,0 13,3 0,1 9,4 0,0 320,9 78,2 93,8 340,9 310,5 355,4 308,1 464,4 883,8 239,0 13,2 0,0 9,4 0,0 322,1 78,3 94,4 342,2 309,0 353,4 307,0 464,0 883,8 240,0 13,1 0,0 9,3 0,0 325,2 78,1 94,3 343,6 307,4 351,5 306,1 463,8 890,9 241,0 13,0 0,0 9,4 0,0 326,7 78,2 94,5 345,3 306,0 349,7 305,1 463,6 893,2 242,0 12,9 0,0 9,6 0,0 329,4 77,8 94,1 346,8 304,5 348,1 304,2 463,3 903,8 243,0 12,8 0,0 9,6 0,0 331,7 78,2 94,2 348,7 303,2 346,7 303,4 463,0 912,8 244,0 12,7 0,0 9,7 0,0 333,8 78,2 94,9 351,4 301,9 345,3 302,6 462,8 924,7 245,0 12,6 0,0 10,1 0,0 335,9 78,4 95,1 354,4 300,7 344,0 301,9 462,6 933,9 246,0 12,5 0,0 10,4 0,0 339,8 78,2 95,0 357,0 299,8 342,8 301,6 462,4 944,7 247,0 12,4 0,1 10,8 0,0 342,0 78,2 94,4 358,7 299,4 341,6 301,0 462,3 959,5 248,0 12,3 0,1 10,9 0,0 345,0 78,3 94,5 361,2 298,5 340,6 300,8 462,3 964,7 249,0 12,2 0,5 11,1 0,0 344,3 77,8 94,6 363,9 297,6 339,7 300,7 462,2 935,3 250,0 12,0 0,2 11,1 0,0 343,6 78,3 94,7 366,7 296,7 339,0 300,5 462,0 923,9 251,0 11,9 0,1 10,6 0,0 342,9 78,4 94,7 369,9 295,9 338,3 300,4 461,6 927,7 252,0 11,8 0,1 10,5 0,0 342,1 78,5 94,9 373,0 295,2 337,8 300,4 461,0 915,6 253,0 11,7 0,1 10,6 0,0 340,7 78,6 94,8 376,1 294,5 337,3 300,3 460,1 913,2 254,0 11,6 0,1 10,5 0,0 341,7 78,6 94,7 379,5 293,9 336,9 300,3 459,1 941,1 255,0 11,5 0,1 10,4 0,0 342,6 78,8 94,8 382,4 293,5 336,6 300,3 458,2 956,5 256,0 11,4 0,1 10,5 0,0 343,1 78,3 95,1 385,9 292,9 336,1 300,3 457,3 967,4 257,0 11,3 0,2 10,7 0,0 345,0 78,8 95,1 388,9 292,3 335,9 300,4 456,4 970,6 258,0 11,2 0,3 10,8 0,0 346,9 78,7 95,3 391,8 291,9 335,7 300,6 455,5 973,2 259,0 11,1 0,5 11,1 0,0 348,4 78,9 95,4 394,3 291,6 335,5 300,8 454,6 967,8 260,0 11,0 0,6 11,3 0,0 350,4 78,8 95,6 397,1 291,3 335,4 301,1 453,7 986,5 261,0 10,8 0,8 11,5 0,0 352,3 78,8 95,8 400,2 290,9 335,4 301,4 453,0 999,3 262,0 10,7 0,9 11,6 0,0 354,3 78,8 95,9 402,8 290,7 335,5 301,7 452,2 1016,4 263,0 10,6 0,9 11,6 0,0 354,7 78,7 96,1 406,0 290,4 335,6 302,2 451,3 1014,2 264,0 10,5 1,0 11,9 0,0 354,6 78,5 95,9 409,0 290,2 335,7 302,8 450,4 996,9 265,0 10,4 0,8 11,9 0,0 353,4 78,7 96,0 411,7 290,0 336,0 303,0 449,5 988,5 266,0 10,2 0,6 12,0 0,0 352,2 78,7 96,1 414,6 289,9 336,1 303,8 448,5 979,8 267,0 10,1 0,3 12,1 0,0 351,1 78,7 96,2 417,2 289,9 336,4 304,7 447,5 990,6 268,0 10,0 0,4 11,8 0,0 352,3 78,8 95,7 419,8 289,8 336,9 305,4 446,7 1000,5 269,0 9,9 0,2 11,8 0,0 350,9 79,0 96,0 422,6 289,8 337,4 306,5 445,9 1005,4 270,0 9,8 0,3 11,9 0,0 351,6 79,0 96,1 425,2 289,8 338,0 307,5 445,3 1008,9 271,0 9,7 0,3 11,9 0,0 351,3 78,7 96,1 427,7 289,8 338,7 308,3 444,7 994,3 272,0 9,6 0,3 12,0 0,0 351,3 78,8 96,0 430,1 290,0 339,6 309,4 444,1 1006,5 273,0 9,5 0,3 12,0 0,0 351,8 78,8 96,3 432,0 290,3 340,5 310,5 443,6 1019,1 274,0 9,4 0,4 12,0 0,0 351,6 78,9 96,2 434,6 290,4 341,4 311,7 443,1 1007,8 275,0 9,3 0,3 12,2 0,0 351,4 79,1 96,2 437,1 290,7 342,2 312,8 442,6 1002,9 276,0 9,2 0,2 12,2 0,0 351,0 78,9 96,4 439,0 290,9 343,2 314,0 442,0 998,9 277,0 9,0 0,3 12,2 0,0 349,2 78,6 96,2 441,1 291,2 344,3 314,9 441,4 987,1 278,0 8,9 0,1 12,3 0,0 350,1 78,7 96,1 443,6 291,6 345,3 316,2 440,8 990,1 279,0 8,8 0,1 12,2 0,0 349,7 79,0 96,1 446,4 292,0 346,4 317,6 440,2 995,7 280,0 8,7 0,1 12,1 0,0 349,8 79,0 96,1 448,7 292,5 347,5 319,1 439,4 1004,1 281,0 8,6 0,2 12,1 0,0 349,2 78,9 96,2 450,6 293,0 348,8 320,4 438,7 992,8 282,0 8,5 0,1 12,1 0,0 348,0 79,0 96,3 453,4 293,4 349,9 321,9 438,2 983,9 283,0 8,4 0,1 12,1 0,0 347,5 79,0 96,4 455,5 294,0 351,1 323,1 437,6 981,4 284,0 8,3 0,1 12,1 0,0 346,1 79,3 96,5 457,7 294,6 352,5 324,6 437,1 971,8 285,0 8,2 0,1 12,1 0,0 344,9 78,8 96,5 460,1 295,2 353,6 326,2 436,6 964,1 286,0 8,1 0,1 12,0 0,0 345,1 79,2 96,6 462,6 295,8 354,9 327,7 436,1 966,6 287,0 8,0 0,1 12,2 0,0 343,9 79,3 96,4 464,7 296,5 356,2 329,2 435,3 964,9 288,0 7,9 0,1 12,1 0,0 343,1 79,2 96,5 466,7 297,3 357,4 330,7 434,3 960,9 289,0 7,8 0,1 12,0 0,0 342,3 79,3 96,5 468,4 297,8 358,6 332,2 433,3 960,7 290,0 7,7 0,1 12,1 0,0 340,3 79,0 96,4 470,4 298,7 359,9 333,7 432,4 960,6 291,0 7,6 0,1 12,1 0,0 340,5 79,2 96,6 472,1 299,3 361,2 335,0 431,6 962,0 292,0 7,5 0,1 12,2 0,0 340,6 79,2 96,4 473,8 300,1 362,5 336,3 430,9 967,1 293,0 7,4 0,1 12,2 0,0 339,4 79,1 96,4 475,2 300,9 363,9 338,0 430,3 971,6 294,0 7,3 0,1 12,3 0,0 340,3 79,4 96,4 477,0 301,7 365,2 339,5 429,8 978,2 295,0 7,2 0,1 12,4 0,0 340,1 79,7 96,7 478,6 302,6 366,6 341,0 429,5 986,5 296,0 7,1 0,1 12,5 0,0 340,3 79,6 96,7 480,4 303,4 367,9 342,6 429,1 991,2 297,0 7,0 0,2 12,6 0,0 340,9 79,8 96,8 481,9 304,2 369,2 343,9 428,7 995,1 298,0 6,9 0,2 12,6 0,0 340,8 79,7 96,8 483,6 305,1 370,5 345,0 428,1 995,9 299,0 6,8 0,2 12,7 0,0 342,0 79,1 96,5 485,2 305,9 371,9 346,1 427,6 997,2 300,0 6,7 0,1 12,6 0,0 341,2 78,7 96,2 486,3 306,7 373,1 347,1 427,1 994,1 301,0 6,6 0,1 12,5 0,0 340,4 78,7 95,9 488,1 307,6 374,5 348,4 426,6 989,8 302,0 6,5 0,1 12,4 0,0 340,1 78,3 95,4 489,8 308,6 376,0 349,3 426,0 988,5 303,0 6,5 0,0 12,2 0,0 339,0 78,6 94,9 491,6 309,6 377,5 350,3 425,4 986,5 304,0 6,4 0,1 12,0 0,0 337,1 78,6 95,1 493,2 310,6 379,2 352,2 424,8 985,5 305,0 6,3 0,0 11,9 0,0 335,3 78,6 95,4 494,1 311,5 380,9 353,8 424,3 980,5 306,0 6,2 0,0 11,7 0,0 333,2 78,9 95,8 495,8 312,5 382,7 355,1 423,7 973,7 307,0 6,1 0,0 11,5 0,0 331,0 78,9 95,9 496,9 313,5 384,4 356,4 423,2 967,4 308,0 6,0 0,0 11,2 0,0 330,0 79,1 95,7 497,7 314,4 386,4 357,6 422,7 961,3 309,0 6,0 0,0 11,1 0,0 327,1 79,6 95,9 498,8 315,4 388,1 358,8 422,2 956,1 310,0 5,9 0,0 11,0 0,0 325,7 79,5 95,7 499,6 316,4 389,8 359,9 421,7 951,8 311,0 5,8 0,0 10,8 0,0 323,3 79,4 95,7 500,1 317,3 391,6 361,0 421,4 946,1 312,0 5,8 0,0 10,6 0,0 321,7 79,3 95,6 500,4 318,3 393,4 362,0 421,0 941,9 313,0 5,7 0,0 10,4 0,0 319,2 79,7 95,6 500,9 319,4 395,1 363,1 420,7 940,9 Particulates Calculations Page 1 of 4 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 314,0 5,6 0,0 10,3 0,0 319,0 79,7 95,7 501,2 320,2 396,9 364,1 420,2 946,6 315,0 5,5 0,0 10,2 0,0 317,1 79,7 95,5 500,4 321,0 398,8 365,2 419,8 955,2 316,0 5,5 0,0 10,2 0,0 316,1 79,8 95,6 499,7 322,1 400,5 366,2 419,5 963,2 317,0 5,4 0,0 10,2 0,0 315,4 79,8 95,7 498,9 323,0 402,1 367,0 419,4 966,9 318,0 5,3 0,0 10,2 0,0 315,6 79,8 95,6 497,7 323,7 403,5 367,7 419,1 953,6 319,0 5,3 0,0 10,1 0,0 312,8 79,5 95,5 496,2 324,5 404,9 368,6 418,6 915,3 320,0 5,2 0,0 9,8 0,0 309,5 79,8 95,5 494,8 325,5 406,4 369,2 417,9 893,2 321,0 5,2 0,0 9,8 0,0 306,4 79,7 95,3 493,4 326,1 407,7 369,9 417,0 877,9 322,0 5,1 0,0 9,6 0,0 303,4 79,8 95,2 491,8 327,1 409,2 370,6 416,1 870,7 323,0 5,0 0,0 9,5 0,0 300,8 80,0 95,1 490,3 328,1 410,3 371,3 415,1 865,7 324,0 5,0 0,0 9,4 0,0 298,1 79,8 95,0 488,3 328,7 411,3 372,0 414,0 863,0 325,0 4,9 0,0 9,3 0,0 296,3 80,0 95,0 486,4 329,6 412,4 372,7 412,9 868,8 326,0 4,9 0,0 9,3 0,0 295,5 79,9 94,9 484,9 330,2 413,4 373,3 411,8 870,5 327,0 4,8 0,0 9,3 0,0 293,7 80,2 94,8 482,8 330,9 414,2 373,9 410,7 862,4 328,0 4,8 0,0 9,2 0,0 293,1 80,0 94,6 481,3 331,4 414,9 374,4 409,6 856,9 329,0 4,7 0,0 9,2 0,0 291,4 80,0 94,7 479,6 332,0 415,7 374,8 408,6 853,2 330,0 4,7 0,0 9,3 0,0 290,3 79,9 94,7 478,2 332,5 416,5 375,5 407,6 850,0 331,0 4,6 0,0 9,3 0,0 289,0 80,1 94,4 476,2 333,0 417,2 375,8 406,7 846,5 332,0 4,6 0,0 9,2 0,0 288,1 80,1 94,4 474,7 333,5 417,8 376,5 405,8 843,0 333,0 4,5 0,0 9,2 0,0 286,6 80,2 94,3 472,7 333,7 418,3 376,8 404,9 837,1 334,0 4,5 0,0 9,2 0,0 285,1 80,2 94,5 471,4 334,0 419,0 377,4 404,1 834,3 335,0 4,4 0,0 9,1 0,0 284,9 80,2 94,5 469,9 334,2 419,5 378,1 403,2 834,1 336,0 4,4 0,0 9,2 0,0 283,8 80,4 94,5 468,0 334,4 420,2 378,6 402,4 831,0 337,0 4,3 0,0 9,1 0,0 283,1 80,5 94,4 467,1 334,6 420,7 379,2 401,6 828,2 338,0 4,2 0,0 9,2 0,0 282,3 80,9 94,5 466,1 334,8 421,1 379,9 400,7 825,5 339,0 4,2 0,0 9,3 0,0 282,0 80,8 94,3 464,9 334,9 421,4 380,5 399,8 822,6 340,0 4,1 0,0 9,4 0,0 281,5 80,7 94,2 463,6 334,9 421,5 380,9 398,9 821,2 341,0 4,1 0,0 9,5 0,0 280,7 80,1 94,0 462,7 334,8 422,0 381,2 397,9 818,8 342,0 4,0 0,0 9,3 0,0 279,6 80,4 93,9 461,5 334,8 422,4 381,2 397,0 815,1 343,0 4,0 0,0 9,1 0,0 278,9 80,4 93,6 460,3 334,8 422,8 382,0 396,0 810,5 344,0 4,0 0,0 9,0 0,0 277,8 80,2 93,8 459,4 334,6 423,1 382,6 394,9 809,2 345,0 3,9 0,0 9,0 0,0 276,7 80,0 93,6 458,1 334,7 423,4 383,5 393,8 810,6 346,0 3,9 0,0 9,0 0,0 275,3 80,3 93,9 456,7 334,6 423,9 384,1 392,9 810,6 347,0 3,8 0,0 8,9 0,0 273,8 80,3 93,8 455,7 334,4 424,3 384,4 392,0 810,5 348,0 3,8 0,0 8,9 0,0 272,3 80,6 93,8 454,5 334,4 424,6 384,8 391,1 813,4 349,0 3,7 0,0 8,9 0,0 271,1 80,2 93,8 453,5 334,3 425,0 385,1 390,3 820,1 350,0 3,7 0,0 8,7 0,0 270,1 80,5 93,8 452,4 334,2 425,5 385,0 389,7 825,1 351,0 3,7 0,0 8,7 0,0 268,6 80,4 93,8 451,4 334,0 425,8 385,0 389,0 824,0 352,0 3,6 0,0 8,7 0,0 267,3 80,4 93,9 450,0 333,8 426,3 385,0 388,5 820,2 353,0 3,6 0,0 8,6 0,0 265,2 80,5 93,9 448,6 333,7 426,7 384,9 387,9 819,0 354,0 3,6 0,0 8,6 0,0 264,2 80,2 93,8 447,5 333,4 427,1 384,4 387,5 821,0 355,0 3,5 0,0 8,5 0,0 263,5 80,4 93,5 445,8 333,3 427,7 384,0 387,1 822,3 356,0 3,5 0,0 8,4 0,0 262,3 80,5 93,4 444,6 333,2 428,2 383,6 386,9 827,0 357,0 3,5 0,0 8,4 0,0 262,3 80,2 93,5 443,2 333,1 428,7 383,3 386,8 835,2 358,0 3,4 0,0 8,4 0,0 261,6 80,5 93,6 442,4 332,9 429,1 382,9 387,0 833,5 359,0 3,4 0,0 8,3 0,0 260,8 80,6 93,6 441,4 332,7 429,5 382,5 387,6 829,6 360,0 3,4 0,0 8,1 0,0 259,5 79,8 93,5 440,0 332,6 429,8 382,2 388,4 824,7 361,0 3,4 0,0 7,9 0,0 258,5 80,2 93,4 438,2 332,5 430,1 381,7 389,2 818,8 362,0 3,3 0,0 7,8 0,0 257,8 79,8 93,4 436,9 332,5 430,2 381,4 390,1 809,5 363,0 3,3 0,0 7,8 0,0 256,9 80,5 93,2 434,7 332,5 430,3 381,1 391,0 800,4 364,0 3,3 0,0 7,8 0,0 256,1 80,3 93,3 433,0 332,4 430,4 380,8 391,8 793,8 365,0 3,3 0,0 7,7 0,0 255,0 80,3 93,2 430,3 332,4 430,6 380,5 392,6 786,6 366,0 3,2 0,0 7,7 0,0 253,4 80,4 93,3 428,0 332,5 430,8 380,2 393,4 781,0 367,0 3,2 0,0 7,7 0,0 251,9 80,4 93,1 426,2 332,6 430,9 380,0 394,1 775,6 368,0 3,2 0,0 7,6 0,0 251,1 80,4 93,3 423,8 332,7 431,1 379,7 394,7 771,9 369,0 3,2 0,0 7,6 0,0 249,5 80,1 93,0 421,3 332,8 431,2 379,2 395,3 766,5 370,0 3,2 0,0 7,5 0,0 248,8 80,2 92,7 418,6 332,9 431,4 379,0 395,8 760,9 371,0 3,1 0,0 7,5 0,0 247,6 80,2 92,7 416,0 333,0 431,5 378,9 396,2 756,0 372,0 3,1 0,0 7,4 0,0 246,3 80,3 92,7 413,2 333,1 431,7 378,5 396,6 752,8 373,0 3,1 0,0 7,4 0,0 245,4 80,3 92,7 410,6 333,4 431,7 378,3 397,0 750,5 374,0 3,1 0,0 7,3 0,0 244,2 80,2 92,7 407,8 333,6 431,8 378,2 397,2 746,9 375,0 3,1 0,0 7,3 0,0 243,0 80,6 92,7 405,3 333,7 431,7 377,9 397,6 745,3 376,0 3,0 0,0 7,3 0,0 241,8 80,7 92,5 402,8 333,9 431,5 377,7 397,8 745,0 377,0 3,0 0,0 7,3 0,0 241,2 80,6 92,8 400,0 334,1 431,4 377,4 397,9 743,2 378,0 3,0 0,0 7,2 0,0 240,8 80,8 92,6 396,9 334,4 431,1 377,2 397,8 740,7 379,0 3,0 0,0 7,2 0,0 240,1 80,6 92,7 394,8 334,5 431,0 376,8 397,6 739,3 380,0 3,0 0,0 7,2 0,0 239,5 80,5 92,8 392,5 334,6 430,8 376,6 397,3 736,5 381,0 3,0 0,0 7,2 0,0 239,1 80,1 92,9 389,6 334,7 430,7 376,3 397,0 734,6 382,0 2,9 0,0 7,1 0,0 238,4 80,6 92,9 387,3 334,7 430,6 375,9 396,8 734,5 383,0 2,9 0,0 7,1 0,0 238,0 80,9 92,8 385,1 334,9 430,4 375,6 396,6 734,4 384,0 2,9 0,0 7,1 0,0 237,9 80,5 92,7 382,7 335,0 430,2 375,2 396,3 734,3 385,0 2,9 0,0 7,1 0,0 236,9 80,8 92,8 380,2 335,1 429,9 374,8 396,1 733,7 386,0 2,8 0,0 7,0 0,0 236,2 81,1 92,7 377,9 335,2 429,4 374,4 395,9 730,9 387,0 2,8 0,0 7,1 0,0 235,7 80,6 92,6 375,8 335,3 429,1 373,9 395,8 727,9 388,0 2,8 0,0 7,0 0,0 234,9 81,0 92,6 373,5 335,2 428,7 373,4 395,6 726,1 389,0 2,8 0,0 7,0 0,0 234,8 80,6 92,6 371,3 335,2 428,2 372,9 395,4 724,7 390,0 2,8 0,0 7,0 0,0 234,4 80,5 92,5 369,1 335,0 427,9 372,4 395,2 724,3 391,0 2,8 0,0 7,0 0,0 234,3 80,7 92,3 367,0 335,0 427,5 371,8 395,1 722,9 392,0 2,7 0,0 7,0 0,0 234,2 80,3 92,4 364,9 335,0 427,0 371,3 395,0 721,5 393,0 2,7 0,0 7,0 0,0 233,6 80,0 92,3 362,8 335,0 426,5 370,8 394,9 720,4 394,0 2,7 0,0 7,0 0,0 233,2 80,1 92,2 360,9 334,8 426,1 370,2 394,8 719,7 395,0 2,7 0,0 7,0 0,0 232,9 80,0 92,2 358,8 334,8 425,5 369,6 394,8 718,5 396,0 2,7 0,0 7,0 0,0 232,5 80,1 92,0 356,9 334,6 425,0 368,9 394,8 717,3 397,0 2,7 0,0 7,0 0,0 232,2 79,9 91,8 354,7 334,3 424,7 368,2 394,7 716,2 398,0 2,7 0,0 6,9 0,0 231,8 80,0 91,8 352,8 334,3 424,3 367,8 394,7 714,9 399,0 2,6 0,0 6,9 0,0 231,3 79,9 91,9 351,3 334,2 423,8 367,2 394,7 712,6 400,0 2,6 0,0 7,0 0,0 230,8 79,4 91,8 349,3 334,0 423,2 366,7 394,7 710,3 401,0 2,6 0,0 6,9 0,0 230,4 79,4 91,9 347,6 333,8 422,9 366,0 394,6 707,3 402,0 2,6 0,0 6,9 0,0 229,7 79,5 91,8 345,8 333,5 422,5 365,1 394,5 704,6 403,0 2,6 0,0 6,9 0,0 229,3 79,7 91,7 344,0 333,4 422,2 364,8 394,4 703,7 404,0 2,6 0,0 6,8 0,0 228,9 79,6 91,7 342,5 333,4 421,7 364,2 394,4 701,5 405,0 2,6 0,0 6,8 0,0 228,0 79,7 91,6 340,8 333,2 421,3 363,9 394,3 699,2 406,0 2,5 0,0 6,7 0,0 227,5 79,8 91,8 339,1 333,1 420,8 363,2 394,3 697,3 407,0 2,5 0,0 6,7 0,0 227,1 80,0 91,9 337,6 332,8 420,4 362,7 394,2 696,1 408,0 2,5 0,0 6,7 0,0 226,8 79,6 91,8 336,1 332,5 420,0 362,1 394,2 694,6 409,0 2,5 0,0 6,7 0,0 226,4 79,9 91,7 334,8 332,3 419,7 361,5 394,1 692,4 410,0 2,5 0,0 6,7 0,0 226,3 79,7 91,7 333,2 332,1 419,3 361,0 394,0 691,4 411,0 2,5 0,0 6,7 0,0 226,1 80,0 91,6 331,7 331,9 419,0 360,3 394,0 690,9 412,0 2,4 0,0 6,7 0,0 225,3 80,2 91,4 330,1 331,8 418,7 359,8 394,0 690,6 413,0 2,4 0,0 6,7 0,0 225,1 80,2 91,4 328,7 331,6 418,4 359,3 394,1 689,6 414,0 2,4 0,0 6,7 0,0 224,7 80,3 91,4 327,3 331,4 418,0 358,8 394,1 689,6 415,0 2,4 0,0 6,8 0,0 224,0 80,3 91,5 325,7 331,2 417,7 358,5 394,2 689,9 Particulates Calculations Page 2 of 4 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 416,0 2,4 0,0 6,8 0,0 224,1 80,4 91,6 324,0 330,9 417,2 358,1 394,2 689,3 417,0 2,4 0,0 6,8 0,0 223,5 80,3 91,6 322,6 330,7 416,8 357,6 394,2 687,3 418,0 2,4 0,0 6,8 0,0 222,8 80,1 91,7 321,4 330,4 416,5 357,3 394,3 686,0 419,0 2,3 0,0 6,8 0,0 223,1 80,3 91,7 319,9 330,1 416,1 356,8 394,3 686,1 420,0 2,3 0,0 6,8 0,0 222,4 80,0 91,5 318,5 329,9 415,9 356,4 394,4 685,4 421,0 2,3 0,0 6,8 0,0 221,9 80,2 91,6 317,3 329,7 415,6 355,9 394,5 682,9 422,0 2,3 0,0 6,8 0,0 221,8 80,7 91,3 316,3 329,6 415,4 355,5 394,6 680,8 423,0 2,3 0,0 6,8 0,0 220,8 80,6 91,3 315,4 329,4 415,0 355,2 394,7 680,4 424,0 2,3 0,0 6,8 0,0 220,9 80,5 91,4 314,0 329,1 414,7 354,9 394,8 680,2 425,0 2,2 0,0 6,8 0,0 220,5 80,3 91,2 312,7 329,0 414,4 354,3 395,0 681,6 426,0 2,2 0,0 6,8 0,0 220,2 80,2 91,1 311,5 328,7 414,1 354,2 395,2 683,8 427,0 2,2 0,0 6,9 0,0 220,4 79,9 91,2 310,4 328,5 413,9 353,9 395,4 685,7 428,0 2,2 0,0 6,9 0,0 220,4 80,0 91,4 309,5 328,3 413,6 353,4 395,6 687,9 429,0 2,2 0,0 6,9 0,0 220,4 80,0 91,3 308,4 328,1 413,4 353,0 395,7 688,5 430,0 2,2 0,0 6,9 0,0 220,8 80,0 91,0 307,5 328,0 413,2 352,6 395,9 690,4 431,0 2,1 0,0 7,0 0,0 220,6 79,8 91,3 306,6 328,1 413,2 352,0 396,1 692,3 432,0 2,1 0,0 7,1 0,0 220,6 79,6 91,2 305,6 327,7 413,0 351,5 396,2 693,4 433,0 2,1 0,1 7,1 0,0 221,0 79,7 91,2 304,4 327,6 412,8 351,3 396,4 693,0 434,0 2,1 0,1 7,1 0,0 220,7 79,9 91,2 303,4 327,5 412,7 350,8 396,5 693,9 435,0 2,1 0,1 7,1 0,0 221,0 79,5 91,2 302,3 327,3 412,8 350,4 396,7 693,8 436,0 2,1 0,1 7,2 0,0 220,6 79,7 91,1 301,6 327,2 412,7 350,0 396,9 695,4 437,0 2,0 0,1 7,2 0,0 221,0 79,7 91,1 301,0 327,2 412,6 349,3 397,1 695,8 438,0 2,0 0,1 7,2 0,0 220,8 79,8 91,1 300,3 327,2 412,5 348,9 397,2 693,7 439,0 2,0 0,0 7,3 0,0 220,5 79,7 91,2 299,5 326,8 412,5 348,5 397,3 692,9 440,0 2,0 0,0 7,3 0,0 219,9 79,5 91,0 298,7 326,7 412,6 348,0 397,3 692,5 441,0 2,0 0,0 7,3 0,0 219,7 79,6 91,1 297,9 326,5 412,6 347,8 397,3 692,7 442,0 1,9 0,0 7,2 0,0 219,8 79,4 91,2 297,5 326,4 412,7 347,2 397,4 691,9 443,0 1,9 0,0 7,2 0,0 219,9 79,4 91,1 296,7 326,3 412,7 346,6 397,5 690,9 444,0 1,9 0,0 7,2 0,0 219,2 79,5 91,2 296,2 326,4 412,8 346,5 397,6 689,9 445,0 1,9 0,0 7,2 0,0 219,5 79,3 90,9 295,2 326,3 412,7 346,1 397,5 689,1 446,0 1,9 0,0 7,2 0,0 219,2 79,3 90,7 295,0 326,2 412,9 345,9 397,4 688,5 447,0 1,9 0,0 7,2 0,0 218,8 79,4 90,8 294,4 326,1 412,9 345,3 397,4 686,2 448,0 1,8 0,0 7,2 0,0 218,3 79,8 90,8 293,9 326,2 413,0 345,2 397,5 685,1 449,0 1,8 0,0 7,2 0,0 218,5 79,4 90,6 293,3 326,0 413,2 345,0 397,6 684,5 450,0 1,8 0,0 7,3 0,0 217,9 79,4 90,8 293,0 326,0 413,3 344,6 397,5 678,0 451,0 1,8 0,0 7,7 0,0 216,8 79,2 90,7 292,4 326,0 413,5 344,5 397,1 671,3 452,0 1,8 0,0 7,6 0,0 215,9 79,4 90,7 292,2 325,9 413,5 344,2 396,7 666,2 453,0 1,8 0,0 7,5 0,0 215,1 79,5 90,7 291,7 326,0 413,4 343,9 396,4 662,3 454,0 1,7 0,0 7,4 0,0 214,2 79,8 90,7 291,1 326,1 413,2 343,8 396,1 659,3 455,0 1,7 0,0 7,3 0,0 214,2 79,6 90,6 290,5 326,2 413,1 343,6 395,9 658,0 456,0 1,7 0,0 7,2 0,0 213,5 79,6 90,6 290,0 326,1 412,9 343,4 395,7 657,3 457,0 1,7 0,0 7,1 0,0 212,5 80,0 90,4 289,5 326,2 412,8 343,3 395,5 656,5 458,0 1,7 0,0 7,1 0,0 212,3 79,7 90,4 288,9 326,2 412,5 343,2 395,2 656,7 459,0 1,6 0,0 7,1 0,0 212,0 79,8 90,3 288,1 326,2 412,3 343,2 395,0 656,9 460,0 1,6 0,0 7,0 0,0 211,6 79,7 90,3 287,5 326,2 412,1 343,3 394,8 657,2 461,0 1,6 0,0 7,0 0,0 211,4 79,6 90,2 286,9 326,3 411,7 343,1 394,7 657,0 462,0 1,6 0,0 7,0 0,0 211,1 79,5 90,2 286,2 326,1 411,4 343,1 394,6 656,5 463,0 1,6 0,0 7,0 0,0 211,3 79,3 90,2 285,5 326,2 411,0 343,0 394,5 657,6 464,0 1,6 0,0 6,9 0,0 211,4 79,2 90,2 284,9 326,1 410,5 342,8 394,3 658,7 465,0 1,6 0,0 7,0 0,0 211,5 79,1 90,0 284,4 326,0 410,3 342,8 394,2 657,6 466,0 1,5 0,0 6,9 0,0 211,5 79,3 89,9 283,8 325,9 409,8 342,5 394,1 657,6 467,0 1,5 0,0 6,9 0,0 211,4 79,4 89,9 283,0 325,9 409,5 342,5 393,9 658,1 468,0 1,5 0,0 6,8 0,0 211,2 79,2 89,9 282,5 325,7 409,1 342,4 393,8 658,1 469,0 1,5 0,0 6,8 0,0 210,9 78,8 89,8 281,6 325,6 408,6 342,2 393,6 657,8 470,0 1,5 0,0 6,8 0,0 210,9 79,1 89,9 281,1 325,5 408,3 342,3 393,5 658,0 471,0 1,5 0,0 6,8 0,0 211,0 78,9 90,2 280,2 325,2 407,8 342,3 393,4 658,2 472,0 1,4 0,0 6,8 0,0 210,7 79,5 90,1 279,7 325,3 407,2 342,2 393,4 657,6 473,0 1,4 0,0 6,8 0,0 211,0 79,2 90,0 279,0 325,1 406,6 342,0 393,3 657,3 474,0 1,4 0,0 6,8 0,0 211,2 79,2 90,1 278,1 324,8 406,1 341,9 393,2 658,1 475,0 1,4 0,0 6,8 0,0 211,2 79,0 90,1 277,4 324,6 405,7 341,6 393,1 659,1 476,0 1,4 0,0 6,7 0,0 211,0 79,2 90,0 276,8 324,4 405,4 341,4 393,0 659,8 477,0 1,4 0,1 6,7 0,0 210,9 78,9 90,0 276,2 324,2 404,9 341,2 392,9 659,8 478,0 1,3 0,0 6,7 0,0 211,0 78,9 90,0 275,4 324,1 404,4 341,0 392,9 660,3 479,0 1,3 0,1 6,7 0,0 210,9 78,8 90,1 274,8 324,0 403,8 340,9 392,8 664,2 480,0 1,3 0,1 6,8 0,0 210,8 79,0 90,2 274,5 323,7 403,3 340,9 392,7 663,6 481,0 1,3 0,1 6,7 0,0 211,3 79,0 90,1 273,6 323,5 402,8 340,7 392,6 663,1 482,0 1,3 0,1 6,7 0,0 211,6 79,1 89,8 272,9 323,2 402,4 340,5 392,6 663,3 483,0 1,3 0,1 6,7 0,0 211,8 79,0 90,1 272,8 323,1 401,9 340,2 392,6 663,4 484,0 1,3 0,1 6,7 0,0 211,9 79,1 90,1 272,0 322,8 401,5 340,1 392,6 663,3 485,0 1,3 0,1 6,7 0,0 212,1 79,0 90,0 271,4 322,6 401,0 339,7 392,6 664,1 486,0 1,2 0,1 6,8 0,0 211,9 78,9 89,9 270,8 322,1 400,7 339,5 392,6 663,9 487,0 1,2 0,1 6,7 0,0 212,3 79,0 89,9 270,0 322,0 400,2 339,1 392,6 664,1 488,0 1,2 0,1 6,7 0,0 211,9 78,9 89,9 269,9 321,9 399,7 338,9 392,7 663,7 489,0 1,2 0,1 6,7 0,0 212,7 79,0 89,9 269,5 321,6 399,3 338,7 392,7 660,9 490,0 1,2 0,0 6,9 0,0 211,7 78,8 89,7 269,1 321,4 399,0 338,5 392,7 639,8 491,0 1,2 0,0 7,4 0,0 210,3 78,8 89,7 268,6 321,0 398,7 338,2 392,4 625,7 492,0 1,1 0,0 7,4 0,0 208,7 78,9 89,9 268,1 320,9 398,4 338,1 392,2 619,2 493,0 1,1 0,0 7,3 0,0 207,4 79,0 89,7 267,5 320,8 398,1 338,0 391,9 617,6 494,0 1,1 0,0 7,1 0,0 206,4 79,0 89,8 267,3 320,6 397,9 337,7 391,7 618,6 495,0 1,1 0,0 7,1 0,0 205,8 78,9 89,8 267,0 320,3 398,0 337,5 391,5 618,9 496,0 1,1 0,0 7,0 0,0 205,0 78,8 89,7 266,4 320,2 398,1 337,3 391,4 618,6 497,0 1,1 0,0 6,9 0,0 204,7 78,7 89,6 265,9 320,0 398,2 337,1 391,3 619,9 498,0 1,0 0,0 6,8 0,0 203,5 78,8 89,9 265,6 320,0 397,9 336,9 391,0 622,1 499,0 1,0 0,0 6,9 0,0 202,8 78,6 89,8 265,2 319,9 397,9 336,7 390,6 623,8 500,0 1,0 0,0 6,8 0,0 202,0 78,6 89,8 264,7 319,6 397,8 336,5 390,1 626,2 501,0 1,0 0,0 6,7 0,0 201,4 78,6 89,7 264,2 319,2 397,9 336,1 389,4 627,6 502,0 1,0 0,0 6,6 0,0 201,2 78,8 89,6 263,7 319,0 398,0 335,9 388,8 627,7 503,0 1,0 0,0 6,6 0,0 201,3 78,5 89,7 262,9 318,7 397,9 335,5 388,1 629,0 504,0 1,0 0,0 6,6 0,0 201,1 78,8 89,6 262,5 318,5 397,8 335,4 387,5 631,0 505,0 0,9 0,0 6,5 0,0 201,1 78,7 89,6 261,9 318,3 397,6 335,1 387,0 633,3 506,0 0,9 0,0 6,5 0,0 200,9 78,8 89,6 261,5 318,1 397,3 335,0 386,4 634,4 507,0 0,9 0,0 6,5 0,0 201,4 78,6 89,6 261,1 317,8 396,9 334,9 385,8 636,1 508,0 0,9 0,0 6,5 0,0 201,6 78,9 89,6 260,6 317,5 396,6 334,6 385,2 636,0 509,0 0,9 0,0 6,5 0,0 201,8 78,9 89,6 259,9 316,9 396,2 334,4 384,7 630,8 510,0 0,9 0,0 6,5 0,0 201,5 79,0 89,5 259,3 316,4 396,0 334,1 384,1 622,0 511,0 0,9 0,0 6,5 0,0 201,1 79,1 89,5 258,7 316,2 395,6 334,0 383,6 617,8 512,0 0,9 0,0 6,5 0,0 200,5 79,1 89,6 258,3 315,8 395,2 333,7 383,2 616,9 513,0 0,8 0,0 6,5 0,0 200,3 79,1 89,5 257,8 315,4 394,9 333,4 382,8 619,1 514,0 0,8 0,0 6,5 0,0 200,2 79,0 89,4 257,4 315,1 394,4 333,1 382,3 620,2 515,0 0,8 0,0 6,5 0,0 200,4 78,8 89,4 256,9 314,7 394,1 332,9 382,0 622,3 516,0 0,8 0,0 6,4 0,0 200,6 78,6 89,2 256,3 314,2 393,7 332,4 381,7 626,9 517,0 0,8 0,0 6,4 0,0 200,5 78,5 89,4 255,8 314,0 393,3 332,1 381,5 630,5 Particulates Calculations Page 3 of 4 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 518,0 0,8 0,0 6,3 0,0 200,5 78,5 89,4 255,4 313,6 393,0 331,8 381,3 632,3 519,0 0,8 0,1 6,3 0,0 200,1 78,9 89,4 254,9 313,1 392,8 331,4 381,2 633,3 520,0 0,7 0,1 6,3 0,0 200,5 79,0 89,4 254,6 312,7 392,5 331,0 381,2 633,4 521,0 0,7 0,1 6,2 0,0 201,0 78,8 89,3 254,1 312,3 392,0 330,7 381,2 634,3 522,0 0,7 0,1 6,2 0,0 201,0 78,6 89,2 253,6 311,8 391,7 330,3 381,2 634,5 523,0 0,7 0,1 6,2 0,0 201,0 78,7 89,1 253,2 311,5 391,3 329,9 381,2 635,0 524,0 0,7 0,1 6,2 0,0 201,2 78,9 89,2 252,9 311,3 390,9 329,7 381,3 635,3 525,0 0,7 0,1 6,2 0,0 201,1 79,0 89,2 252,6 311,0 390,4 329,4 381,3 635,0 526,0 0,7 0,1 6,2 0,0 201,0 79,1 89,2 252,4 310,6 389,9 329,0 381,3 634,5 527,0 0,6 0,1 6,2 0,0 201,1 78,8 89,3 252,0 310,3 389,5 328,7 381,3 635,4 528,0 0,6 0,1 6,2 0,0 201,9 79,0 89,3 251,7 310,0 389,0 328,2 381,2 637,7 529,0 0,6 0,1 6,2 0,0 202,3 78,7 89,4 251,3 309,8 388,5 327,9 381,2 637,8 530,0 0,6 0,1 6,2 0,0 202,5 78,6 89,2 250,9 309,3 388,1 327,6 381,2 636,9 531,0 0,6 0,1 6,2 0,0 202,6 78,8 89,2 250,5 309,0 387,7 327,1 381,2 631,5 532,0 0,6 0,0 6,2 0,0 201,8 78,6 89,1 250,1 308,7 387,3 326,8 381,3 622,7 533,0 0,6 0,0 6,2 0,0 201,0 78,5 89,1 249,7 308,4 386,9 326,3 381,4 618,7 534,0 0,6 0,0 6,2 0,0 200,5 78,4 89,0 249,3 308,0 386,6 325,9 381,5 616,5 535,0 0,5 0,0 6,1 0,0 200,1 78,7 89,2 249,1 307,8 386,1 325,6 381,6 614,8 536,0 0,5 0,0 6,1 0,0 199,5 78,7 89,2 249,0 307,6 385,6 325,3 381,7 615,4 537,0 0,5 0,0 6,1 0,0 199,3 78,6 89,1 248,6 307,2 385,1 324,9 381,8 615,9 538,0 0,5 0,0 6,1 0,0 199,0 78,5 89,1 248,1 306,9 384,6 324,5 381,9 616,6 539,0 0,5 0,1 6,1 0,0 199,4 78,5 89,0 247,8 306,6 384,2 324,2 382,0 618,6 540,0 0,5 0,1 6,1 0,0 199,0 78,6 88,9 247,5 306,3 383,8 323,9 382,1 619,8 541,0 0,5 0,1 6,1 0,0 199,4 78,6 89,0 247,2 306,1 383,3 323,6 382,1 620,8 542,0 0,5 0,1 6,1 0,0 199,7 78,3 89,0 247,1 305,7 382,8 323,3 382,1 621,7 543,0 0,5 0,1 6,1 0,0 199,7 78,5 89,0 246,9 305,4 382,4 322,9 382,1 622,5 544,0 0,4 0,1 6,1 0,0 199,9 78,5 89,1 246,5 305,2 381,9 322,6 382,0 623,6 545,0 0,4 0,1 6,1 0,0 200,3 78,4 89,0 246,2 304,8 381,5 322,2 381,9 624,8 546,0 0,4 0,1 6,0 0,0 200,3 78,5 89,0 246,0 304,5 381,1 321,7 381,8 624,6 547,0 0,4 0,1 6,0 0,0 200,4 78,4 89,1 245,7 304,2 380,6 321,4 381,7 623,4 548,0 0,4 0,1 6,0 0,0 200,3 78,5 89,0 245,4 303,9 380,2 321,0 381,6 623,2 549,0 0,4 0,1 6,0 0,0 200,4 78,5 88,9 245,1 303,6 379,8 320,6 381,5 623,1 550,0 0,4 0,1 6,0 0,0 200,4 78,6 88,7 244,9 303,3 379,5 320,3 381,4 623,8 551,0 0,4 0,1 6,0 0,0 200,1 78,4 88,8 244,7 303,0 379,1 320,1 381,4 623,4 552,0 0,3 0,1 6,0 0,0 200,2 78,5 88,9 244,2 302,8 378,8 319,5 381,4 623,6 553,0 0,3 0,1 6,0 0,0 200,0 78,7 88,9 243,9 302,4 378,4 319,2 381,3 624,3 554,0 0,3 0,1 6,0 0,0 200,1 78,7 88,9 243,8 302,1 378,0 318,8 381,3 627,5 555,0 0,3 0,1 6,0 0,0 200,5 78,4 88,8 243,7 301,9 377,7 318,5 381,3 630,9 556,0 0,3 0,1 6,0 0,0 200,7 78,5 88,8 243,4 301,6 377,2 318,1 381,2 633,4 557,0 0,3 0,1 6,0 0,0 201,2 78,3 88,6 243,2 301,2 376,8 317,6 381,2 634,0 558,0 0,3 0,1 6,0 0,0 201,5 78,4 88,7 242,6 300,9 376,5 317,2 381,0 634,2 559,0 0,2 0,1 6,0 0,0 201,4 78,6 88,7 242,4 300,7 376,1 317,0 380,9 636,3 560,0 0,2 0,1 5,9 0,0 202,2 78,4 88,7 242,1 300,3 375,8 316,6 380,7 638,8 561,0 0,2 0,1 5,9 0,0 202,4 78,7 88,7 241,8 300,2 375,4 316,3 380,4 639,7 562,0 0,2 0,1 5,9 0,0 202,6 78,7 88,8 241,7 299,8 375,0 316,0 380,2 639,2 563,0 0,2 0,1 5,8 0,0 203,1 78,4 88,8 241,2 299,5 374,5 315,5 379,8 638,4 564,0 0,2 0,1 5,8 0,0 203,2 78,5 88,6 240,7 299,2 374,2 315,2 379,5 638,0 565,0 0,2 0,1 5,8 0,0 203,1 78,5 88,7 240,8 299,0 373,6 314,9 379,2 637,3 566,0 0,2 0,1 5,8 0,0 203,2 78,5 88,6 240,5 298,8 373,1 314,5 378,9 636,8 567,0 0,2 0,1 5,8 0,0 203,2 78,4 88,6 240,3 298,3 372,7 314,1 378,6 639,7 568,0 0,1 0,1 5,8 0,0 203,7 78,3 88,7 240,1 298,1 372,1 313,6 378,4 639,2 569,0 0,1 0,1 5,7 0,0 204,0 78,6 88,7 240,0 297,8 371,5 313,3 378,1 639,5 570,0 0,1 0,1 5,7 0,0 204,2 78,7 88,7 239,9 297,6 370,9 312,9 377,9 639,2 571,0 0,1 0,1 5,8 0,0 203,9 78,4 88,7 239,5 297,2 370,3 312,5 377,7 635,3 572,0 0,1 0,1 6,0 0,0 204,5 78,3 88,6 239,3 296,8 369,8 312,1 377,5 640,6 573,0 0,1 0,1 6,2 0,0 205,5 78,2 88,6 239,3 296,6 369,2 311,6 377,5 647,7 574,0 0,0 0,1 6,2 0,0 206,4 78,2 88,6 239,0 296,2 368,6 311,1 377,5 652,2 Particulates Calculations Page 4 of 4 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Manufacturer: HEARTHSTONE Model: 8024 HERITAGE Overall Heating Efficiency: 79,82% 29,78 Run: 2 Combustion Efficiency: 99,22% 470,80 Project #: PI 20176 Heat Transfer Efficiency: 80,44% 13,51 Test Duration: 358 min HHV LHV Heat Output: 14 475 Btu/h 15 259 kJ/h Eff 79,82% 86,27% Heat Input: 18 136 Btu/h 19 118 kJ/h Comb Eff 99,22% 99,22% Ultimate CO2 HT Eff 80,44% 86,94% CO2-ult 19,64 Burn Duration: 5,97 h Output 15 259 kJ/h F0 Burn Rate 0,97 kg/h 1,061 Burn Rate: 2,13 lb/h 0,965 kg/h Grams CO 89 g Input 19 118 kJ/h Stack Temp: 257,8 Deg. F 125,4 Deg. C MC wet 17,56 Air Fuel Ratio (A/F) Dry Molecular Weight (Md) Dry Moles Exhaust Gas (Nr): Air Fuel Ratio (A/F) Note: In the “Input data”, "Calc. % O2", "Fuel Properties", and “Mass Balance” columns, [e], [d], [g], [a]. [b], [c], [h], [u], [w], [j], and [k] refer to their respective variables in Clauses 13.7.3 CSA B415.1 OE Calculations Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Paramètres Tous les facteurs de corrections et autres paramètres qui peuvent être modifiés par l’utilisateur du fichier sont regroupés ici. Code verrouillage: HEA Description du test Test standard EPA Run # 3 Date 12-09-2018 Technicien M.M Project # PI 20176 Description de l'unité Manufacturier HEARTHSTONE Modèle 8024 HERITAGE Combustion system Cat Appliance type WOODSTOVE Firebox volume 2,18 cu ft. Appliance weight empty N.A lbs Appliance weight full N.A lbs Paramètres du test Logging time 1 min Manufacturer's rated heat output N.A BTU/h Donnée fournie par le manfacturier Targeted category 1 Targeted output N.A BTU/h Cp steel N.A BTU/lb-°F Échantillonnage Blank sampling rate 0,20 cuft/min Internal probe diameter 0,18 in. Calibration Factor (DGM #1): 0,988 Dimensionless Equipment number (DGM #1): EM 178 Calibration Factor (DGM #2): 0,991 Dimensionless Equipment number (DGM #2): EM 179 Calibration Factor (DGM #3): 0,996 Equipment number (DGM #3): EM 070 Dimensionless Tunnel Targeted tunnel flow rate 300 scfm Tunnel diameter 8 in. Molecular weight 28,78 May be assumed to be 28,78 (EPA) Si B-415 = 29 Pitot tube type Standard Pitot tube coefficient 0,99 Dimensionless Project nu. PI 20176 Date 12-09-2018 Technicien M.M Fuel data Fuel type Dimension Fuel specie D. Fir HHV 19810,0 kJ/kg D. Fir Oak/Maple %C 48,7 HHV 19 810 19 887 %H 6,9 %C 48,73 50 %O 43,9 %H 6,87 6,6 %Ash 0,5 %O 43,9 42,9 HHV 8519,2 Btu/lb %Ash 0,5 0,5 LHV 7451,0 Btu/lb HHV (Btu/lb) 8519 8552 LHV (Btu/lb) 7451 7480 Default Fuel Values Paramètres Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Start End Barometer (kPa): 102 102 Barometer (in.Hg): 30,120589 30,12058866 Dry Bulb (F): 75,38 85,28 Humidity (%): 62 41,2 Air velocity (ft/min) 0 0 DGM #1 Final: 27001,089 cuft Final: 764585,680 Liter Initial: 26961,078 cuft Initial: 763452,680 Liter DGM #2 Final: 25358,888 cuft Final: 718083,730 Liter Initial: 25320,058 cuft Initial: 716984,180 Liter DGM room Final: 876,210 cuft Initial: 785,690 cuft Numéro de la ligne dans "Raw data" à partir duquel les données du VRAI test commencent 199 Autres données à rentrer: dans preload data, load data, traverse et filter set weight Project nu.PI 20176 Date 12-09-2018 Technicien M.M Key in data Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Preload data sheet Lower Ideal Upper 13,73 15,26 16,79 Load Volume: 0,4740 cu. ft Loading Density: 7,962 lbs./ft3 Number of Spaces: 0 Load Density (wet): 36,623 lbs./ft3 Spacer weight (lbs): 0 Dry Wood Density: 30,179976 Weight Ave. MC x Volume Thick Wide x Length lbs Weight Cubic Inches 1,5 3,5 18 1,718 21,6 21,3 21 21,2 21,2 36,52468 94,50 1,5 3,5 18 1,832 22,4 22,1 22 22,1 22,1 40,56048 94,50 1,5 3,5 18 1,726 20,6 20,2 20,9 20,5 20,5 35,45204 94,50 1,5 3,5 18 1,742 20,9 20,9 20,4 20,6 20,7 36,0594 94,50 1,5 3,5 12 1,572 21 21,4 21,8 22 22,1 34,04952 63,00 1,5 3,5 12 1,562 22 22,3 22,3 21,9 21,8 34,45772 63,00 1,5 3,5 12 1,436 21,8 21,9 21,7 21,8 21,9 31,33352 63,00 1,5 3,5 12 1,656 22 22,3 22,8 22,4 22,5 37,0944 63,00 1,5 3,5 12 1,46 21,4 21,9 21,8 21,3 21,8 31,5944 63,00 1,5 3,5 12 1,344 20,6 20,4 20,8 20,9 20,9 27,84768 63,00 1,5 3,5 12 1,31 20,1 19,6 19,3 19,3 19,5 25,6236 63,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 370,59744 PreTest Load Weight: 17,36 lbs. Dry Weight: 6,49 kg. Average Moisture Content: % Dry: 21,35 21,35 Wet: 17,59 Must be 18-28 must be 15,2-22 Project nu. PI 20176 Date 12-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Preload Data Page 1 of 1 Confidentiel 2018-09-25 Page 1 FUEL LOAD DATA SHEET, CSA B415 Lower Ideal Upper 13,7 15,3 16,8 * For boilers, a loading density factor of 10 lb/ft3 is applied Load Volume: 0,50 cu. ft Loading Density: 7,0 lbs./ft3 Number of Spaces: 16 Load Density (wet): 30,5 lbs./ft3 Spacer weight: lbs Dry Wood Density: 25,1 lbs./ft3 Weight Ave. MC x Volume Ave. MC Thick Wide xLength lbs Weight Cubic Inches % 1,5 3,5 17 1,80 22,00 22,60 21,90 21,00 21,80 39,30428 89,25 21,9 1,5 3,5 17 1,68 21,80 21,90 22,00 21,90 21,80 36,7584 89,25 21,9 1,5 3,5 17 1,58 21,50 21,90 21,80 21,80 21,90 34,4124 89,25 21,8 3,5 3,5 17 4,23 21,90 21,80 21,90 21,50 21,80 92,08584 208,25 21,8 3,5 3,5 17 4,09 21,30 21,60 21,40 21,90 21,60 88,1804 208,25 21,6 1,5 0,75 5 0,11 20,10 2,1708 5,63 20,1 1,5 0,75 5 0,11 20,40 2,2848 5,63 20,4 1,5 0,75 5 0,12 20,60 2,4308 5,63 20,6 1,5 0,75 5 0,12 20,90 2,4662 5,63 20,9 1,5 0,75 5 0,12 20,70 2,484 5,63 20,7 1,5 0,75 5 0,12 20,30 2,436 5,63 20,3 1,5 0,75 5 0,11 21,00 2,394 5,63 21,0 1,5 0,75 5 0,11 21,10 2,2788 5,63 21,1 1,5 0,75 5 0,12 19,90 2,388 5,63 19,9 1,5 0,75 5 0,11 19,60 2,156 5,63 19,6 1,5 0,75 5 0,12 20,80 2,4128 5,63 20,8 1,5 0,75 5 0,12 20,50 2,46 5,63 20,5 1,5 0,75 5 0,11 20,50 2,337 5,63 20,5 1,5 0,75 5 0,11 20,30 2,2736 5,63 20,3 1,5 0,75 5 0,12 20,20 2,424 5,63 20,2 1,5 0,75 5 0,138 20,50 2,829 5,63 20,5 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 328,96712 20,8 % Test Load Weight: 15,24 lbs. Dry Weight: 5,69 kg. Average Moisture Content: % Dry: 21,58 Dry(EPA) 21,58 21,58 Wet: 17,75 Dry(B415 21,58 Must be 19-25 must be 15,2-22 Coal Bed Range: 3,0 lbs. to 3,8 lbs. TEST CHARGE: Project nu. PI 20176 Coal bed weight: 3,7 lbs. Date 12-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Load Data Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Tunnel Traverse Worksheet (for velocity calculations) Static Pressure: 0,2 in. H20 Barometer: 29,900 in. Hg Pour un tunnel de 12" et plus, prendre 6 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,0000 B center 0,0000 A1 0,0000 A2 0,0000 A3 0,0000 A4 0,0000 A5 0,0000 A6 0,0000 B1 0,0000 B2 0,0000 B3 0,0000 B4 0,0000 B5 0,0000 B6 0,0000 PITOT CONSTANT= AVERAGE #DIV/0! #DIV/0! 0,0000 0,971 Pour un tunnel moins de 12", prendre 4 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,060 76,91 0,2449 B center 0,061 76,94 0,2470 A1 0,048 76,82 0,2191 A2 0,070 76,97 0,2646 A3 0,051 76,99 0,2258 A4 0,049 76,93 0,2214 B1 0,050 76,990 0,2236 B2 0,072 77,000 0,2683 B3 0,062 77,020 0,2490 B4 0,050 77,020 0,2236 AVERAGE 0,0573 76,9590 0,2387 Project nu. PI 20176 Date 12-09-2018 Technicien M.M Traverse Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Filter set weight Ambient blank (g) Date Heure probe front back gasket probe front back gasket probe front back gasket Filter Number 33 620 621 7 35 622 623 8 40 624 625 25 626 Before (1) Before (2) Before (3) Before (4) Before (5) 109,3626 0,1306 0,1259 33,8693 109,2859 0,1285 0,1257 34,4093 110,1099 0,1266 0,1270 33,6596 0,1274 2018-09-11 17:00 Before (6) 109,3625 0,1307 0,1259 33,8692 109,2859 0,1286 0,1257 34,4092 110,1101 0,1266 0,1270 33,6594 0,1274 2108-09-12 10:00 After (1) 109,3628 0,1307 0,1259 33,8821 109,2861 0,1280 0,1256 34,4213 110,1103 0,1266 0,1267 33,6726 0,1275 2018-09-12 15:00 After (2) 109,3626 0,1307 0,1257 33,8698 109,2859 0,1280 0,1256 34,4099 110,1102 0,1264 0,1266 33,6604 0,1275 2018-09-17 08:00 After (3) 109,3626 0,1307 0,1257 33,8698 109,2859 0,1280 0,1256 34,4099 110,1102 0,1264 0,1266 33,6604 0,1275 2018-09-21 08:00 After (4) After (5) After (6) 109,3626 0,1307 0,1257 33,8698 109,2859 0,1280 0,1256 34,4099 110,1102 0,1264 0,1266 33,6604 0,1275 2018-09-21 08:00 Difference 0,0001 0,0000 -0,0002 0,0006 0,0000 -0,0006 -0,0001 0,0007 0,0001 -0,0002 -0,0004 0,0010 0,0001 Total (mg) 0,5 0,5 0,5 0,1 Total ajusté (mg) 0,40 0,40 0,40 Project nu. PI 20176 Date 12-09-2018 Technicien M.M System 2 (g) System 1 (g) 1st hour System 1 (g) Filter set weight Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 SFBA EPA EMISSION RESULTS RESULTS Average emission rate: 0,2 g/hr Burn Rate : 1,428 Dry kg/hr Test Duration: 239 min PRESSURE FACTOR: DGM 1 0,98702 BAROMETRIC PRESSURE DGM 2 0,99046 Average: 30,120589 in Hg DGM 3 1,00670 Start: 30,120589 in Hg End: 30,120589 in Hg TEMPERATURE FACTORS DGM 1 0,97248 DGM 2 0,97249 DGM CONTROLLER VALUES DGM 3 0,97917 DGM 1 Final: 27001,089 Cuft Initial: 26961,078 Cuft VOLUMES SAMPLED DGM 1 37,962 SCft DGM 2 Final: 25358,888 Cuft DGM 2 37,080 Scft Initial: 25320,058 Cuft DGM 3 88,850 SCft DGM #3 Final: 876,210 Cuft Initial: 785,690 Cuft TOTAL TUNNEL VOLUME : 74147 TEMPERATURES SAMPLE RATIOS DGM 1 542,944 °R Sample Train 1: 1953,159 DGM 2 542,937 °R Sample Train 2: 1999,638 CALIBRATION FACTORS Paticulate concentration DGM 1 0,9885 Sample Train 1 0,000013 g/dscf DGM 2 0,9914 Sample Train 2 0,000013 g/dscf DGM #3 0,9958 Room 0,000001 g/dscf TUNNEL FLOW RATE: 310,237 Dscfm TOTAL EMISSIONS PARTICULATE CATCH Sample Train 1 0,89 g Total Sample Train 1: 0,50 mg Sample Train 2 0,92 g Total Sample Train 2: 0,50 mg Total Sample Train 1 1st hour: 0,50 mg EMISSION RATES Sample Train 1 0,22 g/hr Sample Train 2 0,23 g/hr 1st hour emission rate 0,98 g/hr DEVIATION: 1,28% Train 1 Train 2 Cs 1,317E-05 1,34844E-05 Particulates Calculations Page 1 of 1 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 ***** *1 *2 *3 *4 *5 *6 *7 *8 * Elapsed Weight Flue Room Tunnel Unit Unit Unit Unit Unit Catalyst Time Raw data row Remaining CO CO2 O2 Gas Temp Dry Bulb Top Back R.Side L.Side Bottom up min lbs %%% °F °F °F °F °F °F °F °F °F 0,00 199,00 15,2 0,0 5,5 0,0 326,9 77,0 112,4 410,5 414,1 474,7 437,1 702,8 505,8 1,0 200,0 15,1 0,3 8,4 0,0 341,6 77,0 99,6 408,9 415,0 474,0 435,4 687,1 683,1 2,0 201,0 15,1 0,0 3,7 0,0 360,8 77,3 99,4 407,4 415,6 472,9 432,8 672,3 726,1 3,0 202,0 15,0 0,0 4,4 0,0 374,0 77,6 98,9 406,0 415,7 471,0 429,3 658,4 745,5 4,0 203,0 14,8 0,0 5,5 0,0 389,2 77,4 99,3 404,1 415,1 468,4 425,1 645,7 764,8 5,0 204,0 14,7 0,0 7,7 0,0 371,3 77,2 97,0 402,6 413,9 465,1 420,7 634,0 770,9 6,0 205,0 14,7 0,0 5,0 0,0 357,3 77,0 95,6 400,8 412,1 461,4 415,8 623,3 741,6 7,0 206,0 14,6 0,0 4,5 0,0 352,3 77,7 96,1 400,2 409,8 457,4 411,1 613,4 754,2 8,0 207,0 14,5 0,0 7,1 0,0 354,6 77,9 96,1 399,5 407,1 453,1 406,4 604,3 802,4 9,0 208,0 14,4 0,0 5,8 0,0 357,0 77,7 95,6 398,6 404,2 448,9 401,5 595,8 792,2 10,0 209,0 14,3 0,0 5,7 0,0 360,6 77,4 95,7 398,1 401,1 444,8 396,7 588,0 817,7 11,0 210,0 14,2 0,0 5,5 0,0 361,7 77,9 96,5 397,5 397,9 440,6 392,5 580,7 844,8 12,0 211,0 14,1 0,0 5,9 0,0 364,5 78,1 96,9 397,4 394,6 436,4 388,1 574,1 853,5 13,0 212,0 14,0 0,0 6,2 0,0 368,5 78,0 96,6 397,0 391,3 432,3 383,8 568,1 877,7 14,0 213,0 13,9 0,0 5,9 0,0 368,8 77,9 96,7 396,6 388,1 428,2 379,6 562,7 857,1 15,0 214,0 13,8 0,0 6,4 0,0 369,1 77,8 97,1 396,7 384,8 424,3 375,6 557,6 825,0 16,0 215,0 13,7 0,0 5,6 0,0 370,0 77,8 97,6 395,9 381,5 420,5 371,5 552,4 811,6 17,0 216,0 13,6 0,0 6,1 0,0 373,6 78,0 97,1 395,5 378,2 416,9 367,6 547,2 824,1 18,0 217,0 13,5 0,0 6,4 0,0 375,9 78,0 97,3 395,1 375,2 413,3 364,1 542,2 842,7 19,0 218,0 13,4 0,0 6,2 0,0 377,1 77,9 97,7 394,3 372,1 409,8 360,9 537,5 831,6 20,0 219,0 13,3 0,0 8,0 0,0 380,2 77,1 98,0 393,9 369,0 406,3 357,4 533,1 871,8 21,0 220,0 13,2 0,1 7,2 0,0 383,2 77,5 98,0 393,1 366,0 403,1 354,4 529,1 854,1 22,0 221,0 13,0 0,0 9,8 0,0 385,6 77,6 98,4 393,3 363,2 400,0 351,7 525,6 864,1 23,0 222,0 12,9 0,0 8,6 0,0 386,7 77,6 98,6 394,0 360,4 397,1 349,3 522,6 862,9 24,0 223,0 12,8 0,0 8,6 0,0 389,1 77,7 98,8 394,8 357,8 394,6 347,1 520,0 895,3 25,0 224,0 12,6 0,0 8,9 0,0 395,2 77,8 99,2 396,3 355,1 392,4 345,2 517,6 945,6 26,0 225,0 12,5 0,2 11,7 0,0 397,1 77,9 99,0 398,1 352,7 390,5 343,7 515,1 932,3 27,0 226,0 12,4 0,0 9,5 0,0 396,1 77,8 98,6 399,5 350,3 388,9 342,4 512,5 930,2 28,0 227,0 12,3 0,0 8,6 0,0 398,8 77,4 97,8 401,1 348,1 387,3 340,4 510,3 929,2 29,0 228,0 12,1 0,0 10,1 0,0 397,9 77,8 98,4 404,2 345,9 386,2 340,1 508,3 917,6 30,0 229,0 12,0 0,0 9,5 0,0 395,2 77,6 97,9 405,9 344,6 385,3 339,6 506,5 919,9 31,0 230,0 11,9 0,0 8,6 0,0 395,6 78,0 97,5 407,6 343,2 384,3 339,1 504,8 942,9 32,0 231,0 11,8 0,0 8,2 0,0 398,6 78,0 97,4 409,1 341,3 383,4 338,7 503,1 948,8 33,0 232,0 11,7 0,0 8,5 0,0 398,6 77,7 97,7 410,9 339,3 382,7 338,2 501,4 940,9 34,0 233,0 11,6 0,0 8,9 0,0 398,2 78,0 97,9 412,5 337,9 381,9 338,0 499,6 917,8 35,0 234,0 11,5 0,0 9,4 0,0 397,6 78,1 98,0 414,0 336,2 381,4 337,8 497,8 918,3 36,0 235,0 11,3 0,0 9,7 0,0 394,9 78,1 98,1 415,5 334,8 380,9 337,8 495,8 904,7 37,0 236,0 11,2 0,0 9,7 0,0 393,7 77,9 98,0 417,1 333,4 380,3 338,2 493,8 901,1 38,0 237,0 11,1 0,0 9,5 0,0 391,6 78,3 98,0 418,6 332,0 380,0 338,6 491,8 912,1 39,0 238,0 11,0 0,0 9,5 0,0 391,9 78,6 98,1 419,7 330,5 379,6 339,1 490,0 914,2 40,0 239,0 10,8 0,0 9,8 0,0 393,4 78,8 98,2 421,4 329,2 379,4 339,6 487,8 921,1 41,0 240,0 10,7 0,0 10,5 0,0 395,0 78,6 98,4 422,9 328,0 379,2 340,3 485,6 927,5 42,0 241,0 10,6 0,0 11,0 0,0 396,1 78,3 98,2 423,6 326,8 379,5 341,0 483,5 929,8 43,0 242,0 10,5 0,0 11,2 0,0 395,5 78,6 98,4 424,8 325,8 380,1 342,1 481,8 927,2 44,0 243,0 10,3 0,0 11,3 0,0 395,8 78,6 98,5 426,8 324,7 380,9 343,3 480,3 927,8 45,0 244,0 10,2 0,0 11,2 0,0 395,4 78,6 98,4 429,0 323,7 382,4 344,5 478,9 922,1 46,0 245,0 10,1 0,0 11,1 0,0 395,2 78,7 98,4 430,8 323,1 383,7 346,3 477,5 923,6 47,0 246,0 9,9 0,0 11,0 0,0 394,5 78,9 98,2 432,7 322,3 385,2 348,1 476,1 926,3 48,0 247,0 9,8 0,0 10,9 0,0 395,1 78,8 98,2 434,4 321,5 387,0 350,0 474,6 934,2 49,0 248,0 9,7 0,0 11,0 0,0 396,1 78,6 98,2 436,6 320,9 388,9 351,5 473,2 940,5 50,0 249,0 9,6 0,0 11,2 0,0 396,2 78,9 98,4 438,3 320,5 390,7 353,9 471,7 944,5 51,0 250,0 9,4 0,0 11,3 0,0 397,6 79,2 98,6 440,4 320,2 392,4 355,9 470,3 944,5 52,0 251,0 9,3 0,0 11,5 0,0 398,4 79,1 99,0 442,3 319,9 394,3 358,0 468,9 946,8 53,0 252,0 9,2 0,0 11,6 0,0 399,4 79,2 99,0 444,4 319,5 396,1 360,1 467,6 951,3 54,0 253,0 9,1 0,0 11,7 0,0 400,9 79,1 98,7 446,3 319,3 398,1 362,3 466,3 953,2 55,0 254,0 8,9 0,0 11,8 0,0 401,9 79,0 99,1 448,8 319,1 400,0 364,4 465,1 954,1 56,0 255,0 8,8 0,0 12,0 0,0 402,6 78,8 98,8 450,5 319,0 402,2 366,5 463,8 959,2 57,0 256,0 8,7 0,0 11,9 0,0 403,5 78,6 99,1 453,0 318,9 404,4 368,8 462,5 961,9 58,0 257,0 8,5 0,0 12,0 0,0 403,8 79,2 99,0 455,4 319,0 406,6 371,4 461,1 963,3 59,0 258,0 8,4 0,0 11,9 0,0 405,1 79,3 98,9 456,5 319,2 408,5 374,0 459,7 964,1 60,0 259,0 8,3 0,0 12,0 0,0 405,4 79,4 99,0 459,6 319,3 410,6 376,8 458,2 964,5 61,0 260,0 8,1 0,0 11,9 0,0 405,3 79,3 99,2 462,4 319,4 412,9 379,4 456,6 964,4 62,0 261,0 8,0 0,0 11,9 0,0 405,9 79,1 99,3 464,6 319,5 415,4 382,1 455,0 968,8 63,0 262,0 7,9 0,0 11,9 0,0 405,5 79,2 99,2 466,8 319,8 417,8 384,9 453,4 971,0 64,0 263,0 7,8 0,0 11,9 0,0 405,3 79,1 99,4 469,1 320,3 420,3 387,9 451,7 973,6 65,0 264,0 7,7 0,0 11,9 0,0 405,2 79,2 99,3 471,1 320,6 422,6 390,6 450,0 973,3 66,0 265,0 7,5 0,0 11,8 0,0 404,3 79,5 99,3 473,1 321,0 424,9 393,1 448,3 973,9 67,0 266,0 7,4 0,0 11,9 0,0 403,4 79,3 99,0 474,8 321,5 427,0 395,9 446,6 978,5 68,0 267,0 7,3 0,0 11,8 0,0 402,4 79,5 99,1 475,9 321,8 429,2 398,2 444,9 967,6 69,0 268,0 7,2 0,1 11,6 0,0 402,0 79,7 99,0 478,3 322,5 431,7 400,5 443,1 972,7 70,0 269,0 7,1 0,1 11,9 0,0 402,3 79,8 99,0 480,1 323,0 434,2 402,8 441,3 973,1 71,0 270,0 7,0 0,1 11,8 0,0 402,7 79,7 99,1 481,9 323,7 436,8 405,3 439,5 973,0 72,0 271,0 6,9 0,1 11,7 0,0 401,1 79,9 99,0 483,5 324,4 439,2 407,5 437,7 971,2 73,0 272,0 6,7 0,1 11,7 0,0 400,7 80,0 98,9 485,1 325,0 441,8 409,9 436,1 971,6 74,0 273,0 6,6 0,0 11,7 0,0 400,4 79,9 99,0 486,3 325,7 444,2 412,3 434,5 976,6 75,0 274,0 6,5 0,0 12,5 0,0 400,5 80,0 99,0 488,0 326,4 446,6 414,3 432,9 974,9 76,0 275,0 6,4 0,0 11,9 0,0 399,5 80,0 99,0 489,4 327,2 449,0 416,4 430,8 965,1 77,0 276,0 6,3 0,0 11,6 0,0 399,0 80,0 98,9 491,1 327,9 451,4 418,5 428,3 962,9 78,0 277,0 6,2 0,1 11,7 0,0 399,9 80,0 99,2 492,4 328,7 453,8 420,7 425,5 977,4 79,0 278,0 6,1 0,0 12,6 0,0 400,6 80,1 98,9 494,4 329,3 456,1 422,7 422,8 982,7 80,0 279,0 6,0 0,0 12,6 0,0 401,1 80,2 99,1 496,4 330,2 458,4 424,9 420,2 989,2 81,0 280,0 5,9 0,0 12,5 0,0 402,7 80,1 98,9 498,0 331,0 460,6 427,3 417,8 996,5 82,0 281,0 5,8 0,0 12,4 0,0 403,0 79,8 99,1 499,5 331,7 462,7 429,5 415,7 995,7 83,0 282,0 5,7 0,0 12,1 0,0 402,2 79,8 99,0 501,1 332,5 464,7 431,4 414,1 988,5 84,0 283,0 5,6 0,0 11,9 0,0 402,0 79,6 98,9 502,5 333,4 466,8 433,4 413,2 981,8 85,0 284,0 5,5 0,0 11,8 0,0 400,1 79,7 99,0 504,0 334,4 468,9 435,3 412,7 982,6 86,0 285,0 5,4 0,0 11,8 0,0 399,6 79,5 98,8 505,2 335,4 470,9 437,3 412,5 987,4 87,0 286,0 5,3 0,0 12,0 0,0 399,5 79,5 98,5 506,0 336,3 473,0 439,1 412,5 992,0 88,0 287,0 5,2 0,0 12,2 0,0 400,3 79,6 98,7 506,9 337,3 475,2 441,2 412,8 1002,4 89,0 288,0 5,1 0,0 12,4 0,0 400,5 79,5 98,6 507,5 338,5 477,4 443,1 413,2 1006,7 90,0 289,0 5,0 0,0 12,5 0,0 400,8 79,6 98,5 508,1 339,9 479,6 445,3 413,8 1008,6 91,0 290,0 4,9 0,0 12,5 0,0 400,8 79,4 98,5 508,7 341,2 481,9 447,2 414,6 1013,5 92,0 291,0 4,8 0,0 12,5 0,0 400,3 79,7 98,5 509,0 342,7 484,0 449,3 415,7 1012,9 93,0 292,0 4,7 0,0 12,4 0,0 399,6 79,3 98,8 509,3 344,3 486,1 451,5 416,8 1014,4 94,0 293,0 4,6 0,0 12,3 0,0 398,0 79,6 98,6 509,8 346,0 488,3 453,2 417,9 1011,6 95,0 294,0 4,5 0,0 12,3 0,0 397,4 79,5 98,6 510,5 347,6 490,6 455,2 419,0 1009,0 96,0 295,0 4,4 0,0 12,2 0,0 397,5 79,5 98,3 511,5 349,3 493,0 457,0 420,0 1002,4 97,0 296,0 4,3 0,0 12,2 0,0 395,4 79,5 98,3 511,7 351,0 495,5 459,2 421,0 997,9 98,0 297,0 4,2 0,0 12,2 0,0 393,7 79,6 98,1 511,9 352,6 497,8 461,4 422,0 994,1 99,0 298,0 4,1 0,0 12,2 0,0 392,9 79,5 98,2 512,4 354,1 500,2 463,5 423,0 988,6 100,0 299,0 4,0 0,0 12,0 0,0 392,5 79,5 98,2 511,8 355,6 502,4 465,5 423,9 986,5 101,0 300,0 3,9 0,0 11,8 0,0 390,9 79,5 98,2 512,4 357,2 504,6 467,6 424,2 976,0 102,0 301,0 3,8 0,0 11,6 0,0 389,6 79,6 98,0 512,5 358,9 506,7 469,5 424,4 964,2 103,0 302,0 3,7 0,0 11,2 0,0 386,4 79,3 97,7 512,3 360,6 508,8 471,2 424,6 958,9 104,0 303,0 3,7 0,0 11,2 0,0 385,3 79,5 97,5 512,0 362,2 510,6 472,6 424,5 947,4 105,0 304,0 3,6 0,0 10,9 0,0 382,7 79,6 97,1 511,9 363,9 512,5 474,1 423,9 933,8 106,0 305,0 3,5 0,0 10,6 0,0 380,2 79,4 97,0 511,7 365,6 514,1 475,6 423,2 923,1 107,0 306,0 3,5 0,0 10,6 0,0 377,5 79,4 97,1 511,0 367,3 515,9 476,9 422,2 912,5 108,0 307,0 3,4 0,0 10,4 0,0 374,9 79,3 97,1 510,7 369,0 517,5 477,9 421,3 903,7 Particulates Calculations Page 1 of 3 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Manufacturer: HEARTHSTONE Model: 8024 HERITAGE Overall Heating Efficiency: 76,56% 29,83 Run: 3 Combustion Efficiency: 99,50% 454,12 Project #: PI 20176 Heat Transfer Efficiency: 76,95% 13,04 Test Duration: 239 min HHV LHV Heat Output: 20 482 Btu/h 21 591 kJ/h Eff 76,56% 82,75% Heat Input: 26 751 Btu/h 28 200 kJ/h Comb Eff 99,50% 99,50% Ultimate CO2 HT Eff 76,95% 83,17% CO2-ult 19,64 Burn Duration: 3,98 h Output 21 591 kJ/h F0 Burn Rate 1,42 kg/h 1,061 Burn Rate: 3,14 lb/h 1,424 kg/h Grams CO 23 g Input 28 200 kJ/h Stack Temp: 346,2 Deg. F 174,5 Deg. C MC wet 17,75 Air Fuel Ratio (A/F) Dry Molecular Weight (Md) Dry Moles Exhaust Gas (Nr): Air Fuel Ratio (A/F) Note: In the “Input data”, "Calc. % O2", "Fuel Properties", and “Mass Balance” columns, [e], [d], [g], [a]. [b], [c], [h], [u], [w], [j], and [k] refer to their respective variables in Clauses 13.7.3 CSA B415.1 OE Calculations Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Paramètres Tous les facteurs de corrections et autres paramètres qui peuvent être modifiés par l’utilisateur du fichier sont regroupés ici. Code verrouillage: HEA Description du test Test standard EPA Run # 4 Date 13-09-2018 Technicien M.M Project # PI 20176 Description de l'unité Manufacturier HEARTHSTONE Modèle 8024 HERITAGE Combustion system Cat Appliance type WOODSTOVE Firebox volume 2,18 cu ft. Appliance weight empty N.A lbs Appliance weight full N.A lbs Paramètres du test Logging time 1 min Manufacturer's rated heat output N.A BTU/h Donnée fournie par le manfacturier Targeted category 1 Targeted output N.A BTU/h Cp steel N.A BTU/lb-°F Échantillonnage Blank sampling rate 0,20 cuft/min Internal probe diameter 0,18 in. Calibration Factor (DGM #1): 0,988 Dimensionless Equipment number (DGM #1): EM 178 Calibration Factor (DGM #2): 0,991 Dimensionless Equipment number (DGM #2): EM 179 Calibration Factor (DGM #3): 0,996 Equipment number (DGM #3): EM 070 Dimensionless Tunnel Targeted tunnel flow rate 300 scfm Tunnel diameter 8 in. Molecular weight 28,78 May be assumed to be 28,78 (EPA) Si B-415 = 29 Pitot tube type Standard Pitot tube coefficient 0,99 Dimensionless Project nu. PI 20176 Date 13-09-2018 Technicien M.M Fuel data Fuel type Dimension Fuel specie D. Fir HHV 19810,0 kJ/kg D. Fir Oak/Maple %C 48,7 HHV 19 810 19 887 %H 6,9 %C 48,73 50 %O 43,9 %H 6,87 6,6 %Ash 0,5 %O 43,9 42,9 HHV 8519,2 Btu/lb %Ash 0,5 0,5 LHV 7451,0 Btu/lb HHV (Btu/lb) 8519 8552 LHV (Btu/lb) 7451 7480 Default Fuel Values Paramètres Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Start End Barometer (kPa): 102,1 101,8 Barometer (in.Hg): 30,150119 30,06152868 Dry Bulb (F): 76,28 87,98 Humidity (%): 56,4 41,8 Air velocity (ft/min) 0 0 DGM #1 Final: 27057,780 cuft Final: 766190,980 Liter Initial: 27001,160 cuft Initial: 764587,680 Liter DGM #2 Final: 25413,911 cuft Final: 719641,800 Liter Initial: 25358,955 cuft Initial: 718085,620 Liter DGM room Final: 1003,220 cuft Initial: 876,220 cuft Numéro de la ligne dans "Raw data" à partir duquel les données du VRAI test commencent 215 Autres données à rentrer: dans preload data, load data, traverse et filter set weight Project nu.PI 20176 Date 13-09-2018 Technicien M.M Key in data Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Preload data sheet Lower Ideal Upper 13,73 15,26 16,79 Load Volume: 0,4740 cu. ft Loading Density: 8,070 lbs./ft3 Number of Spaces: Load Density (wet): 37,117 lbs./ft3 Spacer weight (lbs): Dry Wood Density: 30,855668 Weight Ave. MC x Volume Thick Wide x Length lbs Weight Cubic Inches 1,5 3,5 18 1,924 19,8 19,9 19,6 19,9 19,4 37,94128 94,50 1,5 3,5 18 1,846 20,6 20,4 20,4 20,5 20,9 37,95376 94,50 1,5 3,5 18 1,878 20 20 19,9 19,3 19,2 36,95904 94,50 1,5 3,5 18 1,852 20,8 20,4 20,6 20,6 20,3 38,04008 94,50 1,5 3,5 12 1,428 19,9 19,3 19,8 19,4 19,8 28,04592 63,00 1,5 3,5 12 1,348 21 21,4 20,9 20,6 20,3 28,09232 63,00 1,5 3,5 12 1,606 21,4 21,9 21,8 21,6 21,8 34,8502 63,00 1,5 3,5 12 1,506 20,9 20,3 20,6 20,8 20,3 30,99348 63,00 1,5 3,5 12 1,35 19,9 19,8 19,6 19,9 20 26,784 63,00 1,5 3,5 12 1,704 20,4 20,8 20,3 20,4 20,8 35,00016 63,00 1,5 3,5 12 1,15 19,3 19,4 19,8 19,3 19,3 22,333 63,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 356,99324 PreTest Load Weight: 17,59 lbs. Dry Weight: 6,63 kg. Average Moisture Content: % Dry: 20,29 20,29 Wet: 16,87 Must be 18-28 must be 15,2-22 Project nu. PI 20176 Date 13-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Preload Data Page 1 of 1 Confidentiel 2018-09-25 Page 1 FUEL LOAD DATA SHEET, CSA B415 Lower Ideal Upper 13,7 15,3 16,8 * For boilers, a loading density factor of 10 lb/ft3 is applied Load Volume: 0,50 cu. ft Loading Density: 7,0 lbs./ft3 Number of Spaces: 16 Load Density (wet): 30,7 lbs./ft3 Spacer weight: lbs Dry Wood Density: 25,3 lbs./ft3 Weight Ave. MC x Volume Ave. MC Thick Wide xLength lbs Weight Cubic Inches % 1,5 3,5 17 1,88 21,90 21,80 21,60 21,80 21,70 40,95232 89,25 21,8 1,5 3,5 17 1,64 21,90 21,80 21,60 21,90 21,80 35,752 89,25 21,8 1,5 3,5 17 1,64 20,90 20,60 21,00 21,10 21,00 34,26696 89,25 20,9 3,5 3,5 17 4,27 21,80 21,90 21,30 21,40 21,50 92,18976 208,25 21,6 3,5 3,5 17 4,09 21,90 21,60 21,90 21,80 21,40 88,92168 208,25 21,7 1,5 0,75 5 0,12 21,90 2,5842 5,63 21,9 1,5 0,75 5 0,11 21,30 2,2578 5,63 21,3 1,5 0,75 5 0,12 20,80 2,4128 5,63 20,8 1,5 0,75 5 0,12 20,30 2,436 5,63 20,3 1,5 0,75 5 0,12 19,90 2,3084 5,63 19,9 1,5 0,75 5 0,12 19,80 2,3364 5,63 19,8 1,5 0,75 5 0,11 19,40 2,0564 5,63 19,4 1,5 0,75 5 0,12 19,90 2,388 5,63 19,9 1,5 0,75 5 0,12 20,80 2,4544 5,63 20,8 1,5 0,75 5 0,12 20,60 2,472 5,63 20,6 1,5 0,75 5 0,12 20,80 2,4128 5,63 20,8 1,5 0,75 5 0,11 20,40 2,2032 5,63 20,4 1,5 0,75 5 0,10 20,80 2,1632 5,63 20,8 1,5 0,75 5 0,11 20,30 2,3142 5,63 20,3 1,5 0,75 5 0,126 20,90 2,6334 5,63 20,9 1,5 0,75 5 0,106 20,40 2,1624 5,63 20,4 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 329,67832 20,8 % Test Load Weight: 15,36 lbs. Dry Weight: 5,74 kg. Average Moisture Content: % Dry: 21,47 Dry(EPA) 21,47 21,47 Wet: 17,67 Dry(B415 21,47 Must be 19-25 must be 15,2-22 Coal Bed Range: 3,1 lbs. to 3,8 lbs. TEST CHARGE: Project nu. PI 20176 Coal bed weight: 3,7 lbs. Date 13-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Load Data Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Tunnel Traverse Worksheet (for velocity calculations) Static Pressure: 0,21 in. H20 Barometer: 29,900 in. Hg Pour un tunnel de 12" et plus, prendre 6 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,0000 B center 0,0000 A1 0,0000 A2 0,0000 A3 0,0000 A4 0,0000 A5 0,0000 A6 0,0000 B1 0,0000 B2 0,0000 B3 0,0000 B4 0,0000 B5 0,0000 B6 0,0000 PITOT CONSTANT= AVERAGE #DIV/0! #DIV/0! 0,0000 0,972 Pour un tunnel moins de 12", prendre 4 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,057 75,29 0,2387 B center 0,058 74,31 0,2408 A1 0,047 75,29 0,2168 A2 0,065 75,29 0,2550 A3 0,048 74,86 0,2191 A4 0,049 74,54 0,2214 B1 0,047 74,830 0,2168 B2 0,070 74,830 0,2646 B3 0,059 74,210 0,2429 B4 0,046 74,210 0,2145 AVERAGE 0,0546 74,7660 0,2331 Project nu. PI 20176 Date 13-09-2018 Technicien M.M Traverse Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Filter set weight Ambient blank (g) Date Heure probe front back gasket probe front back gasket probe front back gasket Filter Number 10 407 408 9 16 409 410 15 41 411 412 27 413 Before (1) Before (2) Before (3) Before (4) Before (5) 94,6405 0,1235 0,1272 34,4940 108,7533 0,1282 0,1239 34,1453 110,3640 0,1256 0,1260 33,7730 0,1254 2018-09-12 17:00 Before (6) 94,6406 0,1236 0,1273 34,4940 108,7533 0,1283 0,1239 34,1454 110,3641 0,1256 0,1261 33,7729 0,1254 2018-09-13 09:00 After (1) 94,6410 0,1238 0,1274 34,5078 108,7535 0,1277 0,1240 34,1590 110,3642 0,1256 0,1261 33,7871 0,1258 2018-09-13 17:15 After (2) 94,6408 0,1235 0,1274 34,4949 108,7535 0,1276 0,1239 34,1462 110,3642 0,1255 0,1260 33,7746 0,1256 2018-09-17 08:00 After (3) 94,6408 0,1235 0,1274 34,4949 108,7535 0,1277 0,1239 34,1462 110,3642 0,1255 0,1260 33,7746 0,1256 2018-09-20 08:00 After (4) After (5) After (6) 94,6408 0,1235 0,1274 34,4949 108,7535 0,1277 0,1239 34,1462 110,3642 0,1255 0,1260 33,7746 0,1256 2018-09-20 08:00 Difference 0,0002 -0,0001 0,0001 0,0009 0,0002 -0,0006 0,0000 0,0008 0,0001 -0,0001 -0,0001 0,0017 0,0002 Total (mg) 1,1 1,5 1,6 0,2 Total ajusté (mg) 0,90 1,30 1,40 Project nu. PI 20176 Date 13-09-2018 Technicien M.M System 2 (g) System 1 (g) 1st hour System 1 (g) Filter set weight Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN SFBA EPA EMISSION RESULTS RESULTS Average emission rate: 0,5 g/hr Burn Rate : 1,027 Dry kg/hr Test Duration: 335 min PRESSURE FACTOR: DGM 1 0,98732 BAROMETRIC PRESSURE DGM 2 0,99089 Average: 30,105824 in Hg DGM 3 1,00621 Start: 30,150119 in Hg End: 30,061529 in Hg TEMPERATURE FACTORS DGM 1 0,96772 DGM 2 0,96753 DGM CONTROLLER VALUES DGM 3 0,97404 DGM 1 Final: 27057,780 Cuft Initial: 27001,160 Cuft VOLUMES SAMPLED DGM 1 53,474 SCft DGM 2 Final: 25413,911 Cuft DGM 2 52,234 Scft Initial: 25358,955 Cuft DGM 3 123,944 SCft DGM #3 Final: 1003,220 Cuft Initial: 876,220 Cuft TOTAL TUNNEL VOLUME : 101404 TEMPERATURES SAMPLE RATIOS DGM 1 545,610 °R Sample Train 1: 1896,316 DGM 2 545,722 °R Sample Train 2: 1941,338 CALIBRATION FACTORS Paticulate concentration DGM 1 0,9885 Sample Train 1 0,000028 g/dscf DGM 2 0,9914 Sample Train 2 0,000031 g/dscf DGM #3 0,9958 Room 0,000002 g/dscf TUNNEL FLOW RATE: 302,697 Dscfm TOTAL EMISSIONS PARTICULATE CATCH Sample Train 1 2,68 g Total Sample Train 1: 1,50 mg Sample Train 2 2,94 g Total Sample Train 2: 1,60 mg Total Sample Train 1 1st hour: 1,10 mg EMISSION RATES Sample Train 1 0,48 g/hr Sample Train 2 0,53 g/hr 1st hour emission rate 2,09 g/hr DEVIATION: 4,65% Train 1 Train 2 Cs 2,805E-05 3,06315E-05 Particulates Calculations Page 1 of 1 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN ***** *1 *2 *3 *4 *5 *6 *7 *8 * Elapsed Weight Flue Room Tunnel Unit Unit Unit Unit Unit Catalyst Time Raw data row Remaining CO CO2 O2 Gas Temp Dry Bulb Top Back R.Side L.Side Bottom up min lbs %%% °F °F °F °F °F °F °F °F °F 0,00 215,00 16,0 0,0 4,8 395,8 267,3 77,0 100,9 346,3 355,1 394,0 343,4 540,3 472,9 1,0 216,0 15,3 0,3 6,4 393,9 284,3 77,5 94,9 344,6 354,6 393,4 342,3 534,4 567,6 2,0 217,0 15,2 0,1 4,8 391,8 319,4 77,1 94,8 343,1 353,9 392,2 341,0 529,0 694,5 3,0 218,0 15,0 0,0 6,0 389,7 347,5 77,4 95,3 341,7 353,1 390,6 338,7 524,3 761,3 4,0 219,0 14,9 0,0 8,3 387,8 371,0 77,5 96,7 340,8 351,8 388,6 336,9 520,7 810,6 5,0 220,0 14,8 0,0 9,3 386,1 332,4 77,6 92,9 340,8 350,3 386,5 334,8 518,1 822,2 6,0 221,0 14,7 0,0 6,3 384,5 308,5 77,9 91,8 341,3 348,6 384,3 332,6 515,9 786,1 7,0 222,0 14,7 0,0 4,1 383,1 293,3 77,9 91,3 342,4 346,9 382,1 330,6 513,4 734,1 8,0 223,0 14,6 0,0 3,6 381,3 282,8 78,1 91,1 342,8 345,1 379,8 328,4 510,3 704,9 9,0 224,0 14,6 0,0 3,7 379,3 275,6 78,1 91,0 343,1 343,1 377,5 326,0 506,8 696,4 10,0 225,0 14,5 0,0 4,0 377,0 272,0 78,2 90,6 343,0 340,9 375,0 323,3 503,1 702,1 11,0 226,0 14,5 0,0 4,2 374,8 269,4 78,2 90,4 342,5 338,9 372,4 320,6 499,4 708,5 12,0 227,0 14,4 0,0 4,4 372,5 268,6 77,5 90,2 342,2 336,7 369,7 317,9 495,7 720,5 13,0 228,0 14,4 0,0 4,6 370,2 268,2 77,5 90,6 341,8 334,6 367,0 315,3 492,2 734,1 14,0 229,0 14,3 0,0 4,9 367,9 269,6 77,6 90,4 341,2 332,2 364,4 312,7 488,8 751,9 15,0 230,0 14,3 0,0 5,0 365,6 271,4 77,6 90,1 340,7 330,1 361,7 309,8 485,6 762,3 16,0 231,0 14,2 0,0 5,2 363,2 273,9 77,7 90,2 339,4 327,9 359,1 307,0 482,7 776,5 17,0 232,0 14,1 0,0 5,4 361,1 275,7 77,8 90,2 338,7 325,7 356,6 304,5 480,0 783,1 18,0 233,0 14,1 0,0 5,4 359,1 276,7 77,6 90,2 338,2 323,7 354,1 302,2 477,4 781,9 19,0 234,0 14,0 0,0 5,7 357,2 278,4 77,5 90,4 337,3 321,7 351,7 300,2 475,1 800,0 20,0 235,0 13,9 0,0 6,0 355,2 281,2 77,4 90,4 336,0 319,6 349,5 298,2 472,9 825,7 21,0 236,0 13,8 0,0 6,3 353,3 284,6 77,5 90,6 335,2 317,5 347,3 295,8 470,8 847,4 22,0 237,0 13,8 0,0 6,5 351,5 289,4 77,6 90,4 334,3 315,5 345,2 293,8 468,9 867,5 23,0 238,0 13,7 0,1 7,0 350,0 292,3 77,9 90,9 333,7 313,7 343,3 292,0 467,1 871,5 24,0 239,0 13,6 0,1 6,8 348,2 294,8 78,1 90,8 332,4 311,7 341,6 289,8 465,2 871,0 25,0 240,0 13,5 0,1 6,7 346,7 297,0 78,0 90,9 332,3 309,8 339,9 288,0 463,3 869,0 26,0 241,0 13,5 0,1 6,7 345,1 299,2 77,8 91,2 331,6 308,0 338,2 286,3 461,4 870,5 27,0 242,0 13,4 0,1 6,8 343,6 300,9 77,8 91,4 330,8 306,3 336,8 284,8 459,5 873,1 28,0 243,0 13,3 0,1 6,7 342,2 301,6 77,9 91,4 330,4 304,6 335,3 283,2 457,6 875,6 29,0 244,0 13,2 0,1 6,8 340,9 302,3 78,0 91,3 329,9 303,0 333,9 282,0 455,8 873,7 30,0 245,0 13,1 0,1 6,8 339,8 302,4 78,3 91,9 329,6 301,5 332,7 281,0 454,1 873,2 31,0 246,0 13,1 0,1 6,8 338,6 303,7 78,1 91,6 329,4 299,9 331,5 279,6 452,5 877,3 32,0 247,0 13,0 0,1 6,9 337,5 303,9 78,1 91,6 329,2 298,5 330,4 278,5 451,0 877,6 33,0 248,0 12,9 0,1 7,0 336,5 305,8 78,3 91,6 329,4 297,0 329,3 277,3 449,5 886,9 34,0 249,0 12,8 0,1 7,2 335,4 307,1 78,4 91,8 329,0 295,6 328,3 276,1 448,2 900,7 35,0 250,0 12,7 0,1 7,5 334,5 310,0 78,3 92,2 328,5 294,3 327,3 275,2 446,9 915,4 36,0 251,0 12,7 0,1 7,7 333,8 314,0 78,4 92,9 329,1 293,2 326,5 274,5 445,8 927,5 37,0 252,0 12,6 0,1 7,8 333,1 316,9 78,6 92,9 329,1 292,0 325,7 273,8 444,8 936,9 38,0 253,0 12,5 0,1 8,1 332,4 319,6 78,3 92,8 328,9 290,8 324,9 273,2 443,9 957,0 39,0 254,0 12,4 0,1 8,5 331,7 323,8 78,8 93,1 328,9 289,7 324,2 272,5 443,1 977,8 40,0 255,0 12,3 0,1 9,0 331,4 328,0 79,0 93,8 329,9 288,8 323,8 272,1 442,5 996,5 41,0 256,0 12,2 0,1 9,4 330,9 331,2 79,0 93,4 330,0 287,9 323,3 271,6 441,8 1009,0 42,0 257,0 12,1 0,1 9,8 330,7 332,6 79,0 93,8 330,9 287,0 323,0 271,1 441,3 982,0 43,0 258,0 12,0 0,1 10,5 330,5 332,3 78,8 94,2 332,0 286,1 322,9 270,8 440,8 967,9 44,0 259,0 11,9 0,1 10,7 330,5 333,5 78,7 94,2 333,3 285,3 323,1 270,5 440,5 969,5 45,0 260,0 11,8 0,1 10,8 331,0 335,7 78,7 94,1 336,0 284,6 323,4 270,6 440,3 977,5 46,0 261,0 11,6 0,2 10,8 331,3 338,1 78,9 94,0 338,3 283,9 323,7 270,7 440,1 984,5 47,0 262,0 11,5 0,2 10,8 332,0 339,5 79,0 93,9 341,5 283,5 324,2 270,9 439,9 977,6 48,0 263,0 11,4 0,2 10,9 332,5 338,8 79,5 94,0 345,0 282,7 324,6 270,5 439,5 963,7 49,0 264,0 11,3 0,1 10,7 333,4 338,7 79,4 94,5 349,5 282,3 325,2 271,1 439,1 962,4 50,0 265,0 11,2 0,1 10,5 334,5 337,8 79,1 94,9 354,0 281,9 326,0 272,0 438,7 965,5 51,0 266,0 11,1 0,1 10,4 335,4 337,6 79,3 94,5 357,6 281,6 326,7 272,6 438,5 973,3 52,0 267,0 11,0 0,2 10,5 336,6 337,8 79,4 95,0 362,5 281,2 327,6 273,4 438,4 975,4 53,0 268,0 10,9 0,3 10,6 337,8 337,7 79,9 95,5 367,1 281,0 328,5 274,1 438,4 980,3 54,0 269,0 10,8 0,3 10,8 338,8 339,1 79,5 94,7 371,1 280,6 329,4 274,3 438,4 986,0 55,0 270,0 10,7 0,2 10,9 340,1 340,3 79,8 95,4 376,0 280,6 330,4 275,1 438,5 982,4 56,0 271,0 10,6 0,2 11,0 341,4 341,2 79,6 95,4 380,5 280,5 331,4 275,9 438,6 982,0 57,0 272,0 10,5 0,2 11,1 342,7 341,4 79,9 95,0 385,2 280,4 332,4 276,6 438,7 980,4 58,0 273,0 10,4 0,1 11,1 343,9 342,1 79,7 94,8 389,4 280,4 333,6 277,3 439,0 973,0 59,0 274,0 10,3 0,1 11,1 345,4 343,7 79,8 95,2 394,1 280,5 334,8 278,4 439,2 1018,6 60,0 275,0 10,2 0,1 10,9 346,8 345,6 79,8 95,0 398,4 280,7 336,0 279,4 439,4 1000,7 61,0 276,0 10,1 0,1 11,0 348,2 343,4 80,2 95,8 402,7 280,8 337,3 280,8 439,5 972,9 62,0 277,0 10,0 0,1 10,9 349,4 342,9 79,9 95,6 406,4 280,9 338,5 281,9 439,3 981,8 63,0 278,0 9,9 0,1 10,9 350,5 342,8 80,0 95,7 409,4 281,1 339,9 283,1 439,1 983,0 64,0 279,0 9,8 0,1 10,9 351,6 343,2 80,0 95,8 412,7 281,3 341,2 284,2 438,7 982,7 65,0 280,0 9,7 0,1 10,9 352,9 344,3 80,1 95,7 416,0 281,6 342,7 285,7 438,4 988,8 66,0 281,0 9,6 0,1 11,0 354,1 343,3 80,3 95,9 419,0 281,9 344,0 287,2 438,1 972,0 67,0 282,0 9,5 0,1 11,0 355,4 342,5 80,2 95,7 422,5 282,3 345,4 288,8 438,0 967,7 68,0 283,0 9,4 0,1 11,0 356,5 341,2 80,5 96,6 425,2 282,7 346,9 290,2 437,8 964,7 69,0 284,0 9,3 0,0 11,0 357,5 340,2 80,2 95,8 427,1 283,1 348,4 291,6 437,5 965,6 70,0 285,0 9,2 0,0 11,0 358,9 340,5 80,0 96,2 429,9 283,7 349,7 293,9 437,1 986,3 71,0 286,0 9,1 0,1 11,0 360,2 340,6 80,5 96,0 433,0 284,2 351,1 295,8 436,8 976,2 72,0 287,0 9,0 0,0 11,0 361,1 339,9 80,5 95,8 434,4 284,7 352,6 297,4 436,4 976,7 73,0 288,0 8,9 0,0 11,1 362,1 340,5 80,5 95,7 436,5 285,2 353,9 299,0 435,7 988,1 74,0 289,0 8,8 0,0 11,2 363,0 340,7 80,3 95,9 438,5 285,7 355,4 300,8 434,6 991,5 75,0 290,0 8,7 0,0 11,4 364,0 341,2 80,8 96,3 440,9 286,4 356,8 302,7 433,6 996,5 76,0 291,0 8,6 0,0 11,5 364,8 341,6 81,0 96,2 442,1 287,0 358,2 304,3 432,5 1002,4 77,0 292,0 8,5 0,0 11,6 365,9 342,8 81,1 96,5 444,6 287,6 359,7 306,2 431,6 1011,8 78,0 293,0 8,4 0,1 11,7 366,8 343,4 81,0 96,5 445,9 288,3 361,1 307,7 430,7 1014,5 79,0 294,0 8,4 0,1 11,8 367,7 344,4 80,7 96,0 448,1 289,1 362,6 309,0 430,0 1017,9 80,0 295,0 8,3 0,1 11,8 368,7 344,9 80,7 96,5 449,5 289,7 364,1 310,8 429,3 1016,0 81,0 296,0 8,2 0,1 11,8 369,8 346,2 80,6 96,5 451,8 290,6 365,6 312,3 428,6 1015,4 82,0 297,0 8,1 0,1 11,9 371,0 346,7 80,9 97,2 454,3 291,4 367,2 314,2 428,0 1009,5 83,0 298,0 7,9 0,1 11,9 372,1 346,7 80,7 97,0 456,1 292,4 368,6 315,8 427,5 1013,9 84,0 299,0 7,9 0,1 11,9 373,1 347,2 80,5 97,0 457,7 293,3 370,0 317,4 427,0 1009,2 85,0 300,0 7,8 0,1 11,9 374,3 348,0 80,9 97,3 459,8 294,2 371,5 319,2 426,6 1006,0 86,0 301,0 7,7 0,1 12,0 375,4 347,5 80,9 96,9 462,2 295,1 372,8 320,5 426,2 997,9 87,0 302,0 7,6 0,1 12,0 376,4 347,3 80,2 96,7 463,9 296,1 374,2 322,0 425,9 991,6 88,0 303,0 7,5 0,1 12,0 377,5 347,3 80,2 97,1 465,4 297,2 375,8 323,7 425,6 980,8 89,0 304,0 7,4 0,1 11,9 378,9 346,3 80,5 97,5 468,3 298,2 377,3 325,3 425,4 979,8 90,0 305,0 7,3 0,1 11,9 380,1 345,4 80,3 97,5 470,4 299,3 378,8 326,8 425,1 971,1 91,0 306,0 7,2 0,1 11,8 381,3 345,1 80,6 97,3 472,8 300,4 380,3 328,1 424,8 961,9 92,0 307,0 7,1 0,0 11,7 382,3 344,4 80,9 97,5 474,1 301,5 381,9 329,4 424,6 957,4 93,0 308,0 7,0 0,0 11,6 383,6 342,7 80,9 97,2 476,6 302,7 383,5 330,9 424,4 948,8 94,0 309,0 6,9 0,0 11,4 384,7 341,3 80,6 97,2 478,3 303,8 385,0 332,1 424,2 942,7 95,0 310,0 6,8 0,0 11,3 385,9 340,0 81,0 97,1 480,5 305,0 386,6 333,7 423,9 936,2 96,0 311,0 6,7 0,0 11,2 387,2 338,9 81,0 97,2 482,1 306,3 388,1 335,6 423,8 929,3 97,0 312,0 6,7 0,0 11,1 388,1 338,1 80,8 96,9 483,3 307,4 389,5 336,8 423,5 926,0 98,0 313,0 6,6 0,0 11,0 389,3 337,2 80,8 96,9 485,1 308,7 391,0 338,3 423,3 922,3 99,0 314,0 6,5 0,0 10,8 390,5 335,5 80,6 96,7 486,9 309,9 392,5 340,0 423,2 919,0 100,0 315,0 6,4 0,0 10,7 391,3 334,0 80,6 96,4 487,3 311,1 394,1 341,3 423,0 919,3 101,0 316,0 6,3 0,1 10,7 392,4 333,3 80,9 96,6 488,0 312,4 395,7 342,9 422,8 913,5 102,0 317,0 6,3 0,0 10,6 393,5 331,4 81,4 97,1 489,7 313,6 397,0 344,5 422,7 913,3 103,0 318,0 6,2 0,0 10,6 394,2 330,2 81,2 96,8 489,9 314,6 398,4 345,6 422,5 907,9 104,0 319,0 6,1 0,0 10,5 395,0 329,9 80,9 96,7 490,1 315,7 400,0 347,0 422,4 913,9 105,0 320,0 6,0 0,0 10,5 395,7 328,6 81,1 96,4 490,1 316,7 401,2 348,3 422,4 913,2 106,0 321,0 6,0 0,0 10,4 396,6 328,4 81,4 96,7 491,2 317,8 402,5 349,4 422,4 917,4 107,0 322,0 5,9 0,0 10,5 397,4 328,0 81,5 96,7 491,0 318,8 403,8 350,8 422,5 917,8 108,0 323,0 5,8 0,0 10,4 398,0 326,6 81,7 97,2 490,6 319,8 404,9 352,0 422,6 915,1 Particulates Calculations Page 1 of 3 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Manufacturer: HEARTHSTONE Model: 8024 HERITAGE Overall Heating Efficiency: 79,08% 29,78 Run: 4 Combustion Efficiency: 99,50% 474,37 Project #: PI 20176 Heat Transfer Efficiency: 79,47% 13,61 Test Duration: 335 min HHV LHV Heat Output: 15 931 Btu/h 16 794 kJ/h Eff 79,08% 85,47% Heat Input: 20 146 Btu/h 21 238 kJ/h Comb Eff 99,50% 99,50% Ultimate CO2 HT Eff 79,47% 85,90% CO2-ult 19,64 Burn Duration: 5,58 h Output 16 794 kJ/h F0 Burn Rate 1,07 kg/h 1,061 Burn Rate: 2,36 lb/h 1,072 kg/h Grams CO 64 g Input 21 238 kJ/h Stack Temp: 284,7 Deg. F 140,4 Deg. C MC wet 17,67 Air Fuel Ratio (A/F) Dry Molecular Weight (Md) Dry Moles Exhaust Gas (Nr): Air Fuel Ratio (A/F) Note: In the “Input data”, "Calc. % O2", "Fuel Properties", and “Mass Balance” columns, [e], [d], [g], [a]. [b], [c], [h], [u], [w], [j], and [k] refer to their respective variables in Clauses 13.7.3 CSA B415.1 OE Calculations Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Paramètres Tous les facteurs de corrections et autres paramètres qui peuvent être modifiés par l’utilisateur du fichier sont regroupés ici. Code verrouillage: HEA Description du test Test standard EPA Run # 5 Date 14-09-2018 Technicien M.M Project # PI 20176 Description de l'unité Manufacturier HEARTHSTONE Modèle 8024 HERITAGE Combustion system Cat Appliance type WOODSTOVE Firebox volume 2,18 cu ft. Appliance weight empty N.A lbs Appliance weight full N.A lbs Paramètres du test Logging time 1 min Manufacturer's rated heat output N.A BTU/h Donnée fournie par le manfacturier Targeted category 1 Targeted output N.A BTU/h Cp steel N.A BTU/lb-°F Échantillonnage Blank sampling rate 0,20 cuft/min Internal probe diameter 0,18 in. Calibration Factor (DGM #1): 0,988 Dimensionless Equipment number (DGM #1): EM 178 Calibration Factor (DGM #2): 0,991 Dimensionless Equipment number (DGM #2): EM 179 Calibration Factor (DGM #3): 0,996 Equipment number (DGM #3): EM 070 Dimensionless Tunnel Targeted tunnel flow rate 300 scfm Tunnel diameter 8 in. Molecular weight 28,78 May be assumed to be 28,78 (EPA) Si B-415 = 29 Pitot tube type Standard Pitot tube coefficient 0,99 Dimensionless Project nu. PI 20176 Date 14-09-2018 Technicien M.M Fuel data Fuel type Dimension Fuel specie D. Fir HHV 19810,0 kJ/kg D. Fir Oak/Maple %C 48,7 HHV 19 810 19 887 %H 6,9 %C 48,73 50 %O 43,9 %H 6,87 6,6 %Ash 0,5 %O 43,9 42,9 HHV 8519,2 Btu/lb %Ash 0,5 0,5 LHV 7451,0 Btu/lb HHV (Btu/lb) 8519 8552 LHV (Btu/lb) 7451 7480 Default Fuel Values Paramètres Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Start End Barometer (kPa): 101,9 101,8 Barometer (in.Hg): 30,091059 30,06152868 Dry Bulb (F): 75,38 83,12 Humidity (%): 58,4 54 Air velocity (ft/min) 0 0 DGM #1 Final: 27079,081 cuft Final: 766794,180 Liter Initial: 27057,838 cuft Initial: 766192,620 Liter DGM #2 Final: 25434,722 cuft Final: 720231,120 Liter Initial: 25413,975 cuft Initial: 719643,630 Liter DGM room Final: 51,240 cuft Initial: 3,230 cuft Numéro de la ligne dans "Raw data" à partir duquel les données du VRAI test commencent 197 Autres données à rentrer: dans preload data, load data, traverse et filter set weight Project nu.PI 20176 Date 14-09-2018 Technicien M.M Key in data Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Preload data sheet Lower Ideal Upper 13,73 15,26 16,79 Load Volume: 0,4740 cu. ft Loading Density: 7,813 lbs./ft3 Number of Spaces: Load Density (wet): 35,936 lbs./ft3 Spacer weight (lbs): Dry Wood Density: 29,799888 Weight Ave. MC x Volume Thick Wide x Length lbs Weight Cubic Inches 1,5 3,5 18 1,702 21,3 21,4 22 21,9 21,6 36,83128 94,50 1,5 3,5 18 1,75 21,8 21,9 21,3 21,8 21,4 37,87 94,50 1,5 3,5 18 1,826 22 19,9 19,9 19,3 19,4 36,7026 94,50 1,5 3,5 18 1,872 20 21,3 21,4 21,8 21,1 39,53664 94,50 1,5 3,5 12 1,326 19,9 19,6 19,3 19,3 19,6 25,91004 63,00 1,5 3,5 12 1,22 19,9 20 20,1 19,3 19,4 24,0828 63,00 1,5 3,5 12 1,25 19,2 19,3 19,3 19,8 19,1 24,175 63,00 1,5 3,5 12 1,442 19,8 19,7 19,2 20 20 28,46508 63,00 1,5 3,5 12 1,596 20,6 20,4 20,9 20,6 20,8 32,97336 63,00 1,5 3,5 12 1,472 20,7 20,6 20,9 20,3 20,7 30,38208 63,00 1,5 3,5 12 1,576 20,9 21,1 21,6 21,8 21,7 33,75792 63,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 350,6868 PreTest Load Weight: 17,03 lbs. Dry Weight: 6,41 kg. Average Moisture Content: % Dry: 20,59 20,59 Wet: 17,07 Must be 18-28 must be 15,2-22 Project nu. PI 20176 Date 14-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Preload Data Page 1 of 1 Confidentiel 2018-09-25 Page 1 FUEL LOAD DATA SHEET, CSA B415 Lower Ideal Upper 13,7 15,3 16,8 * For boilers, a loading density factor of 10 lb/ft3 is applied Load Volume: 0,50 cu. ft Loading Density: 7,0 lbs./ft3 Number of Spaces: 16 Load Density (wet): 30,6 lbs./ft3 Spacer weight: lbs Dry Wood Density: 25,2 lbs./ft3 Weight Ave. MC x Volume Ave. MC Thick Wide xLength lbs Weight Cubic Inches % 1,5 3,5 17 1,98 22,10 22,30 22,10 22,40 21,90 43,78816 89,25 22,2 1,5 3,5 17 1,67 22,00 21,90 21,40 21,80 21,30 36,24896 89,25 21,7 1,5 3,5 17 1,62 21,90 21,30 21,80 21,90 21,80 35,26228 89,25 21,7 3,5 3,5 17 4,13 21,00 21,30 21,40 21,80 21,30 88,2168 208,25 21,4 3,5 3,5 17 4,21 22,00 21,90 21,60 21,30 21,40 91,19096 208,25 21,6 1,5 0,75 5 0,10 20,10 2,0502 5,63 20,1 1,5 0,75 5 0,10 20,60 2,0188 5,63 20,6 1,5 0,75 5 0,09 19,10 1,719 5,63 19,1 1,5 0,75 5 0,11 19,30 2,1616 5,63 19,3 1,5 0,75 5 0,10 20,40 2,1216 5,63 20,4 1,5 0,75 5 0,11 20,90 2,299 5,63 20,9 1,5 0,75 5 0,12 20,80 2,4544 5,63 20,8 1,5 0,75 5 0,11 20,90 2,2154 5,63 20,9 1,5 0,75 5 0,10 20,00 1,92 5,63 20,0 1,5 0,75 5 0,13 20,00 2,52 5,63 20,0 1,5 0,75 5 0,10 19,60 1,9992 5,63 19,6 1,5 0,75 5 0,12 19,30 2,2388 5,63 19,3 1,5 0,75 5 0,11 19,90 2,1094 5,63 19,9 1,5 0,75 5 0,11 19,40 2,0952 5,63 19,4 1,5 0,75 5 0,108 19,80 2,1384 5,63 19,8 1,5 0,75 5 0,102 19,30 1,9686 5,63 19,3 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 SUM MCx 328,73676 20,4 % Test Load Weight: 15,32 lbs. Dry Weight: 5,72 kg. Average Moisture Content: % Dry: 21,46 Dry(EPA) 21,46 21,46 Wet: 17,67 Dry(B415 21,46 Must be 19-25 must be 15,2-22 Coal Bed Range: 3,1 lbs. to 3,8 lbs. TEST CHARGE: Project nu. PI 20176 Coal bed weight: 3,7 lbs. Date 14-09-2018 Technicien M.M Test Load Weight: Piece Size (in): Meter Moisture Content Dry Uncorrected % Load Data Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Tunnel Traverse Worksheet (for velocity calculations) Static Pressure: 0,21 in. H20 Barometer: 29,900 in. Hg Pour un tunnel de 12" et plus, prendre 6 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,0000 B center 0,0000 A1 0,0000 A2 0,0000 A3 0,0000 A4 0,0000 A5 0,0000 A6 0,0000 B1 0,0000 B2 0,0000 B3 0,0000 B4 0,0000 B5 0,0000 B6 0,0000 PITOT CONSTANT= AVERAGE #DIV/0! #DIV/0! 0,0000 0,966 Pour un tunnel moins de 12", prendre 4 lectures TUNNEL TUNNEL SQUARE VELOCITY TEMP ROOT In. wc °F A center 0,058 76,8 0,2408 B center 0,059 76,55 0,2429 A1 0,047 76,8 0,2168 A2 0,067 76,95 0,2588 A3 0,049 76,9 0,2214 A4 0,047 76,9 0,2168 B1 0,047 76,550 0,2168 B2 0,070 76,850 0,2646 B3 0,058 76,320 0,2408 B4 0,047 76,280 0,2168 AVERAGE 0,0549 76,6900 0,2337 Project nu. PI 20176 Date 14-09-2018 Technicien M.M Traverse Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Filter set weight Ambient blank (g) Date Heure probe front back gasket probe front back gasket probe front back gasket Filter Number 5 400 401 3 12 404 405 32 11 402 403 11 406 Before (1) Before (2) Before (3) Before (4) Before (5) 61,5046 0,1255 0,1275 33,9074 94,5413 0,1258 0,1293 34,0176 93,7253 0,1281 0,1261 34,2026 0,1279 2018-09-13 18:00 Before (6) 61,5046 0,1255 0,1276 33,9075 94,5414 0,1258 0,1293 34,0175 93,7254 0,1280 0,1261 34,2027 0,1280 2018-09-14 08:00 After (1) 61,5058 0,1260 0,1279 33,9212 94,5425 0,1252 0,1293 34,0299 93,7272 0,1285 0,1263 34,2164 0,1283 2018-09-14 13:15 After (2) 61,5048 0,1257 0,1276 33,9086 94,5418 0,1252 0,1293 34,0182 93,7260 0,1282 0,1261 34,2038 0,1281 2018-09-17 08:00 After (3) 61,5048 0,1257 0,1276 33,9086 94,5418 0,1252 0,1293 34,0182 93,7260 0,1282 0,1261 34,2038 0,1281 2018-09-21 08:00 After (4) After (5) After (6) 61,5048 0,1257 0,1276 33,9086 94,5418 0,1252 0,1293 34,0182 93,7260 0,1282 0,1261 34,2038 0,1281 2018-09-21 08:00 Difference 0,0002 0,0002 0,0000 0,0011 0,0004 -0,0006 0,0000 0,0007 0,0006 0,0002 0,0000 0,0011 0,0001 Total (mg) 1,5 2 1,9 0,1 Total ajusté (mg) 1,40 1,90 1,80 Project nu. PI 20176 Date 14-09-2018 Technicien M.M System 2 (g) System 1 (g) 1st hour System 1 (g) Filter set weight Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 SFBA EPA EMISSION RESULTS RESULTS Average emission rate: 1,8 g/hr Burn Rate : 2,724 Dry kg/hr Test Duration: 126 min PRESSURE FACTOR: DGM 1 0,98324 BAROMETRIC PRESSURE DGM 2 0,98736 Average: 30,076294 in Hg DGM 3 1,00522 Start: 30,091059 in Hg End: 30,061529 in Hg TEMPERATURE FACTORS DGM 1 0,97500 DGM 2 0,97438 DGM CONTROLLER VALUES DGM 3 0,97660 DGM 1 Final: 27079,081 Cuft Initial: 27057,838 Cuft VOLUMES SAMPLED DGM 1 20,131 SCft DGM 2 Final: 25434,722 Cuft DGM 2 19,788 Scft Initial: 25413,975 Cuft DGM 3 46,931 SCft DGM #3 Final: 51,240 Cuft Initial: 3,230 Cuft TOTAL TUNNEL VOLUME : 38790 TEMPERATURES SAMPLE RATIOS DGM 1 541,539 °R Sample Train 1: 1926,898 DGM 2 541,882 °R Sample Train 2: 1960,257 CALIBRATION FACTORS Paticulate concentration DGM 1 0,9885 Sample Train 1 0,000099 g/dscf DGM 2 0,9914 Sample Train 2 0,000096 g/dscf DGM #3 0,9958 Room 0,000002 g/dscf TUNNEL FLOW RATE: 307,858 Dscfm TOTAL EMISSIONS PARTICULATE CATCH Sample Train 1 3,77 g Total Sample Train 1: 2,00 mg Sample Train 2 3,64 g Total Sample Train 2: 1,90 mg Total Sample Train 1 1st hour: 1,50 mg EMISSION RATES Sample Train 1 1,80 g/hr Sample Train 2 1,73 g/hr 1st hour emission rate 2,89 g/hr DEVIATION: 1,74% Train 1 Train 2 Cs 9,935E-05 9,60165E-05 Particulates Calculations Page 1 of 1 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 ***** *1 *2 *3 *4 *5 *6 *7 *8 * Elapsed Weight Flue Room Tunnel Unit Unit Unit Unit Unit Catalyst Time Raw data row Remaining CO CO2 O2 Gas Temp Dry Bulb Top Back R.Side L.Side Bottom up min lbs %%% °F °F °F °F °F °F °F °F °F 0,00 197,00 15,2 0,0 7,1 512,6 384,9 77,3 115,8 390,4 462,8 536,8 486,7 686,3 675,6 1,0 198,0 15,1 0,2 3,0 511,2 408,2 77,0 104,3 392,5 464,4 539,6 485,4 673,8 952,4 2,0 199,0 14,9 0,0 7,9 508,9 434,6 77,4 103,1 393,9 465,2 541,2 482,6 661,7 1058,7 3,0 200,0 14,7 0,2 11,3 506,4 457,4 77,6 103,9 395,7 465,2 541,5 479,1 650,3 1091,7 4,0 201,0 14,5 0,2 12,4 503,6 479,8 77,5 104,8 398,5 464,4 540,6 474,8 639,7 1117,3 5,0 202,0 14,2 0,3 13,5 500,7 490,4 77,3 105,2 402,2 462,6 538,7 470,1 629,9 1129,4 6,0 203,0 14,0 0,3 13,2 497,9 500,5 77,2 104,9 406,6 460,2 536,0 465,9 620,9 1147,2 7,0 204,0 13,8 0,6 13,7 495,3 509,1 77,8 106,7 411,5 457,1 532,8 462,6 612,6 1156,3 8,0 205,0 13,5 1,0 13,8 493,1 518,8 77,9 108,4 418,1 453,7 529,2 459,4 605,0 1159,8 9,0 206,0 13,3 2,1 14,3 490,9 526,8 77,7 109,0 424,7 450,4 525,4 456,3 597,8 1166,8 10,0 207,0 13,0 1,9 14,6 489,2 533,3 78,0 109,9 432,2 447,0 521,8 454,2 591,0 1158,5 11,0 208,0 12,8 1,9 14,6 487,7 536,2 78,3 109,8 439,9 443,6 517,9 452,7 584,6 1162,2 12,0 209,0 12,5 1,6 14,6 486,6 541,1 78,5 110,0 448,5 440,3 514,3 451,3 578,7 1175,1 13,0 210,0 12,2 1,6 14,8 485,6 545,0 78,7 111,2 456,2 437,0 510,8 450,6 573,2 1174,0 14,0 211,0 12,0 1,9 14,8 484,6 546,6 78,7 111,7 464,4 433,6 507,6 449,6 567,9 1173,1 15,0 212,0 11,7 2,2 14,7 484,4 549,2 78,9 111,9 473,1 430,7 505,1 450,1 562,9 1170,1 16,0 213,0 11,5 2,6 14,7 484,4 551,0 79,1 112,2 482,0 427,9 503,0 450,9 558,4 1167,8 17,0 214,0 11,2 2,7 14,7 484,4 552,7 79,1 112,7 490,0 425,2 501,5 451,3 554,1 1176,8 18,0 215,0 10,9 2,7 14,7 484,8 553,3 79,2 113,0 498,7 422,8 500,2 452,3 550,1 1181,1 19,0 216,0 10,7 2,6 14,8 485,4 554,0 79,3 113,4 507,0 420,5 499,4 453,4 546,5 1183,7 20,0 217,0 10,4 2,6 14,8 486,1 554,6 79,5 113,5 515,0 418,4 499,0 454,9 543,1 1185,0 21,0 218,0 10,2 2,7 14,7 487,1 555,3 79,5 113,9 522,8 416,7 499,0 457,0 540,0 1179,1 22,0 219,0 9,9 2,9 14,7 488,3 555,6 79,7 113,8 530,5 415,1 499,3 459,5 537,4 1182,7 23,0 220,0 9,7 2,9 14,6 489,7 556,0 79,8 113,6 538,0 413,6 499,9 462,3 534,9 1184,1 24,0 221,0 9,4 3,1 14,6 491,0 556,7 79,8 114,0 544,7 412,3 500,7 464,8 532,6 1188,1 25,0 222,0 9,2 3,2 14,6 492,7 557,1 80,1 114,4 551,9 411,4 501,7 467,9 530,6 1187,6 26,0 223,0 8,9 3,4 14,5 494,5 556,9 80,0 114,3 558,8 410,5 503,2 471,4 528,5 1186,8 27,0 224,0 8,7 3,3 14,5 496,1 554,6 80,1 113,8 564,7 409,8 504,9 474,8 526,5 1182,2 28,0 225,0 8,4 3,1 14,6 497,9 554,3 80,2 113,0 570,7 409,2 506,9 478,5 524,4 1177,6 29,0 226,0 8,2 3,1 14,6 499,9 553,4 80,3 113,2 576,9 408,8 509,1 482,6 522,2 1176,8 30,0 227,0 8,0 3,1 14,5 500,5 549,5 79,9 112,1 577,1 408,0 511,5 486,1 520,0 1179,4 31,0 228,0 7,7 3,1 14,5 500,6 543,2 80,4 111,3 574,9 406,4 514,0 490,1 517,8 1177,3 32,0 229,0 7,5 3,0 14,5 501,3 536,8 80,4 111,3 574,5 405,1 516,4 494,5 515,7 1173,8 33,0 230,0 7,3 2,6 14,5 502,1 532,4 80,4 110,9 574,6 404,4 519,2 498,7 513,9 1173,6 34,0 231,0 7,1 2,3 14,6 503,2 528,6 80,6 110,3 574,7 403,8 522,0 503,1 512,2 1171,7 35,0 232,0 6,9 2,2 14,6 504,1 525,1 80,4 109,9 574,7 403,0 524,9 506,9 510,8 1170,4 36,0 233,0 6,7 2,1 14,5 505,3 523,9 80,5 109,7 574,5 402,7 528,0 511,5 509,7 1166,9 37,0 234,0 6,5 1,9 14,6 506,5 522,4 80,5 109,4 574,1 402,7 531,1 515,9 508,7 1161,8 38,0 235,0 6,3 1,7 14,6 507,7 519,5 80,5 109,3 573,7 402,1 534,6 520,1 507,9 1159,7 39,0 236,0 6,1 1,6 14,7 508,8 517,2 80,8 109,0 572,6 401,8 538,2 524,0 507,3 1157,5 40,0 237,0 6,0 1,4 14,7 510,2 516,0 80,8 108,7 571,4 402,1 541,6 528,9 507,0 1154,1 41,0 238,0 5,8 1,3 14,8 511,7 515,1 80,7 109,0 570,5 402,3 545,3 533,3 506,9 1152,4 42,0 239,0 5,6 1,3 14,7 513,1 513,7 80,9 108,6 570,0 402,6 548,6 537,2 507,1 1153,4 43,0 240,0 5,4 1,2 14,7 514,5 512,4 81,0 108,6 568,5 403,2 552,1 541,7 507,1 1154,7 44,0 241,0 5,3 1,1 14,6 515,8 512,4 81,1 108,4 567,2 403,7 555,6 545,9 506,7 1152,3 45,0 242,0 5,1 0,9 14,5 517,0 510,8 81,2 108,1 566,3 404,5 559,0 549,3 505,9 1151,7 46,0 243,0 4,9 0,7 14,5 518,2 508,7 81,5 107,9 565,4 405,4 562,3 553,1 505,1 1150,8 47,0 244,0 4,8 0,6 14,4 519,3 505,8 81,6 107,6 564,5 406,3 565,3 556,4 504,2 1151,6 48,0 245,0 4,6 0,5 14,3 520,4 503,4 81,3 107,3 563,7 407,4 568,1 559,2 503,5 1154,9 49,0 246,0 4,5 0,3 14,1 521,5 499,9 81,4 106,8 562,3 408,7 571,1 562,5 503,0 1162,0 50,0 247,0 4,4 0,1 13,8 522,6 496,6 81,3 106,7 561,1 410,0 574,0 565,5 502,5 1156,0 51,0 248,0 4,2 0,1 13,5 523,8 493,0 81,4 106,5 559,6 411,4 577,1 568,8 502,2 1148,0 52,0 249,0 4,1 0,0 13,1 524,8 489,2 81,4 105,9 558,0 412,8 580,4 571,2 501,8 1138,5 53,0 250,0 4,0 0,0 12,8 525,8 484,4 81,6 105,8 556,5 413,9 583,5 573,8 501,4 1123,1 54,0 251,0 3,9 0,0 12,5 526,7 480,1 81,4 105,5 554,4 415,2 586,7 576,3 501,1 1104,7 55,0 252,0 3,8 0,0 12,3 527,7 476,1 81,1 105,4 552,2 416,8 589,8 578,8 500,8 1093,0 56,0 253,0 3,7 0,0 12,0 528,6 471,3 81,3 105,1 549,9 418,5 592,7 581,2 500,8 1080,2 57,0 254,0 3,6 0,0 11,8 529,2 467,3 81,3 104,7 547,3 420,2 595,5 582,2 501,0 1068,6 58,0 255,0 3,5 0,0 11,6 530,0 464,3 81,2 104,5 544,4 421,8 598,2 584,5 501,2 1059,6 59,0 256,0 3,4 0,0 11,4 530,8 461,5 80,5 104,0 541,2 423,6 600,9 586,6 501,4 1059,1 60,0 257,0 3,3 0,0 11,3 531,4 457,3 81,0 103,6 538,1 425,9 603,3 588,0 501,6 1045,7 61,0 258,0 3,2 0,0 11,2 531,8 454,1 81,4 103,1 534,7 428,0 605,6 589,2 501,7 1029,9 62,0 259,0 3,1 0,0 10,8 532,3 449,7 81,5 103,2 531,4 430,2 607,5 590,7 501,4 1012,8 63,0 260,0 3,0 0,0 10,6 532,3 445,2 81,7 103,0 528,0 432,0 609,4 591,4 500,7 1005,4 64,0 261,0 3,0 0,0 10,6 532,3 441,4 81,6 102,7 524,3 433,6 611,4 592,3 499,9 997,3 65,0 262,0 2,9 0,0 10,5 532,2 438,5 81,3 102,6 520,2 435,4 613,4 592,9 499,0 990,8 66,0 263,0 2,8 0,0 10,4 532,0 437,2 81,2 102,1 516,1 437,4 615,1 593,0 498,2 992,3 67,0 264,0 2,7 0,0 10,4 531,7 436,2 81,3 101,8 512,2 438,9 616,7 593,2 497,4 994,9 68,0 265,0 2,6 0,0 10,4 531,6 432,7 82,1 102,0 508,6 441,7 617,8 592,8 497,0 990,5 69,0 266,0 2,5 0,0 10,4 531,4 432,0 81,4 101,5 504,6 443,4 618,9 592,8 497,2 988,2 70,0 267,0 2,5 0,0 10,4 531,3 429,6 81,7 101,3 501,1 445,4 619,7 592,7 497,8 979,9 71,0 268,0 2,4 0,0 10,2 531,1 426,6 82,0 101,3 497,4 447,5 620,2 591,7 498,6 976,1 72,0 269,0 2,3 0,0 10,2 531,0 426,9 81,3 101,2 493,7 449,7 620,7 591,7 499,2 978,3 73,0 270,0 2,3 0,0 10,2 530,7 425,3 81,4 101,1 490,1 451,8 621,2 591,3 499,2 965,8 74,0 271,0 2,2 0,0 10,1 530,4 423,6 80,8 101,0 486,6 454,3 621,6 590,6 498,9 968,0 75,0 272,0 2,1 0,0 10,1 529,9 421,8 80,7 100,9 483,2 455,9 622,3 589,6 498,7 946,7 76,0 273,0 2,0 0,0 10,1 529,6 420,4 81,1 100,7 479,9 457,8 623,0 588,7 498,6 941,9 77,0 274,0 2,0 0,0 10,0 529,4 417,9 81,5 100,5 477,0 459,7 623,2 588,6 498,5 933,8 78,0 275,0 1,9 0,0 9,8 528,8 415,9 81,5 100,2 473,7 460,6 623,6 588,0 498,3 923,8 79,0 276,0 1,8 0,0 9,6 528,4 413,1 81,0 100,2 470,4 462,2 624,2 587,3 498,2 911,2 80,0 277,0 1,8 0,0 9,2 528,0 410,2 81,1 100,1 467,4 463,1 624,5 586,7 498,0 900,1 81,0 278,0 1,7 0,0 8,8 527,4 407,9 81,5 99,7 464,3 464,1 624,9 585,6 498,0 896,3 82,0 279,0 1,7 0,0 8,7 526,7 406,7 81,8 99,7 461,2 464,6 625,1 584,3 498,1 895,1 83,0 280,0 1,7 0,0 8,7 526,1 404,4 81,3 99,3 458,1 465,0 624,9 584,1 498,3 900,5 84,0 281,0 1,6 0,0 8,8 525,3 401,8 81,5 99,2 454,7 465,4 624,6 583,2 498,4 896,9 85,0 282,0 1,6 0,0 8,7 524,4 399,7 81,4 98,9 451,4 465,6 624,3 581,7 498,8 887,8 86,0 283,0 1,5 0,0 8,5 523,4 397,5 81,2 98,7 448,2 465,6 624,0 580,0 499,4 876,7 87,0 284,0 1,5 0,0 8,4 522,3 395,1 81,8 98,7 444,9 465,1 623,7 578,0 500,0 869,2 88,0 285,0 1,4 0,0 8,3 521,3 393,0 81,3 98,6 441,6 464,8 623,2 576,4 500,6 863,3 89,0 286,0 1,4 0,0 8,3 520,6 389,9 81,3 98,4 438,4 465,4 622,9 574,9 501,3 857,2 90,0 287,0 1,4 0,0 8,2 519,6 387,6 81,1 98,4 434,6 465,4 622,5 573,5 502,0 852,9 91,0 288,0 1,3 0,0 8,2 518,7 385,9 81,3 98,1 430,9 465,2 622,1 572,5 502,7 848,0 92,0 289,0 1,3 0,0 8,2 517,9 383,7 81,3 98,1 427,2 465,8 621,5 571,3 503,5 843,1 93,0 290,0 1,2 0,0 8,2 516,9 383,2 81,4 98,1 423,6 465,9 621,1 569,5 504,4 840,7 94,0 291,0 1,2 0,0 8,2 516,0 382,1 81,1 97,9 420,0 465,5 620,6 568,7 505,3 836,4 95,0 292,0 1,2 0,0 8,2 515,2 380,2 81,4 97,7 416,6 465,4 619,7 568,1 506,2 832,0 96,0 293,0 1,1 0,0 8,2 514,3 378,5 81,2 97,8 413,2 465,3 619,3 566,7 506,8 828,8 97,0 294,0 1,1 0,0 8,2 513,3 377,3 81,5 97,4 410,2 464,6 618,9 565,3 507,3 825,7 98,0 295,0 1,1 0,0 8,2 512,2 376,7 80,9 97,4 406,7 464,5 618,6 563,5 507,8 824,2 99,0 296,0 1,0 0,0 8,2 511,4 376,0 81,2 97,5 403,4 464,5 618,3 562,1 508,5 823,8 100,0 297,0 1,0 0,0 8,2 510,5 375,0 81,2 97,4 400,2 463,9 617,5 561,8 509,1 822,2 101,0 298,0 0,9 0,0 8,2 509,6 373,8 81,5 97,4 396,7 464,1 616,6 560,9 509,7 819,7 102,0 299,0 0,9 0,0 8,1 508,6 372,3 81,1 97,2 393,3 464,1 615,6 559,9 510,2 818,1 103,0 300,0 0,9 0,0 8,1 507,5 372,0 81,1 97,3 390,2 463,6 614,8 558,3 510,5 815,8 104,0 301,0 0,8 0,0 8,0 506,6 370,8 81,1 97,3 387,1 463,5 613,9 557,7 510,8 815,0 105,0 302,0 0,8 0,0 8,0 505,6 369,8 81,4 97,1 384,2 463,0 613,1 556,8 510,9 814,0 106,0 303,0 0,8 0,0 8,1 504,6 370,1 81,3 97,0 381,0 462,8 612,2 555,9 511,1 813,6 107,0 304,0 0,7 0,0 8,0 503,7 370,3 81,5 97,0 378,3 462,6 611,6 554,7 511,4 812,5 108,0 305,0 0,7 0,0 8,0 502,8 369,1 81,3 97,1 375,4 462,4 610,6 553,8 511,7 811,8 Particulates Calculations Page 1 of 2 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Manufacturer: HEARTHSTONE Model: 8024 HERITAGE Overall Heating Efficiency: 70,57% 30,12 Run: 5 Combustion Efficiency: 93,37% 335,07 Project #: PI 20176 Heat Transfer Efficiency: 75,58% 9,58 Test Duration: 126 min HHV LHV Heat Output: 35 845 Btu/h 37 787 kJ/h Eff 70,57% 76,28% Heat Input: 50 792 Btu/h 53 543 kJ/h Comb Eff 93,37% 93,37% Ultimate CO2 HT Eff 75,58% 81,69% CO2-ult 19,64 Burn Duration: 2,10 h Output 37 787 kJ/h F0 Burn Rate 2,70 kg/h 1,063 Burn Rate: 5,96 lb/h 2,703 kg/h Grams CO 519 g Input 53 543 kJ/h Stack Temp: 451,6 Deg. F 233,1 Deg. C MC wet 17,67 Air Fuel Ratio (A/F) Dry Molecular Weight (Md) Dry Moles Exhaust Gas (Nr): Air Fuel Ratio (A/F) Note: In the “Input data”, "Calc. % O2", "Fuel Properties", and “Mass Balance” columns, [e], [d], [g], [a]. [b], [c], [h], [u], [w], [j], and [k] refer to their respective variables in Clauses 13.7.3 CSA B415.1 OE Calculations Page 1 of 1 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 16 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 2: Proportionality results DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 Average Average Average Average 14,94 Inlet + Inlet + 0,230 Outlet Outlet Average Average #1 #2 Tunnel Temp. Temp. 98,03 97,89 System 1 System 2 SQRT Velocity Meter 1 Meter 2 Vol.Std. Vol.Std. Delta-P PR1 PR2 Time Ft/Sec Deg. R Deg. R %% (ft3) (ft3) min (in H2O)2 15,179 538,5 538,5 0,156 0,154 0 0,2304885 15,021 538,6 538,6 98,79 98,73 0,157 0,154 1 0,2304886 15,229 538,6 538,6 97,51 97,45 0,157 0,154 2 0,2337675 15,000 538,6 538,6 99,06 99,01 0,157 0,154 3 0,2300482 15,085 538,6 538,6 98,71 98,64 0,157 0,154 4 0,2311491 14,909 538,6 538,6 99,45 99,38 0,157 0,154 5 0,2289434 14,979 538,6 538,7 98,39 98,32 0,157 0,154 6 0,2304888 14,942 538,6 538,7 98,68 98,61 0,157 0,154 7 0,2300492 15,036 538,7 538,7 98,04 97,97 0,157 0,154 8 0,2315875 14,999 538,7 538,8 98,11 98,03 0,157 0,154 9 0,2311495 14,927 538,7 538,8 98,63 98,55 0,157 0,154 10 0,230049 15,021 538,7 538,9 97,89 97,81 0,157 0,154 11 0,2315871 15,050 538,8 538,9 97,70 97,63 0,157 0,154 12 0,2320257 15,020 538,9 538,9 97,87 97,79 0,157 0,154 13 0,2315875 14,926 538,9 538,9 98,65 98,45 0,157 0,154 14 0,2300492 15,165 538,9 538,9 96,89 96,77 0,157 0,154 15 0,233769 14,995 538,9 538,9 97,87 97,88 0,156 0,154 16 0,2311494 15,005 538,9 538,9 97,88 97,81 0,156 0,154 17 0,2313608 15,049 538,9 539,0 97,75 97,45 0,157 0,154 18 0,2320258 15,020 538,9 539,0 97,84 97,46 0,157 0,154 19 0,2315877 14,814 538,9 539,0 99,15 99,16 0,157 0,154 20 0,2285 15,044 538,9 539,0 97,66 97,43 0,157 0,154 21 0,2320258 14,989 538,9 539,0 97,84 97,80 0,156 0,154 22 0,2311491 14,877 538,9 539,0 98,77 98,55 0,156 0,154 23 0,229387 14,923 538,9 539,0 98,57 98,25 0,157 0,154 24 0,2300492 14,950 539,0 539,1 98,29 98,03 0,157 0,154 25 0,2304894 14,953 539,0 539,1 98,38 97,99 0,157 0,154 26 0,2304889 15,053 539,0 539,2 97,68 97,43 0,157 0,154 27 0,232026 15,028 539,0 539,2 97,88 97,62 0,157 0,154 28 0,2315877 14,999 539,0 539,2 98,07 97,77 0,157 0,154 29 0,2311495 14,880 539,1 539,2 98,70 98,58 0,157 0,154 30 0,2293872 14,847 539,1 539,3 98,88 98,82 0,156 0,154 31 0,2289437 15,041 539,2 539,3 97,47 97,38 0,156 0,154 32 0,2320261 15,041 539,2 539,3 97,68 97,38 0,157 0,154 33 0,2320259 15,080 539,2 539,4 97,12 97,13 0,157 0,154 34 0,2326814 14,947 539,3 539,4 98,21 97,89 0,156 0,154 35 0,2304899 15,041 539,4 539,5 97,37 97,30 0,156 0,153 36 0,2320265 15,013 539,5 539,5 97,68 97,43 0,156 0,153 37 0,2315877 14,913 539,5 539,5 98,29 98,18 0,156 0,154 38 0,2300496 15,010 539,6 539,6 97,76 97,55 0,156 0,154 39 0,231588 14,984 539,6 539,6 97,70 97,54 0,156 0,153 40 0,2311499 14,909 539,7 539,7 98,23 98,28 0,156 0,153 41 0,2299233 15,023 539,7 539,7 97,76 97,44 0,156 0,153 42 0,2315879 14,997 539,8 539,7 98,04 97,86 0,157 0,154 43 0,2311495 15,056 539,8 539,7 97,64 97,51 0,157 0,154 44 0,2320268 14,999 539,8 539,7 97,80 98,08 0,156 0,154 45 0,2311495 15,006 539,8 539,7 98,01 97,67 0,156 0,154 46 0,2311499 15,110 539,9 539,8 97,32 97,10 0,156 0,153 47 0,2326816 14,943 539,9 539,8 98,59 98,36 0,156 0,153 48 0,23005 15,075 539,9 539,8 97,63 97,64 0,156 0,154 49 0,2320261 14,846 539,9 539,8 99,34 98,85 0,156 0,154 50 0,2285008 15,124 539,9 539,9 97,37 97,39 0,156 0,153 51 0,2326818 15,022 539,9 539,9 98,15 97,89 0,156 0,154 52 0,2311498 14,952 539,9 539,9 98,40 98,37 0,156 0,154 53 0,2300495 Proportional Rates Particulates Calculations Page 1 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 14,912 540,0 539,9 98,80 98,77 0,156 0,154 54 0,229387 14,975 540,0 539,9 98,36 98,07 0,156 0,154 55 0,2304899 15,055 540,0 540,0 97,88 97,66 0,156 0,153 56 0,2315877 15,025 540,0 540,0 97,86 97,60 0,156 0,153 57 0,2311499 15,085 540,0 540,0 97,45 97,58 0,156 0,153 58 0,2320265 15,201 540,0 540,0 97,03 96,65 0,156 0,153 59 0,233769 15,063 540,1 540,0 98,01 97,98 0,156 0,153 60 0,2315882 15,037 540,1 540,0 98,00 98,04 0,156 0,154 61 0,2311501 15,064 540,1 540,1 97,69 98,13 0,156 0,154 62 0,2315881 14,994 540,1 540,1 98,40 98,34 0,156 0,154 63 0,2304888 14,928 540,1 540,1 98,83 99,10 0,156 0,154 64 0,229388 14,969 540,1 540,1 98,76 98,45 0,156 0,154 65 0,2300499 14,999 540,2 540,1 98,45 98,28 0,156 0,153 66 0,2304898 14,985 540,2 540,2 98,58 98,38 0,156 0,153 67 0,2303129 14,966 540,2 540,2 98,54 98,59 0,156 0,154 68 0,2300504 14,993 540,3 540,2 98,40 98,19 0,156 0,154 69 0,2304902 14,865 540,3 540,3 99,10 99,03 0,156 0,153 70 0,2285011 15,069 540,3 540,3 97,96 97,83 0,156 0,153 71 0,2315885 15,071 540,3 540,3 98,12 97,77 0,156 0,153 72 0,2315888 15,071 540,4 540,3 98,10 97,79 0,157 0,153 73 0,2315887 15,043 540,4 540,3 98,06 98,18 0,156 0,154 74 0,2311561 15,101 540,4 540,4 97,82 97,64 0,156 0,154 75 0,2320267 14,826 540,4 540,4 99,56 99,38 0,156 0,153 76 0,2278329 15,041 540,5 540,4 98,06 98,00 0,156 0,153 77 0,2311506 14,972 540,5 540,5 98,56 98,28 0,156 0,153 78 0,2300505 14,999 540,5 540,5 98,30 98,19 0,156 0,153 79 0,2304905 14,889 540,5 540,5 99,28 98,96 0,156 0,153 80 0,2288312 15,042 540,6 540,5 98,18 98,25 0,156 0,154 81 0,2311504 14,897 540,6 540,5 99,11 99,13 0,156 0,154 82 0,228944 14,924 540,6 540,5 98,92 98,88 0,156 0,154 83 0,2293876 14,968 540,6 540,6 98,56 98,42 0,156 0,154 84 0,2300508 14,826 540,6 540,6 99,47 99,39 0,156 0,153 85 0,2278332 14,969 540,6 540,6 98,64 98,50 0,156 0,153 86 0,2300506 14,972 540,7 540,6 98,59 98,43 0,156 0,153 87 0,2300508 14,923 540,7 540,7 98,95 98,72 0,156 0,153 88 0,2293608 14,897 540,7 540,7 99,15 98,87 0,156 0,153 89 0,2289448 14,897 540,7 540,7 99,10 98,88 0,156 0,153 90 0,2289453 14,870 540,7 540,7 99,30 99,11 0,156 0,153 91 0,2285015 15,001 540,8 540,8 98,61 98,28 0,156 0,153 92 0,2304907 14,897 540,8 540,8 99,05 98,91 0,156 0,153 93 0,2289451 14,969 540,8 540,8 98,65 98,32 0,156 0,153 94 0,2300508 15,072 540,9 540,8 98,03 97,78 0,156 0,153 95 0,2315892 14,969 540,9 540,9 98,44 98,38 0,156 0,153 96 0,2300506 14,995 540,9 540,9 98,38 98,48 0,156 0,154 97 0,2304916 14,998 541,0 541,0 98,67 98,33 0,156 0,154 98 0,2304913 15,045 541,1 541,0 98,13 98,08 0,156 0,154 99 0,2311514 14,900 541,1 541,0 98,98 98,97 0,156 0,154 100 0,2289455 14,996 541,1 541,0 98,34 98,20 0,156 0,153 101 0,230491 14,996 541,1 541,0 98,45 98,13 0,156 0,153 102 0,2304936 14,895 541,1 541,0 98,86 98,98 0,156 0,153 103 0,2289447 14,997 541,1 541,1 98,36 98,03 0,156 0,153 104 0,2304907 14,891 541,2 541,1 99,06 99,00 0,156 0,153 105 0,228945 14,862 541,2 541,1 99,08 99,04 0,156 0,154 106 0,2285018 15,038 541,2 541,1 98,09 97,75 0,156 0,153 107 0,2311514 14,825 541,2 541,1 99,61 99,45 0,156 0,153 108 0,2278344 15,067 541,2 541,2 98,00 97,74 0,156 0,153 109 0,2315897 14,968 541,3 541,2 98,59 98,39 0,156 0,153 110 0,2300513 14,993 541,3 541,2 98,36 98,22 0,156 0,153 111 0,2304919 14,965 541,3 541,2 98,69 98,42 0,156 0,153 112 0,2300514 14,889 541,3 541,3 99,10 99,04 0,156 0,154 113 0,2289423 14,962 541,4 541,3 98,35 98,41 0,156 0,154 114 0,2300511 Particulates Calculations Page 2 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 14,962 541,4 541,3 98,47 98,69 0,156 0,154 115 0,2300433 14,990 541,4 541,3 98,19 98,15 0,156 0,154 116 0,230491 14,989 541,4 541,3 98,26 98,23 0,156 0,153 117 0,2304912 14,853 541,5 541,3 99,10 99,03 0,156 0,153 118 0,2285028 14,952 541,5 541,4 98,39 98,47 0,156 0,154 119 0,2300515 14,982 541,5 541,4 98,16 98,11 0,156 0,154 120 0,2304915 14,985 541,5 541,4 98,28 98,22 0,156 0,153 121 0,230492 14,963 541,5 541,4 98,53 98,44 0,156 0,154 122 0,2300518 14,890 541,5 541,4 98,79 98,74 0,156 0,153 123 0,2289457 14,961 541,5 541,4 98,46 98,33 0,156 0,153 124 0,2300515 14,920 541,6 541,4 98,83 98,86 0,156 0,154 125 0,2293888 14,861 541,6 541,5 99,18 99,00 0,156 0,154 126 0,2285022 14,990 541,6 541,5 98,16 98,29 0,156 0,153 127 0,230492 14,960 541,6 541,5 98,31 98,45 0,156 0,154 128 0,2300515 14,890 541,7 541,5 98,95 98,75 0,156 0,153 129 0,2289456 14,962 541,7 541,6 98,39 98,46 0,156 0,153 130 0,2300669 15,031 541,7 541,6 97,80 97,74 0,156 0,153 131 0,2311521 15,063 541,7 541,6 97,84 97,67 0,156 0,153 132 0,2315899 15,085 541,8 541,6 97,49 97,30 0,156 0,153 133 0,2320289 15,130 541,9 541,7 97,23 97,14 0,156 0,153 134 0,2326838 14,855 541,9 541,7 98,97 99,20 0,156 0,153 135 0,2285029 14,805 541,9 541,7 99,38 99,15 0,156 0,153 136 0,227729 14,912 541,9 541,7 98,73 98,50 0,156 0,153 137 0,2293897 14,910 541,9 541,7 98,61 98,53 0,156 0,153 138 0,2293891 14,979 541,9 541,7 97,88 98,05 0,156 0,153 139 0,2304923 14,880 541,9 541,7 98,78 98,54 0,156 0,153 140 0,2289461 14,948 541,9 541,8 98,11 98,39 0,156 0,153 141 0,2300526 15,075 541,9 541,8 97,29 97,12 0,156 0,153 142 0,2320293 14,974 541,9 541,8 98,12 97,84 0,156 0,153 143 0,2304929 14,945 541,9 541,8 98,32 98,26 0,156 0,153 144 0,2300526 14,977 541,9 541,8 98,12 97,82 0,156 0,153 145 0,2304921 15,017 541,9 541,8 97,77 97,72 0,156 0,153 146 0,2311521 15,013 541,9 541,8 97,86 97,54 0,156 0,153 147 0,2311502 14,897 542,0 541,9 98,32 98,45 0,156 0,153 148 0,2293892 15,012 542,0 541,9 98,07 97,62 0,156 0,153 149 0,2311462 14,968 542,0 541,9 98,07 98,06 0,156 0,153 150 0,2304923 14,966 542,0 541,9 97,90 97,84 0,156 0,153 151 0,2304926 14,892 542,0 541,9 98,40 98,45 0,156 0,153 152 0,2293893 14,935 542,0 541,9 98,30 97,88 0,156 0,153 153 0,2300522 15,008 542,0 541,9 97,72 97,37 0,156 0,153 154 0,2311526 14,894 542,0 541,9 98,52 98,35 0,156 0,153 155 0,2293895 14,935 542,0 541,9 98,37 98,16 0,156 0,153 156 0,2300493 14,963 542,0 541,9 97,95 97,66 0,156 0,153 157 0,2304928 15,029 542,0 541,9 97,51 97,35 0,156 0,153 158 0,2315719 14,911 542,0 541,9 98,31 98,39 0,156 0,153 159 0,2296801 14,937 542,0 541,9 98,13 98,05 0,156 0,153 160 0,2300518 15,006 542,0 541,9 97,68 97,51 0,156 0,153 161 0,2311526 15,034 542,0 541,9 97,47 97,14 0,156 0,153 162 0,2315898 15,035 542,0 541,9 97,51 97,33 0,156 0,153 163 0,2315904 15,007 542,0 541,9 97,61 97,44 0,156 0,153 164 0,2311522 14,861 542,0 542,0 98,53 98,45 0,156 0,153 165 0,2289462 14,893 542,0 542,0 98,36 98,24 0,156 0,153 166 0,2294838 15,029 542,0 542,0 97,46 97,41 0,156 0,153 167 0,2315902 14,896 542,0 542,0 98,16 98,13 0,156 0,153 168 0,2295471 14,787 542,0 542,0 99,17 98,86 0,156 0,153 169 0,2278354 15,032 542,0 542,0 97,33 97,24 0,156 0,153 170 0,2315906 14,859 542,0 542,0 98,51 98,43 0,156 0,153 171 0,2289462 14,958 542,0 542,0 97,83 97,69 0,156 0,153 172 0,2304927 14,959 542,0 542,0 97,97 97,64 0,156 0,153 173 0,2304923 14,859 542,1 542,0 98,58 98,41 0,156 0,153 174 0,2289466 14,934 542,1 542,0 98,04 97,96 0,156 0,153 175 0,2300515 Particulates Calculations Page 3 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 15,008 542,1 542,0 97,46 97,51 0,156 0,153 176 0,2311527 15,011 542,1 542,0 97,60 97,46 0,156 0,153 177 0,2311524 14,840 542,1 542,1 98,78 98,83 0,156 0,153 178 0,2285033 14,939 542,1 542,1 98,05 98,05 0,156 0,153 179 0,2300525 15,008 542,1 542,1 97,52 97,67 0,156 0,153 180 0,2311524 14,866 542,1 542,1 98,54 98,68 0,156 0,153 181 0,2289466 14,942 542,1 542,1 98,17 98,15 0,156 0,153 182 0,2300524 14,837 542,1 542,1 98,82 98,65 0,156 0,153 183 0,2285029 14,890 542,1 542,1 98,38 98,15 0,156 0,153 184 0,2293898 15,037 542,1 542,1 97,53 97,19 0,156 0,153 185 0,2315898 14,959 542,2 542,1 98,05 97,74 0,156 0,153 186 0,2304919 15,035 542,1 542,1 97,48 97,28 0,156 0,153 187 0,2315901 14,964 542,2 542,1 97,93 97,91 0,156 0,153 188 0,2304923 15,040 542,1 542,1 97,40 97,21 0,156 0,153 189 0,2315905 14,934 542,2 542,2 97,87 97,85 0,156 0,153 190 0,2300523 15,063 542,2 542,2 97,16 97,12 0,156 0,153 191 0,2320288 15,004 542,2 542,2 97,61 97,49 0,156 0,153 192 0,2311528 15,006 542,2 542,2 97,46 97,65 0,156 0,153 193 0,2311527 14,862 542,2 542,1 98,42 98,54 0,156 0,153 194 0,2289463 14,964 542,2 542,1 97,92 97,69 0,156 0,153 195 0,2304927 14,895 542,2 542,1 98,35 98,22 0,156 0,153 196 0,2293897 14,892 542,2 542,1 98,29 98,03 0,156 0,153 197 0,2293871 14,971 542,2 542,1 97,91 97,76 0,156 0,153 198 0,2306262 14,829 542,2 542,2 98,73 98,57 0,156 0,153 199 0,2284987 14,964 542,2 542,2 97,85 97,69 0,156 0,153 200 0,2304927 14,961 542,2 542,2 97,75 97,71 0,156 0,153 201 0,2304923 14,926 542,2 542,2 98,20 97,80 0,156 0,153 202 0,229997 14,886 542,2 542,2 98,46 97,95 0,156 0,153 203 0,2294067 14,854 542,1 542,2 98,46 98,15 0,156 0,153 204 0,228946 14,960 542,1 542,2 97,85 97,69 0,156 0,153 205 0,2304923 14,960 542,1 542,2 97,90 97,79 0,156 0,153 206 0,2304923 14,885 542,2 542,2 98,13 98,00 0,156 0,153 207 0,2293898 15,002 542,2 542,3 97,63 97,47 0,156 0,153 208 0,2311528 14,855 542,2 542,2 98,52 98,41 0,156 0,153 209 0,2289468 15,031 542,2 542,2 97,47 97,29 0,156 0,153 210 0,2315906 14,955 542,2 542,2 97,60 97,46 0,156 0,153 211 0,2304924 14,858 542,2 542,2 98,53 98,24 0,156 0,153 212 0,2289428 14,825 542,2 542,2 98,46 98,38 0,156 0,153 213 0,2285035 14,927 542,2 542,3 97,88 97,77 0,155 0,153 214 0,2300526 14,953 542,2 542,3 97,69 97,56 0,156 0,153 215 0,2304927 14,956 542,2 542,3 97,82 97,45 0,156 0,153 216 0,2304929 14,927 542,2 542,3 98,02 97,85 0,156 0,153 217 0,2300533 14,784 542,2 542,2 98,93 98,94 0,156 0,153 218 0,2278356 14,954 542,1 542,2 97,80 97,72 0,156 0,153 219 0,2304924 14,925 542,1 542,2 97,89 97,64 0,156 0,153 220 0,2300524 14,882 542,1 542,2 98,20 98,16 0,156 0,153 221 0,2293898 14,818 542,1 542,2 98,46 98,29 0,156 0,153 222 0,2285037 15,014 542,1 542,2 97,18 96,95 0,156 0,153 223 0,2315907 14,815 542,2 542,3 98,64 98,18 0,156 0,153 224 0,2285031 15,017 542,3 542,3 97,43 97,13 0,156 0,153 225 0,2315914 14,876 542,3 542,3 98,04 97,86 0,156 0,153 226 0,2293903 14,948 542,3 542,3 97,52 97,51 0,155 0,153 227 0,2304929 14,918 542,3 542,3 97,83 97,61 0,155 0,153 228 0,2300531 14,846 542,2 542,3 98,20 98,01 0,156 0,153 229 0,2289465 15,020 542,2 542,3 97,22 97,09 0,156 0,153 230 0,2315909 14,747 542,2 542,3 99,04 98,79 0,156 0,153 231 0,2273902 14,920 542,2 542,3 97,93 97,54 0,156 0,153 232 0,2300526 14,918 542,3 542,3 97,79 97,90 0,156 0,153 233 0,2300521 14,920 542,2 542,3 97,77 97,58 0,155 0,153 234 0,2300527 14,924 542,2 542,3 97,78 98,01 0,155 0,153 235 0,2300525 14,879 542,2 542,3 98,07 97,99 0,155 0,153 236 0,2293898 Particulates Calculations Page 4 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 14,920 542,2 542,3 97,85 97,56 0,156 0,153 237 0,2300525 14,951 542,2 542,3 97,61 97,56 0,156 0,153 238 0,2304927 14,845 542,2 542,3 98,24 98,23 0,155 0,153 239 0,2289467 14,923 542,2 542,3 97,71 97,57 0,155 0,153 240 0,2300524 14,948 542,2 542,3 97,71 97,78 0,155 0,153 241 0,2304929 14,921 542,2 542,3 97,97 97,80 0,156 0,153 242 0,2300523 14,922 542,2 542,2 97,72 97,62 0,156 0,153 243 0,230052 14,879 542,2 542,2 98,03 98,05 0,155 0,153 244 0,2293898 14,878 542,1 542,2 98,10 97,99 0,155 0,153 245 0,2293897 15,018 542,1 542,3 97,34 97,04 0,156 0,153 246 0,2315909 14,989 542,2 542,2 97,33 97,35 0,156 0,153 247 0,2311532 14,917 542,1 542,2 97,88 97,59 0,156 0,153 248 0,2300521 14,874 542,1 542,3 98,27 98,16 0,156 0,153 249 0,2293899 14,917 542,1 542,3 97,93 97,77 0,156 0,153 250 0,2300527 14,945 542,1 542,2 97,78 97,53 0,156 0,153 251 0,2304931 15,044 542,1 542,3 97,09 96,83 0,156 0,153 252 0,2320204 15,017 542,2 542,3 97,09 96,97 0,156 0,153 253 0,2315906 14,774 542,1 542,2 98,91 98,75 0,156 0,153 254 0,2278357 14,912 542,1 542,3 97,87 97,66 0,156 0,153 255 0,2300524 15,039 542,2 542,3 96,82 96,78 0,156 0,153 256 0,2320295 14,912 542,2 542,3 97,75 97,53 0,155 0,153 257 0,230052 15,010 542,2 542,3 97,04 96,80 0,155 0,153 258 0,231591 14,942 542,2 542,3 97,68 97,54 0,156 0,153 259 0,2304929 14,940 542,2 542,3 97,65 97,55 0,156 0,153 260 0,2304928 14,985 542,2 542,3 97,24 97,10 0,156 0,153 261 0,2311529 15,012 542,2 542,3 97,27 97,03 0,156 0,153 262 0,2315906 15,010 542,2 542,3 97,35 97,08 0,156 0,153 263 0,2315908 14,908 542,2 542,3 97,79 97,67 0,156 0,153 264 0,2300526 15,012 542,2 542,3 97,32 97,01 0,156 0,153 265 0,2315904 14,870 542,2 542,3 97,98 97,85 0,156 0,153 266 0,2293894 15,011 542,2 542,3 97,13 97,18 0,155 0,153 267 0,2315906 14,809 542,1 542,3 98,50 98,24 0,156 0,153 268 0,2285033 14,905 542,2 542,3 97,46 97,38 0,155 0,153 269 0,2300524 14,939 542,1 542,3 97,68 97,52 0,155 0,153 270 0,2304928 14,935 542,1 542,3 97,58 97,39 0,156 0,153 271 0,2304932 14,910 542,1 542,3 97,87 97,69 0,156 0,153 272 0,2300525 14,836 542,1 542,3 98,12 98,12 0,156 0,153 273 0,2289472 14,981 542,1 542,3 97,32 97,13 0,155 0,153 274 0,2311529 14,908 542,1 542,3 97,72 97,72 0,156 0,153 275 0,2300531 14,907 542,1 542,3 97,82 97,48 0,156 0,153 276 0,2300531 14,909 542,1 542,3 97,92 97,78 0,156 0,153 277 0,2300526 14,982 542,1 542,3 97,51 97,32 0,156 0,153 278 0,2311526 15,008 542,1 542,2 97,20 96,85 0,156 0,153 279 0,231591 14,935 542,1 542,2 97,54 97,28 0,156 0,153 280 0,2304931 14,904 542,0 542,2 97,82 97,50 0,156 0,153 281 0,2300528 14,977 542,0 542,2 97,34 97,05 0,156 0,153 282 0,231153 14,935 542,0 542,2 97,57 97,53 0,156 0,153 283 0,2304933 14,802 542,0 542,2 98,33 98,07 0,156 0,153 284 0,2285034 14,803 542,1 542,2 98,45 98,14 0,156 0,153 285 0,2285031 14,936 542,1 542,3 97,62 97,47 0,156 0,153 286 0,2304925 14,933 542,1 542,3 97,60 97,34 0,156 0,153 287 0,2304927 14,761 542,1 542,3 98,71 98,92 0,156 0,153 288 0,2278357 14,975 542,1 542,3 97,30 97,10 0,156 0,153 289 0,2311526 14,832 542,1 542,3 98,25 98,41 0,156 0,153 290 0,2289459 14,976 542,1 542,2 97,37 97,13 0,156 0,153 291 0,2311527 14,832 542,1 542,2 98,27 98,04 0,156 0,153 292 0,2289465 14,732 542,1 542,2 99,04 98,80 0,156 0,153 293 0,2273902 14,975 542,0 542,2 97,23 97,29 0,156 0,153 294 0,2311523 14,931 542,1 542,2 97,38 97,51 0,155 0,153 295 0,2304929 15,028 542,0 542,2 96,98 96,73 0,156 0,153 296 0,2320292 14,860 542,1 542,2 98,03 98,02 0,156 0,153 297 0,2293901 Particulates Calculations Page 5 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 15,001 542,1 542,2 96,96 97,19 0,156 0,153 298 0,2315909 14,833 542,0 542,2 98,30 98,25 0,156 0,153 299 0,2289467 14,973 542,0 542,1 97,28 97,24 0,156 0,153 300 0,2311532 14,978 542,0 542,1 97,19 97,38 0,156 0,153 301 0,2311532 14,833 542,0 542,1 98,26 98,11 0,156 0,153 302 0,2289468 14,977 542,0 542,1 97,39 97,13 0,156 0,153 303 0,231153 14,934 542,0 542,1 97,69 97,33 0,156 0,153 304 0,2304928 14,906 542,0 542,1 98,01 97,61 0,156 0,153 305 0,2300528 14,904 542,0 542,1 97,57 97,60 0,156 0,153 306 0,2300526 14,934 542,0 542,1 97,64 97,40 0,156 0,153 307 0,2304931 14,863 542,0 542,2 98,11 97,90 0,156 0,153 308 0,2293905 15,032 542,0 542,2 96,95 96,78 0,156 0,153 309 0,2320293 14,834 542,0 542,2 98,33 98,12 0,156 0,153 310 0,228947 14,934 542,0 542,2 97,49 97,51 0,156 0,153 311 0,2304935 14,975 542,0 542,2 97,37 97,04 0,156 0,153 312 0,2311531 14,932 542,0 542,1 97,57 97,29 0,156 0,153 313 0,2304928 14,905 542,0 542,1 97,70 97,60 0,156 0,153 314 0,2300531 14,928 542,0 542,1 97,56 97,21 0,156 0,153 315 0,2304934 14,905 541,9 542,1 97,89 97,68 0,156 0,153 316 0,2300533 15,034 541,9 542,1 96,97 96,79 0,156 0,153 317 0,2320297 14,801 542,0 542,1 98,47 98,23 0,156 0,153 318 0,2285036 14,857 542,0 542,1 98,06 98,02 0,156 0,153 319 0,2293897 14,929 541,9 542,1 97,39 97,39 0,156 0,153 320 0,2304931 14,832 542,0 542,1 98,29 97,99 0,156 0,153 321 0,2289469 14,931 542,0 542,1 97,75 97,49 0,156 0,153 322 0,2304926 14,931 542,0 542,1 97,64 97,26 0,156 0,153 323 0,2304928 15,001 541,9 542,1 97,10 96,87 0,156 0,153 324 0,2315906 14,832 541,9 542,1 98,34 98,10 0,156 0,153 325 0,2289489 14,971 542,0 542,1 97,27 97,24 0,156 0,153 326 0,2311533 14,858 542,0 542,2 98,08 97,75 0,156 0,153 327 0,2293899 14,831 542,0 542,1 98,27 98,05 0,156 0,153 328 0,2289472 14,931 542,0 542,2 97,57 97,10 0,156 0,153 329 0,2304933 14,972 542,0 542,2 97,18 96,88 0,156 0,152 330 0,231153 14,974 542,0 542,2 97,25 97,25 0,156 0,153 331 0,2311529 14,859 542,0 542,2 97,84 97,81 0,155 0,153 332 0,2293901 14,902 542,0 542,2 97,74 97,61 0,155 0,153 333 0,2300531 14,900 542,0 542,2 97,82 97,31 0,156 0,153 334 0,2300532 14,902 542,0 542,2 97,81 97,40 0,156 0,152 335 0,2300528 14,902 542,1 542,2 97,60 97,74 0,156 0,153 336 0,2300533 14,931 542,0 542,2 97,69 97,42 0,156 0,153 337 0,2304932 14,999 542,0 542,2 97,04 97,20 0,156 0,153 338 0,2315913 14,858 542,0 542,2 97,98 97,87 0,156 0,153 339 0,2293905 14,831 542,0 542,2 98,28 98,19 0,156 0,153 340 0,228947 14,930 542,0 542,2 97,49 97,46 0,156 0,153 341 0,2304932 15,003 542,0 542,2 97,09 96,83 0,156 0,153 342 0,231591 15,005 542,0 542,2 97,03 96,89 0,156 0,153 343 0,2315906 14,934 542,0 542,2 97,62 97,56 0,156 0,153 344 0,2304929 14,834 542,0 542,2 98,22 98,25 0,156 0,153 345 0,2289469 14,931 542,0 542,2 97,47 97,46 0,156 0,153 346 0,2304928 14,902 542,0 542,2 97,85 97,83 0,156 0,153 347 0,2300528 14,974 542,0 542,2 97,22 97,21 0,156 0,153 348 0,2311525 14,830 541,9 542,2 98,11 97,86 0,155 0,153 349 0,2289468 14,904 541,9 542,2 97,83 97,59 0,156 0,153 350 0,2300529 14,860 541,9 542,1 98,21 97,75 0,156 0,153 351 0,2293896 14,802 541,9 542,1 98,31 98,06 0,156 0,153 352 0,2285032 14,860 541,9 542,2 98,14 97,88 0,156 0,153 353 0,2293902 14,975 541,9 542,1 97,40 96,96 0,156 0,153 354 0,2311531 14,658 541,9 542,2 99,56 99,38 0,156 0,153 355 0,2262717 14,730 541,9 542,2 98,82 98,82 0,156 0,153 356 0,2273904 14,758 541,9 542,1 98,59 98,66 0,155 0,153 357 0,2278358 14,931 541,9 542,1 97,76 97,51 0,156 0,153 358 0,2304927 Particulates Calculations Page 6 of 7 DATA 2018-09-10 EPA PI 20176 RUN1 CAT1 14,931 541,9 542,1 97,64 97,28 0,156 0,153 359 0,2304931 14,974 541,9 542,1 97,27 97,40 0,156 0,153 360 0,231153 14,731 541,9 542,1 98,88 98,81 0,156 0,153 361 0,2273914 14,857 541,9 542,1 98,03 98,03 0,156 0,153 362 0,2293894 14,801 541,9 542,2 98,60 98,23 0,156 0,153 363 0,2285036 14,902 541,9 542,2 97,77 97,58 0,156 0,153 364 0,230053 15,002 541,9 542,2 97,21 96,92 0,156 0,153 365 0,2315907 14,973 541,9 542,2 97,18 97,08 0,156 0,153 366 0,2311524 14,860 542,0 542,2 98,10 97,68 0,156 0,153 367 0,2293897 14,933 542,0 542,2 97,63 97,44 0,156 0,153 368 0,2304929 14,831 542,0 542,2 98,38 98,37 0,156 0,153 369 0,2289475 14,977 542,0 542,2 97,23 97,20 0,156 0,153 370 0,2311881 14,803 541,9 542,2 98,48 98,14 0,156 0,153 371 0,2285032 14,864 541,9 542,2 98,26 97,75 0,156 0,153 372 0,2293899 14,977 541,9 542,2 97,35 97,16 0,156 0,153 373 0,2311527 14,934 541,9 542,2 97,56 97,67 0,156 0,153 374 0,2304929 14,862 541,9 542,2 98,01 97,82 0,156 0,153 375 0,22939 14,934 541,9 542,2 97,60 97,52 0,156 0,153 376 0,230493 14,932 541,9 542,2 97,66 97,25 0,156 0,153 377 0,2304926 14,977 541,9 542,2 97,26 97,03 0,156 0,153 378 0,2311532 14,934 542,0 542,2 97,63 97,36 0,156 0,153 379 0,2304933 Particulates Calculations Page 7 of 7 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 Average Average Average Average 15,63 Inlet + Inlet + 0,238 Outlet Outlet Average Average #1 #2 Tunnel Temp. Temp. 98,51 98,29 System 1 System 2 SQRT Velocity Meter 1 Meter 2 Vol.Std. Vol.Std. Delta-P PR1 PR2 Time Ft/Sec Deg. R Deg. R %% (ft3) (ft3) min (in H2O)2 15,754 542,6 542,6 0,153 0,150 0 0,237863 15,573 542,7 542,6 100,09 99,90 0,153 0,150 1 0,2367931 15,583 542,7 542,6 100,12 99,90 0,153 0,150 2 0,2367936 15,607 542,7 542,6 100,27 100,25 0,153 0,150 3 0,2367939 15,705 542,6 542,6 99,93 99,84 0,153 0,150 4 0,2378632 15,719 542,6 542,6 99,28 98,91 0,153 0,150 5 0,2389277 15,687 542,6 542,7 99,05 98,75 0,153 0,150 6 0,2389281 15,510 542,6 542,7 99,97 99,85 0,153 0,150 7 0,236365 15,536 542,7 542,7 99,79 99,42 0,153 0,150 8 0,2367945 15,768 542,7 542,7 98,33 98,20 0,153 0,150 9 0,2404105 15,697 542,7 542,7 98,62 98,41 0,153 0,150 10 0,2393514 15,669 542,8 542,8 98,80 98,80 0,153 0,150 11 0,238928 15,671 542,8 542,8 98,73 98,74 0,153 0,150 12 0,2389281 15,533 542,8 542,8 99,91 99,53 0,153 0,150 13 0,2367936 15,699 542,8 542,8 98,66 98,43 0,153 0,150 14 0,2393521 15,701 542,9 542,9 98,61 98,31 0,153 0,150 15 0,2393523 15,565 542,9 542,9 99,45 99,48 0,153 0,150 16 0,2374359 15,573 542,9 542,9 99,45 99,54 0,153 0,150 17 0,2374362 15,461 543,0 542,9 100,04 99,88 0,153 0,150 18 0,2357205 15,610 543,0 543,0 99,42 99,14 0,153 0,150 19 0,2378644 15,545 543,1 543,0 99,86 99,39 0,153 0,150 20 0,2367944 15,688 543,1 543,0 98,84 98,66 0,153 0,150 21 0,2389285 15,755 543,1 543,1 98,51 98,13 0,153 0,150 22 0,2399877 15,694 543,2 543,1 98,82 98,84 0,153 0,150 23 0,2389282 15,623 543,2 543,1 99,49 99,04 0,153 0,150 24 0,2378642 15,527 543,2 543,2 99,96 99,83 0,153 0,150 25 0,2363661 15,550 543,3 543,2 99,73 99,66 0,152 0,150 26 0,2367941 15,552 543,3 543,2 99,79 99,65 0,153 0,150 27 0,2367941 15,550 543,3 543,3 99,96 99,70 0,153 0,150 28 0,2366254 15,704 543,4 543,3 98,93 98,60 0,153 0,150 29 0,2389286 15,703 543,4 543,3 98,96 98,88 0,153 0,150 30 0,2389279 15,554 543,5 543,4 99,83 99,66 0,153 0,150 31 0,2367943 15,597 543,5 543,4 99,45 99,06 0,153 0,150 32 0,2374362 15,487 543,5 543,4 100,16 99,88 0,152 0,150 33 0,2357205 15,487 543,6 543,5 100,25 99,97 0,152 0,150 34 0,2357205 15,558 543,7 543,5 99,66 99,75 0,152 0,150 35 0,2367945 15,533 543,7 543,6 99,83 99,86 0,152 0,150 36 0,2363659 15,700 543,7 543,6 98,90 98,71 0,152 0,150 37 0,2389283 15,530 543,8 543,7 100,16 99,67 0,153 0,150 38 0,2363655 15,728 543,9 543,8 98,65 98,47 0,153 0,150 39 0,2393526 15,635 543,9 543,8 99,30 99,18 0,152 0,150 40 0,237864 15,634 543,9 543,9 99,33 99,28 0,152 0,150 41 0,2378643 15,609 544,0 543,9 99,46 99,27 0,152 0,150 42 0,2374365 15,638 544,0 544,0 99,33 98,91 0,152 0,150 43 0,2378639 15,570 544,0 544,0 99,94 99,42 0,153 0,149 44 0,2367942 15,503 544,1 544,1 100,43 100,22 0,153 0,150 45 0,2357201 15,505 544,2 544,1 100,28 100,13 0,153 0,150 46 0,2357206 15,620 544,2 544,1 99,43 99,41 0,152 0,150 47 0,2374365 15,547 544,2 544,2 100,11 99,83 0,152 0,150 48 0,2363661 15,478 544,3 544,2 100,49 100,26 0,152 0,150 49 0,2352901 15,719 544,3 544,3 98,94 99,02 0,152 0,150 50 0,2389283 15,621 544,3 544,3 99,62 99,45 0,152 0,150 51 0,2374366 15,713 544,4 544,4 98,93 98,84 0,152 0,150 52 0,2389287 15,646 544,4 544,4 99,40 99,15 0,152 0,150 53 0,2378644 Proportional Rates Particulates Calculations Page 1 of 6 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 15,648 544,4 544,4 99,28 99,05 0,152 0,150 54 0,2378651 15,719 544,4 544,5 99,11 98,61 0,152 0,150 55 0,2389293 15,647 544,5 544,5 99,48 99,12 0,153 0,150 56 0,2378652 15,623 544,5 544,5 99,50 99,50 0,152 0,150 57 0,2374375 15,650 544,6 544,6 99,37 99,33 0,152 0,150 58 0,2378651 15,551 544,6 544,6 99,94 99,70 0,152 0,150 59 0,2363664 15,625 544,6 544,6 99,57 99,42 0,152 0,150 60 0,2374424 15,622 544,6 544,7 99,61 99,45 0,152 0,150 61 0,2374378 15,621 544,6 544,7 99,76 99,24 0,153 0,150 62 0,2374379 15,620 544,7 544,7 99,45 99,25 0,152 0,150 63 0,2374379 15,718 544,7 544,7 98,83 98,85 0,152 0,150 64 0,2389302 15,509 544,7 544,8 100,28 100,04 0,152 0,150 65 0,2357215 15,721 544,8 544,8 98,92 98,61 0,152 0,150 66 0,2389297 15,631 544,8 544,8 99,58 99,17 0,152 0,150 67 0,2375295 15,723 544,8 544,9 98,95 98,66 0,152 0,150 68 0,2389296 15,654 544,8 544,9 99,33 99,23 0,152 0,150 69 0,237865 15,725 544,9 544,9 98,84 98,57 0,152 0,150 70 0,2389296 15,653 544,9 545,0 99,31 99,32 0,152 0,150 71 0,2378654 15,723 545,0 545,0 98,89 98,78 0,152 0,150 72 0,23893 15,583 545,0 545,1 99,66 99,68 0,152 0,150 73 0,2367954 15,625 545,1 545,1 99,49 99,41 0,152 0,150 74 0,2374408 15,585 545,1 545,2 99,77 99,42 0,152 0,150 75 0,2367958 15,750 545,1 545,2 98,72 98,40 0,152 0,149 76 0,2393547 15,722 545,2 545,2 98,63 98,57 0,152 0,149 77 0,2389308 15,582 545,3 545,3 99,71 99,32 0,152 0,149 78 0,2367967 15,654 545,4 545,4 99,19 99,12 0,152 0,149 79 0,2378245 15,727 545,5 545,4 98,88 98,54 0,152 0,149 80 0,2389303 15,728 545,5 545,5 99,04 98,54 0,152 0,149 81 0,2389308 15,728 545,6 545,5 98,86 98,59 0,152 0,149 82 0,2389308 15,584 545,6 545,6 99,64 99,23 0,152 0,149 83 0,2367969 15,649 545,5 545,6 99,09 98,90 0,152 0,149 84 0,237867 15,716 545,5 545,5 98,84 98,46 0,152 0,149 85 0,2389312 15,569 545,3 545,4 99,58 99,35 0,152 0,149 86 0,2367968 15,632 545,2 545,2 99,14 98,91 0,152 0,150 87 0,2378668 15,565 545,0 545,1 99,73 99,47 0,152 0,150 88 0,2367965 15,539 545,0 545,1 99,74 99,63 0,152 0,150 89 0,2363512 15,644 545,0 545,1 99,18 98,69 0,152 0,149 90 0,2378666 15,575 545,1 545,2 99,66 99,36 0,152 0,149 91 0,2367966 15,545 545,2 545,2 99,79 99,55 0,152 0,149 92 0,2363679 15,504 545,3 545,3 100,16 99,59 0,152 0,149 93 0,235723 15,573 545,3 545,4 99,67 99,42 0,152 0,149 94 0,2367963 15,545 545,4 545,4 99,81 99,58 0,152 0,149 95 0,2363682 15,543 545,5 545,5 99,72 99,61 0,152 0,149 96 0,2363682 15,571 545,5 545,5 99,50 99,44 0,152 0,150 97 0,2367964 15,615 545,6 545,6 99,53 99,13 0,152 0,150 98 0,2374382 15,542 545,7 545,6 99,81 99,38 0,152 0,149 99 0,2363682 15,712 545,7 545,7 98,65 98,53 0,152 0,149 100 0,238931 15,642 545,7 545,8 99,20 98,87 0,152 0,149 101 0,2378653 15,642 545,8 545,8 99,13 98,86 0,152 0,149 102 0,2378668 15,569 545,8 545,9 99,52 99,35 0,152 0,149 103 0,236797 15,709 545,9 545,9 98,69 98,47 0,152 0,149 104 0,2389312 15,637 545,9 546,0 99,02 98,76 0,152 0,149 105 0,2378667 15,495 545,9 546,0 100,12 99,85 0,152 0,149 106 0,2357265 15,606 545,9 546,0 99,33 98,89 0,152 0,149 107 0,2374393 15,605 545,9 546,0 99,16 99,00 0,152 0,149 108 0,2374389 15,563 546,0 546,1 99,55 99,27 0,152 0,149 109 0,2367974 15,631 546,0 546,1 99,07 98,58 0,152 0,149 110 0,2378666 15,700 546,0 546,1 98,76 98,31 0,152 0,149 111 0,2389307 15,600 546,0 546,1 99,19 99,09 0,152 0,149 112 0,2374393 15,698 546,0 546,2 98,56 98,36 0,152 0,149 113 0,2389143 15,727 546,1 546,2 98,44 98,25 0,152 0,149 114 0,239356 Particulates Calculations Page 2 of 6 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 15,625 546,1 546,2 98,99 98,89 0,152 0,150 115 0,2378676 15,555 546,1 546,2 99,28 99,17 0,152 0,149 116 0,2367975 15,693 546,1 546,3 98,60 98,16 0,152 0,149 117 0,2389317 15,696 546,2 546,3 98,50 98,37 0,152 0,149 118 0,2389314 15,723 546,2 546,4 98,37 98,21 0,152 0,149 119 0,2393557 15,724 546,2 546,4 98,29 98,15 0,152 0,149 120 0,2393557 15,554 546,3 546,4 99,34 99,22 0,152 0,149 121 0,2367975 15,765 546,3 546,4 98,02 97,61 0,152 0,149 122 0,239991 15,595 546,3 546,5 98,91 98,68 0,152 0,149 123 0,2374395 15,551 546,3 546,5 99,16 99,35 0,152 0,149 124 0,2367976 15,717 546,3 546,4 98,12 98,05 0,152 0,149 125 0,2393561 15,687 546,3 546,4 98,41 98,14 0,152 0,149 126 0,2389322 15,711 546,3 546,4 98,06 98,07 0,152 0,149 127 0,239356 15,686 546,2 546,4 98,46 98,05 0,152 0,149 128 0,2389318 15,586 546,2 546,4 98,90 98,75 0,152 0,149 129 0,2374405 15,589 546,2 546,4 98,99 98,59 0,152 0,149 130 0,2374398 15,588 546,3 546,4 99,13 98,77 0,152 0,149 131 0,2374401 15,686 546,3 546,4 98,24 98,31 0,152 0,149 132 0,2389317 15,615 546,3 546,5 98,72 98,51 0,152 0,149 133 0,2378677 15,685 546,4 546,5 98,23 98,15 0,152 0,149 134 0,2389323 15,755 546,4 546,5 97,85 97,75 0,152 0,149 135 0,2399915 15,519 546,5 546,6 99,52 99,29 0,152 0,149 136 0,2363696 15,715 546,5 546,6 98,23 98,07 0,152 0,149 137 0,2393567 15,545 546,5 546,6 99,32 98,97 0,152 0,149 138 0,2367984 15,612 546,6 546,7 98,68 98,41 0,152 0,149 139 0,2378683 15,680 546,6 546,7 98,32 98,07 0,152 0,149 140 0,2389325 15,542 546,7 546,7 99,05 99,16 0,152 0,149 141 0,2367985 15,683 546,7 546,7 98,23 97,93 0,152 0,149 142 0,2389326 15,752 546,7 546,8 97,76 97,68 0,152 0,149 143 0,2399921 15,612 546,7 546,8 98,83 98,45 0,152 0,149 144 0,2378684 15,610 546,8 546,8 98,65 98,49 0,152 0,149 145 0,2378684 15,611 546,8 546,8 98,54 98,28 0,152 0,149 146 0,237869 15,689 546,7 546,8 98,19 97,98 0,152 0,149 147 0,2391148 15,609 546,8 546,8 98,67 98,46 0,152 0,149 148 0,2378691 15,746 546,8 546,9 97,57 97,53 0,152 0,149 149 0,2399924 15,470 546,8 546,9 99,35 99,24 0,151 0,149 150 0,2357458 15,677 546,8 546,9 98,36 97,78 0,152 0,149 151 0,2389329 15,678 546,8 546,9 98,32 97,90 0,152 0,149 152 0,2389332 15,702 546,9 547,0 98,01 97,78 0,152 0,149 153 0,239357 15,601 546,8 546,9 98,63 98,48 0,152 0,149 154 0,2378696 15,600 546,7 546,9 98,57 98,22 0,152 0,149 155 0,2378693 15,670 546,7 546,9 98,17 97,93 0,152 0,149 156 0,2389333 15,698 546,8 546,9 97,99 97,89 0,152 0,149 157 0,2393569 15,740 546,8 546,9 97,75 97,43 0,152 0,149 158 0,2399924 15,600 546,8 546,9 98,48 98,17 0,152 0,149 159 0,2378692 15,500 546,8 546,9 99,04 98,63 0,151 0,149 160 0,2363704 15,574 546,8 546,9 98,72 98,49 0,151 0,149 161 0,2374411 15,697 546,9 546,9 97,93 97,73 0,152 0,149 162 0,2393577 15,698 546,9 547,0 97,84 97,75 0,151 0,149 163 0,2393578 15,532 546,9 547,0 99,01 98,69 0,151 0,149 164 0,2367998 15,771 546,9 547,0 97,44 97,65 0,152 0,149 165 0,2404163 15,742 547,0 547,1 97,78 97,46 0,152 0,149 166 0,2399932 15,672 547,1 547,1 98,20 97,90 0,152 0,149 167 0,2389335 15,698 547,1 547,2 97,95 97,78 0,152 0,149 168 0,2393576 15,699 547,2 547,2 97,85 97,61 0,152 0,149 169 0,2393576 15,600 547,2 547,2 98,55 98,47 0,151 0,149 170 0,2378692 15,600 547,2 547,2 98,69 98,41 0,152 0,149 171 0,2378698 15,697 547,2 547,3 97,96 98,01 0,152 0,149 172 0,2393575 15,571 547,2 547,3 98,76 98,59 0,152 0,149 173 0,2374417 15,668 547,2 547,3 97,96 97,94 0,151 0,149 174 0,2389337 15,665 547,2 547,3 98,04 97,87 0,151 0,149 175 0,2389336 Particulates Calculations Page 3 of 6 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 15,666 547,1 547,2 98,07 97,85 0,152 0,149 176 0,238934 15,790 547,0 547,2 97,35 97,06 0,152 0,149 177 0,2408374 15,663 547,0 547,2 98,17 97,87 0,152 0,149 178 0,2389339 15,495 547,0 547,2 99,11 99,15 0,152 0,149 179 0,2363711 15,688 547,0 547,2 97,79 97,76 0,151 0,149 180 0,2393581 15,686 546,9 547,1 97,85 97,62 0,152 0,149 181 0,2393583 15,658 546,9 547,1 98,00 97,62 0,152 0,149 182 0,2389339 15,659 546,9 547,1 98,15 97,82 0,152 0,149 183 0,2389335 15,588 546,9 547,1 98,50 98,23 0,152 0,149 184 0,2378696 15,659 546,9 547,1 98,00 97,71 0,152 0,149 185 0,2389341 15,686 547,0 547,1 97,86 98,00 0,152 0,149 186 0,2393581 15,684 547,0 547,1 97,78 97,47 0,152 0,149 187 0,2393581 15,586 547,0 547,1 98,35 98,48 0,151 0,149 188 0,2378695 15,683 547,0 547,1 97,78 97,57 0,151 0,149 189 0,2393576 15,657 546,9 547,0 98,10 97,74 0,152 0,149 190 0,2389354 15,729 546,9 547,1 97,67 97,38 0,152 0,149 191 0,2399934 15,490 547,0 547,1 99,10 99,07 0,152 0,149 192 0,2363713 15,726 547,0 547,1 97,35 97,25 0,151 0,149 193 0,2399936 15,446 547,1 547,1 99,19 98,92 0,151 0,149 194 0,2357258 15,515 547,1 547,1 99,12 98,56 0,152 0,149 195 0,2368 15,721 547,1 547,1 97,44 97,56 0,152 0,149 196 0,2399935 15,651 547,1 547,1 97,94 97,80 0,151 0,149 197 0,2389344 15,583 547,1 547,1 98,47 98,45 0,152 0,149 198 0,2378702 15,583 547,1 547,1 98,31 98,18 0,151 0,149 199 0,2378703 15,557 547,1 547,1 98,54 98,34 0,151 0,149 200 0,2374441 15,515 547,2 547,1 98,72 98,58 0,151 0,149 201 0,2368003 15,656 547,2 547,1 97,93 97,69 0,151 0,149 202 0,2389344 15,558 547,2 547,1 98,66 98,66 0,152 0,149 203 0,2374422 15,584 547,2 547,1 98,39 98,06 0,152 0,149 204 0,2378698 15,820 547,2 547,1 97,14 96,64 0,152 0,149 205 0,2414696 15,511 547,2 547,1 99,01 98,56 0,152 0,149 206 0,2368008 15,483 547,2 547,1 98,96 98,92 0,152 0,149 207 0,2363716 15,680 547,2 547,1 97,81 97,53 0,151 0,149 208 0,2393584 15,485 547,2 547,1 99,02 98,77 0,152 0,149 209 0,2364217 15,647 547,1 547,0 98,09 97,85 0,152 0,149 210 0,2389337 15,533 547,1 547,0 98,65 98,45 0,152 0,149 211 0,2371601 15,554 547,0 547,0 98,70 98,17 0,152 0,149 212 0,237443 15,720 547,0 546,9 97,72 97,05 0,152 0,149 213 0,239994 15,646 546,9 546,9 97,87 97,51 0,152 0,149 214 0,2389343 15,651 546,9 546,9 98,20 97,85 0,152 0,149 215 0,2389286 15,677 546,9 546,8 97,71 97,68 0,152 0,149 216 0,2393587 15,649 546,8 546,8 98,18 97,75 0,152 0,149 217 0,238935 15,649 546,8 546,7 97,98 97,69 0,152 0,149 218 0,2389347 15,678 546,7 546,7 97,76 97,57 0,152 0,149 219 0,2393585 15,468 546,7 546,7 99,20 98,79 0,152 0,149 220 0,2361857 15,648 546,7 546,6 98,00 97,84 0,152 0,149 221 0,2389343 15,648 546,7 546,6 98,11 97,63 0,152 0,149 222 0,2389345 15,718 546,7 546,6 97,49 97,32 0,152 0,149 223 0,2399935 15,576 546,6 546,6 98,56 98,41 0,152 0,149 224 0,2378704 15,507 546,6 546,5 98,81 98,62 0,152 0,149 225 0,2368002 15,580 546,5 546,5 98,32 98,23 0,151 0,149 226 0,23787 15,675 546,5 546,4 97,67 97,59 0,151 0,149 227 0,2393589 15,677 546,4 546,4 97,94 97,77 0,152 0,149 228 0,2393582 15,473 546,4 546,3 99,25 98,80 0,152 0,149 229 0,2363043 15,670 546,4 546,3 97,91 97,52 0,152 0,149 230 0,2393586 15,643 546,3 546,3 98,03 97,68 0,152 0,149 231 0,2389346 15,334 546,3 546,2 99,93 99,63 0,152 0,149 232 0,2342143 15,669 546,3 546,2 97,66 97,56 0,152 0,149 233 0,2393582 15,574 546,3 546,2 98,41 98,19 0,152 0,149 234 0,2378701 15,544 546,3 546,2 98,68 98,49 0,152 0,149 235 0,237442 15,669 546,2 546,2 97,76 97,74 0,152 0,149 236 0,2393581 Particulates Calculations Page 4 of 6 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 15,670 546,2 546,2 97,78 97,64 0,152 0,149 237 0,2393583 15,572 546,3 546,2 98,32 98,29 0,152 0,149 238 0,2378697 15,571 546,2 546,1 98,30 98,07 0,151 0,149 239 0,2378695 15,571 546,2 546,1 98,31 98,18 0,151 0,149 240 0,2378698 15,499 546,2 546,1 98,82 98,49 0,152 0,149 241 0,2367997 15,638 546,1 546,0 97,87 97,41 0,152 0,149 242 0,2389335 15,665 546,1 546,0 97,65 97,52 0,151 0,149 243 0,2393576 15,427 546,1 546,0 99,25 99,24 0,152 0,149 244 0,2357255 15,705 546,1 546,0 97,40 97,27 0,152 0,149 245 0,2399931 15,537 546,0 545,9 98,66 98,35 0,152 0,149 246 0,2374413 15,705 546,0 545,9 97,39 97,16 0,152 0,149 247 0,2399926 15,495 545,9 545,8 98,98 98,72 0,152 0,149 248 0,2367995 15,633 545,9 545,8 98,00 97,87 0,152 0,149 249 0,238933 15,659 545,8 545,8 97,65 97,57 0,152 0,149 250 0,2393571 15,658 545,8 545,7 97,77 97,55 0,152 0,149 251 0,2393577 15,659 545,7 545,7 97,72 97,64 0,152 0,149 252 0,2393571 15,532 545,7 545,7 98,54 98,41 0,152 0,149 253 0,2374412 15,533 545,7 545,7 98,56 98,23 0,152 0,149 254 0,2374417 15,634 545,7 545,7 97,99 97,71 0,152 0,149 255 0,2389332 15,661 545,7 545,6 97,81 97,60 0,152 0,149 256 0,2393571 15,632 545,7 545,6 97,87 97,76 0,152 0,149 257 0,2389327 15,634 545,7 545,6 97,93 98,04 0,152 0,149 258 0,2389327 15,536 545,7 545,7 98,58 98,47 0,152 0,149 259 0,2374406 15,492 545,7 545,7 98,98 98,67 0,152 0,149 260 0,2367991 15,660 545,8 545,6 97,77 97,60 0,152 0,149 261 0,2393568 15,563 545,8 545,6 98,50 98,23 0,152 0,149 262 0,2378685 15,535 545,8 545,6 98,56 98,25 0,152 0,149 263 0,2374407 15,704 545,7 545,7 97,51 97,22 0,152 0,149 264 0,2399917 15,633 545,8 545,6 97,84 97,92 0,152 0,149 265 0,2389325 15,658 545,7 545,6 97,73 97,55 0,152 0,149 266 0,2393566 15,634 545,7 545,6 97,98 97,58 0,152 0,149 267 0,2389327 15,633 545,7 545,6 97,85 97,82 0,152 0,149 268 0,238932 15,492 545,7 545,6 98,90 98,78 0,152 0,149 269 0,2367981 15,631 545,6 545,6 98,01 97,67 0,152 0,149 270 0,2389323 15,561 545,6 545,5 98,28 98,49 0,152 0,149 271 0,2378678 15,491 545,6 545,5 98,86 98,49 0,152 0,149 272 0,2367977 15,631 545,5 545,5 98,04 97,74 0,152 0,149 273 0,2389326 15,628 545,6 545,5 97,82 97,79 0,152 0,149 274 0,2389321 15,753 545,6 545,5 97,00 97,14 0,151 0,149 275 0,2408356 15,631 545,6 545,5 97,91 97,83 0,152 0,149 276 0,2389324 15,628 545,6 545,5 97,86 97,81 0,152 0,149 277 0,2389321 15,657 545,6 545,5 97,78 97,46 0,152 0,149 278 0,2393568 15,727 545,6 545,5 97,36 97,23 0,152 0,149 279 0,240415 15,725 545,6 545,5 97,24 96,97 0,152 0,149 280 0,240415 15,696 545,6 545,5 97,51 97,29 0,152 0,149 281 0,2399916 15,533 545,6 545,5 98,50 98,18 0,152 0,149 282 0,2374399 15,560 545,6 545,5 98,27 98,01 0,152 0,149 283 0,2378712 15,560 545,6 545,5 98,37 98,09 0,152 0,149 284 0,2378675 15,655 545,5 545,5 97,64 97,55 0,152 0,149 285 0,2393557 15,557 545,6 545,5 98,48 98,16 0,152 0,149 286 0,2378672 15,460 545,5 545,5 99,05 98,74 0,152 0,149 287 0,2363696 15,626 545,5 545,5 97,93 97,58 0,152 0,149 288 0,2389323 15,654 545,6 545,5 97,69 97,44 0,152 0,149 289 0,2393562 15,627 545,5 545,4 98,05 97,86 0,152 0,149 290 0,238932 15,691 545,5 545,4 97,43 97,40 0,152 0,149 291 0,2399179 15,557 545,5 545,5 98,37 98,17 0,152 0,149 292 0,2378681 15,626 545,5 545,4 98,00 97,77 0,152 0,149 293 0,2389321 15,558 545,5 545,4 98,30 98,12 0,152 0,149 294 0,2379001 15,653 545,5 545,4 97,82 97,42 0,152 0,149 295 0,2393565 15,654 545,5 545,4 97,89 97,48 0,152 0,149 296 0,239359 15,749 545,4 545,4 97,24 97,05 0,152 0,149 297 0,2408355 Particulates Calculations Page 5 of 6 DATA 2018-09-11 EPA PI 20176 RUN 2 CAT2 15,651 545,5 545,4 97,96 97,56 0,152 0,149 298 0,2393557 15,721 545,4 545,4 97,21 96,88 0,152 0,149 299 0,240414 15,552 545,4 545,4 98,29 98,09 0,152 0,149 300 0,2378675 15,651 545,4 545,3 97,79 97,76 0,152 0,149 301 0,2393557 15,554 545,4 545,3 98,42 98,04 0,152 0,149 302 0,2378669 15,651 545,4 545,3 97,69 97,26 0,152 0,149 303 0,2393554 15,747 545,4 545,3 97,18 97,05 0,152 0,149 304 0,2408352 15,719 545,4 545,3 97,32 96,97 0,152 0,149 305 0,240414 15,787 545,4 545,3 97,01 96,67 0,152 0,149 306 0,2414679 15,647 545,3 545,3 97,89 97,53 0,152 0,149 307 0,2393554 15,551 545,3 545,3 98,33 98,08 0,152 0,149 308 0,2378676 15,551 545,3 545,3 98,49 98,01 0,152 0,149 309 0,2378668 15,690 545,3 545,3 97,56 97,28 0,152 0,149 310 0,2399907 15,691 545,3 545,3 97,44 97,33 0,152 0,149 311 0,2399902 15,626 545,3 545,3 98,03 97,60 0,152 0,149 312 0,2389877 15,651 545,3 545,3 97,68 97,50 0,152 0,149 313 0,2393557 15,690 545,3 545,3 97,42 97,24 0,152 0,149 314 0,2399921 15,690 545,3 545,3 97,61 97,39 0,152 0,149 315 0,2399899 15,744 545,3 545,3 97,08 96,85 0,152 0,149 316 0,2408356 15,522 545,3 545,3 98,51 98,31 0,152 0,149 317 0,2374389 15,688 545,3 545,3 97,46 97,28 0,152 0,149 318 0,2399913 15,554 545,3 545,3 98,44 98,04 0,152 0,149 319 0,2379088 15,648 545,3 545,3 97,75 97,57 0,152 0,149 320 0,2393557 15,689 545,2 545,3 97,51 97,47 0,152 0,149 321 0,2399908 15,689 545,2 545,3 97,49 97,32 0,152 0,149 322 0,2399907 15,420 545,2 545,3 99,15 98,89 0,152 0,149 323 0,2358938 15,741 545,2 545,3 97,18 96,93 0,152 0,149 324 0,2408346 15,687 545,1 545,2 97,42 97,21 0,152 0,149 325 0,2399905 15,687 545,1 545,2 97,52 97,36 0,152 0,149 326 0,2399905 15,687 545,1 545,2 97,40 97,42 0,152 0,149 327 0,2399903 15,549 545,1 545,2 98,25 97,91 0,152 0,149 328 0,2378667 15,784 545,1 545,2 97,04 96,63 0,152 0,149 329 0,2414669 15,687 545,1 545,2 97,63 97,13 0,152 0,149 330 0,2399899 15,785 545,1 545,2 96,87 96,79 0,152 0,149 331 0,241467 15,687 545,1 545,2 97,64 97,37 0,152 0,149 332 0,2399905 15,713 545,1 545,2 97,42 97,04 0,152 0,149 333 0,2404134 15,738 545,1 545,2 97,13 96,90 0,152 0,149 334 0,2408343 15,546 545,1 545,2 98,37 98,27 0,152 0,149 335 0,2378673 15,616 545,0 545,2 98,03 97,53 0,152 0,149 336 0,2389313 15,615 545,1 545,2 98,02 97,74 0,152 0,149 337 0,2389193 15,741 545,0 545,2 97,16 97,01 0,152 0,149 338 0,2408348 15,740 545,0 545,2 97,17 97,05 0,152 0,149 339 0,2408347 15,740 545,1 545,2 97,15 96,78 0,152 0,149 340 0,2408345 15,640 545,0 545,1 97,88 97,64 0,152 0,149 341 0,2393548 15,683 545,0 545,1 97,61 97,08 0,152 0,149 342 0,2399901 15,682 544,9 545,1 97,53 97,36 0,152 0,149 343 0,2399903 15,711 544,9 545,1 97,39 97,26 0,152 0,149 344 0,240413 15,780 544,9 545,1 96,91 96,81 0,152 0,149 345 0,2414664 15,615 544,9 545,0 98,05 97,70 0,152 0,149 346 0,2389313 15,517 544,9 545,0 98,60 98,40 0,152 0,149 347 0,2374389 15,709 544,9 545,0 97,27 97,21 0,152 0,149 348 0,2404133 15,780 544,9 545,0 96,87 96,94 0,152 0,149 349 0,2414662 15,681 544,9 545,0 97,53 97,57 0,152 0,150 350 0,2399886 15,736 544,8 545,0 97,27 96,95 0,152 0,149 351 0,2408348 15,737 544,8 545,0 97,26 97,08 0,152 0,149 352 0,2408346 15,683 544,8 545,0 97,56 97,18 0,152 0,149 353 0,239992 15,682 544,8 545,0 97,77 97,25 0,152 0,149 354 0,2399901 15,682 544,8 545,0 97,56 97,38 0,152 0,149 355 0,2399893 15,709 544,8 545,0 97,43 97,15 0,152 0,149 356 0,2404126 15,681 544,8 545,0 97,37 97,42 0,152 0,149 357 0,2399898 15,612 544,7 545,0 98,02 97,59 0,152 0,149 358 0,2389304 Particulates Calculations Page 6 of 6 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 Outlet Outlet Average Average #1 #2 Tunnel Temp. Temp. 99,15 99,45 System 1 System 2 SQRT Velocity Meter 1 Meter 2 Vol.Std. Vol.Std. Delta-P PR1 PR2 Time Ft/Sec Deg. R Deg. R %% (ft3) (ft3) min (in H2O)2 15,981 540,8 540,9 0,154 0,151 0 0,2393512 15,871 540,9 541,0 100,52 100,64 0,154 0,151 1 0,2404095 15,868 541,0 541,0 100,23 100,67 0,154 0,151 2 0,2404093 15,862 541,1 541,1 100,40 100,44 0,154 0,151 3 0,2404097 15,867 541,2 541,2 100,39 100,74 0,154 0,151 4 0,2404095 15,834 541,2 541,2 100,22 100,34 0,154 0,151 5 0,2404096 15,814 541,3 541,3 100,06 100,17 0,154 0,151 6 0,24041 15,723 541,3 541,3 100,52 100,84 0,154 0,151 7 0,2389273 15,821 541,4 541,3 99,86 100,12 0,154 0,151 8 0,2404101 15,842 541,4 541,4 99,68 100,19 0,154 0,151 9 0,2408308 15,746 541,4 541,4 100,36 100,66 0,154 0,151 10 0,2393512 15,827 541,4 541,5 99,90 100,23 0,154 0,151 11 0,2404101 15,902 541,5 541,5 99,53 99,85 0,154 0,151 12 0,2414631 15,800 541,5 541,6 99,96 100,31 0,154 0,151 13 0,2399864 15,830 541,5 541,6 99,82 100,10 0,153 0,151 14 0,2404095 15,640 541,5 541,7 101,17 101,50 0,154 0,151 15 0,2374359 15,709 541,6 541,7 100,78 100,97 0,154 0,151 16 0,2383817 15,906 541,6 541,7 99,44 99,72 0,153 0,151 17 0,2414639 15,770 541,6 541,7 100,31 100,59 0,153 0,151 18 0,2393695 15,872 541,6 541,7 99,65 99,98 0,153 0,151 19 0,2408318 15,751 541,7 541,7 100,54 101,14 0,153 0,151 20 0,2389275 15,751 541,6 541,7 100,61 100,98 0,153 0,151 21 0,2389277 15,785 541,6 541,7 100,36 100,80 0,153 0,151 22 0,2393521 15,955 541,7 541,7 99,45 99,68 0,153 0,151 23 0,2418834 15,790 541,6 541,7 100,50 100,77 0,154 0,151 24 0,2393518 15,838 541,7 541,7 100,13 100,33 0,153 0,151 25 0,2399875 15,765 541,7 541,8 100,70 100,84 0,153 0,151 26 0,238928 15,857 541,7 541,8 99,94 100,22 0,153 0,151 27 0,2404103 15,916 541,8 541,9 99,28 99,68 0,153 0,151 28 0,2414807 15,854 541,8 541,9 100,01 100,37 0,153 0,151 29 0,2404111 15,916 541,9 542,0 99,34 99,69 0,153 0,151 30 0,2414641 15,771 541,9 542,0 100,24 100,56 0,153 0,151 31 0,2393523 15,770 542,0 542,0 100,29 100,34 0,153 0,151 32 0,2393527 15,747 542,0 542,1 100,45 100,54 0,153 0,150 33 0,2389281 15,778 542,1 542,1 100,17 100,38 0,153 0,150 34 0,2393521 15,848 542,1 542,2 99,64 100,00 0,153 0,150 35 0,2404109 15,682 542,2 542,2 100,84 101,22 0,153 0,151 36 0,2378643 15,779 542,3 542,3 100,15 100,41 0,153 0,151 37 0,2393523 15,820 542,3 542,4 99,91 100,12 0,153 0,150 38 0,2399879 15,682 542,3 542,4 100,80 100,90 0,153 0,150 39 0,2378647 15,920 542,3 542,5 99,06 99,30 0,153 0,150 40 0,2414644 15,686 542,3 542,5 100,74 101,00 0,153 0,150 41 0,2378645 15,852 542,4 542,5 99,60 99,87 0,153 0,150 42 0,2404112 15,687 542,4 542,5 100,64 100,98 0,153 0,150 43 0,2378647 15,856 542,4 542,5 99,60 99,99 0,153 0,150 44 0,2404116 15,659 542,4 542,5 100,73 101,18 0,153 0,150 45 0,2374373 15,617 542,4 542,5 100,94 101,47 0,153 0,150 46 0,2368062 15,655 542,5 542,5 100,82 101,11 0,153 0,150 47 0,2374367 15,921 542,5 542,5 99,07 99,33 0,153 0,150 48 0,2414643 15,921 542,5 542,6 99,09 99,32 0,153 0,150 49 0,2414645 15,785 542,6 542,7 100,02 100,51 0,153 0,150 50 0,2393528 15,662 542,6 542,7 100,68 101,08 0,153 0,150 51 0,237437 15,694 542,7 542,7 100,63 100,83 0,153 0,150 52 0,2378646 15,695 542,7 542,7 100,53 101,12 0,153 0,150 53 0,2378651 15,761 542,7 542,7 100,15 100,53 0,153 0,150 54 0,2389293 15,836 542,8 542,7 99,60 99,90 0,153 0,150 55 0,2399882 Proportional Rates Particulates Calculations Page 1 of 5 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 15,791 542,8 542,7 99,84 100,11 0,153 0,150 56 0,2393535 15,696 542,8 542,8 100,50 100,61 0,153 0,150 57 0,2378647 15,667 542,8 542,8 100,67 100,63 0,153 0,149 58 0,2374373 15,931 542,8 542,8 98,85 98,94 0,152 0,149 59 0,2414646 15,553 542,9 542,9 101,24 101,74 0,152 0,150 60 0,2357214 15,837 542,9 542,9 99,47 99,83 0,152 0,150 61 0,2399883 15,797 542,9 542,9 99,70 100,06 0,152 0,150 62 0,2393529 15,893 542,9 542,8 99,17 99,59 0,152 0,150 63 0,2408326 15,868 542,9 542,8 99,57 99,79 0,153 0,150 64 0,2404115 15,839 542,9 542,9 99,56 99,84 0,153 0,150 65 0,239989 15,798 543,0 542,9 99,81 100,13 0,152 0,150 66 0,2393537 15,890 543,0 543,0 99,19 99,35 0,152 0,150 67 0,2408339 15,766 543,0 543,0 100,04 100,08 0,152 0,150 68 0,2389291 15,666 543,0 543,0 100,41 100,84 0,152 0,150 69 0,2374373 15,765 543,0 543,1 99,81 100,29 0,152 0,150 70 0,2389294 15,766 543,0 543,0 99,81 100,13 0,152 0,150 71 0,2389294 15,835 543,0 543,0 99,36 99,53 0,152 0,149 72 0,2399884 15,861 543,0 543,0 99,07 99,17 0,152 0,149 73 0,240412 15,765 543,0 543,0 99,69 100,15 0,152 0,149 74 0,2389298 15,933 543,0 542,9 98,62 98,94 0,152 0,149 75 0,2414655 15,932 543,0 542,9 98,68 99,10 0,152 0,149 76 0,2414657 15,792 543,0 542,9 99,65 99,75 0,152 0,149 77 0,2393539 15,795 543,0 542,9 99,49 99,92 0,152 0,149 78 0,2393541 15,871 543,0 542,9 98,99 99,26 0,152 0,149 79 0,2405543 15,794 543,0 542,9 99,37 99,66 0,152 0,149 80 0,239354 15,890 543,1 542,9 98,69 99,41 0,152 0,149 81 0,2408335 15,961 543,1 542,9 98,41 98,71 0,152 0,149 82 0,2418853 15,862 543,0 542,9 98,96 99,22 0,152 0,149 83 0,2404128 15,930 543,0 542,9 98,54 98,78 0,152 0,149 84 0,2414657 15,891 543,0 542,9 98,68 99,25 0,152 0,149 85 0,240834 15,860 543,1 542,9 98,96 99,24 0,152 0,149 86 0,2404127 15,856 543,1 543,0 98,81 99,23 0,152 0,149 87 0,2404127 15,956 543,1 543,0 98,21 98,52 0,152 0,149 88 0,2418852 15,955 543,1 543,0 98,39 98,88 0,152 0,149 89 0,2418852 15,925 543,1 543,0 98,58 98,78 0,152 0,149 90 0,2414657 15,855 543,1 543,0 99,01 99,44 0,152 0,149 91 0,2404129 15,856 543,1 543,0 99,10 99,18 0,152 0,149 92 0,2404127 15,831 543,1 543,0 99,16 99,51 0,152 0,149 93 0,2399894 15,885 543,1 543,0 98,68 99,10 0,152 0,149 94 0,2408339 15,787 543,1 543,0 99,39 99,83 0,152 0,149 95 0,2393549 15,853 543,1 543,0 99,16 99,47 0,152 0,150 96 0,2404129 15,825 543,1 543,1 99,04 99,35 0,152 0,149 97 0,2399897 15,919 543,1 543,1 98,51 98,76 0,152 0,149 98 0,2414657 15,880 543,1 543,1 98,70 98,93 0,152 0,149 99 0,2408342 15,920 543,1 543,1 98,44 99,06 0,152 0,149 100 0,2414662 15,782 543,1 543,1 99,27 99,49 0,152 0,149 101 0,2393543 15,804 543,1 543,1 99,01 99,41 0,152 0,149 102 0,2397364 15,844 543,1 543,0 98,88 99,11 0,152 0,149 103 0,2404131 15,910 543,1 543,1 98,35 98,63 0,152 0,149 104 0,2414657 15,834 543,1 543,0 98,85 99,10 0,152 0,149 105 0,2403882 15,807 543,1 543,0 99,02 99,59 0,152 0,149 106 0,2399897 15,863 543,0 543,0 98,61 99,02 0,152 0,150 107 0,2408336 15,863 543,0 543,0 98,59 99,21 0,152 0,149 108 0,240834 15,734 543,1 543,0 99,45 99,72 0,152 0,149 109 0,2389304 15,899 543,1 543,0 98,47 98,76 0,152 0,149 110 0,2414663 15,925 543,1 543,0 98,17 98,42 0,152 0,149 111 0,2418853 15,729 543,0 543,0 99,56 99,73 0,152 0,149 112 0,2389319 15,822 543,1 543,0 98,78 99,08 0,152 0,149 113 0,2404124 15,746 543,1 543,0 99,21 99,37 0,152 0,149 114 0,2393749 15,880 543,0 543,0 98,38 98,26 0,152 0,149 115 0,2414657 15,909 543,0 543,0 98,15 98,51 0,152 0,149 116 0,2418853 Particulates Calculations Page 2 of 5 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 15,838 543,0 543,0 98,71 98,65 0,152 0,149 117 0,2408337 15,810 542,9 543,0 98,54 98,95 0,152 0,149 118 0,2403961 15,878 542,9 543,0 98,42 98,72 0,152 0,149 119 0,2414661 15,779 543,0 543,0 99,15 99,35 0,152 0,150 120 0,2399893 15,910 543,0 543,1 98,38 98,66 0,152 0,150 121 0,2418851 15,840 543,0 543,1 98,73 99,04 0,152 0,150 122 0,2408336 15,780 543,1 543,1 98,91 99,23 0,152 0,149 123 0,239989 15,777 543,1 543,1 98,90 99,29 0,152 0,149 124 0,239989 15,708 543,1 543,1 99,37 99,84 0,152 0,150 125 0,2389299 15,607 543,1 543,1 99,91 100,19 0,152 0,149 126 0,237438 15,772 543,1 543,0 98,95 99,24 0,152 0,149 127 0,2399893 15,733 543,1 543,0 99,29 99,60 0,152 0,150 128 0,2393543 15,772 543,0 543,0 98,97 99,01 0,152 0,149 129 0,2399891 15,796 543,0 543,0 98,78 99,11 0,152 0,149 130 0,2404124 15,768 543,0 543,0 98,85 99,26 0,152 0,150 131 0,23999 15,723 542,9 543,0 99,05 99,32 0,152 0,149 132 0,2393233 15,764 543,0 543,0 98,80 99,27 0,152 0,149 133 0,2399895 15,719 543,0 543,0 99,08 99,49 0,152 0,150 134 0,2393548 15,759 543,0 543,0 98,81 98,99 0,152 0,149 135 0,2399898 15,798 542,9 543,0 98,65 98,71 0,152 0,149 136 0,2405642 15,754 542,9 542,9 98,85 98,99 0,152 0,149 137 0,2399892 15,812 542,9 542,9 98,43 98,75 0,152 0,149 138 0,2408341 15,813 542,9 542,9 98,52 98,94 0,152 0,150 139 0,2408245 15,784 543,0 542,9 98,53 98,64 0,152 0,149 140 0,2404122 15,588 543,0 542,9 99,92 100,03 0,152 0,149 141 0,2374376 15,811 543,1 543,0 98,53 98,99 0,152 0,149 142 0,2408338 15,855 543,0 543,1 98,09 98,54 0,152 0,150 143 0,2414655 15,780 543,0 543,1 98,51 98,87 0,152 0,149 144 0,2403999 15,752 543,0 543,0 98,67 98,98 0,152 0,149 145 0,2399892 15,808 543,0 543,0 98,47 98,76 0,152 0,149 146 0,2408336 15,682 543,0 543,0 99,10 99,67 0,152 0,150 147 0,23893 15,847 543,0 543,0 98,15 98,27 0,152 0,149 148 0,2414655 15,948 543,0 543,0 97,56 97,79 0,152 0,149 149 0,2429326 15,709 543,1 543,1 98,97 99,42 0,152 0,149 150 0,2393542 15,775 543,1 543,1 98,49 98,58 0,152 0,149 151 0,2404125 15,681 543,2 543,1 99,09 99,42 0,152 0,149 152 0,23893 15,801 543,2 543,1 98,41 98,67 0,152 0,149 153 0,2408342 15,797 543,2 543,1 98,36 98,74 0,152 0,149 154 0,240834 15,846 543,2 543,2 98,11 98,47 0,152 0,149 155 0,2414658 15,800 543,2 543,2 98,31 98,75 0,152 0,149 156 0,240834 15,772 543,2 543,3 98,45 98,84 0,152 0,149 157 0,2404126 15,678 543,2 543,4 99,06 99,37 0,152 0,149 158 0,2389304 15,938 543,2 543,4 97,53 97,89 0,152 0,149 159 0,2428979 15,778 543,3 543,4 98,56 98,62 0,152 0,149 160 0,240412 15,679 543,3 543,5 99,15 99,37 0,152 0,149 161 0,2389299 15,848 543,3 543,5 98,17 98,26 0,152 0,149 162 0,2414653 15,506 543,4 543,5 100,20 100,42 0,152 0,149 163 0,2363671 15,738 543,4 543,5 98,62 99,17 0,152 0,149 164 0,2399891 15,769 543,5 543,5 98,47 98,65 0,152 0,149 165 0,240413 15,865 543,5 543,5 97,79 98,12 0,152 0,149 166 0,2418854 15,770 543,5 543,5 98,42 98,88 0,152 0,149 167 0,2404126 15,862 543,5 543,5 97,78 98,19 0,152 0,149 168 0,2418855 15,738 543,5 543,5 98,50 98,96 0,152 0,149 169 0,2399893 15,863 543,4 543,4 97,79 98,38 0,152 0,150 170 0,2418854 15,862 543,4 543,4 97,76 98,18 0,152 0,150 171 0,2418859 15,792 543,5 543,5 98,33 98,55 0,152 0,149 172 0,240834 15,792 543,5 543,5 98,20 98,76 0,152 0,149 173 0,2408343 15,697 543,5 543,5 98,78 99,29 0,152 0,150 174 0,2393544 15,835 543,5 543,5 98,01 98,29 0,152 0,149 175 0,241466 15,736 543,5 543,5 98,60 98,88 0,152 0,149 176 0,2399885 15,791 543,5 543,5 98,21 98,75 0,152 0,149 177 0,2408342 Particulates Calculations Page 3 of 5 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 15,835 543,5 543,5 97,76 98,27 0,152 0,149 178 0,2414658 15,791 543,5 543,5 98,22 98,56 0,152 0,149 179 0,2408342 15,765 543,5 543,6 98,50 98,69 0,152 0,149 180 0,2404132 15,737 543,6 543,6 98,56 98,83 0,152 0,149 181 0,2399899 15,831 543,6 543,6 97,97 98,03 0,152 0,149 182 0,2414663 15,663 543,6 543,6 99,01 99,42 0,152 0,149 183 0,2389311 15,665 543,6 543,5 99,05 99,31 0,152 0,149 184 0,2389309 15,858 543,6 543,5 98,04 98,12 0,152 0,149 185 0,2418852 15,667 543,5 543,5 99,31 99,46 0,152 0,149 186 0,2389311 15,767 543,5 543,5 98,48 98,83 0,152 0,149 187 0,2404131 15,665 543,5 543,5 99,30 99,33 0,152 0,149 188 0,2389313 15,791 543,5 543,5 98,45 98,93 0,152 0,150 189 0,2408341 15,791 543,4 543,5 98,45 98,90 0,152 0,150 190 0,2408346 15,665 543,5 543,5 99,20 99,56 0,152 0,150 191 0,2389303 15,763 543,5 543,5 98,63 98,86 0,152 0,150 192 0,2404131 15,763 543,5 543,5 98,44 98,77 0,152 0,149 193 0,2404131 15,693 543,5 543,5 99,05 99,36 0,152 0,150 194 0,2393548 15,791 543,5 543,4 98,44 98,73 0,152 0,150 195 0,2408341 15,667 543,5 543,4 99,30 99,49 0,152 0,150 196 0,2389309 15,831 543,5 543,4 98,26 98,50 0,152 0,150 197 0,2414663 15,594 543,5 543,4 99,67 100,27 0,152 0,150 198 0,2378671 15,690 543,5 543,5 99,02 99,36 0,152 0,150 199 0,2393552 15,792 543,5 543,5 98,49 98,62 0,152 0,150 200 0,240835 15,733 543,5 543,4 98,88 99,02 0,152 0,149 201 0,2399909 15,669 543,6 543,5 99,25 99,33 0,152 0,149 202 0,2389313 15,762 543,6 543,5 98,49 98,97 0,152 0,149 203 0,240414 15,763 543,6 543,5 98,57 98,68 0,152 0,149 204 0,2404138 15,760 543,6 543,6 98,51 98,77 0,152 0,149 205 0,2404139 15,735 543,6 543,6 98,67 98,89 0,152 0,149 206 0,2399902 15,830 543,6 543,6 98,14 98,36 0,152 0,149 207 0,2414673 15,696 543,7 543,7 99,00 99,09 0,152 0,149 208 0,2393558 15,669 543,7 543,6 99,08 99,70 0,152 0,150 209 0,2389306 15,567 543,7 543,6 99,77 100,11 0,152 0,150 210 0,2374397 15,766 543,7 543,6 98,58 98,95 0,152 0,150 211 0,2404264 15,695 543,7 543,6 99,14 99,20 0,152 0,150 212 0,2393555 15,792 543,7 543,6 98,39 98,76 0,152 0,150 213 0,2408353 15,665 543,7 543,6 99,27 99,66 0,152 0,150 214 0,2389315 15,569 543,7 543,6 99,87 100,08 0,152 0,150 215 0,2374395 15,693 543,7 543,6 99,08 99,33 0,152 0,150 216 0,2393522 15,733 543,7 543,6 98,75 98,98 0,152 0,150 217 0,239984 15,762 543,7 543,6 98,57 98,83 0,152 0,149 218 0,2404136 15,695 543,7 543,6 99,03 99,16 0,152 0,149 219 0,2393557 15,643 543,7 543,6 99,31 99,47 0,152 0,149 220 0,2386277 15,665 543,6 543,5 99,10 99,42 0,152 0,149 221 0,2389315 15,581 543,6 543,5 99,74 100,11 0,152 0,150 222 0,2376855 15,788 543,6 543,5 98,37 98,60 0,152 0,150 223 0,2408356 15,761 543,6 543,5 98,45 99,01 0,152 0,150 224 0,2404143 15,735 543,7 543,5 98,79 99,01 0,152 0,150 225 0,2399913 15,761 543,7 543,6 98,46 98,55 0,152 0,149 226 0,2404143 15,694 543,7 543,6 99,01 99,29 0,152 0,149 227 0,2393492 15,694 543,7 543,6 99,00 99,21 0,152 0,149 228 0,2393559 15,568 543,7 543,6 99,79 100,33 0,152 0,150 229 0,23744 15,733 543,7 543,6 98,70 99,22 0,152 0,150 230 0,2399911 15,759 543,7 543,6 98,39 98,89 0,152 0,150 231 0,2404147 15,789 543,7 543,7 98,29 98,70 0,152 0,150 232 0,2408336 15,763 543,7 543,7 98,62 98,92 0,152 0,150 233 0,2404145 15,736 543,7 543,7 98,55 99,02 0,152 0,150 234 0,2399915 15,665 543,8 543,7 99,10 99,25 0,152 0,149 235 0,2389319 15,665 543,8 543,7 99,01 99,44 0,152 0,149 236 0,2389319 15,790 543,8 543,8 98,45 98,81 0,152 0,150 237 0,2408357 15,575 543,9 543,8 99,65 100,27 0,152 0,150 238 0,2374393 Particulates Calculations Page 4 of 5 DATA 2018-09-12 EPA PI 20176 RUN 3 CAT3 15,835 543,9 543,8 97,96 98,58 0,152 0,150 239 0,2414675 Particulates Calculations Page 5 of 5 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN Outlet Outlet Average Average #1 #2 Tunnel Temp. Temp. 98,88 99,19 System 1 System 2 SQRT Velocity Meter 1 Meter 2 Vol.Std. Vol.Std. Delta-P PR1 PR2 Time Ft/Sec Deg. R Deg. R %% (ft3) (ft3) min (in H2O)2 15,405 540,8 540,7 0,154 0,152 0 0,2327004 15,464 540,9 540,8 99,95 100,07 0,154 0,151 1 0,2348522 15,463 541,0 540,8 100,05 100,06 0,154 0,151 2 0,2348566 15,399 541,0 540,9 100,44 100,53 0,154 0,151 3 0,2337744 15,417 541,0 540,9 100,52 100,82 0,154 0,151 4 0,2337737 15,494 540,9 540,9 99,39 99,66 0,154 0,151 5 0,2357196 15,477 541,0 541,0 99,32 99,82 0,154 0,152 6 0,2357196 15,371 541,1 541,0 100,04 100,04 0,154 0,152 7 0,2342056 15,411 541,1 541,1 99,53 100,06 0,154 0,151 8 0,2348568 15,409 541,2 541,1 99,56 100,08 0,154 0,152 9 0,2348568 15,432 541,2 541,2 99,33 99,57 0,154 0,152 10 0,2352892 15,401 541,3 541,2 99,42 99,71 0,154 0,151 11 0,2348567 15,399 541,3 541,3 99,34 99,52 0,154 0,151 12 0,2348566 15,461 541,3 541,3 99,03 99,27 0,154 0,151 13 0,2357198 15,331 541,4 541,4 99,94 99,94 0,154 0,151 14 0,2337742 15,212 541,4 541,4 100,53 100,93 0,154 0,151 15 0,2320315 15,356 541,4 541,4 99,78 99,89 0,154 0,151 16 0,2342077 15,427 541,4 541,4 99,14 99,21 0,154 0,151 17 0,2352893 15,455 541,4 541,4 98,92 99,51 0,154 0,151 18 0,2357195 15,358 541,4 541,4 99,53 99,83 0,154 0,151 19 0,2342075 15,430 541,4 541,5 99,15 99,34 0,154 0,151 20 0,2352892 15,433 541,4 541,5 99,23 99,50 0,154 0,151 21 0,2352892 15,432 541,5 541,5 99,13 99,27 0,154 0,151 22 0,2353373 15,408 541,5 541,5 99,28 99,61 0,154 0,151 23 0,2348565 15,505 541,5 541,6 98,67 98,85 0,154 0,151 24 0,236365 15,339 541,6 541,6 99,67 100,11 0,154 0,151 25 0,2338001 15,441 541,6 541,7 99,41 99,36 0,154 0,151 26 0,2352894 15,344 541,7 541,7 99,84 99,96 0,154 0,151 27 0,2337751 15,372 541,7 541,8 99,52 100,13 0,154 0,151 28 0,2342083 15,199 541,8 541,8 100,59 100,68 0,154 0,151 29 0,2315939 15,351 541,8 541,8 99,86 100,37 0,154 0,151 30 0,2337751 15,517 541,9 541,9 98,71 99,28 0,154 0,151 31 0,2363659 15,419 542,0 542,0 99,24 99,36 0,154 0,151 32 0,2348578 15,447 542,0 542,0 98,99 99,36 0,153 0,151 33 0,2352903 15,449 542,1 542,1 99,04 99,42 0,153 0,151 34 0,2352909 15,474 542,1 542,1 98,82 99,41 0,153 0,151 35 0,2355787 15,294 542,1 542,2 100,29 100,76 0,153 0,151 36 0,2326875 15,465 542,2 542,2 99,01 99,34 0,153 0,151 37 0,2352904 15,392 542,2 542,3 99,55 99,72 0,153 0,151 38 0,2342085 15,368 542,3 542,3 99,74 100,10 0,153 0,151 39 0,2337756 15,377 542,3 542,4 99,93 100,14 0,153 0,151 40 0,2337755 15,501 542,4 542,4 98,83 99,08 0,153 0,151 41 0,2357207 15,505 542,5 542,5 99,02 99,23 0,153 0,151 42 0,2357207 15,383 542,5 542,5 99,86 100,23 0,153 0,151 43 0,2337755 15,454 542,6 542,6 99,43 99,59 0,153 0,151 44 0,2348579 15,310 542,6 542,6 100,19 100,54 0,153 0,151 45 0,2326878 15,508 542,5 542,6 98,82 98,96 0,153 0,150 46 0,2357215 15,408 542,6 542,7 99,54 100,02 0,153 0,151 47 0,2342094 15,409 542,6 542,7 99,45 99,85 0,153 0,151 48 0,2342092 15,416 542,7 542,8 99,58 99,73 0,153 0,150 49 0,2342094 15,563 542,8 542,9 98,70 98,86 0,153 0,150 50 0,2363669 15,488 542,9 542,9 98,91 99,16 0,153 0,150 51 0,2353041 15,376 542,9 542,9 99,74 100,34 0,153 0,150 52 0,2334919 15,501 543,0 543,0 99,04 99,40 0,153 0,151 53 0,2352912 15,561 543,0 543,1 98,52 98,80 0,153 0,150 54 0,2363665 15,328 543,1 543,1 100,16 100,39 0,153 0,150 55 0,2326871 Proportional Rates Particulates Calculations Page 1 of 6 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN 15,500 543,1 543,1 99,08 99,24 0,153 0,150 56 0,2352911 15,495 543,1 543,1 99,04 99,17 0,153 0,150 57 0,2352912 15,392 543,1 543,1 99,53 99,78 0,153 0,150 58 0,2337761 15,468 543,1 543,2 99,23 99,33 0,153 0,150 59 0,2348585 15,423 543,2 543,2 99,40 99,93 0,153 0,150 60 0,2342093 15,534 543,2 543,3 98,68 99,09 0,153 0,150 61 0,2357217 15,573 543,2 543,3 98,55 98,91 0,153 0,150 62 0,2363675 15,289 543,3 543,4 100,39 100,65 0,153 0,150 63 0,2320335 15,434 543,3 543,4 99,34 99,84 0,153 0,150 64 0,2342101 15,433 543,3 543,4 99,46 99,71 0,153 0,150 65 0,23421 15,507 543,4 543,5 98,97 99,26 0,153 0,150 66 0,2352916 15,476 543,5 543,5 99,10 99,47 0,153 0,150 67 0,2348595 15,507 543,5 543,6 99,17 99,47 0,153 0,150 68 0,2351496 15,534 543,5 543,6 98,86 99,30 0,153 0,150 69 0,2357222 15,411 543,6 543,6 99,64 100,00 0,153 0,150 70 0,2337839 15,537 543,7 543,7 98,72 98,85 0,153 0,150 71 0,2357263 15,434 543,7 543,7 99,28 99,64 0,153 0,150 72 0,2342106 15,503 543,8 543,8 98,93 99,29 0,153 0,150 73 0,2352926 15,479 543,9 543,9 99,13 99,24 0,153 0,150 74 0,2348601 15,441 544,0 543,9 99,41 99,86 0,153 0,150 75 0,2342109 15,511 544,0 544,0 99,04 99,18 0,153 0,150 76 0,2352929 15,300 544,1 544,0 100,08 100,50 0,153 0,150 77 0,2320351 15,343 544,2 544,1 100,09 100,37 0,153 0,150 78 0,23269 15,337 544,3 544,1 99,85 100,24 0,153 0,150 79 0,2326905 15,514 544,3 544,1 98,77 99,10 0,152 0,150 80 0,2352935 15,543 544,3 544,2 98,72 99,15 0,153 0,150 81 0,2357244 15,525 544,3 544,2 98,90 99,14 0,153 0,150 82 0,2352931 15,350 544,4 544,3 100,00 100,19 0,153 0,150 83 0,2326901 15,522 544,4 544,3 98,86 99,06 0,153 0,150 84 0,2352931 15,455 544,3 544,3 99,29 99,77 0,152 0,150 85 0,2342118 15,421 544,4 544,3 99,50 99,74 0,152 0,150 86 0,2337791 15,347 544,4 544,3 100,07 100,09 0,153 0,150 87 0,2326912 15,495 544,4 544,3 98,93 99,34 0,153 0,150 88 0,2348608 15,256 544,4 544,3 100,60 100,95 0,152 0,150 89 0,2311597 15,430 544,4 544,3 99,34 99,49 0,152 0,150 90 0,2337788 15,427 544,3 544,3 99,30 99,88 0,152 0,150 91 0,2337788 15,429 544,4 544,3 99,50 99,80 0,152 0,150 92 0,2337791 15,354 544,4 544,3 99,78 100,13 0,152 0,150 93 0,2326907 15,543 544,4 544,3 98,65 99,25 0,152 0,150 94 0,2355646 15,453 544,4 544,4 99,23 99,45 0,152 0,150 95 0,2342128 15,272 544,5 544,4 100,40 100,76 0,152 0,150 96 0,2314687 15,492 544,5 544,4 98,86 98,91 0,152 0,149 97 0,2348616 15,492 544,5 544,4 98,96 99,13 0,152 0,149 98 0,234862 15,418 544,5 544,4 99,49 99,61 0,152 0,150 99 0,2337758 15,443 544,6 544,4 98,97 99,41 0,152 0,150 100 0,2342126 15,445 544,6 544,4 99,07 99,36 0,152 0,150 101 0,2342127 15,452 544,6 544,5 99,19 99,37 0,152 0,149 102 0,234213 15,420 544,6 544,5 99,09 99,56 0,152 0,149 103 0,2337793 15,446 544,7 544,6 99,13 99,31 0,152 0,149 104 0,2342123 15,414 544,7 544,6 99,17 99,54 0,152 0,149 105 0,2337785 15,419 544,7 544,7 99,36 99,72 0,152 0,150 106 0,233779 15,518 544,8 544,7 98,60 98,94 0,152 0,150 107 0,235294 15,353 544,8 544,7 99,76 100,23 0,152 0,150 108 0,2326919 15,421 544,9 544,8 99,21 99,46 0,152 0,150 109 0,2337797 15,251 544,9 544,8 100,40 100,70 0,152 0,149 110 0,23116 15,524 545,0 544,9 98,78 98,92 0,152 0,149 111 0,2352735 15,353 545,0 544,9 99,74 100,23 0,152 0,150 112 0,2326922 15,486 545,0 544,9 98,63 99,17 0,152 0,150 113 0,2348626 15,421 545,0 544,9 99,19 99,47 0,152 0,149 114 0,2337799 15,444 545,0 544,9 98,97 99,19 0,152 0,149 115 0,2342129 15,305 545,0 544,9 99,77 100,27 0,152 0,149 116 0,2320371 Particulates Calculations Page 2 of 6 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN 15,304 545,0 545,0 99,85 100,34 0,152 0,149 117 0,2320371 15,488 545,0 545,0 98,76 99,01 0,152 0,149 118 0,2348628 15,346 545,1 545,0 99,51 99,79 0,152 0,149 119 0,2326925 15,339 545,1 545,1 99,39 99,76 0,152 0,149 120 0,2326926 15,343 545,2 545,1 99,40 99,82 0,152 0,149 121 0,232693 15,546 545,3 545,2 98,13 98,48 0,152 0,149 122 0,2357259 15,494 545,3 545,3 98,54 98,73 0,152 0,149 123 0,2348633 15,454 545,4 545,3 98,89 99,18 0,152 0,149 124 0,2342143 15,420 545,4 545,4 98,91 99,39 0,152 0,149 125 0,2337807 15,243 545,4 545,4 100,04 100,46 0,152 0,149 126 0,2311594 15,233 545,4 545,4 99,87 100,26 0,152 0,149 127 0,2311616 15,412 545,4 545,4 98,84 99,00 0,152 0,149 128 0,2337807 15,477 545,4 545,4 98,41 99,05 0,152 0,149 129 0,2348636 15,292 545,4 545,4 99,73 99,91 0,152 0,149 130 0,2320381 15,433 545,4 545,4 98,61 99,05 0,152 0,149 131 0,2342143 15,428 545,4 545,4 98,74 98,78 0,152 0,149 132 0,2342143 15,289 545,4 545,4 99,74 99,97 0,152 0,149 133 0,232038 15,337 545,4 545,5 99,27 99,75 0,152 0,149 134 0,2326928 15,488 545,5 545,5 98,47 98,87 0,152 0,149 135 0,2348631 15,273 545,5 545,5 99,84 99,87 0,152 0,149 136 0,231593 15,415 545,5 545,6 98,84 99,25 0,152 0,149 137 0,2337814 15,480 545,6 545,6 98,32 98,45 0,152 0,149 138 0,2348634 15,489 545,6 545,6 98,42 98,80 0,152 0,149 139 0,2348636 15,481 545,6 545,7 98,46 98,84 0,152 0,149 140 0,234862 15,508 545,6 545,7 98,13 98,41 0,152 0,149 141 0,2352958 15,444 545,7 545,7 98,69 99,15 0,152 0,149 142 0,2343072 15,330 545,7 545,8 99,25 99,71 0,152 0,149 143 0,232693 15,429 545,8 545,8 98,56 99,07 0,152 0,149 144 0,2342147 15,428 545,8 545,9 98,54 98,89 0,152 0,149 145 0,2342144 15,395 545,9 545,9 98,91 99,22 0,152 0,149 146 0,2336774 15,501 545,9 545,9 98,05 98,48 0,152 0,149 147 0,235296 15,428 546,0 546,0 98,57 98,99 0,152 0,149 148 0,2342148 15,255 546,0 546,0 99,54 100,09 0,151 0,149 149 0,2315996 15,526 546,0 546,0 97,75 98,32 0,151 0,149 150 0,2357264 15,399 546,0 546,1 98,52 98,90 0,151 0,149 151 0,2337812 15,327 546,0 546,1 98,94 99,29 0,151 0,149 152 0,2326935 15,421 546,0 546,1 98,41 98,47 0,151 0,148 153 0,2342149 15,470 546,0 546,1 98,05 98,60 0,151 0,149 154 0,2348638 15,286 546,1 546,1 99,39 99,75 0,151 0,149 155 0,2320386 15,400 546,0 546,1 98,70 98,84 0,151 0,149 156 0,2337816 15,437 546,1 546,1 98,60 98,67 0,152 0,149 157 0,2342145 15,471 546,1 546,2 98,15 98,60 0,151 0,149 158 0,2348637 15,257 546,1 546,2 99,61 100,05 0,151 0,149 159 0,2316005 15,411 546,2 546,2 98,79 99,03 0,152 0,149 160 0,2337816 15,268 546,2 546,2 99,58 99,89 0,151 0,149 161 0,2316004 15,411 546,2 546,2 98,66 98,90 0,151 0,149 162 0,233782 15,401 546,2 546,3 98,69 98,83 0,151 0,149 163 0,2337814 15,436 546,3 546,3 98,52 98,79 0,151 0,149 164 0,2342145 15,435 546,3 546,3 98,40 98,98 0,151 0,149 165 0,2342149 15,164 546,3 546,3 100,23 100,50 0,151 0,149 166 0,2300624 15,442 546,3 546,4 98,50 98,77 0,151 0,149 167 0,2342151 15,411 546,4 546,4 98,66 98,94 0,151 0,149 168 0,2337816 15,400 546,4 546,4 98,58 98,92 0,151 0,149 169 0,2337816 15,513 546,4 546,4 98,01 98,49 0,151 0,149 170 0,2352966 15,440 546,4 546,5 98,55 98,68 0,151 0,149 171 0,234215 15,479 546,5 546,6 98,16 98,53 0,151 0,149 172 0,2348638 15,433 546,6 546,6 98,35 98,77 0,151 0,149 173 0,2342147 15,406 546,6 546,7 98,78 99,06 0,151 0,149 174 0,2337815 15,432 546,7 546,7 98,42 98,74 0,151 0,149 175 0,2342305 15,398 546,7 546,7 98,36 98,63 0,151 0,149 176 0,2337816 15,331 546,7 546,8 99,15 99,72 0,151 0,149 177 0,2326936 Particulates Calculations Page 3 of 6 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN 15,285 546,7 546,7 99,25 99,63 0,151 0,149 178 0,2320384 15,426 546,7 546,7 98,30 98,64 0,151 0,149 179 0,234215 15,428 546,6 546,7 98,41 98,58 0,151 0,149 180 0,2342147 15,430 546,6 546,7 98,46 98,79 0,151 0,149 181 0,2342147 15,476 546,6 546,6 98,10 98,58 0,151 0,149 182 0,2348638 15,239 546,6 546,6 99,97 100,22 0,151 0,149 183 0,2311621 15,294 546,6 546,6 99,43 99,62 0,152 0,149 184 0,2320389 15,434 546,6 546,6 98,50 98,75 0,151 0,149 185 0,2342153 15,428 546,6 546,7 98,39 98,75 0,151 0,149 186 0,2342151 15,479 546,6 546,7 98,24 98,45 0,151 0,149 187 0,2348643 15,397 546,7 546,8 98,56 98,99 0,151 0,149 188 0,2337819 15,469 546,7 546,8 98,09 98,16 0,151 0,149 189 0,2348639 15,402 546,8 546,9 98,54 99,06 0,151 0,149 190 0,2337812 15,402 546,8 546,9 98,51 98,86 0,151 0,149 191 0,2337812 15,424 546,9 546,9 98,44 98,73 0,151 0,149 192 0,234215 15,331 546,9 547,0 99,05 99,40 0,151 0,149 193 0,2326939 15,322 546,9 547,0 99,15 99,21 0,151 0,149 194 0,2326941 15,427 546,9 547,0 98,38 98,71 0,151 0,149 195 0,2342153 15,279 546,9 547,0 99,31 99,52 0,151 0,149 196 0,232039 15,432 547,0 547,0 98,31 98,58 0,151 0,149 197 0,2342153 15,480 547,0 547,1 97,94 98,49 0,151 0,149 198 0,234864 15,533 547,1 547,1 97,60 98,08 0,151 0,149 199 0,235727 15,469 547,1 547,2 98,13 98,20 0,151 0,148 200 0,2348639 15,335 547,1 547,1 99,14 99,48 0,151 0,149 201 0,2326939 15,326 547,0 547,1 98,95 99,34 0,151 0,149 202 0,2326943 15,396 547,0 547,1 98,67 98,86 0,151 0,149 203 0,2337818 15,391 547,0 547,1 98,56 98,98 0,151 0,149 204 0,2337821 15,226 547,0 547,1 99,56 99,99 0,151 0,149 205 0,2311628 15,426 547,0 547,2 98,38 98,76 0,151 0,149 206 0,2342161 15,422 547,0 547,2 98,27 98,74 0,151 0,149 207 0,2342162 15,494 547,1 547,2 97,92 98,20 0,151 0,149 208 0,2352971 15,258 547,1 547,2 99,47 99,82 0,151 0,149 209 0,2316009 15,395 547,1 547,2 98,54 98,72 0,151 0,149 210 0,2337821 15,396 547,1 547,3 98,64 98,90 0,151 0,149 211 0,2337827 15,396 547,1 547,3 98,43 98,64 0,151 0,149 212 0,2337826 15,281 547,1 547,3 99,25 99,70 0,151 0,149 213 0,2320392 15,331 547,1 547,3 99,01 99,35 0,151 0,149 214 0,2326946 15,398 547,1 547,3 98,58 98,86 0,151 0,149 215 0,2337827 15,286 547,1 547,3 99,42 99,53 0,151 0,149 216 0,232039 15,430 547,2 547,3 98,44 98,66 0,151 0,149 217 0,2342159 15,467 547,2 547,4 98,12 98,39 0,151 0,149 218 0,2348649 15,395 547,3 547,4 98,39 98,90 0,151 0,149 219 0,233782 15,229 547,3 547,4 99,61 100,05 0,151 0,149 220 0,2311628 15,422 547,3 547,5 98,21 98,40 0,151 0,149 221 0,2342159 15,435 547,3 547,5 98,28 98,72 0,151 0,148 222 0,2342159 15,426 547,3 547,5 98,04 98,50 0,151 0,149 223 0,2342158 15,184 547,4 547,6 99,95 100,11 0,151 0,148 224 0,2305028 15,280 547,4 547,6 99,18 99,61 0,151 0,149 225 0,232039 15,218 547,4 547,6 99,52 99,73 0,151 0,149 226 0,2311626 15,390 547,4 547,6 98,36 98,74 0,151 0,148 227 0,2337818 15,319 547,4 547,6 98,80 99,01 0,151 0,148 228 0,2326924 15,324 547,4 547,6 98,90 99,28 0,151 0,148 229 0,2326946 15,320 547,4 547,6 98,71 99,06 0,151 0,148 230 0,2326944 15,315 547,4 547,6 98,83 99,16 0,151 0,148 231 0,2326945 15,424 547,4 547,6 98,40 98,45 0,151 0,148 232 0,2342157 15,424 547,4 547,6 98,16 98,42 0,151 0,148 233 0,234216 15,416 547,3 547,6 98,26 98,56 0,151 0,148 234 0,2342158 15,273 547,3 547,6 99,11 99,43 0,151 0,149 235 0,2320396 15,269 547,3 547,6 99,02 99,66 0,151 0,149 236 0,23204 15,412 547,3 547,6 98,09 98,51 0,151 0,149 237 0,2342163 15,210 547,3 547,5 99,47 99,81 0,151 0,149 238 0,2311637 Particulates Calculations Page 4 of 6 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN 15,459 547,3 547,6 97,93 98,10 0,151 0,148 239 0,2348651 15,313 547,4 547,6 98,77 99,06 0,151 0,148 240 0,2326951 15,414 547,4 547,6 98,13 98,62 0,151 0,149 241 0,2342161 15,379 547,4 547,6 98,19 98,78 0,151 0,149 242 0,2337831 15,380 547,3 547,6 98,22 98,52 0,151 0,149 243 0,2337829 15,504 547,3 547,6 97,63 97,91 0,151 0,148 244 0,2357278 15,411 547,3 547,6 98,12 98,69 0,151 0,149 245 0,234216 15,309 547,3 547,6 98,66 99,00 0,151 0,149 246 0,232695 15,250 547,4 547,7 99,01 99,75 0,151 0,149 247 0,231854 15,413 547,4 547,7 98,26 98,44 0,151 0,149 248 0,2342164 15,313 547,4 547,7 98,83 99,26 0,151 0,149 249 0,232695 15,172 547,4 547,7 99,77 99,92 0,151 0,148 250 0,2305034 15,218 547,5 547,7 99,41 99,87 0,151 0,148 251 0,2311634 15,312 547,5 547,7 98,67 99,06 0,151 0,148 252 0,2327042 15,210 547,6 547,8 99,40 99,74 0,151 0,148 253 0,2311632 15,307 547,5 547,7 98,84 99,01 0,151 0,148 254 0,2326948 15,451 547,5 547,7 97,85 98,25 0,151 0,148 255 0,2348655 15,453 547,4 547,7 97,86 98,11 0,151 0,148 256 0,2348655 15,382 547,4 547,7 98,26 98,59 0,151 0,148 257 0,2337827 15,385 547,4 547,7 98,30 98,43 0,151 0,148 258 0,2337819 15,311 547,4 547,7 98,85 99,13 0,151 0,148 259 0,2326948 15,315 547,4 547,7 98,80 99,00 0,151 0,148 260 0,2326948 15,384 547,5 547,8 98,22 98,58 0,151 0,148 261 0,2337825 15,377 547,5 547,8 98,29 98,45 0,151 0,148 262 0,2337837 15,407 547,5 547,8 98,09 98,54 0,151 0,148 263 0,2342164 15,262 547,4 547,7 99,05 99,48 0,151 0,149 264 0,2320394 15,480 547,4 547,7 97,71 97,82 0,151 0,148 265 0,2352974 15,376 547,4 547,7 98,32 98,51 0,151 0,148 266 0,2337828 15,261 547,4 547,7 99,04 99,23 0,151 0,148 267 0,2320393 15,448 547,4 547,7 97,79 97,90 0,151 0,148 268 0,2348655 15,263 547,4 547,7 99,08 99,47 0,151 0,148 269 0,2320394 15,301 547,4 547,7 98,71 98,90 0,151 0,148 270 0,2326948 15,404 547,3 547,7 98,07 98,49 0,151 0,148 271 0,2342155 15,446 547,3 547,7 97,82 98,19 0,151 0,149 272 0,2348648 15,259 547,4 547,7 99,08 99,40 0,151 0,149 273 0,2320394 15,303 547,4 547,7 98,67 99,29 0,151 0,149 274 0,2326944 15,405 547,4 547,7 98,12 98,34 0,151 0,149 275 0,2342159 15,407 547,4 547,7 97,93 98,32 0,151 0,148 276 0,2342162 15,413 547,4 547,7 98,33 98,56 0,151 0,148 277 0,2342162 15,384 547,4 547,7 98,20 98,52 0,151 0,148 278 0,2337824 15,167 547,4 547,7 99,63 100,06 0,151 0,148 279 0,230503 15,239 547,4 547,8 99,35 99,35 0,151 0,148 280 0,2316015 15,479 547,5 547,8 97,60 97,88 0,151 0,148 281 0,2352972 15,303 547,6 547,8 98,61 99,29 0,151 0,149 282 0,2326694 15,401 547,6 547,9 97,97 98,33 0,151 0,149 283 0,2342154 15,261 547,6 547,9 98,99 99,44 0,151 0,149 284 0,2320397 15,206 547,6 547,9 99,38 99,67 0,151 0,149 285 0,2311632 15,450 547,6 547,9 97,83 98,13 0,151 0,148 286 0,2348651 15,449 547,5 547,9 97,90 98,18 0,151 0,148 287 0,2348658 15,266 547,6 547,9 99,07 99,23 0,151 0,148 288 0,2320397 15,308 547,6 547,9 98,71 99,26 0,151 0,149 289 0,2326949 15,234 547,6 547,9 99,21 99,39 0,151 0,148 290 0,2316017 15,414 547,6 547,9 98,10 98,40 0,151 0,148 291 0,234216 15,411 547,6 547,9 98,19 98,57 0,151 0,149 292 0,2342164 15,292 547,6 548,0 98,84 99,19 0,151 0,149 293 0,2324935 15,375 547,7 548,0 98,20 98,41 0,151 0,148 294 0,2337828 15,450 547,7 548,0 97,90 98,06 0,151 0,148 295 0,2348657 15,511 547,8 548,0 97,34 97,84 0,151 0,148 296 0,2357287 15,263 547,8 548,0 98,95 99,32 0,151 0,148 297 0,2320399 15,407 547,8 548,1 98,09 98,41 0,151 0,148 298 0,234217 15,266 547,7 548,1 99,08 99,42 0,151 0,148 299 0,2320401 Particulates Calculations Page 5 of 6 DATA 2018-09-13 EPA PI 20176 RUN 4 CAT 2 NO FAN 15,293 547,7 548,1 99,08 99,21 0,151 0,148 300 0,232348 15,242 547,7 548,1 99,20 99,38 0,151 0,148 301 0,2316013 15,383 547,7 548,1 98,34 98,65 0,151 0,148 302 0,2337834 15,309 547,8 548,1 98,73 98,95 0,151 0,148 303 0,232695 15,448 547,8 548,1 97,91 98,04 0,151 0,148 304 0,234866 15,474 547,8 548,1 97,75 97,79 0,151 0,148 305 0,2352979 15,399 547,7 548,1 98,07 98,42 0,151 0,148 306 0,2342171 15,137 547,7 548,1 99,87 99,90 0,151 0,148 307 0,2301482 15,370 547,7 548,1 98,15 98,49 0,151 0,148 308 0,2337832 15,442 547,7 548,1 97,74 98,22 0,151 0,149 309 0,2348658 15,407 547,7 548,1 98,04 98,19 0,151 0,148 310 0,234217 15,381 547,8 548,2 98,30 98,47 0,151 0,148 311 0,2337843 15,411 547,8 548,1 98,02 98,40 0,151 0,148 312 0,2342167 15,205 547,8 548,1 99,44 99,75 0,151 0,148 313 0,2311637 15,398 547,8 548,2 97,90 98,16 0,151 0,148 314 0,2342137 15,376 547,8 548,2 98,44 98,23 0,151 0,148 315 0,2337835 15,448 547,7 548,2 97,86 98,13 0,151 0,148 316 0,2348659 15,405 547,7 548,2 98,17 98,25 0,151 0,148 317 0,2342169 15,302 547,8 548,2 98,63 98,83 0,151 0,148 318 0,2326957 15,307 547,8 548,2 98,71 99,01 0,151 0,148 319 0,2326959 15,422 547,8 548,2 97,96 98,06 0,151 0,148 320 0,2344716 15,506 547,9 548,3 97,62 97,79 0,151 0,148 321 0,2357283 15,376 547,9 548,3 98,21 98,50 0,151 0,148 322 0,2337835 15,260 547,9 548,3 99,02 99,12 0,151 0,148 323 0,2320407 15,234 547,9 548,3 99,05 99,39 0,151 0,148 324 0,2316025 15,403 547,9 548,3 97,94 98,41 0,151 0,148 325 0,2342174 15,408 548,0 548,4 97,99 98,42 0,151 0,148 326 0,234217 15,379 548,0 548,4 98,27 98,30 0,151 0,148 327 0,2337834 15,261 548,0 548,4 98,97 99,31 0,151 0,148 328 0,2320166 15,237 548,0 548,4 99,08 99,51 0,151 0,148 329 0,2316015 15,452 548,0 548,4 97,67 98,04 0,151 0,148 330 0,2348659 15,200 548,1 548,5 99,37 99,48 0,151 0,148 331 0,2311656 15,370 548,1 548,5 98,10 98,46 0,151 0,148 332 0,2337835 15,307 548,1 548,5 98,66 98,80 0,151 0,148 333 0,2326955 15,408 548,1 548,5 98,31 98,30 0,151 0,148 334 0,2342172 15,306 548,1 548,5 98,62 98,98 0,151 0,148 335 0,2326955 Particulates Calculations Page 6 of 6 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 Outlet Outlet Average Average #1 #2 Tunnel Temp. Temp. 98,96 98,60 System 1 System 2 SQRT Velocity Meter 1 Meter 2 Vol.Std. Vol.Std. Delta-P PR1 PR2 Time Ft/Sec Deg. R Deg. R %% (ft3) (ft3) min (in H2O)2 16,064 539,0 539,0 0,154 0,151 0 0,2408257 15,971 539,0 539,1 99,29 99,14 0,154 0,151 1 0,2418774 15,886 539,0 539,1 99,69 99,29 0,154 0,151 2 0,2408266 16,035 539,1 539,2 98,72 98,39 0,154 0,151 3 0,2429251 15,978 539,1 539,2 99,42 98,98 0,154 0,151 4 0,2418786 15,817 539,1 539,3 100,42 99,95 0,154 0,151 5 0,2393471 15,884 539,2 539,3 99,79 99,46 0,154 0,151 6 0,2404055 15,936 539,2 539,4 99,84 99,55 0,154 0,151 7 0,2408268 15,763 539,3 539,4 101,29 100,86 0,154 0,151 8 0,2378588 15,743 539,4 539,5 101,51 101,09 0,154 0,151 9 0,2374308 16,023 539,4 539,5 99,90 99,34 0,154 0,151 10 0,2414586 16,049 539,5 539,6 99,71 99,21 0,154 0,151 11 0,2418782 16,052 539,5 539,7 99,62 99,45 0,154 0,151 12 0,2418781 15,972 539,6 539,7 100,37 100,19 0,154 0,151 13 0,2404056 15,908 539,7 539,8 100,94 100,41 0,154 0,151 14 0,2393473 15,931 539,6 539,9 100,71 100,68 0,154 0,151 15 0,2396582 16,014 539,7 539,9 100,29 99,91 0,154 0,151 16 0,2408271 15,969 539,7 540,0 100,55 100,29 0,154 0,151 17 0,2400656 15,926 539,8 540,0 100,81 100,65 0,154 0,151 18 0,2393473 16,072 539,8 540,1 99,91 99,71 0,153 0,151 19 0,2414593 15,763 539,9 540,2 102,13 101,60 0,154 0,151 20 0,2367893 16,037 540,0 540,3 100,35 100,00 0,154 0,151 21 0,240827 15,838 540,1 540,3 101,50 101,22 0,154 0,151 22 0,2378596 16,005 540,1 540,4 100,43 100,11 0,153 0,151 23 0,2404062 15,911 540,2 540,5 101,04 100,73 0,153 0,151 24 0,2389238 15,855 540,2 540,5 101,68 101,33 0,154 0,151 25 0,2379944 16,043 540,3 540,6 100,21 99,79 0,154 0,151 26 0,2408277 15,772 540,3 540,7 101,97 101,57 0,153 0,151 27 0,2368567 16,025 540,3 540,7 99,99 99,88 0,153 0,151 28 0,2408278 15,929 540,4 540,7 100,70 100,21 0,153 0,151 29 0,2393485 15,743 540,4 540,8 101,88 101,34 0,153 0,150 30 0,2367907 15,973 540,4 540,8 100,05 99,71 0,153 0,150 31 0,2404069 15,874 540,5 540,9 100,79 100,26 0,153 0,150 32 0,2389243 15,939 540,6 540,9 100,38 99,98 0,153 0,151 33 0,2399836 15,789 540,6 541,0 101,29 100,79 0,154 0,151 34 0,2378606 15,784 540,6 541,0 101,22 100,69 0,154 0,151 35 0,2378606 15,922 540,7 541,1 100,23 99,80 0,154 0,151 36 0,2399833 15,777 540,7 541,1 101,25 100,72 0,154 0,151 37 0,2378612 15,874 540,7 541,1 100,43 100,21 0,154 0,151 38 0,2393488 15,871 540,8 541,2 100,46 100,03 0,153 0,151 39 0,239349 15,908 540,8 541,2 99,99 99,62 0,153 0,150 40 0,2399843 15,871 540,8 541,2 100,42 99,96 0,153 0,150 41 0,2393492 15,837 540,9 541,3 100,54 100,22 0,153 0,151 42 0,2389246 15,935 540,9 541,3 99,95 99,57 0,153 0,151 43 0,2404079 15,834 541,0 541,3 100,50 100,25 0,153 0,151 44 0,2389246 15,668 541,0 541,4 101,65 101,13 0,153 0,151 45 0,236473 15,897 541,0 541,4 99,93 99,36 0,153 0,150 46 0,2399843 15,752 541,0 541,4 100,89 100,45 0,153 0,150 47 0,2378613 15,749 541,1 541,5 100,91 100,69 0,153 0,151 48 0,2378612 15,811 541,1 541,5 100,30 99,76 0,153 0,151 49 0,2389256 15,952 541,2 541,5 99,40 98,84 0,153 0,150 50 0,241058 15,933 541,2 541,6 99,45 99,08 0,153 0,150 51 0,2408297 15,925 541,3 541,6 99,37 99,08 0,153 0,150 52 0,2408303 15,727 541,3 541,7 100,71 100,21 0,153 0,150 53 0,2378622 15,920 541,4 541,8 99,38 99,09 0,153 0,150 54 0,2408301 15,918 541,4 541,8 99,28 99,00 0,153 0,150 55 0,2408302 Proportional Rates Particulates Calculations Page 1 of 3 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 15,859 541,5 541,8 99,47 99,28 0,153 0,150 56 0,2399857 15,880 541,6 541,9 99,50 98,98 0,153 0,150 57 0,2404089 15,709 541,6 541,9 100,39 100,03 0,153 0,150 58 0,2378623 15,773 541,6 542,0 100,03 99,55 0,153 0,150 59 0,2389268 15,865 541,7 542,0 99,37 98,89 0,153 0,150 60 0,240409 15,831 541,8 542,1 99,30 98,99 0,153 0,150 61 0,2399861 15,859 541,8 542,1 99,19 98,85 0,153 0,150 62 0,240409 15,759 541,8 542,2 99,71 99,40 0,153 0,150 63 0,2389268 15,880 541,9 542,2 99,04 98,91 0,153 0,150 64 0,2408305 15,851 541,9 542,3 99,26 99,20 0,153 0,151 65 0,2404098 16,038 541,9 542,3 97,80 97,49 0,153 0,150 66 0,2433466 16,033 542,0 542,3 97,92 97,46 0,153 0,150 67 0,2433463 15,843 542,0 542,3 98,95 98,73 0,153 0,150 68 0,2404095 16,001 542,0 542,4 98,06 97,70 0,153 0,150 69 0,2429299 15,735 542,0 542,4 99,41 99,29 0,153 0,150 70 0,2389271 15,833 541,9 542,3 98,96 98,64 0,153 0,150 71 0,24041 15,900 541,9 542,3 98,59 98,15 0,153 0,150 72 0,2414634 15,857 541,9 542,4 98,75 98,24 0,153 0,150 73 0,2408314 15,995 542,0 542,4 98,02 97,51 0,153 0,150 74 0,2429305 15,799 542,0 542,4 99,07 98,81 0,153 0,150 75 0,2399871 15,852 542,1 542,5 98,75 98,66 0,153 0,150 76 0,2408313 15,890 542,1 542,5 98,33 98,20 0,153 0,150 77 0,2414634 16,052 542,1 542,5 97,47 97,00 0,153 0,150 78 0,2439732 15,982 542,1 542,6 97,90 97,74 0,153 0,150 79 0,2429305 15,843 542,2 542,6 98,70 98,41 0,153 0,150 80 0,2408319 15,712 542,2 542,6 99,47 98,69 0,153 0,150 81 0,2389279 15,810 542,2 542,7 98,76 98,72 0,153 0,150 82 0,2404106 15,970 542,3 542,7 97,84 97,29 0,153 0,150 83 0,242931 15,831 542,3 542,7 98,62 98,43 0,153 0,150 84 0,2408317 15,868 542,3 542,7 98,30 98,01 0,153 0,150 85 0,2414638 15,989 542,4 542,8 97,49 97,14 0,153 0,150 86 0,2433479 15,989 542,5 542,8 97,45 97,11 0,153 0,150 87 0,2433483 15,960 542,5 542,9 97,60 97,19 0,153 0,150 88 0,2429308 15,889 542,6 542,9 97,96 97,60 0,153 0,150 89 0,2418841 15,957 542,7 543,0 97,63 97,31 0,153 0,150 90 0,2429312 16,049 542,7 543,0 96,85 96,55 0,153 0,150 91 0,2443892 15,953 542,6 543,0 97,50 97,22 0,153 0,150 92 0,2429316 15,815 542,6 543,0 98,31 98,15 0,153 0,150 93 0,2408329 15,756 542,7 543,0 98,82 98,34 0,153 0,150 94 0,2399886 15,947 542,7 543,1 97,36 97,22 0,153 0,150 95 0,2429318 15,880 542,8 543,1 97,87 97,48 0,153 0,150 96 0,241884 15,709 542,8 543,1 98,97 98,44 0,153 0,150 97 0,2393529 15,847 542,9 543,2 97,87 97,69 0,153 0,150 98 0,2414656 15,682 542,9 543,2 99,13 98,68 0,153 0,150 99 0,2389294 16,012 542,8 543,2 97,03 96,72 0,153 0,150 100 0,2439757 15,846 542,9 543,2 97,88 97,83 0,153 0,150 101 0,2414651 15,706 542,9 543,3 98,86 98,66 0,153 0,150 102 0,2393539 15,748 542,9 543,3 98,59 98,16 0,153 0,150 103 0,2399892 15,969 542,9 543,3 97,26 96,99 0,153 0,150 104 0,2433492 15,842 542,9 543,3 97,98 97,65 0,153 0,150 105 0,2414653 15,800 543,0 543,4 98,39 97,60 0,153 0,150 106 0,2408331 15,800 543,0 543,4 98,12 97,81 0,153 0,150 107 0,240833 15,842 543,0 543,4 97,96 97,73 0,153 0,150 108 0,2414649 15,800 543,1 543,5 98,16 97,96 0,153 0,150 109 0,2408331 16,004 543,1 543,5 97,09 96,51 0,153 0,150 110 0,2439746 15,840 543,2 543,6 97,98 97,57 0,153 0,150 111 0,2414659 16,003 543,2 543,6 96,88 96,47 0,153 0,150 112 0,2439753 16,192 543,2 543,6 95,67 95,27 0,152 0,150 113 0,2468702 16,298 543,2 543,6 95,01 94,59 0,152 0,150 114 0,2485067 16,028 543,2 543,7 96,78 96,30 0,153 0,150 115 0,2443907 16,232 543,3 543,7 95,73 95,03 0,153 0,150 116 0,2474873 Particulates Calculations Page 2 of 3 DATA 2018-09-14 EPA PI 20176 RUN 5 CAT 4 16,028 543,3 543,7 96,61 96,26 0,153 0,150 117 0,2443908 16,299 543,4 543,8 95,05 94,71 0,152 0,150 118 0,2485155 16,257 543,4 543,8 95,39 94,86 0,153 0,150 119 0,2478974 16,229 543,5 543,9 95,38 94,99 0,152 0,150 120 0,247487 16,255 543,5 544,0 95,15 94,80 0,152 0,149 121 0,2478979 16,188 543,5 543,9 95,54 95,55 0,152 0,150 122 0,2468705 16,190 543,5 544,0 95,56 95,52 0,152 0,150 123 0,2468708 16,162 543,5 543,9 95,78 95,38 0,152 0,150 124 0,2464599 16,318 543,5 543,9 94,81 94,57 0,152 0,150 125 0,248919 16,315 543,4 543,9 94,69 94,35 0,152 0,150 126 0,2489196 Particulates Calculations Page 3 of 3 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 18 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 4: Unit pre burn Model: HER 8024 Wood Stove Preconditioning Date: 09/27/2018 Test Engineer: CFM Total Hours: 60.75 Date Time Scale Flue Temp (°F) Cat Temp (°F) Minutes (Cumulative) 22-Aug 1835 4.9 LBS KINDLING 1855 17.4 LBS FUEL 1910 16.7 677 712 0 1920 12.9 479 688 1930 10.7 487 968 1940 8.9 523 1136 1950 7.0 522 1129 2000 5.5 491 1019 2010 4.4 473 1011 2020 3.3 458 1049 70 2024 15.4 429 870 TEST STARTED, SCALE ZEROED 2030 14.5 483 1030 2040 12.2 560 1146 2050 10.1 572 1151 2100 7.5 558 1112 2110 5.6 543 1131 2120 4.2 514 1098 2130 3.1 482 992 2140 2.4 440 880 2150 1.8 433 883 2200 1.1 417 843 2210 1.0 398 817 2220 0.6 388 805 2230 0.5 380 789 200 2239 -0.1 376 775 2248 17.3 372 773 SCALE ZEROED, FUEL ADDED TO HOT STOVE 2300 15.9 432 918 230 2310 15.0 378 919 2320 13.9 375 920 2330 12.7 383 905 2340 11.6 385 908 2350 10.8 380 924 280 23-Aug 0000 9.4 374 903 0010 8.3 371 891 0020 7.4 364 884 0030 6.5 364 896 0040 5.6 353 865 0050 5.0 346 882 0100 4.4 340 877 0110 3.8 321 834 0120 3.4 312 812 0130 3.0 306 814 0140 2.9 291 732 0150 2.5 280 709 400 0200 2.3 275 695 0210 2.1 269 667 0220 2.0 266 660 0230 1.8 263 654 0240 1.6 261 647 0250 1.6 261 653 0300 1.3 259 655 0310 1.2 247 621 0320 1.1 239 603 0330 0.8 238 615 500 0340 0.7 237 605 0350 0.3 238 611 0400 0.4 241 620 0410 0.2 241 617 0420 0.1 237 607 0430 0.0 237 608 0440 0.0 235 600 0450 0.0 230 587 0500 0.0 226 567 0510 0.2 221 556 600 0520 0.1 221 571 0530 0.0 218 558 0540 0.0 213 539 0550 0.0 209 540 0600 0.0 211 569 0610 0.0 214 583 0620 0.0 208 559 0630 -0.1 204 574 0640 0.0 202 562 0650 0.1 196 557 700 0700 0.0 196 543 0705 0.0 188 508 715 1520 5.1 LBS KINDLING STOVE COOLED, RELIT 1535 17.9 LBS FUEL 1600 15.5 415 520 715 1610 14.2 311 720 1620 13.7 251 689 1630 13.0 351 799 1640 12.4 263 720 1650 12.0 247 683 1700 11.5 239 686 1710 9.9 505 1065 1720 8.3 518 1058 795 1730 6.7 504 990 1740 5.7 319 864 1750 5.6 274 900 1800 5.2 264 905 1810 4.9 257 893 1820 4.5 254 894 1830 4.4 245 869 1840 4.1 239 835 1850 4.1 231 799 885 1859 3.8 225 778 1904 16.1 238 686 TEST STARTED, SCALE ZEROED 1920 15.3 237 630 915 1930 14.8 249 681 1940 14.5 266 768 1950 13.5 278 850 2000 12.9 286 813 2010 12.2 290 895 2020 11.5 300 938 2030 10.8 308 997 2040 10.1 317 1037 995 2050 9.3 329 1085 2100 8.5 332 1089 2110 7.7 328 1083 2120 7.1 322 1073 2130 6.2 321 1085 2140 5.6 325 1113 2150 4.6 319 1083 2200 4.1 305 1044 2210 3.9 302 1036 2220 3.2 294 998 1095 2230 3.0 274 899 2240 2.9 252 795 2250 2.6 237 745 2300 2.5 228 723 2310 2.4 220 701 2320 2.4 214 684 2330 2.3 209 675 2340 2.1 206 665 2350 2.1 203 658 24-Aug 0000 1.9 199 622 1195 0010 1.7 195 624 0020 1.7 192 614 0030 1.5 190 613 0040 1.4 189 612 0050 1.2 190 619 0100 1.3 188 615 0110 0.9 190 652 0120 0.6 187 630 0130 0.5 186 635 0140 0.8 186 617 1295 0150 0.6 182 601 0200 0.2 182 606 0210 0.1 185 633 0220 0.1 184 619 0230 0.1 184 634 0240 0.0 186 640 0250 0.2 185 626 0300 -0.2 183 619 0310 0.0 182 617 0320 0.0 179 609 1395 0330 -0.1 177 610 0340 -0.2 180 630 0350 0.0 182 619 0400 -0.1 181 615 0410 0.0 179 608 0420 -0.2 177 594 0430 0.0 176 585 0440 0.1 175 589 0450 0.1 172 569 0500 -0.1 169 553 1495 0510 -0.1 166 531 0520 0.0 160 508 0524 0.0 158 500 1519 1140 5.6 LBS KINDLING STOVE COOLED, RELIT 1155 18.0 LBS FUEL 1220 16.0 390 556 1519 1230 14.3 401 603 1240 12.2 680 754 1250 12.1 772 864 1300 9.6 746 892 1310 6.0 629 816 1320 4.1 314 838 1330 3.8 272 811 1589 1340 3.6 251 766 1350 3.4 242 772 1400 3.3 229 693 1410 3.0 217 691 1629 1413 16.3 225 610 TEST STARTED, SCALE ZEROED 1420 15.9 262 645 1639 1430 15.7 210 506 1440 15.5 215 601 1450 15.0 245 736 1500 14.2 278 777 1510 13.6 289 872 1520 13.1 297 865 1699 1530 12.1 309 929 1540 11.1 312 893 1550 10.5 299 991 1600 9.8 319 1056 1610 8.9 321 1086 1620 8.2 321 1092 1630 7.7 319 1092 1640 7.1 318 1092 1650 6.3 320 1111 1700 5.4 323 1126 1799 1710 4.8 302 937 1720 4.4 275 864 1730 3.9 262 867 1740 3.6 262 956 1750 3.4 246 785 1800 3.4 230 732 1810 3.0 219 691 1820 2.8 210 661 1830 2.8 205 652 1840 2.9 202 649 1899 1850 2.7 200 645 1900 2.5 198 648 1910 2.3 200 681 1920 2.1 204 718 1930 2.2 206 715 1940 2.0 207 719 1950 1.7 207 720 2000 1.9 208 718 2010 1.6 202 610 2020 1.7 188 602 1999 2030 1.3 187 632 2040 1.2 191 644 2050 1.0 191 649 2100 1.0 192 657 2110 0.8 194 666 2120 0.6 192 662 2130 0.4 191 638 2140 0.3 188 620 2150 0.1 185 611 2089 2157 -0.1 186 621 TEST ENDED, TEMPERATURE LOGGING CONTINUED 2200 0.0 186 623 NO FUEL ADDED 2099 2210 0.0 183 611 2220 0.0 182 608 2230 0.2 180 595 2240 -0.1 176 574 2250 0.0 175 582 2300 0.0 174 581 2310 0.1 172 567 2320 -0.1 172 579 2330 0.0 172 579 2340 0.0 170 568 2199 2350 -0.1 168 554 2400 -0.1 166 547 2410 0.0 165 556 2420 0.0 163 532 2430 0.1 159 513 2440 0.0 155 511 2450 0.0 154 502 2169 2457 0.1 154 501 2176 25-Aug 1555 5.1 LBS KINDLING STOVE COOLED, RELIT 1615 16.3 LBS FUEL 1747 3.7 257 675 CATALYST TC CHANNEL REPAIRED 2176 1750 3.8 253 781 2179 1800 3.7 246 759 1810 3.5 236 701 2199 1814 15.4 236 648 TEST STARTED, SCALE ZEROED 1824 14.9 252 592 1830 14.7 241 593 2219 1840 14.3 256 669 1850 13.7 279 783 1900 12.9 309 906 1910 12.0 326 982 1920 11.1 338 974 1930 10.1 345 1125 1940 9.4 354 1172 1950 8.6 343 1037 2299 2000 8.0 317 895 2010 7.2 338 1064 2020 6.4 352 1213 2030 6.0 353 1136 2040 5.2 320 901 2050 4.4 301 857 2100 4.1 288 855 2110 3.7 273 808 2120 3.4 266 814 2130 3.4 253 761 2399 2140 3.1 246 739 2150 2.7 240 723 2200 2.7 235 719 2210 2.6 232 712 2220 2.3 231 716 2230 2.2 243 796 2240 2.1 246 794 2250 1.9 246 786 2300 1.8 245 778 2310 1.7 246 775 2499 2320 1.5 245 774 2330 1.5 245 768 2340 1.3 244 763 2350 1.1 244 765 26-Aug 0000 0.9 244 771 0010 0.8 229 700 0020 0.8 226 697 0030 0.5 223 699 0040 0.6 223 685 0050 0.3 217 657 2599 0100 0.0 216 674 0105 -0.1 217 681 TEST ENDED, LOGGING STOPPED 2614 1811 5.1 LBS KINDLING STOVE COOLED, RELIT 1822 17.2 LBS FUEL 1831 18.0 489 641 2614 1841 15.2 424 332 1851 12.3 763 890 2634 1900 10.1 788 938 2643 1910 6.7 780 928 1920 5.3 375 932 1930 4.8 317 865 1940 4.6 320 1041 1950 4.1 316 1049 2000 3.9 298 960 2703 2010 3.8 282 891 2015 15.3 285 771 TEST STARTED, SCALE ZEROED 2020 14.8 401 788 2030 14.4 289 807 2040 13.6 319 934 2050 12.7 336 981 2100 11.8 338 993 2110 10.9 333 908 2120 10.2 340 1117 2130 9.4 355 1169 2140 8.7 359 1193 2803 2150 8.1 361 1183 2200 7.2 360 1172 2210 6.3 354 1140 2220 5.6 346 1116 2230 5.1 339 1100 2240 4.7 337 1106 2250 4.0 340 1136 2300 3.3 338 1141 2310 3.0 311 887 2320 2.5 281 821 2903 2330 2.4 259 725 2340 2.3 242 694 2350 2.2 233 690 27-Aug 0000 2.0 228 687 0010 1.7 226 687 0020 1.6 225 689 0030 1.3 224 682 0040 1.3 224 681 0050 1.3 227 697 0100 1.1 224 682 3003 0110 1.1 222 687 0120 1.0 225 702 0130 0.7 226 705 0140 0.6 224 697 0150 0.4 224 697 0200 0.3 222 695 3063 0208 0.0 224 696 TEST ENDED, LOGGING STOPPED 3071 1201 5.4 LBS KINDLING STOVE COOLED, RELIT 1215 15.8 LBS FUEL 1240 12.9 649 731 3071 1250 10.7 683 761 1300 8.2 795 857 1310 6.0 427 1029 3101 1320 5.3 318 865 1330 5.0 291 861 1340 4.6 273 821 1350 4.3 263 829 1400 4.1 274 999 1410 3.6 275 959 1420 16.0 263 765 TEST STARTED, SCALE ZEROED 1430 15.6 269 640 1440 15.4 257 670 1450 14.8 279 774 3201 1500 13.8 305 865 1510 13.0 315 915 1520 12.1 332 1015 1530 11.3 336 959 1540 10.4 343 1013 1550 9.3 341 1003 1600 8.4 320 910 1610 8.0 296 871 1620 7.3 295 886 1630 6.9 299 871 3301 1640 6.0 294 889 1650 5.5 287 867 1700 4.9 279 868 1710 4.3 272 825 1720 4.0 262 794 1730 3.8 252 764 1740 3.6 236 724 1750 3.4 228 703 1800 3.2 222 688 1810 3.3 218 680 3401 1820 3.0 217 684 1830 3.0 215 683 1840 2.7 215 685 1850 2.5 214 693 1900 2.4 208 649 1910 2.4 205 653 1920 2.2 205 658 1930 2.2 204 660 1940 2.0 203 656 1950 1.7 205 667 3501 2000 1.6 203 648 2010 1.5 199 632 2020 1.4 197 635 2030 1.3 197 640 2040 1.2 197 634 2050 1.0 197 645 2100 0.9 197 647 2110 0.9 202 665 2120 0.5 205 660 2130 0.6 204 658 3601 2140 0.5 205 667 2150 0.3 202 668 2200 0.1 195 633 2210 0.0 193 635 2214 0.1 194 643 TEST ENDED, LOGGING STOPPED 3645 Total Minutes 3645 Total Hours 60.75 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 19 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 5: Participants Danick Power ing. v-p operation Services Polytests inc. 450.741.3636 www.polytests.com Maxime Martin Technicien Services Polytests inc. 450.741.3636 www.polytests.com Charlotte Morgan Design Engineer Hearthstone QHHP 877 877-2113 St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 21 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 7: Operator’s manual Heritage IV (Model 8024) Manual: 6400-XXXXX R: 10/08/18 Heritage IV (Model 8024) Woodstove OWNER'S MANUAL Installation And Operating Instructions SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR NEW HERITAGE 8024 WOOD STOVE. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Failure to follow these instructions can result in property damage, bodily injury, or even death. Conforms to UL Std. 1482 Certified to ULC Std. S627 CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. WARNING: This product can expose you to chemicals including glass wool fiber and carbon monoxide which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov California Prop 65 Hearthstone Quality Home Heating Products, Inc ® Page 1 of 38 Heritage 8024 NOTES ON STOVE OPERATION AND EFFICIENCY Rating: You have purchased a Hearthstone Heritage 8024 tested to EPA Method 28R 40 CFR Part 60 where applicable. This stove is certified to comply with the U.S. Environmental Protection Agency 2020 particulate emissions standard using crib wood. It is certified at 0.54 gr/hr. emission rate and under specific test conditions has been shown to deliver heat at rates ranging from 12,317 to 35,845 Btu/hr (output). This wood heater has a manufacturer-set minimum allowable low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Please refer to the Warranty section of this manual for registration instructions. In case of warranty claims, please contact the point of original sale or the nearest authorized Hearthstone dealer. Our dealer network processes all warranty claims. Authorized Hearthstone dealers can be located at www.hearthstonestoves.com. This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air-dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: Garbage, lawn clippings, material containing rubber (including tires), materials containing plastic, waste petroleum products paints or paint thinners, asphalt products, materials containing asbestos, construction or demolition debris, railroad ties, pressure treated wood, manure or animal remains, salt water driftwood or other previously salt water saturated materials, unseasoned wood, paper products, cardboard, plywood or particleboard. This prohibition against burning these materials does not prohibit the use of fire starters made from paper, cardboard, sawdust, wax and similar substances for the purpose of starting a fire in an affected wood heater. Burning these materials may result in a release toxic fumes, render the heater ineffective, cause smoke and may damage catalysts. Following the maintenance guidelines set forth in this manual will help insure the efficient use of your wood heater and minimize visible emissions. Having your stove inspected by a trained professional on a regular basis will greatly increase the potential for recognizing possible impacts to efficiency. Proper draft is important to the efficient operation of your heater. Refer to the Normal Operation section of this manual for information regarding adequate draft. Both excessive and sub-minimum draft can affect the efficiency of your wood heater. Excessive draft can lead to over-consumption of fuel, lower overall heating capacity of the stove and potential over firing. Low draft can result in inefficient burns, low heat output, expulsion of smoke into the living area when stove doors are opened and an increased potential for build-up of flammable materials in the flue. Efficiency: Efficiency was measured and weighted using EPA Method 28R and CSA B415-10 methodology. A weighted average was used to calculate the overall efficiency across all of the 4 burn rate categories using the higher heating value (HHV). The weighted average efficiency is 77.1% (HHV). To maximize the efficiency of your wood stove make sure it is sized properly for the space you plan to heat. An oversized stove will often be forced to burn at a lower and dirtier burn rate. Consult with your dealer for sizing and correctly placing the stove in your home. An incorrectly placed stove can greatly reduce efficiency. Maximizing the efficiency of your stove will heat your house quickly, burn cleaner and use less wood. Refer to the Choosing Firewood section of this manual for appropriate fuel selection. Seasoned firewood is typically at or near 20% moisture content. This can be measured with any number of hand-held moisture meters available through your local hearth shop. Follow instructions included with the meter you purchase to measure fuel wood moisture content. Burn only dry, seasoned wood as using wet wood will greatly reduce your efficiency. CO Emissions: The Heritage 8024 has the following CO emission rates by burn level: Category 1 (low) – 0.11 g/min, Category 2 (med. low) – 0.25 g/min, Category 3 (med. high) – 0.10 g/min, and Category 4 – 4.12 g/min. Wet wood or unapproved fuel described above can greatly affect the emissions of a wood burning stove. Smoke/Fire/CO Detectors: It is highly recommended that smoke and CO detectors be installed throughout the heated space when a wood burning heater is installed. Be certain to install these devices not only in the area where the wood appliance is located, but also in bedrooms, hallways leading to other areas of the house and all common areas of the heated space. Check the batteries in these devices and assure operation by performing whatever test operations are recommended by the manufacturer. Hearthstone Quality Home Heating Products, Inc ® Page 2 of 38 Heritage 8024 TABLE OF CONTENTS INTRODUCTION ..................................................................................................................... 3 CODES ................................................................................................................................................................... 3 SAFETY INFORMATION ............................................................................................................................................ 3 PERIODIC CHECKLIST ............................................................................................................................................. 4 EMERGENCY PROCEDURES .................................................................................................................................... 5 SPECIFICATIONS .................................................................................................................. 6 INSTALLATION ...................................................................................................................... 7 UNPACKING ............................................................................................................................................................ 7 PACK LIST .............................................................................................................................................................. 7 INSTALLING YOUR STOVE ....................................................................................................................................... 7 HEARTH REQUIREMENTS & FLOOR PROTECTION...................................................................................................... 7 COMBUSTIBLE SURFACE REQUIRED CLEARANCES ................................................................................................... 9 CHIMNEY CONNECTOR SYSTEMS AND CLEARANCES FROM COMBUSTIBLE WALLS .................................................... 11 OUTSIDE AIR SUPPLY ........................................................................................................................................... 12 VENTING COMPONENTS & CONFIGURATION REQUIREMENTS ................................................................................... 12 INSTALLING IN A MOBILE HOME ............................................................................................................................. 17 OPERATION ......................................................................................................................... 18 CONTROLS AND FEATURES ................................................................................................................................... 18 BUILDING A FIRE .................................................................................................................................................. 21 BREAKING IN YOUR WOOD STOVE ........................................................................................................................ 21 NORMAL OPERATION ............................................................................................................................................ 22 CATALYTIC COMBUSTOR OPERATION .................................................................................................................... 22 MAINTENANCE .................................................................................................................... 24 CATALYTIC COMBUSTOR INSPECTION AND REPLACEMENT PROCEDURES ................................................................ 24 INSPECTING THE CATALYST ................................................................................................................................... 24 REPLACING THE CATALYST .................................................................................................................................... 25 REPLACING THE BAFFLE ....................................................................................................................................... .26 GLASS REPLACEMENT PROCEDURES .................................................................................................................... 27 CREOSOTE FORMATION & REMOVAL ..................................................................................................................... 28 GASKETS ............................................................................................................................................................. 28 GLASS ................................................................................................................................................................. 28 TROUBLESHOOTING .......................................................................................................... 29 TROUBLESHOOTING GUIDE ................................................................................................................................... 30 REPLACEMENT PARTS & OPTIONAL ACCESSORIES ................................................................................................. 32 SAFETY LABEL ................................................................................................................... 33 WARRANTY .......................................................................................................................... 34 Hearthstone Quality Home Heating Products, Inc ® Page 3 of 38 Heritage 8024 INTRODUCTION Thank you for purchasing a Heritage 8024 woodstove from Hearthstone Quality Home Heating Products. This stove will provide years of comfortable heat. This stove combines the warmth and comfort of soapstone and cast iron with the efficiency of advanced catalytic technology. The Heritage 8024 blends modern technology with the unique beauty and qualities of cast iron. We trust that you will appreciate the quality of this handcrafted product. Your Heritage 8024 woodstove burns very efficiently, and produces a large amount of heat. However, you should not consider your Heritage 8024 the primary heat source for your home. The Heritage 8024’s large glass window allows you to enjoy the fire from a variety of locations in the room. Please read this manual in its entirety. Its purpose is to familiarize you with your stove's safe installation, proper break-in, operation and maintenance. It contains extremely important information so keep it handy and refer to it often. A qualified heating technician may need this owner’s manual as a reference when installing this stove in your home. There are national, state, and local building codes that direct the technician on how to install your stove. These codes stipulate the dimension of stovepipe and clearances to walls, ceilings, hearth, and other combustible surfaces. The codes exist to reduce the risk of fire. Failure to follow these instructions can result in fire, property damage, bodily injury, and even death. Install the stove in a safe, open area, away from traffic flow, doors, and hallways. If possible, try to install the stove near an existing chimney and chimney connector. It is extremely important to install this stove with the proper clearance from combustible surfaces. You can purchase specific connector pipe and special wall coverings as specified by this manual and the NFPA 211 code to protect combustible surfaces. As a general rule, keep furniture, drapes, curtains, wood, paper, and other combustibles at least 36 inches (92 cm) away from the stove. Never install the stove in or near a storage location for gasoline, kerosene, charcoal lighter fluid or any other flammable liquids. Install the stove in your central living area to allow heat to radiate naturally to distant rooms. Do not install your stove in a poorly insulated area. This is inefficient and would likely result in higher fuel usage.  SAFETY NOTICE: AN IMPROPERLY INSTALLED STOVE CAN RESULT IN A HOUSE FIRE. FOR YOUR SAFETY, CAREFULLY FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. The safety of your stove will depend on many factors, some of which include: distance to combustible objects, correct venting, and adequate chimney maintenance. Should you have any questions, do not hesitate to contact your dealer for additional information. Contact your dealer for any necessary warranty service. This Heritage 8024 stove is warranted by: Hearthstone Quality Home Heating Products, Inc® 317 Stafford Ave. Morrisville, Vermont 05661, USA www.Hearthstonestoves.com CODES When you install your Heritage 8024 woodstove, it is imperative that you adhere to all Federal and local codes. Obtain these codes from either of the following sources: American National Standards Institute, Inc. (ANSI) 1430 Broadway New York, NY 10018 www.ansi.org National Fire Protection Association, Inc. (NFPA) Battery March Park Quincy, MA 02269 www.nfpa.org If you are installing your Heritage 8024 in a mobile or manufactured home, follow the guidelines described in the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (United States). SAFETY INFORMATION Read and understand this Owner's Manual thoroughly before installing and using this stove. Hearthstone Quality Home Heating Products, Inc ® Page 4 of 38 Heritage 8024 Make sure to install your stove:  According to the manufacturer's recommendations  In accordance with all applicable codes  With the proper sized chimney When using your stove, follow these safety precautions:  Never modify this stove in any way.  Never burn kiln dried, painted or treated wood in this stove.  DO NOT BURN GARBAGE. Never burn garbage or trash, colored or glossy paper, solvents, plywood, artificial logs, cardboard, or driftwood, in this stove.  Never burn coal in this stove.  DO NOT BURN FLAMMABLE FLUIDS.  DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE. Never use gasoline, kerosene, charcoal lighter fluid, or other flammable fluids to start or invigorate the fire. These fuels will cause dangerous burning conditions in the stove. Keep all such materials away from the stove.  Never use a wood grate or other device to elevate the fire.  Never allow logs in the firebox to hit the glass when the door is closed.  Never slam the door or use the door to force wood in to the stove.  Never over-fire your stove. (See page 23)  Never put articles of clothing or candles on a hot stove.  Never connect the stove to a flue used by another appliance. Other safety guidelines:  Keep all combustible items such as furniture, drapes, clothing, and other items, at least 36" (0.92 m) from the stove (See page 9)  Install a smoke detector, preferably in an area away from your wood stove.  Keep a fire extinguisher handy. We recommend the type rated "A B C."  Dispose of ashes properly (See page 23).  Keep children and pets away from the stove when it is burning; they could be seriously injured by touching a hot stove.  Clean your chimney system as needed. (See page 28)  Outside combustion air may be required if: 1. This solid-fuel-fired appliance does not draw steadily, smoke rollout occurs, fuel burns poorly, or back-drafts occur whether or not there is combustion present. 2. Existing fuel-fired equipment in the house, such as fireplaces or other heating appliances, smell, do not operate properly, suffer smoke roll-out when opened, or back-draft whether or not there is combustion present. 3. Opening a window slightly on a calm (windless) day alleviates any of the above symptoms. 4. The house is equipped with a well-sealed vapor barrier and tight fitting windows and/or has any powered devices that exhaust house air. 5. There is excessive condensation on windows in the winter. 6. A ventilation system is installed in the house. If these or other indications suggest that infiltration air is inadequate, additional combustion air should be provided from the outdoors. Outside combustion air can be provided to the appliance by using the optional outside air kit #90-53220. PERIODIC CHECKLIST Perform each of these tasks at the specified intervals. At the End of Every Week:  Empty ashes from the firebox, sooner if the firebox is full. At the Beginning of Every Other Month:  Depending upon your use of the stove, visually inspect the chimney connector and chimney for creosote. (see page 28)  Check door seals using the "dollar bill test." - When the stove is cool, shut the door on a dollar bill. If the bill pulls out without any resistance, then your stove’s door is not sealing properly. To tighten the seal, adjust the door latch mechanism or change the door gasket. (Refer to page 28.) Hearthstone Quality Home Heating Products, Inc ® Page 5 of 38 Heritage 8024  Inspect the face of the catalytic combustor for fly ash and soot. Use a soft-bristled brush to remove if present. It is recommended to visually inspect the catalytic combustor at least 3 times during the heating season, or every 2-3 months. At the End of Every Season:  Dismantle the chimney connector and clean it thoroughly. Replace any pieces that show signs of rust or deterioration.  Inspect and, if necessary, clean your chimney.  Clean out the inside of the stove thoroughly.  Check and clean the catalytic combustor, if necessary  Inspect all door gasket material and replace if worn, frayed, cracked or extremely hard. EMERGENCY PROCEDURES Establish a routine for the fuel, wood burner and firing technique. Check daily for creosote build-up until experience shows how often you need to clean to be safe. Be aware that the hotter the fire the less creosote is deposited, and weekly cleaning may be necessary in mild weather even though monthly cleaning may be enough in the coldest months. Contact your local municipal or provincial fire authority for information on how to handle a chimney fire. Have a clearly understood plan to handle a chimney fire. If you have a stovepipe or chimney fire, follow these instructions: 1. If the fire is too threatening, leave the area and call the fire department immediately! If not, perform the next three steps. 2. Close the primary air control. 3. Close the stovepipe damper (if present). 4. Close the bypass damper 5. Keep the stove front door closed!  WARNING: DO NOT ATTEMPT TO PUT OUT A STOVEPIPE OR CHIMNEY FIRE BY THROWING WATER ONTO THE STOVE, STOVEPIPE, OR CHIMNEY. THE EXTREMELY HIGH TEMPERATURE OF SUCH FIRES CAN CAUSE INSTANTANEOUS STEAM AND SERIOUS BODILY HARM. Once the chimney fire expires, leave the primary air control and bypass handle closed and let the fire in the stove die out completely. Inspect the stove, stovepipe, and chimney thoroughly for any sign of damage before firing the stove again. You must correct any damage before using your stove again. Hearthstone Quality Home Heating Products, Inc ® Page 6 of 38 Heritage 8024 SPECIFICATIONS Maximum Heat Output: 35,845 BTUs per hour of cordwood (based on independent laboratory test results). Floor Size of Heated Area: Up to a maximum of 2,000 square feet. Factors unique to your home can reduce the square footage the stove will heat. Home insulation value, number and efficiency of windows, floor plan, stove placement, quality of the fuel and other conditions may limit the heating ability of the stove. Firebox Capacity: 2.2 cubic feet. Maximum Log Length: Up To 21” (53.3 cm). Emissions: 0.54 g/hr. Burn Time: Up to TBD hrs. (Heat Life™: Up to TBD hours) Note: The amount and weight of wood contained per cubic foot of firebox volume can vary from 10 to 25 lbs. per cubic foot depending on type of wood, moisture content, packing density and other factors. Stove Dimensions: Height: 30 1/4” (76.9cm) Width: 28 1/8" (64.7cm) Depth: 21 5/8" (55.5cm) Weight: 560 lbs. (254 kg) Connector Size: 6" (152 mm) diameter Metal Chimney: 6" (152 mm) inside diameter Masonry Chimney: 6” (152 mm) inside diameter (round flue), 8” x 8” (203 x 203 mm) (square flue) Crate Dimensions: H-39” W-29” L-36” or 99x73.7x 91.5cm (add 4” or 10.2cm for pallet). Optional Equipment: Outside Air Kit 90-53220 Blower 90-57210 Rear Heat Shield 90-68210 Figure 1 – Heritage 8024 Dimensions Hearthstone Quality Home Heating Products, Inc ® Page 7 of 38 Heritage 8024 INSTALLATION UNPACKING Hearthstone packages your Heritage 8024 woodstove with the greatest care so that it ships safely. Under certain circumstances, however, damage may occur during transit and handling. When you receive the Heritage 8024, carefully unpack and inspect the stove and all accompanying parts. Ensure that all parts are included in the ash pan. If any parts are damaged or missing, please contact your authorized Hearthstone dealer immediately. The catalysts are secured in the stove with packaging material for shipping. This material does not need to be removed and will burn off during your first fire. PACK LIST Heritage 8024 Woodstove Owner’s Manual Wood Handles, Screws, And Washers (See Illustration 1 on page 8 for installation) The door and bypass handles are shipped inside the stove to protect them during shipping and installation. It is best not to install them until after stove is moved into its final location. The label is attached by a cable to the bottom of the stove. Take care when lifting the stove not to damage the label or cable. After final positioning of the stove, the label may be stored in the holding clip on the bottom shield of the stove. Installing Your Stove Choose a place to install your Heritage 8024 woodstove. Consider the location of your stove for optimum heating efficiency. In general, it is better to place your stove in a main living area, rather than in a basement or other confined space. Inspect this location to make sure that the stove and stovepipes will have the required clearance from combustible materials that are near the stove. Combustibles include walls, floor, ceiling, and chimney chase. You must carefully consider the clearances to all of these combustibles before actually connecting your stove. If the floor is made of combustible material, then a non-combustible floor protector is required between the floor and the stove. An example of a non- combustible floor protector is a hearth constructed with a continuous layer of tile, brick, slate, glass or another non-combustible facing. There is no R-value requirement. If you use a rear connector pipe, ensure it is listed with Underwriter’s Laboratories. Check the listing of your pipe with UL for the correct clearances. The diagrams in this manual represent typical installations, but are specific to the Simpson Dura- Vent DVL brand. Clearances to NFPA Code 211 Protected Surfaces You can reduce the clearances to combustible surfaces by using any National Fire Protection Agency (NFPA) approved wall protection system with additional approval of the regulatory authority having jurisdiction in your area.. Please refer to NFPA Code 211 for specifications and complete details. You can obtain this information directly from the NFPA National Fire Protection Agency Batterymarch Park Quincy, MA 02269 1-800-344-3555 1-617-770-3000 www.nfpa.org Illustration 1 – Handle Installation Illustration 2 – Tag Location Hearthstone Quality Home Heating Products, Inc ® Page 8 of 38 Heritage 8024 HEARTH REQUIREMENTS & FLOOR PROTECTION Ensure you protect combustible flooring with a covering of noncombustible material. The Heritage 8024 does not require an insulated hearth pad. The minimum floor protection must be met under the stove and extend beyond the stove as follows: SIDE DOOR (LEFT AS SHOWN) 16” (41 cm) US / 18” (46 cm) Canada OTHER SIDE (RIGHT AS SHOWN) 5” (13 cm) REAR 2” (5 cm) FRONT 16” (41 cm) US / 18” (46 cm) Canada Note: Dimensions shown in figure above are measured from the body of the stove, not the legs. Minimum hearth pad dimensions can be reduced by installing the Side Door Lock Kit (Kit 90-70210). (Minimum hearth pad width with the lock kit is 37in/94cm USA, 40 ½ in/103cm CAN). Figure 2 – Hearth Dimensions Hearthstone Quality Home Heating Products, Inc ® Page 9 of 38 Heritage 8024 COMBUSTIBLE SURFACE REQUIRED CLEARANCES Note: Dimensions shown in the following figures are from the top casting of the stove unless otherwise indicated. It is very important to follow minimum clearances for chimney connectors to combustibles such as walls and ceilings when installing the stove near combustible surfaces. Figure 3 – Clearance to Combustibles *In US. For Canadian installations, add 2”/5cm Alcove Clearances (inches) Unprotected Surfaces Protected Surfaces (NFPA-211) Minimum alcove width 60 1/2”/154cm See NFPA-211 Minimum alcove side clearance 18”/46cm See NFPA-211 Minimum alcove rear clearance 20”/51cm See NFPA-211 Alcove ceiling above stove top 32 1/8”/82cm See NFPA-211 Alcove ceiling above floor 64”/163cm See NFPA-211 Note: Dimensions shown in the following figures are from the top casting of the stove unless otherwise indicated. If you use a rear heat shield to obtain reduced clearances, you must use the optional rear heat shield manufactured by Hearthstone available through your local dealer. Close clearance connector pipe must be tested to UL standards and listed. Check listings of your pipe for actual clearances. Shown are measurements typical only and specific to Simpson Dura Vent DVL brand. Clearances cannot be reduced without the use of the rear heat shield and/or with close clearance connector pipe and/or by protecting the surfaces per NFPA 211 standards. FOR REAR HEAT SHIELD, USE KIT #90-68210 Parallel Corner Clearances (inches) ABCDEHIJ K* Single wall stove pipe without heat shield 16” 41cm 18” 46cm 20” 51cm 23” 59cm 29.5” 75cm 8” 21cm 19” 48cm 22” 56cm 63” 160cm Single wall stove pipe with heat shield 16” 41cm 10” 26cm 12” 31cm 15” 38cm 29.5” 75cm 8” 21cm 19” 48cm 22” 56cm 63” 160cm Double wall stove pipe with heat shield 16” 41cm 6” 15cm 8” 21cm 11” 28cm 29.5” 75cm 8” 21cm 19” 48cm 22” 56cm 63” 160cm Hearthstone Quality Home Heating Products, Inc ® Page 10 of 38 Heritage 8024 Figure 4 Chimney Connector Clearances Single Wall Pipe Double Wall Pipe Through the wall top flue or direct rear exit With Heat Shield** Without Heat Shield** With Heat Shield** Without Heat Shield** A 10”/26cm 18”/46cm 6”/15cm 18”/46cm B 15”/38cm 23”/59cm 11”/28cm 23”/59cm *For double wall pipe clearance to ceiling, refer to pipe manufacturer specifications. ** Rear Heatshield, kit #90-68210 Hearthstone Quality Home Heating Products, Inc ® Page 11 of 38 Heritage 8024 See Parallel Clearance to Combustibles for clearances to the sides of the stove. CHIMNEY CONNECTOR SYSTEMS AND CLEARANCES FROM COMBUSTIBLE WALLS FOR RESIDENTIAL HEATING APPLIANCES A. Minimum 3.5in thick brick masonry all framed into combustible wall with a minimum of 12in. brick separation from clay liner to combustibles. The fire clay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney flue liner and shall be firmly cemented in place. B. Solid-insulated, listed factory-built chimney length of the same inside diameter as the chimney connector and having 1in. or more of insulation with a minimum 9in. air space between the outer wall of the chimney length and combustibles. C. Sheet steel chimney connector, minimum 24 gauge in thickness, with a ventilated thimble, minimum 24 gauge in thickness, having two 1in. air channels, separated from combustibles by a minimum of 6in of glass fiber insulation. Opening shall be covered, and thimble supported with a sheet steel support, minimum 24 gauge in thickness. D. Solid insulated, listed factory-built chimney length with an inside diameter 2in. larger than the chimney connector and having 1in. or more of insulation, serving as a pass-through for a single wall sheet steel chimney connector of minimum 24 gauge thickness, with a minimum 2in. air space between the outer wall of chimney section and combustibles. Minimum length of chimney section shall be 12in. chimney section spaced 1in. away from connector using sheet steel support plates on both ends of chimney section. Opening shall be covered, and chimney section supported on both sides with sheet steel supports securely fastened to wall surfaces of minimum 24-gauge thickness. Fasteners used to secure chimney section shall not penetrate chimney flue liner. Hearthstone Quality Home Heating Products, Inc ® Page 12 of 38 Heritage 8024 Figure 5 Trim and Mantle Clearances OUTSIDE AIR SUPPLY (Optional Kit #90-53220) You can connect an outside air source directly to this stove using an optional outside air kit. The advantage of providing outside air directly to the stove is that the air used by the stove for combustion is taken from outside the residence rather than from within the room where the stove is located. The outside air kit for this stove allows for the direct connection of the stove's air intake to a minimum 3" (76 mm) diameter duct (supplied by others)* which leads to the outside of the house. When considering placement of the duct from the outside of the house to the hearth, keep in mind the need to avoid structural members of the house. The outside air kit attaches to the underside of the stove. Refer to the instructions provided with the kit for installation. For installations in Canada, where the outside air supply kit is used, the stove must be permanently attached to the floor for stability. See page 17 for lock down instructions. *An adaptor for 4” duct is available if needed. KIT #90- 53308 The International Residential Code (IRC) does not allow the outside air duct to terminate higher than the appliance. Some building officials restrict vertical rise in the duct’s termination. Hearthstone recommends the termination be at the same level, or lower than the air intake on the stove. Figure 6 – Outside Air Kit Detail Locate the termination of the duct on the outside wall of the home in such a manner to avoid the possibility of obstruction by snow, leaves or other material. Screen the termination using ¼” x ¼” mesh rodent screen and cover it with a rain/wind proof hood (flex pipe, outside termination, mesh, and hood supplied by others) Contact your dealer for availability. When selecting ducting and other components, note that for installations in Canada, any air intake which is connected directly to the outdoors must include a damper allowing 100% closure. VENTING COMPONENTS & CONFIGURATION REQUIREMENTS  DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE USED BY ANOTHER APPLIANCE  Single wall connector that is at least 24 MSG or 25 MSG blued steel stovepipe. Hearthstone Quality Home Heating Products, Inc ® Page 13 of 38 Heritage 8024  Double wall connector (Rear pipe) which is used with a listed, factory-built “Type HT" chimney or with a masonry chimney to reduce clearances, is available from several manufacturers, your dealer can help you choose. Some air insulated connector pipe models available are Simpson Dura Vent DVL and Metalbestos DS. Security, GSW and Ameritec also have acceptable Rear connector pipe.  When used in a mobile home, a spark arrester is required. (See page 18)  The chimney connector cannot pass through a floor or ceiling, nor any attic or roof space, closet or similar concealed space. Where venting requires passage through a wall or partition of combustible construction, the installation must conform to NFPA Code 211 or CAN/CSA - B365.  It is very important to follow minimum clearances for chimney connectors to combustibles such as walls and ceilings when installing the stove. Typical chimney connector clearances are outlined below. The single wall clearances are generic; the double wall clearances shown are specifically for Simpson DuraVent DVL and may vary with other brands. Check the specifications from the manufacturer of your connector. COMPONENTS OF A VENTING SYSTEM The complete venting system consists of several components: chimney connector, wall thimble, wall pass-through, chimney, and liner. It is absolutely necessary that you install all of these components and maintain the clearances to combustibles discussed earlier to ensure a safe stove installation. Failure to follow these instructions and specified components or using make-shift compromises can result in fire, property damage, bodily injury, and even death. Be sure to follow the manufacturer’s instructions to maintain an effective vapor barrier at the location where the chimney of other component penetrates the exterior of the structure. To protect against the possibility of a house fire, you must properly install and constantly maintain the venting system in good condition. Be sure to inspect the chimney connector and keep it clean. Upon inspection, immediately replace rusted, cracked, or broken components.  The chimney connector is the stovepipe from the woodstove to the chimney. The chimney connector stovepipe is 6" (152 mm) diameter, 24 MSG or 25 MSG blued steel connector pipe. Do not use aluminum or galvanized steel pipe - they cannot withstand the extreme temperatures of a wood fire.  The thimble is a manufactured (or site-constructed) device installed in combustible walls through which the chimney connector passes to the chimney. It keeps the walls from igniting. You must use a wall thimble when installing a chimney connector through a combustible wall to the chimney.  A wall pass-through (or chimney support package) also keeps the walls from igniting. You must use one when connecting through a wall or ceiling to a prefabricated chimney.  Only install this stove to a lined masonry chimney or an approved high temperature prefabricated residential type building heating appliance chimney. Do not connect this stove to a chimney serving another appliance; you will compromise the safe operation of both the wood stove and the connected appliance.  A liner is the UL 1777 or ULC S635 (for factory built fireplace or masonry) chimney. You must connect your stove to a chimney comparable to those recommended in this manual. Do not use stovepipe as a chimney. Use stovepipe for freestanding installations only to connect the stove to a proper chimney.  WARNING: DO NOT CONNECT THIS APPLIANCE TO ANY AIR DISTRIBUTION DUCT OR SYSTEM. INSTALLING A VENTING SYSTEM Attach stovepipe sections to the flue collar and to each other with the crimped end toward the stove. If creosote builds up, this allows the creosote to run into the stove and not on the outside of the stovepipe or onto the stove. Secure all joints, including attaching the stovepipe to the stove's flue collar, with three sheet metal screws. Install #10 x 1/2" (3 mm x 13 mm) sheet metal screws into the holes pre-drilled in the flue collar. Disregarding the screws can cause joints to separate from the vibrations that result from a creosote chimney fire. You can simplify connecting stovepipe by using additional accessories such as telescoping pipes, slip-connectors or clean-out tees. These accessories ease the periodic inspection of your chimney, as well as allow you to dismantle the stovepipe easily (without moving the stove). Hearthstone Quality Home Heating Products, Inc ® Page 14 of 38 Heritage 8024 Install the stove as close as practical to the chimney, while maintaining all proper clearances. Install stovepipe that is as short and as straight as possible. Horizontal runs of stovepipe must always rise away from the stove at a minimum of 1/4" per foot (21mm/m). We do not recommend long runs of stovepipe to increase heat dispersal. Longer lengths of stovepipe, or more connecting elbows, than necessary increase the chances of draft resistance and the accumulation of creosote buildup. In general, you do not need to install a stovepipe damper with the Heritage 8024. Some installations, however, could benefit from a stovepipe damper, such as a tall chimney which can create a higher than normal draft. In such cases, a damper can help regulate the draft. The Heritage 8024 requires a draft between 0.06" and 0.1" WC. For drafts above 0.1" WC, install a stovepipe damper. Check the draft at stove installation time. Remember, the NFPA recommends minimum clearances for chimney connectors to combustibles such as walls and ceilings. Once the stove is installed at safe distances from these combustible surfaces, it is also important to maintain these connector clearances for the remainder of the installation. CONNECTING THE STOVE TO A CHIMNEY You can install your Heritage 8024 to a prefabricated metal chimney, or to a masonry chimney. This room heater must be connected to (1) a listed Type HT (2100° F) chimney per UL 103 or ULC S629, or (2) a code-approved masonry chimney with a flue liner. The chimney size should not be less than the flue collar, or more than three times greater than the cross-sectional area of the flue collar. We recommend installing a cleanout tee where possible to simplify chimney cleaning and maintenance. Connecting to a Prefabricated Metal Chimney There are two ways to install a prefabricated metal chimney:  An interior installation where the chimney passes inside the residence through the ceiling and roof.  An exterior installation where the chimney passes through the wall behind the stove then up the outside of the residence. Whenever possible, choose an interior chimney. An interior chimney heats up quickly and retains its heat; thus promotes a better draft and discourages the formation of creosote. An exterior chimney does not benefit from the warmth of the building, so it typically operates at lower flue temperatures than an interior chimney and may experience increased creosote accumulation. When connecting the Heritage 8024 to a prefabricated metal chimney, you must follow, precisely, the manufacturer's installation instructions. Use only Type HT (2100° F), prefabricated metal chimneys listed per UL 103 or ULC S629 standards. Ensure the size of the prefabricated chimney’s flue is appropriate for the Heritage 8024. The Heritage 8024 requires a 6" (152 mm) inside diameter flue for new installations. A 6” diameter flue provides adequate draft and performance. You can use an 8" (203 mm) diameter existing flue with a reducer. An oversized flue contributes to creosote accumulation. (In this case, bigger is NOT better.) When purchasing a prefabricated chimney to install with your stove, Ensure you also purchase from the same manufacturer the wall pass-through (or ceiling support package), "T" section package, fire-stops (when needed), insulation shield, roof flashing, chimney cap, and any other required accessories. Follow the manufacturer’s instructions when installing the chimney and accessories. In addition, ensure you maintain all manufacturers’ recommendations for the proper clearances to the chimney. Connection to a Masonry Chimney Consider two primary elements when connecting your stove to a masonry chimney: the chimney itself and the thimble where the stovepipe connects to the chimney. Use only code approved masonry chimneys containing a proper flue liner. Before connecting to a masonry chimney, hire a professional to examine the chimney for cracks, loose mortar, and other signs of deterioration and blockage. If the chimney needs repair, complete them before installing and using your stove. Do not install your stove until the chimney is safe for use. Ensure the chimney’s cleanout is complete and working properly. To avoid a loss of draft, the cleanout door must close completely and provide a tight seal. If the cleanout door leaks, the chimney will cool, your stove will perform poorly, and creosote can form. Ensure the size of the chimney’s flue is appropriate for this stove and that it is not too large. Use a masonry chimney with a maximum 6” Diameter or 8" x 8" (203 mm x 203 mm) tile size for best results. An Hearthstone Quality Home Heating Products, Inc ® Page 15 of 38 Heritage 8024 oversized flue contributes to the accumulation of creosote. Use the following checklist to ensure that your masonry chimney meets these minimum requirements: MASONRY CHIMNEY WALL CONSTRUCTION:  Mortared brick or modular block at least 4" (102 mm) thick – must use liner  A mortared rubble or stone wall – must use liner FLUE LINER OPTIONS:  Tile - minimum wall thickness of 5/8" (16 mm), installed with refractory mortar, and with at least 1" (25 mm) air space around the liner  Stainless steel - UL listed 6” diameter, insulated or wrapped liner, or the space around the liner filled with vermiculite or suitable material (these keep the liner warmer for better performance)  Ensure any equivalent flue liner is a listed chimney liner system meeting type HT requirements or other approved material. INTERIOR CHIMNEY REQUIREMENTS:  Must have at least 2" (51 mm) clearance to combustible materials  Must install fire stops at the spaces where the chimney passes through floors and/or ceiling  Any insulation material must be at least 2" (51 mm) from the chimney EXTERIOR CHIMNEY REQUIREMENTS:  At least 1" (25 mm) clearance to combustible materials CHIMNEY HEIGHT REQUIREMENTS (SEE FIGURE 9):  At least 3 feet (0.9 m) higher than the highest part of the roof opening through which it passes.  At least 2 feet (0.6 m) higher than any part of the roof within 10 feet (3 m) measured horizontally from the top of the chimney. The recommended minimum chimney height is 10 feet (3 m) off the floor. The recommended maximum chimney height is 30 feet (9m).The Heritage 8024 requires a draft between 0.06” and 0.1” water column. Ensure your chimney is long enough to provide the minimum draft, and use a damper if your installation has a required chimney height that provides too much draft. Figure 8 – Chimney Height Requirements Hearthstone Quality Home Heating Products, Inc ® Page 16 of 38 Heritage 8024 Figure 9 – Typical Chimney Configuration Hearthstone Quality Home Heating Products, Inc ® Page 17 of 38 Heritage 8024 INSTALLING IN A MOBILE HOME Follow these special requirements for installing your stove in a mobile home.  Install the stove in accordance with 24 CFR, Part 3280 (HUD)  An outside air kit must be used in all mobile home installations. See page 12 for details.  Permanently attach the stove to your mobile home’s floor. Use the shipping clips that came with the stove and fasteners long enough to attach securely to the subfloor. (The clips and fastener heads may be painted to minimize visibility).  Figure 10 - Lock Down Detail  Install a Mobile Home Chimney & Connector Kit conforming to US/UL103 or CAN/ULC-S629, Standard for Factory-Built Chimneys. The system must be removable for transportation and meet all applicable local and federal guidelines for termination height. Each kit must include: Stainless spark arrester cap, storm collar, Adjustable vented flashing – 0/12 – 6/12, Two 24” chimney pipes, 24” support box with built-in starter section and trim.  Failure to follow these instructions and specified components or using make-shift compromises can result in fire, property damage, bodily injury, and even death.  WARNING: DO NOT INSTALL IN A SLEEPING ROOM IN A MOBILE HOME.  CAUTION: MAINTAIN THE STRUCTURAL INTEGRITY OF THE MOBILE HOME WALLS, FLOOR, CEILING, AND ROOF WHEN INSTALLING AND USING YOUR STOVE.  Burning any fuel other than wood in this unit could generate dangerous levels of carbon monoxide within the living space.  THE FRONT DOOR MUST REMAIN CLOSED WHEN IN OPERATION EXCEPT FOR START UP AND LOADING. Leaving the door open during use could cause any smoke or fire detectors in the home to be set off or a fire could escape the firebox and start the room on fire.  If this unit is installed in a mobile home, care must be taken to ensure adequate air is available. If not enough air is available it could starve the room of all the oxygen. (See page 27 for more details)  CAUTION: REMOVE THE CHIMNEY WHEN TRANSPORTING THE MOBILE HOME!  Be sure to follow the manufacturer’s instructions to maintain an effective vapor barrier at the location where the chimney of other component penetrates the exterior of the structure.  Chimney must be attached directly to stove.  Chimney must extend at least 3 feet (0.9 m) above the part of the roof through which it passes.  Top of chimney must be at least 2 feet (0.6 m) above the highest required elevation of any part of the mobile home within 10 feet (3 m) of the chimney.  All roof-chimney terminations must be readily removable and reinstallable at or below an elevation of 13-1/2 feet (4.1 m) above ground level, without the use of special tools or instructions.  When the chimney exits the mobile home at a location other than through the roof, and exits at a point 7 feet (2.1 m) or less above the ground, a guard or other enclosure must be installed at the point of exit up to a height of 7 feet.  For installations as described above, a chimney guard or enclosure must not permit a 3/4" (19.1 mm) diameter rod to pass through it, and must not allow a 1/2 inch (12.7 mm) rod to make contact with the chimney when passed through the guard a distance of 4 inches (102 mm). Figure 11 – Mobile Home Installation Hearthstone Quality Home Heating Products, Inc ® Page 18 of 38 Heritage 8024 OPERATION Once your Heritage 8024 is installed, you are ready to light a fire. Every installation, season’s firewood, and operator’s technique varies. Learn how to use your stove most efficiently for your installation. We can give you the basic principles, but only you can ensure maximizing the potential of your stove while also operating it safely.  WARNING: HOT WHILE IN OPERATION! KEEP CHILDREN, PETS, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. Read this entire chapter before lighting your first fire. It explains the controls and features of your wood stove, how to choose firewood, and how to use your stove on a daily basis. CONTROLS AND FEATURES Before lighting any fires, become familiar with the location and operation of your stove's controls and features and learn how to use them (See Figure 12). For your own safety, do not modify these features in any way. We recommend you use fireplace gloves when the stove is in operation and hot. Figure 7 - Controls & Features FRONT DOOR HANDLE: The firebox door allows you to load wood into your stove; a wood handle operates the door. To open the door, pull up on the handle and swing the door away from the stove. To latch the door, push the door tightly towards the firebox then continue to push the handle in and down until it latches shut. Gently pull on the door handle to make sure it is properly latched. PRIMARY AIR CONTROL: The handle is located on the front lower left of the stove, just under the ash lip. The primary air control allows you to regulate the amount of air entering the firebox. Generally, the more air allowed into the firebox, the faster and hotter the rate of burn; conversely, less air creates a slower burn. To fully open the primary air intake, move the handle as far as it will go to the left; move the handle as far as it will go to the right, to close the primary air control. Figure 8 – Air Control OPTIONAL ASH PAN: See the installation instructions included with the ash pan kit if installation is necessary. The ash pan collects burned ash from a fire and allows you to conveniently remove the ash from your wood stove. The ash pan and ash pan access door is located under the ash lip. To operate the ash grate, open the ash pan door, and simply pull the handle out to open the ash grate and push the handle in to close the ash grate. When the ash door is closed, it will automatically close the ash grate. (Refer to figure below to see the attachment of the ash grate control handle to the control slide.) The firebox should be cleared of ashes periodically by sliding the ash grate towards the front door, sifting the ashes across the grate into the ash pan, then returning the grate to its closed position. The ash pan is easy to remove and has a handle for convenient disposal of ashes. Before removing the ash pan, push it (hard!) into the stove, which kicks the ashes further into the pan. To close the ash door, push the door closed and turn the handle from vertical down to its previous position. Note: The ash grate can only be opened when the ash door is ajar or open. Do not operate the stove unless the ASH PAN is inserted into the stove and the ash door is closed. This could overheat and damage the stove. Hearthstone Quality Home Heating Products, Inc ® Page 19 of 38 Heritage 8024 Figure 9 – Ash Grate Operation CUSTOMIZING YOUR STOVE’S DOORS Both the Front and optional Ashpan Doors can be reversed for loading and cleaning convenience (from hinged at the left to hinged at the right, for example). Detailed instructions for reversing the Front Door are found with the installation instructions included with the optional Front Door Reversal Kit (90-73229). The kit includes a striker plate for latching the door on either the right or left side. Detailed instructions for reversing the Ashpan Door are found with the installation instructions included with the optional Ashpan Kit (90-57220). BYPASS HANDLE: The bypass handle controls the bypass door inside the stove. When the handle is pointed towards the front of the stove, the bypass door is open, and when the handle is pointed towards the rear of the stove, the bypass door is closed. The bypass door directs the flow of combustion products through or around the catalytic combustor. When the bypass handle is open, combustion products are directed around the catalytic combustor. The bypass handle should be open when first staring a fire until the catalytic combustor heats up to activation temperature, and whenever opening the front door to load the stove. When the bypass handle is closed, combustion products are directed through the catalytic combustor. The bypass handle should be closed once the catalytic combustor heats up to activation temperature, and remain closed whenever the stove is burning and in the active temperature range. Figure 14 – Bypass Closed Figure 15 – Bypass Open CATALYST PROBE: The catalyst probe monitors the downstream temperature of the catalyst, and indicates when the stove is in the active range for the catalyst. When the stove is in the “active” range, the bypass handle should be closed. When the stove is in the “Inactive” range, the bypass handle should be opened until the stove heats up. If the probe is in the “Too Hot” range, keep the door closed, fully close the air control, and allow the stove to cool down until the probe falls into the “Active” Range. Once the catalyst probe has reached the active range, heat generated from burning smoke keeps the catalyst warm and active as long as fuel remains in the stove. The Heritage 8024 typically operates in the 800 ⁰F to 1300 ⁰F range. Figure 16 – Catalyst Probe Sliding Ash Grate Control Handle Hearthstone Quality Home Heating Products, Inc ® Page 20 of 38 Heritage 8024 CHOOSING FIREWOOD Burn only natural firewood (known as cordwood) in the Heritage 8024 Wood Heater. This stove is not designed to burn other fuels.  CAUTION: DO NOT USE CHEMICALS OR FLAMMABLE FLUIDS TO START THE FIRE. DO NOT USE CHARCOAL, PELLETS, COAL, ARTIFICIAL LOGS OR ANY OTHER MATERIALS AS FUEL; THEY ARE NOT SAFE. DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.  THE USE OF UNAUTHORIZED FUEL SUCH AS COAL COULD PRODUCE HIGH LEVELS OF CARBON DIOXIDE IN THE LIVING SPACE. AT HIGH LEVELS CARBON DIOXIDE COULD RESULT IN PERSONAL INJURY OR DEATH. The quality of your firewood directly affects heat output, duration of burn and performance of your stove. Softwoods generally burn hotter and faster, while hardwoods burn longer and produce better coals. Density and moisture content are two critical factors to consider when purchasing wood for your stove. The following is a list of some wood species and their relative BTU (British Thermal Unit) content. The higher the BTU content, the longer the burn. Firewood with higher BTUs is generally ideal for a wood stove. Wood Heat Value: Sorted By Btu Content Common Name Lb/ cord MBTU/ cord High Osage Orange (Hedge) 4,728 32.9 Hickory, Shagbark 4,327 27.7 Hop Hornbeam (Ironwood) 4,267 27.3 Beech, Blue (Ironwood) 3,890 26.8 Birch, Black 3,890 26.8 Locust, Black 3,890 26.8 Hickory, Bitternut 3,832 26.7 Locust, Honey 3,832 26.7 Apple 4,100 26.5 Mulberry 3,712 25.8 Oak, White 4,012 25.7 Medium High Beech, European 3,757 24 Maple, Sugar 3,757 24 Oak, Red 3,757 24 Ash, White 3,689 23.6 Birch, Yellow 3,689 23.6 Medium Juniper, Rocky Mtn 3,150 21.8 Elm, Red 3,112 21.6 Coffee tree, Kentucky 3.112 21.6 Hackberry 3,247 20.8 Tamarack 3,247 20.8 Birch, Gray 3,179 20.3 Birch, White (Paper) 3,179 20.3 Walnut, Black 3,192 20.2 Cherry 3,120 20 Ash, Green 2,880 19.9 Cherry, Black 2,880 19.9 Elm, American 3,052 19.5 Elm, White 3,052 19.5 Sycamore 2,808 19.5 Ash, Black 2,992 19.1 Maple, Red 2,924 18.7 Fir, Douglas 2,900 18.1 Medium Low Boxelder 2,797 17.9 Alder, Red 2,710 17.2 Pine, Jack 2,669 17.1 Pine, Norway (Red Pine) 2,669 17.1 Pine, Pitch 2,669 17.1 Catalpa 2,360 16.4 Hemlock 2,482 15.9 Spruce, Black 2,482 15.9 Pine, Ponderosa 2,380 15.2 Low Aspen, American 2,290 14.7 Butternut (Walnut, White) 2,100 14.5 Spruce 2,100 14.5 Willow 2,100 14.5 Fir, Balsam 2,236 14.3 Pine, White (Eastern, Western) 2,236 14.3 Fir, Concolor (White) 2,104 14.1 Basswood (Linden) 2,108 13.8 Buckeye, Ohio 1,984 13.8 Cottonwood 2,108 13.5 Cedar, White 1,913 12.2 Moisture content also plays a key role in the performance of your stove. Wood freshly cut from a living tree (green wood) contains a great deal of moisture. As you might expect, green wood burns poorly. You must season green wood before using it Hearthstone Quality Home Heating Products, Inc ® Page 21 of 38 Heritage 8024 in your wood stove. To season green wood properly, split, stack, and allow it to air dry for a period of one year. Green wood may provide less than 2000 Btu per pound, whereas dry wood can provide up to 7000 Btu per pound. Stack the firewood on skids or blocks to keep it off the ground, cover only the top of the stack. Plastic or tarps that cover the sides of the woodpile trap moisture and prevent the wood from drying. As for stacking, an old Vermonter said, "The spaces between the logs should be large enough for a mouse to get through, but not for the cat that's chasing it."  CAUTION: DO NOT STORE FIREWOOD WITHIN THE STOVE'S SPECIFIED CLEARANCES TO COMBUSTIBLE MATERIALS. BUILDING A FIRE Once you understand the controls of your wood stove and have the appropriate firewood, you are ready to start a fire.  WARNING: NEVER USE GASOLINE, GASOLINE- TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR 'FRESHEN UP' A FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN USE. BREAKING IN YOUR WOOD STOVE It is imperative that your stove is "broken in" gradually. Soapstone must be "seasoned"; over-firing a new stove may cause soapstone to crack or may damage other stove parts. Natural moisture in the freshly quarried soapstone must be driven out slowly to minimize the “shock” to the stone of its first exposure to high firebox temperatures. In addition, the asbestos-free furnace cement must be cured slowly to ensure adequate sealing and bonding. When you light your first fires, the woodstove will emit some smoke and fumes. This is normal “off-gassing” of the paints and oils used when manufacturing the woodstove. If you find it necessary, open a few windows to vent your room. The smoke and fumes will usually subside after 10 to 20 minutes of operation. The odor and smoke will end once the stove is “cured”. The first few fires of the season may produce other odors from impurities that exist in the area immediately surrounding the stove. Some potential impurities are cleaning solvents, paint solvents, cigarette smoke, and soot from scented candles, pet hair, dust, adhesives, a new carpet, and new textiles. These odors will dissipate over time. You can alleviate these odors by opening a few windows or otherwise creating additional ventilation around your stove. If any odor persists, contact your dealer or an authorized service technician. If you adhere to the operating procedures in this manual, the steel, cast iron, and soapstone components of your stove will give you many years of trouble-free use. With use, the color of the soapstone may change and small fractures may appear on the surface. These changes do not affect the function of the stove. If a panel breaks completely, it must be replaced Avoid the following conditions that can cause the glass, soapstone, steel or cast iron pieces to break:  Do not throw wood into the stove.  Do not use the door as a lever to force wood into the stove.  Do not load wood encrusted with ice into a burning stove - the thermal shock can cause damage.  Do not use a manufactured log grate or otherwise support the fuel. Burn the fire directly on the floor of the firebox. BUILDING A BREAK IN FIRE 1) Open the bypass handle. Open the front door and place five or six double sheets of tightly twisted newspaper in the center of the firebox. Arrange kindling in a crisscross pattern over the newspaper. Kindling should be approximately ten pieces, 1/2" (13 mm) in diameter and 10" to 16" (254 mm to 457 mm) long. 2) Fully open the primary air control by pulling the control handle fully to the left stop. 3) Light the paper under the kindling. Leave the door slightly ajar momentarily until the kindling has started to burn and draft begins to pull. 4) Close the door and allow the fire to burn. Keep the door closed while the stove is in use. 5) KEEP A WATCHFUL EYE ON YOUR STOVE to maintain a steady, low-heat fire. Your first fire should make the stove warm but not hot to the touch. Visible steam, or boiling moisture and hissing indicate the soapstone is too hot. At most, a few small chunks of wood should be added to the fire to reach safe break-in temperatures. 6) Once the stove is warm but not hot to the touch, close the primary air control by pushing it fully inward toward the stove to allow the fire to die out completely. 7) Let the stove return to room temperature. Hearthstone Quality Home Heating Products, Inc ® Page 22 of 38 Heritage 8024 Your first fire and first fire each season thereafter should be built and maintained as outlined above. Your patience will be rewarded by a properly seasoned stove.  NOTE: The cool flue gas temperatures present during the break-in procedure may cause rapid creosote build-up. The door glass may also get dirty. A good hot fire will clean it. We recommend a visual inspection (and cleaning if necessary) of your stovepipe and chimney once the break-in procedure is completed. NORMAL OPERATION BUILDING A FIRE FOR EVERYDAY USE 1) Open the bypass handle. Open the front door and place five or six double sheets of tightly twisted newspaper in the center of the firebox. Arrange kindling in a tee-pee configuration over the newspaper. Use approximately 10 pieces of kindling, 1/2" (13 mm) in diameter and 10" to 16" (254 mm to 406 mm) long. 2) Fully open the primary air control by sliding it fully to the left. 3) Light the paper under the kindling. Leave the front door slightly ajar momentarily until the kindling begins to burn and draft begins to pull. 4) Close the door and allow the fire to burn. 5) Once the kindling is burning, open the front door and add logs, small at first, to build the fire up. Ensure you keep the logs away from the glass in front in order for the air-wash system to work properly. Keep the front door closed while the stove is in use. CAUTION: DO NOT BUILD THE FIRE TOO CLOSE TO THE GLASS. KEEPING THE FIRE TOWARDS THE CENTER OF THE FIRE BOX WILL KEEP COALS FROM BUILDING UP AGAINST THE GLASS DURING RELOADING. 6) Once the fire is burning well, and the catalyst probe indicates that the stove is in the active range, close the bypass handle. Now the combustion products are passing through the catalytic combustor, and your stove will be burning at its optimal efficiency. 7) After closing the bypass door, allow the stove to run on a high setting for around 20 minutes to ensure the catalytic combustor stays in the active range. This will also allow the fire to burn off any residue on the door glass from any previous low- burn fires 8) Use the primary air control to regulate the desired rate of burn. Pull the handle towards you for a higher burn rate, and push the handle towards the stove for a lower burn rate. The air control does not close completely. Note: Always remember to open the bypass handle before opening the front door. When opening the front door to reload or re-arrange logs, it is advisable to open the door just a crack, pause for a moment then open the door completely. This procedure allows the firebox to clear of smoke before the door is open fully. In addition, reloading on a bed of hot, red coals reduces smoking time and brings fresh fuel up to a high temperature rapidly. During the refueling and rekindling of a cool fire, or a fire that has burned down to the charcoal phase, operate the stove at a medium to high firing rate for about 10 minutes to ensure that the catalyst reaches approximately 600 °F. Once catalyst reaches operating temperature, the bypass handle can be closed. When reloading the stove, try to keep an open path behind the Lower Primary Air Opening (LPAO). It is helpful to leave a small valley in the coal bed behind the LPAO to insure faster re- lighting. CATALYTIC COMBUSTOR OPERATION The Heritage 8024 uses a catalytic combustor to ensure highly clean and efficient burns. The catalytic combustor is made from a stainless steel corrugation that is coated with a catalytic material. The catalytic combustor becomes active around 500 ⁰F (260⁰C), helping to burn up smoke and any remaining particles that were not fully burned in the firebox. During the startup of a cold stove, a medium to high firing rate must be maintained for about 20 minutes. This ensures that the stove, catalyst, and fuel are all stabilized and at proper operating temperatures. Even though it is possible to have gas temperatures reach 500 °F (260⁰C) within 2 to 3 minutes after a fire is started, if the fire is allowed to die down immediately, it may go out or the combustor may stop working. Once the stove and catalytic combustor heat up, heat generated from burning smoke keeps the catalyst warm and active as long as fuel remains in the stove. You stove will burn the cleanest and most efficiently when the catalyst is in the active range. There should be little to no visible smoke from your chimney when the catalyst is in the active zone and fully functional. BURN RATE This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Hearthstone Quality Home Heating Products, Inc ® Page 23 of 38 Heritage 8024 LOW BURN: Move the air control lever all the way to the right. (see figure 17). This closes the air shutter to its minimum opening. A low burn rate over extended periods is not advisable as it can promote the accumulation of creosote. Inspect the venting system frequently if using low burn rates consistently. Figure 17 – Air Control Settings MEDIUM BURN: Any setting from low to high will deliver varying rates of burn depending on the chimney setup, fuel and other local conditions. It is best to experiment to find the most comfortable setting for your situation. HIGH BURN: Completely open the primary air control by moving it all the way to the left. Fully load the firebox with wood on a bed of hot coals or on an actively flaming fire. To minimize creosote accumulation, run the stove on high once or twice daily for 35 to 45 minutes to fully heat the stovepipe and chimney. OPEN DOOR BURNING: The Heritage 8024 is not intended to be burned with the door open. Burn your Heritage 8024 with the door closed only. Door may be left ajar for short periods as necessary for lighting. CAUTION: Do not burn fuel other than cord wood in your stove. OVER-FIRE CAUTION Over-firing means the stove is operating at temperatures above normal temperatures reached during High Burns outlined in the BURN RATE section. Carefully avoid over-firing, as it will damage the stove. Symptoms of chronic over-firing can include warped components, short burn times, a roaring sound in the stove or stovepipe, and discoloration of the stovepipe. A properly installed stove using fuel and following operating procedures as outlined in this manual should not over-fire. Excessive draft, inappropriate fuel, and operator error can cause over-firing. Correct an over-fire situation as follows:  EXCESSIVE DRAFT: Contact your local dealer to have a draft reading taken. Any draft in excess of 0.1 WC requires a damper in the stovepipe. Some installations may require more than one damper.  INAPPROPRIATE FUEL: Do not burn coal; kiln dried lumber, wax logs, compressed wood, highly volatile fuel and combustible material or anything other than natural cordwood. OPERATOR ERROR: Ensure all the gaskets are in good condition. Replace worn out or compressed gaskets. Only burn the stove with the firing and ash doors in the closed position. If you suspect your stove is over-firing, discontinue use and contact your dealer immediately. Damage caused by over-firing is not covered by your warranty. Results of over-firing can include warped or burned out internal parts, cracked refractory panels, discolored or warped external parts, and damaged finish.  ANY SIGNS OF OVER-FIRING WILL VOID YOUR WARRANTY!  THE FRONT DOOR MUST REMAIN CLOSED WHEN IN OPERATION REMOVAL AND DISPOSAL OF ASHES You can leave a thin layer of ashes in the firebox if preferred. Allow fire to die down or go out completely. It is important to prevent ashes from building up around the front door opening or they will spill out, or they can pack into the gasket channel and prevent proper sealing. To remove ashes, use a fireplace shovel. Avoid removing large live coals by pushing them to the side and removing only the finer ash with a shovel. Disposal of ashes - Ashes should be placed directly into a metal container with a tight fitting lid. Do not place any other items or trash into the metal container. Do not pour water into the container. Replace the container’s lid and allow the ashes to cool. Never place the ash disposal container on a combustible surface or vinyl flooring, as the container could be hot! Pending disposal, place the closed ash container on a noncombustible floor or on the ground outside, well away from all combustible materials, liquid fuels, or vehicles. Retain ashes in the closed container until all coals thoroughly cool. Hearthstone Quality Home Heating Products, Inc ® Page 24 of 38 Heritage 8024 If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. NEVER place ashes in wooden or plastic containers, in trashcans with other trash, or in paper or plastic bags, no matter how long the fire has been out. Coals within a bed of ashes can remain hot for several days once removed from the firebox. MAINTENANCE CATALYTIC COMBUSTOR INSPECTION AND REPLACEMENT PROCEDURES  WARNING: THIS WOOD HEATER CONTAINS CATALYTIC COMBUSTORS, WHICH NEED PERIODIC INSPECTION AND REPLACEMENT FOR PROPER OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL, OR IF THE CATALYTIC ELEMENTS ARE DEACTIVATED OR REMOVED. DO NOT OPERATE YOUR STOVE WITH THE CATALYTIC ELEMENTS REMOVED. It is important to periodically monitor the operation of the catalytic combustors to ensure that they are functioning properly and to determine when they need to be replaced. A non-functioning combustor will result in a loss of heating efficiency, and an increase in creosote and emissions. Following is a list of items that should be checked on a periodic basis -Combustors should be visually inspected at least three times during the heating season to determine if physical degradation has occurred. Actual removal of the combustors is not recommended unless more detailed inspection is warranted because of decreased performance. If any of these conditions exists, refer to Catalyst Troubleshooting section of this owner’s manual. -This catalytic (or hybrid) heater is equipped with a temperature probe to monitor catalyst operation. Properly functioning combustors typically maintain temperatures in excess of 500 °F, and often reach temperatures in excess of 1,000 °F. If catalyst temperatures are not in excess of 500 °F, refer to Catalyst Troubleshooting section of this owner’s manual. -You can get an indication of whether the catalysts are working by comparing the amount of smoke leaving the chimney when the smoke is going through the combustor and catalyst light-off has been achieved, to the amount of smoke leaving the chimney when the smoke is not routed through the combustors (bypass mode). 1. Light stove in accordance with instructions in section 3.3.5. 2. With smoke routed through the catalyst, go outside and observe the emissions leaving the chimney. 3. Engage the bypass mechanism and again observe the emissions leaving the chimney. Significantly more smoke will be seen when the exhaust is not routed through the combustor (bypass mode) INSPECTING THE CATALYST AND REMOVING/REPLACING THE BAFFLE 1. Allow the stove and ashes to fully cool. 2. Remove the metal baffle retainer by removing the cotter pin (A) through the front air tube, and lifting the retainer upwards (B) away from the baffle. 3. Gently pull the front baffle towards the front of the stove (C), over the front tube, and out of the stove. CAUTION - Do not force the baffle out of the stove. Gently adjust the baffle orientation until it can be removed freely from the stove. 4. The middle air tube may be removed for easier access to the catalysts, but it is not required 5. To remove the middle tube, remove the cotter pin on the right-hand side of the middle air tube, and push the tube to the right until the left end is free. Tip the left side of the tube downwards and pull the tube out of the stove 6. Use a small vacuum nozzle or soft bristled brush to remove any accumulated ash or soot on the face of the catalyst. 7. Inspect the catalyst for any unusual warping, corrosion, or plugged openings 8. If any unusual conditions are found, remove the catalyst blocks – See Removing or Replacing the Catalysts. 9. Once the catalysts are inspected and cleaned, replace the middle air tube, baffle, and baffle retainer. Installation is the reverse of removal. Hearthstone Quality Home Heating Products, Inc ® Page 25 of 38 Heritage 8024 REMOVING OR REPLACING THE CATALYST Refer to the Catalytic combustor warranty on page 35 for additional catalyst replacement information. 1. Allow the stove and ashes to fully cool. 2. Follow the procedures from “INSPECTING THE CATALYSTS AND REMOVING/REPLACING THE FRONT BAFFLE” to gain access to the catalysts. 3. Inspect the catalysts for visible damage or fly ash. If fly ash exists, gently brush the catalyst off with a narrow soft-bristle brush, or vacuum with a crevice tool. 4. If excessive fly ash exists, or if there are suspected catalyst performance issues, fully remove the catalysts by gently pulling the catalysts outwards towards the front of the stove. It may be necessary to gently rock the catalysts from side to side and top to bottom while pulling outwards to free the catalysts from the opening. Save gasket material for reinstallation. If gasket material is damaged, it will need to be replaced (Kit number 90- 58313). 5. Remove any remaining gasket material from the openings and from the catalysts. 6. Inspect the catalysts for any fly ash or clogging, and remove with a soft bristled brush or vacuum crevice tool. If extra cleaning is needed, follow the guidelines below: -You may use compressed air under 35 psi, air only, no chemicals. -You may soak the catalysts in a hot water mix (not boiling), 4 parts water, 1 part vinegar. Rinse with cold water until vinegar smell is mostly gone. -No metal tools such as gun cleaners should be used. -No detergents or chemicals. Figure 18 – Removing the Front Baffle Figure 19 – Removing the Middle Air Tube Figure 20 – Installing Gasket on Catalyst Hearthstone Quality Home Heating Products, Inc ® Page 26 of 38 Heritage 8024 7. Re-install ceramic wool gasket material on the catalysts. Keep the gasket material flush with one side of the catalyst. Masking tape can be used to hold the gasket in place on the catalyst. It will burn away when the stove gets hot. Wrap the tape around the gasket and catalyst so it is reasonably tight and some of the tape side is hanging over the edge of the catalyst, all around. Fold the edges of the tape in over the catalyst face. Finally add 3 smaller strips of tape as shown to hold gasket snug at ends and in the middle. This will reduce snagging and make it easier to reinstall the catalyst. 8. Only remove the catalysts if required. In general, the less you handle the catalysts, the better. If any unusual conditions are found, remove the catalyst blocks – See replacing the catalysts. 9. Some warping or bowing of the catalysts over time is acceptable, as long as the catalyst gasket continues to seal. Measure the catalyst in the middle section – if the dimensions are outside the range shown in Figure 21 above, replace the catalyst. 10. Once the gasket is installed on the catalysts, gently push the catalyst into the catalyst opening until the catalyst hits against the back wall of the cavity. Take care to ensure the gasket is not damaged. REMOVING/REPLACING THE REAR BAFFLE 1. Allow the stove and ashes to fully cool. 2. Follow the procedures from “INSPECTING THE CATALYSTS AND REMOVING/REPLACING THE FRONT BAFFLE” to remove the front baffle. 3. Remove the cotter pin securing the rear baffle support to the catalyst housing (A). See Figure 22. 4. Support the rear baffle while pulling the rear baffle support outwards towards the front of the stove (B) 5. Remove the rear baffle. 6. Installation is the reverse of removal. 7. Allow the stove and ashes to fully cool. 8. Follow the procedures from “INSPECTING THE CATALYSTS AND REMOVING/REPLACING THE FRONT BAFFLE” to remove the front baffle. 9. Remove the cotter pin securing the rear baffle support to the catalyst housing (A) 10. Support the rear baffle while pulling the rear baffle support outwards towards the front of the stove (B) 11. Remove the rear baffle. 12. Installation is the reverse of removal. 13. Allow the stove and ashes to fully cool. 14. Follow the procedures from “INSPECTING THE CATALYSTS AND REMOVING/REPLACING THE FRONT BAFFLE” to remove the front baffle. 15. Remove the cotter pin securing the rear baffle support to the catalyst housing (A) 16. Support the rear baffle while pulling the rear baffle support outwards towards the front of the stove (B) 17. Remove the rear baffle. 18. Installation is the reverse of removal. Figure 21 - Acceptable Catalyst Distortion Hearthstone Quality Home Heating Products, Inc ® Page 27 of 38 Heritage 8024 GLASS REPLACEMENT PROCEDURES  WARNING: DO NOT OPERATE THIS APPLIANCE WITH THE GLASS PANEL REMOVED, CRACKED, OR BROKEN. DO NOT SUBJECT THE DOOR TO ABUSE, SUCH AS STRIKING OR SLAMMING SHUT. ONLY A QUALIFIED SERVICE PERSON SHOULD REPLACE THE GLASS PANEL. 1. Follow the instructions included with the replacement glass kit. 2. Remove the door. 3. Remove the screws from the glass retainer (use penetrating oil if necessary) – lift the retainer off the glass. Set aside for reinstallation. 4. Carefully lift the damaged glass out of the door and discard. 5. Remove any remaining glass and old gasket material. 6. Clean the screw holes and place a small amount of anti-seize compound in each one. 7. Place the new glass onto the door. Ensure sticker indicating the coated side is on the exterior face of the glass. 8. Important! Center the glass and ensure that the edges of the glass are parallel with the edges of the opening. 9. Check glass position again (centered, and parallel), then screw the glass retainer clips with the glass pads back on the door using a crisscross pattern. Tighten the screws no more than 1/8th of a turn after they seat. The glass will break at this point if not positioned correctly. Figure 22 - Removing the Rear Baffle Figure 23 – Glass and Gasket Replacement Hearthstone Quality Home Heating Products, Inc ® Page 28 of 38 Heritage 8024 10. Apply a light film of anti-seize lubricant on the door’s hinge pins if needed. 11. Install the door. 12. After 5 or 6 fires, check the glass retainer screws, and retighten if necessary. Required Glass Kit: Part Number: 90-58215. Use only 5mm x 287mm x 457mm Ceramic IR, or Neoceram IR glass. Contact your Hearthstone dealer. CREOSOTE FORMATION & REMOVAL When wood burns slowly at low temperatures, it may produce tar and other organic vapors, which combine with expelled moisture to form creosote. These creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire, which may damage the chimney or even destroy the house. When burning wood, inspect the chimney connector and chimney at least once every two months during the heating season to determine if there is a creosote buildup. If a creosote build-up occurs, inspect the stovepipe connector and chimney more often, at least monthly during the heating season to monitor the accumulation. If a creosote residue greater that 1/4" (6 mm) accumulates, remove it to reduce the risk of a chimney fire. PREVENTION Burn the stove with the primary air control fully open for 35 - 45 minutes daily to burn out creosote deposits from within the stove and the venting system. After reloading with wood, burn the stove with the primary air control fully open for 15 to 20 minutes. This manner of operation ensures early engagement of the secondary combustion system that minimizes creosote buildup in the chimney. If your glass always remains dirty, your operating temperatures are too low or your wood is wet; therefore, there is a higher risk of creosote buildup. Inspect the venting system at the stove connection and at the chimney top. Cooler surfaces tend to build creosote deposits faster, so it is important to check the chimney at the top (where it is coolest) as well as from the bottom near the stove. CLEANING Remove accumulated creosote with a cleaning brush specifically designed for the type of chimney in use. We recommend you use a certified chimney sweep to perform this service. Contact your dealer for the name of a certified chimney sweep in your area (your dealer may be a certified sweep!). We recommend that before each heating season you have the entire system professionally inspected, cleaned and repaired, if necessary. GASKETS Replace door gasket material every two to three seasons, or whenever it becomes deteriorated or loose, depending on stove use. If the door seal leaks, a new gasket will ensure a tight seal and improve stove performance. We recommend you only use Hearthstone replacement gaskets when you need to replace your door gasket. Contact your dealer for a gasket kit that includes instructions, and the gasket for your stove. GLASS The glass used in our stoves is actually not plain glass, but a tough, clear ceramic material capable of operating at temperatures up to 2300° F. Do not operate the stove with a broken door glass. Do not abuse the front door by striking or slamming. When necessary, clean the glass. For the inside surface of the glass, we recommend using a damp paper towel dipped in gray ash. Rub the inside of the glass with a circular motion. When all the deposits are removed, clean up with window cleaner or with commercial stove glass cleaners, which are available from your local dealer. Use this type of cleaner for the outside surface as well. Never attempt to clean the glass while the fire is burning or while the glass is hot. Remove deposits by following the instructions provided with the cleaner. Wipe the cleaner off with a soft cloth, or black & white newsprint. Important: scratching or etching the glass will weaken the integrity of the glass. Do not use a razor blade, steel wool, or any other abrasive material to clean the glass. Use a cleaner specifically manufactured for woodstoves only. The front door glass is a ceramic, thermal shock- resistant glass, made specifically for use in woodstoves. Do not use any replacement glass other than the ceramic glass manufactured and supplied for use in this woodstove. Replacement glass is available through your local dealer. Hearthstone Quality Home Heating Products, Inc ® Page 29 of 38 Heritage 8024 Replace the door glass immediately if broken or chipped. Contact your local dealer for replacement glass. The glass kit includes instructions and everything needed for the repair. If you replace the glass yourself, wear work gloves and safety glasses. Required Glass Kit: PN: 90-58215. Troubleshooting COMMON ISSUES Virtually all woodstove operators experience basic common problems at one time or another. Most are correctable and generally require only a minor adjustment of the stove, installation, or operating technique. In cases where weather conditions dramatically affect stove performance, the problems are typically temporary and solve themselves once the weather changes. If you question whether your stove is producing adequate heat, the best way to troubleshoot the problem is to monitor the temperature of the stack no more than 12 inches (30 cm) above the flue collar. A 400° F (200° C) stovepipe confirms the stove is supplying sufficient heat. Keep in mind that your house itself will regulate room/house temperatures. How well the walls, floors and ceilings are insulated, the number and size of windows, the tightness of outside doors, and the construction or style of your house (vaulted ceilings or other open spaces which collect large percentages of heat, ceiling fans, etc.) all are determining factors of room temperature. Your stove's performance is also dependent on its installation. One common cause of poor performance is an oversized chimney flue. Oversized chimney flues result in decreased draft, which prevents the smoke from rising out the chimney. Oversized flues are also more difficult to heat effectively, especially when burning a high efficiency stove. Cool flue temperatures inhibit the establishment of a strong draft (and encourage the accumulation of creosote). The lack of a strong draft will cause the fire to die down and may even force smoke to pour into the room. If your chimney is the proper size and a strong draft is not easily established, there is the possibility that the chimney is too cold. Again, hot chimneys promote stronger drafts. Opening a window briefly in the room while lighting the stove may help. Other draft guidelines are as follows: An "AIRTIGHT" HOUSE: The air supply (infiltration) to the interior of the house may be inadequate if your home is super-insulated or especially well sealed. This phenomenon of air starvation within the building is exacerbated if exhaust fans, such as clothes dryers, bathroom fans or cook stove exhaust fans, are in operation within the home. Outfitting your stove with the optional outside air adaptor connected to an air duct, which leads to the outside of the building, can correct this problem. Tall Trees or Buildings: These obstructions, when located close to the top of the chimney can cause chronic or occasional downdrafts. When selecting a site for a new chimney, consider the placement of other objects near the proposed chimney location. Wind Velocity: Generally, the stronger and steadier a wind, the stronger (better) the draft. However, "gusty" wind conditions can cause erratic downdrafts. For consistent problems, consider a high wind cap, such as the Vacu-Stack. Barometric Pressure: Chimney drafts are typically sluggish on balmy, wet or muggy days (low barometric pressure). This is a weather-related phenomenon, which generally is self-correcting as the weather changes. Briskness of Fire: The hotter the fire in your stove, the hotter your chimney and, therefore, the stronger the draft. Breaks in the Venting System: An unsealed clean- out door at the bottom of the chimney, leaky stovepipe joints, a poor stovepipe-to-thimble connection, missing caps, or a leaky chimney all can cause inadequate draft. Seasonal Factors: Early fall and late spring are generally difficult seasons in which to establish proper drafts. The colder the outside air is relative to room temperature, the stronger the draft. OPERATING THE STOVE As outlined above, there are days when a good draft is just not easy to establish. The causes are usually seasonal factors or a cold chimney. Try starting the fire by using small kindling and fuel to obtain a quick, hot fire. Tend the fire frequently with small fuel until the chimney is hot and the draft is well established. Sometimes, partially opening a first floor window briefly will help quickly get draft established. Hearthstone Quality Home Heating Products, Inc ® Page 30 of 38 Heritage 8024 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTIONS STOVE SMOKES Operating Technique Fully open the primary air control one minute before opening doors, and ensure the bypass is open before opening door. Cold Chimney or reverse draft Preheat the chimney when first starting a fire. Briefly open a window in the room containing the stove. Blocked Chimney Examine the chimney and stovepipe for blockage or creosote accumulations. Oversized Chimney Reline the chimney to the appropriate diameter Undersized Chimney Install a draft inducer or replace the chimney. Chimney Too Short Lengthen the chimney. Air Infiltration Into The Chimney Seal chimney connections and openings. Check clean-out doors. Bypass not closed Ensure that the bypass door is closed when the catalyst is in the active range. Catalyst not functioning Inspect catalyst for damage, ash build-up, or plugging. Brush catalyst with a soft-bristled brush, or vacuum lightly. Replace if required. Follow instructions to ensure catalyst light-off. Not burning proper fuel Ensure cordwood is seasoned and dry. More Than One Appliance Connected to the Flue Disconnect all other appliances and seal openings. BACK-PUFFING OR GAS EXPLOSIONS Operating Technique Fully open the primary air control one minute before opening the door and keep it fully open for a few minutes after reloading. Ensure the bypass door is open before opening the door Extra Low Burn Rate Burn the stove at a higher burn rate. Chimney Down-draft Install a chimney cap. Excessive Ash Build-up Empty the ash pan more frequently. Increase efficiency of burns, and avoid using poor quality or green wood. UNCONTROLL- ED OR SHORT BURN Unsealed or Open Door Close the door tightly or replace the gaskets. Air leakage around glass gasket – replace gasket Excessive Draft Check the installation. Operate at LOW BURN. Install stovepipe damper. Draft in excess of 0.1 wc should be corrected with a stovepipe damper(s) Extra Long Chimney Shorten the chimney. Install stovepipe damper(s). Oversized Chimney Reline the chimney to the proper diameter. High Winds or Hilltop Location: Install a chimney cap. INSUFFICIENT HEAT Poor Quality, low Btu content, or Green Wood Use only air-dried wood, preferably dried at least one year. Use a wood with a high Btu content if available. Low Burn Rate Operate the stove at a higher burn rate. Cold Exterior Chimney Reline or insulate the chimney. Leaky Stovepipe or Chimney Check the installation. Replace with a pre-fabricated insulated chimney system or a properly sized masonry chimney. Too Much Heat Loss From House Add insulation, use energy efficient windows, or caulk windows, and seal openings in home. Excessive Ash Build-up Empty the ash pan more frequently. Increase efficiency of burns, and avoid using poor quality or green wood. BLISTERING OF FINISH Operating Technique Do not over-fire the stove. Monitor stove temperatures. Use seasoned wood only. Excessive Draft Check the DRAFT. A damper may be required. Operate the stove at a LOW BURN range. Hearthstone Quality Home Heating Products, Inc ® Page 31 of 38 Heritage 8024 ADDITIONAL CATALYST TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTIONS FLY ASH BUILD UP ON CATALYST Catalyst has not maintained light-off temperature Brush cold combustor with soft-bristled brush or vacuum lightly. Follow instructions in the manual for a proper catalyst light-off Burning materials that cause a lot of char and fly-ash Don’t burn cardboard, gift wrap paper, or garbage. Burn only dry, seasoned wood, per the owner’s manual. Bypass closed too soon Follow instructions in the manual for a proper catalyst light-off CATALYST PLUGGING OR MASKING (SOOT/CRESO- TE) Burning wet, pitchy woods, or burning large loads of small diameter wood with the combustor in the operating position without catalyst light off occurring Burn dry seasoned wood. Follow instructions in the manual for a proper catalyst light-off, and ensure catalyst light-off as occurred before closing bypass damper. It may be possible to burn the soot or creosote off by building a hot fire, and allowing the stove to run until the catalyst is well within the operating range before closing the bypass. Continue to run the stove at a high temperature for one hour, while ensuring the catalyst stays in the upper operating range, but not too hot. WARPING OR BOWING OF THE CATALYST Excessive catalyst temperatures for long periods of time. Ensure that the catalyst remains in the operating zone, and does not get to hot. Reduce air control settings for a lower burn rate to ensure catalyst temperatures do not exceed the operating range. Hearthstone Quality Home Heating Products, Inc ® Page 32 of 38 Heritage 8024 REPLACEMENT PARTS & OPTIONAL ACCESSORIES Refer to the Illustrated Parts list for further detail about stove components, available online at www.hearthstonestoves.com. PART # DESCRIPTION Replacement Parts 5030-045 Hinge Bushing 5022-028 Hinge Pin 5022-026 Hinge Plate 5021-041 Secondary Combustion Tube #1 5024-042 Secondary Combustion Tube #2 5024-043 Secondary Combustion Tube #3 5210-2330 Tie Rod 7200-525 Catalyst Temperature Probe REPLACEMENT KITS AND ACCESSORIES 90-57210 BLOWER KIT 90-53220 OUTSIDE AIR KIT 90-68210 REAR HEAT SHIELD KIT 90-58230 GASKET KIT 90-58215 GLASS KIT 90-71240 DOOR HANDLE KIT 90-73240 DOOR LATCH KIT 90-70210 SIDE DOOR LOCK KIT 90-76240 BAFFLE KIT 90-58313 CATALYST REPLACEMENT KIT Hearthstone Quality Home Heating Products, Inc ® Page 33 of 38 Heritage 8024 SAFETY LABEL (FRONT) Hearthstone Quality Home Heating Products, Inc ® Page 34 of 38 Heritage 8024 LIMITED WARRANTY These warranties give you specific legal rights. You may also have other rights, which vary from State to State. Hearthstone Quality Home Heating Products, Inc. (Hearthstone) warrants to the original retail purchaser only (the “Original Purchaser”) the new appliance manufactured by Hearthstone, purchased by the Original Purchaser and installed by an authorized Hearthstone dealer or their designated representative against any of the occurrences listed in this document that result from defects in material or workmanship. This warranty is not transferrable. All obligations of Hearthstone under this document commence on the date of the Original Invoice (the “Purchase Date”). The term “Limited Lifetime” is defined as 10 years from the beginning of warranty coverage. Hearthstone appliances are designed to be operated only with the fuels listed in your owner’s manual. Catalytic combustor LIMITED LIFETIME WARRANTY: The catalytic combustors are covered directly by the combustor manufacturer, Applied Ceramics. Included with your stove you will find the LIMITED LIFETIME WARRANTY for the catalyst, as well as a warranty card. Catalyst Model Number: ACI-6M2 Catalyst Manufacturer: APPLIED CERAMICS APPLIED CERAMICS warrants to the consumer who purchases a FIRECAT STEEL COMBUSTOR as a component in an EPA certified solid fuel appliance, to replace at no charge to the consumer the FIRECAT STEEL COMBUSTOR that ceases to function with two (2) years from the date of purchase by the original consumer, provided that the following conditions are met: (1) A copy of the original bill of sale that includes place and date of purchase must be submitted with the warranty claim. (2) The original FIRECAT STEEL COMBUSTOR must be returned to APPLIED CERAMICS (3) The FIRECAT STEEL COMBUSTOR must not have been mechanically abused, nor must the wrong fuels have been used in the appliance. If after two years the FIRECAT STEEL COMBUSTOR fails to function, the prorated warranty will allow replacement at the following special price schedule: Year 3 $130.00 Year 4 $140.00 Year 5 $150.00 Year 6 $160.00 Year 7 and after at current retail price Conditions 1, 2, and 3 also apply to the Prorated portion of the warranty. Any EPA certified solid fuel appliance will receive one replacement catalyst for each defective catalyst returned during the three year period. The consumer will be responsible for any removal, any servicing, and return of any items required for filing the warranty claim. This warranty is APPLIED CERAMIC’S exclusive warranty, and APPLIED CERAMICS, disclaims any other express or implied warranty for the FIRECAT STEEL COMBUSTOR, including any warranty or merchantability fitness for a particular use. Ensure the catalyst is well wrapped and padded for shipment in bubble wrap, or similar material. Ship the catalyst with padding inside of a cardboard box. All warranty claims must include $12.50 for postage and handling within the continental U.S. Alaska and Canada claims must include $35.00. Hearthstone Quality Home Heating Products, Inc ® Page 35 of 38 Heritage 8024 Please allow 2-3 weeks for delivery. Order online @ www.firecatcombustors.com Please read and understand the full warranty. Please return the completed warranty card promptly to Applied Ceramics. The warranty card, and any warranty claims can be shipped to: Applied Ceramics 55555 Pleasantdale Road Doraville, GA, 30340 Stove components Limited Warranty Warranty Period Wood Gas Pellet Covered Components Limited Lifetime XXX Stone XXX Cast iron not listed elsewhere X Clean burning air supply system* 5 Year XXX Door handles and latches XXX Steel Components and Firebox X Burner and logs 3 Year X Burn Pot and Baffles 2 Year XXX Appliance Electrical and Gas Components XX Refractory, Vermiculite Panels, Baffles 1 Year XXX Enamel finish against peeling or fading XXX Accessories XXX Glass X Ash Grate XXX All components not listed elsewhere Any parts repaired or replaced during the limited warranty period will be warranted under the terms of the limited warranty for a period not to exceed the remaining term of the original limited warranty or one year, whichever is longer. Parts: Hearthstone will replace through an authorized dealer, defective parts covered by the foregoing warranty at no charge. Labor: Within the first (1st) year after the Purchase Date, Hearthstone will pay for warranty labor performed by an authorized Dealer at Hearthstone’s published labor rates in effect at the time the labor is performed only if the appliance is installed by an authorized dealer or their designated representative. Otherwise or thereafter, the Original Purchaser is responsible for the cost of labor. Shipping cost for parts: Within the first ninety (90) days after the Purchase Date, Hearthstone will pay for the shipping of appliance parts covered by any of the foregoing warranties to and from Hearthstone or an authorized Dealer, as the case may be. Thereafter, the Original Purchaser is responsible for all shipping costs related to shipping appliance parts to and from Hearthstone or an authorized Dealer, as the case may be. Shipping cost for the appliance: Within the first (1st) year after the Purchase Date, if the Original Purchaser is instructed to return the appliance to Hearthstone or an authorized Dealer for repair, Hearthstone will pay fifty percent (50%) and the Original Purchaser will pay fifty percent (50%) of the shipping costs related to shipping the appliance to and from Hearthstone or an authorized Dealer, as the case may be. Thereafter, the Original Purchaser is responsible for one hundred percent (100%) of all of the shipping costs related to shipping the appliance to and from Hearthstone or an authorized Dealer, as the case may be. Notwithstanding any other provision of this document, in no event will Hearthstone pay for any Dealer fees or other fees for pick up or delivery of the appliance returned for repair; the Original Purchaser shall be responsible for any such fees. EXCLUSIONS & CONDITIONS The warranties contained in this document do not cover, nor is Hearthstone responsible for: Hearthstone Quality Home Heating Products, Inc ® Page 36 of 38 Heritage 8024 1. Damages resulting from: a. Failure to install, operate, or maintain the appliance in accordance with the owner’s manual, operating instructions, installation instructions, or safety rating label provided with the appliance. b. Over-firing the appliance. Over-firing can be identified by, but not limited to, warped cast iron or steel, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes. c. Failure to install the appliance in accordance with all national or local building codes. d. Shipping or improper handling. e. Improper operation, abuse, misuse, continued operation with damaged, corroded, or failed components, accident, or improper/incorrect service or repairs. f. Environmental conditions, inadequate ventilation, negative pressure, or improper drafting caused by tightly sealed constructions, insufficient make-up air supply, or air handling devices such as exhaust fans, forced air furnaces, or other such causes. g. Damage caused by direct exposure to water. h. Use of fuels other than those specified in the owner’s manual. I. Installation or use of components not supplied with the appliance, or any other components not expressly authorized and approved by Hearthstone. J. Modifications of the appliance not expressly authorized and approved by Hearthstone in writing K. Interruptions or fluctuations of electrical power supplied to the appliance. 2. All stones are warranted against cracking or breakage due to thermal stress, excluding surface and hairline cracks and scratches that do not affect the operation, or safety of the appliance. 3. Repair or replacement of wear parts. Such parts that are subject to normal wear and tear during the warranty period such as paint, gaskets, baffles, refractory materials, ash grates, and glass. 4. Damage resulting from installation, modification, alteration, repair or service of the appliance by any party other than an authorized Hearthstone dealer (a “Dealer”) or their designated representative, or Hearthstone. 5. Damage due to water or condensation due to installation of the appliance in a high moisture area. 6. Damage due to installation of the appliance in an atmosphere contaminated by damaging chemicals, including but not limited to chlorine, fluorine or salts. 7. Scratches on glass, enameled surfaces or stones due to mechanical abrasion. 8. Noise caused by expansion or contraction caused by the heating and cooling of the appliance. 9. Odors caused by the heating of the appliance, or surrounding materials 10. Consequential damage caused by leaking of condensate during startup 11. A defect in any part of the appliance if the Original Purchaser fails to comply with Hearthstone’s or a Dealer’s request to ship the part or the appliance to Hearthstone or a Dealer, as the case may be. 12. Replacement stones and enameled parts are taken from current stock, and may not match originals in color, grain, or pattern. Hearthstone will supply replacement parts for discontinued parts in finishes or colors as available, or at their discretion. 13. Hearthstone’s obligation under this warranty does not extend to the appliance’s ability to heat the desired space. Information is provided to assist the customer and the dealer in selecting the appropriate appliance for the application. Consideration must be given to appliance location and configuration, environmental conditions, insulation and air tightness of the structure. THE WARRANTIES CONTAINED IN THIS DOCUMENT ARE EXCLUSIVE AND ARE GIVEN BY HEARTHSTONE AND ACCEPTED BY THE ORIGINAL PURCHASER IN LIEU OF ALL OTHER EXPRESS WARRANTIES AND ANY OBLIGATIONS, LIABILITIES, RIGHTS, CLAIMS, OR REMEDIES IN CONTRACT OR TORT, WHETHER OR NOT ARISING FROM HEARTHSTONE’S NEGLIGENCE, ACTUAL OR IMPUTED. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE GIVEN ONLY TO THE EXTENT REQUIRED BY FEDERAL OR STATE LAW. EXCEPT AS OTHERWISE REQUIRED BY STATE LAW, UPON THE EXPIRATION OF THE EXPRESS LIMITED WARRANTIES CONTAINED HEREIN, NO IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THE SUBJECT APPLIANCE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THE WARRANTIES CONTAINED IN THIS DOCUMENT EXTEND ONLY TO THE ORIGINAL PURCHASER OF THE APPLIANCE WARRANTED HEREUNDER. THEY ARE NOT TRANSFERRABLE AND DO NOT EXTEND TO ANY SUBSEQUENT OWNERS. Hearthstone Quality Home Heating Products, Inc ® Page 37 of 38 Heritage 8024 UNDER NO CIRCUMSTANCES SHALL HEARTHSTONE BE LIABLE TO THE ORIGINAL PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO DAMAGE TO PROPERTY OR PERSONAL INJURIES, WHETHER ARISING OUT OF LOSS OF USE, BREACH OF WARRANTY, TORT, OR OTHERWISE, EVEN IF HEARTHSTONE HAS BEEN APPRAISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. QUALIFYING FOR WARRANTY COVERAGE To obtain performance of any obligation under this document, the Original Purchaser must, within the applicable warranty time period, contact their original Hearthstone dealer, or the current responsible local Hearthstone dealer, for instructions regarding the return of defective parts for repair, the return of the appliance for repair, or to schedule a Dealer service call. The Original Purchaser should refer to the Dealer Network search engine contained on Hearthstone’s Web site (www.hearthstonestoves.com) if the original dealer is not available, to find a Hearthstone dealer nearest to the Original Purchaser’s location. REMEDY The remedy for any breach of the foregoing warranties will consist of repair or replacement, at Hearthstone’s option, of any covered defect in the appliance. When the Original Purchaser contacts a Hearthstone Dealer, the Dealer on behalf of Hearthstone, as the case may be, will instruct the Original Purchaser to either return the defective part, or the entire appliance (if requested), to the Dealer or Hearthstone or allow a Dealer to make a service call at the place where the appliance is located. Hearthstone may require that a digital picture be provided to support the claim. Notwithstanding any other provision of this document, the Original Purchaser shall pay for any fees and service charges related to a Dealer’s service call or the shipping charges associated with the return. WARRANTY REGISTRATION The Original Purchaser can complete their warranty registration on our website at www.hearthstonestoves.com, or send a completed and signed Warranty Registration Form, which is enclosed in the appliance document packet, to the following address: Hearthstone Quality Home Heating Products, Inc. Warranty Department 317 Stafford Avenue Morrisville, VT 05661 NOTE: SENDING IN THE SIGNED WARRANTY REGISTRATION FORM IS NOT REQUIRED AS A CONDITION OF WARRANTY COVERAGE OR HEARTHSTONE’S PERFORMANCE. Listed Room Heater, Solid Fuel Type Also Suitable for Mobile Home Installation Pursuant to (UM)84-HUD DO NOT REMOVE OR COVER THIS LABEL MADE IN USA 3300-753 PFS Corporation Manufactured by: 317 Stafford Ave. Morrisville VT 05661 CONTACT YOUR LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE DWG. NO. A SHEET OF REV. DATE APPROVALS DRAWN CHECKED RESP ENG MFG ENG QUAL ENG UNLESS OTHERWISE SPECIFIED: 1.) DIMENSIONS ARE IN INCHES / MM TOLERANCES ARE: FRACTIONS DECIMALS ANGLES 1/64 .XX .015 1/4 .XXX .005 DO NOT SCALE DRAWING 1 1 NONE 2.) ALL MACHINED SURFACES TO BE DE-BURRED AND SMOOTHED 3300-753 HERITAGE 4 8024 Safety Rating Label VIEWS ARE THIRD ANGLE 10/02/2018 CFM 0 This document submitted by HearthStone is the property of HearthStone and may contain information of a proprietary nature and shall not be copied or duplicated in whole or in part or used in whole or in part for any purpose other than that which is necessary for the preparation of bids or fabrication. Please return to HearthStone. ”” 3.) SERIALIZE LABELS 2.) LABEL WILL BE .020 ALUMINUM 4.) (1) Ø.170 CABLE MOUNTING HOLE 1.) LABEL WILL BE BLACK WITH SILVER LETTERS Conforms to UL Std. 1482 Certified to ULC Std. S627 MODEL NAME: HERITAGE IV MODEL NUMBER: 8024 SERIAL: 2019 2020 2021 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC Date of Manufacture 2022 HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE, CREOSOTE BUILDUP MAY OCCUR RAPIDLY. CAUTION: WARNINGS Do not use grate or elevate fire. Build wood fire directly on hearth. Do not overfire. If the heater or chimney connector glows, you are overfiring. (See Operator's Manual) OPERATE ONLY WITH DOORS CLOSED. DO NOT OBSTRUCT SPACE UNDER HEATER. TYPE OF FUEL: CORD WOOD ONLY - BURNING FUELS OTHER THAN CORDWOOD MAY DAMAGE THE APPLIANCE "PREVENT HOUSE FIRES" Install and use only in accordance with manufacturer's installation instructions and your local building codes. CAUTION: Special methods are required when passing chimney through a wall or ceiling, refer to local building codes. Do not connect this unit to a chimney flue serving another appliance. NOTE: Replace glass only with 5mm ceramic glass. This wood heater needs periodic inspection and repair for proper operation. Consult the owner’s manual for further information. It is against federal regulations to operate this wood heater in a manner inconsistent with the operating instructions in the owner’s manual. WARNING: (Mobile Home) An outside air inlet must be provided for combustion and be unrestricted while the unit is in use. THIS APPLIANCE USES A CATALYTIC COMBUSTOR (P/N WF-4150001076) The performance of the catalytic device or its durability has not been evaluated as part of the certification CAUTION: Burning materials other than the specified fuels may make the catalyst inactive When installed on a combustible floor, non-combustible floor protection is required to cover the area beneath the heater, and extend at least 16"(41cm) [18" (46cm) CAN] to the front and 8"(21cm) beyond each side of the fuel loading and ash removal openings [side of stove in CAN], the floor protection must extend under flue connector and extend 2" beyond each side of pipe. VENT REQUIREMENTS: 6" diameter, single wall, minimum 24 MSG blue steel connector with listed factory-built Type HT chimney or masonry chimney. OPTIONAL COMPONENTS: Rear Heatshield Part #90-68210 Blower Kit Part #90-57210 Outside Air Kit Part #90-53220 Side Door Lock Kit Part #90-70210 *Refer to the installation Manual for additional clearance information, installation instructions, and operating instructions. STOVE REAR WALL SIDE WALL BCA A - 16" B - 18" C - 22" D - 28" D Floor Protection* STOVE KH F, L G, M IEJ Floor Protection and Minimum Clearance to Combustible Materials* U.S. ENVIRONMENTAL PROTECTION AGENCY Particulate Emissions: 0.54 g/hr. Tested to: EPA Method 28R Certified to comply with 2020 crib wood particulate emission standards. US: E 37" F 16" G 31-1/2" H 8" CAN: I 21 cm J 120 cm K 21 cm L 46 cm M 105 cm Clearance to Combustibles* 3300-753 PFS Corporation Manufactured by: 317 Stafford Ave. Morrisville VT 05661 ”” Conforms to UL Std. 1482 Certified to ULC Std. S627 MODEL NAME: HERITAGE IV MODEL NUMBER: 8024 SERIAL: CHAUD QUAND IL EST EN MARCHE. NE PAS TOUCHER. TENIR LES ENFANTS, LES VETEMENTS ET MEUBLES ÉLOIGNÉS. LE CONTACT PEUT CAUSER DES BRULURES. VOIR LA PLAQUE SIGNALÉTIGUE ET INSTRUCTIONS. INSPECTER ET NETTOYER FRÉQUEMMENT LA CHEMINÉE ET LE CONDUIT DE RACCORDEMENT. DANS CERTAINES CONDITIONS D'UTILISATION, LE CRÉOSOTE PEUT SE FORMER RAPIDEMENT. CONTACTEZ LES AUTORITÉS RESTRICTIONS ET L'INSPECTION LOCALES DES VOTRE INSTALLATION Poêle à bois recommandé pour chauffage de pièce, utilisant un combustible solide Convient aussi pour maisons mobiles conformes à la norme (UM)84 HUD N'utilisez pas de grille surelevée pour alimenter le feu. Faites le feu directement dans l'âtre. Ne surchauffez pas le poêle. Si le poêle ou la cheminée devient rouge, vous surchauffez. (Voir le manuel de l'opératteur) UTILISER SEULEMENT LES PORTES CLOSES. NE PAS OBSTRUER L'ESPACE SOUS LE POÊLE. COMBUSTIBLE: BÛCHES DE BOIS SEULEMENT - LES COMBUSTIBLES ARTIFICIELS AUTRES QUE CORDWOOD PEUVENT ENDOMMAGER L'APPAREIL "PRÉVENTION DES INCENDIES" Installer et utiliser seulement en accord avec les instructions d'installation du manufacturieret les codes locaux du bâtiment. ATTENTION: Des méthodes spécifiques sont nécessaires pour faire passer la cheminée à travers un mur ou un toit. Référer aux codes locaux du bâtiment. Ne pas brancher cette unité à un conduit de cheminée desservant déjà un autre appareil. NOTE: Remplacer la vitre seulement avec une vitre de CÉRAMIQUE de 5 mm. Ce chauffe-bois nécessite une inspection et des réparations périodiques pour un bon fonctionnement. Consultez le manuel du propriétaire pour plus d'informations. Il est contraire aux règlements fédéraux d'utilisation ce chauffeur-bois d'une manière incompatible avec les instructions d'utilisation du manuel du propriétaire. AVERTISSEMENT (MAISON MOBILE): Une prise d'air extérieur est nécessaire à la combustion et doit être effective sans restriction pendant que l'unité fonctionne. AGENCE AMÉRICAINE DE PROTECTION DE L'ENVIRONNEMENT D'emissions des particulates: 0.54 g/hr. Testé à: Méthode EPA 28R Certifié pour se conformer aux normes d'émission de particules de bois structuré 2020 * Référer au Manuel d'installation pour des informations supplémentaires sur les dégagements, les instructions d'installation et d'utilisation. Voir l’autre côté de cette plaque signalétique pour les dessins des dégagements minimaux et de la protection du sol Quand le poêle est installé sur un plancher combustible, une protection de plancher non combustible doit être installée pour couvrir la surface sous la poêle. Elle doit dépasser d'au moins 16"(41cm) [18"(46cm) CAN] le devant du poêle, et 8" (21cm) au-delà du dos et des côtés du poêle [côté du poêle en CAN], et déborder de 2" (5 cm) de chaque côté du tuyau de raccordement de la cheminée. PIÈCES DE VENTILATION REQUISES: Diamètre de 6" (15,2 cm), tuyau simple, minimum 24 MSG, tuyau de raccord en acier noir pour cheminée homologuée préfabriquée de type HT ou pour cheminée de maçonnerie. COMPOSANTS OPTIONNELS: Pare-chaleur de buse Part #90-68210 Soufflerie Part #90-57210 Prise d'air extérieur Part #90-53220 Barrure de porte latérale Part #90-70210 Protection du sol et dégagements minimum aux matériaux combustibles* ATTENTION CET APPAREIL UTILISE UN COMBUSTE CATALYTIQUE (Part # WF-4150001076) La performance du dispositif catalytique ou sa durabilité n'a pas été évaluée dans le cadre de la certification ATTENTION: les matériaux brûlants autres que les carburants spécifiés peuvent rendre le catalyseur inactif NE PAS ENLEVER OU NE PAS COUVRIR CETTE ÉTIQUETTE FABRIQUÉ AUX ÉTATS-UNIS 12.50" St-jean-sur-Richelieu, September 25th 2018 Client: Hearthstone QHHP Project: PI-20176 Model: Heritage 8024 Page 27 of 28 M_rap_EPAwoodstove V1 – 2015 july 30th APPENDIX 13: Operating instruction 8024 9/10/2018 CFM OPEN BYPASS AND PRIMARY, INSERT WOOD PRESSING SPACERS INTO COAL BED, CLOSE LOAD DOOR. CLOSE BYPASS AND SET PRIMARY TO FULL OPEN, KEEP LPAO CLEAR OF COALS IN FRONT OF TEST LOAD 2 LBS ABOVE COAL BED RANGE, CLOSE BYPASS, SET PRIMARY AIR TO TEST SETTING WARMUP SET AIR TO FULL OPEN, AT PREBURN START SET AIR TO 3/16" WARMUP: OFF PREBURN: ON (LOW) FIRST 30 MIN OF TEST: OFF TEST: ON (LOW) 2 MIN BEFORE START OF TEST BREAK UP COALS TO APPX 2" - 3", MAKE EVEN DENSITY AND HEIGHT, KEEP LPAO CLEAR OF COALS 9 LBS ABOVE COAL BED RANGE, CLOSE BYPASS SEE FIGURE 2 FOR SIZE AND NUMBER OF PIECES 15.3 LBS IDEAL START OF TEST OPEN BYPASS AND PRIMARY, INSERT WOOD PRESSING SPACERS INTO COAL BED, CLOSE LOAD DOOR AND BYPASS, @ 5 MIN SET PRIMARY TO 1/8", KEEP LPAO CLEAR OF COALS IN FRONT OF TEST LOAD OPEN BYPASS AND PRIMARY, INSERT WOOD PRESSING SPACERS INTO COAL BED, CLOSE LOAD DOOR AND BYPASS AND @ 5 MIN SET PRIMARY TO 3/16", KEEP LPAO CLEAR OF COALS IN FRONT OF TEST LOAD OPEN BYPASS AND PRIMARY, INSERT WOOD PRESSING SPACERS INTO COAL BED, CLOSE LOAD DOOR. CLOSE BYPASS @ 5 MIN SET PRIMARY TO 1/2", KEEP LPAO CLEAR OF COALS IN FRONT OF TEST LOAD SEE FIGURE 2 FOR SIZE AND NUMBER OF PIECES 15.3 LBS IDEAL SEE FIGURE 2 FOR SIZE AND NUMBER OF PIECES 15.3 LBS IDEAL TEST LOAD SEE FIGURE 2 FOR SIZE AND NUMBER OF PIECES 15.3 LBS IDEAL WOOD STOVE OPERATING INSTRUCTIONS 2 MIN BEFORE START OF TEST BREAK UP COALS TO APPX 2" - 3", MAKE EVEN DENSITY AND HEIGHT, KEEP LPAO CLEAR OF COALS WARMUP SET AIR TO FULL OPEN, AT PREBURN START SET AIR TO 1/2" WARMUP: OFF PREBURN: ON (LOW) FIRST 30 MIN OF TEST: OFF TEST: ON (LOW) 2 MIN BEFORE START OF TEST BREAK UP COALS TO APPX 2" - 3", MAKE EVEN DENSITY AND HEIGHT, KEEP LPAO CLEAR OF COALS WARMUP SET AIR TO FULL OPEN, AT PREBURN START SET AIR TO FULL OPEN (1-1/2") WARMUP: OFF PREBURN: ON (HIGH) FIRST 30 MIN OF TEST: OFF TEST: ON (HIGH) 4.5 LBS ABOVE COAL BED RANGE, CLOSE BYPASS, SET PRIMARY AIR TO TEST SETTING COAL BED PREP PREBURN START AIR SETTINGS TEST FAN SETTING 1.5 LBS ABOVE COAL BED RANGE, CLOSE BYPASS, SET PRIMARY AIR TO TEST SETTING WARMUP SET AIR TO FULL OPEN, AT PREBURN START SET AIR TO 1/8" WARMUP: OFF PREBURN: ON (LOW) FIRST 30 MIN OF TEST: OFF TEST: ON (LOW) 2 MIN BEFORE START OF TEST BREAK UP COALS TO APPX 2" - 3", MAKE EVEN DENSITY AND HEIGHT, KEEP LPAO CLEAR OF COALS MODEL: DATE: TEST ENGINEER: BURN RATE CATEGORY LOW 0.80 - 0.95 KGH MED HIGH 1.4 KGH HIGH 2+ KGH KINDLING WARM UP AND PREBURN 5.5 LBS, BURN 10- 15 MINUTES OR UNTIL FULLY INVOLVED, DOOR OPEN 1/2" SEE FIGURE 1 FOR SIZES AND WEIGHT RANGE, KEEP DOOR OPEN 1/2" 20 MINUTES OR UNTIL FULLY INVOLVED, BURN TO PREBURN START WEIGHT 5.5 LBS, BURN 10- 15 MINUTES OR UNTIL FULLY INVOLVED, DOOR OPEN 1/2" MEDIUM-LOW 1.0 - 0.1.2 KGH 5.5 LBS, BURN 10- 15 MINUTES OR UNTIL FULLY INVOLVED, DOOR OPEN 1/2" SEE FIGURE 1 FOR SIZES AND WEIGHT RANGE, KEEP DOOR OPEN 1/2" 20 MINUTES OR UNTIL FULLY INVOLVED, BURN TO PREBURN START WEIGHT SEE FIGURE 1 FOR SIZES AND WEIGHT RANGE, KEEP DOOR OPEN 1/2" 20 MINUTES OR UNTIL FULLY INVOLVED, BURN TO PREBURN START WEIGHT 5.5 LBS, BURN 10- 15 MINUTES OR UNTIL FULLY INVOLVED, DOOR OPEN 1/2" SEE FIGURE 1 FOR SIZES AND WEIGHT RANGE, KEEP DOOR OPEN 1/2" 20 MINUTES OR UNTIL FULLY INVOLVED, BURN TO PREBURN START WEIGHT
