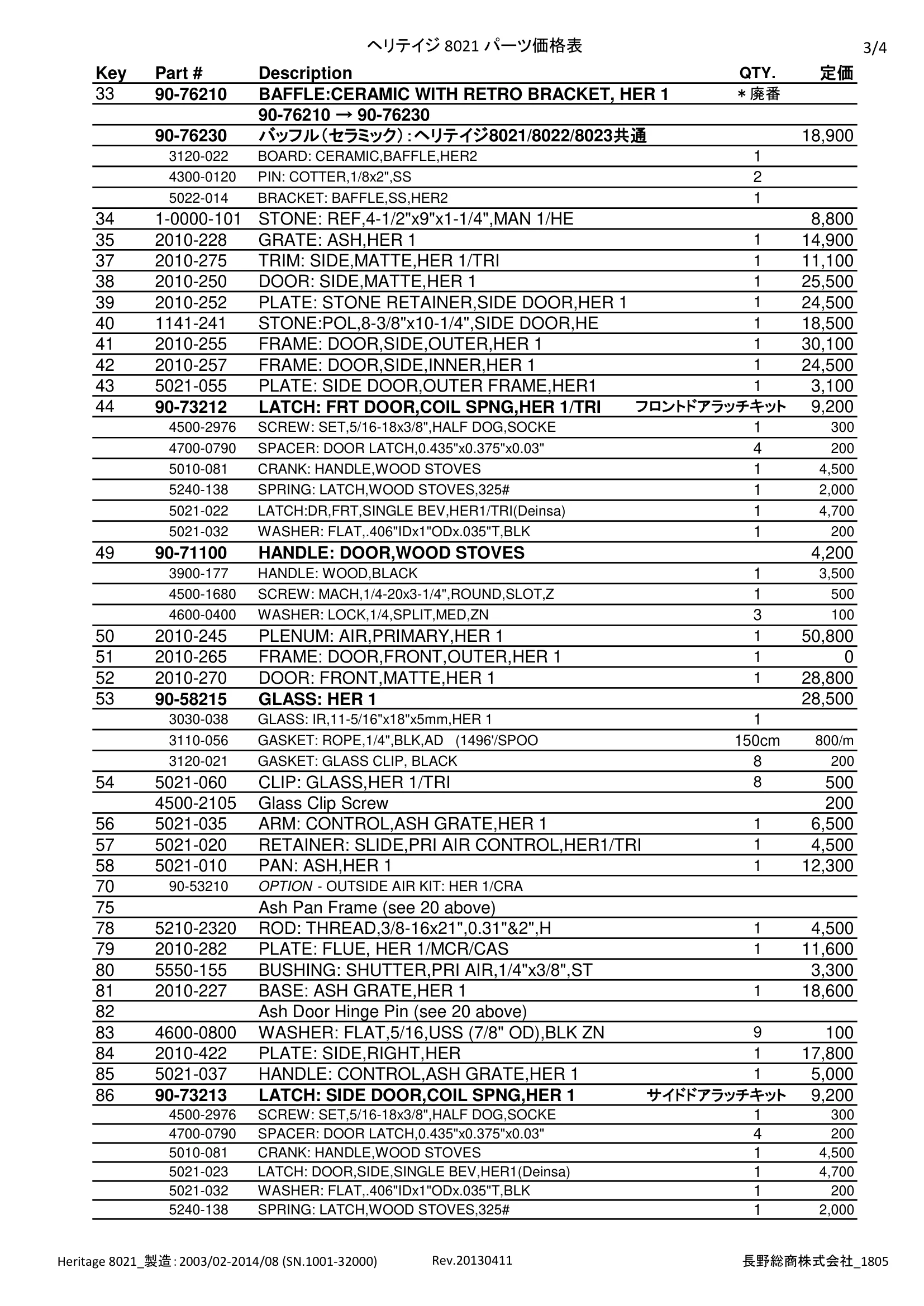

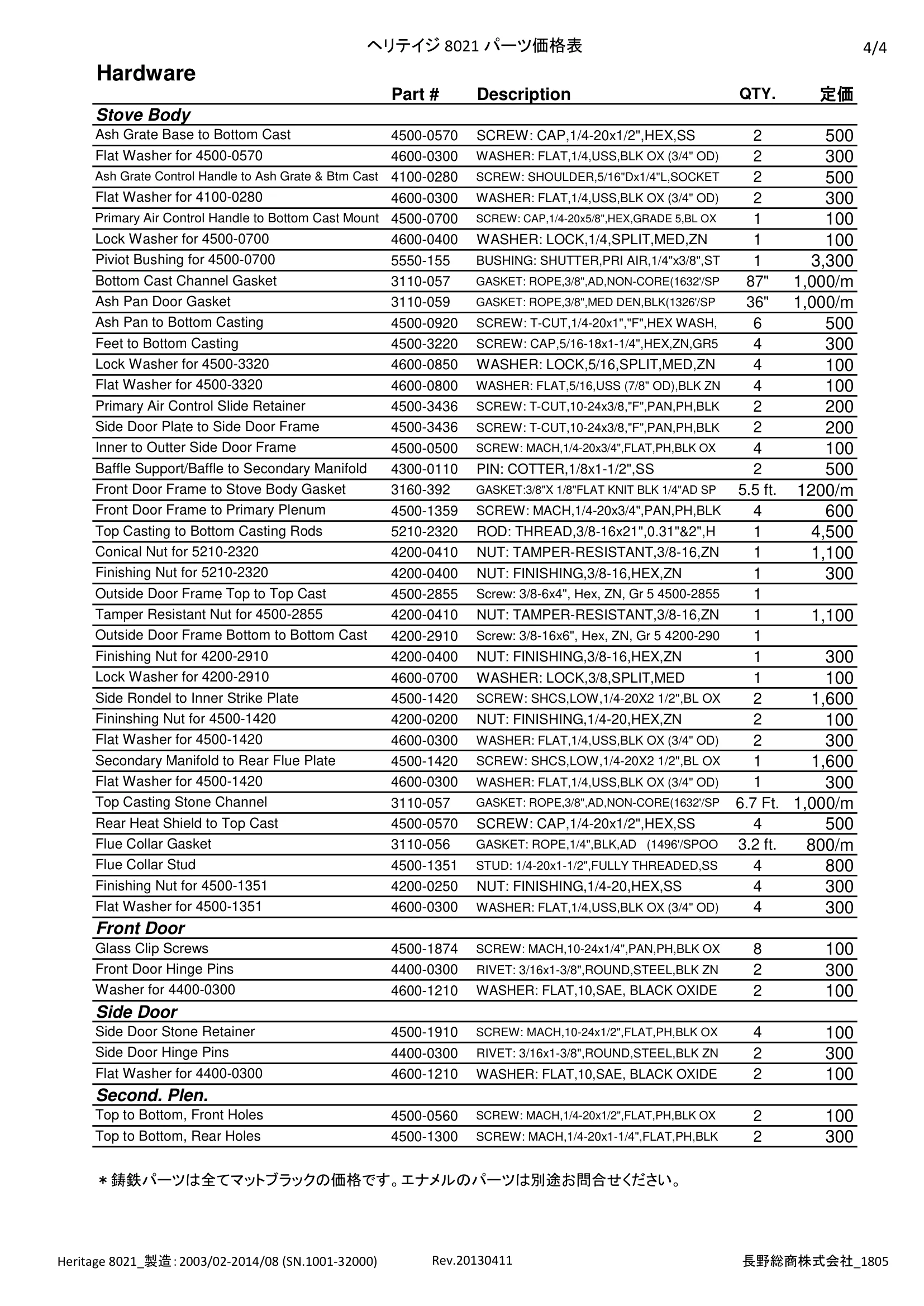

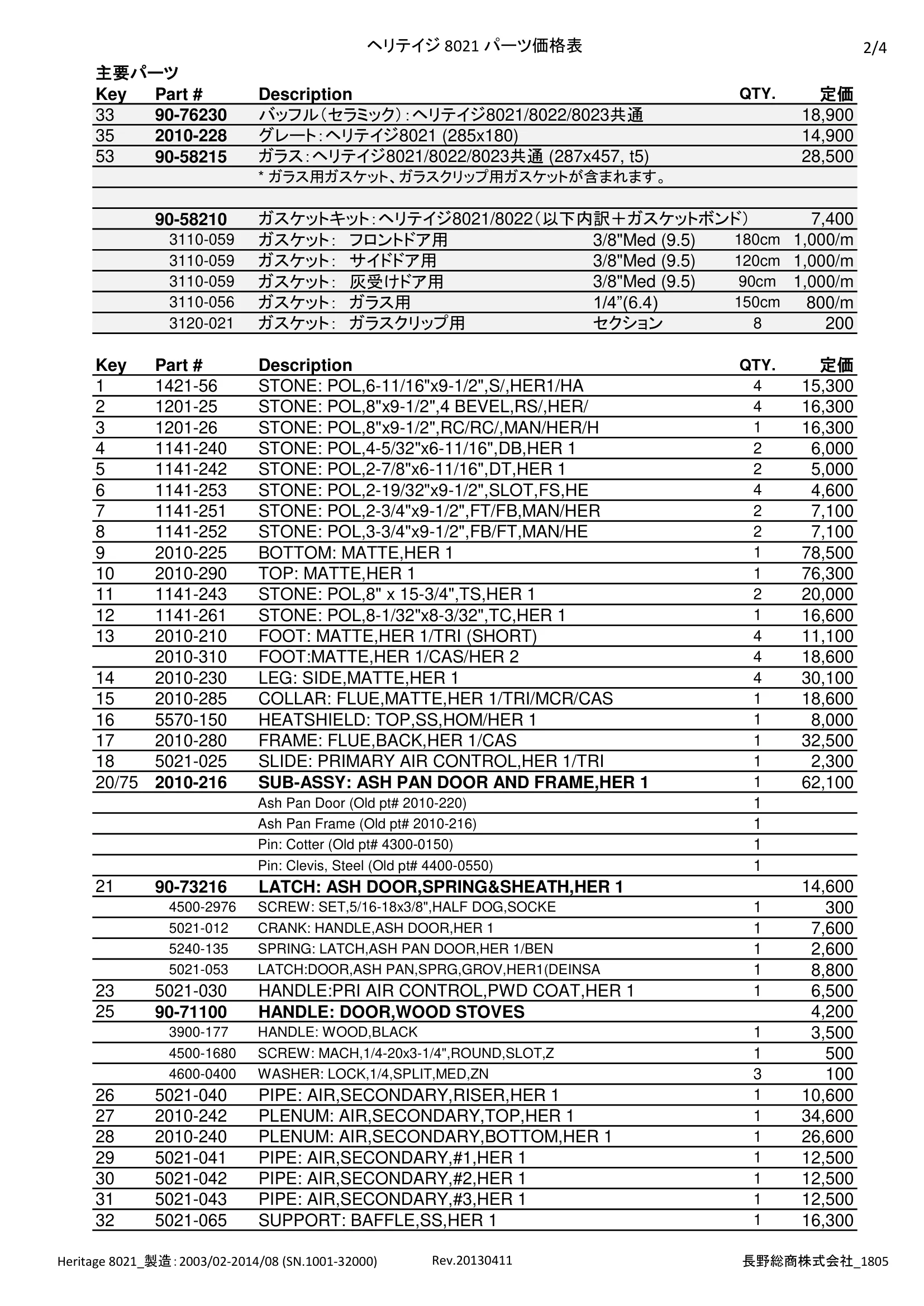

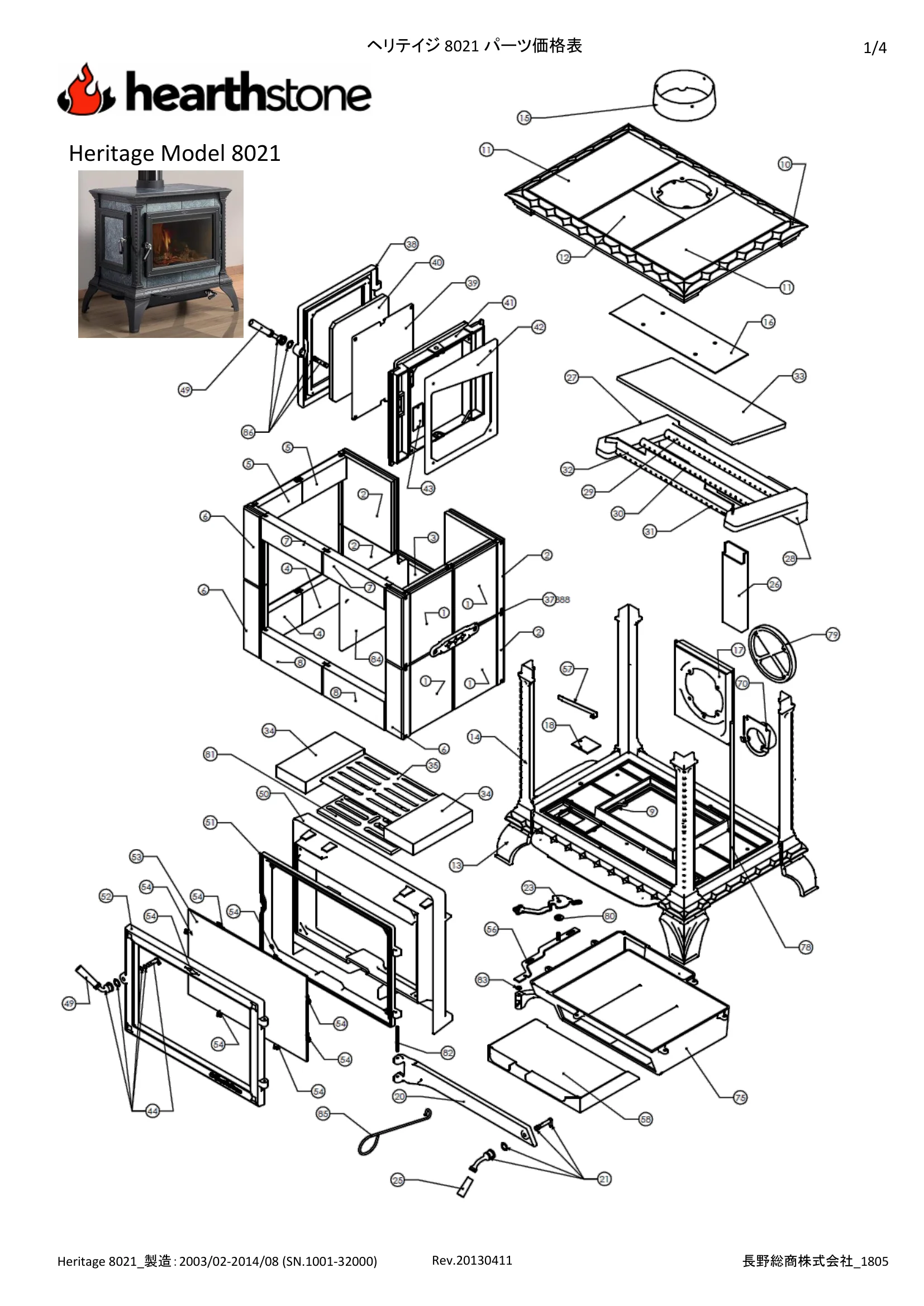

ヘリテイジ 8021 パーツ価格表 1/4 Heritage Model 8021 Heritage 8021_製造：2003/02-2014/08 (SN.1001-32000) Rev.20130411 長野総商株式会社_1805 ヘリテイジ 8021 パーツ価格表 2/4 主要パーツ Key Part # Description QTY. 定価 33 90-76230 バッフル（セラミック）：ヘリテイジ8021/8022/8023共通 18,900 35 2010-228 グレート：ヘリテイジ8021 (285x180) 14,900 53 90-58215 ガラス：ヘリテイジ8021/8022/8023共通 (287x457, t5) 28,500 * ガラス用ガスケット、ガラスクリップ用ガスケットが含まれます。 90-58210 ガスケットキット：ヘリテイジ8021/8022（以下内訳＋ガスケットボンド） 7,400 3110-059 ガスケット：　フロントドア用 3/8"Med (9.5) 180cm 1,000/m 3110-059 ガスケット：　サイドドア用 3/8"Med (9.5) 120cm 1,000/m 3110-059 ガスケット：　灰受けドア用 3/8"Med (9.5) 90cm 1,000/m 3110-056 ガスケット：　ガラス用 1/4”(6.4) 150cm 800/m 3120-021 ガスケット：　ガラスクリップ用 セクション 8 200 Key Part # Description QTY. 定価 1 1421-56 STONE: POL,6-11/16"x9-1/2",S/,HER1/HA 4 15,300 2 1201-25 STONE: POL,8"x9-1/2",4 BEVEL,RS/,HER/ 4 16,300 3 1201-26 STONE: POL,8"x9-1/2",RC/RC/,MAN/HER/H 1 16,300 4 1141-240 STONE: POL,4-5/32"x6-11/16",DB,HER 1 2 6,000 5 1141-242 STONE: POL,2-7/8"x6-11/16",DT,HER 1 2 5,000 6 1141-253 STONE: POL,2-19/32"x9-1/2",SLOT,FS,HE 4 4,600 7 1141-251 STONE: POL,2-3/4"x9-1/2",FT/FB,MAN/HER 2 7,100 8 1141-252 STONE: POL,3-3/4"x9-1/2",FB/FT,MAN/HE 2 7,100 9 2010-225 BOTTOM: MATTE,HER 1 1 78,500 10 2010-290 TOP: MATTE,HER 1 1 76,300 11 1141-243 STONE: POL,8" x 15-3/4",TS,HER 1 2 20,000 12 1141-261 STONE: POL,8-1/32"x8-3/32",TC,HER 1 1 16,600 13 2010-210 FOOT: MATTE,HER 1/TRI (SHORT) 4 11,100 2010-310 FOOT:MATTE,HER 1/CAS/HER 2 4 18,600 14 2010-230 LEG: SIDE,MATTE,HER 1 4 30,100 15 2010-285 COLLAR: FLUE,MATTE,HER 1/TRI/MCR/CAS 1 18,600 16 5570-150 HEATSHIELD: TOP,SS,HOM/HER 1 1 8,000 17 2010-280 FRAME: FLUE,BACK,HER 1/CAS 1 32,500 18 5021-025 SLIDE: PRIMARY AIR CONTROL,HER 1/TRI 1 2,300 20/75 2010-216 SUB-ASSY: ASH PAN DOOR AND FRAME,HER 1 1 62,100 Ash Pan Door (Old pt# 2010-220) 1 Ash Pan Frame (Old pt# 2010-216) 1 Pin: Cotter (Old pt# 4300-0150) 1 Pin: Clevis, Steel (Old pt# 4400-0550) 1 21 90-73216 LATCH: ASH DOOR,SPRING&SHEATH,HER 1 14,600 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 300 5021-012 CRANK: HANDLE,ASH DOOR,HER 1 1 7,600 5240-135 SPRING: LATCH,ASH PAN DOOR,HER 1/BEN 1 2,600 5021-053 LATCH:DOOR,ASH PAN,SPRG,GROV,HER1(DEINSA 1 8,800 23 5021-030 HANDLE:PRI AIR CONTROL,PWD COAT,HER 1 1 6,500 25 90-71100 HANDLE: DOOR,WOOD STOVES 4,200 3900-177 HANDLE: WOOD,BLACK 1 3,500 4500-1680 SCREW: MACH,1/4-20x3-1/4",ROUND,SLOT,Z 1 500 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 3 100 26 5021-040 PIPE: AIR,SECONDARY,RISER,HER 1 1 10,600 27 2010-242 PLENUM: AIR,SECONDARY,TOP,HER 1 1 34,600 28 2010-240 PLENUM: AIR,SECONDARY,BOTTOM,HER 1 1 26,600 29 5021-041 PIPE: AIR,SECONDARY,#1,HER 1 1 12,500 30 5021-042 PIPE: AIR,SECONDARY,#2,HER 1 1 12,500 31 5021-043 PIPE: AIR,SECONDARY,#3,HER 1 1 12,500 32 5021-065 SUPPORT: BAFFLE,SS,HER 1 1 16,300 Heritage 8021_製造：2003/02-2014/08 (SN.1001-32000) Rev.20130411 長野総商株式会社_1805 ヘリテイジ 8021 パーツ価格表 3/4 Key Part # Description QTY. 定価 33 90-76210 BAFFLE:CERAMIC WITH RETRO BRACKET, HER 1 ＊廃番 90-76210 → 90-76230 90-76230 バッフル（セラミック）：ヘリテイジ8021/8022/8023共通 18,900 3120-022 BOARD: CERAMIC,BAFFLE,HER2 1 4300-0120 PIN: COTTER,1/8x2",SS 2 5022-014 BRACKET: BAFFLE,SS,HER2 1 34 1-0000-101 STONE: REF,4-1/2"x9"x1-1/4",MAN 1/HE 8,800 35 2010-228 GRATE: ASH,HER 1 1 14,900 37 2010-275 TRIM: SIDE,MATTE,HER 1/TRI 1 11,100 38 2010-250 DOOR: SIDE,MATTE,HER 1 1 25,500 39 2010-252 PLATE: STONE RETAINER,SIDE DOOR,HER 1 1 24,500 40 1141-241 STONE:POL,8-3/8"x10-1/4",SIDE DOOR,HE 1 18,500 41 2010-255 FRAME: DOOR,SIDE,OUTER,HER 1 1 30,100 42 2010-257 FRAME: DOOR,SIDE,INNER,HER 1 1 24,500 43 5021-055 PLATE: SIDE DOOR,OUTER FRAME,HER1 1 3,100 44 90-73212 LATCH: FRT DOOR,COIL SPNG,HER 1/TRI フロントドアラッチキット 9,200 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 300 4700-0790 SPACER: DOOR LATCH,0.435"x0.375"x0.03" 4 200 5010-081 CRANK: HANDLE,WOOD STOVES 1 4,500 5240-138 SPRING: LATCH,WOOD STOVES,325# 1 2,000 5021-022 LATCH:DR,FRT,SINGLE BEV,HER1/TRI(Deinsa) 1 4,700 5021-032 WASHER: FLAT,.406"IDx1"ODx.035"T,BLK 1 200 49 90-71100 HANDLE: DOOR,WOOD STOVES 4,200 3900-177 HANDLE: WOOD,BLACK 1 3,500 4500-1680 SCREW: MACH,1/4-20x3-1/4",ROUND,SLOT,Z 1 500 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 3 100 50 2010-245 PLENUM: AIR,PRIMARY,HER 1 1 50,800 51 2010-265 FRAME: DOOR,FRONT,OUTER,HER 1 1 0 52 2010-270 DOOR: FRONT,MATTE,HER 1 1 28,800 53 90-58215 GLASS: HER 1 28,500 3030-038 GLASS: IR,11-5/16"x18"x5mm,HER 1 1 3110-056 GASKET: ROPE,1/4",BLK,AD (1496'/SPOO 150cm 800/m 3120-021 GASKET: GLASS CLIP, BLACK 8 200 54 5021-060 CLIP: GLASS,HER 1/TRI 8 500 4500-2105 Glass Clip Screw 200 56 5021-035 ARM: CONTROL,ASH GRATE,HER 1 1 6,500 57 5021-020 RETAINER: SLIDE,PRI AIR CONTROL,HER1/TRI 1 4,500 58 5021-010 PAN: ASH,HER 1 1 12,300 70 90-53210 OPTION - OUTSIDE AIR KIT: HER 1/CRA 75 Ash Pan Frame (see 20 above) 78 5210-2320 ROD: THREAD,3/8-16x21",0.31"&2",H 1 4,500 79 2010-282 PLATE: FLUE, HER 1/MCR/CAS 1 11,600 80 5550-155 BUSHING: SHUTTER,PRI AIR,1/4"x3/8",ST 3,300 81 2010-227 BASE: ASH GRATE,HER 1 1 18,600 82 Ash Door Hinge Pin (see 20 above) 83 4600-0800 WASHER: FLAT,5/16,USS (7/8" OD),BLK ZN 9 100 84 2010-422 PLATE: SIDE,RIGHT,HER 1 17,800 85 5021-037 HANDLE: CONTROL,ASH GRATE,HER 1 1 5,000 86 90-73213 LATCH: SIDE DOOR,COIL SPNG,HER 1 サイドドアラッチキット 9,200 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 300 4700-0790 SPACER: DOOR LATCH,0.435"x0.375"x0.03" 4 200 5010-081 CRANK: HANDLE,WOOD STOVES 1 4,500 5021-023 LATCH: DOOR,SIDE,SINGLE BEV,HER1(Deinsa) 1 4,700 5021-032 WASHER: FLAT,.406"IDx1"ODx.035"T,BLK 1 200 5240-138 SPRING: LATCH,WOOD STOVES,325# 1 2,000 Heritage 8021_製造：2003/02-2014/08 (SN.1001-32000) Rev.20130411 長野総商株式会社_1805 ヘリテイジ 8021 パーツ価格表 4/4 Hardware Part # Description QTY. 定価 Stove Body 4500-0570 SCREW: CAP,1/4-20x1/2",HEX,SS 2 500 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 300 4100-0280 SCREW: SHOULDER,5/16"Dx1/4"L,SOCKET 2 500 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 300 4500-0700 SCREW: CAP,1/4-20x5/8",HEX,GRADE 5,BL OX 1 100 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 1 100 5550-155 BUSHING: SHUTTER,PRI AIR,1/4"x3/8",ST 1 3,300 3110-057 GASKET: ROPE,3/8",AD,NON-CORE(1632'/SP 87" 1,000/m 3110-059 GASKET: ROPE,3/8",MED DEN,BLK(1326'/SP 36" 1,000/m 4500-0920 SCREW: T-CUT,1/4-20x1","F",HEX WASH, 6 500 4500-3220 SCREW: CAP,5/16-18x1-1/4",HEX,ZN,GR5 4 300 4600-0850 WASHER: LOCK,5/16,SPLIT,MED,ZN 4 100 4600-0800 WASHER: FLAT,5/16,USS (7/8" OD),BLK ZN 4 100 4500-3436 SCREW: T-CUT,10-24x3/8,"F",PAN,PH,BLK 2 200 4500-3436 SCREW: T-CUT,10-24x3/8,"F",PAN,PH,BLK 2 200 4500-0500 SCREW: MACH,1/4-20x3/4",FLAT,PH,BLK OX 4 100 4300-0110 PIN: COTTER,1/8x1-1/2",SS 2 500 3160-392 GASKET:3/8"X 1/8"FLAT KNIT BLK 1/4"AD SP 5.5 ft. 1200/m 4500-1359 SCREW: MACH,1/4-20x3/4",PAN,PH,BLK 4 600 5210-2320 ROD: THREAD,3/8-16x21",0.31"&2",H 1 4,500 4200-0410 NUT: TAMPER-RESISTANT,3/8-16,ZN 1 1,100 4200-0400 NUT: FINISHING,3/8-16,HEX,ZN 1 300 4500-2855 Screw: 3/8-6x4", Hex, ZN, Gr 5 4500-2855 1 4200-0410 NUT: TAMPER-RESISTANT,3/8-16,ZN 1 1,100 4200-2910 Screw: 3/8-16x6", Hex, ZN, Gr 5 4200-290 1 4200-0400 NUT: FINISHING,3/8-16,HEX,ZN 1 300 4600-0700 WASHER: LOCK,3/8,SPLIT,MED 1 100 4500-1420 SCREW: SHCS,LOW,1/4-20X2 1/2",BL OX 2 1,600 4200-0200 NUT: FINISHING,1/4-20,HEX,ZN 2 100 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 300 4500-1420 SCREW: SHCS,LOW,1/4-20X2 1/2",BL OX 1 1,600 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 1 300 3110-057 GASKET: ROPE,3/8",AD,NON-CORE(1632'/SP 6.7 Ft. 1,000/m 4500-0570 SCREW: CAP,1/4-20x1/2",HEX,SS 4 500 3110-056 GASKET: ROPE,1/4",BLK,AD (1496'/SPOO 3.2 ft. 800/m 4500-1351 STUD: 1/4-20x1-1/2",FULLY THREADED,SS 4 800 4200-0250 NUT: FINISHING,1/4-20,HEX,SS 4 300 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 4 300 Front Door 4500-1874 SCREW: MACH,10-24x1/4",PAN,PH,BLK OX 8 100 4400-0300 RIVET: 3/16x1-3/8",ROUND,STEEL,BLK ZN 2 300 4600-1210 WASHER: FLAT,10,SAE, BLACK OXIDE 2 100 Side Door 4500-1910 SCREW: MACH,10-24x1/2",FLAT,PH,BLK OX 4 100 4400-0300 RIVET: 3/16x1-3/8",ROUND,STEEL,BLK ZN 2 300 4600-1210 WASHER: FLAT,10,SAE, BLACK OXIDE 2 100 Second. Plen. 4500-0560 SCREW: MACH,1/4-20x1/2",FLAT,PH,BLK OX 2 100 4500-1300 SCREW: MACH,1/4-20x1-1/4",FLAT,PH,BLK 2 300 ＊鋳鉄パーツは全てマットブラックの価格です。エナメルのパーツは別途お問合せください。 Lock Washer for 4500-3320 Ash Grate Base to Bottom Cast Ash Grate Control Handle to Ash Grate & Btm Cast Flat Washer for 4500-0570 Flat Washer for 4100-0280 Primary Air Control Handle to Bottom Cast Mount Lock Washer for 4500-0700 Piviot Bushing for 4500-0700 Bottom Cast Channel Gasket Ash Pan Door Gasket Ash Pan to Bottom Casting Feet to Bottom Casting Tamper Resistant Nut for 4500-2855 Flat Washer for 4500-3320 Primary Air Control Slide Retainer Side Door Plate to Side Door Frame Inner to Outter Side Door Frame Baffle Support/Baffle to Secondary Manifold Front Door Frame to Stove Body Gasket Front Door Frame to Primary Plenum Top Casting to Bottom Casting Rods Conical Nut for 5210-2320 Finishing Nut for 5210-2320 Outside Door Frame Top to Top Cast Flue Collar Stud Outside Door Frame Bottom to Bottom Cast Finishing Nut for 4200-2910 Lock Washer for 4200-2910 Side Rondel to Inner Strike Plate Fininshing Nut for 4500-1420 Flat Washer for 4500-1420 Secondary Manifold to Rear Flue Plate Flat Washer for 4500-1420 Top Casting Stone Channel Rear Heat Shield to Top Cast Flue Collar Gasket Side Door Hinge Pins Flat Washer for 4400-0300 Top to Bottom, Front Holes Top to Bottom, Rear Holes Finishing Nut for 4500-1351 Flat Washer for 4500-1351 Glass Clip Screws Front Door Hinge Pins Washer for 4400-0300 Side Door Stone Retainer Heritage 8021_製造：2003/02-2014/08 (SN.1001-32000) Rev.20130411 長野総商株式会社_1805
