ハースストーン PARTS PRICE HERITAGE8021_2509
技術資料

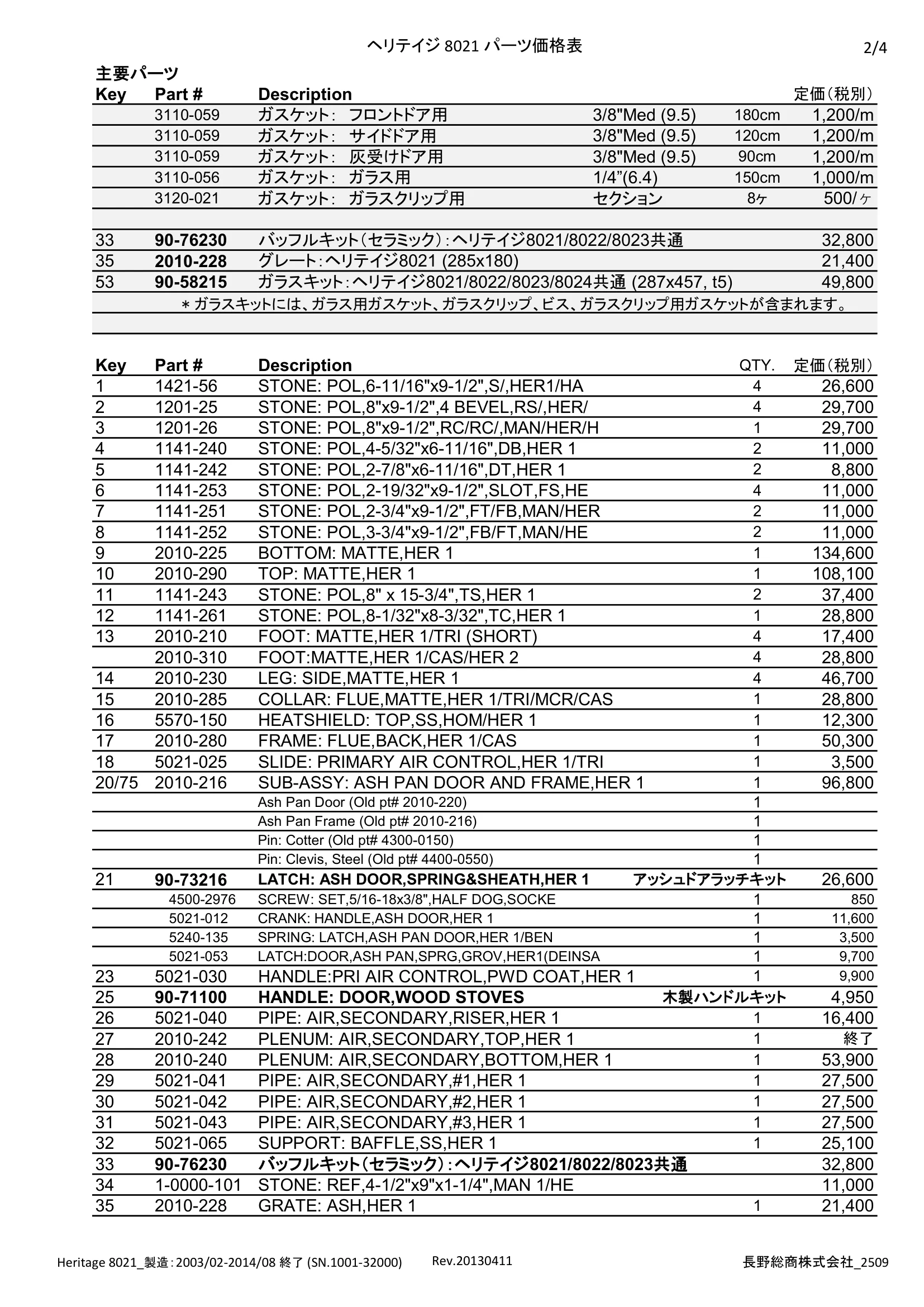

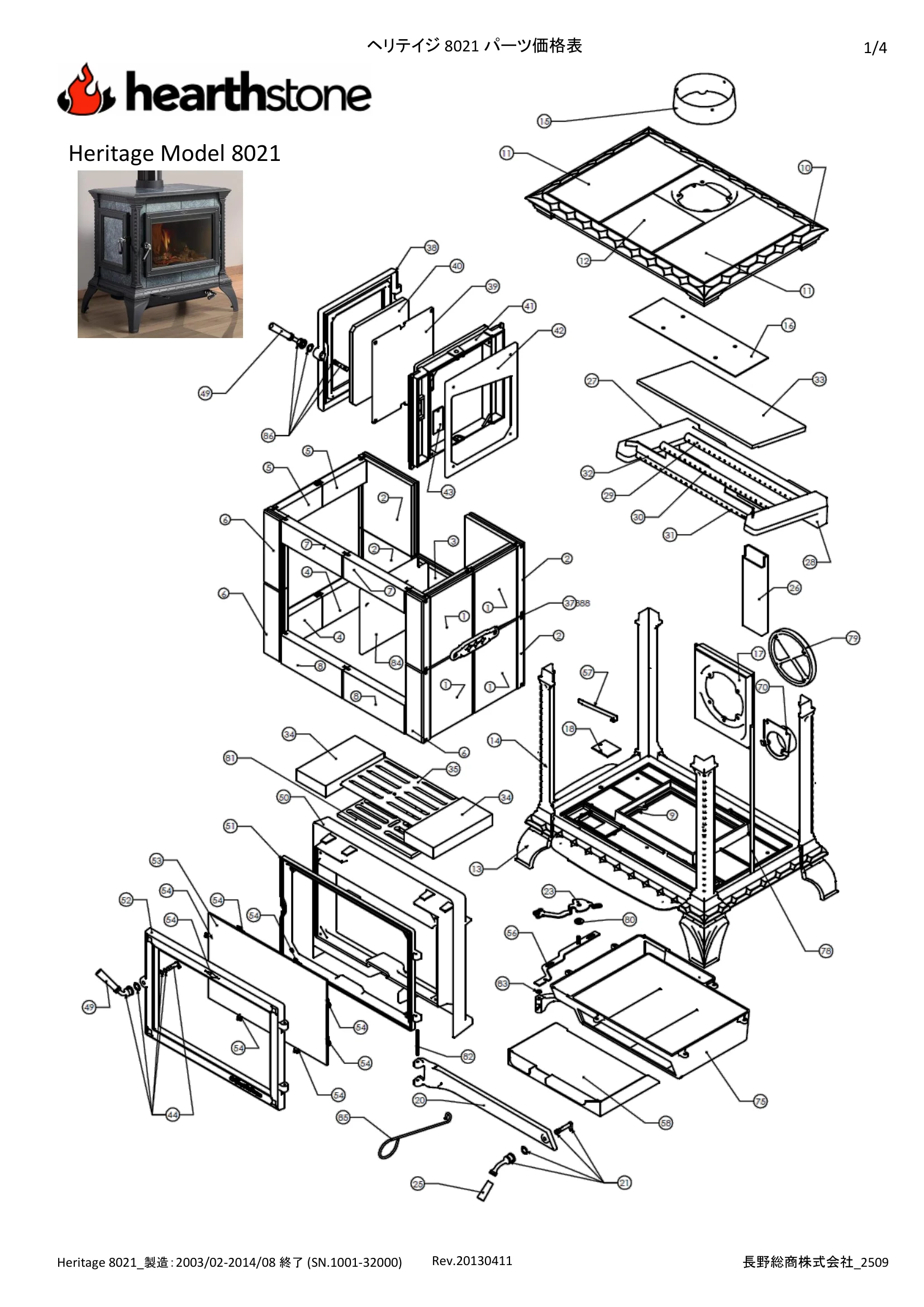

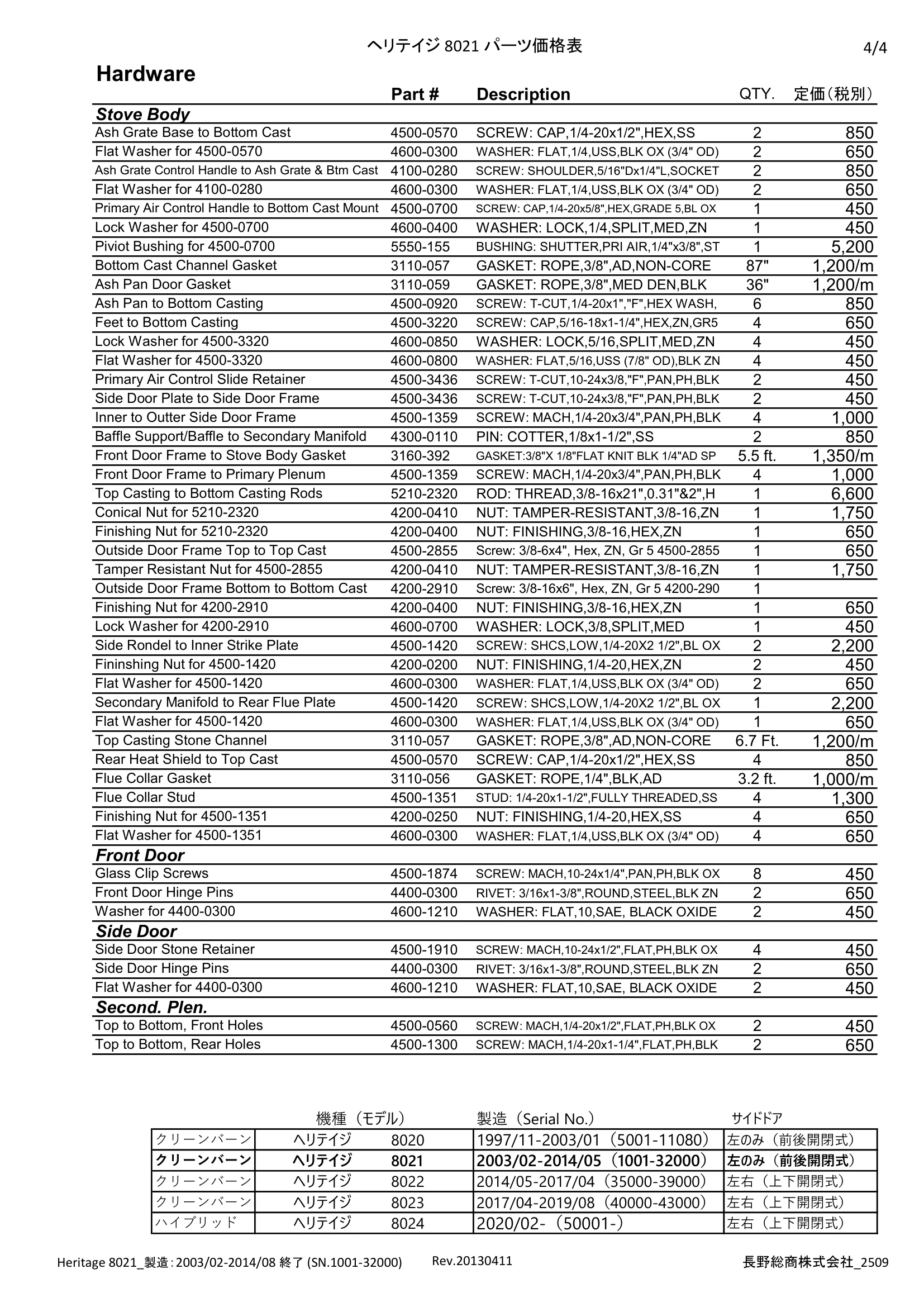

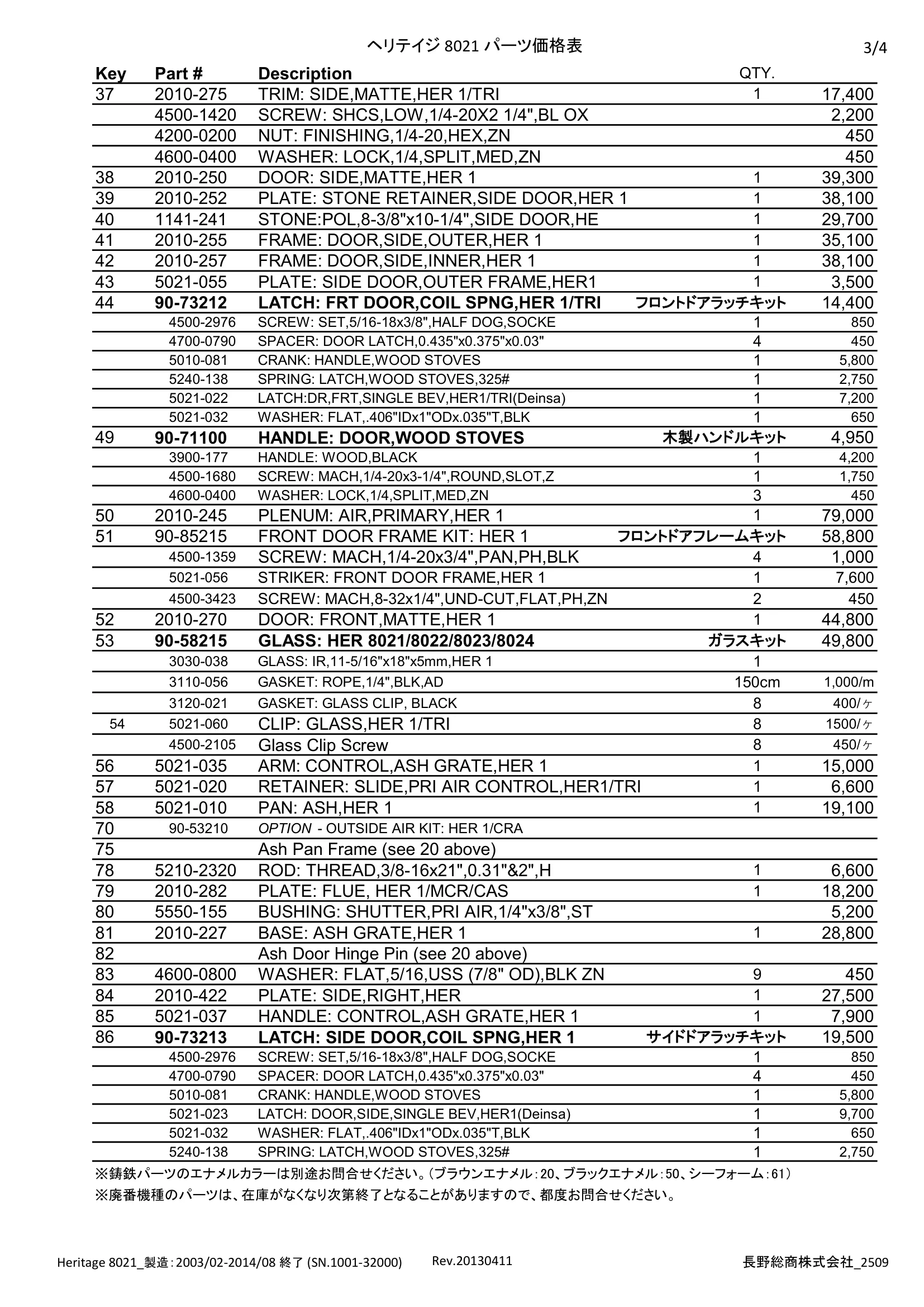

ヘリテイジ 8021 パーツ価格表 1/4 Heritage Model 8021 Heritage 8021_製造：2003/02-2014/08 終了 (SN.1001-32000) Rev.20130411 長野総商株式会社_2509 ヘリテイジ 8021 パーツ価格表 2/4 主要パーツ Key Part # Description 定価（税別） 3110-059 ガスケット：　フロントドア用 3/8"Med (9.5) 180cm 1,200/m 3110-059 ガスケット：　サイドドア用 3/8"Med (9.5) 120cm 1,200/m 3110-059 ガスケット：　灰受けドア用 3/8"Med (9.5) 90cm 1,200/m 3110-056 ガスケット：　ガラス用 1/4”(6.4) 150cm 1,000/m 3120-021 ガスケット：　ガラスクリップ用 セクション 8ヶ 500/ヶ 33 90-76230 バッフルキット（セラミック）：ヘリテイジ8021/8022/8023共通 32,800 35 2010-228 グレート：ヘリテイジ8021 (285x180) 21,400 53 90-58215 ガラスキット：ヘリテイジ8021/8022/8023/8024共通 (287x457, t5) 49,800 Key Part # Description QTY. 定価（税別） 1 1421-56 STONE: POL,6-11/16"x9-1/2",S/,HER1/HA 4 26,600 2 1201-25 STONE: POL,8"x9-1/2",4 BEVEL,RS/,HER/ 4 29,700 3 1201-26 STONE: POL,8"x9-1/2",RC/RC/,MAN/HER/H 1 29,700 4 1141-240 STONE: POL,4-5/32"x6-11/16",DB,HER 1 2 11,000 5 1141-242 STONE: POL,2-7/8"x6-11/16",DT,HER 1 2 8,800 6 1141-253 STONE: POL,2-19/32"x9-1/2",SLOT,FS,HE 4 11,000 7 1141-251 STONE: POL,2-3/4"x9-1/2",FT/FB,MAN/HER 2 11,000 8 1141-252 STONE: POL,3-3/4"x9-1/2",FB/FT,MAN/HE 2 11,000 9 2010-225 BOTTOM: MATTE,HER 1 1 134,600 10 2010-290 TOP: MATTE,HER 1 1 108,100 11 1141-243 STONE: POL,8" x 15-3/4",TS,HER 1 2 37,400 12 1141-261 STONE: POL,8-1/32"x8-3/32",TC,HER 1 1 28,800 13 2010-210 FOOT: MATTE,HER 1/TRI (SHORT) 4 17,400 2010-310 FOOT:MATTE,HER 1/CAS/HER 2 4 28,800 14 2010-230 LEG: SIDE,MATTE,HER 1 4 46,700 15 2010-285 COLLAR: FLUE,MATTE,HER 1/TRI/MCR/CAS 1 28,800 16 5570-150 HEATSHIELD: TOP,SS,HOM/HER 1 1 12,300 17 2010-280 FRAME: FLUE,BACK,HER 1/CAS 1 50,300 18 5021-025 SLIDE: PRIMARY AIR CONTROL,HER 1/TRI 1 3,500 20/75 2010-216 SUB-ASSY: ASH PAN DOOR AND FRAME,HER 1 1 96,800 Ash Pan Door (Old pt# 2010-220) 1 Ash Pan Frame (Old pt# 2010-216) 1 Pin: Cotter (Old pt# 4300-0150) 1 Pin: Clevis, Steel (Old pt# 4400-0550) 1 21 90-73216 LATCH: ASH DOOR,SPRING&SHEATH,HER 1 アッシュドアラッチキット 26,600 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 850 5021-012 CRANK: HANDLE,ASH DOOR,HER 1 1 11,600 5240-135 SPRING: LATCH,ASH PAN DOOR,HER 1/BEN 1 3,500 5021-053 LATCH:DOOR,ASH PAN,SPRG,GROV,HER1(DEINSA 1 9,700 23 5021-030 HANDLE:PRI AIR CONTROL,PWD COAT,HER 1 1 9,900 25 90-71100 HANDLE: DOOR,WOOD STOVES 木製ハンドルキット 4,950 26 5021-040 PIPE: AIR,SECONDARY,RISER,HER 1 1 16,400 27 2010-242 PLENUM: AIR,SECONDARY,TOP,HER 1 1 終了 28 2010-240 PLENUM: AIR,SECONDARY,BOTTOM,HER 1 1 53,900 29 5021-041 PIPE: AIR,SECONDARY,#1,HER 1 1 27,500 30 5021-042 PIPE: AIR,SECONDARY,#2,HER 1 1 27,500 31 5021-043 PIPE: AIR,SECONDARY,#3,HER 1 1 27,500 32 5021-065 SUPPORT: BAFFLE,SS,HER 1 1 25,100 33 90-76230 バッフルキット（セラミック）：ヘリテイジ8021/8022/8023共通 32,800 34 1-0000-101 STONE: REF,4-1/2"x9"x1-1/4",MAN 1/HE 11,000 35 2010-228 GRATE: ASH,HER 1 1 21,400 * ガラスキットには、ガラス用ガスケット、ガラスクリップ、ビス、ガラスクリップ用ガスケットが含まれます。 Heritage 8021_製造：2003/02-2014/08 終了 (SN.1001-32000) Rev.20130411 長野総商株式会社_2509 ヘリテイジ 8021 パーツ価格表 3/4 Key Part # Description QTY. 37 2010-275 TRIM: SIDE,MATTE,HER 1/TRI 1 17,400 4500-1420 SCREW: SHCS,LOW,1/4-20X2 1/4",BL OX 2,200 4200-0200 NUT: FINISHING,1/4-20,HEX,ZN 450 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 450 38 2010-250 DOOR: SIDE,MATTE,HER 1 1 39,300 39 2010-252 PLATE: STONE RETAINER,SIDE DOOR,HER 1 1 38,100 40 1141-241 STONE:POL,8-3/8"x10-1/4",SIDE DOOR,HE 1 29,700 41 2010-255 FRAME: DOOR,SIDE,OUTER,HER 1 1 35,100 42 2010-257 FRAME: DOOR,SIDE,INNER,HER 1 1 38,100 43 5021-055 PLATE: SIDE DOOR,OUTER FRAME,HER1 1 3,500 44 90-73212 LATCH: FRT DOOR,COIL SPNG,HER 1/TRI フロントドアラッチキット 14,400 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 850 4700-0790 SPACER: DOOR LATCH,0.435"x0.375"x0.03" 4 450 5010-081 CRANK: HANDLE,WOOD STOVES 1 5,800 5240-138 SPRING: LATCH,WOOD STOVES,325# 1 2,750 5021-022 LATCH:DR,FRT,SINGLE BEV,HER1/TRI(Deinsa) 1 7,200 5021-032 WASHER: FLAT,.406"IDx1"ODx.035"T,BLK 1 650 49 90-71100 HANDLE: DOOR,WOOD STOVES 木製ハンドルキット 4,950 3900-177 HANDLE: WOOD,BLACK 1 4,200 4500-1680 SCREW: MACH,1/4-20x3-1/4",ROUND,SLOT,Z 1 1,750 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 3 450 50 2010-245 PLENUM: AIR,PRIMARY,HER 1 1 79,000 51 90-85215 FRONT DOOR FRAME KIT: HER 1 フロントドアフレームキット 58,800 4500-1359 SCREW: MACH,1/4-20x3/4",PAN,PH,BLK 4 1,000 5021-056 STRIKER: FRONT DOOR FRAME,HER 1 1 7,600 4500-3423 SCREW: MACH,8-32x1/4",UND-CUT,FLAT,PH,ZN 2 450 52 2010-270 DOOR: FRONT,MATTE,HER 1 1 44,800 53 90-58215 GLASS: HER 8021/8022/8023/8024 ガラスキット 49,800 3030-038 GLASS: IR,11-5/16"x18"x5mm,HER 1 1 3110-056 GASKET: ROPE,1/4",BLK,AD 150cm 1,000/m 3120-021 GASKET: GLASS CLIP, BLACK 8 400/ヶ 54 5021-060 CLIP: GLASS,HER 1/TRI 8 1500/ヶ 4500-2105 Glass Clip Screw 8 450/ヶ 56 5021-035 ARM: CONTROL,ASH GRATE,HER 1 1 15,000 57 5021-020 RETAINER: SLIDE,PRI AIR CONTROL,HER1/TRI 1 6,600 58 5021-010 PAN: ASH,HER 1 1 19,100 70 90-53210 OPTION - OUTSIDE AIR KIT: HER 1/CRA 75 Ash Pan Frame (see 20 above) 78 5210-2320 ROD: THREAD,3/8-16x21",0.31"&2",H 1 6,600 79 2010-282 PLATE: FLUE, HER 1/MCR/CAS 1 18,200 80 5550-155 BUSHING: SHUTTER,PRI AIR,1/4"x3/8",ST 5,200 81 2010-227 BASE: ASH GRATE,HER 1 1 28,800 82 Ash Door Hinge Pin (see 20 above) 83 4600-0800 WASHER: FLAT,5/16,USS (7/8" OD),BLK ZN 9 450 84 2010-422 PLATE: SIDE,RIGHT,HER 1 27,500 85 5021-037 HANDLE: CONTROL,ASH GRATE,HER 1 1 7,900 86 90-73213 LATCH: SIDE DOOR,COIL SPNG,HER 1 サイドドアラッチキット 19,500 4500-2976 SCREW: SET,5/16-18x3/8",HALF DOG,SOCKE 1 850 4700-0790 SPACER: DOOR LATCH,0.435"x0.375"x0.03" 4 450 5010-081 CRANK: HANDLE,WOOD STOVES 1 5,800 5021-023 LATCH: DOOR,SIDE,SINGLE BEV,HER1(Deinsa) 1 9,700 5021-032 WASHER: FLAT,.406"IDx1"ODx.035"T,BLK 1 650 5240-138 SPRING: LATCH,WOOD STOVES,325# 1 2,750 ※鋳鉄パーツのエナメルカラーは別途お問合せください。（ブラウンエナメル：20、ブラックエナメル：50、シーフォーム：61） ※廃番機種のパーツは、在庫がなくなり次第終了となることがありますので、都度お問合せください。 Heritage 8021_製造：2003/02-2014/08 終了 (SN.1001-32000) Rev.20130411 長野総商株式会社_2509 ヘリテイジ 8021 パーツ価格表 4/4 Hardware Part # Description QTY. 定価（税別） Stove Body 4500-0570 SCREW: CAP,1/4-20x1/2",HEX,SS 2 850 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 650 4100-0280 SCREW: SHOULDER,5/16"Dx1/4"L,SOCKET 2 850 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 650 4500-0700 SCREW: CAP,1/4-20x5/8",HEX,GRADE 5,BL OX 1 450 4600-0400 WASHER: LOCK,1/4,SPLIT,MED,ZN 1 450 5550-155 BUSHING: SHUTTER,PRI AIR,1/4"x3/8",ST 1 5,200 3110-057 GASKET: ROPE,3/8",AD,NON-CORE 87" 1,200/m 3110-059 GASKET: ROPE,3/8",MED DEN,BLK 36" 1,200/m 4500-0920 SCREW: T-CUT,1/4-20x1","F",HEX WASH, 6 850 4500-3220 SCREW: CAP,5/16-18x1-1/4",HEX,ZN,GR5 4 650 4600-0850 WASHER: LOCK,5/16,SPLIT,MED,ZN 4 450 4600-0800 WASHER: FLAT,5/16,USS (7/8" OD),BLK ZN 4 450 4500-3436 SCREW: T-CUT,10-24x3/8,"F",PAN,PH,BLK 2 450 4500-3436 SCREW: T-CUT,10-24x3/8,"F",PAN,PH,BLK 2 450 4500-1359 SCREW: MACH,1/4-20x3/4",PAN,PH,BLK 4 1,000 4300-0110 PIN: COTTER,1/8x1-1/2",SS 2 850 3160-392 GASKET:3/8"X 1/8"FLAT KNIT BLK 1/4"AD SP 5.5 ft. 1,350/m 4500-1359 SCREW: MACH,1/4-20x3/4",PAN,PH,BLK 4 1,000 5210-2320 ROD: THREAD,3/8-16x21",0.31"&2",H 1 6,600 4200-0410 NUT: TAMPER-RESISTANT,3/8-16,ZN 1 1,750 4200-0400 NUT: FINISHING,3/8-16,HEX,ZN 1 650 4500-2855 Screw: 3/8-6x4", Hex, ZN, Gr 5 4500-2855 1 650 4200-0410 NUT: TAMPER-RESISTANT,3/8-16,ZN 1 1,750 4200-2910 Screw: 3/8-16x6", Hex, ZN, Gr 5 4200-290 1 4200-0400 NUT: FINISHING,3/8-16,HEX,ZN 1 650 4600-0700 WASHER: LOCK,3/8,SPLIT,MED 1 450 4500-1420 SCREW: SHCS,LOW,1/4-20X2 1/2",BL OX 2 2,200 4200-0200 NUT: FINISHING,1/4-20,HEX,ZN 2 450 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 2 650 4500-1420 SCREW: SHCS,LOW,1/4-20X2 1/2",BL OX 1 2,200 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 1 650 3110-057 GASKET: ROPE,3/8",AD,NON-CORE 6.7 Ft. 1,200/m 4500-0570 SCREW: CAP,1/4-20x1/2",HEX,SS 4 850 3110-056 GASKET: ROPE,1/4",BLK,AD 3.2 ft. 1,000/m 4500-1351 STUD: 1/4-20x1-1/2",FULLY THREADED,SS 4 1,300 4200-0250 NUT: FINISHING,1/4-20,HEX,SS 4 650 4600-0300 WASHER: FLAT,1/4,USS,BLK OX (3/4" OD) 4 650 Front Door 4500-1874 SCREW: MACH,10-24x1/4",PAN,PH,BLK OX 8 450 4400-0300 RIVET: 3/16x1-3/8",ROUND,STEEL,BLK ZN 2 650 4600-1210 WASHER: FLAT,10,SAE, BLACK OXIDE 2 450 Side Door 4500-1910 SCREW: MACH,10-24x1/2",FLAT,PH,BLK OX 4 450 4400-0300 RIVET: 3/16x1-3/8",ROUND,STEEL,BLK ZN 2 650 4600-1210 WASHER: FLAT,10,SAE, BLACK OXIDE 2 450 Second. Plen. 4500-0560 SCREW: MACH,1/4-20x1/2",FLAT,PH,BLK OX 2 450 4500-1300 SCREW: MACH,1/4-20x1-1/4",FLAT,PH,BLK 2 650 機種（モデル） 製造（Serial No.） サイドドア クリーンバーン ヘリテイジ 8020 1997/11-2003/01（5001-11080）左のみ（前後開閉式） クリーンバーン ヘリテイジ 8021 2003/02-2014/05（1001-32000）左のみ（前後開閉式） クリーンバーン ヘリテイジ 8022 2014/05-2017/04（35000-39000）左右（上下開閉式） クリーンバーン ヘリテイジ 8023 2017/04-2019/08（40000-43000）左右（上下開閉式） ハイブリッド ヘリテイジ 8024 2020/02-（50001-） 左右（上下開閉式） Flat Washer for 4100-0280 Ash Grate Base to Bottom Cast Flat Washer for 4500-0570 Ash Grate Control Handle to Ash Grate & Btm Cast Inner to Outter Side Door Frame Primary Air Control Handle to Bottom Cast Mount Lock Washer for 4500-0700 Piviot Bushing for 4500-0700 Bottom Cast Channel Gasket Ash Pan Door Gasket Ash Pan to Bottom Casting Feet to Bottom Casting Lock Washer for 4500-3320 Flat Washer for 4500-3320 Primary Air Control Slide Retainer Side Door Plate to Side Door Frame Top to Bottom, Front Holes Top to Bottom, Rear Holes Front Door Hinge Pins Fininshing Nut for 4500-1420 Flat Washer for 4500-1420 Secondary Manifold to Rear Flue Plate Flat Washer for 4500-1420 Top Casting Stone Channel Rear Heat Shield to Top Cast Flue Collar Gasket Flue Collar Stud Finishing Nut for 4500-1351 Flat Washer for 4500-1351 Glass Clip Screws Side Rondel to Inner Strike Plate Washer for 4400-0300 Side Door Stone Retainer Side Door Hinge Pins Flat Washer for 4400-0300 Baffle Support/Baffle to Secondary Manifold Front Door Frame to Stove Body Gasket Front Door Frame to Primary Plenum Top Casting to Bottom Casting Rods Conical Nut for 5210-2320 Finishing Nut for 5210-2320 Outside Door Frame Top to Top Cast Tamper Resistant Nut for 4500-2855 Outside Door Frame Bottom to Bottom Cast Finishing Nut for 4200-2910 Lock Washer for 4200-2910 Heritage 8021_製造：2003/02-2014/08 終了 (SN.1001-32000) Rev.20130411 長野総商株式会社_2509
