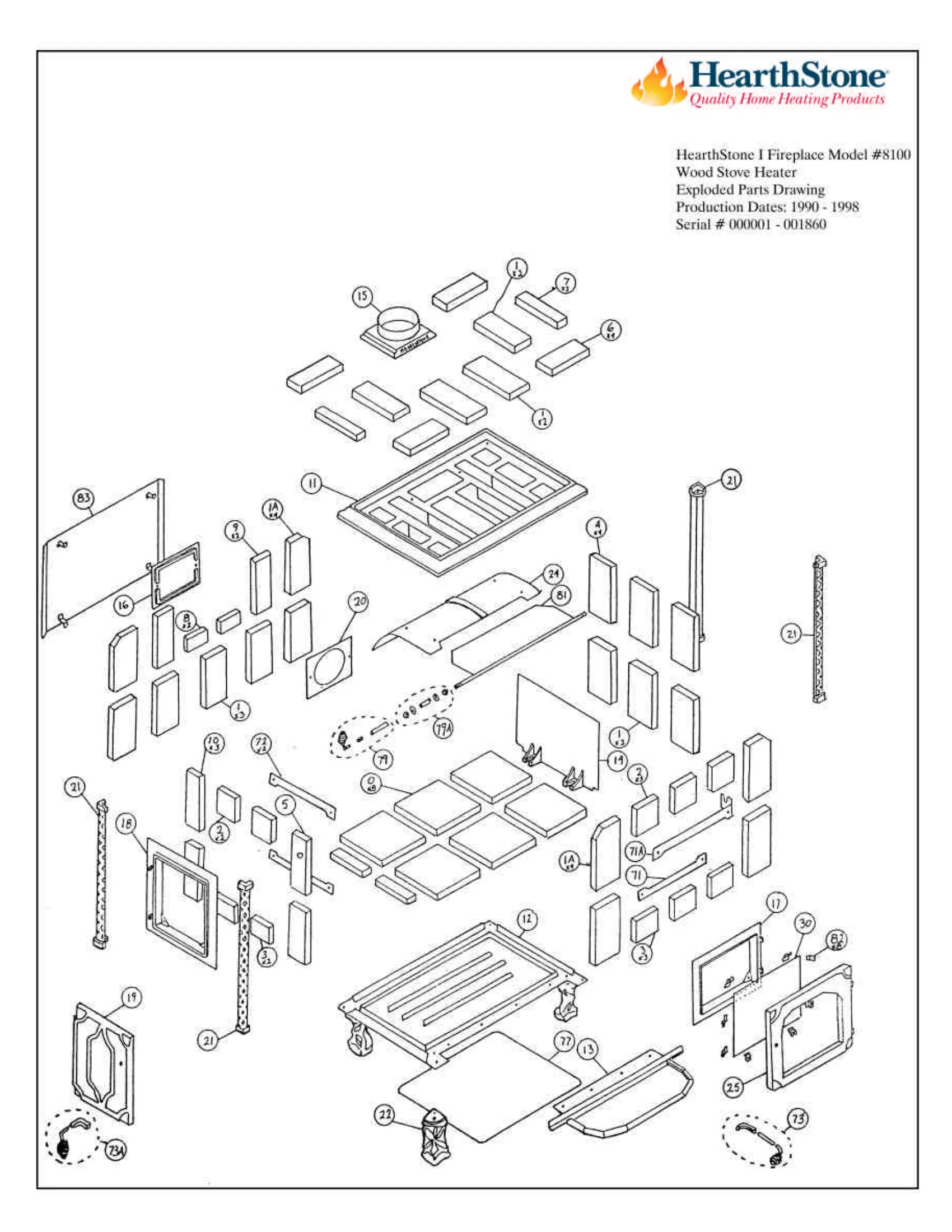

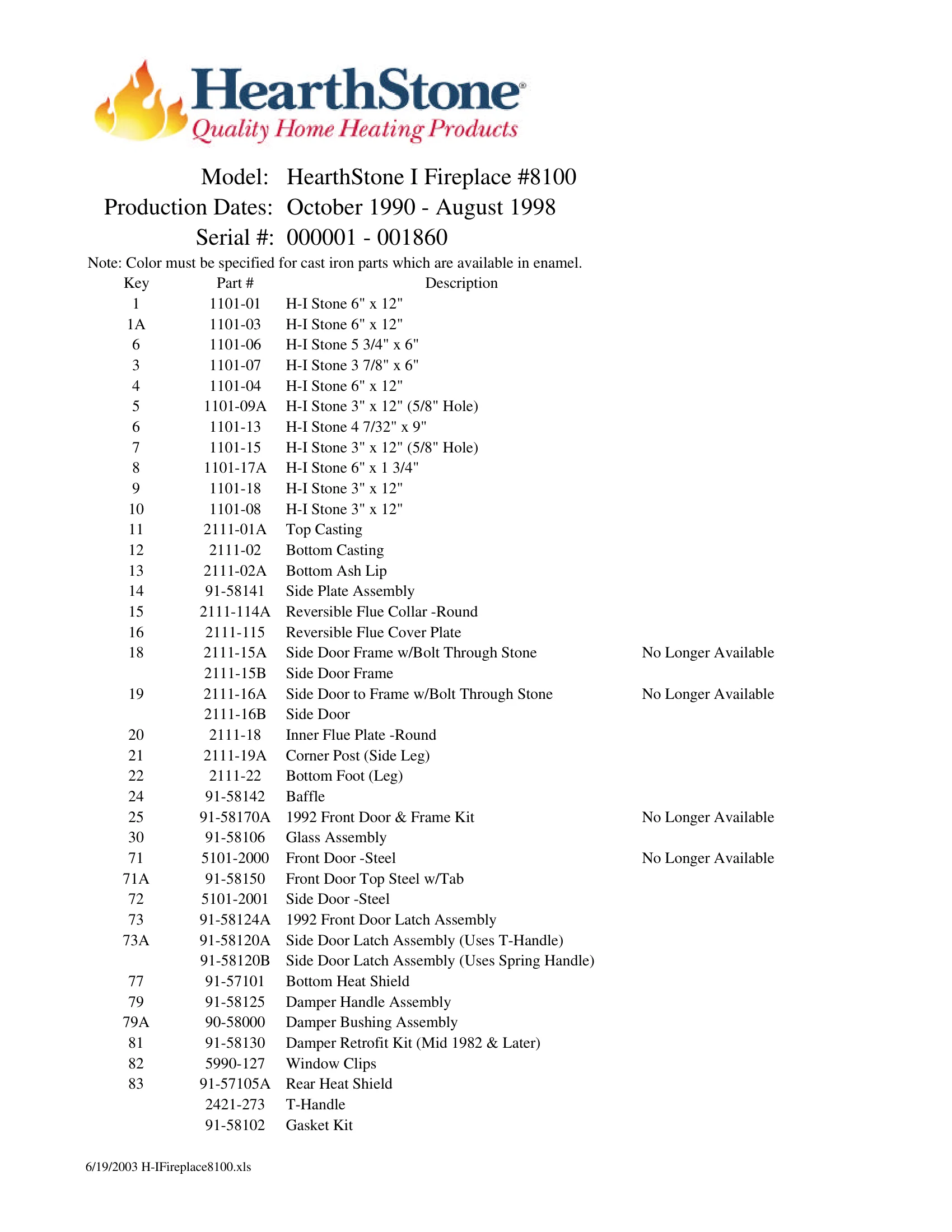

Model: HearthStone I Fireplace #8100 Production Dates: October 1990 - August 1998 Serial #: 000001 - 001860 Note: Color must be specified for cast iron parts which are available in enamel. Key Part # Description 1 1101-01 H-I Stone 6" x 12" 1A 1101-03 H-I Stone 6" x 12" 6 1101-06 H-I Stone 5 3/4" x 6" 3 1101-07 H-I Stone 3 7/8" x 6" 4 1101-04 H-I Stone 6" x 12" 5 1101-09A H-I Stone 3" x 12" (5/8" Hole) 6 1101-13 H-I Stone 4 7/32" x 9" 7 1101-15 H-I Stone 3" x 12" (5/8" Hole) 8 1101-17A H-I Stone 6" x 1 3/4" 9 1101-18 H-I Stone 3" x 12" 10 1101-08 H-I Stone 3" x 12" 11 2111-01A Top Casting 12 2111-02 Bottom Casting 13 2111-02A Bottom Ash Lip 14 91-58141 Side Plate Assembly 15 2111-114A Reversible Flue Collar -Round 16 2111-115 Reversible Flue Cover Plate 18 2111-15A Side Door Frame w/Bolt Through Stone No Longer Available 2111-15B Side Door Frame 19 2111-16A Side Door to Frame w/Bolt Through Stone No Longer Available 2111-16B Side Door 20 2111-18 Inner Flue Plate -Round 21 2111-19A Corner Post (Side Leg) 22 2111-22 Bottom Foot (Leg) 24 91-58142 Baffle 25 91-58170A 1992 Front Door & Frame Kit No Longer Available 30 91-58106 Glass Assembly 71 5101-2000 Front Door -Steel No Longer Available 71A 91-58150 Front Door Top Steel w/Tab 72 5101-2001 Side Door -Steel 73 91-58124A 1992 Front Door Latch Assembly 73A 91-58120A Side Door Latch Assembly (Uses T-Handle) 91-58120B Side Door Latch Assembly (Uses Spring Handle) 77 91-57101 Bottom Heat Shield 79 91-58125 Damper Handle Assembly 79A 90-58000 Damper Bushing Assembly 81 91-58130 Damper Retrofit Kit (Mid 1982 & Later) 82 5990-127 Window Clips 83 91-57105A Rear Heat Shield 2421-273 T-Handle 91-58102 Gasket Kit 6/19/2003 H-IFireplace8100.xls
