ヨツール I520（2026年版）

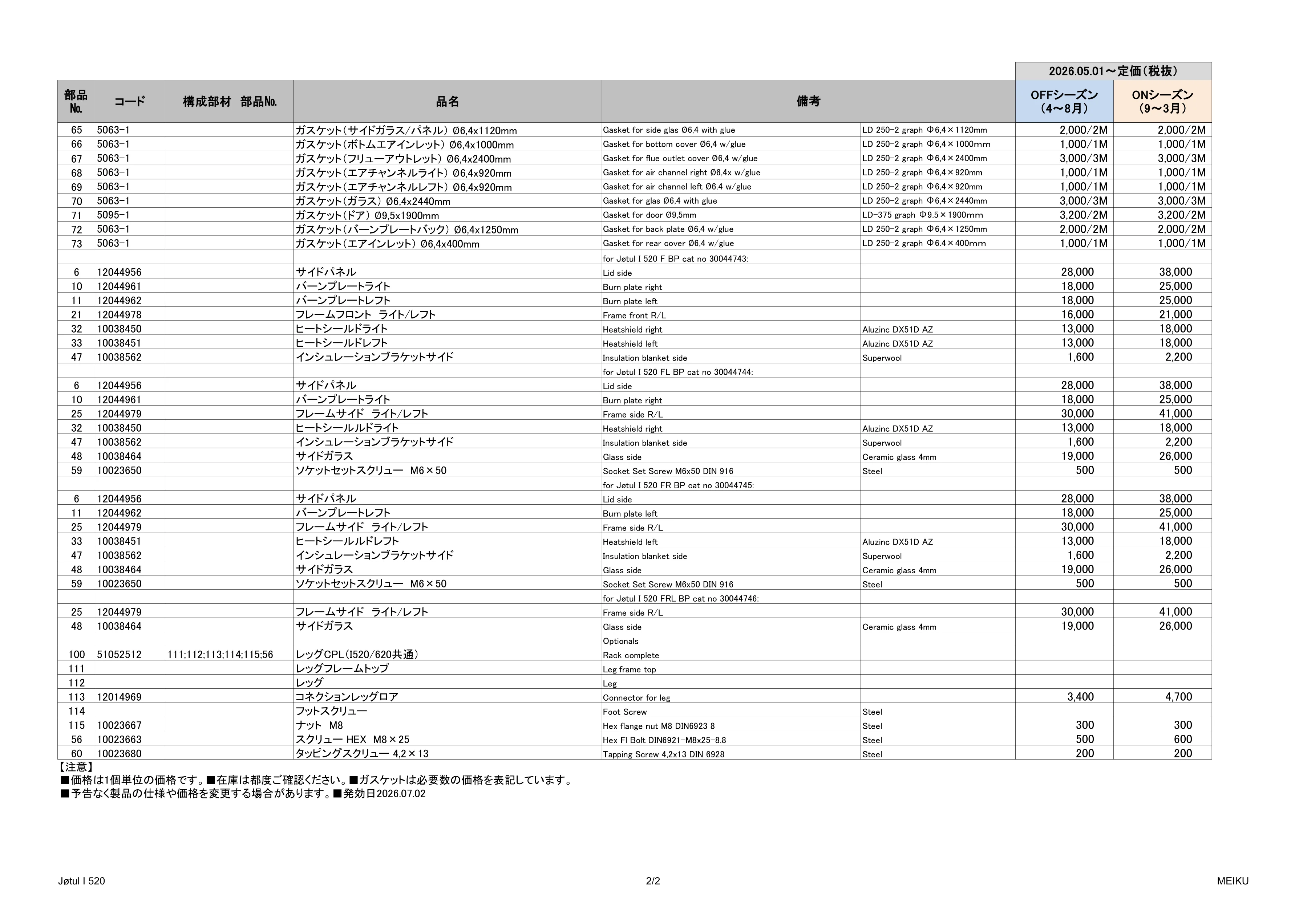

パーツリスト

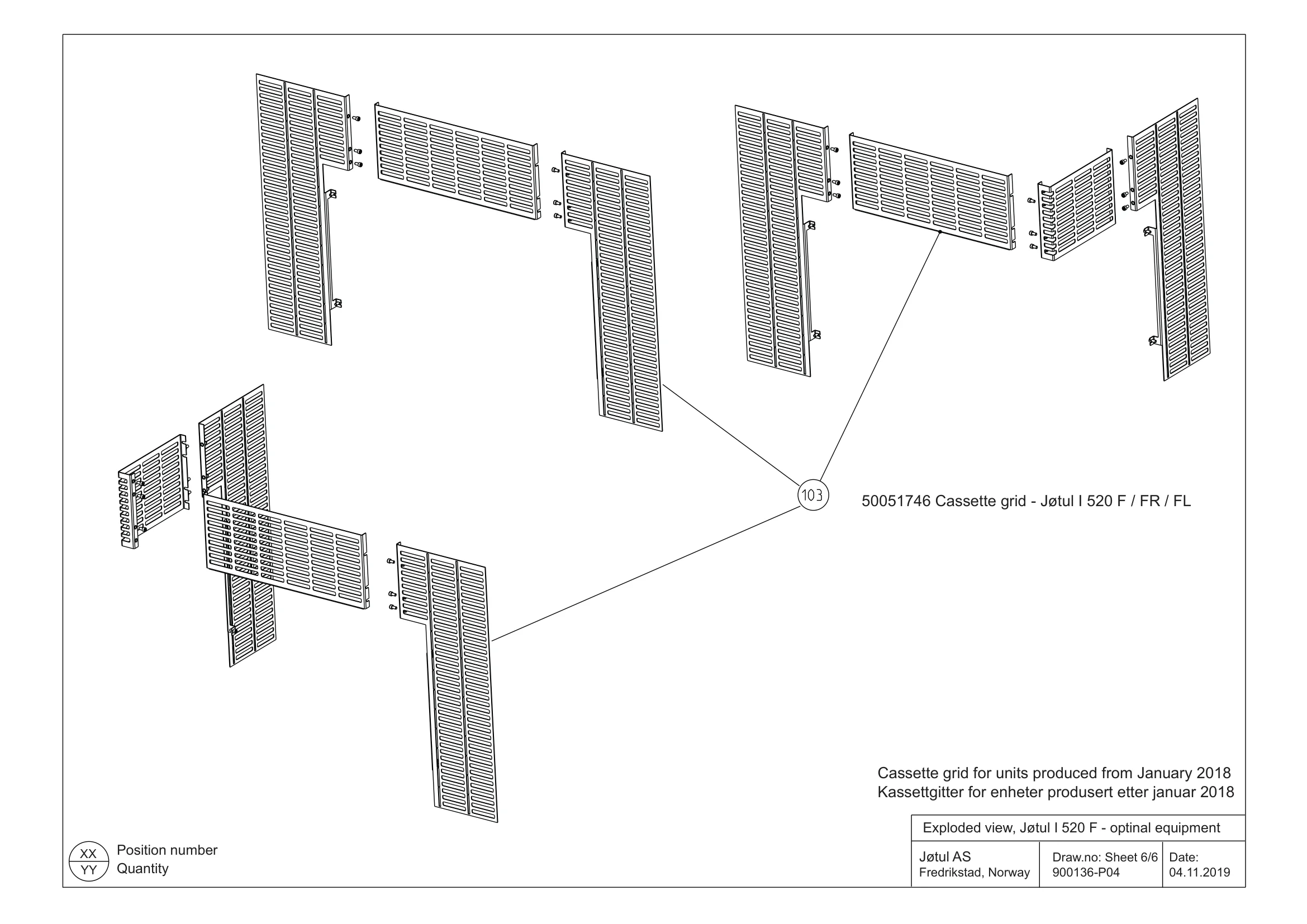

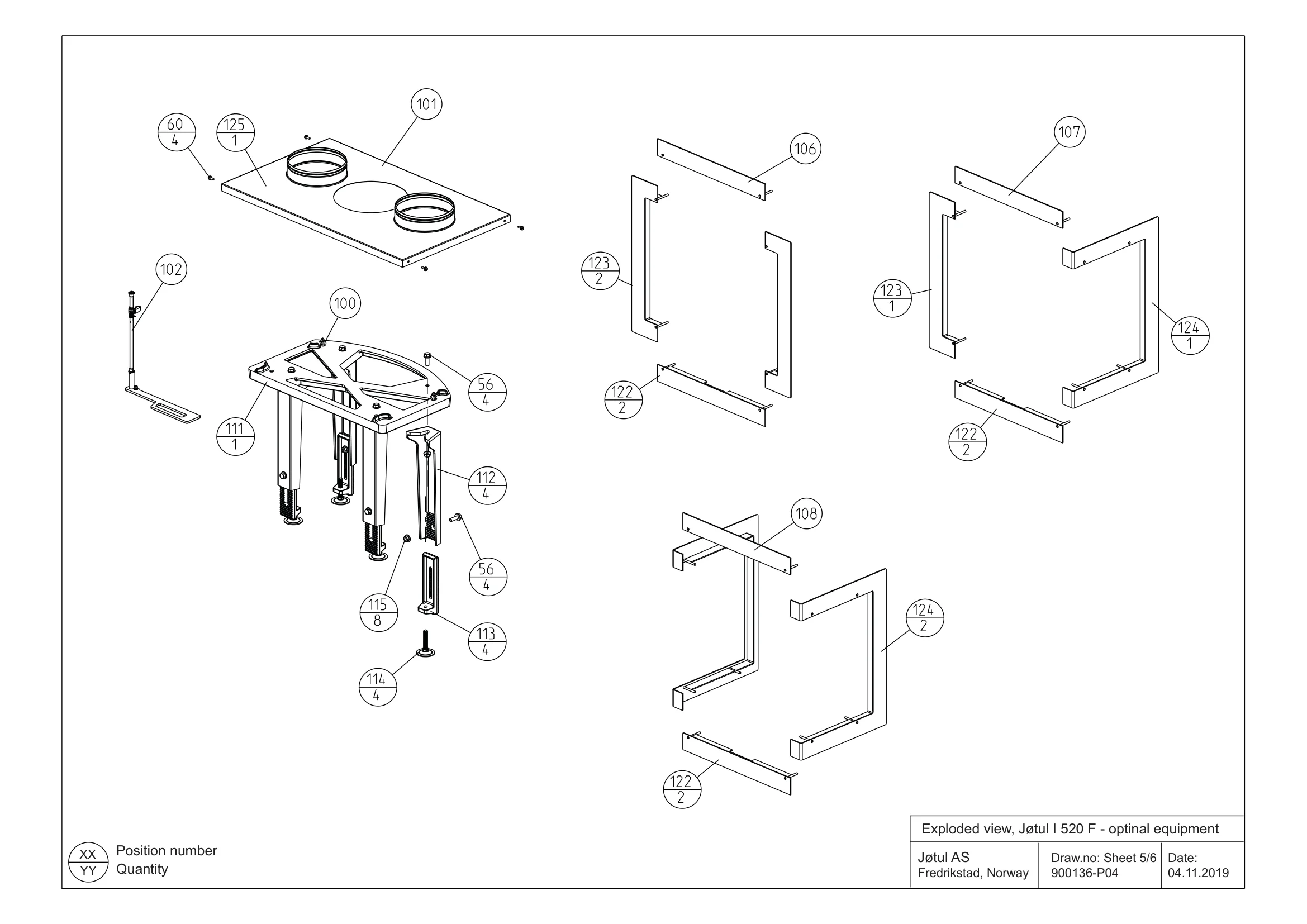

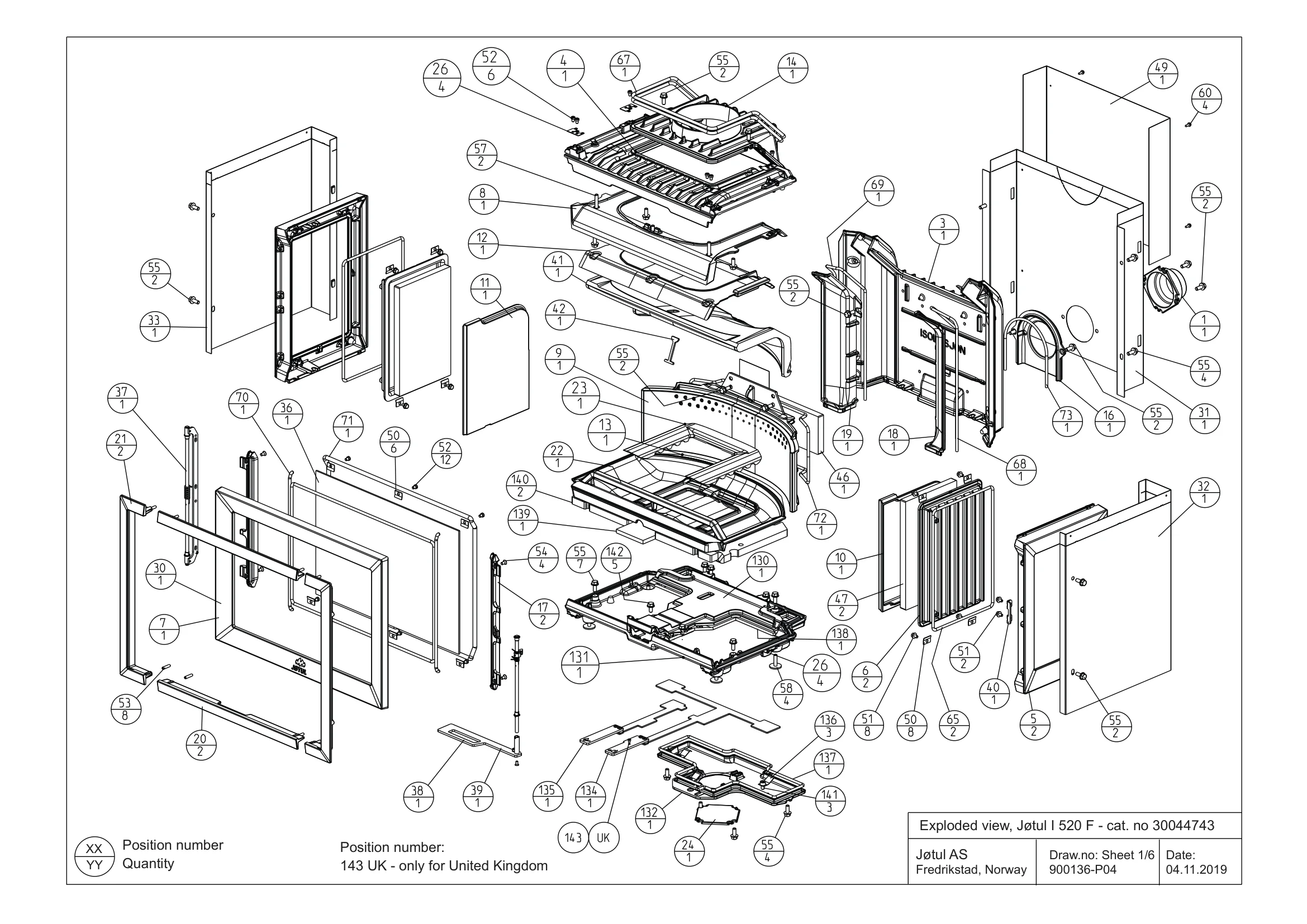

Exploded view, Jøtul I 520 F - cat. no 30044743 Jøtul AS Fredrikstad, Norway Draw.no: Sheet 1/6 900136-P04 Date: 04.11.2019 XX YY Position number Quantity Position number: 143 UK - only for United Kingdom XX YY Position number Quantity Position number: 143 UK - only for United Kingdom Exploded view, Jøtul I 520 F - cat. no 30044743 Jøtul AS Fredrikstad, Norway Draw.no: Sheet 2/6 900136-P04 Date: 04.11.2019 XX YY Position number Quantity Position number: 143 UK - only for United Kingdom Exploded view, Jøtul I 520 F - cat. no 30044743 Jøtul AS Fredrikstad, Norway Draw.no: Sheet 3/6 900136-P04 Date: 04.11.2019 XX YY Position number Quantity Position number: 143 UK - only for United Kingdom Exploded view, Jøtul I 520 F - cat. no 30044743 Jøtul AS Fredrikstad, Norway Draw.no: Sheet 4/6 900136-P04 Date: 04.11.2019 XX YY Position number Quantity Exploded view, Jøtul I 520 F - optinal equipment Jøtul AS Fredrikstad, Norway Draw.no: Sheet 5/6 900136-P04 Date: 04.11.2019 XX YY Position number Quantity 50051746 Cassette grid - Jøtul I 520 F / FR / FL Cassette grid for units produced from January 2018 Kassettgitter for enheter produsert etter januar 2018 Exploded view, Jøtul I 520 F - optinal equipment Jøtul AS Fredrikstad, Norway Draw.no: Sheet 6/6 900136-P04 Date: 04.11.2019 Pos. no. Spareparts Consist of pos.no: Benevnelse Description Dim./Spec. Felles deler 1 12044799 Stuss uteluft Ø80/100 Inlet Air Ø80/100 Cast Iron min 4mm thickness 2 12044952 Bunnplate Bottom Plate Cast Iron min 4mm thickness 3 12044953 Bakplate Rear Plate Cast Iron min 4mm thickness 4 12044954 Topplate Pre. Feb. 2018 Utgått Top Plate Pre. Feb 2018 discontinued Cast Iron min 4mm thickness 4 12052982 TOPPLATE MED KLIPS I520 ny Feb.2018 Top Plate with clip New Feb. 2018 Cast Iron min 4mm thickness 5 12044980 Sidestykke Side Plate Cast Iron min 4mm thickness 6 7 12044824 Dør Door Cast Iron min 4mm thickness 8 12044959 Spylebrem Flushing Brim Cast Iron min 4mm thickness 9 12044960 Brennplate bakre Burn Plate Rear Cast Iron min 4mm thickness 10 11 12 12044963 Ledeplate Deflector Cast Iron min 4mm thickness 13 12044964 Fyrbunn Inner Bottom Cast Iron min 4mm thickness 14 12044965 Røkkloke Flue Outlet Cast Iron min 4mm thickness 15 12044966 Bunndeksel Bottom Lid Cast Iron min 4mm thickness 16 12044967 Bakdeksel Rear Cover Cast Iron min 4mm thickness 17 12044968 Dørlist Door List Cast Iron min 4mm thickness 18 12044969 Luftkanal høyre Air Channel Right Cast Iron min 4mm thickness 19 12044970 Luftkanal venstre Air Channel Left Cast Iron min 4mm thickness 20 12044977 Ramme topp/bunn Frame Topp / Bottom Cast Iron min 4mm thickness 21 22 12067373 Kubbestopper Log Retainer Cast Iron min 4mm thickness 23 12044975 Luftkanal fyrbunn Air Distributor Bottom Cast Iron min 4mm thickness 24 12044855 Lokk uteluft Ø80/100 Lid Air Ø80/100 Cast Iron min 4mm thickness 25 26 10051708 RAMMEFESTE I 520/620 Frame clip I520/I620 29 10045737 Skjermplate topp Heat Shield Top Aluzinc DX51D AZ 30 12044981 Dør komplett Door Complete Cast Iron min 4mm thickness 31 10038449 Skjermplate bakre Heatshild Rear Aluzinc DX51D AZ 34 10038459 Ventil opptenning komplett Valve Ignition Complete Steel 35 10038460 Ventil primærluft komplett Valve Primary Air Complete Steel 36 10038463 Glass dør Glas Door Ceramic glass 4mm 37 10038474 Dørhengsel komplett Door Hinge Complete Steel 38 10038478 Dørlås komplett høyre Door Lock Complete Right Steel 39 10038480 Dørhåndtak komplett høyre Door Handle Complete Right Steel 40 10038490 Beslag dørlås Bracket Door Lock Steel 41 10038499 Hvelv Baffle Vermiculite 42 10038553 Hvelvlås Baffle Lock Stainless AISI 316 43 10038555 Ventilhåndtak opptenning Valve Handele Ignition Steel 44 10038557 Ventilhåndtak primærluft Velve Handle Primary Air Steel 45 10038560 Isol. matte fyrbunn Insul. Blanket Base Plate Superwool 46 10038561 Isol. matte bak Insul. Blanket Rear Superwool Jøtul I 520 F BP cat no 30044743, Jøtul I 520 FL BP cat no 30044744, Jøtul I 520 FR BP cat no 30044745, Jøtul I 520 FRL BP cat no 30044746 BP= Sort lakk/Black Paint Jøtul I 520 konseptet Spareparts_I 520_900139-P07 10.12.2025 1 Pos. no. Spareparts Consist of pos.no: Benevnelse Description Dim./Spec. Jøtul I 520 F BP cat no 30044743, Jøtul I 520 FL BP cat no 30044744, Jøtul I 520 FR BP cat no 30044745, Jøtul I 520 FRL BP cat no 30044746 BP= Sort lakk/Black Paint Jøtul I 520 konseptet 47 48 49 10038550 Skjermplate forlenger Heatshield Extention Aluzinc DX51D AZ 50 10026601 Glassklips I570 25X18 Glass Clip I570 25X18 Stainless Steel 51 10023544 6kt skr m/fl M6x10 DIN6921 8.8 Hex Fl Bolt DIN6921-M6x10-8.8 Steel 52 10023561 Skrue sylh inn6k DIN7984 M6x8-8.8 Hex Socket Head Cap Screw DIN7984 M6x8-8.8 Steel 53 10023576 Skrue sett M6x25 DIN916 Threadpin M6x25 DIN916 Steel 54 10023586 Skrue senkh innv6k DIN7991 M6x12-10.9 Flat Head Countersunk Socket DIN7991 M6x12-10.9 Steel 55 10023662 6kt skr m/fl M8x20 DIN6921 8.8 Hex Fl Bolt DIN6921-M8x20-8.8 Steel 56 10023663 6kt skr m/fl M8x25 DIN6921 8.8 Hex Fl Bolt DIN6921-M8x25-8.8 Steel 57 10023665 6kt skr m/fl M8x40 DIN6921 8.8 Hex Fl Bolt DIN6921-M8x40-8.8 Steel 58 10038419 Høydejusteringsskrue M8x30 Hight Adjustment Screw M8x30 Steel 59 60 10023680 Skrue platesekskant flens 4,2x13 DIN 6928 Tapping Screw 4,2x13 DIN 6928 Steel 61 10023588 Skrue sylh innv6k DIN 912 M6x12 Hex Socket Head Cap Screw DIN 912 M6x12 Steel 62 10023559 Skive Ø8,4xØ20x1,5 St 8,8 Elzn Washer Ø8,4xØ20x1,5 St 8,8 Elzn Steel 65 10025214 Pakn for sideglass/brennplate Ø6,4 m/lim Gasket for side glas Ø6,4 with glue LD 250-2 graph Ø6,4x1120mm 66 10025214 Pakn for bunndeksel Ø6,4 m/lim Gasket for bottom cover Ø6,4 w/glue LD 250-2 graph Ø6,4x1000mm 67 10025214 Pakn for røykkloke Ø6,4 m/lim Gasket for flue outlet cover Ø6,4 w/glue LD 250-2 graph Ø6,4x2400mm 68 10025214 Pakn for luftkanal høyre Ø6,4 m/lim Gasket for air channel right Ø6,4x w/glue LD 250-2 graph Ø6,4x920mm 69 10025214 Pakn for luftkanal venstre Ø6,4 m/lim Gasket for air channel left Ø6,4 w/glue LD 250-2 graph Ø6,4x920mm 70 10025214 Pakning for glass Ø6,4 m/lim Gasket for glas Ø6,4 with glue LD 250-2 graph Ø6,4x2440mm 71 10025181 Pakn snor for dør Ø9,5mm Gasket for door Ø9,5mm LD-375 graph Ø9,5x1900mm 72 10025214 Pakn for bakplate Ø6,4 m/lim Gasket for back plate Ø6,4 w/glue LD 250-2 graph Ø6,4x1250mm 73 10025214 Pakn for bakdeksel Ø6,4 m/lim Gasket for rear cover Ø6,4 w/glue LD 250-2 graph Ø6,4x400mm 130 12047292 Ventildeksel Innv. MK2 Valve Cover Int. MK2 Cast Iron min 4mm thickness 131 12047251 Bunnplate MK2 Pre. Feb. 2018 Utgått Bottom Plate MK2 Pre. Feb 2018 discontinued Cast Iron min 4mm thickness 131 12052981 BUNNPLATE MED KLIPS I520 MK2 Ny Feb. 2018 Bottom Plate with clip MK2 New. Feb 2018 Cast Iron min 4mm thickness 132 12047291 Bunndeksel MK2 Bottom Cover MK2 Cast Iron min 4mm thickness 134 10047777 Ventil primær kompl MK2 Valve Assembly Primary MK2 Steel 135 10047776 Ventil oppten. kompl MK2 Valve Assembly Ignite MK2 Steel 136 10047202 Ventilfjær Valve Spring Steel 137 10025214 Pakn for bunndeksel Ø6,4 m/lim Gasket for Bottom Cover Ø6,4 w/glue LD 250-2 graph Ø6,4x1230mm 138 10025214 Pakn for ventildeksel Ø6,4 m/lim Gasket for Valve Cover Ø6,4 w/glue LD 250-2 graph Ø6,4x1380mm 139 10048199 Isolasjonsmatte fyrbunn mittstykke Insulation Mid Blanket Base Plate Superwool 140 10048198 Isolasjonsmatte fyrbunn side Insulation Blanket Base Plate Side Superwool 141 10023599 Skrue sylh innv6k-DIN912- M8x12-8.8 Hex Socket Head Cap Screw- DIN912- M8x12-8.8 Steel 142 10023661 6kt skr m/fl - DIN6921-M8x16-8.8 Hex FL Bolt DIN6921 M8x16-8.8 Steel 143 10048606 Skrue sylh innv6kLavH-DIN7984- M4x6 -8.8 Hex Soket Head Cap Screw DIN7984-M4x6-8.8 Steel for Jøtul I 520 F BP cat no 30044743: 6 12044956 Lokk side Lid side Cast Iron min 4mm thickness 10 12044961 Brennplate høyre Burn plate right Cast Iron min 4mm thickness Spareparts_I 520_900139-P07 10.12.2025 2 Pos. no. Spareparts Consist of pos.no: Benevnelse Description Dim./Spec. Jøtul I 520 F BP cat no 30044743, Jøtul I 520 FL BP cat no 30044744, Jøtul I 520 FR BP cat no 30044745, Jøtul I 520 FRL BP cat no 30044746 BP= Sort lakk/Black Paint Jøtul I 520 konseptet 11 12044962 Brennplate venstre Burn plate left Cast Iron min 4mm thickness 21 12044978 Ramme front H/V Frame front R/L Cast Iron min 4mm thickness 32 10038450 Skjermplate høyre Heatshield right Aluzinc DX51D AZ 33 10038451 Skjermplate venstre Heatshield left Aluzinc DX51D AZ 47 10038562 Isolasjonsmatte side Insulation blanket side Superwool for Jøtul I 520 FL BP cat no 30044744: 6 12044956 Lokk side Lid side Cast Iron min 4mm thickness 10 12044961 Brennplate høyre Burn plate right Cast Iron min 4mm thickness 25 12044979 Ramme side H/V Frame side R/L Cast Iron min 4mm thickness 32 10038450 Skjermplate høyre Heatshield right Aluzinc DX51D AZ 47 10038562 Isolasjonsmatte side Insulation blanket side Superwool 48 10038464 Glass side Glass side Ceramic glass 4mm 59 10023650 Skrue sett M6x50 DIN 916 Socket Set Screw M6x50 DIN 916 Steel for Jøtul I 520 FR BP cat no 30044745: 6 12044956 Lokk side Lid side Cast Iron min 4mm thickness 11 12044962 Brennplate venstre Burn plate left Cast Iron min 4mm thickness 25 12044979 Ramme side H/V Frame side R/L Cast Iron min 4mm thickness 33 10038451 Skjermplate venstre Heatshield left Aluzinc DX51D AZ 47 10038562 Isolasjonsmatte side Insulation blanket side Superwool 48 10038464 Glass side Glass side Ceramic glass 4mm 59 10023650 Skrue sett M6x50 DIN 916 Socket Set Screw M6x50 DIN 916 Steel for Jøtul I 520 FRL BP cat no 30044746: 25 12044979 Ramme side H/V Frame side R/L Cast Iron min 4mm thickness 48 10038464 Glass side Glass side Ceramic glass 4mm 59 10023650 Skrue sett M6x50 DIN 916 Socket Set Screw M6x50 DIN 916 Steel Ektsrautstyr Optionals 100 51044759 111;112;113;114;115;56 Benstativ komplett Rack complete 111 12044838 Benstativ topp Leg frame top Cast Iron min 4mm thickness 112 12016626 Ben Leg Cast Iron min 4mm thickness 113 12014969 Skjøtestykke for ben Connector for leg Cast Iron min 4mm thickness 114 10026167 Fotskrue Foot Screw Steel 115 10023667 6kt mutter m/f M8 DIN6923 8 Hex flange nut M8 DIN6923 8 Steel 56 10023663 6kt skr m/fl M8x25 DIN6921 8.8 Hex Fl Bolt DIN6921-M8x25-8.8 Steel Spareparts_I 520_900139-P07 10.12.2025 3 Pos. no. Spareparts Consist of pos.no: Benevnelse Description Dim./Spec. Jøtul I 520 F BP cat no 30044743, Jøtul I 520 FL BP cat no 30044744, Jøtul I 520 FR BP cat no 30044745, Jøtul I 520 FRL BP cat no 30044746 BP= Sort lakk/Black Paint Jøtul I 520 konseptet 101 50045755 Konveksjonstopp komplett I520 F Convection top complete I520 F 125 10066627 Konveksjonstopp m/stuss Convection top incl outlet Aluzink DX 51 D+AS 60 10023680 Skrue platesekskant flens 4,2x13 DIN 6928 Tapping Screw 4,2x13 DIN 6928 Steel 102 50045754 Dørlås komplett høyrehengsel I520 Door Lock Complete Right Hinge I520 103 50051746 Kassettrist I 520 FR/FL/F Cassette Grid I 520 FR/FL/F 106 50045750 122;123 Ramme bred I520 F Frame Wide I520 F 107 50045751 122;123;124 Ramme bred I520 FL/FR Frame Wide I520 FL/FR 108 50045752 122;124 Ramme bred I520 FRL Frame Wide I520 FRL 121 Skrue sylh innv6k DIN 912 M6x12 Hex Socket Head Cap Screw DIN 912 M6x12 Steel 122 Ramme bred front Frame Wide Front Steel 123 Ramme bred H/V Frame Wide R/L Steel 124 Ramme bred side H/V Frame Wide Side H/L Steel Spareparts_I 520_900139-P07 10.12.2025 4 Jøtul I 520 Konseptet Består av I 520 F BP cat.nr 30044743 - I 520 FL BP cat. Nr 30044744 - I 520 FR BP cat. Nr 30044745 I 520 FRL BP cat. No 30044746 BP Black Paint 部品 № コード 構成部材　部品№ 品名 OFFシーズン （4～8月） ONシーズン （9～3月） 1 12044799 外気導入アダプターФ80/100 Inlet Air Ø80/100 4,800 6,600 2 12044952 ボトムプレート Bottom Plate 89,000 123,000 3 12044953 リアプレート Rear Plate 78,000 108,000 4 12044954 トッププレート Top Plate 5 12044980 サイドプレート Side Plate 46,000 63,000 8 12044959 エアデフレクターアッパー Flushing Brim 27,000 36,000 9 12044960 バーンプレートリア Burn Plate Rear 40,000 54,000 12 12044963 エアデフレクターロア Deflector 45,000 62,000 13 12044964 インナーボトム Inner Bottom 63,000 87,000 14 12044965 フリューアウトレット Flue Outlet 40,000 54,000 16 12044967 リアカバー Rear Cover 11,000 15,000 17 12044968 ドアヒンジ Door List 5,300 7,300 18 12044969 エアチャンネルライト Air Channel Right 9,900 14,000 19 12044970 エアチャンネルレフト Air Channel Left 9,900 14,000 20 12044977 フレーム　トップ　ボトム Frame Topp / Bottom 13,000 18,000 22 12044974 ログリテイナー Log Retainer 5,500 7,500 23 12044975 エアディストリビューションボトム Air Distributor Bottom 5,000 6,900 24 12044844 外気導入カバーФ80/100 Lid Air Ø80/100 29 10045737 ヒートシールドトップ Heat Shield Top Aluzinc DX51D AZ 2,100 2,900 30 12044981 ドアCPL. Door Complete 137,000 188,000 31 10038449 ヒートシールドリア Heatshild Rear Aluzinc DX51D AZ 17,000 24,000 34 10038459 イグニッションバルブCPL. Valve Ignition Complete Steel 29,000 39,000 35 10038460 プライマリエアバルブCPL. Valve Primary Air Complete Steel 59,000 81,000 36 10038463 ガラス Glas Door Ceramic glass 4mm 22,000 31,000 37 10038474 ドアヒンジCPL. Door Hinge Complete Steel 15,000 20,000 38 10038478 ドアロックCPL.　ライト（ハンドルロック一式） Door Lock Complete Right Steel 28,000 39,000 39 10038480 ドアヒンジCPL.　ライト（ハンドル一式） Door Handle Complete Right Steel 14,000 18,000 40 10038490 ブラケットサイドドアロック Bracket Door Lock Steel 1,600 2,100 41 10038499 バッフル Baffle Vermiculite 18,000 24,000 42 10038553 バッフルロック Baffle Lock Stainless AISI 316 1,100 1,500 43 10038555 イグニッションバルブハンドル Valve Handele Ignition Steel 36,000 49,000 44 10038557 プライマリバルブハンドル Velve Handle Primary Air Steel 36,000 49,000 45 10038560 インシュレーションブラケット（ボトム用） Insul. Blanket Base Plate Superwool 5,000 6,900 46 10038561 インシュレーションブラケット（リア用） Insul. Blanket Rear Superwool 1,100 1,500 49 10038550 ヒートシールドエクステンション Heatshield Extention Aluzinc DX51D AZ 14,000 18,000 50 10026601 ガラスクリップ I570 　25×18 Glass Clip I570 25X18 Stainless Steel 700 700 51 10023544 スクリュー HEX　M6×10 Hex Fl Bolt DIN6921-M6x10-8.8 Steel 200 200 52 10023561 スクリュー M6×8 Hex Socket Head Cap Screw DIN7984 M6x8-8.8 Steel 200 200 53 10023576 スクリュー M6×25 Threadpin M6x25 DIN916 Steel 300 300 54 10023586 スクリュー M6×12 Flat Head Countersunk Socket DIN7991 M6x12-10.9 Steel 200 200 55 10023662 スクリュー HEX M8×20 Hex Fl Bolt DIN6921-M8x20-8.8 Steel 300 300 56 10023663 スクリュー HEX M8×25 Hex Fl Bolt DIN6921-M8x25-8.8 Steel 500 600 57 10023665 スクリュー HEX M8×40 Hex Fl Bolt DIN6921-M8x40-8.8 Steel 500 600 58 10038419 アジャスタブル　スクリュー M8×30 Hight Adjustment Screw M8x30 Steel 1,600 2,100 60 10023680 タッピングスクリュー 4,2×13 Tapping Screw 4,2x13 DIN 6928 Steel 200 200 61 10023588 スクリュー HEX ソケット　 M6×12 Hex Socket Head Cap Screw DIN 912 M6x12 Steel 100 100 62 10023559 ワッシャー　8.4xФ20x1.5 Washer Ø8,4xØ20x1,5 St 8,8 Elzn Steel 200 200 備考 2026.05.01～定価（税抜） Jøtul I 520 1/2 MEIKU 部品 № コード 構成部材　部品№ 品名 OFFシーズン （4～8月） ONシーズン （9～3月） 備考 2026.05.01～定価（税抜） 65 5063-1 ガスケット（サイドガラス/パネル） Ø6,4x1120mm Gasket for side glas Ø6,4 with glue LD 250-2 graph Ф6,4×1120mm 2,000/2M 2,000/2M 66 5063-1 ガスケット（ボトムエアインレット） Ø6,4x1000mm Gasket for bottom cover Ø6,4 w/glue LD 250-2 graph Ф6,4×1000ｍｍ 1,000/1M 1,000/1M 67 5063-1 ガスケット（フリューアウトレット） Ø6,4x2400mm Gasket for flue outlet cover Ø6,4 w/glue LD 250-2 graph Ф6,4×2400mm 3,000/3M 3,000/3M 68 5063-1 ガスケット（エアチャンネルライト） Ø6,4x920mm Gasket for air channel right Ø6,4x w/glue LD 250-2 graph Ф6,4×920mm 1,000/1M 1,000/1M 69 5063-1 ガスケット（エアチャンネルレフト） Ø6,4x920mm Gasket for air channel left Ø6,4 w/glue LD 250-2 graph Ф6,4×920mm 1,000/1M 1,000/1M 70 5063-1 ガスケット（ガラス） Ø6,4x2440mm Gasket for glas Ø6,4 with glue LD 250-2 graph Ф6,4×2440mm 3,000/3M 3,000/3M 71 5095-1 ガスケット（ドア） Ø9,5x1900mm Gasket for door Ø9,5mm LD-375 graph Ф9.5×1900ｍｍ 3,200/2M 3,200/2M 72 5063-1 ガスケット（バーンプレートバック） Ø6,4x1250mm Gasket for back plate Ø6,4 w/glue LD 250-2 graph Ф6,4×1250mm 2,000/2M 2,000/2M 73 5063-1 ガスケット（エアインレット） Ø6,4x400mm Gasket for rear cover Ø6,4 w/glue LD 250-2 graph Ф6.4×400ｍｍ 1,000/1M 1,000/1M for Jøtul I 520 F BP cat no 30044743: 6 12044956 サイドパネル Lid side 28,000 38,000 10 12044961 バーンプレートライト Burn plate right 18,000 25,000 11 12044962 バーンプレートレフト Burn plate left 18,000 25,000 21 12044978 フレームフロント　ライト/レフト Frame front R/L 16,000 21,000 32 10038450 ヒートシールドライト Heatshield right Aluzinc DX51D AZ 13,000 18,000 33 10038451 ヒートシールドレフト Heatshield left Aluzinc DX51D AZ 13,000 18,000 47 10038562 インシュレーションブラケットサイド Insulation blanket side Superwool 1,600 2,200 for Jøtul I 520 FL BP cat no 30044744: 6 12044956 サイドパネル Lid side 28,000 38,000 10 12044961 バーンプレートライト Burn plate right 18,000 25,000 25 12044979 フレームサイド　ライト/レフト Frame side R/L 30,000 41,000 32 10038450 ヒートシールルドライト Heatshield right Aluzinc DX51D AZ 13,000 18,000 47 10038562 インシュレーションブラケットサイド Insulation blanket side Superwool 1,600 2,200 48 10038464 サイドガラス Glass side Ceramic glass 4mm 19,000 26,000 59 10023650 ソケットセットスクリュー M6×50 Socket Set Screw M6x50 DIN 916 Steel 500 500 for Jøtul I 520 FR BP cat no 30044745: 6 12044956 サイドパネル Lid side 28,000 38,000 11 12044962 バーンプレートレフト Burn plate left 18,000 25,000 25 12044979 フレームサイド　ライト/レフト Frame side R/L 30,000 41,000 33 10038451 ヒートシールルドレフト Heatshield left Aluzinc DX51D AZ 13,000 18,000 47 10038562 インシュレーションブラケットサイド Insulation blanket side Superwool 1,600 2,200 48 10038464 サイドガラス Glass side Ceramic glass 4mm 19,000 26,000 59 10023650 ソケットセットスクリュー M6×50 Socket Set Screw M6x50 DIN 916 Steel 500 500 for Jøtul I 520 FRL BP cat no 30044746: 25 12044979 フレームサイド　ライト/レフト Frame side R/L 30,000 41,000 48 10038464 サイドガラス Glass side Ceramic glass 4mm 19,000 26,000 Optionals 100 51052512 111;112;113;114;115;56 レッグCPL（I520/620共通） Rack complete 111 レッグフレームトップ Leg frame top 112 レッグ Leg 113 12014969 コネクションレッグロア Connector for leg 3,400 4,700 114 フットスクリュー Foot Screw Steel 115 10023667 ナット　M8 Hex flange nut M8 DIN6923 8 Steel 300 300 56 10023663 スクリュー HEX M8×25 Hex Fl Bolt DIN6921-M8x25-8.8 Steel 500 600 60 10023680 タッピングスクリュー 4,2×13 Tapping Screw 4,2x13 DIN 6928 Steel 200 200 【注意】 ■価格は1個単位の価格です。■在庫は都度ご確認ください。■ガスケットは必要数の価格を表記しています。 ■予告なく製品の仕様や価格を変更する場合があります。■発効日2026.07.02 Jøtul I 520 2/2 MEIKU
