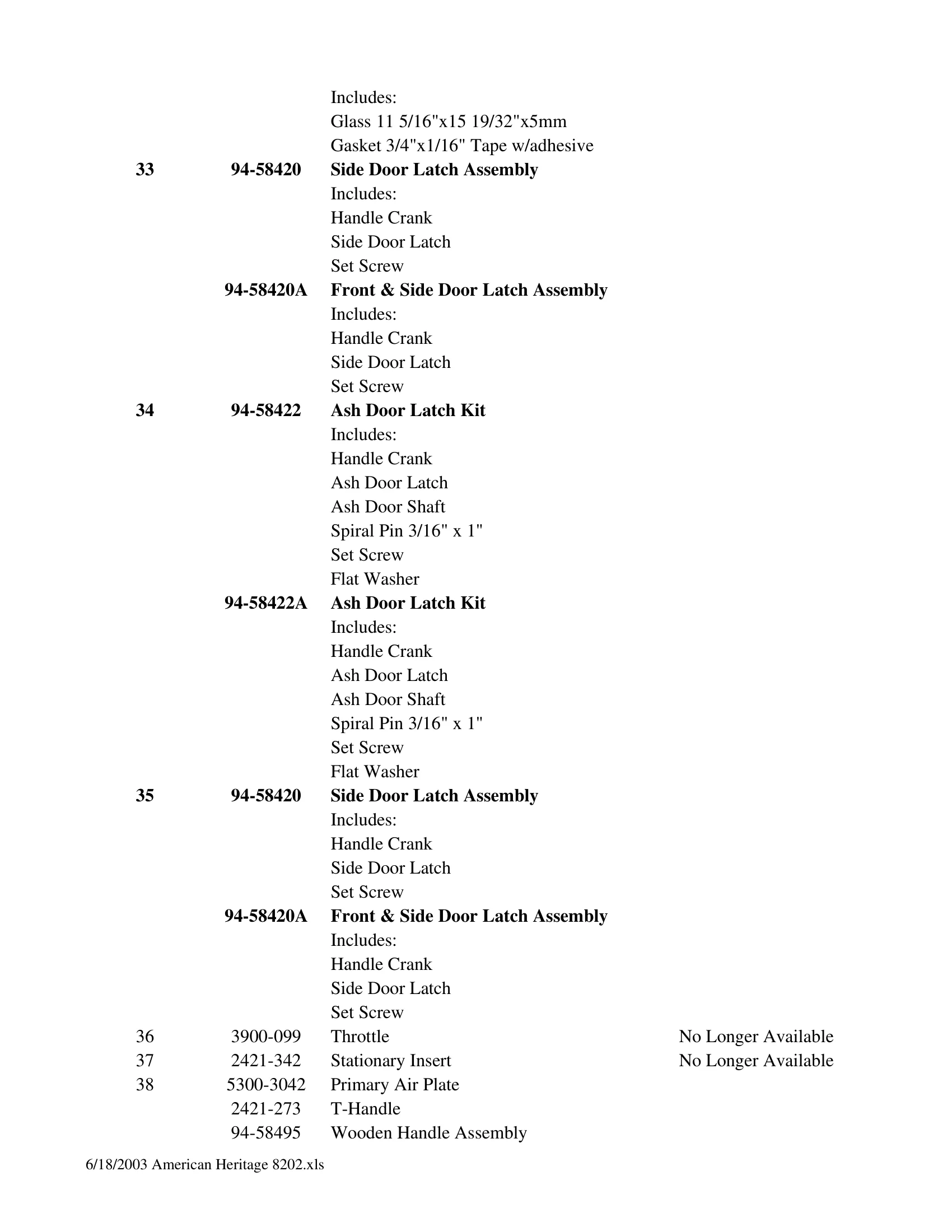

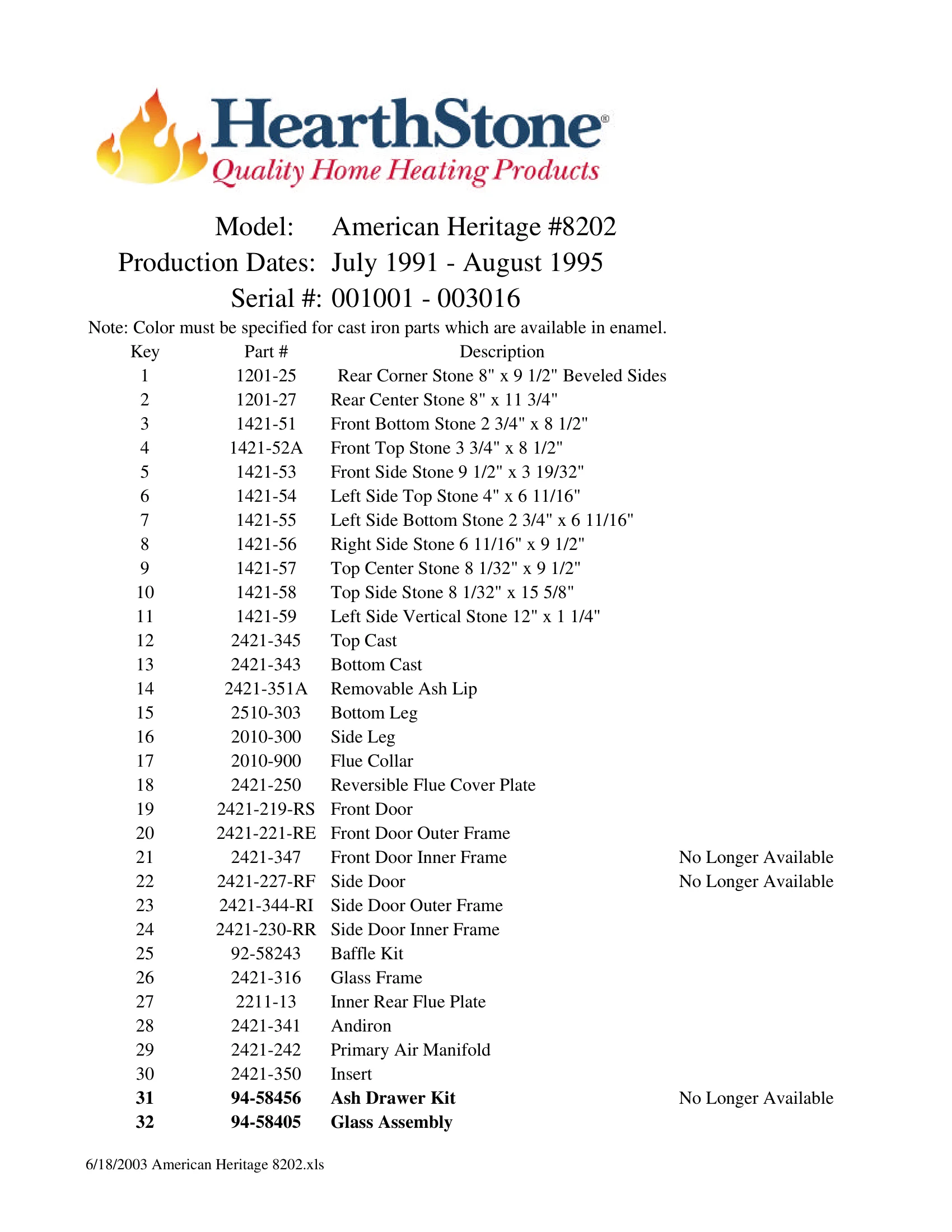

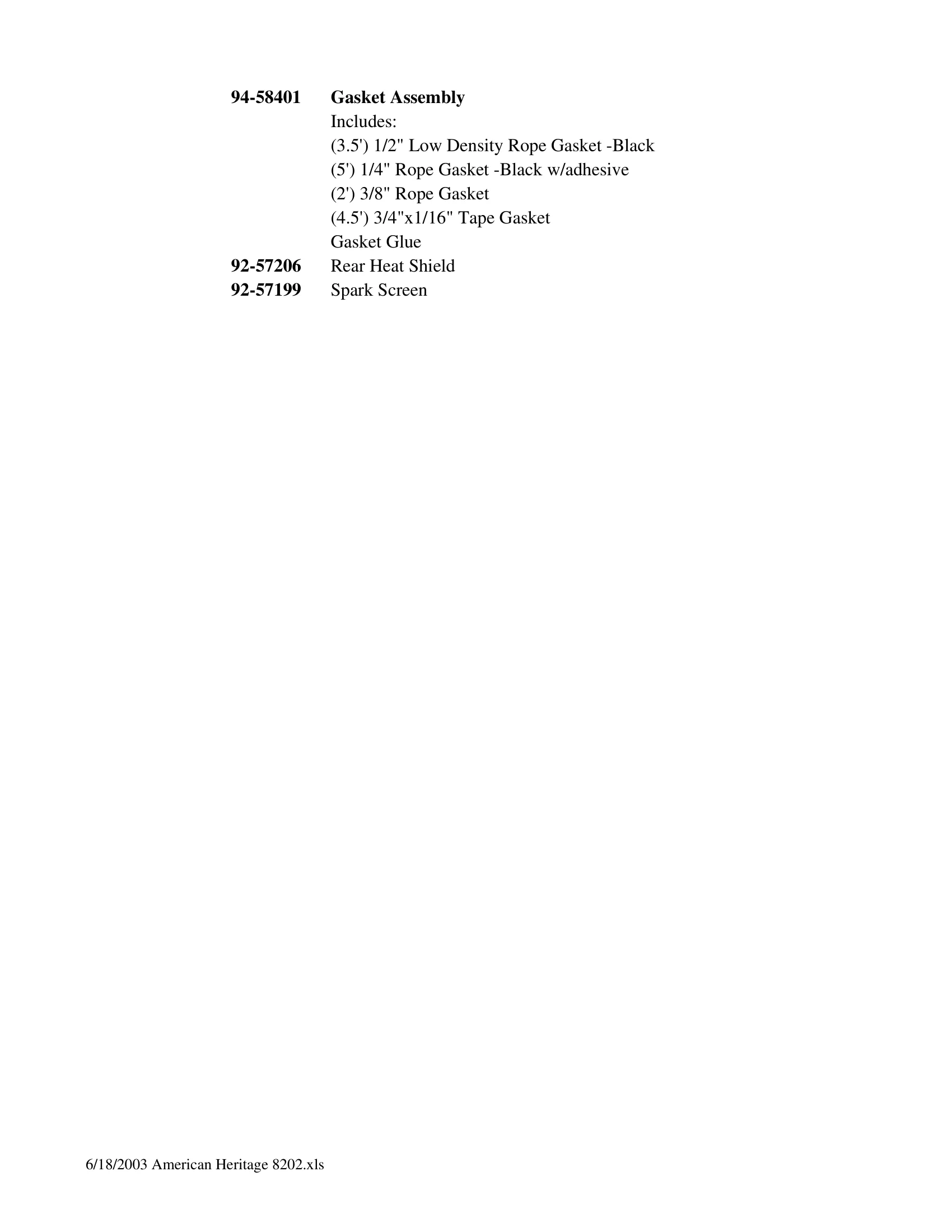

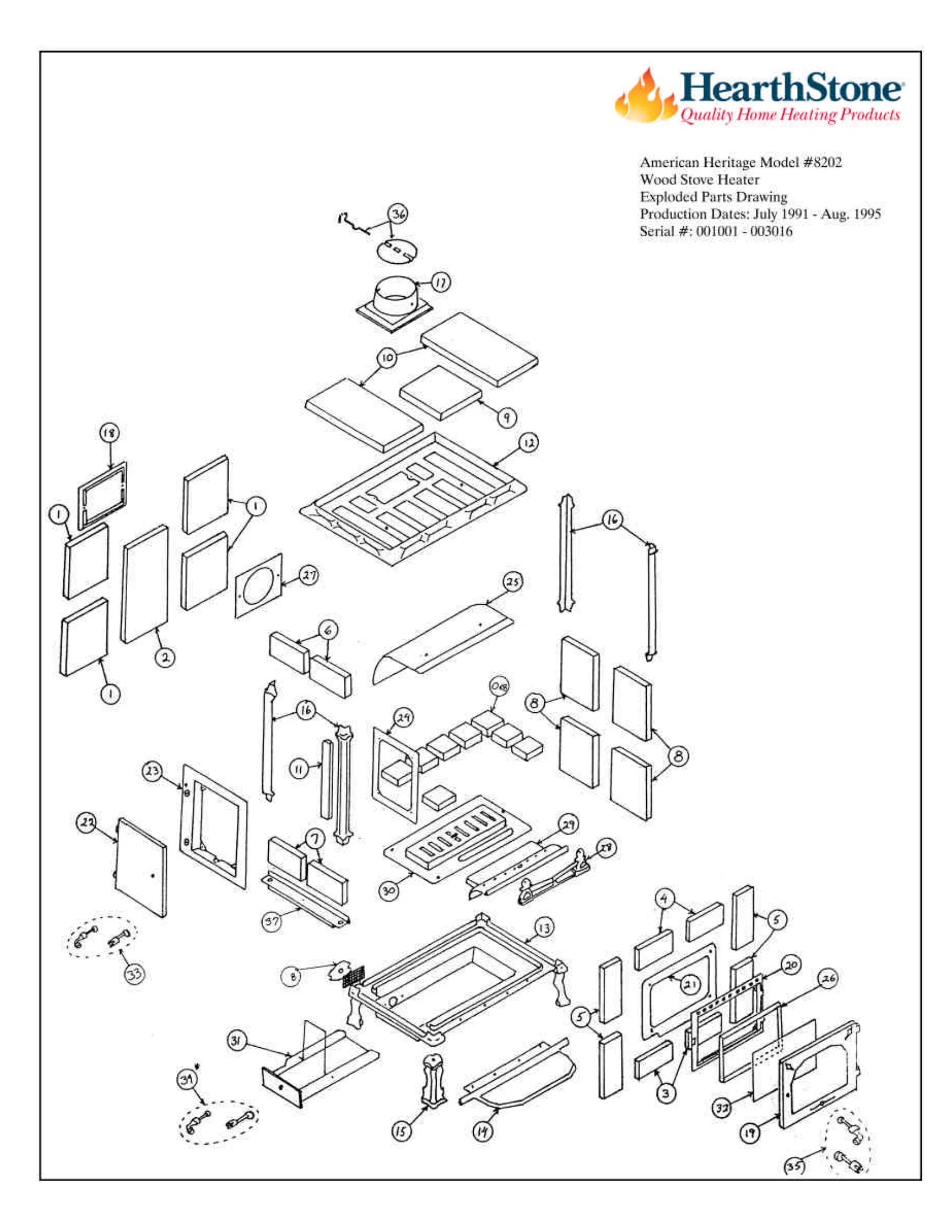

Model: American Heritage #8202 Production Dates: July 1991 - August 1995 Serial #: 001001 - 003016 Note: Color must be specified for cast iron parts which are available in enamel. Key Part # Description 1 1201-25 Rear Corner Stone 8" x 9 1/2" Beveled Sides 2 1201-27 Rear Center Stone 8" x 11 3/4" 3 1421-51 Front Bottom Stone 2 3/4" x 8 1/2" 4 1421-52A Front Top Stone 3 3/4" x 8 1/2" 5 1421-53 Front Side Stone 9 1/2" x 3 19/32" 6 1421-54 Left Side Top Stone 4" x 6 11/16" 7 1421-55 Left Side Bottom Stone 2 3/4" x 6 11/16" 8 1421-56 Right Side Stone 6 11/16" x 9 1/2" 9 1421-57 Top Center Stone 8 1/32" x 9 1/2" 10 1421-58 Top Side Stone 8 1/32" x 15 5/8" 11 1421-59 Left Side Vertical Stone 12" x 1 1/4" 12 2421-345 Top Cast 13 2421-343 Bottom Cast 14 2421-351A Removable Ash Lip 15 2510-303 Bottom Leg 16 2010-300 Side Leg 17 2010-900 Flue Collar 18 2421-250 Reversible Flue Cover Plate 19 2421-219-RS Front Door 20 2421-221-RE Front Door Outer Frame 21 2421-347 Front Door Inner Frame No Longer Available 22 2421-227-RF Side Door No Longer Available 23 2421-344-RI Side Door Outer Frame 24 2421-230-RR Side Door Inner Frame 25 92-58243 Baffle Kit 26 2421-316 Glass Frame 27 2211-13 Inner Rear Flue Plate 28 2421-341 Andiron 29 2421-242 Primary Air Manifold 30 2421-350 Insert 31 94-58456 Ash Drawer Kit No Longer Available 32 94-58405 Glass Assembly 6/18/2003 American Heritage 8202.xls Includes: Glass 11 5/16"x15 19/32"x5mm Gasket 3/4"x1/16" Tape w/adhesive 33 94-58420 Side Door Latch Assembly Includes: Handle Crank Side Door Latch Set Screw 94-58420A Front & Side Door Latch Assembly Includes: Handle Crank Side Door Latch Set Screw 34 94-58422 Ash Door Latch Kit Includes: Handle Crank Ash Door Latch Ash Door Shaft Spiral Pin 3/16" x 1" Set Screw Flat Washer 94-58422A Ash Door Latch Kit Includes: Handle Crank Ash Door Latch Ash Door Shaft Spiral Pin 3/16" x 1" Set Screw Flat Washer 35 94-58420 Side Door Latch Assembly Includes: Handle Crank Side Door Latch Set Screw 94-58420A Front & Side Door Latch Assembly Includes: Handle Crank Side Door Latch Set Screw 36 3900-099 Throttle No Longer Available 37 2421-342 Stationary Insert No Longer Available 38 5300-3042 Primary Air Plate 2421-273 T-Handle 94-58495 Wooden Handle Assembly 6/18/2003 American Heritage 8202.xls 94-58401 Gasket Assembly Includes: (3.5') 1/2" Low Density Rope Gasket -Black (5') 1/4" Rope Gasket -Black w/adhesive (2') 3/8" Rope Gasket (4.5') 3/4"x1/16" Tape Gasket Gasket Glue 92-57206 Rear Heat Shield 92-57199 Spark Screen 6/18/2003 American Heritage 8202.xls
